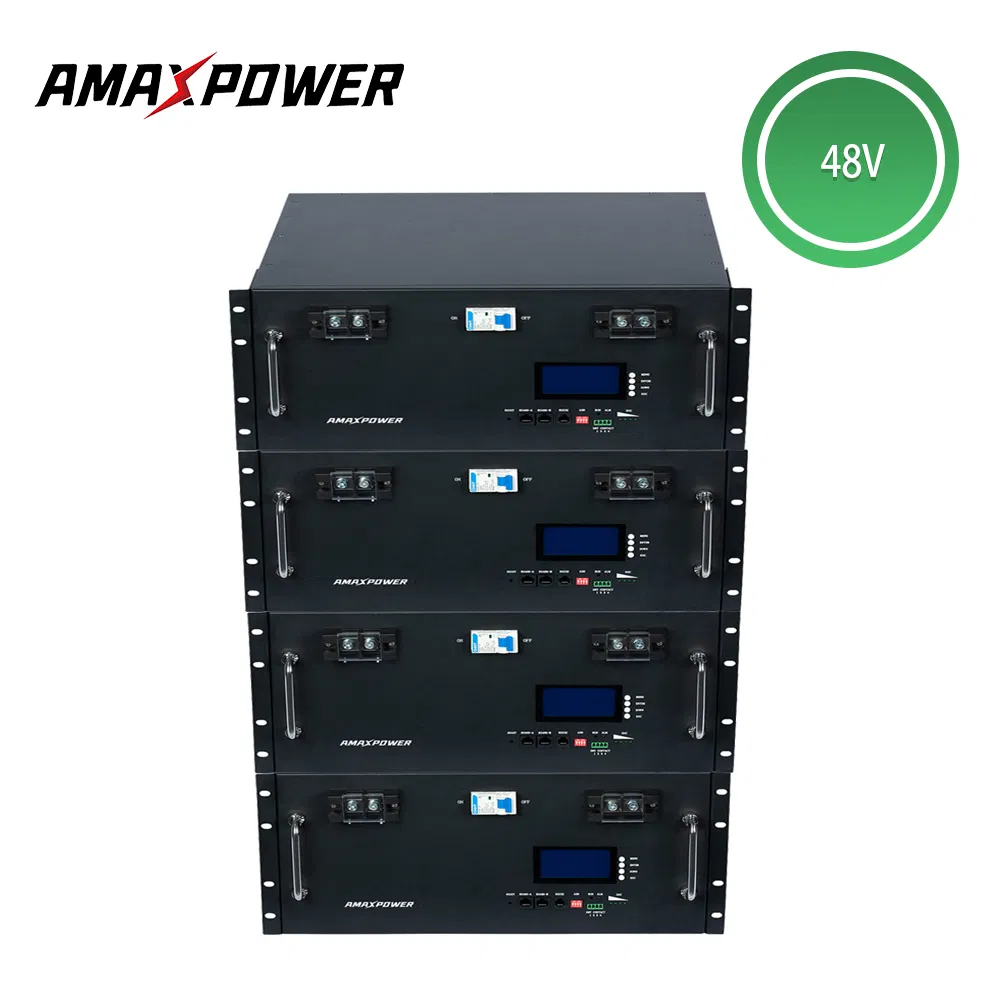

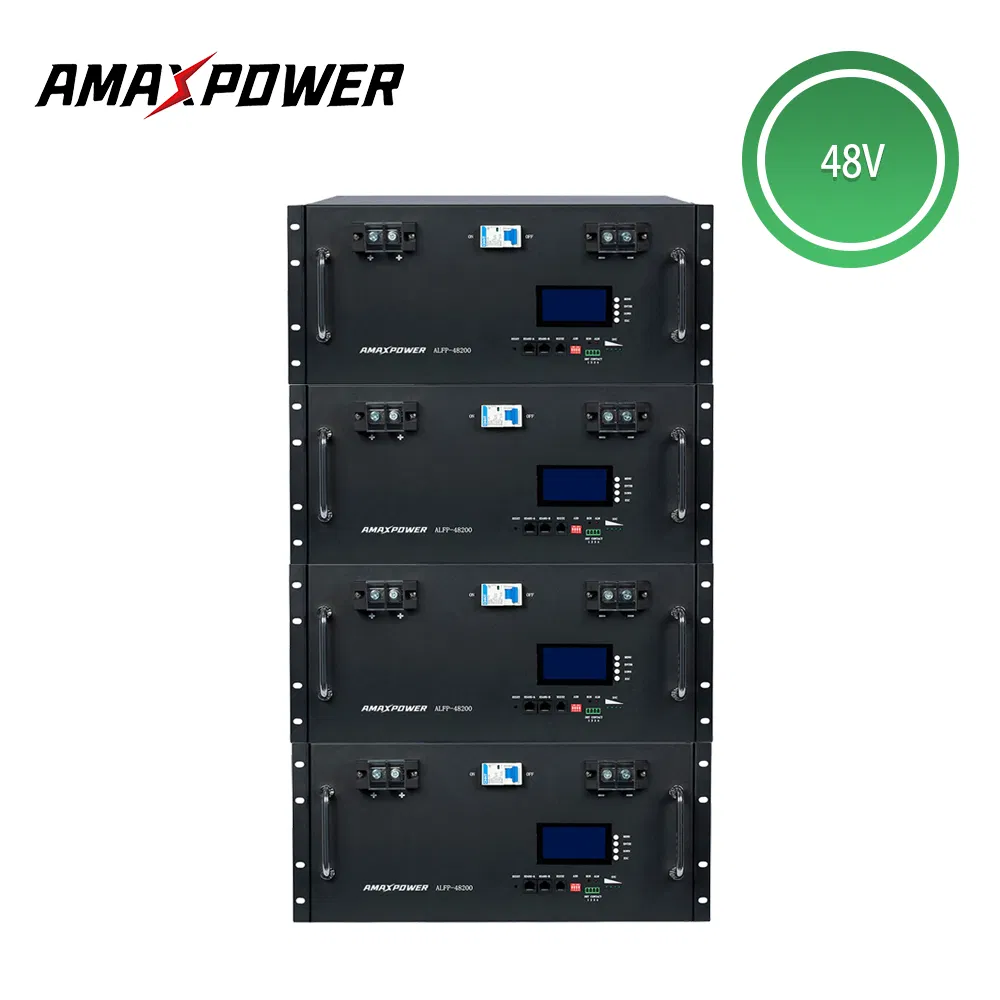

The ALFP Series Rack Mounted Lithium Battery is a high-performance 48V/51.2V system designed specifically for telecom base stations and communications backup. Utilizing advanced LiFePO4 (Lithium Iron Phosphate) technology, it offers a long cycle life, compact size, and exceptional safety. Engineered for harsh environments, it provides reliable power backup where safety and environmental protection are paramount.
Long-life prismatic LiFePO4 cells suitable for energy storage. Low voltage system ensures application safety. Certified with UN38.3, MSDS, and CE.

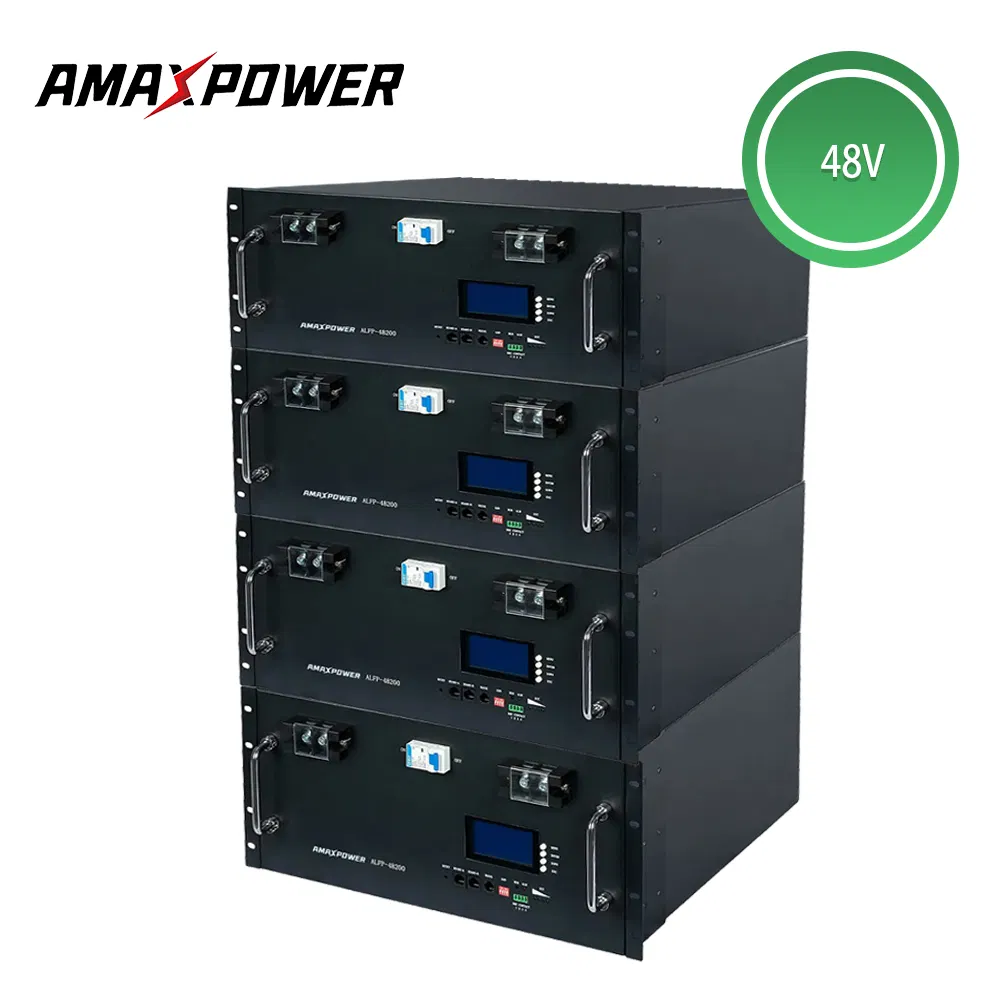

Standard 19" rack design for flexible installation. Supports parallel connection for scalable capacity. Maintenance-free operation across wide temperature ranges.

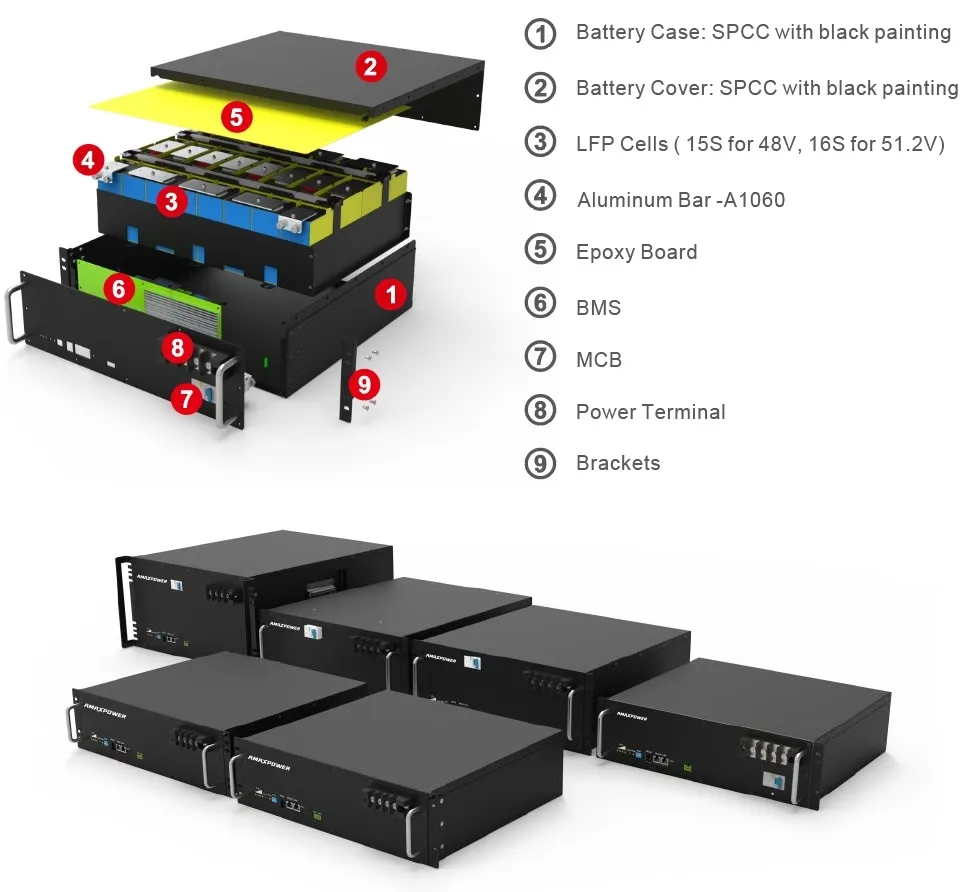

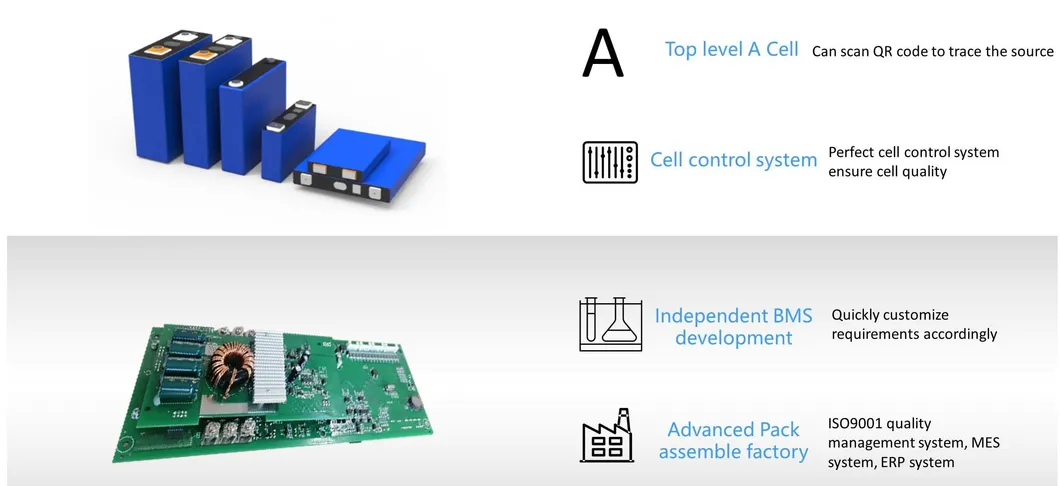

Integrated hardware BMS with independent protection for charge/discharge. Features OVP, LVP, OCP, OTP, and LTP protection with SOC/SOH display.
| SPECIFICATION | 48V 100Ah | 48V 150Ah | 48V 200Ah | 51.2V 100Ah | 51.2V 150Ah | 51.2V 200Ah |
|---|---|---|---|---|---|---|
| Nominal Energy | 4.8KWh | 7.2KWh | 9.6KWh | 5.12KWh | 7.68KWh | 10.24KWh |
| Dimensions | 442*133*450mm | 442*177*480mm | 442*222*480mm | 442*133*450mm | 442*177*480mm | 442*222*510mm |
| Weight | 43KG | 67KG | 80KG | 45KG | 70KG | 84KG |
| Cycle Life | ≥4000 cycles @100%DOD / ≥6000 cycles @80%DOD @25ºC | |||||
| Charging Voltage | 54.0V - 54.75V | |||||
| Protection | Overcharge, Overdischarge, Overcurrent, Short circuit, Overtemperature | |||||
| Warranty | 5 Years | |||||

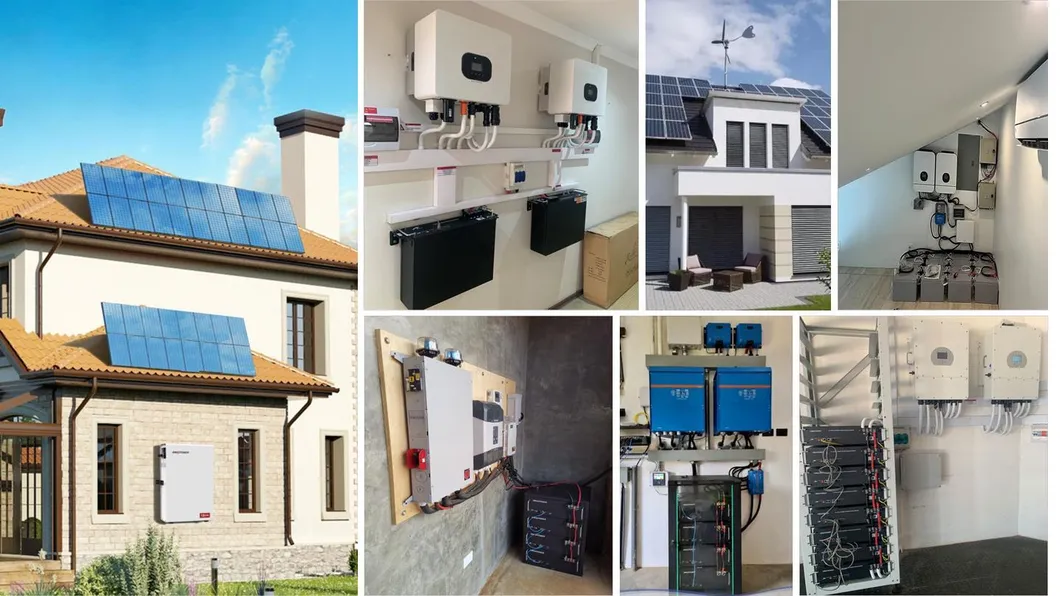

This rack-mounted series is versatile for various energy needs: Household solar systems, RV/Marine energy storage, low-speed vehicles, forklifts, solar street lights, communication base stations, UPS backup, and off-grid power generation.

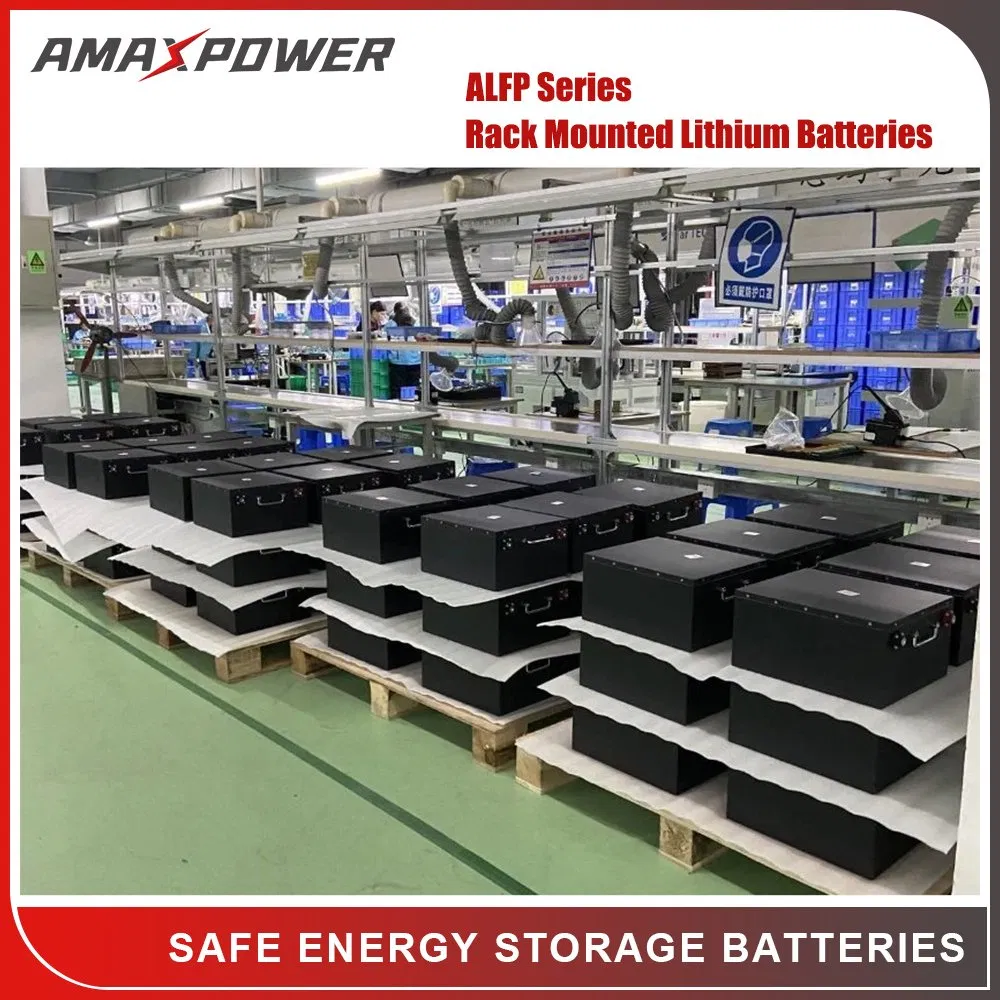

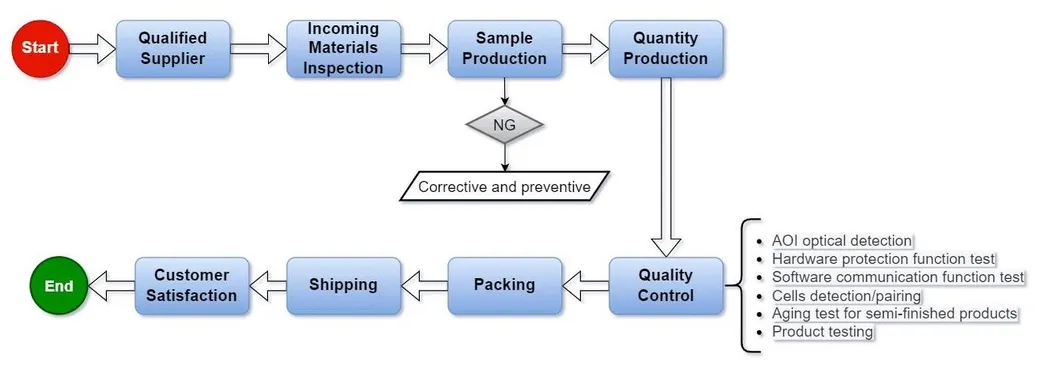

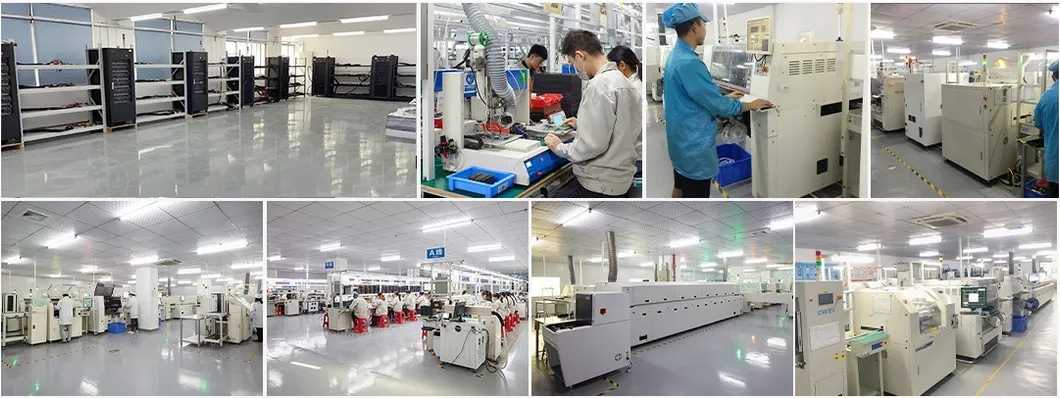

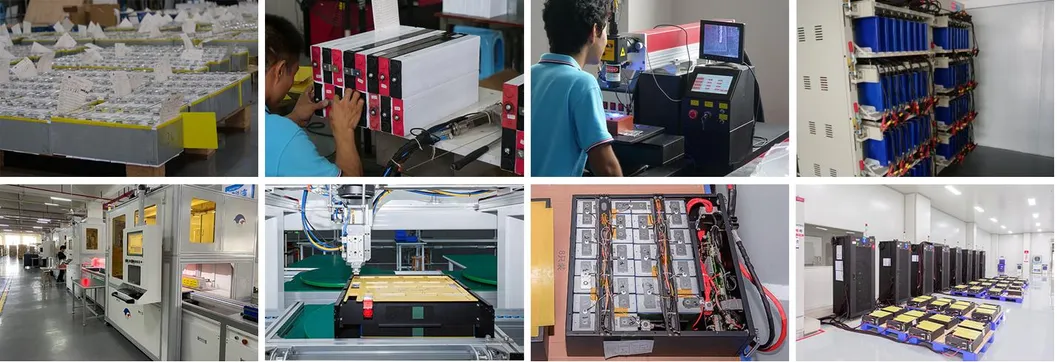

With over 17 years of industrial experience and a modern 500,000-square-meter industrial park, the production process utilizes automated lines and strict quality control management. All products pass rigorous testing including IQC, PQC, and OQC to ensure zero defects.

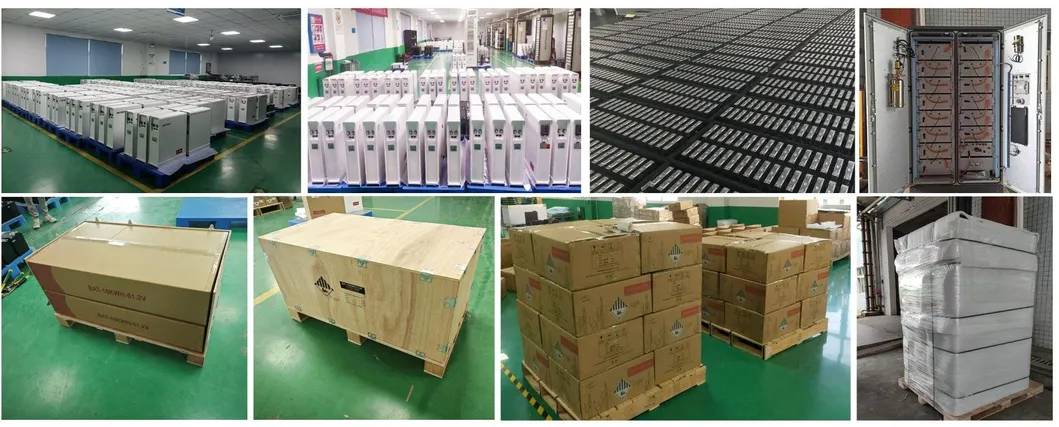

Hard carton and foam packaging, safe for international sea and air shipment.
Full MSDS and UN38.3 certifications provided for smooth customs clearance.
