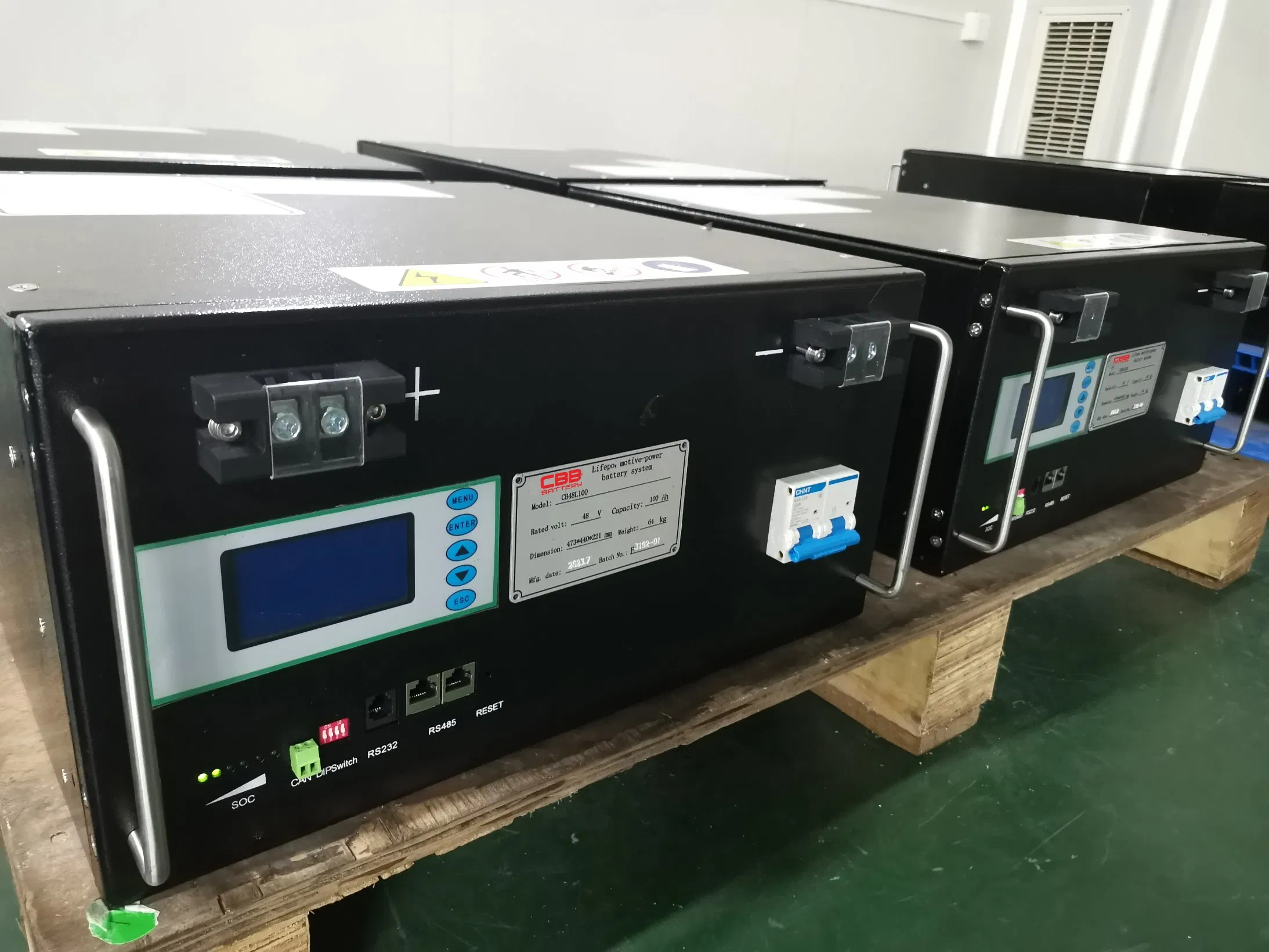

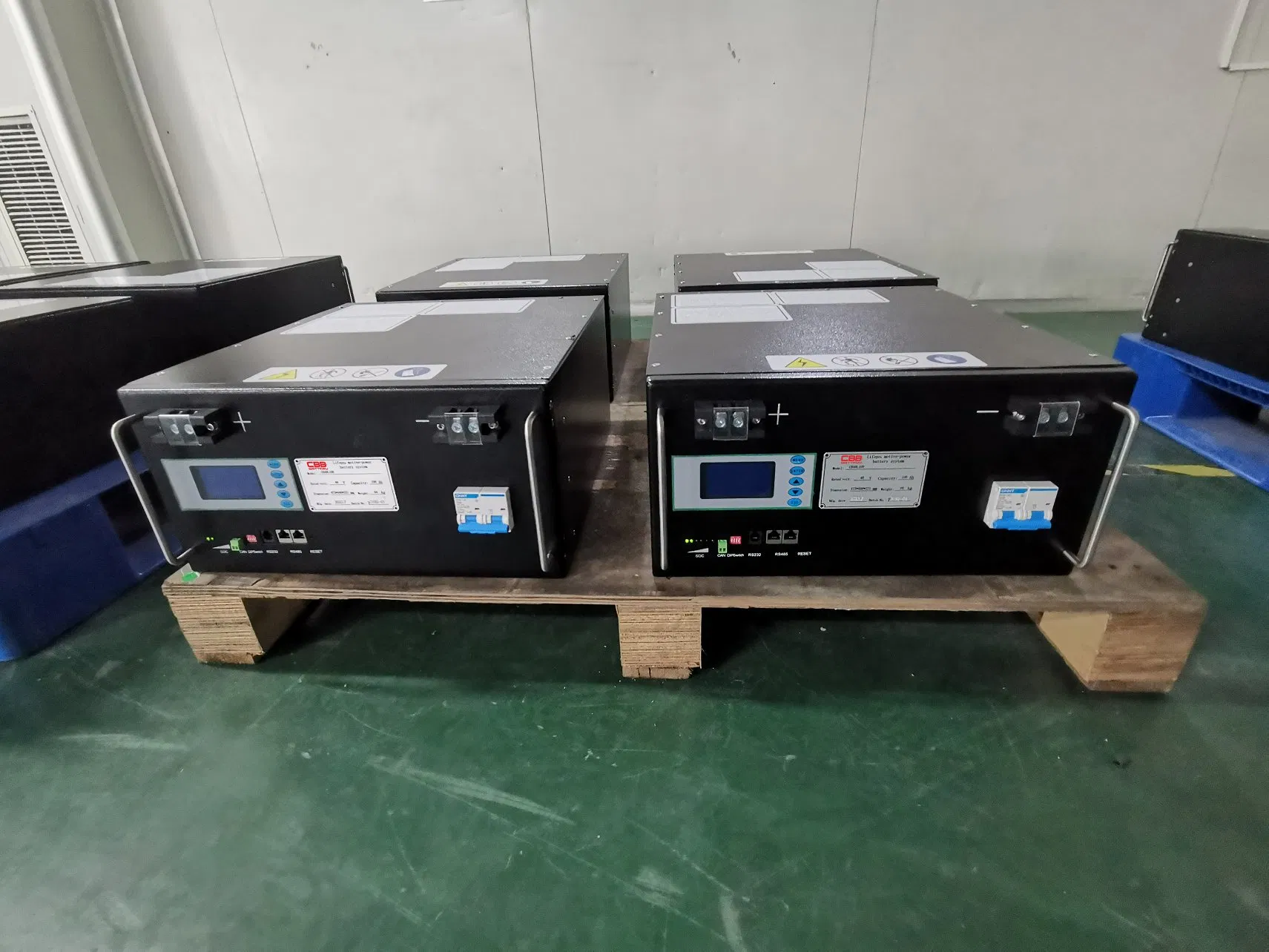

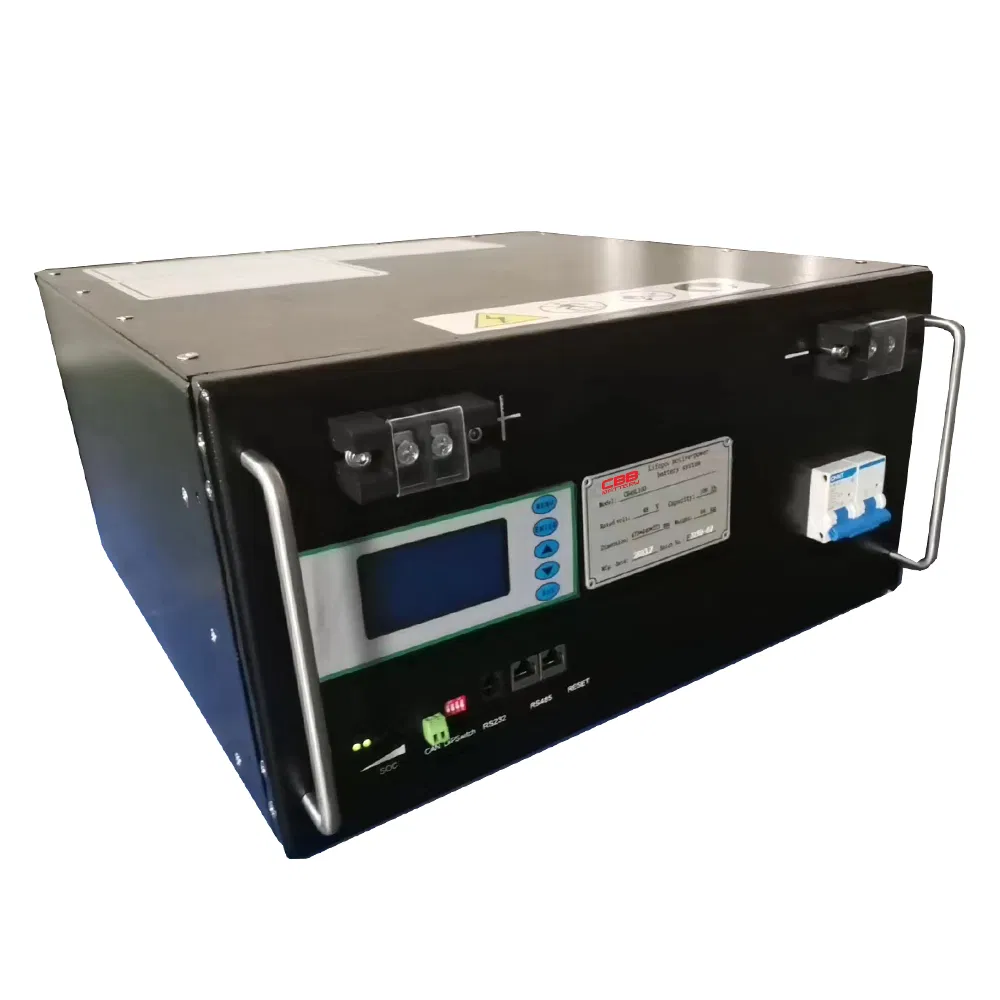

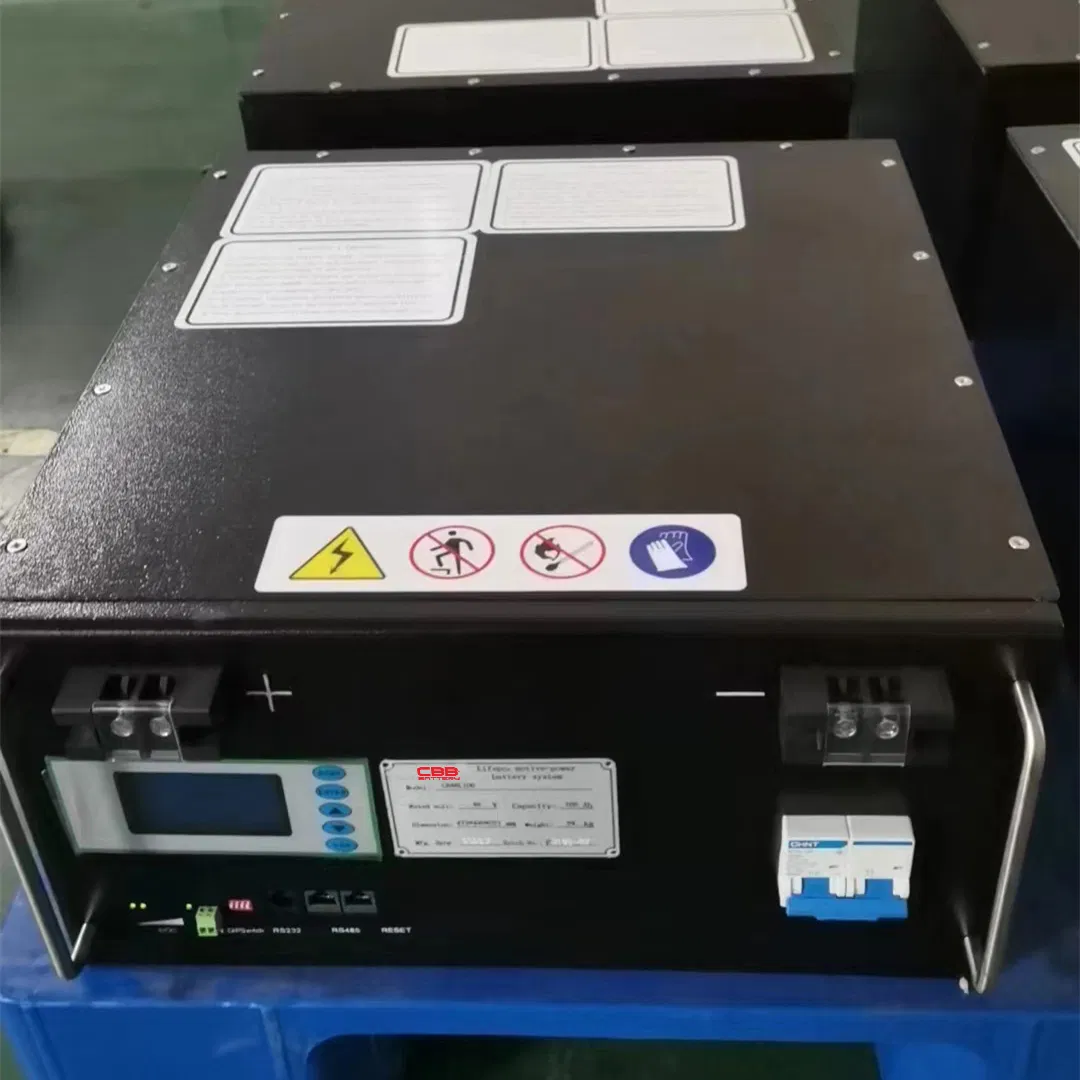

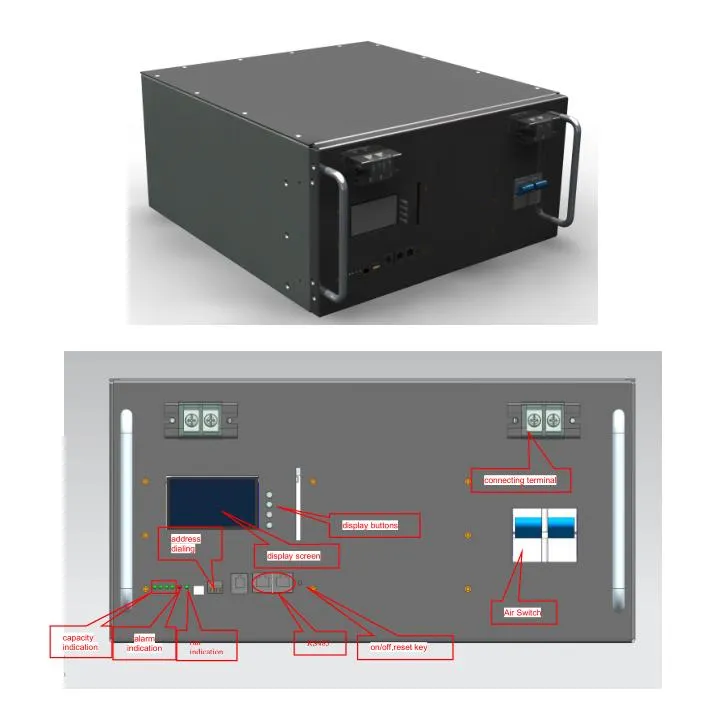

LITHIUM BATTERY All In One Energy Storage
| NO. | Item | General Parameter | Remark |
|---|---|---|---|
| 1 | CB48L100 (Cell Model) | 36130170-50AH (30 PCS 36130170-50AH cells, 2 parallels and 15 serial, make a battery.) | Single, 36*130*170mm |
| 2 | Casing material for single cell | Aluminum alloy | - |
| 3 | Standard capacity(0.3CA) | ≥100Ah | - |
| 4 | Rated voltage | 48V | Work voltage: 3.20V |
| 5 | Max.Charge voltage | 54.7V | 3.65V (Single Ave. charge Voltage) |
| 6 | Cut-off voltage | 37.5V | 2.5V (Single Ave. Discharge Voltage) |
| 7 | Standard charge current | ≤50A | 0.5C |
| 8 | Max charging current | 100A | 1C |
| 9 | charging Time | About 2 h | - |
| 10 | Continuous discharge current | 50A | 0.5C |
| 11 | Max Continuous discharge current | 100A | Discharge time: Approx 1 h |
| 12 | Peak discharge current | 120A | 10 seconds |
| 13 | Battery dimension | ≤473 *440*221mm | Powder coated: RAL9005 |
| 14 | Total weight(Approx.) | About 64 kg | - |
| 15 | Charge method (CC/CV) |
Charge: 0ºC~45ºC Discharge: -20ºC~55ºC Storage Temp: 20ºC~45ºC Storage Humidity: 25%~65% |
Avoid direct sunlight exposure |
Safety
Pass Needle Puncture, Short Circuit, High temperature, Extrusion, Drop Test. No fire Or Explosion.
Reliability
A. The Actual Lifespan So Far Has exceeded 20,000 Hours And Still In Good Running Condition With The Remaining Capacity Still Above 80%
B. The Failure Rate Of The Products In the Last 10 Years Is Controlled Below 3%
C. Customer Satisfaction Rate Is 100%
Stability
Vehicle Standards, UN38.3, MSDS Etc
Productivity
Under 80% DOD When In Use, And Full charge Once A Week, The battery Life can be increased By About 20% Theoretically
Related Battery Details:

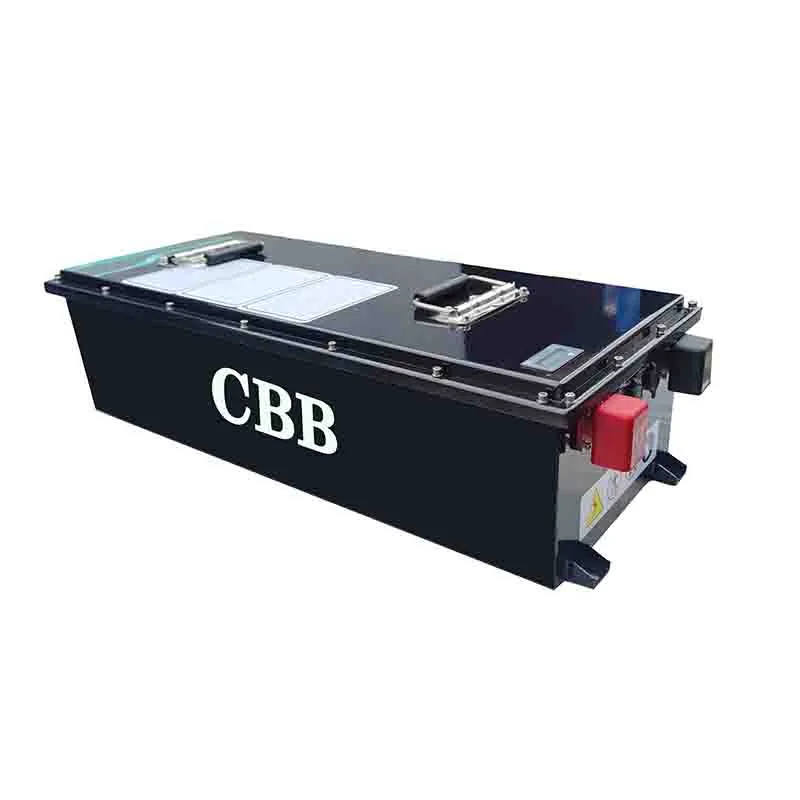

Lithium battery (lifepo4 battery) and auto parts options:

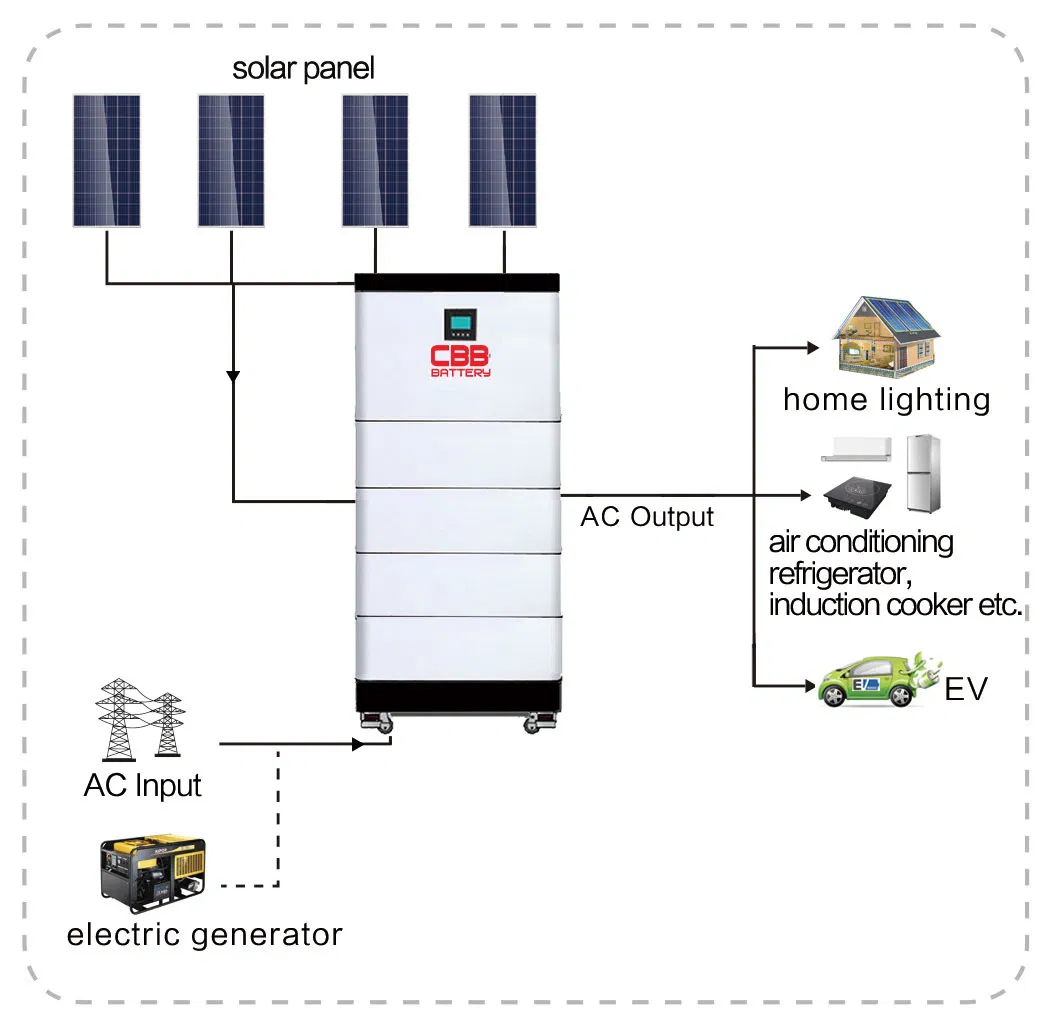

We mainly produce lithium battery VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.
