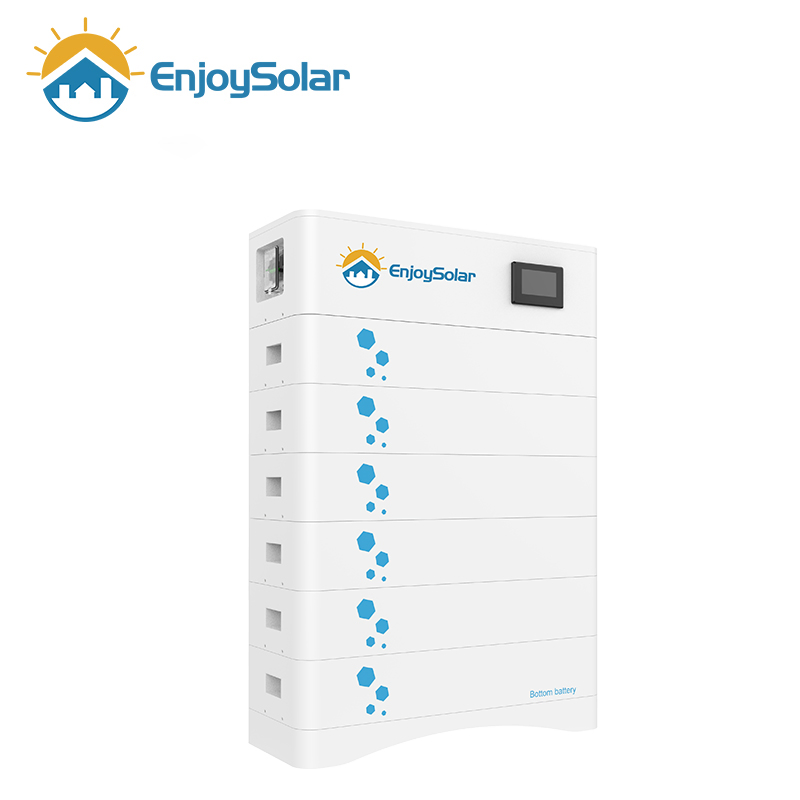

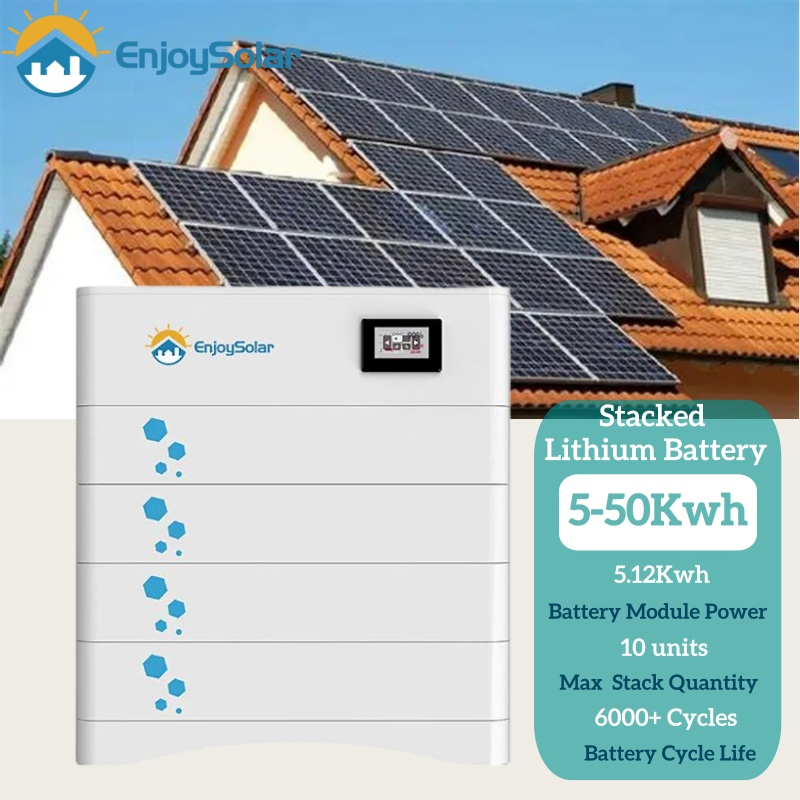

20kwh High Voltage Solar Lithium Ion Battery Pack 30kwh Stackable LiFePO4 Solar Cell Battery Bank for off Grid Solar Power Backup Battery System

Still deciding? Get samples of $ !
Order Sample

Product Description

1

Basic Information

Model NO.ES-20KLS
Nominal Capacity20kWh
Cycle Life6000 Times
Capacity20.48kwh
Protection LevelIP65
Battery ShapeSquare
DisplayLCD Screen
CommunicationCan/RS485
Size590*420*849mm
Cooling MethodNatural Air Cooling
Battery CellsA Grade
HS Code8507600090
2

Application Scenarios

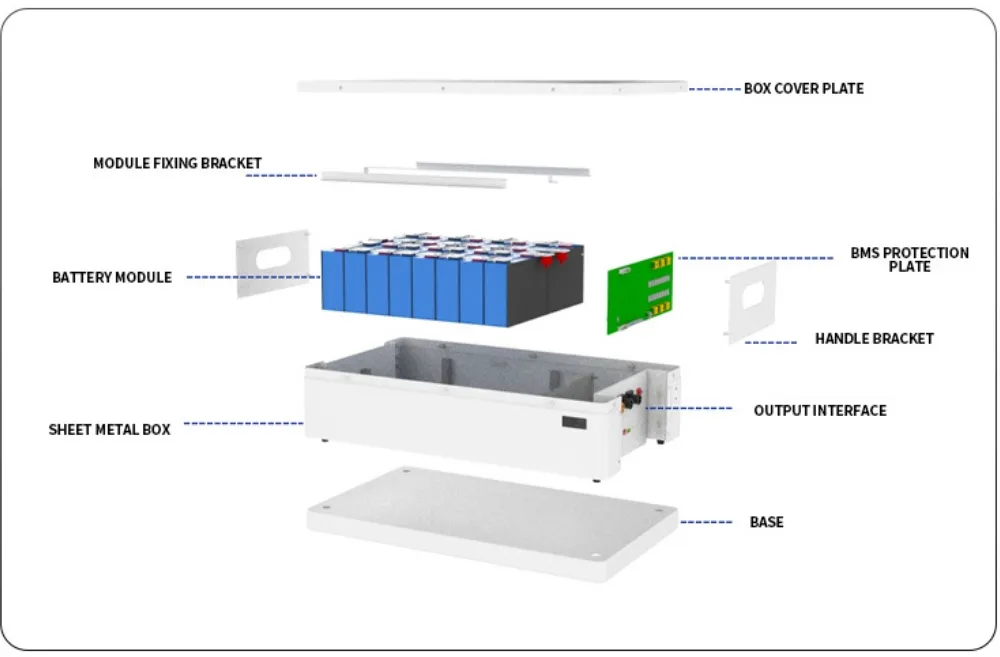

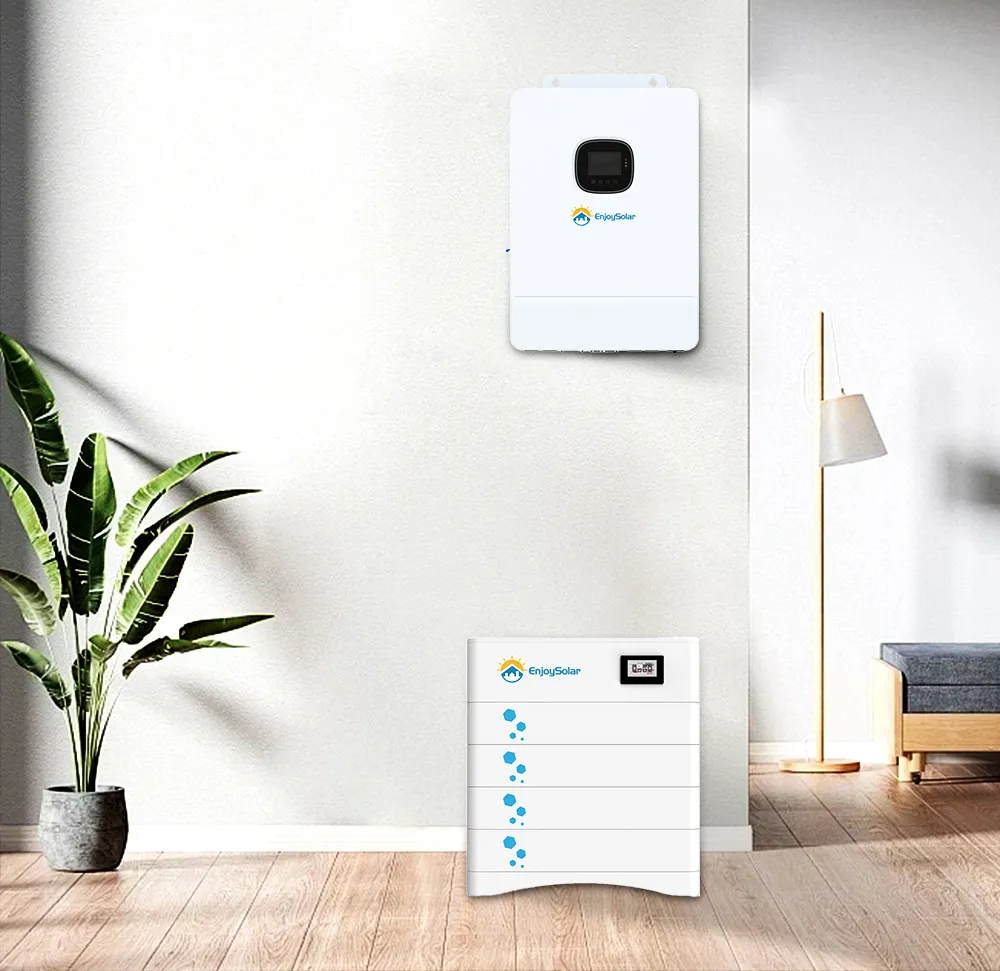

Application Overview Usage Scenario
3

Product Highlights

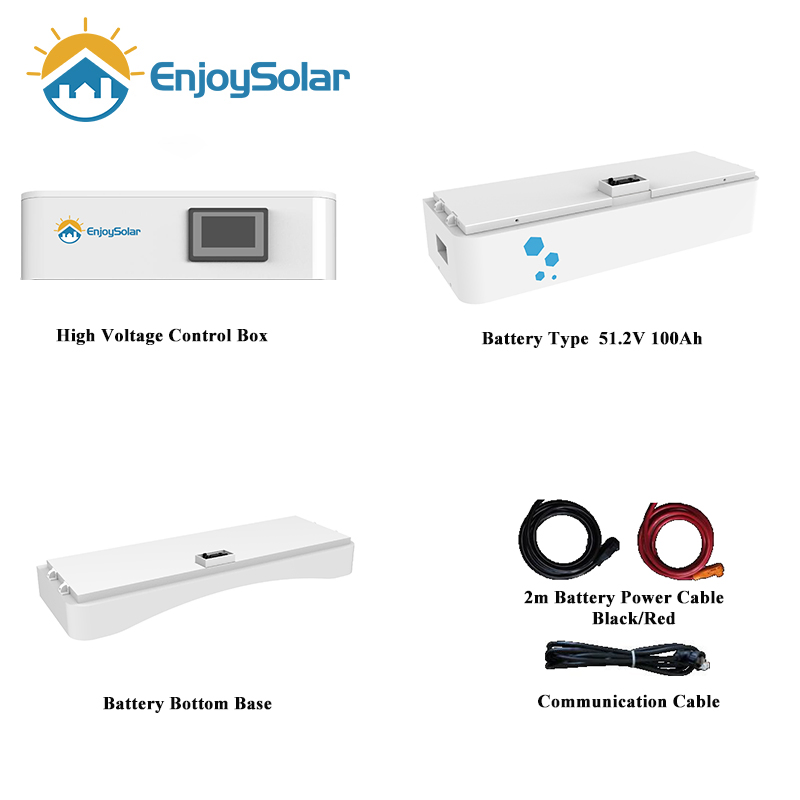

Product Detail
Smaller Footprint

Our state-of-the-art LFP technology sets a new standard, seamlessly combining top-tier energy density with an elegantly compact design for optimal space utilization.

Expandable Module Design

Experience flexibility with a system that grows with you. Effortlessly expand storage capacity from 15.36kWh to 40.96kWh as your energy demands increase.

Smart Monitoring

Track battery charging and discharging in real-time. Supports seamless online system updates and easy maintenance to ensure maximum efficiency.

Advanced Communication

Fully compatible with CAN, RS485, and RS232 protocols, making the solution versatile and adaptable to diverse technological environments.

4

Technical Parameters

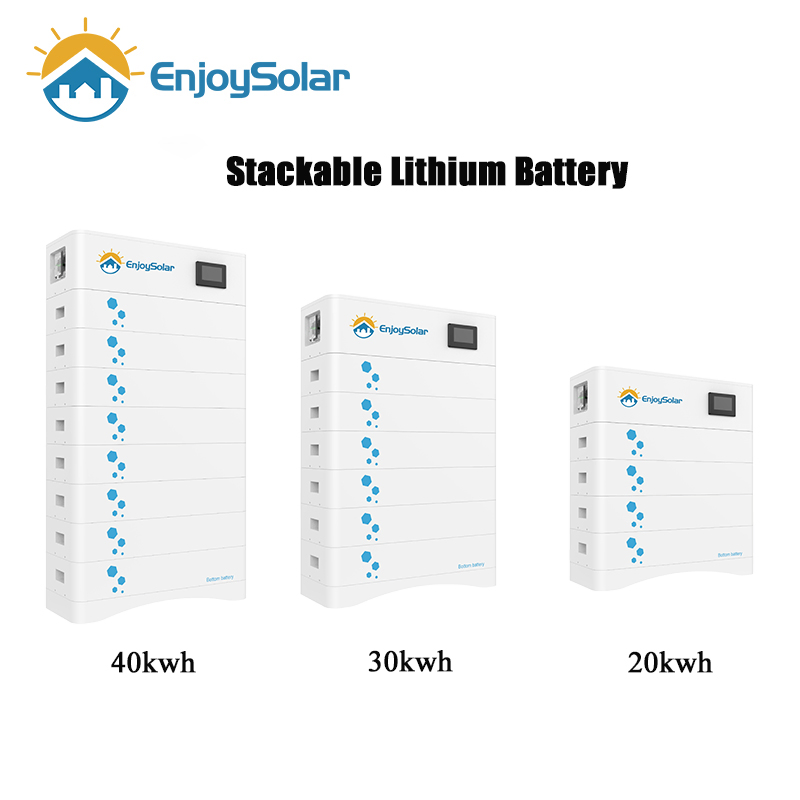

Model ES-15KHS ES-20KHS ES-30KHS ES-40KHS
Modules in Series3468
Nominal Voltage (V)153.6204.8307.2409.6
Module Capacity (Ah)100100100100
Nominal Capacity (KWh)15.3620.4830.7240.96
Usable Capacity (kwh)12.2916.3824.5832.77
Dimension (mm)590*420*698590*420*849590*420*1151590*420*1453
Weight (kgs)161.4207298.2389.4
Protection / IPIP65
Cycle Life>6000 Times (25°C, 0.5C/0.5C)
5

Compatibility & Logistics

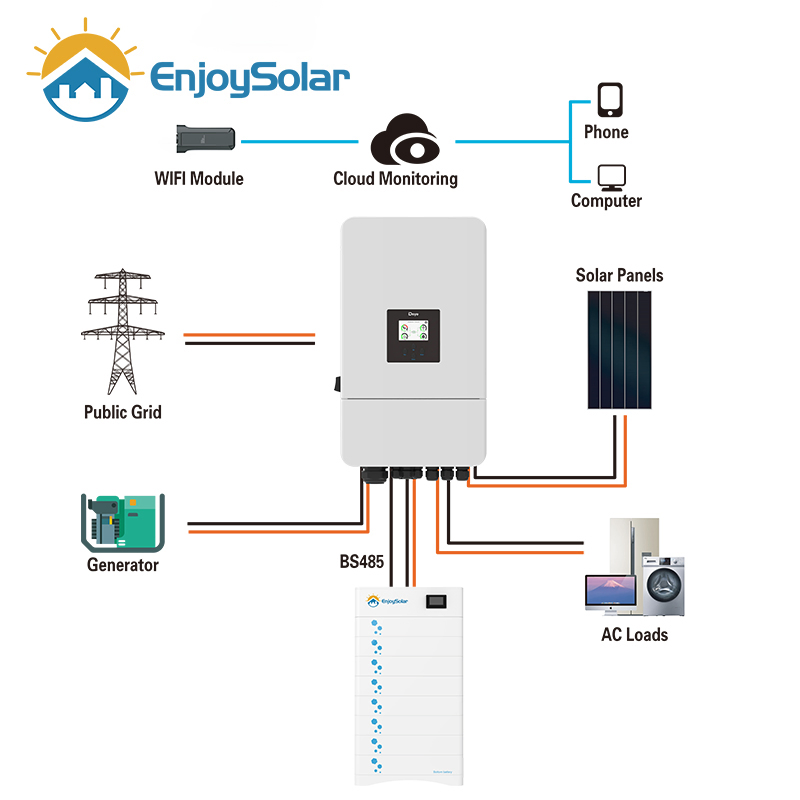

Compatibility Chart
Packaging 1 Packaging 2
6

Successful Projects

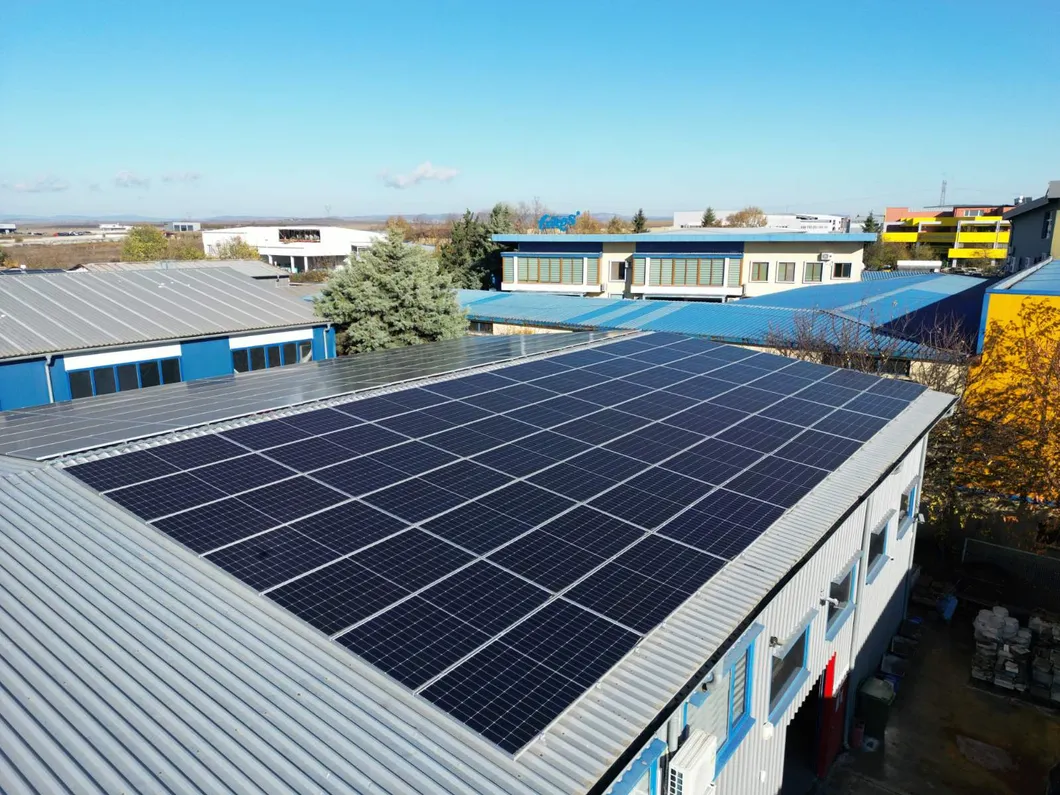

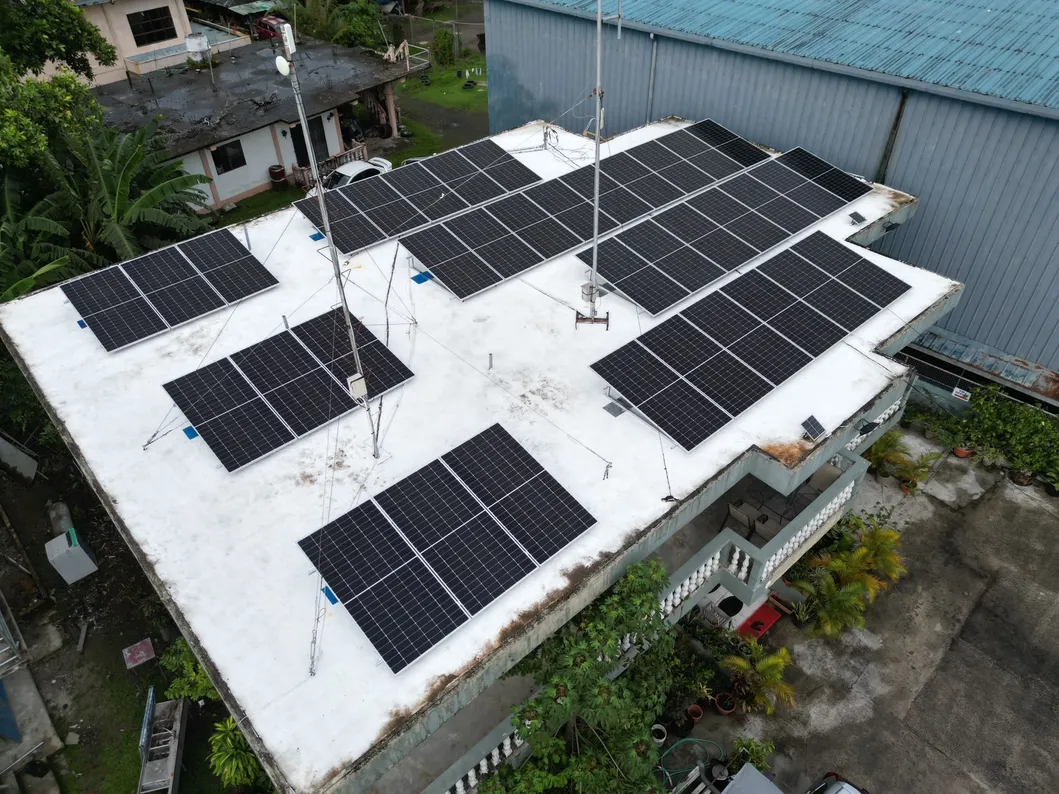

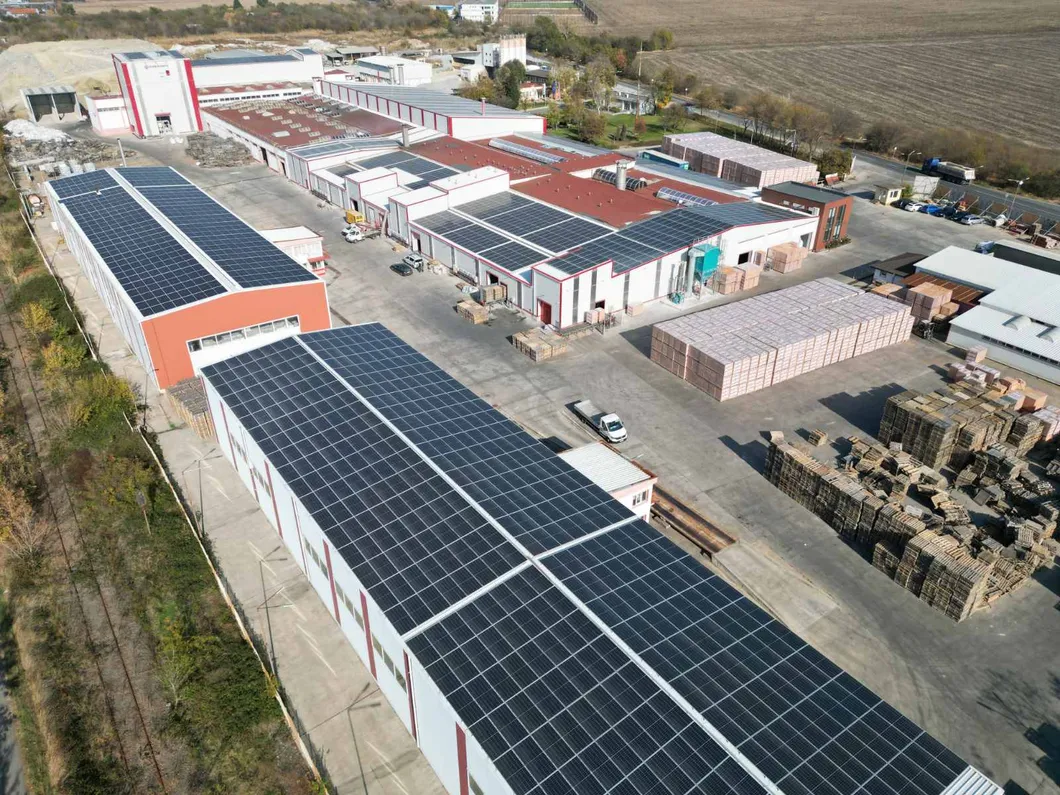

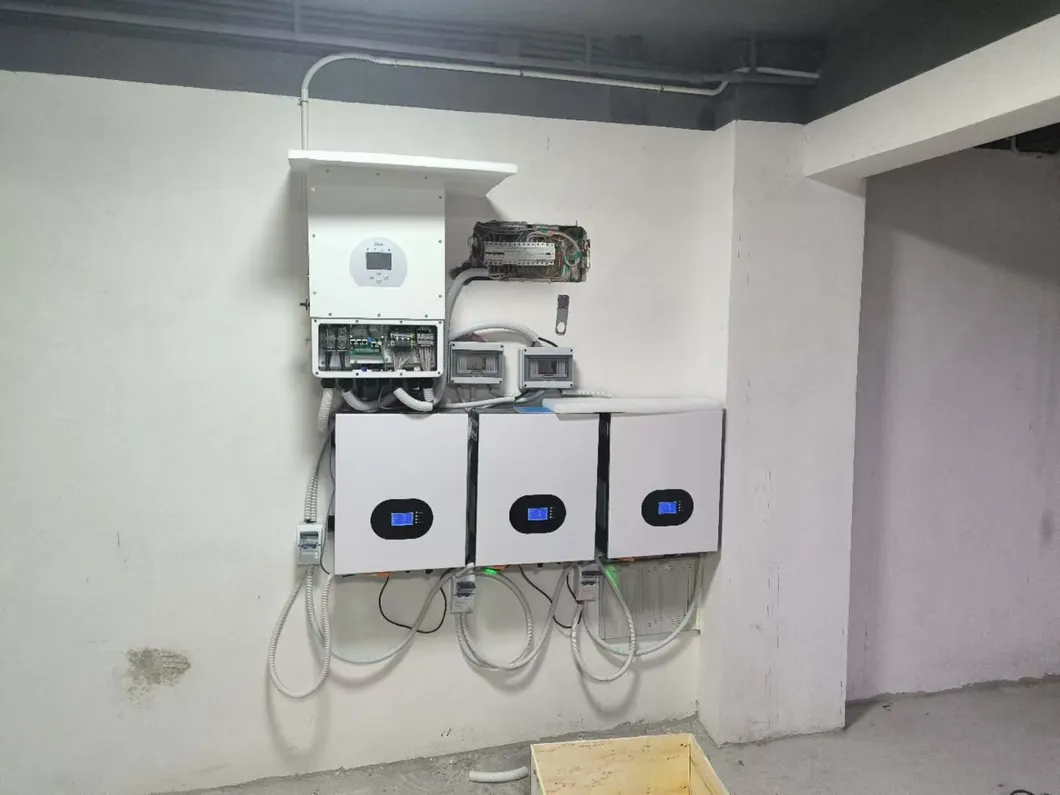

Project 1 Project 2 Project 3 Project 4
?

Frequently Asked Questions

Q1: What are your main solar products?
We provide a wide range of solar solutions, including solar systems, panels, inverters, powerwalls, lithium-ion batteries, and mounting accessories.
Q2: Are you a manufacturer?
Yes, we are a professional factory with over seven years of experience in producing high-quality solar energy series products.
Q3: Do you support OEM and field installation?
Yes, we provide comprehensive OEM services and on-site installation support to ensure a complete after-sales experience.
Q4: How do you ensure product quality?
Quality is our priority. Our dedicated QC team strictly monitors every production stage, and products are only packaged after meeting rigorous standards.
Q5: What are your manufacturing strengths?
We utilize fully automatic production lines with advanced equipment. This allows us to offer competitive pricing and high quality for large-scale solar projects.
Q6: How can I get help with my order?
You can contact our sales team via inquiry email or online chat for an immediate response and assistance.
