Product Description

Product Overview

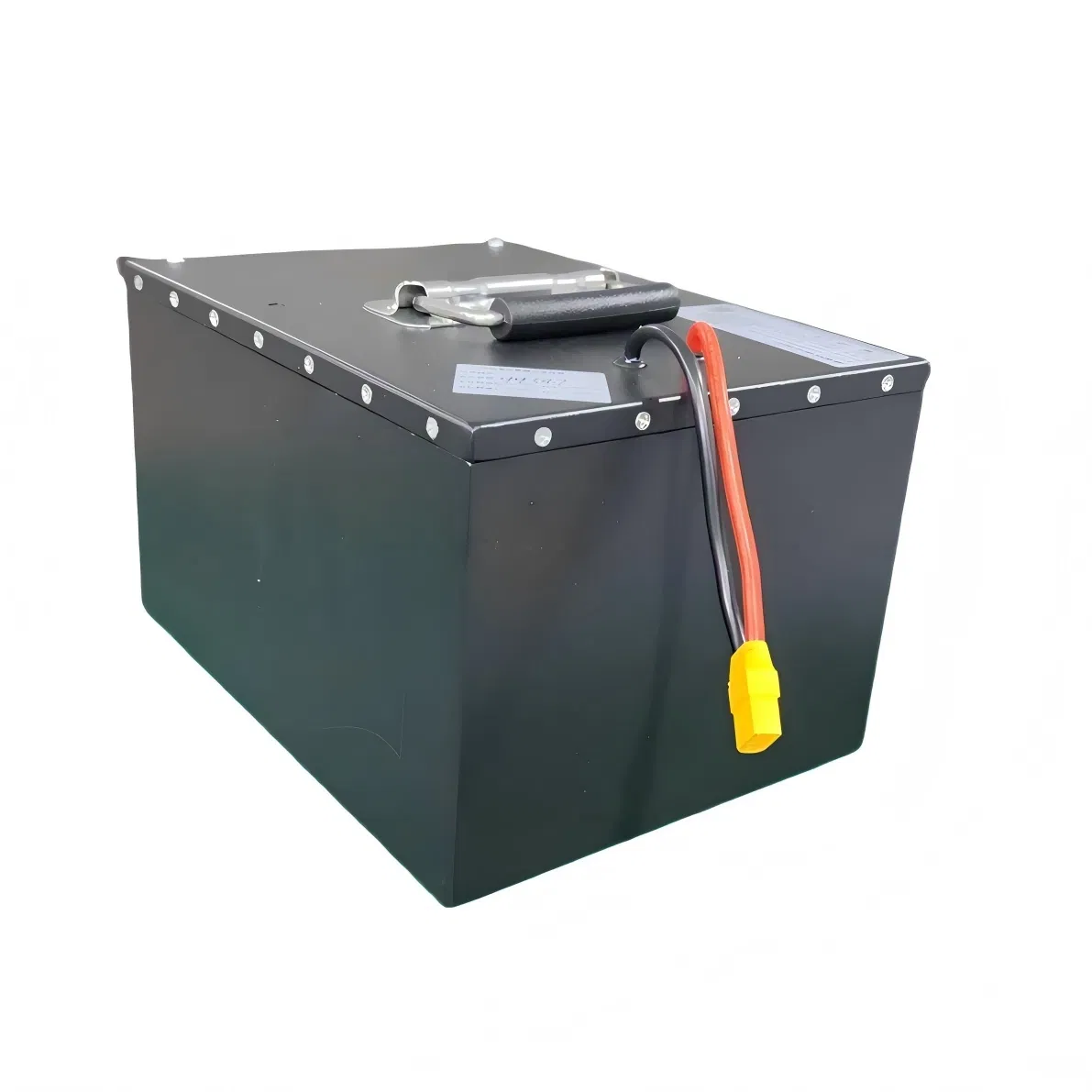

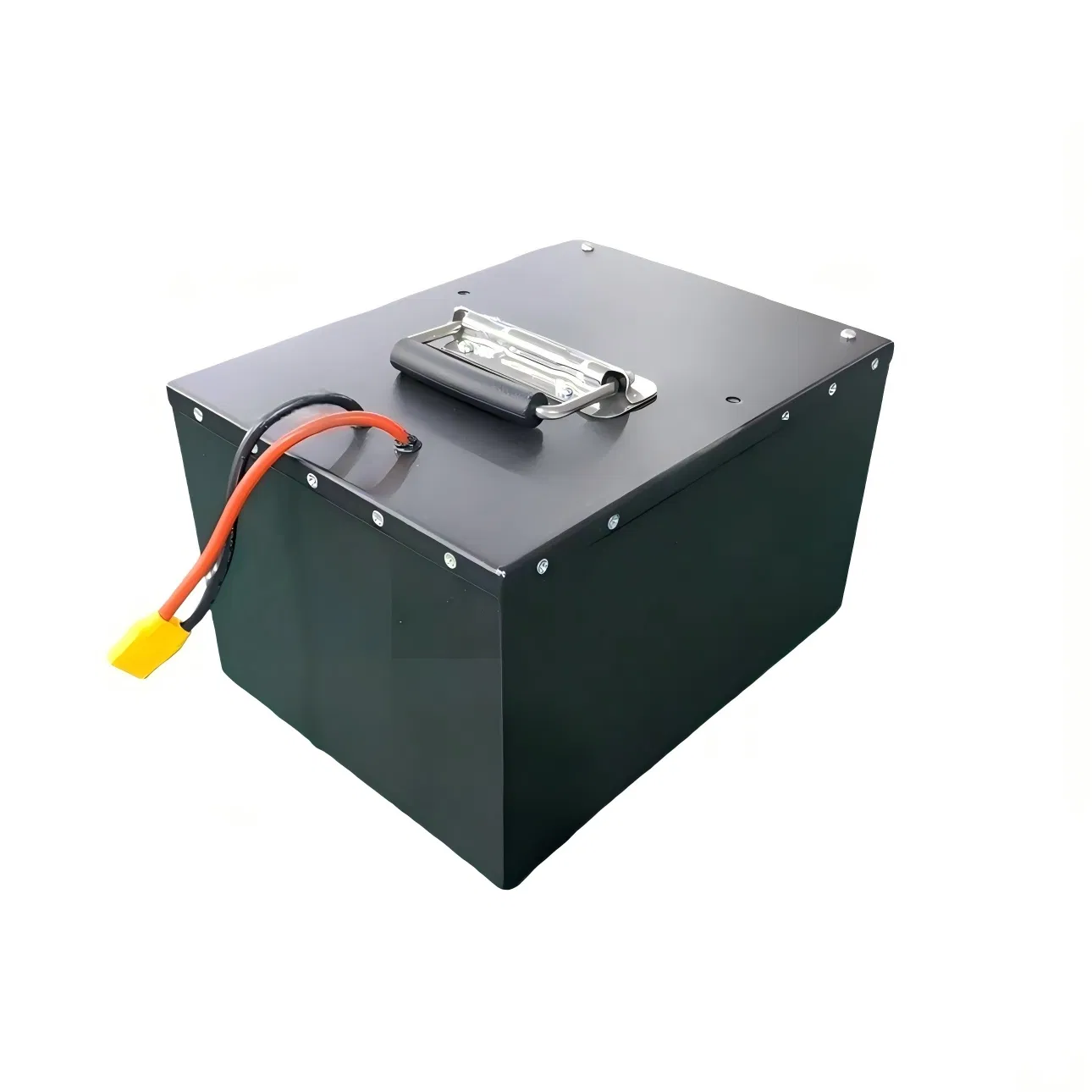

12.8V 100AH Solar LiFePO4 Battery
Introducing the 12.8V 100AH LiFePO4 battery, perfect for solar storage, home applications, and electric tools. This powerful and reliable LiFePO4 energy battery is compact yet efficient, making it ideal for a variety of uses. Whether you need a versatile rechargeable power source for your home or a super solid off-grid solution for solar energy storage, this compact 100AH battery has got you covered.
LiFePO4 12V 100ah Lithium Solar Battery
High-Performance Lithium Solar Battery
Basic Specifications
ParameterValueParameterValue
Model NO.JSL-12V100AH blackRechargeableYes
Nominal Voltage12.8VNominal Capacity100ah
Nominal Energy1280whSelf-Discharge<1%
Standard Charging20ACharging Cut-off14.6V
Discharging Current20ADischarging Cut-off10V
Degree of ProtectionIP65Cycle Life80% After 3000 Times
WeightLess Than 8.5kgsDimensions245*200*133mm
Technical Performance Standards
No Item Standard Detection conditions
1Visual inspectionNo protrusions, deformation, or damageVisual inspection
2Size245*200*133mmUse a caliper (precision 0.01mm)
3Weight≤8.5kgElectronic scale (precision 0.1g)
4Internal resistance<20mΩ1 kHz analog sine wave method at 25±2℃
5Open-circuit voltage≥12.8VMeasured after fast charging for 2.5 hours
6Cycle life≥80% (3000 cycles)14.6V Charge / 10V Discharge at 0.5C
7Power retention≥97%25±2℃ for 28 days storage
LiFePO4 Advantages
Key Advantages of LiFePO4 (LFP) Batteries
  • Safety: Excellent thermal and chemical stability, highly resistant to fire.
  • Long Lifespan: Typically endure 3,000 - 10,000 charge cycles.
  • Cost-Effectiveness: Lower cost due to abundant iron and phosphate materials.
  • High Performance: Stable power output and fast charging across wide temperature ranges.
  • Environmentally Friendly: Non-toxic materials reduce environmental impact.
Solar MPPT Highlights
Solar MPPT Charge Controller Advantages
  • Maximum Energy Harvest: Extracts up to 30% more power compared to PWM.
  • Higher Efficiency: Dynamically adjusts to ensure absolute maximum power production.
  • Greater Flexibility: Allows high voltage arrays to charge lower voltage battery banks.
  • Optimized Performance: Excels in cold weather, low light, or partial shade.

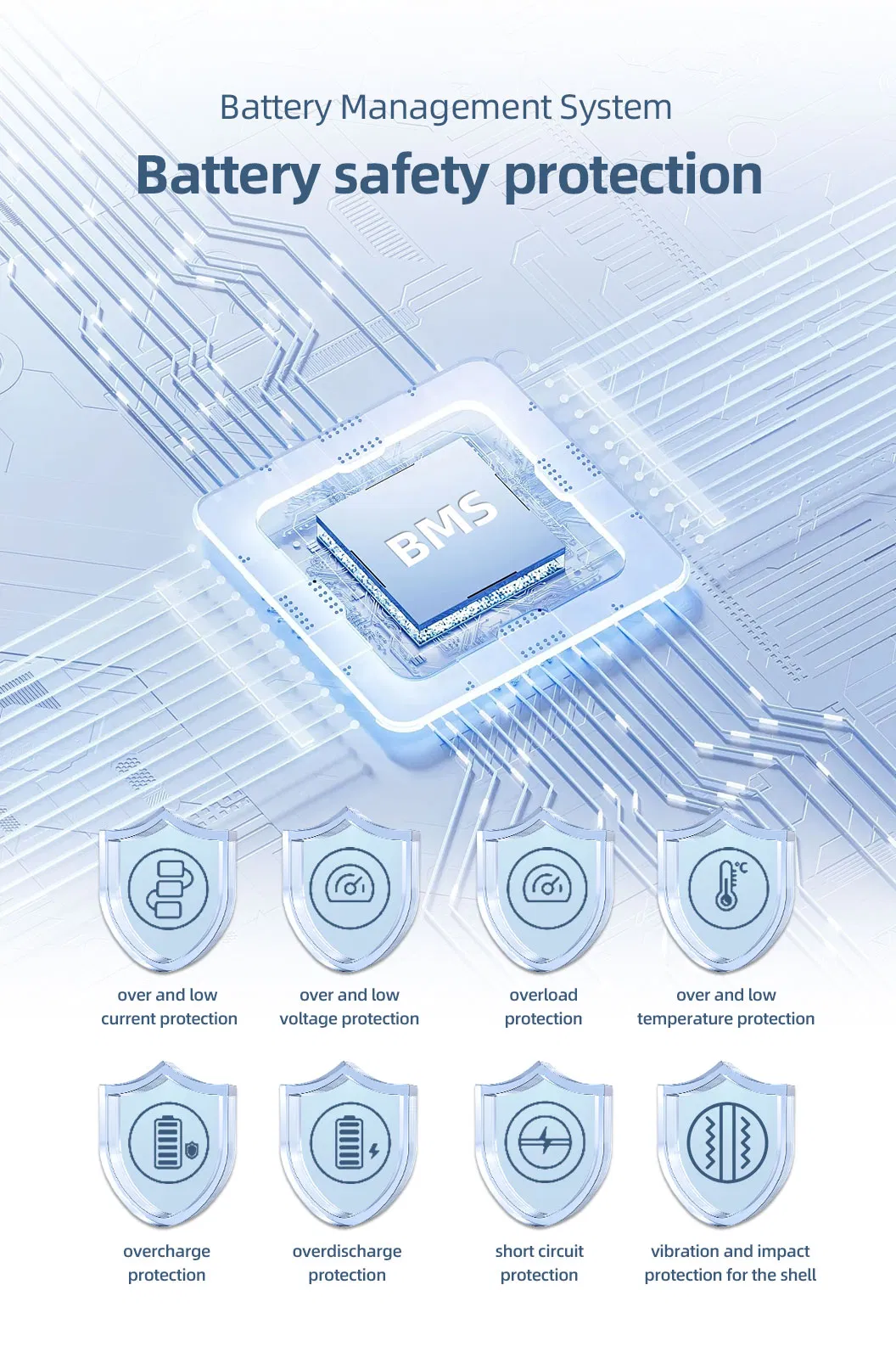

Technical Highlights
Applications
Battery Applications
Optional Accessories

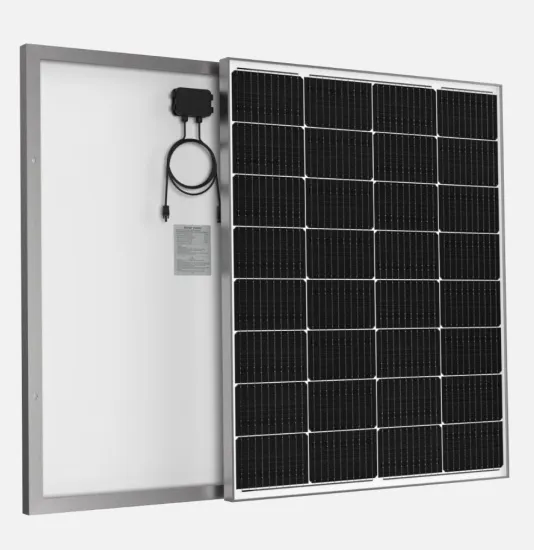

Solar Panel
Monocrystalline Solar Panel
  • High Conversion Efficiency (20%-24%)
  • Long Lifespan (15-25 years)
  • Superior High-Temperature Performance
  • Sturdy Tempered Glass & Aluminum Frame
MPPT
Battery Box
Protector
MPPT with Bluetooth

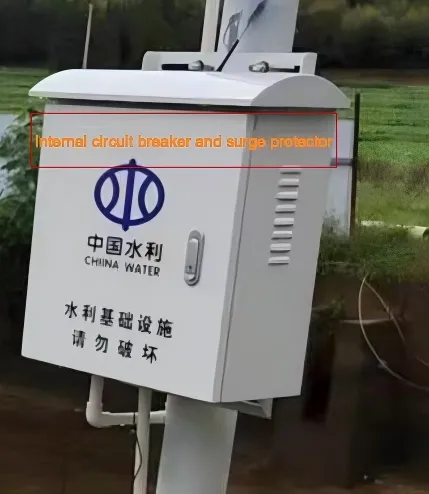

Outdoor Battery Box

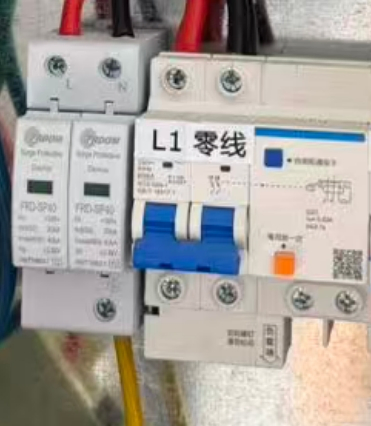

Circuit Breaker & Surge Protector
After Sales Service & Quality Assurance
24-Month Warranty
Against manufacturing defects
OEM & ODM
Customized current and power
Cycle Life
Above 3000 cycles
Quality Service
Certifications
Certifications
Production & Capability
Established in 2013, covering an area of 19,980 square meters, we are a high-tech enterprise owning more than 30 patents. We specialize in research, development, and production of Lithium batteries and power stations, providing support for various applications. Our products are exported to more than 90 countries.
Factory Overview

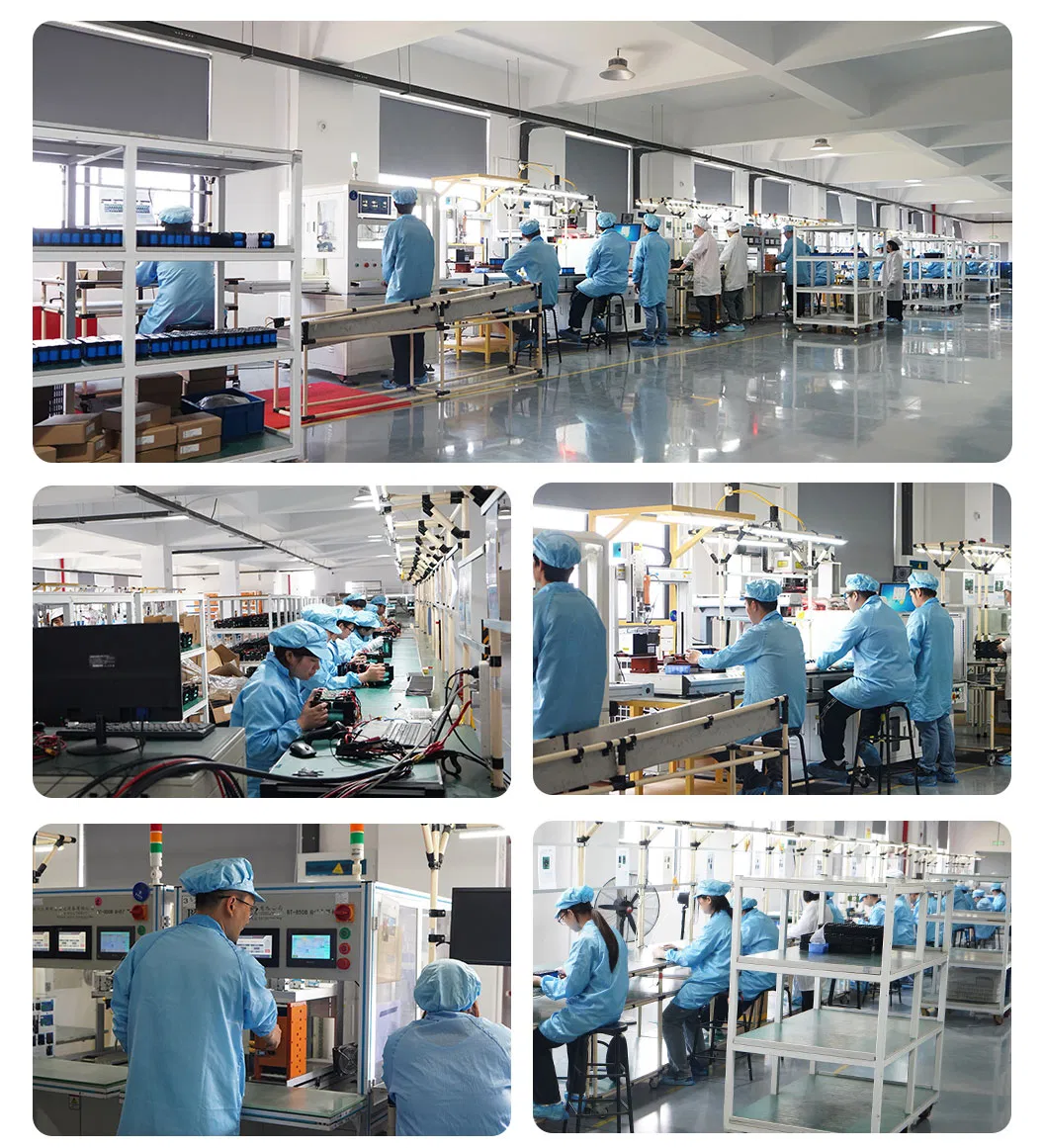

Production Line

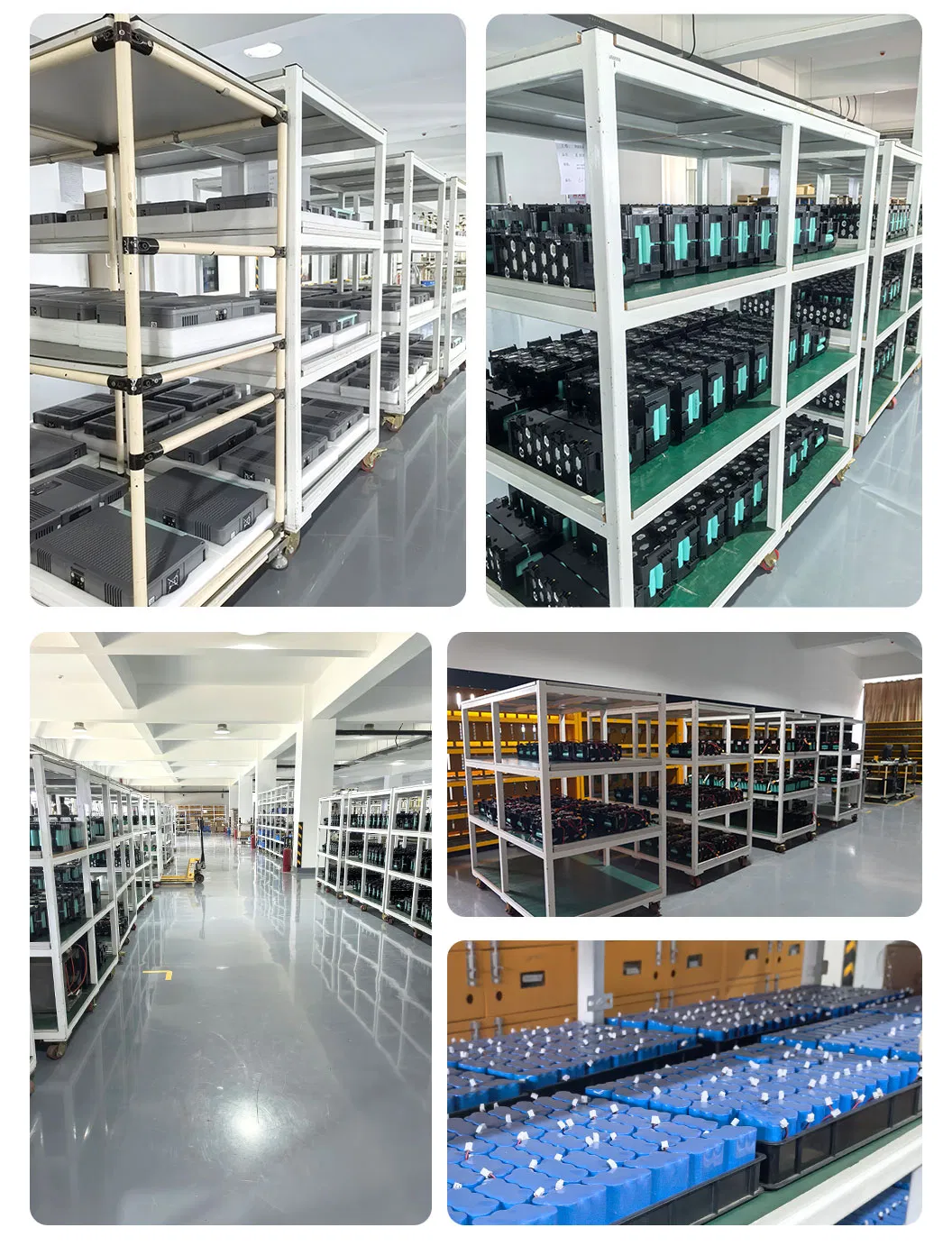

R&D
Packing & Delivery
Packing
Frequently Asked Questions
Q1: How is battery safety and quality strictly controlled?
We perform safety testing under extreme conditions (overcharging, short circuit, needle puncture, and 85ºC storage). We verify capacity through charge/discharge cycles and ensure cycle life ≥ 80% after 2000+ cycles, complying with CE, UL, RoHS, and TUV standards.
Q2: How do you ensure battery group performance?
Consistency screening is performed by matching individual cells within ± 1% for voltage, internal resistance, and capacity. We use Dynamic Parameter Grouping (DVA) to match cells perfectly within each pack.
Q3: What are the best practices for discharging LiFePO4 batteries?
To extend life, avoid deep discharges. It is recommended to maintain a power range between 20% and 80%. An intelligent BMS is used to control the cutoff voltage effectively.
Q4: How does temperature affect these batteries?
Batteries should not be charged at temperatures above 45ºC or below 0ºC. Ideal operating temperatures are between 15ºC and 35ºC. Avoid long-term high-rate discharges that cause excessive heating.
Q5: What maintenance is required for long-term storage?
For long-term storage, keep the battery at 50% power and recharge it every 3 months. The BMS will regularly perform balanced charging to calibrate individual cell voltages.
Q6: What makes these batteries a reliable choice?
Our batteries are designed by expert technical departments with a history of supplying major global enterprises. Our designs have been used for over 10 years without fire or explosion accidents.
