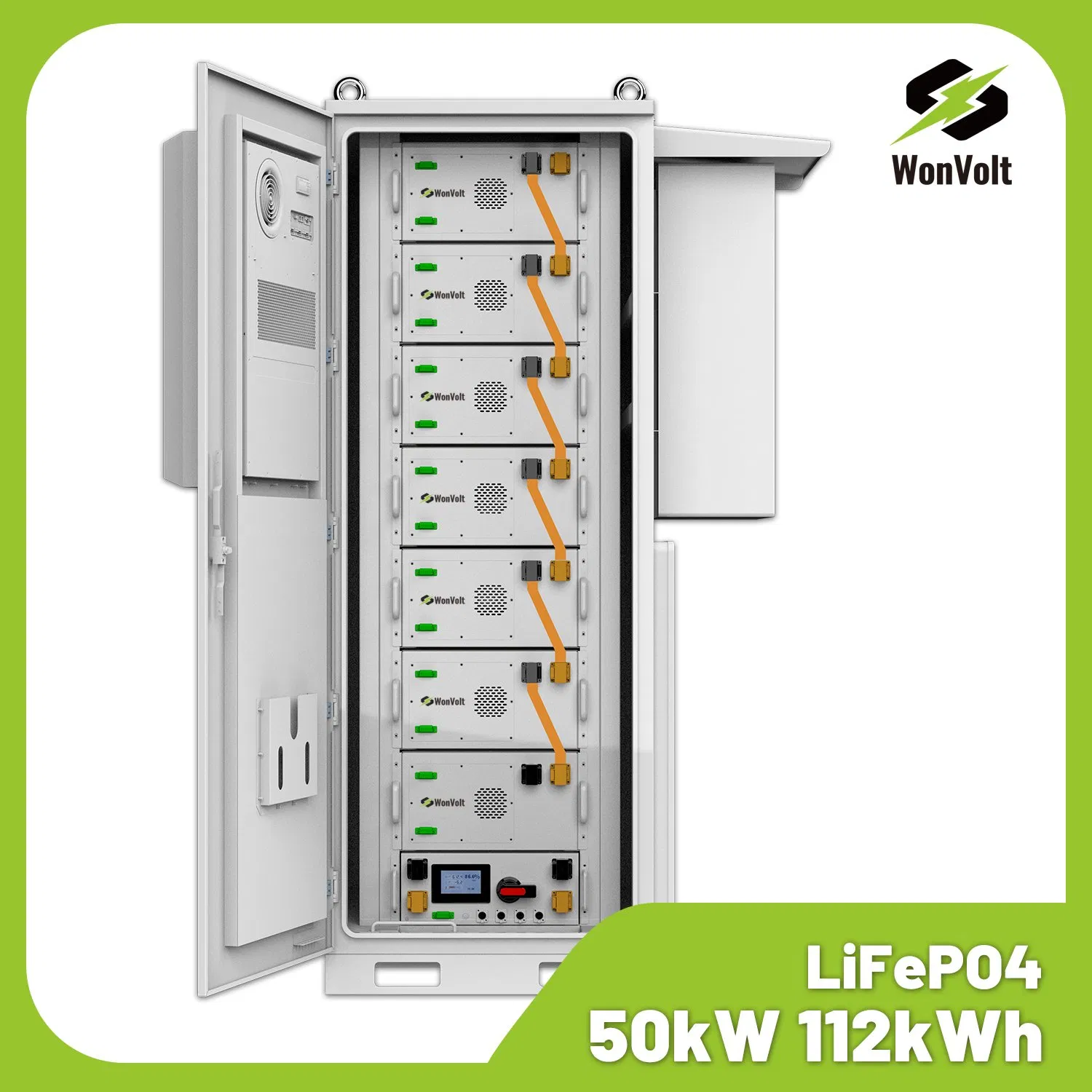

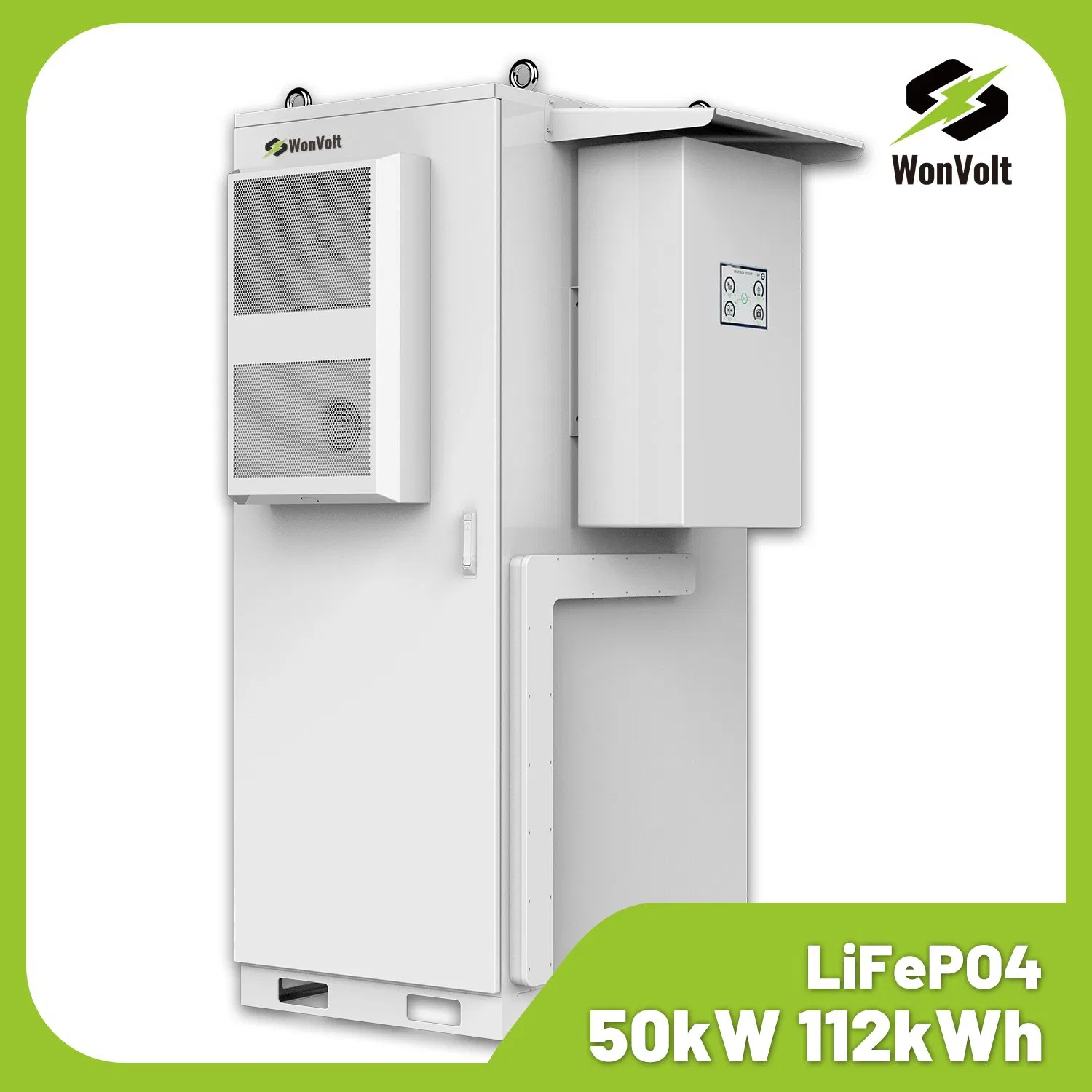

China 314ah Lithium Battery System 100kwh 112kwh 120kwh off Grid Solar Power System 30kw 50kw
China 314ah Lithium Battery System 100kwh 112kwh 120kwh off Grid Solar Power System 30kw 50kw
China 314ah Lithium Battery System 100kwh 112kwh 120kwh off Grid Solar Power System 30kw 50kw
China 314ah Lithium Battery System 100kwh 112kwh 120kwh off Grid Solar Power System 30kw 50kw
China 314ah Lithium Battery System 100kwh 112kwh 120kwh off Grid Solar Power System 30kw 50kw
1 / 5
China 314ah Lithium Battery System 100kwh 112kwh 120kwh off Grid Solar Power System 30kw 50kw
China 314ah Lithium Battery System 100kwh 112kwh 120kwh off Grid Solar Power System 30kw 50kw
China 314ah Lithium Battery System 100kwh 112kwh 120kwh off Grid Solar Power System 30kw 50kw
China 314ah Lithium Battery System 100kwh 112kwh 120kwh off Grid Solar Power System 30kw 50kw
China 314ah Lithium Battery System 100kwh 112kwh 120kwh off Grid Solar Power System 30kw 50kw

China 314ah Lithium Battery System 100kwh 112kwh 120kwh off Grid Solar Power System 30kw 50kw

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview Product Description Parameters Factory Tour Technical Support Projects
📊

Basic Information

Model NO.
PowerPLANT-H112
Rechargeable
Yes
Size
Medium
Communication
RS485 / CAN
Design Life
15 Years+ (25°c)
Cycle Life
10000 Times (25°c)
Certificates
CE/RoHS/Un38.3/MSDS
Cooling Method
Industrial AC
Net Weight
1260kg
Firefighting
Aerosol
Specification
51.2V 314Ah
Production Capacity
5 Gwh/Year
📝

Product Description

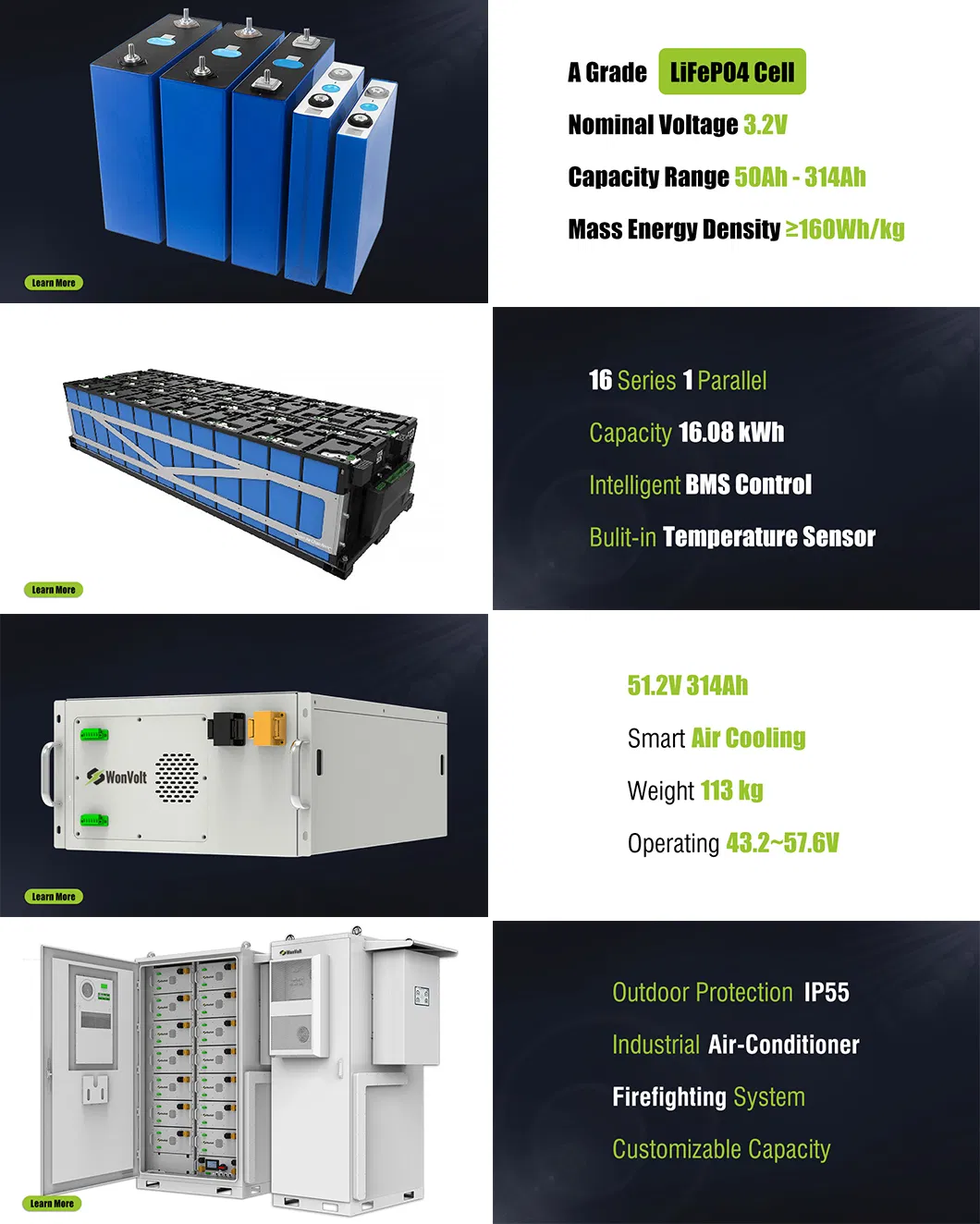

Energy Storage System
⚙️

Product Parameters

Model PowerPLANT-H112
System General Specification
ProductH112 ESS Cabinet
System Nominal Voltage358.4V
System Nominal Capacity314Ah
System Nominal Energy112kWh
Recommended Charge / Discharge Current100A
Max. Charge / Discharge Current140A
Protection ClassIP54 / IP55
Cooling MethodIndustrial Air-conditioner
Type of FirefightingGas Aerosol
Dimensions(W*D*H)1250x1245x2175mm
Weight1260(±2)kg

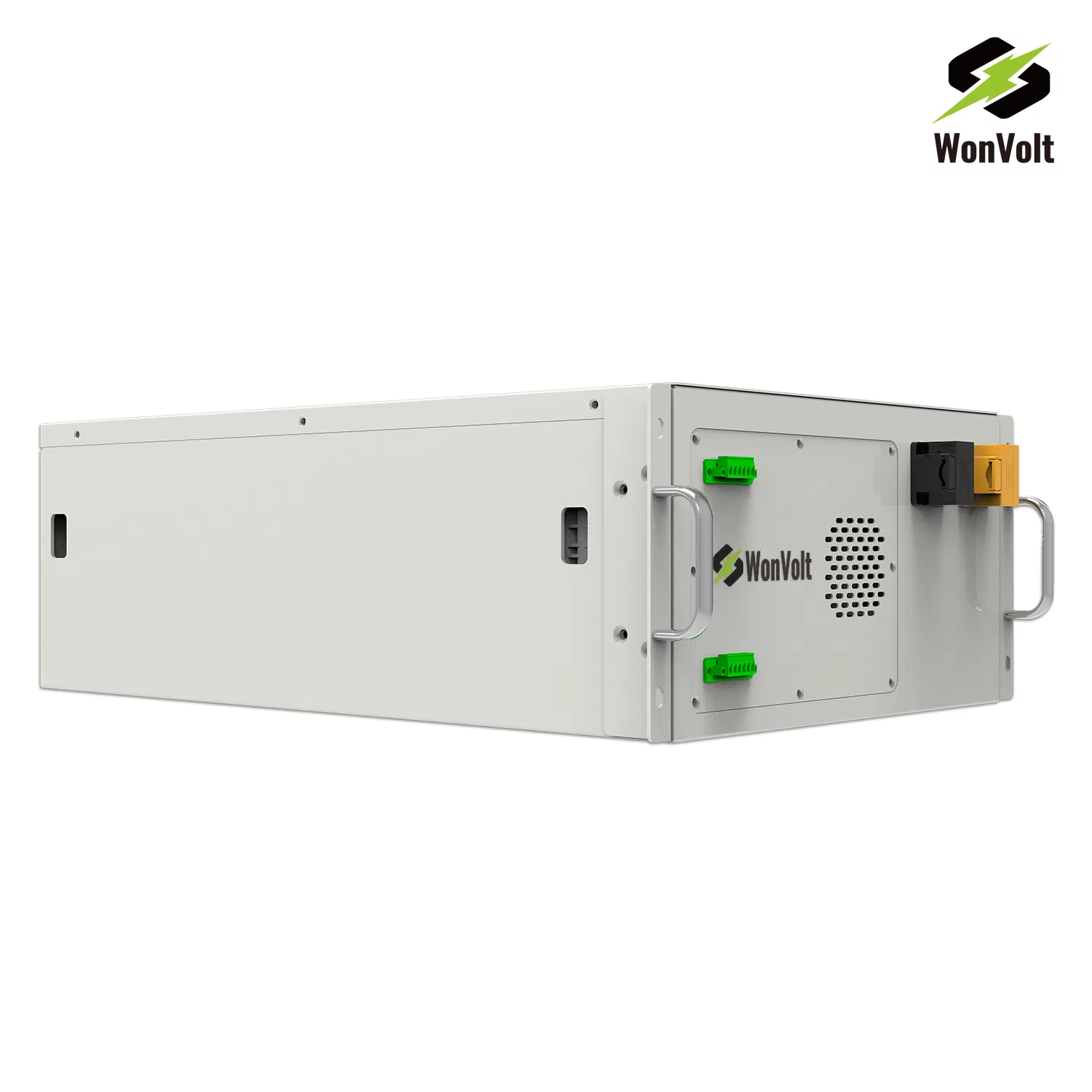

Battery Specification

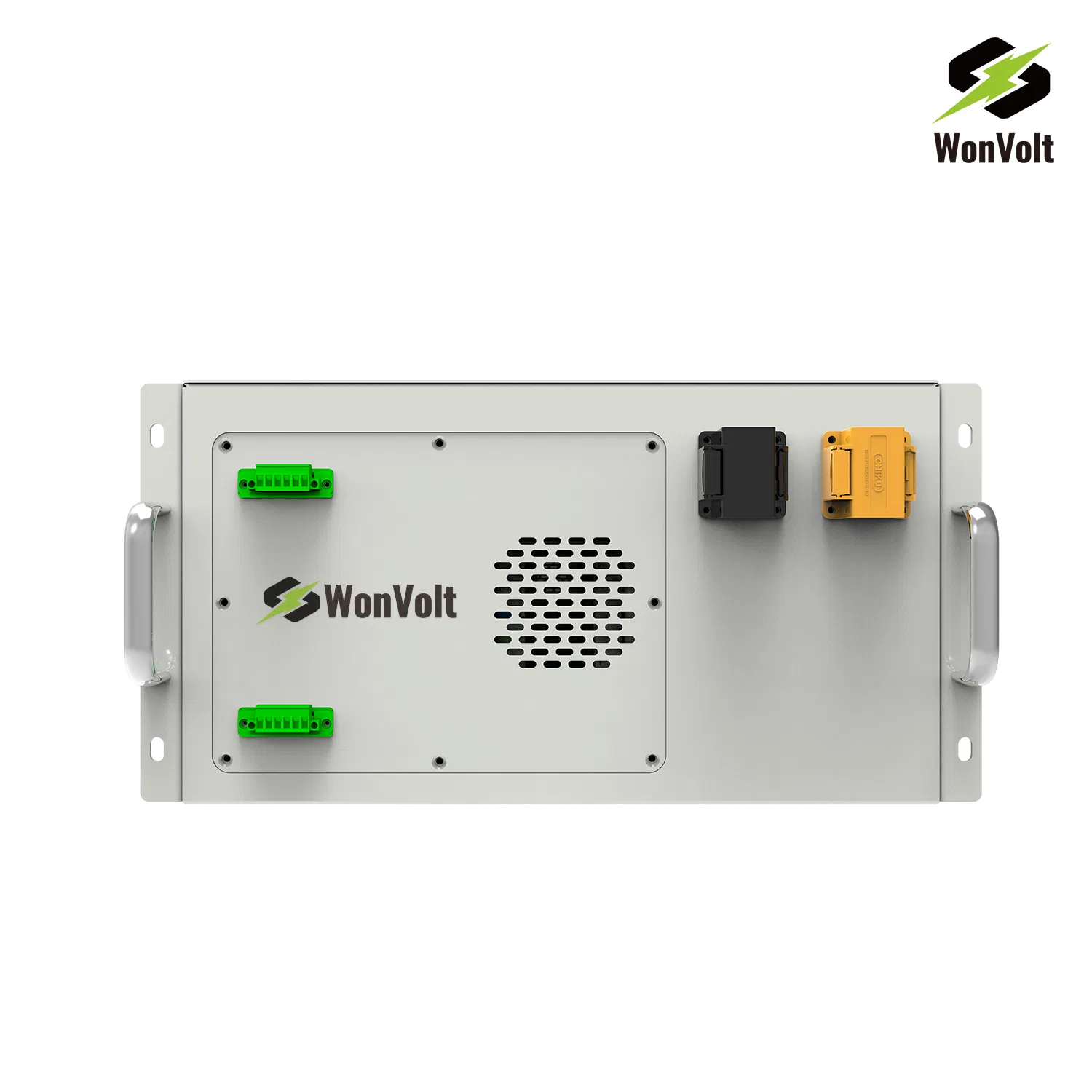

Battery Type51.2V 314Ah
Communication MethodRS485 / CAN
Cell BrandHIGEE / CATL / REPT / etc.
Working Temperature0ºC ~ 50ºC Charge / -10ºC ~ 50ºC Discharge
Design Life10 Years+
Cycle Times10000 Times (0.5C - 25ºC - 90%DOD)
AC Side Specification
Inverter Power30kW / 50kW
Supported Inverter BrandsDeye / Solis / Afore / ATESS / Growatt / Megarevo / etc.
Rated AC Voltage380VAC (360VAC ~ 440VAC)
Communication MethodEthernet / Modbus / TCP / IP
🏭

Factory Overview

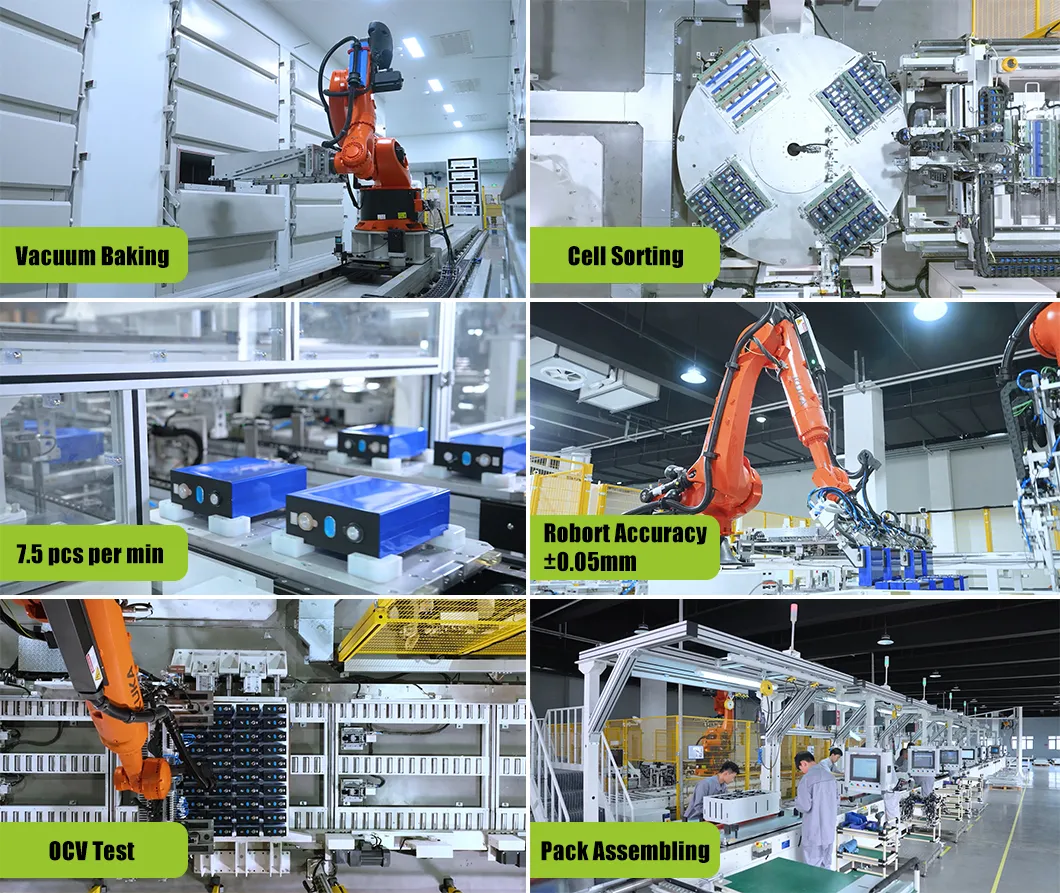

Factory Image 1
Factory Image 2
🛠️

Technical Support

Technical 1

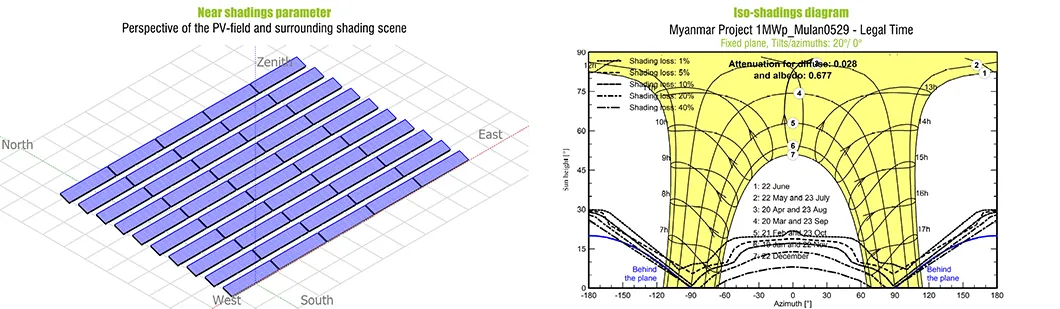

Technical 2

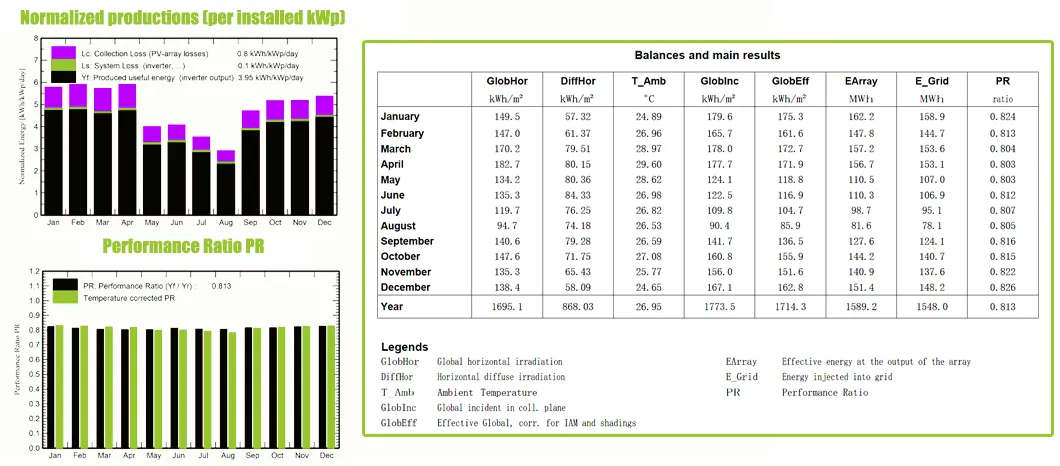

Technical 3
🌍

Reference Projects

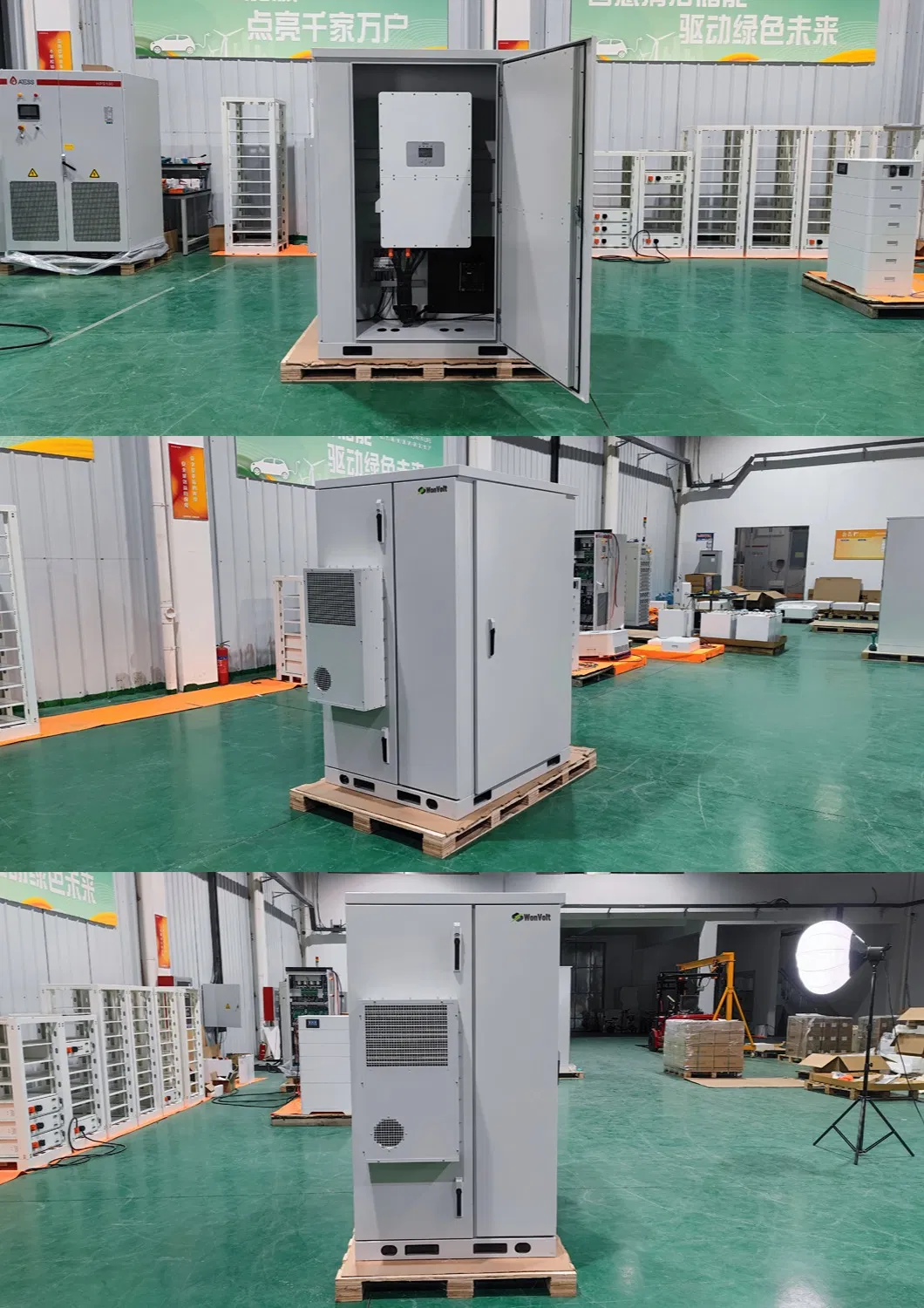

Project 1

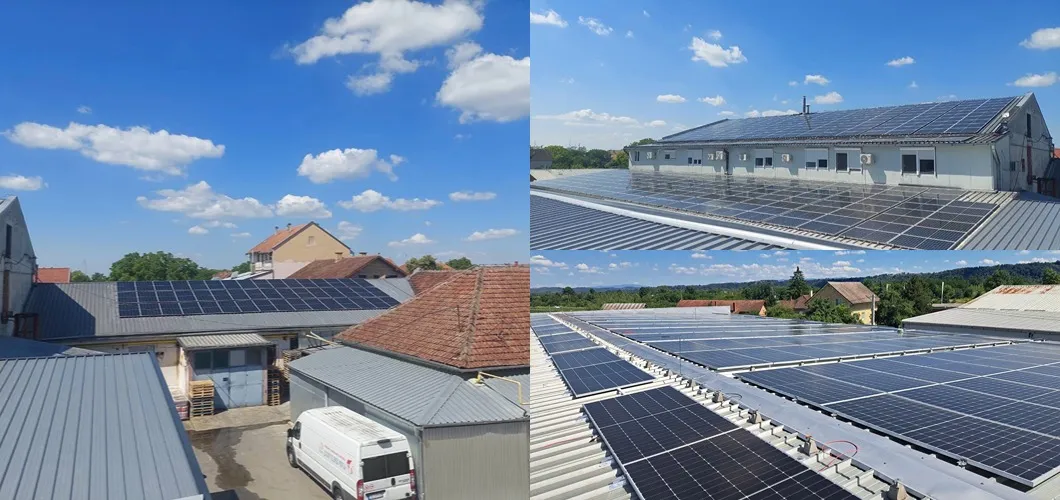

Project 2

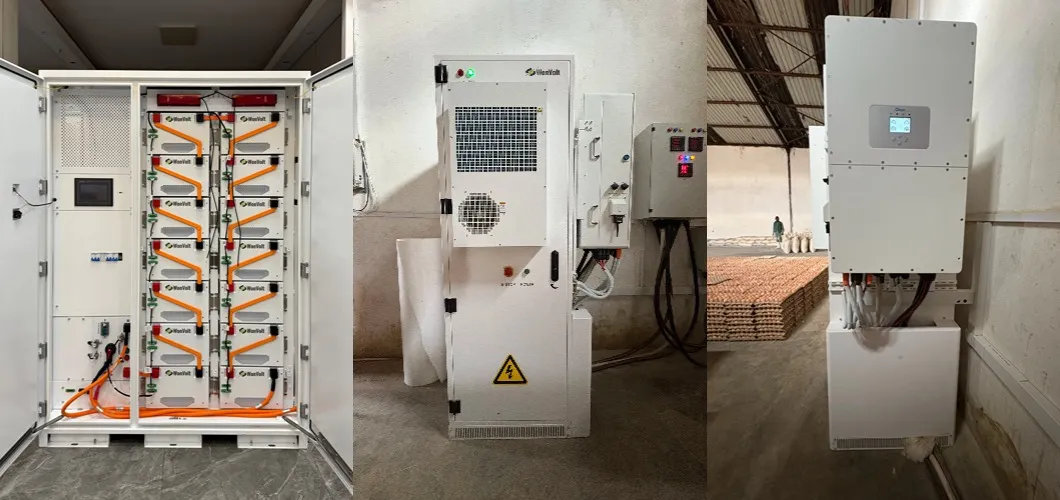

Project 3
❓

Frequently Asked Questions

1. What is the total energy capacity of the H112 system?
The system provides a nominal energy capacity of 112kWh, utilizing high-quality 314Ah lithium cells.
2. How many cycles can I expect from the battery?
The system is designed for a long lifespan with up to 10,000 cycles at 25°C and 90% Depth of Discharge (DOD).
3. What kind of cooling and safety features are included?
The cabinet is equipped with an industrial-grade air conditioner for temperature control and a gas aerosol firefighting system for maximum safety.
4. Which inverter brands are compatible with this ESS?
It supports a wide range of leading inverter brands including Deye, Solis, Afore, ATESS, Growatt, and Megarevo.
5. Is the system suitable for outdoor installation?
Yes, the cabinet features an IP54/IP55 protection rating, making it suitable for various environmental conditions.
6. What communication protocols does the system use?
The system supports multiple communication methods, including RS485, CAN, Ethernet, Modbus, and TCP/IP.
