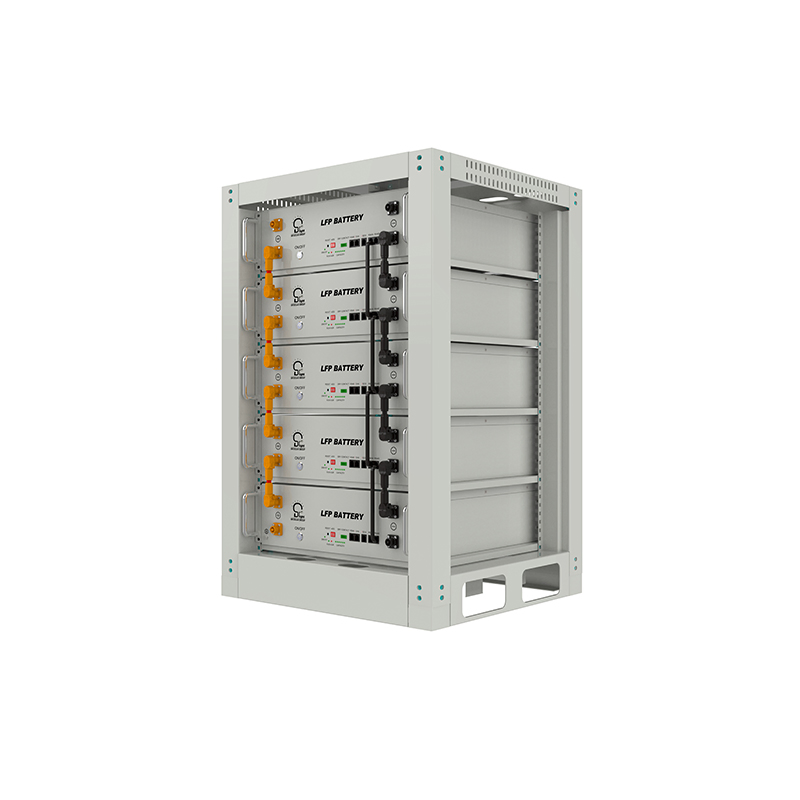

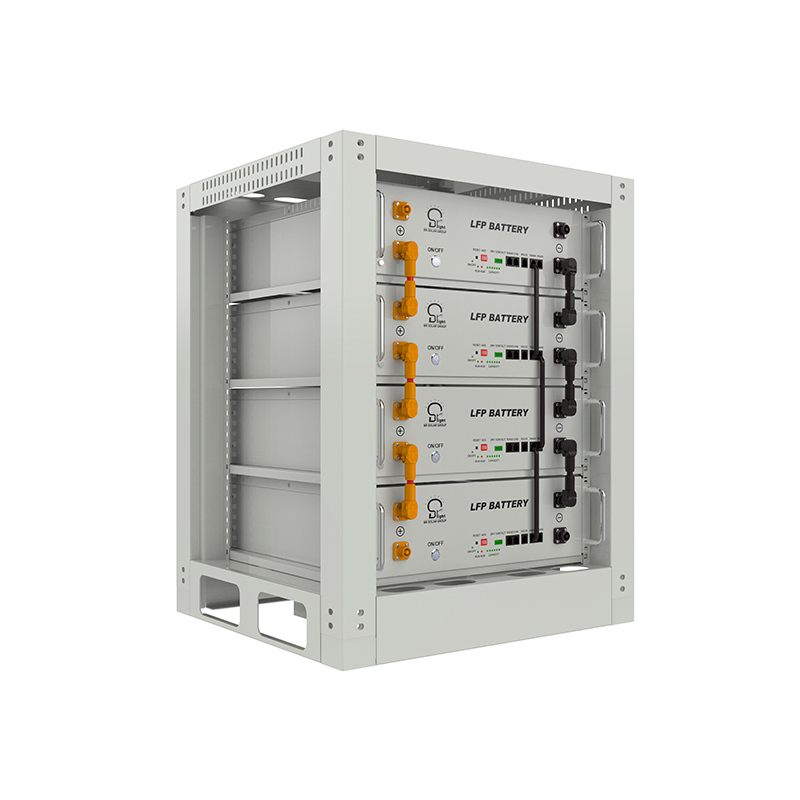

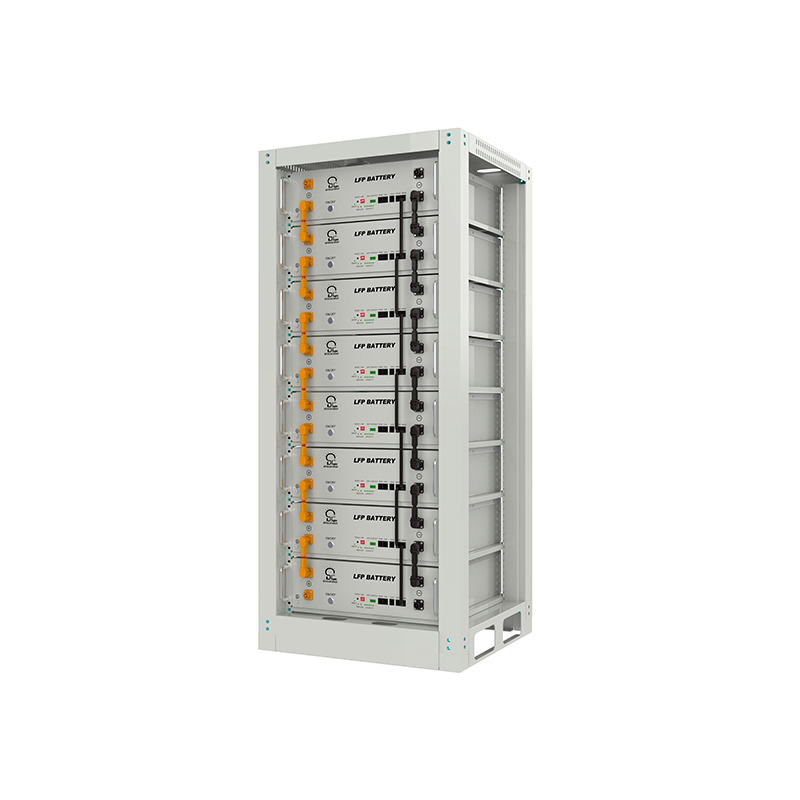

Bess 100kwh Battery Energy Storage System with Air Cooling and 40kw 50kw 60kw Hybrid Inverter for on & off Grid Solar System
Bess 100kwh Battery Energy Storage System with Air Cooling and 40kw 50kw 60kw Hybrid Inverter for on & off Grid Solar System
Bess 100kwh Battery Energy Storage System with Air Cooling and 40kw 50kw 60kw Hybrid Inverter for on & off Grid Solar System
Bess 100kwh Battery Energy Storage System with Air Cooling and 40kw 50kw 60kw Hybrid Inverter for on & off Grid Solar System
Bess 100kwh Battery Energy Storage System with Air Cooling and 40kw 50kw 60kw Hybrid Inverter for on & off Grid Solar System
1 / 5
Bess 100kwh Battery Energy Storage System with Air Cooling and 40kw 50kw 60kw Hybrid Inverter for on & off Grid Solar System
Bess 100kwh Battery Energy Storage System with Air Cooling and 40kw 50kw 60kw Hybrid Inverter for on & off Grid Solar System
Bess 100kwh Battery Energy Storage System with Air Cooling and 40kw 50kw 60kw Hybrid Inverter for on & off Grid Solar System
Bess 100kwh Battery Energy Storage System with Air Cooling and 40kw 50kw 60kw Hybrid Inverter for on & off Grid Solar System
Bess 100kwh Battery Energy Storage System with Air Cooling and 40kw 50kw 60kw Hybrid Inverter for on & off Grid Solar System

Bess 100kwh Battery Energy Storage System with Air Cooling and 40kw 50kw 60kw Hybrid Inverter for on & off Grid Solar System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
BR-LFP-51.2/100
Rechargeable
Yes
Size
Medium
Max Load (Cells)
16
Cycle Life
6000 Cycles
Warranty
5 Years
Specification
Lithium/LiFePO4
Origin
China
Production Capacity
5000 pieces/Year

Packaging & Delivery

📦
Package Size: 80.00cm * 50.00cm * 30.00cm
Package Gross Weight: 9.100kg

Product Description

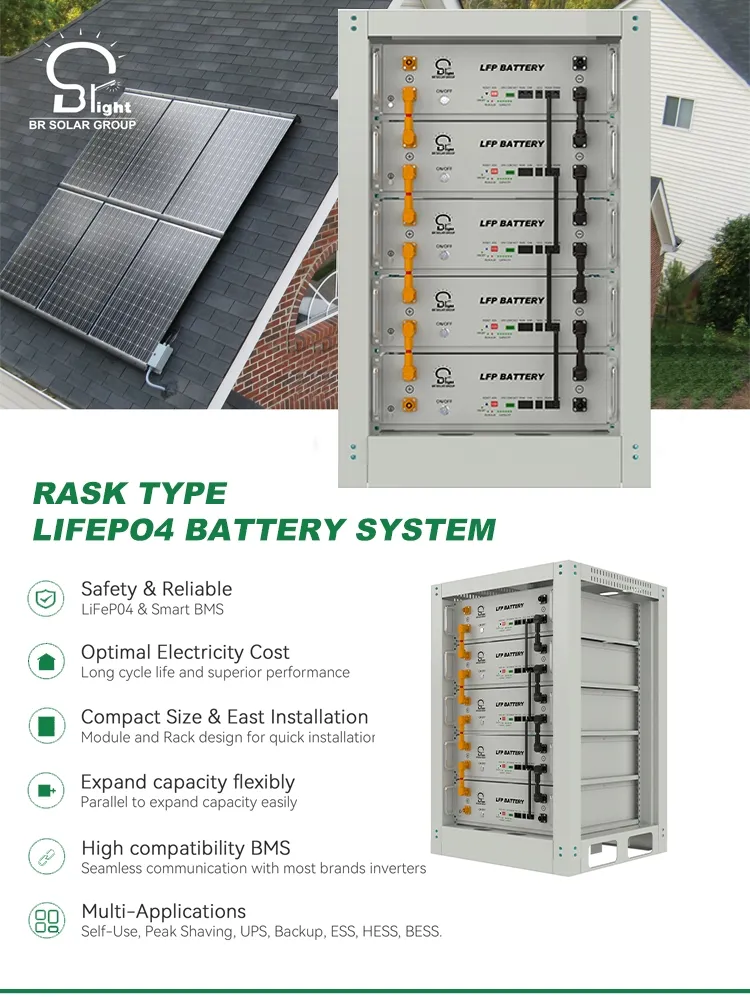

BESS Battery Storage System

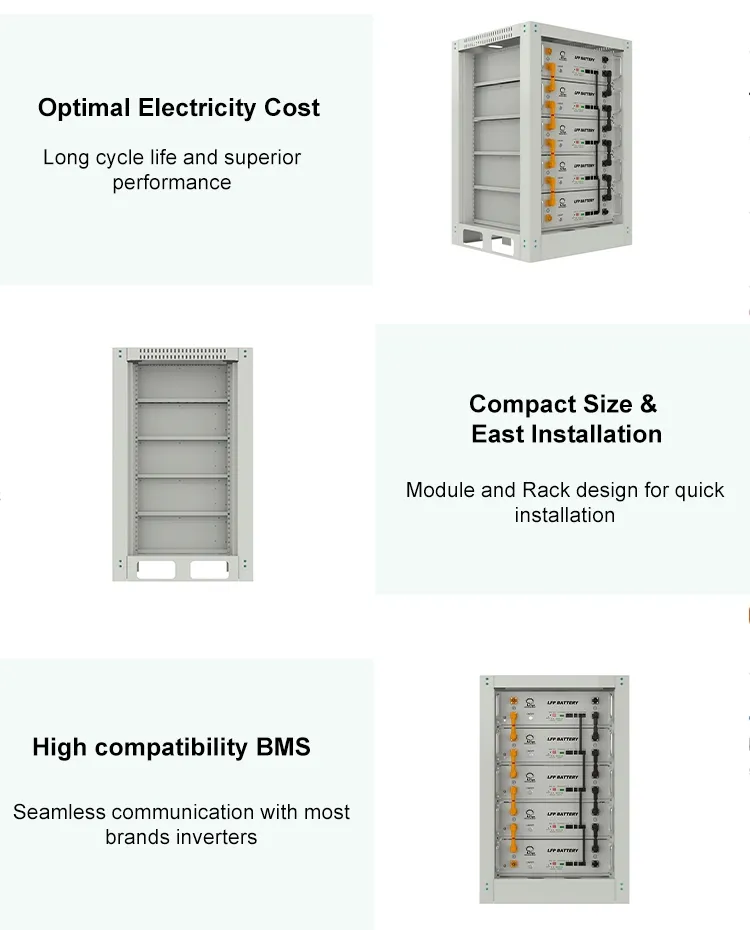

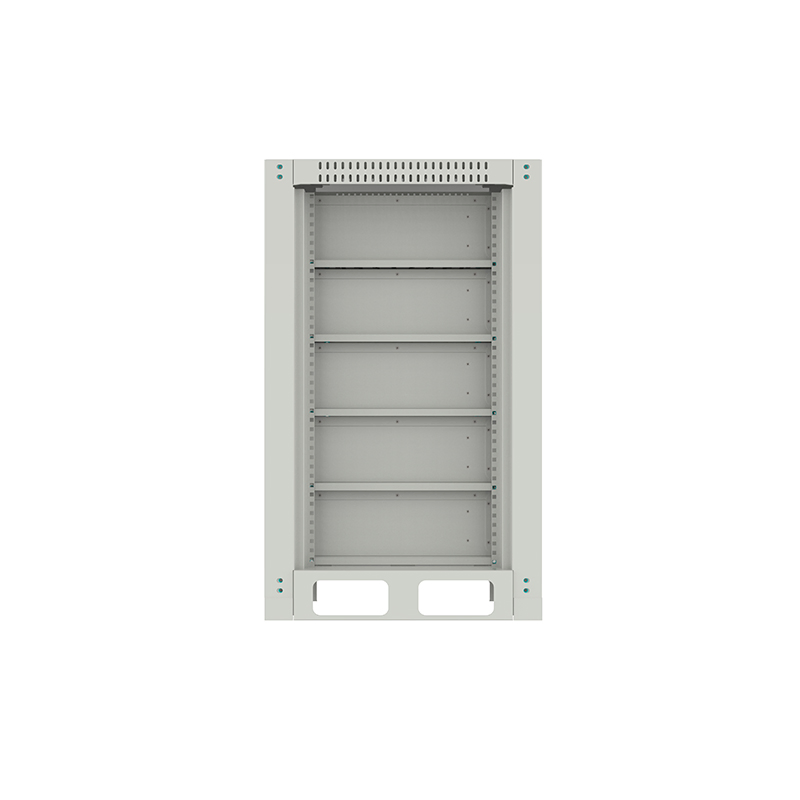

Battery System Internal View
SPECIFICATIONS PARAMETER DETAILS
Nominal Voltage (V)51.2V48V
Nominal Capacity106AH106AH
Dimension module (mm)440*442*133mm440*442*133mm
Weight (kg)50kg47kg
Nominal Capacity (Wh)54275088
Discharge Voltage (V)44.842
Charge Voltage (V)56.854.7
Recommend Charge/Discharge Current(A)8080
Max. Charge/Discharge Current(A)100100
CommunicationRS485/RS232/CANRS485/RS232/CAN
Working Temperature0°C-50°C Charge / -10°C-50°C Discharge
CertificationCE/IEC/UL/UN38.3/MSDS
Design Life15 years+
Cycle Life(0.5C/0.5C-80% DOD) > 6000 times
Parallel FunctionSupport up to 15 units in Parallel
Feature Overview
Storage Capacity
System Efficiency
Technical Specs Diagram
Cooling System
Installation Guide

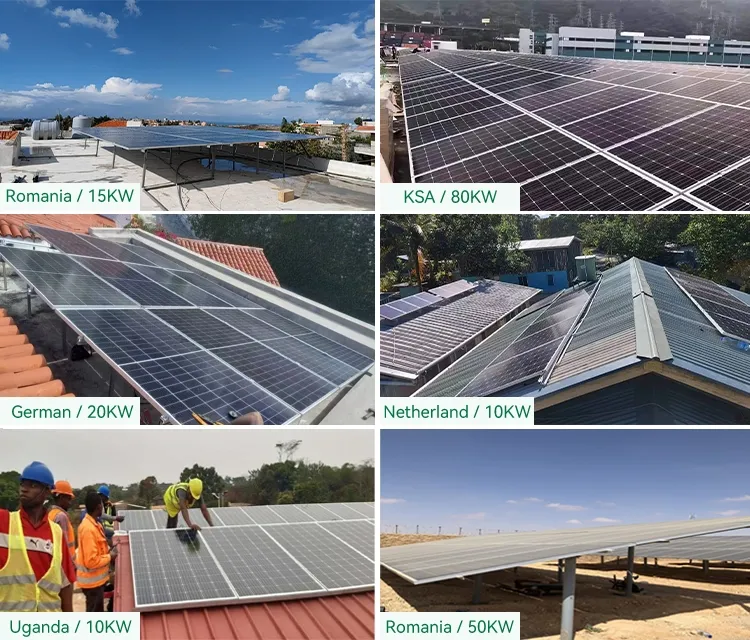

Application Scenario

Frequently Asked Questions

1. What is the expected cycle life of this battery system?
The system is designed for high durability, offering over 6000 cycles at 80% Depth of Discharge (DOD) under standard 0.5C charging/discharging conditions.
2. How many units can be connected in parallel?
This model supports parallel expansion of up to 15 units, allowing for scalable energy storage capacity to meet different power requirements.
3. What communication protocols are compatible with the BMS?
The integrated Battery Management System (BMS) supports RS485, RS232, and CAN communication, ensuring compatibility with most hybrid inverters on the market.
4. What is the warranty period and design life?
The product comes with a 5-year warranty and is engineered with a design life of over 15 years for reliable long-term energy storage.
5. Can this battery be used in extreme temperatures?
The battery operates efficiently between 0°C to 50°C during charging and -10°C to 50°C during discharge. Storage is safe within the -20°C to 60°C temperature range.
6. What certifications does the battery hold?
The system is fully certified with CE, IEC, UL, UN38.3, and MSDS, meeting international safety and transport standards for lithium batteries.
