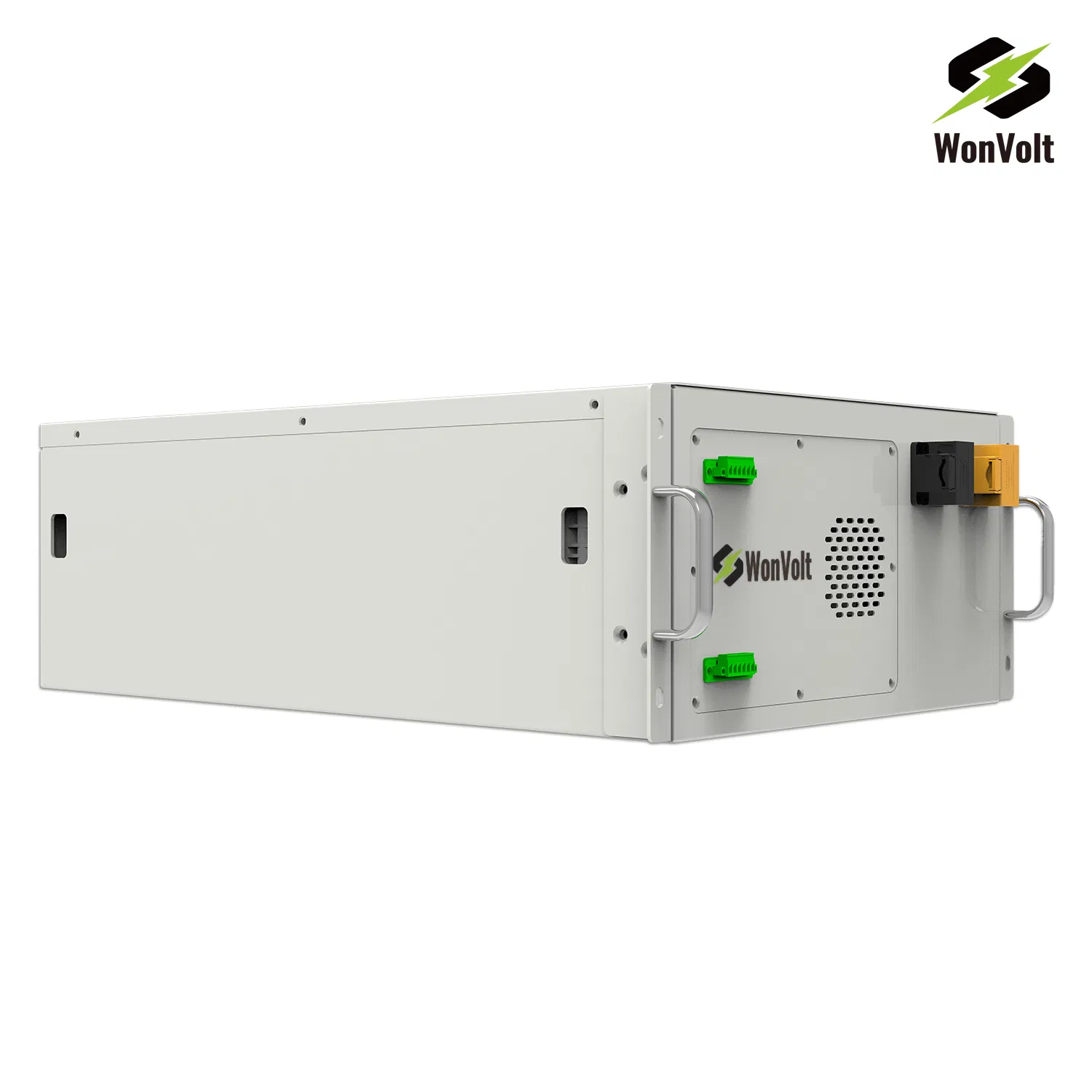

Wonvolt Hybrid Solar Energy System 30kw 50kw with Storage System Liquid Lithium Battery 112kwh 100kwh
Wonvolt Hybrid Solar Energy System 30kw 50kw with Storage System Liquid Lithium Battery 112kwh 100kwh
Wonvolt Hybrid Solar Energy System 30kw 50kw with Storage System Liquid Lithium Battery 112kwh 100kwh
Wonvolt Hybrid Solar Energy System 30kw 50kw with Storage System Liquid Lithium Battery 112kwh 100kwh
Wonvolt Hybrid Solar Energy System 30kw 50kw with Storage System Liquid Lithium Battery 112kwh 100kwh
1 / 5
Wonvolt Hybrid Solar Energy System 30kw 50kw with Storage System Liquid Lithium Battery 112kwh 100kwh
Wonvolt Hybrid Solar Energy System 30kw 50kw with Storage System Liquid Lithium Battery 112kwh 100kwh
Wonvolt Hybrid Solar Energy System 30kw 50kw with Storage System Liquid Lithium Battery 112kwh 100kwh
Wonvolt Hybrid Solar Energy System 30kw 50kw with Storage System Liquid Lithium Battery 112kwh 100kwh
Wonvolt Hybrid Solar Energy System 30kw 50kw with Storage System Liquid Lithium Battery 112kwh 100kwh

Wonvolt Hybrid Solar Energy System 30kw 50kw with Storage System Liquid Lithium Battery 112kwh 100kwh

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
PowerPLANT-H112
Rechargeable
Yes
Size
Medium
Communication
RS485 / CAN
Design Life
15 Years+ (25°c)
Cycle Life
10000 Times (25°c)
Certificates
CE/RoHS/Un38.3/MSDS
Cooling Method
Industrial AC
Net Weight
1260kg
Firefighting
Aerosol
Specification
51.2V 314Ah
Production Capacity
5 Gwh/Year
📝 Product Description

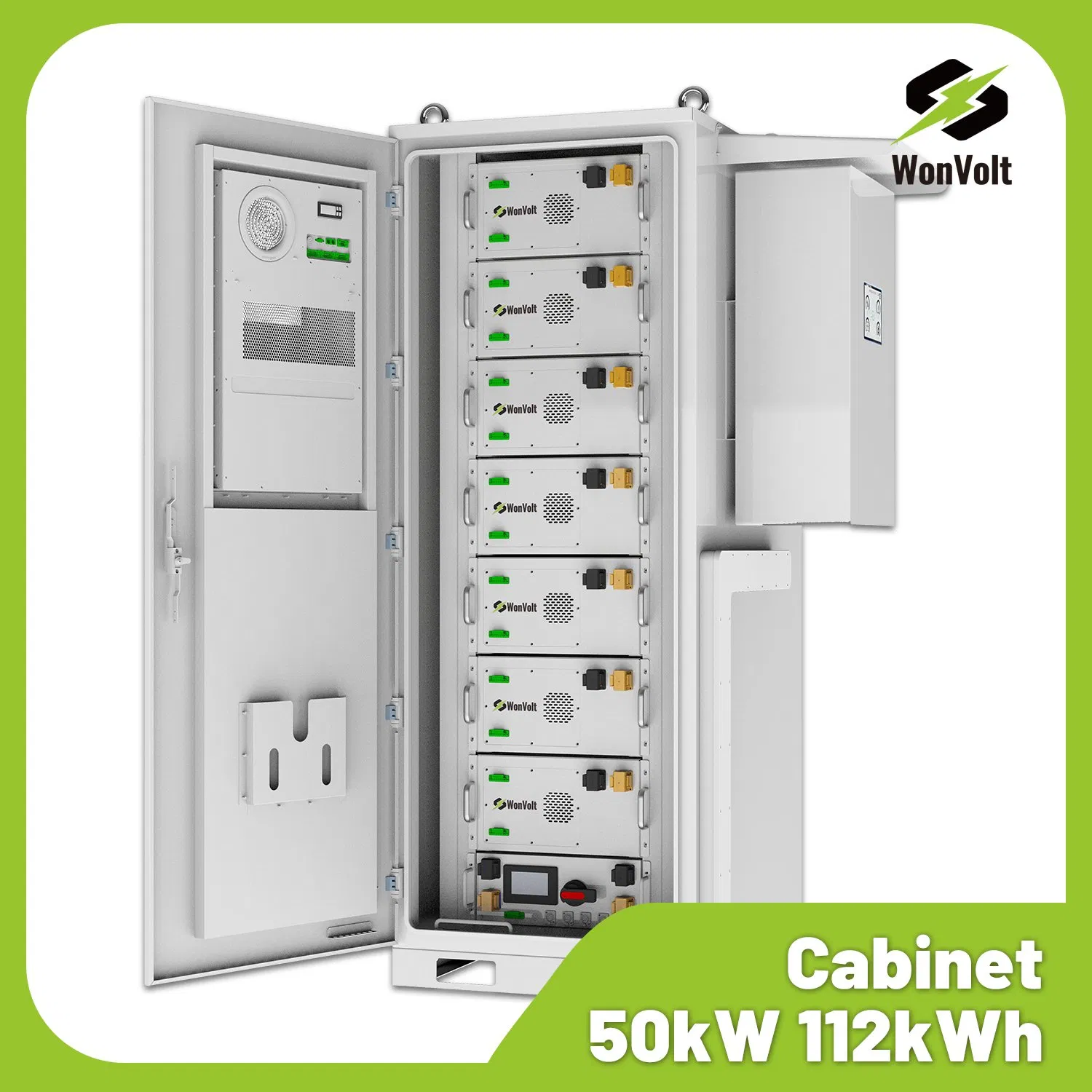

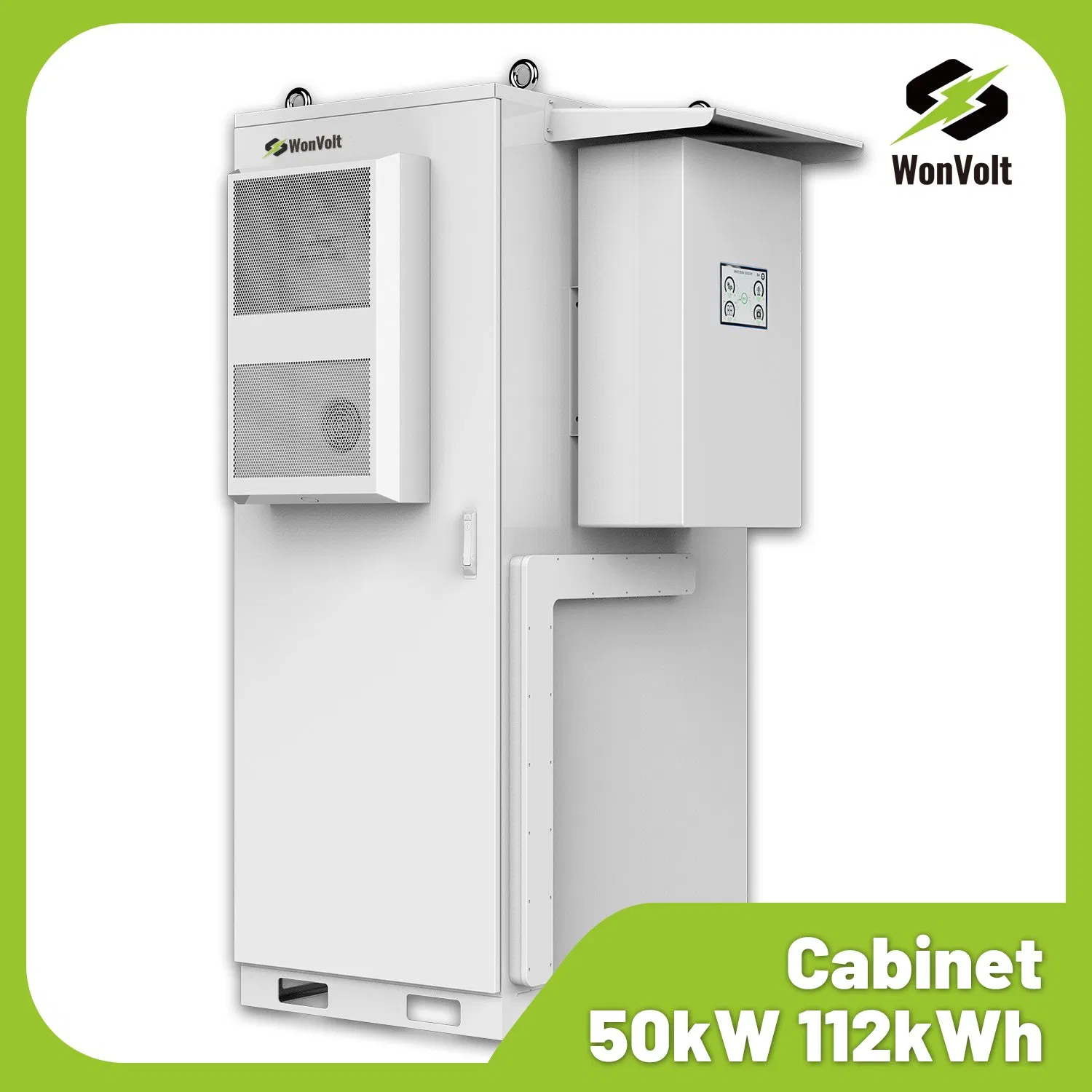

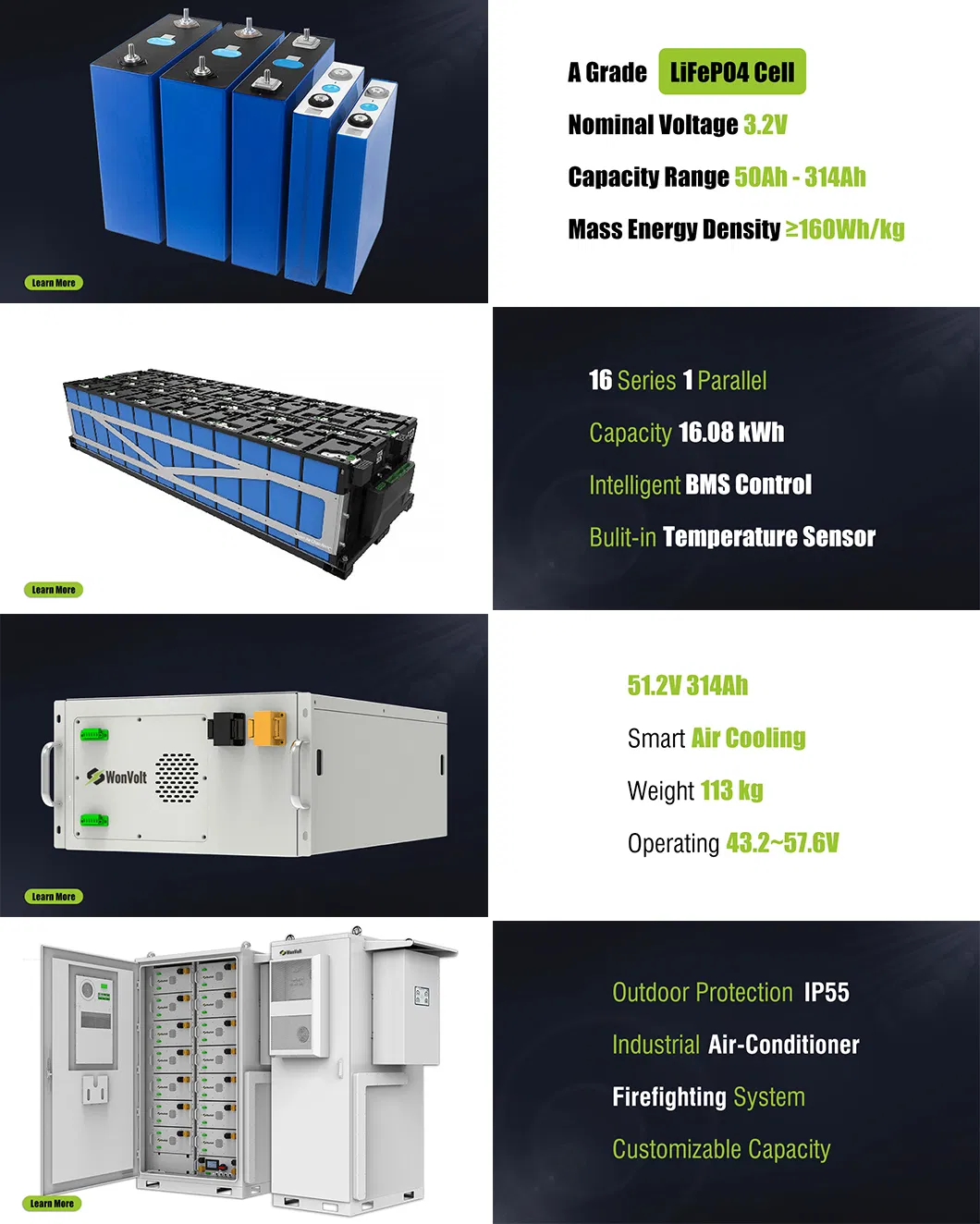

Hybrid Solar Energy Storage System 112kwh
⚙️ Product Parameters
Parameter Specification (PowerPLANT-H112)
System General Specification
ProductH112 ESS Cabinet
System Nominal Voltage358.4V
System Nominal Capacity314Ah
System Nominal Energy112kWh
Recommended Charge/Discharge Current100A
Max. Charge/Discharge Current140A
Protection ClassIP54 / IP55
Dimensions(W*D*H)1250x1245x2175mm
Battery Specification

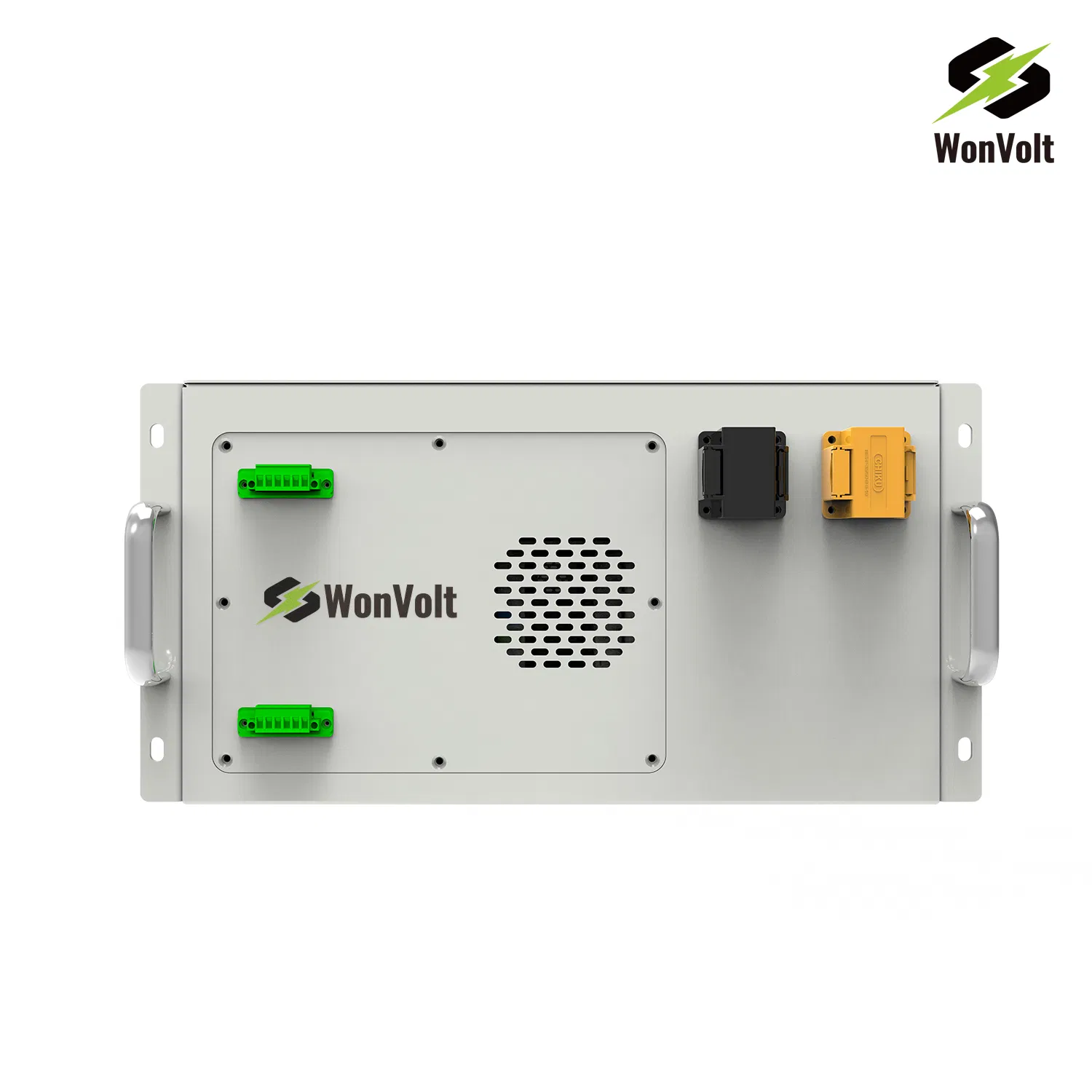

Battery Type51.2V 314Ah
Cell BrandHIGEE / CATL / REPT / etc.
Working Temperature0ºC ~ 50ºC Charge / -10ºC ~ 50ºC Discharge
Cycle Times10000 Times (0.5C - 25ºC - 90%DOD)
AC Side Specification
Inverter Power30kW / 50kW
Supported Inverter BrandsDeye / Solis / Afore / ATESS / Growatt / Megarevo / others
Rated AC Voltage380VAC (360VAC ~ 440VAC)
Communication MethodEthernet / Modbus / TCP / IP
🏭 Manufacturing & Factory

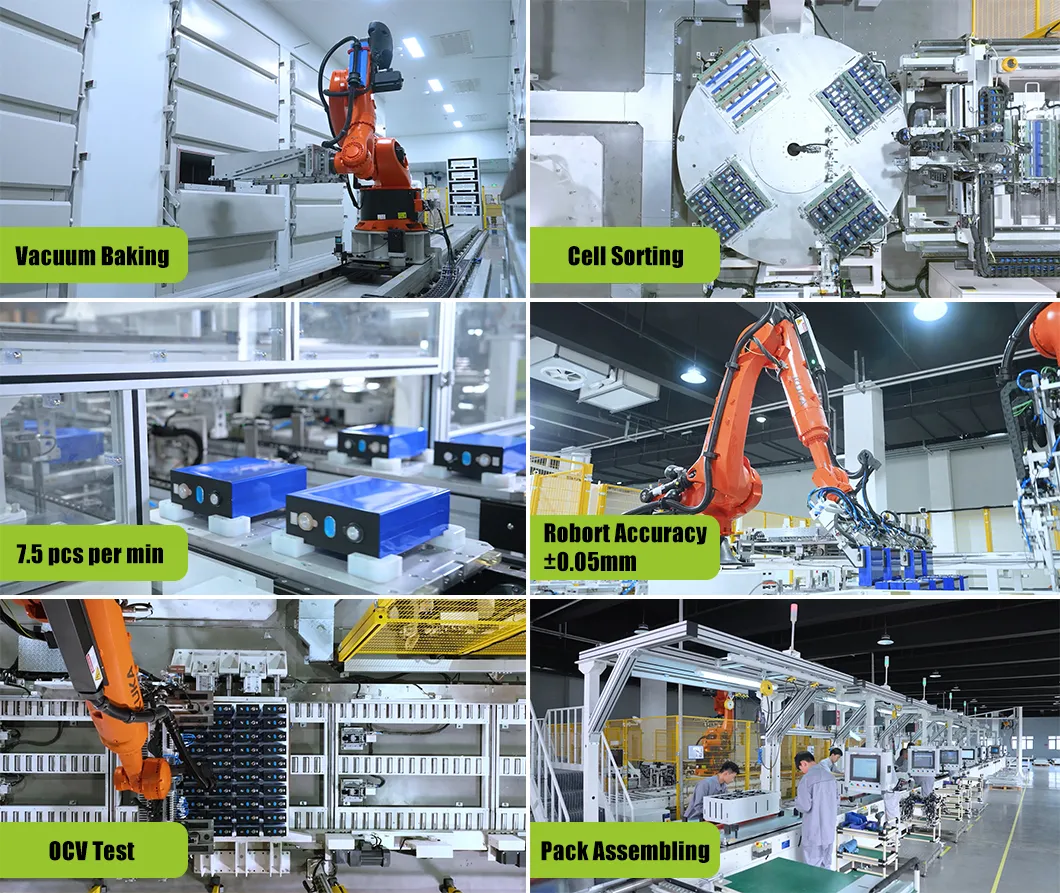

Factory Facility 1
Factory Facility 2
🛠️ Technical Support
Technical Support 1

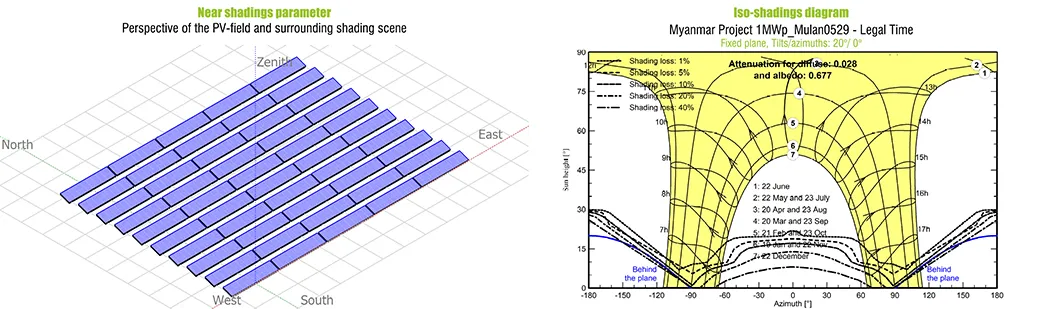

Technical Support 2

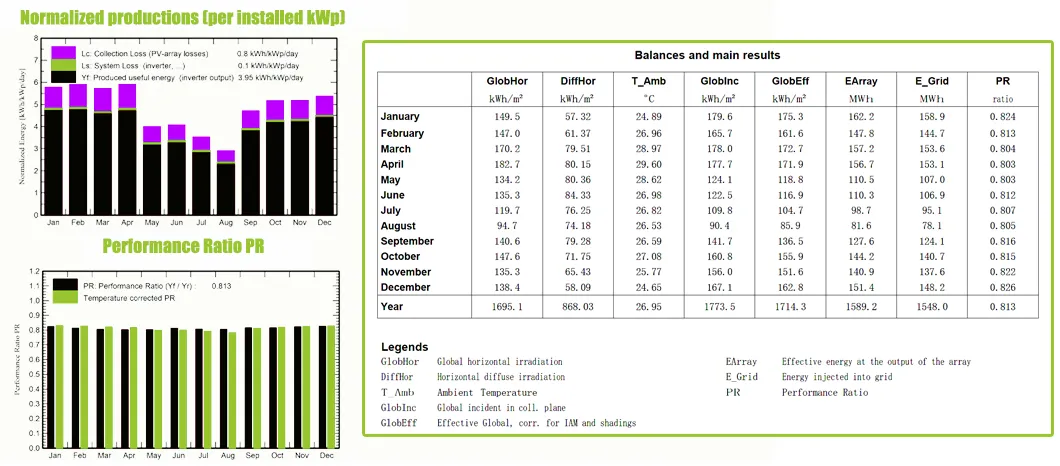

Technical Support 3
🌟 Reference Projects

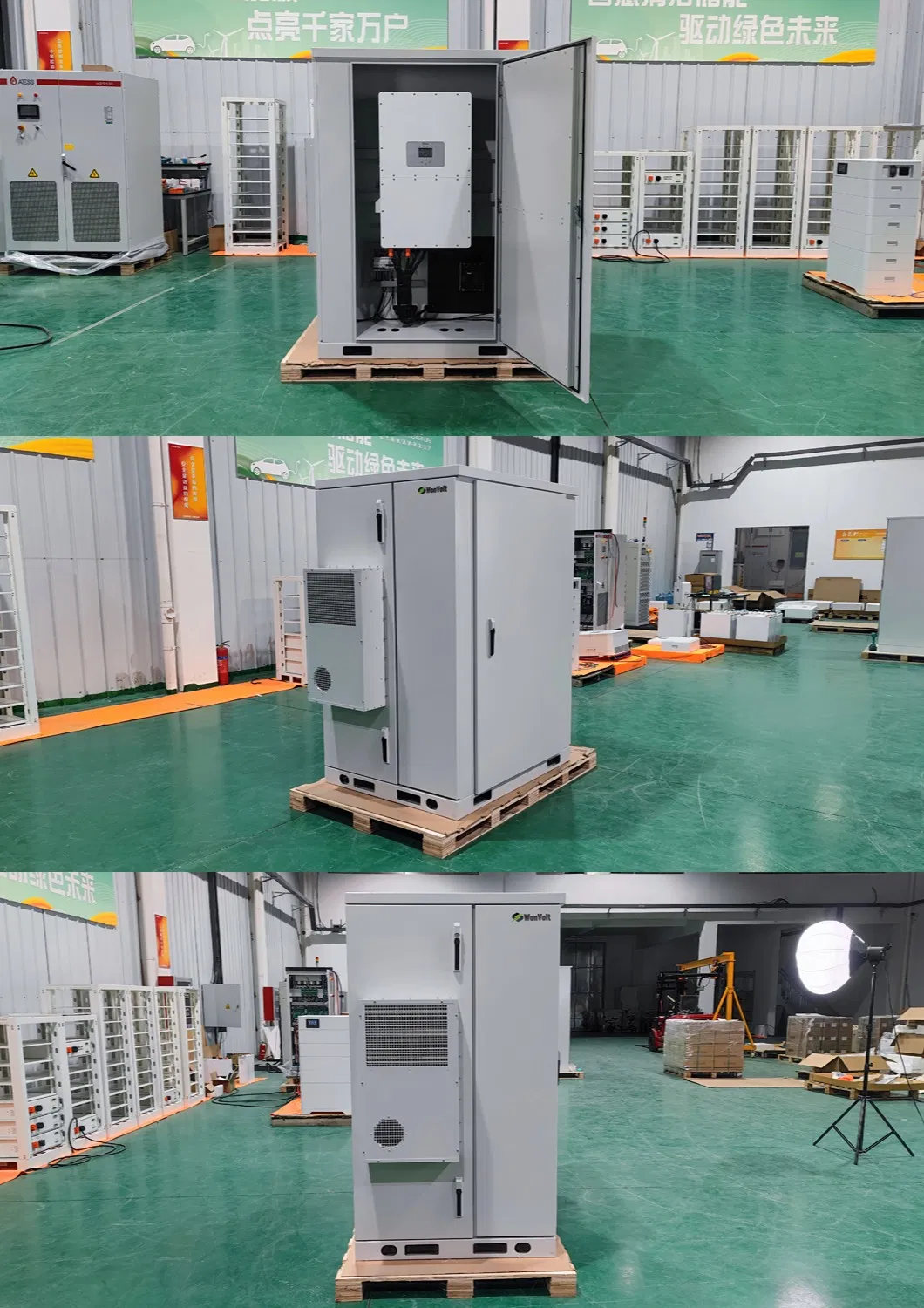

Project Case 1

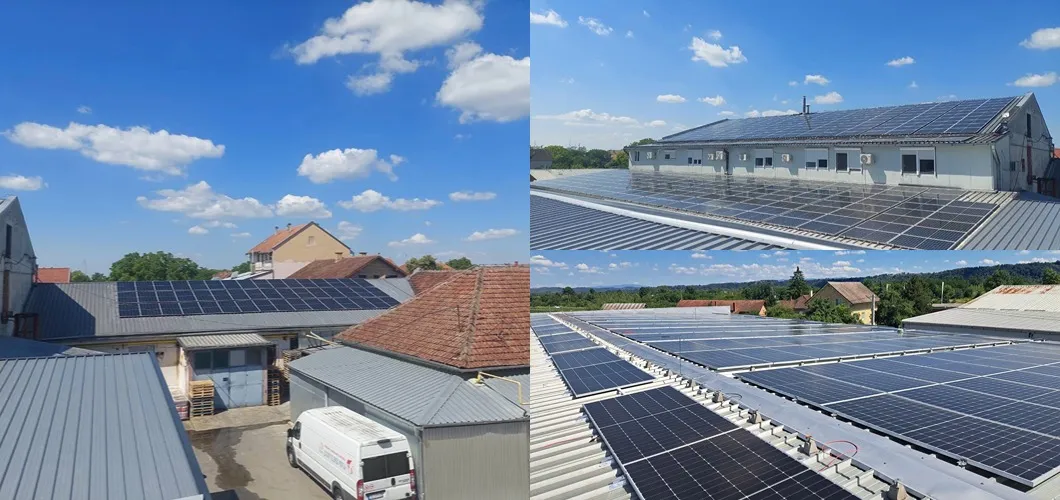

Project Case 2

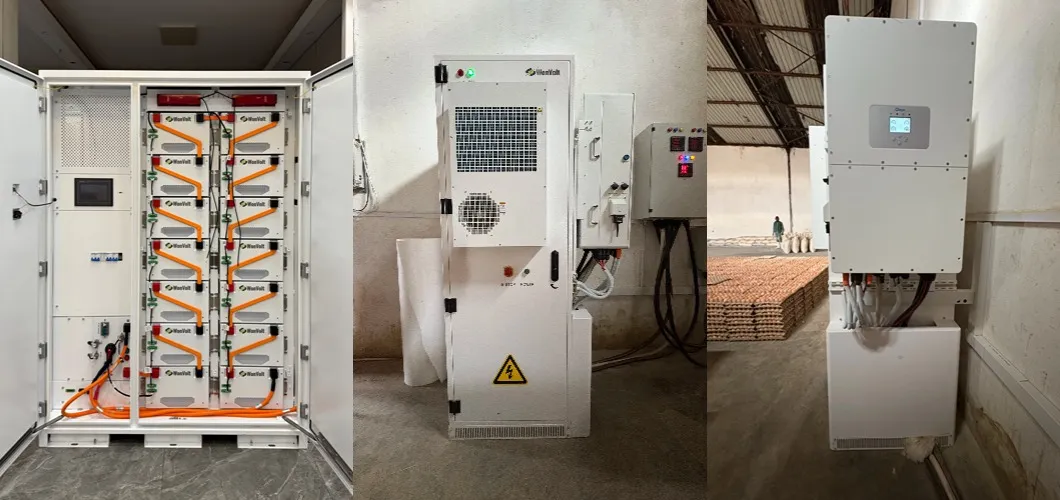

Project Case 3
❓ Frequently Asked Questions
What is the expected lifespan of the H112 ESS Cabinet?
The system is designed with a service life of over 15 years at 25°C, supported by high-quality lithium cells that offer up to 10,000 cycles.
How is the temperature regulated within the cabinet?
The H112 cabinet utilizes an integrated industrial air-conditioner and smart air cooling to maintain optimal operating temperatures for the battery cells.
Is the storage system safe from fire hazards?
Yes, the system is equipped with a professional gas aerosol firefighting mechanism to ensure maximum safety during operation.
Can this system be used with different inverter brands?
Absolutely. The system supports multiple major inverter brands including Deye, Solis, Afore, ATESS, Growatt, and Megarevo.
What certifications does the product carry?
The system meets international standards and holds certifications including CE, RoHS, IEC, UL, UN38.3, and MSDS.
What is the protection rating for outdoor installation?
The cabinet is rated at IP54/IP55, making it suitable for various environmental conditions and ensuring protection against dust and water ingress.
