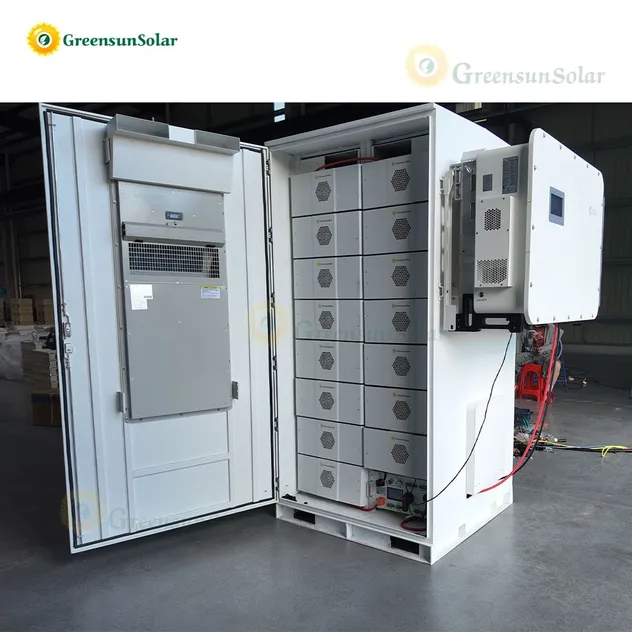

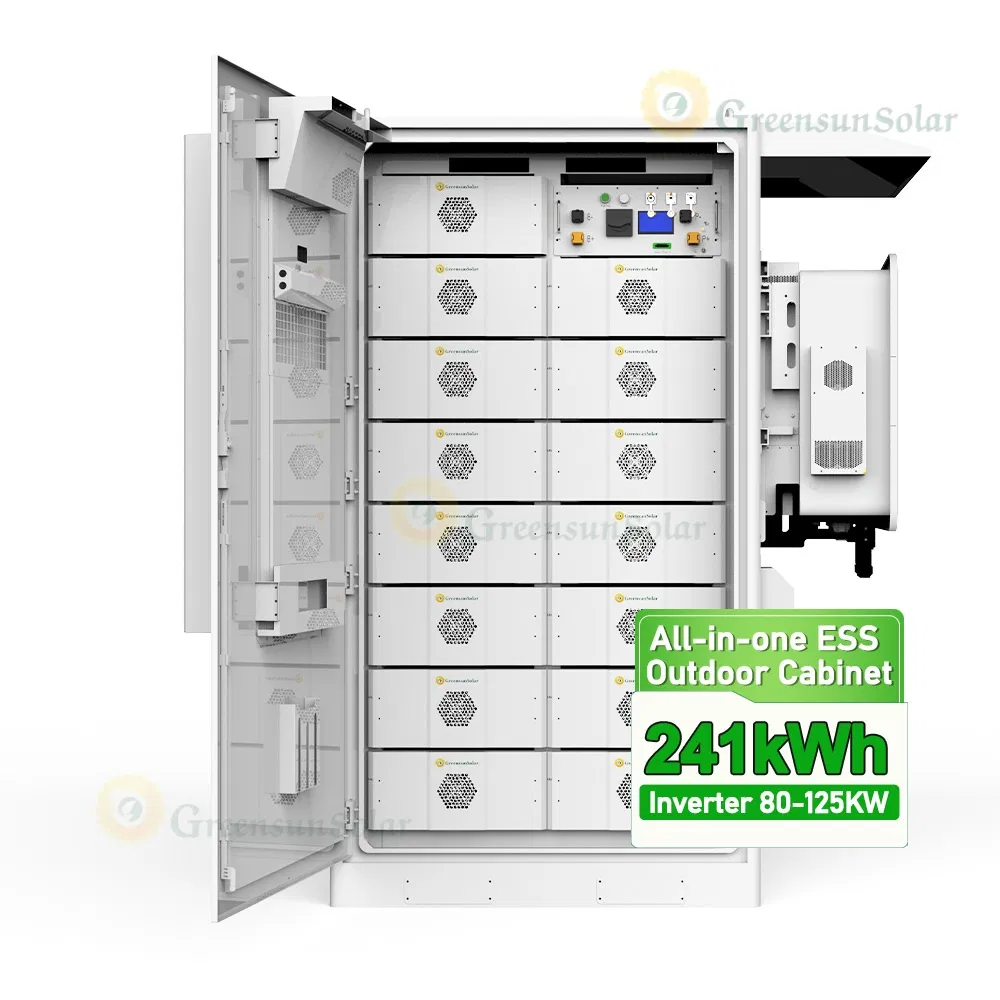

Suntherra Battery
1 / 5
| Main Parameters | |
|---|---|
| Model | GCB-E240 |
| Cell Chemistry | LiFePO4 |
| Module Energy (kWh) | 16.076 |
| Module Nominal Voltage (V) | 51.2 |
| Module Capacity (Ah) | 314 |
| Battery Module Qty In Series | 15 |
| System Nominal Voltage (V) | 768 |
| System Operating Voltage (V) | 672V~852V |
| System Energy (kWh) | 241.15 kWh |
| System Usable Energy (kWh) 90% | 217.03 |
| Charge/Discharge | 157A |
| Other Parameters | |
| Thermal Management | Smart fan cooling |
| LCD Display | SOC/ Voltage/Tem/Time/Fault Code |
| Working Temperature (°C) | Charge: 0~55 / Discharge: -20~55 |
| Communication Port | CAN/RS485 |
| IP Rating of Enclosure | IP55 |

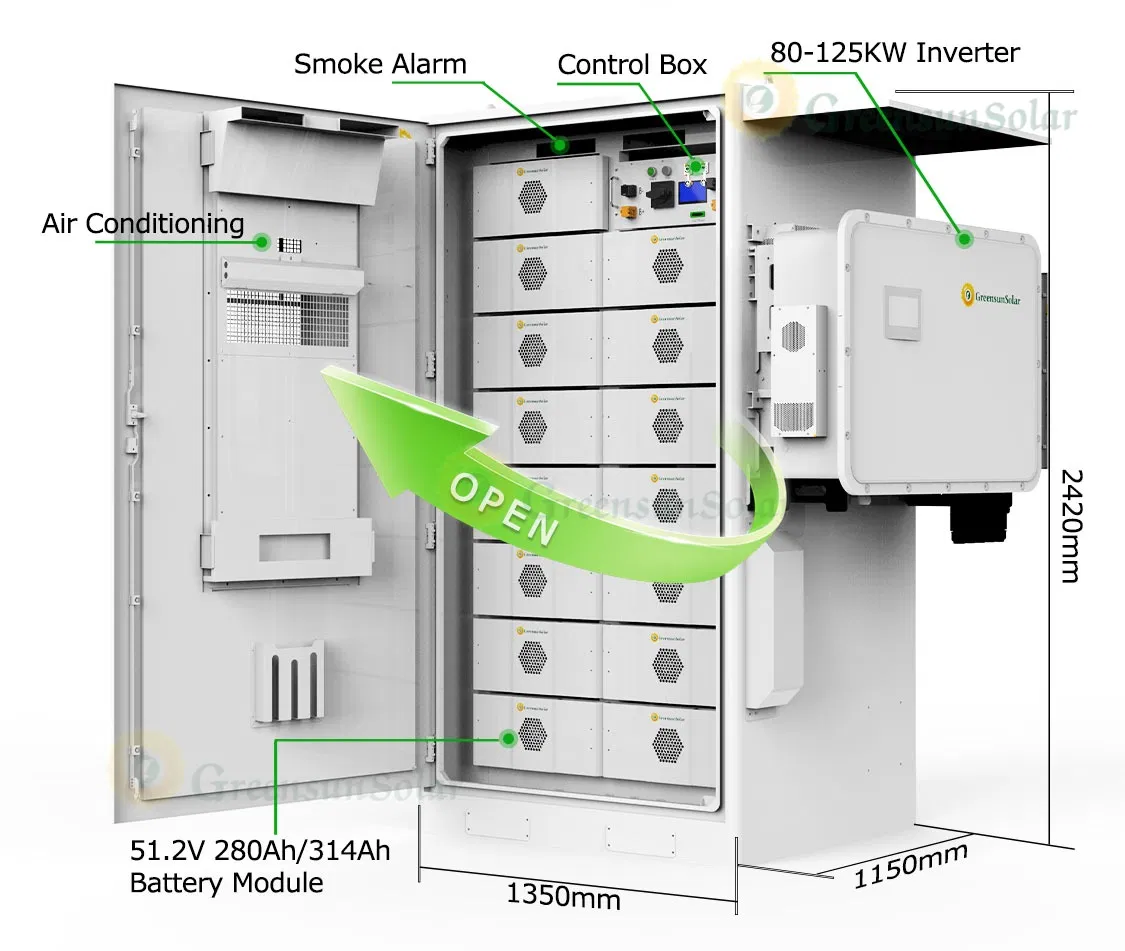

| Dimension (W*D*H, mm) | 1150*1350*2420mm |
| Weight Approximate (kg) | 3000kg |
| Cycle Life | 25±2℃, 0.5C/0.5C, DOD80%≥6000 |
| Warranty | 10 years |
| Certification | CE/UN38.3/MSDS /EMC |
Our facility is dedicated to providing professional Battery Energy Storage Solutions (BESS) across the world. Customer satisfaction and product quality have always been our basic principles since establishment.
We maintain in-depth cooperation with first-tier brand inverter manufacturers and provide complete solutions by integrating the supply chain, ensuring unparalleled advantages in system compatibility and performance.
