We specialize in manufacturing PERC, N-type TOPCon, and HJT solar panels. Our focus remains on the research and development of solar panels, on/off-grid systems, and hybrid solar systems to provide an excellent one-stop solar solution.
| Hybrid Inverter Model | BluE-S 3680D-M1 | BluE-S 5000D-M1 |
|---|---|---|
| PV String Input | ||
| Max. DC Voltage | 580V | 580V |
| Nominal Voltage | 400V | 400V |
| MPPT Voltage Range | 80V-560V | 80V-560V |
| Number of MPPT | 2 | 2 |
| AC Output (Grid) | ||
| Nominal AC Output Power | 3680W | 5000W |
| Max. AC Apparent Power | 7360VA | 7360VA |
| Nominal AC Voltage | 230Vac | 230Vac |
| Max. Output Current | 16A | 22A |
| Battery Input | ||
| Battery Type | LFP (LiFePO4) | LFP (LiFePO4) |
| Nominal Voltage | 48V | 48V |
| Max. Charging Current | 50A | 100A |
| General Specifications | ||
| Dimensions (W*H*D) | 540*590*240mm | |
| IP Class | IP65 | |
| Communication | RS485/CAN2.0/WIFI/4G | |
With a solid global presence, products are shipped to Europe, Latin America, North Africa, and Southeast Asia. To better serve international customers, seven overseas branches and service centers have been established in Germany, Spain, Poland, Finland, Thailand, Brazil, and the UK.

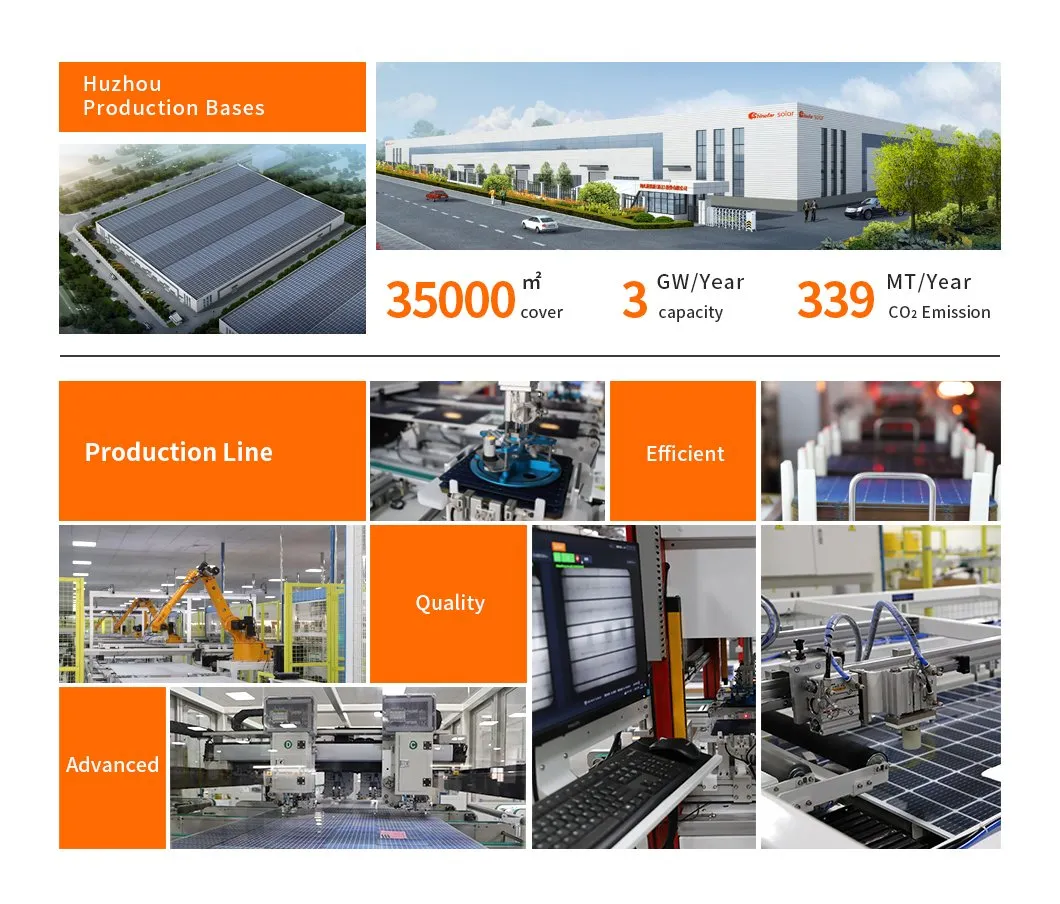

Production facilities span over 35,000m² with an annual capacity of 3GW. Utilizing 3 fully automated production lines, every panel undergoes five rigorous quality tests to ensure perfection.

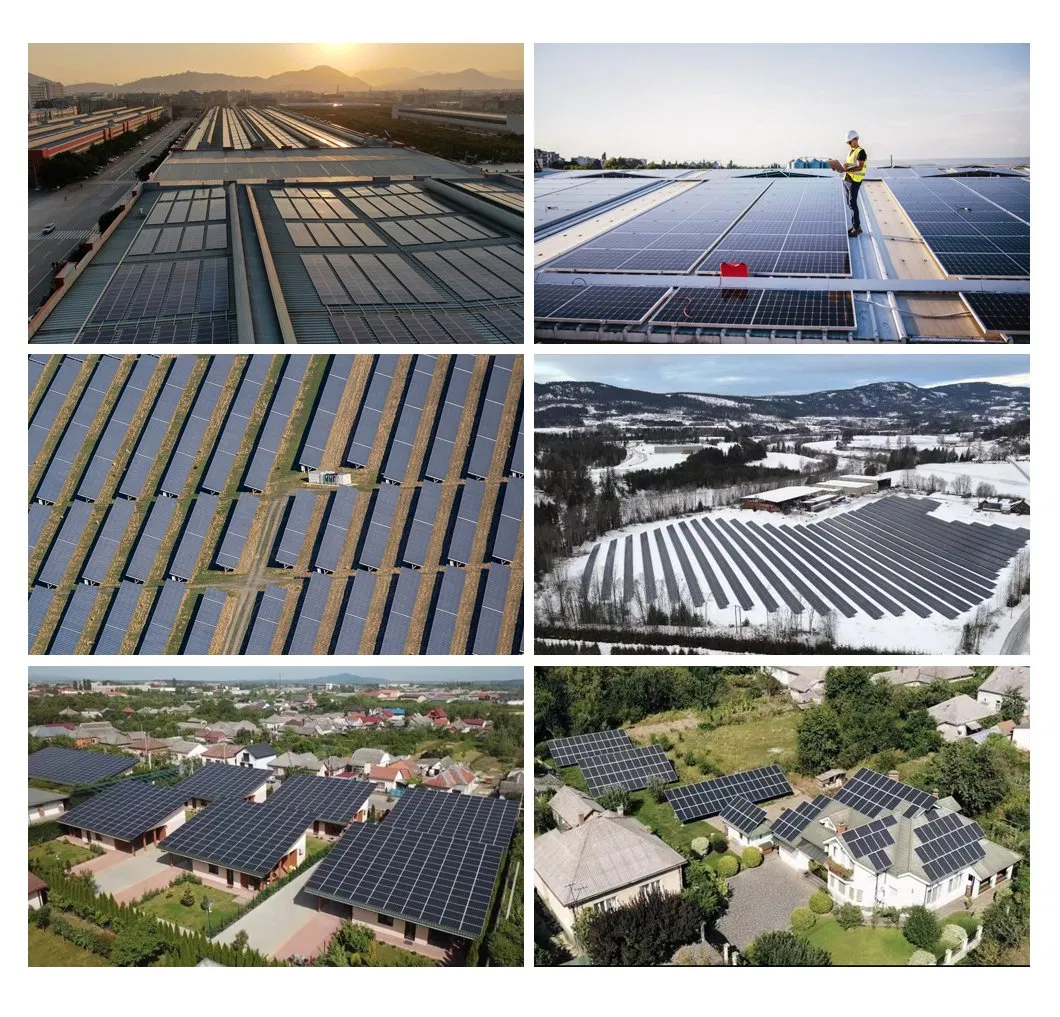

Proudly driving solar innovation across Brazil, Morocco, Ukraine, Vietnam, and beyond. These photovoltaic projects underscore a commitment to sustainable energy solutions and a greener future.
Full certifications to meet diverse market needs: ISO 9001, ISO 14001, TUV, CE, ROHS, IEC, PID, DEWA, CB, and more.
