Suntherra Battery
1 / 5

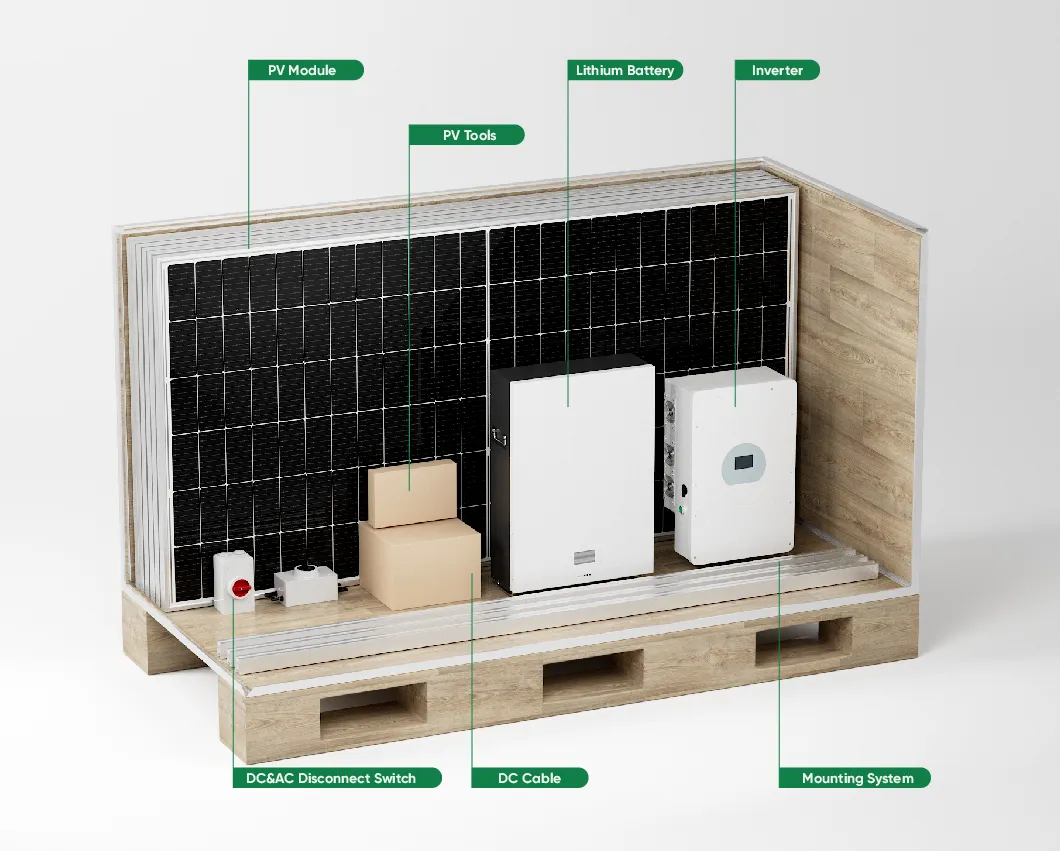

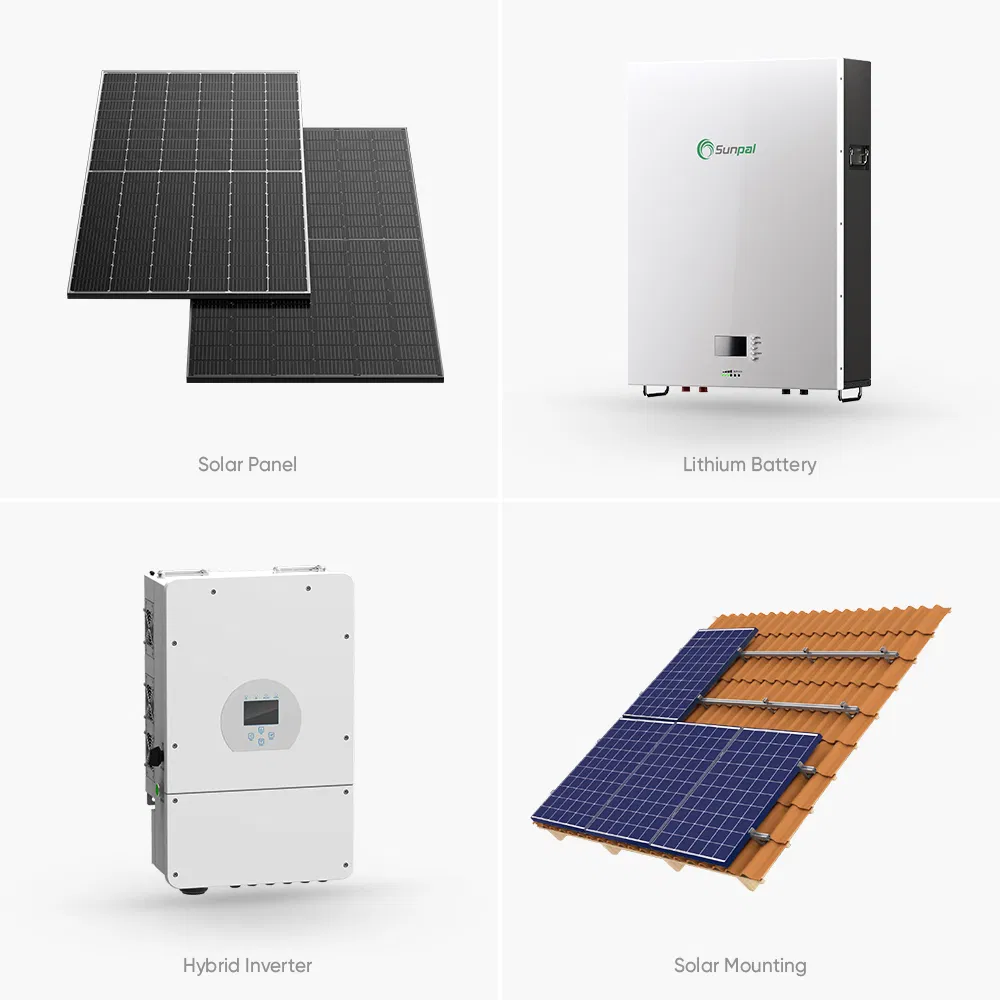

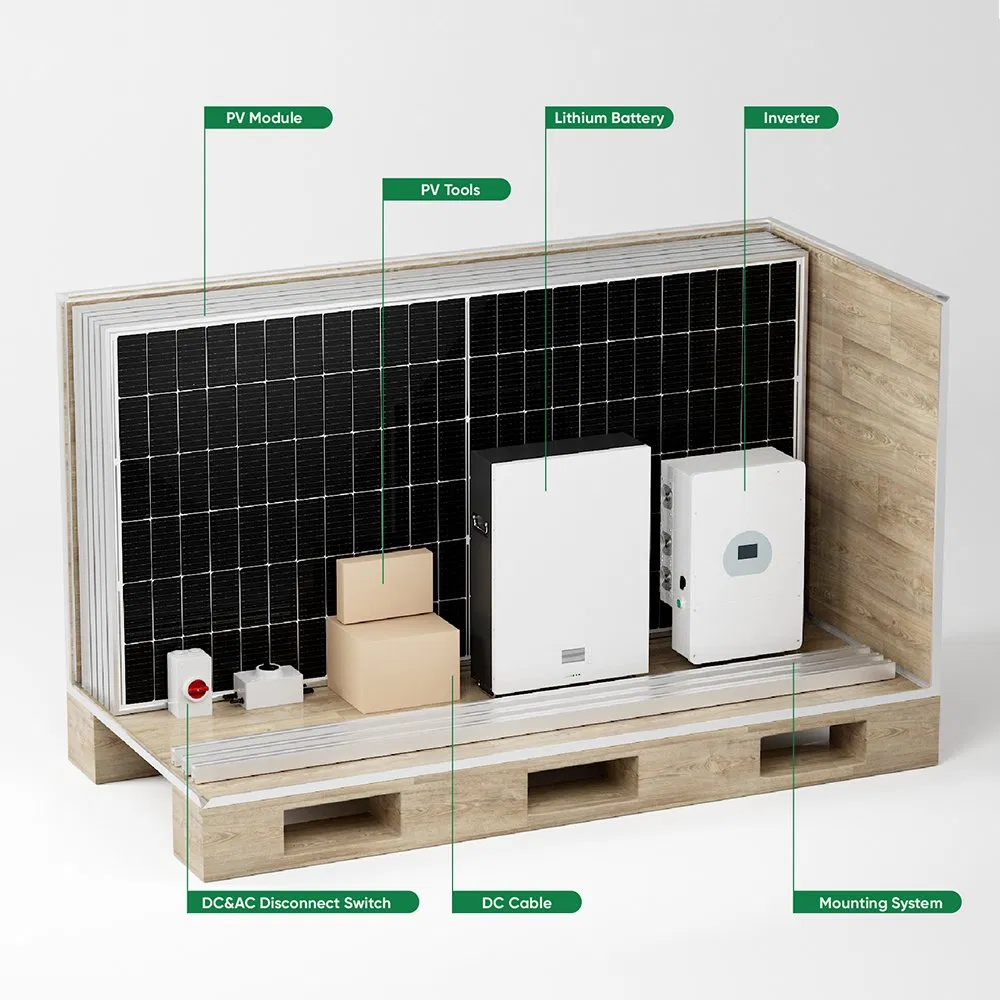

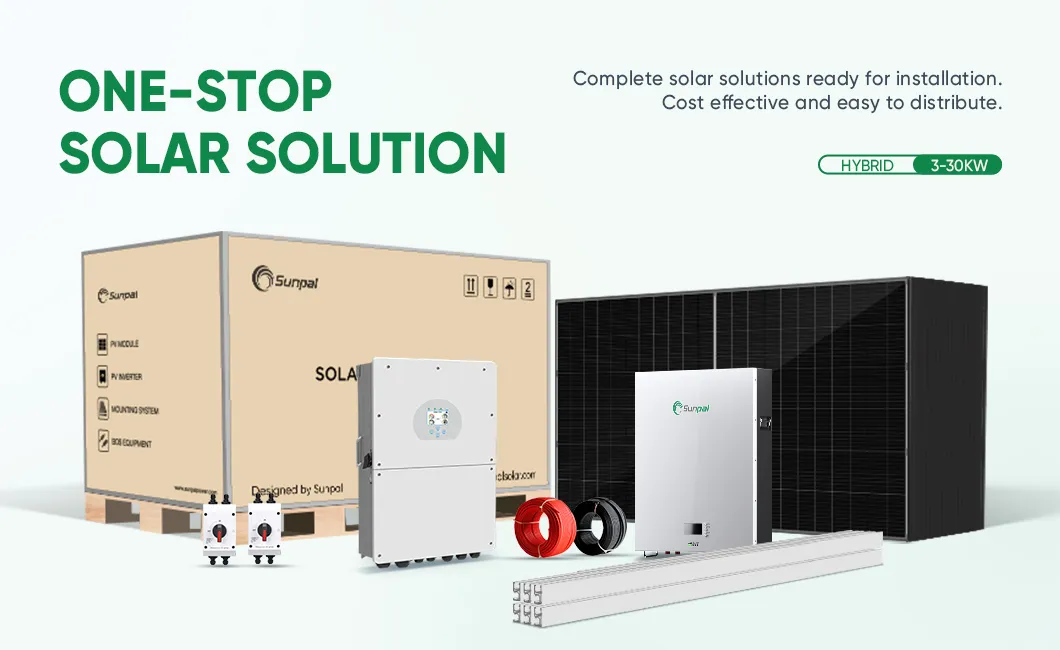

| Model | SP-3KW-HY | SP-5KW-HY | SP-10KW-HY |
|---|---|---|---|
| Half Cut Mono 550W Solar Panel | 6 Pieces | 10 Pieces | 2 Pieces |
| DC Disconnect Switch | 1 Piece | 2 Piece | 3 Pieces |
| Hybrid Inverter | SUN-3K-SG04LP1-EU | SUN-5K-SG03LP1-EU | SUN-10K-SG04LP3-EU |
| Wall Mounted LiFePo4 Battery | 5Kwh | 5Kwh | 10Kwh |
| DC Cable 4mm2 | 100 meter | 200 meter | 400 meter |
| AC Disconnect Switch | 1 Piece | 1 Piece | 1 Piece |
| MC4 Connector | 10 Pairs | 10 Pairs | 10 Pairs |
| Mounting System | Customized Product Based On Installation Roof/Ground | ||
| PV Installation Tools | 1 Set | ||
| Model | SP-15KW-HY | SP-20KW-HY | SP-30KW-HY |
|---|---|---|---|
| Half Cut Mono 550W Solar Panel | 30 Pieces | 420 Pieces | 63 Pieces |
| DC Disconnect Switch | 4 Piece | 6 Piece | 9 Pieces |
| Hybrid Inverter | SUN-5K-SG03LP1-EU (3 Pcs) | SUN-10K-SG03LP1-EU (2 Pcs) | SUN-10K-SG04LP3-EU (3 Pcs) |
| Wall Mounted LiFePo4 Battery | 15Kwh | 20Kwh | 30Kwh |
| DC Cable 4mm2 | 600 meter | 800 meter | 1000 meter |
| Mounting System | Customized Product Based On Installation Roof/Ground | ||
| PV Installation Tools | 1 Set | ||
Peak Power Watts: 550W
Maximum Power Voltage: 42.06V | Maximum Power Current: 12.84A | Open Circuit Voltage: 49.75V | Short Circuit Current: 13.63A
Dimensions: 2279x1134x35mm | Weight: 26.9 kg

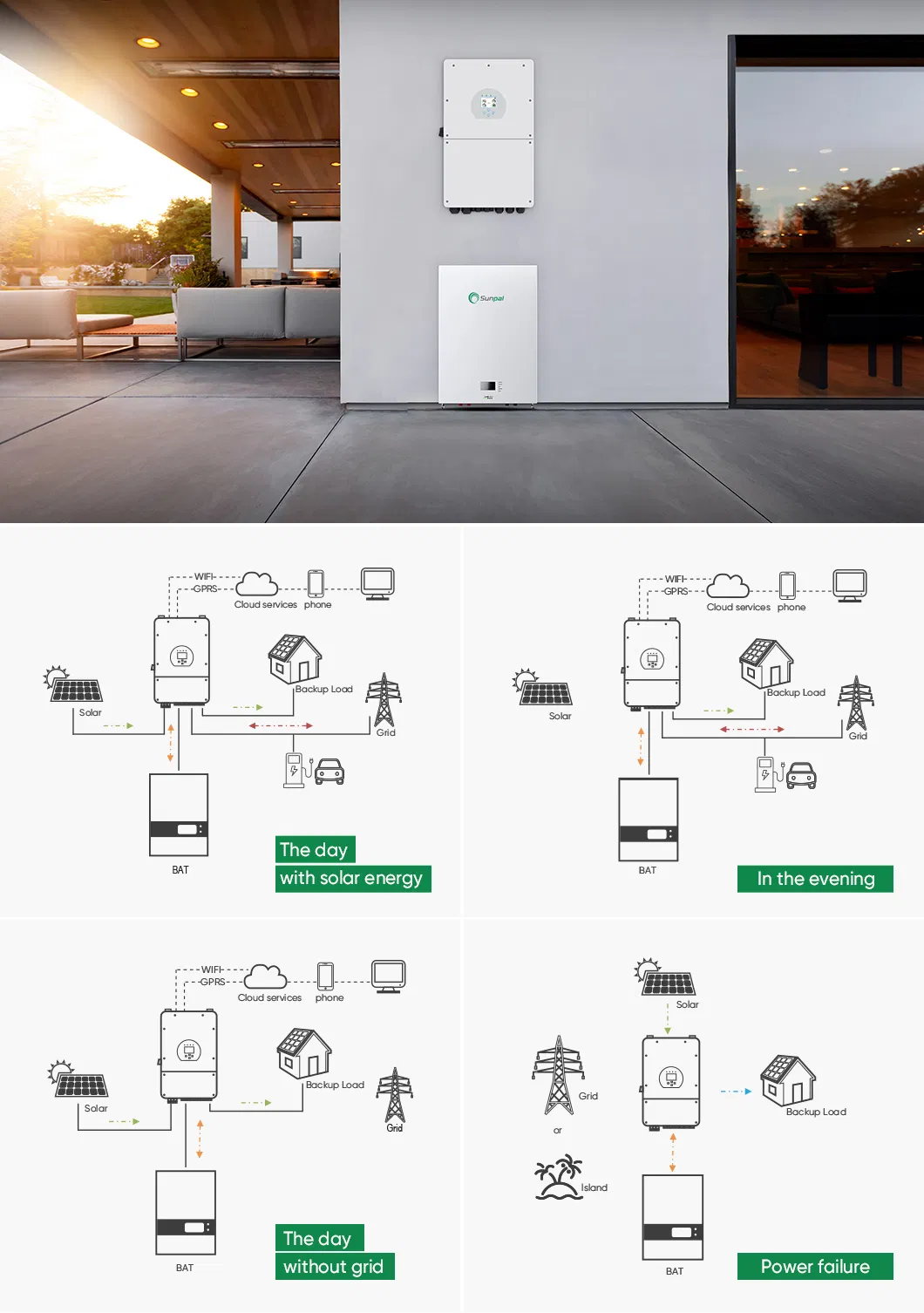

48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging. Max. charging/discharging current of 240A. Supports max 10pcs parallel. DC couple and AC couple to retrofit existing solar systems.
Open station supports one-click installation and registration. Safe operation with traceable logs. Supports full lifecycle data storage to ensure data security and reliability.
15-20 years design life. Up to 6000+ cycle life. Wall mount or ground stack, simple connection to inverter. Scalable module design with high-quality built-in BMS for cell protection. Lithium iron phosphate technology for maximum home safety.

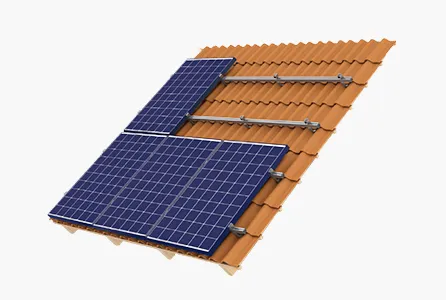

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt. Mid & End Clamps: 35, 40, 45, 50mm. L Foot Asphalt Shingle Mount & Hanger Bolt Optional. Cable Clip & Tie, Ground Clip & Lugs Optional.
IP Rating: IP66 | Rated Voltage: 1000VDC | Connection Type: M20, M25, MC4 | Rated Current: 16A, 20A

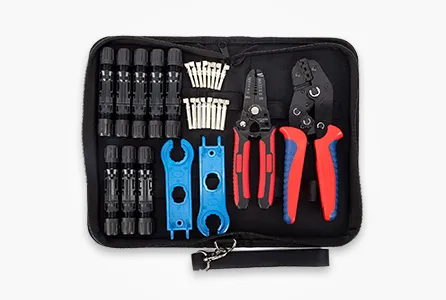

Complete set including Wire Cable Cutter & Stripper, MC3 MC4 Crimper, and MC4 Connectors Assembly/Disassembly Tool.

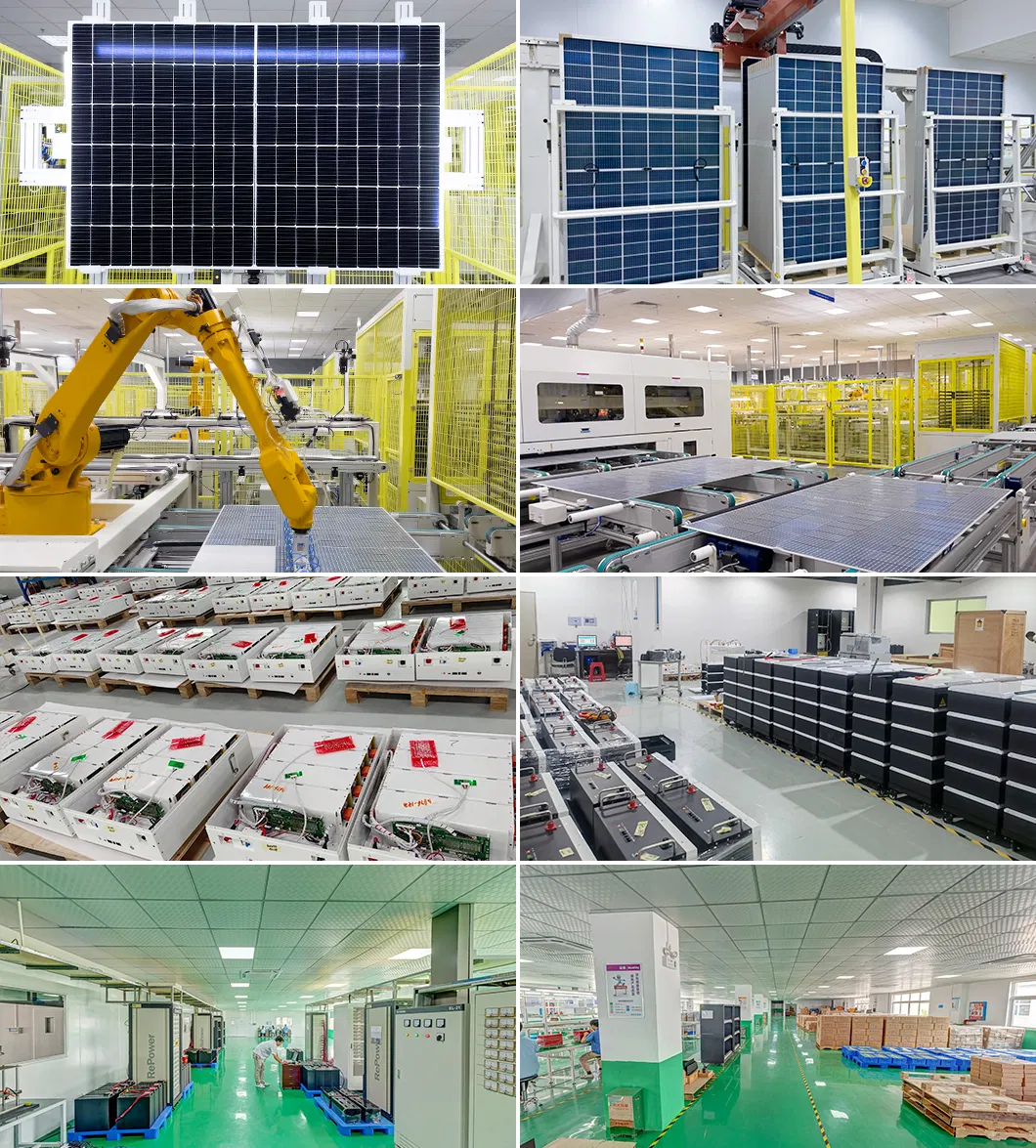

As a world-class solar products manufacturer, our company specializes in the research, development, production, and sales of solar PV products and solar panels. Focused on research and manufacture since 1998, we have exported solar panels to 86 countries. Our factory area covers 150,000 square meters with 600 experienced employees.
