📋 Basic Info.
Application
Home, Industrial, Commercial
Specification
Normal, OEM
Mounting Support
Roof or Ground Solar Mount Bracket
Solar Inverter
Grid-Tied Inverter
System Type
Home Energy Storage System
Solar Panel
Mono N-Type Hjt
Battery
Gel or Lithium Battery or No
Production Capacity
2 Gw/Year
📦 Packaging & Delivery
Package Size
4100.00cm * 3200.00cm * 1800.00cm

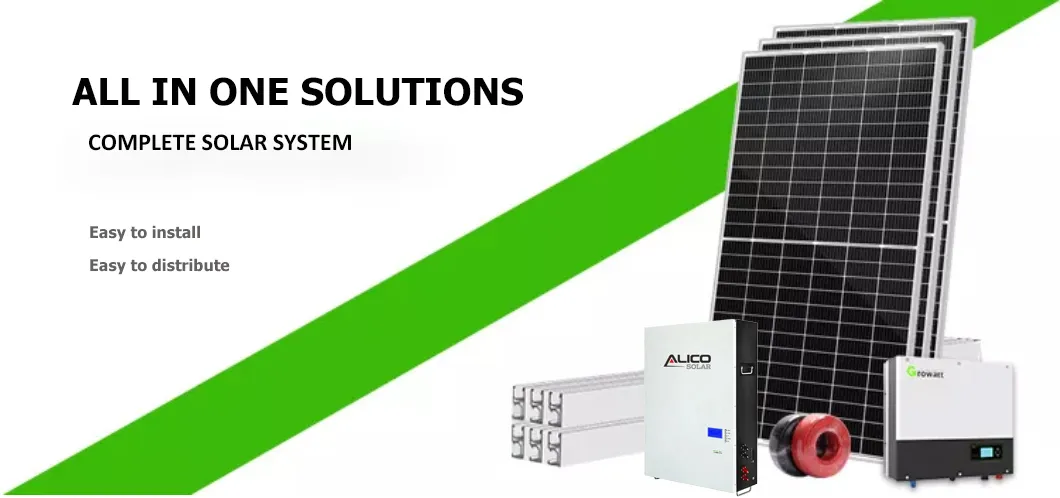

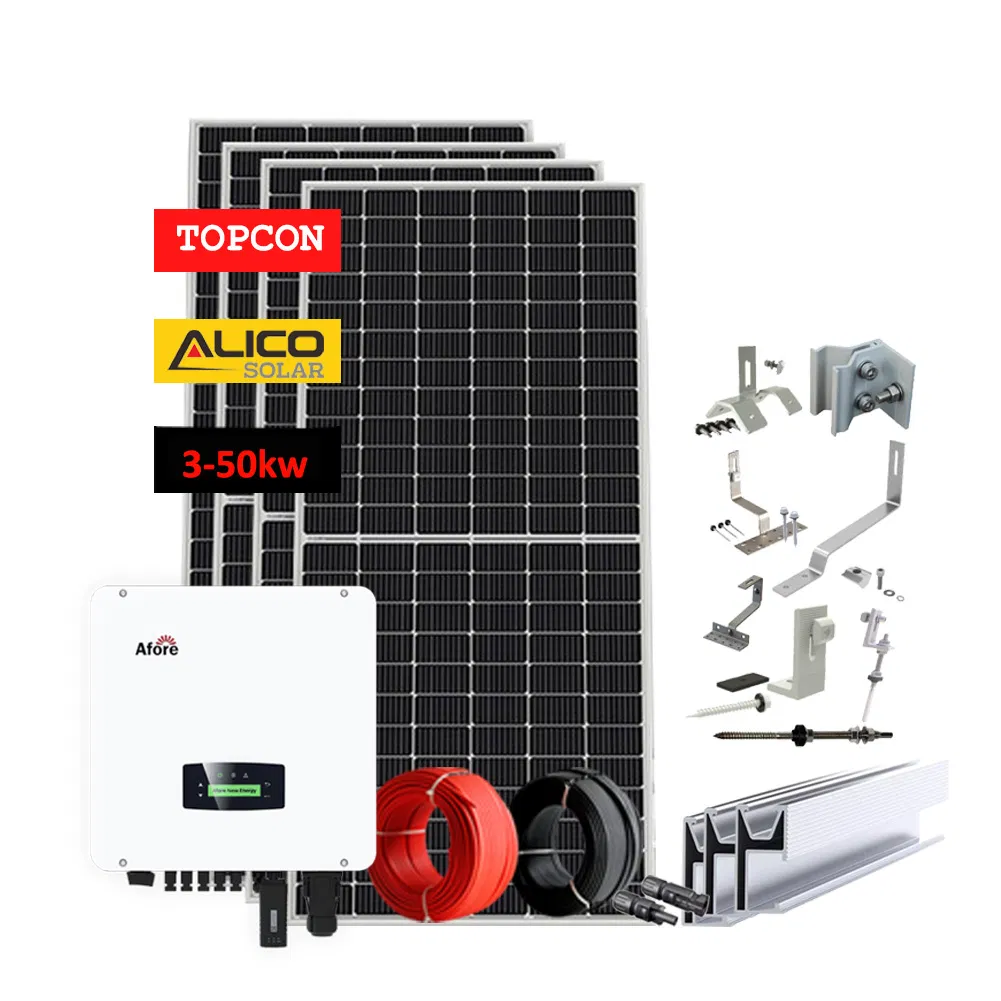

☀️ On Grid System Configuration
| Name |
Description |
Quantity |
| Solar Panel | Mono 550W 72HF Cells PV Module | 24-1250 Pieces |
| DC Disconnect Switch | IP66 1000VDC 16A | 2 Set |
| On Grid Inverter | 10KW to 500kw | 1 Set |
| AC Disconnect Switch | IP 66 1000VDC 32A | 1 Set |
| DC Cable | 4mm2 | 200 - 2000Meters |
| MC4 Connector | 4mm2 1000VDC | 10-1000 Pairs |
| Mounting System | Standards Pitched Roof (Customized Optional) | 1 Set |
| PV Tools | Wire Cable Cutter & Stripper, Disassembly Tool | 1 Set |
🔍 Component Details

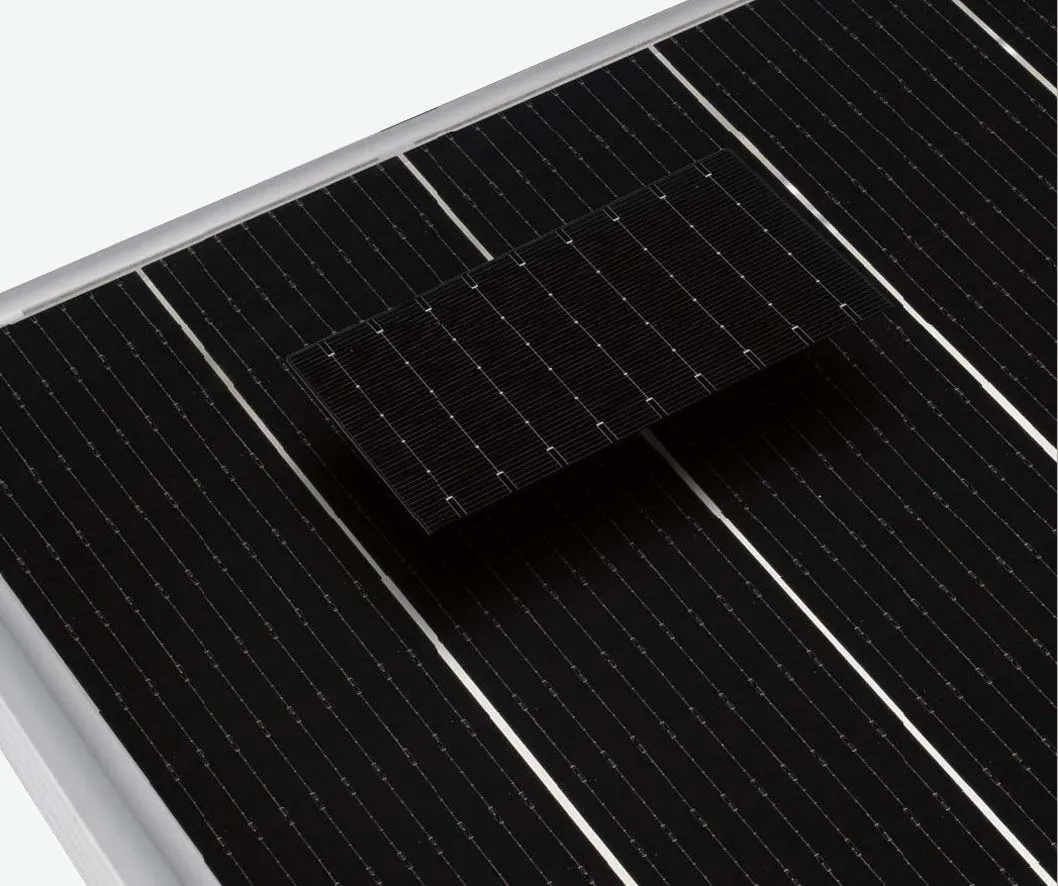

Mono Solar Panels
Peak Power Watts: 480W
Maximum Power Voltage: 49.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 42.8V
Short Circuit Current: 11.2A
5-125KW On-Grid Inverter
Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

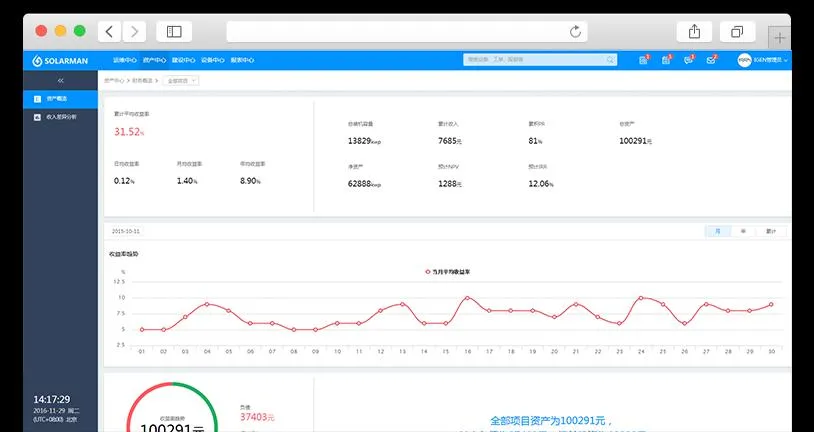

Remote Monitoring System
Data Logging Stick allows you to receive information from solar power system via Wi-Fi, Lan or GPRS.
App Available for PC, IOS & Android.
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie, Ground Clip & Lugs Optional

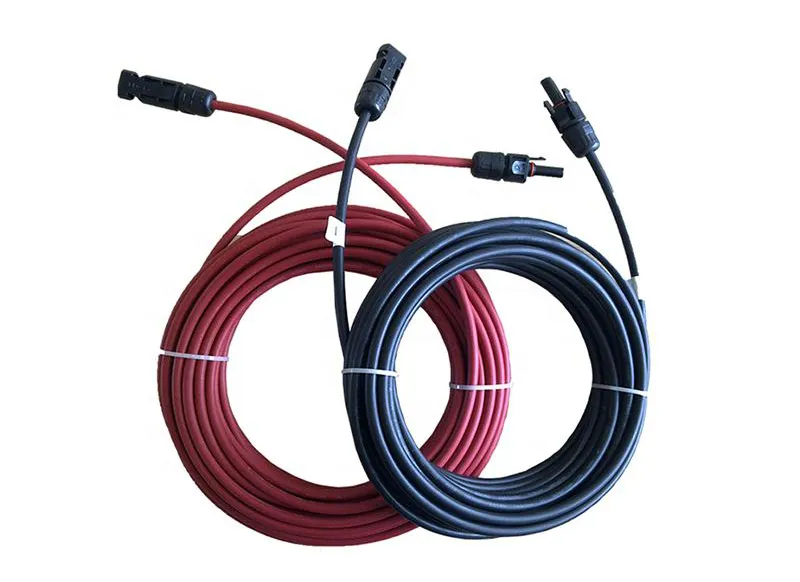

DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC/1000VDC(TUV)
Rated Current: 55A, 70A
Lifetime: ≤25 Years
🚢 Packaging & Shipping

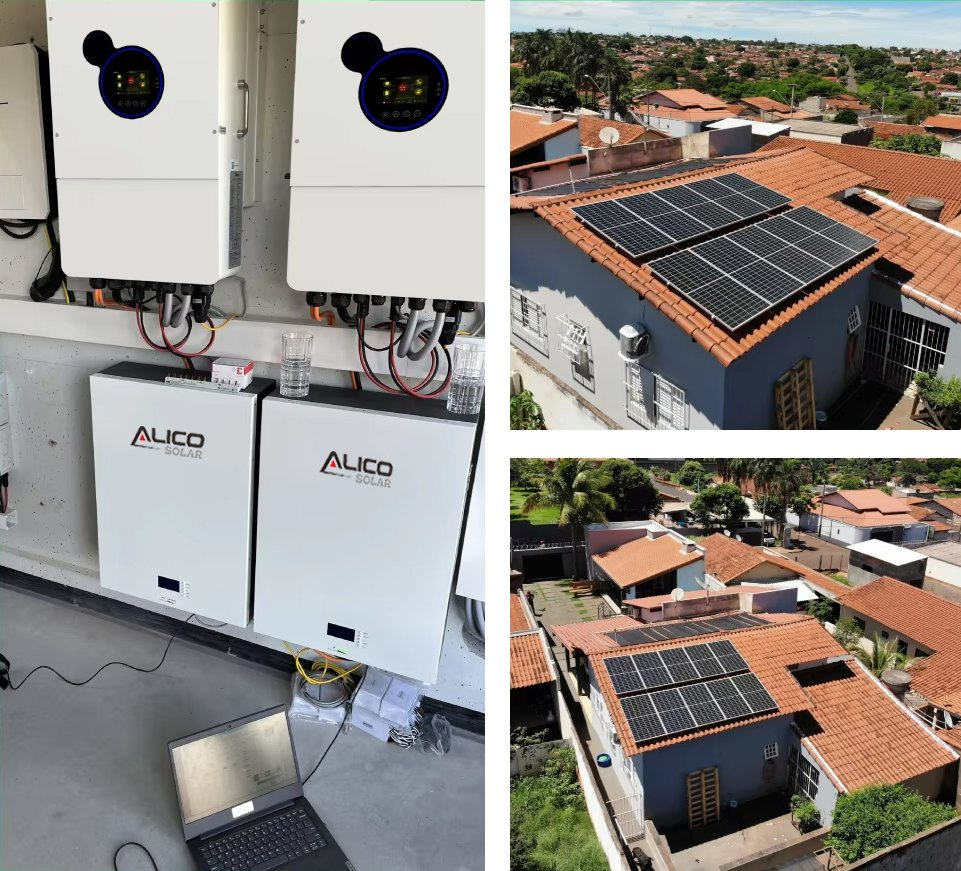

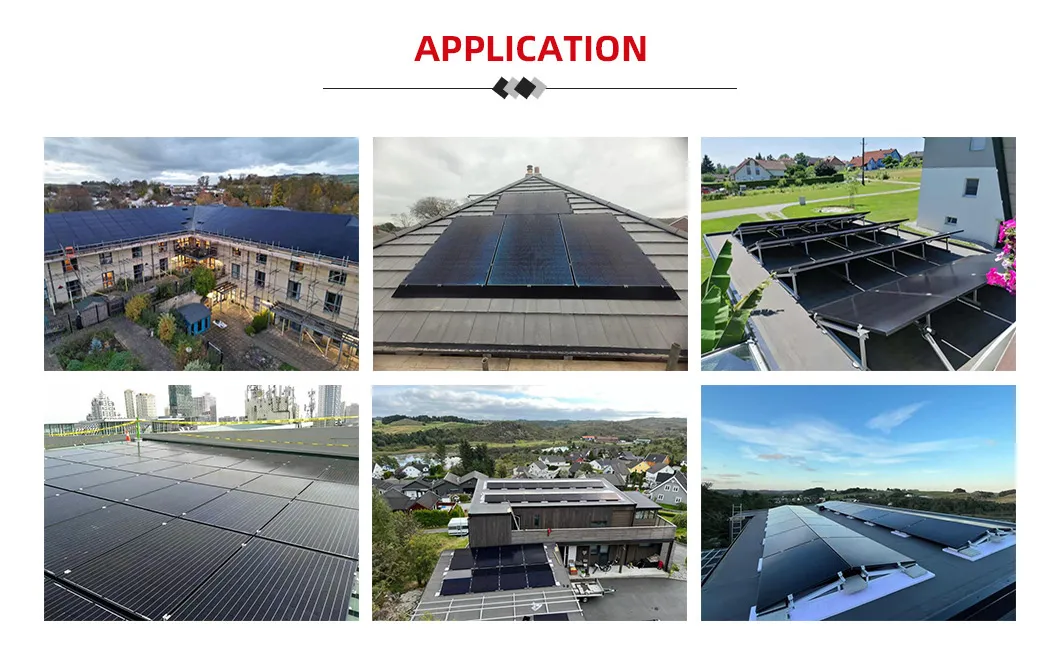

🏗️ Projects Shown
12MW Commercial Metal Roof Solar Plant

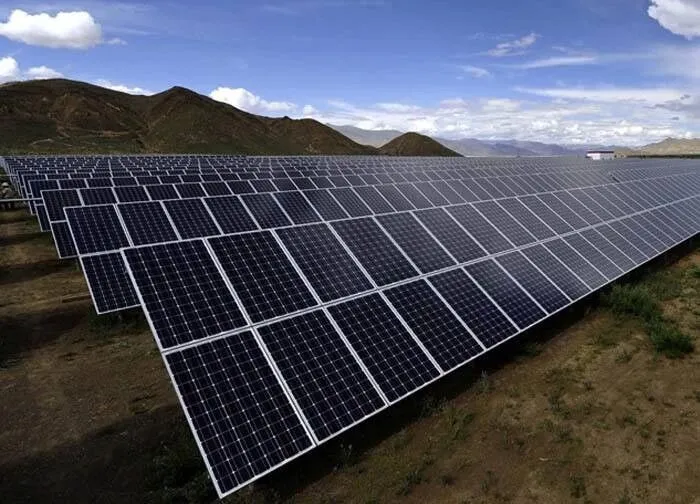

20MW Ground Solar Plant in USA

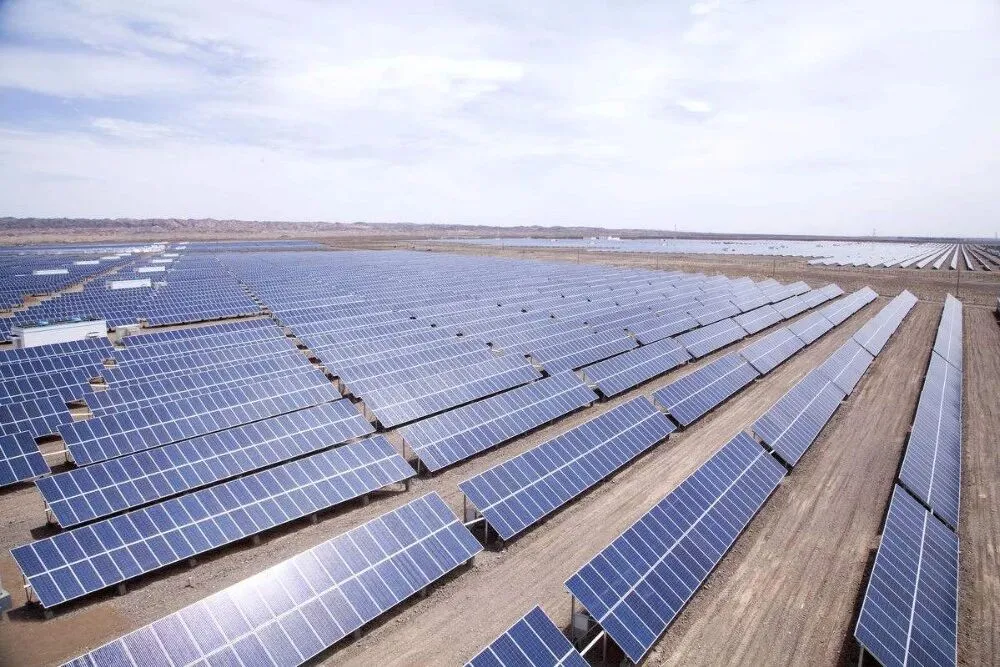

50MW Solar Plant in Brazil

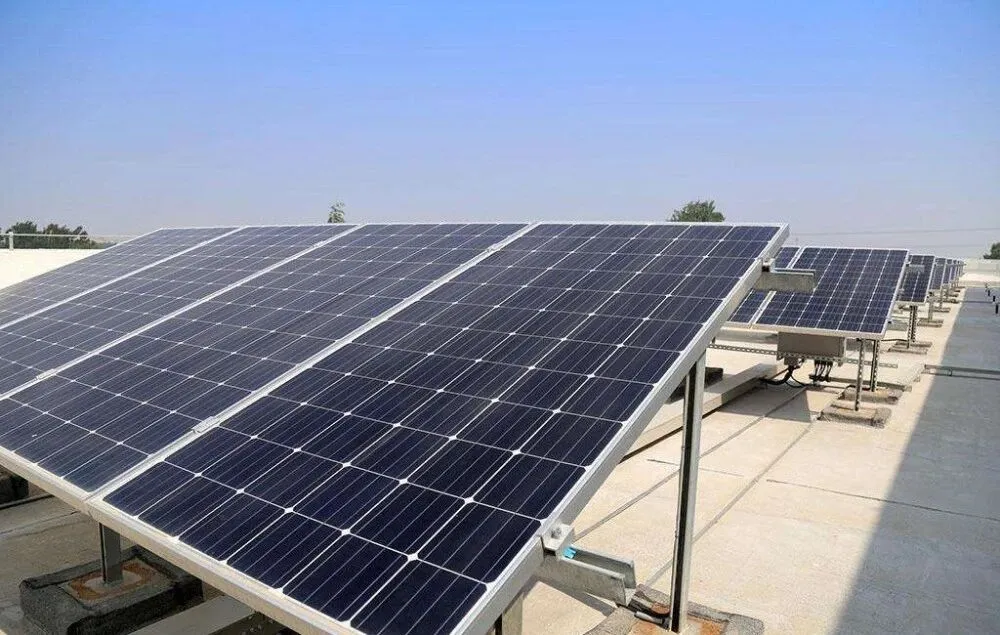

20KW Solar Plant in Mexico
❓ Frequently Asked Questions
1. What is included in the complete On-Grid solar system?
The system includes high-efficiency Mono solar panels, an on-grid inverter (10KW to 500KW), DC/AC disconnect switches, mounting structures, DC cables, MC4 connectors, and professional PV installation tools.
2. Can I monitor my solar power production remotely?
Yes, the system comes with a remote monitoring data logging stick. You can track performance via Wi-Fi, LAN, or GPRS through dedicated apps available for PC, iOS, and Android devices.
3. What types of roofs are compatible with the mounting system?
Our standard mounting system is designed for pitched roofs. However, customized options are available for asphalt shingles, flat roofs, or ground-mounted installations.
4. What is the expected lifespan of the system components?
The solar panels and DC cables are designed for a lifetime of up to 25 years. The inverters typically come with a 5 to 10-year warranty depending on the region and model.
5. Are the components certified for international use?
Yes, our systems and components carry ISO and CE certifications, ensuring they meet strict international quality and safety standards for home, industrial, and commercial use.
