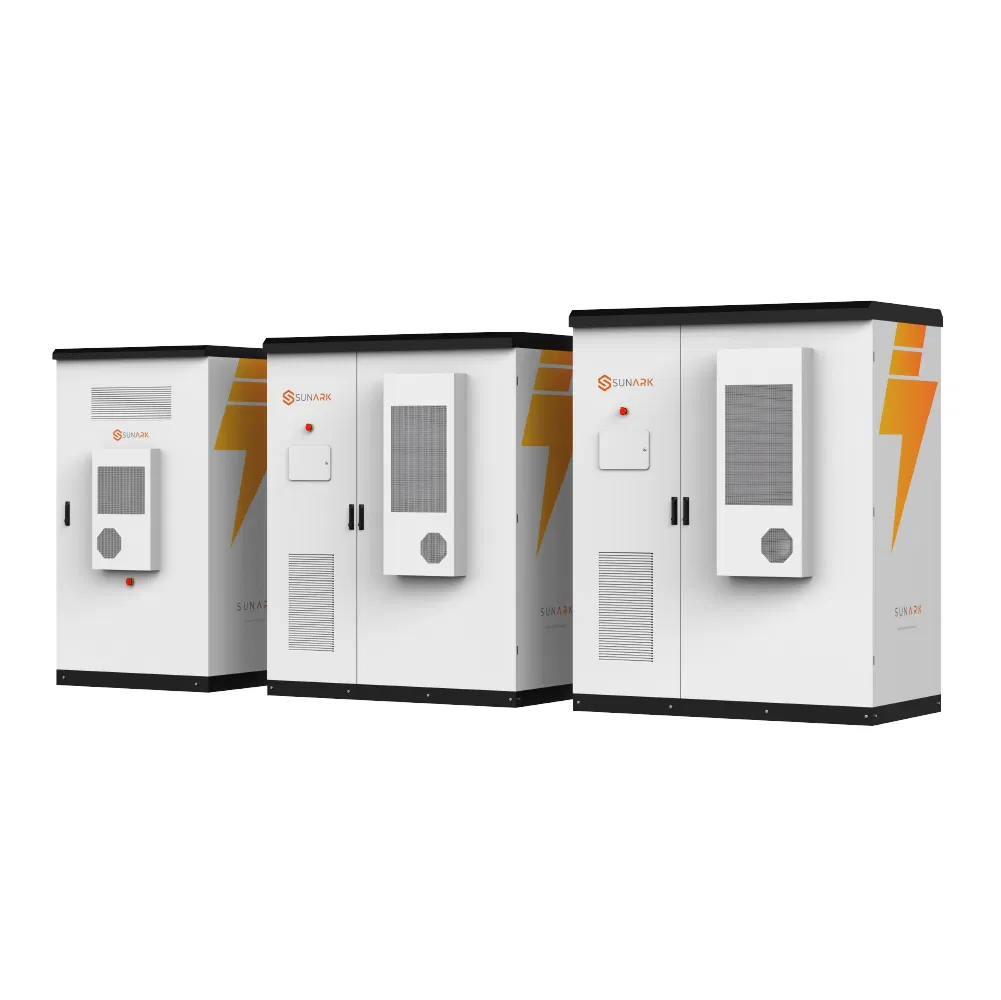

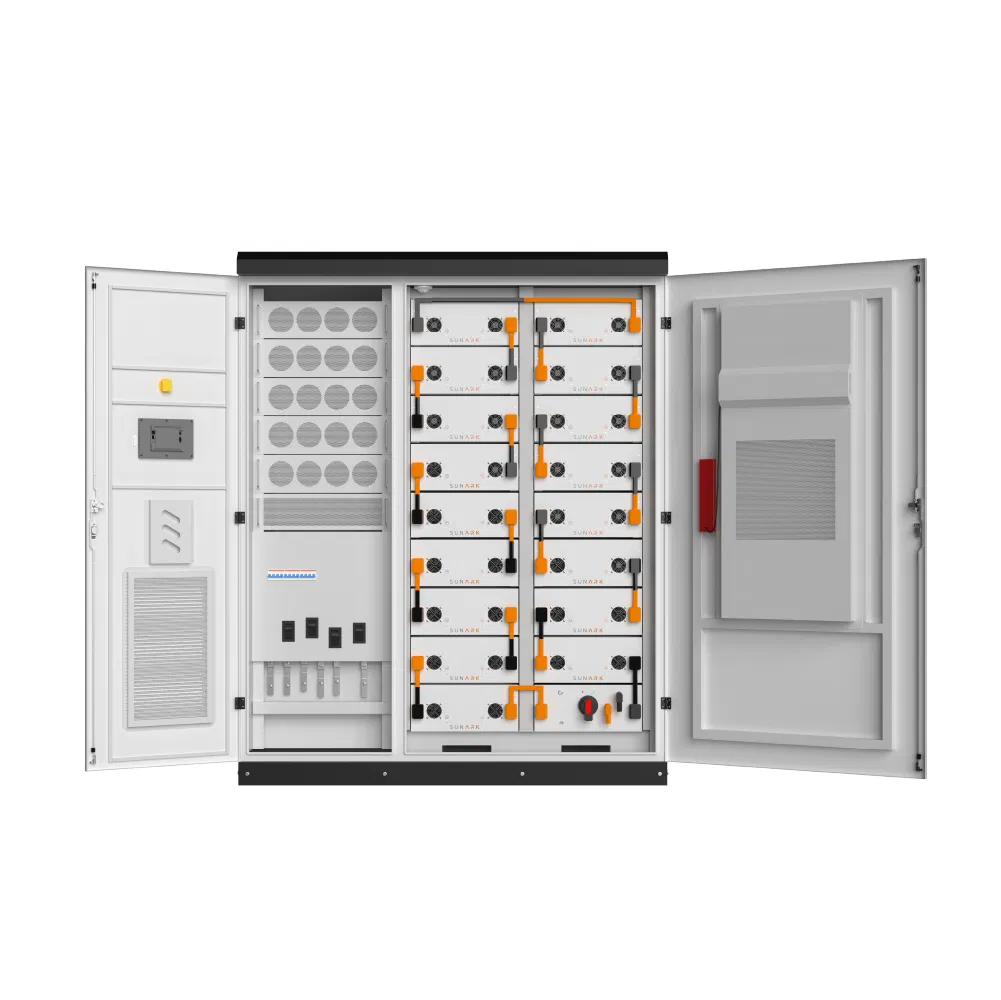

Sunark Industrial Commercial Ess Outdoor Solar Battery 50kwh 75kwh 100kwh Energy Storage Battery Container for Solar

Product Description

📦

Product Description

Energy Storage Battery Container

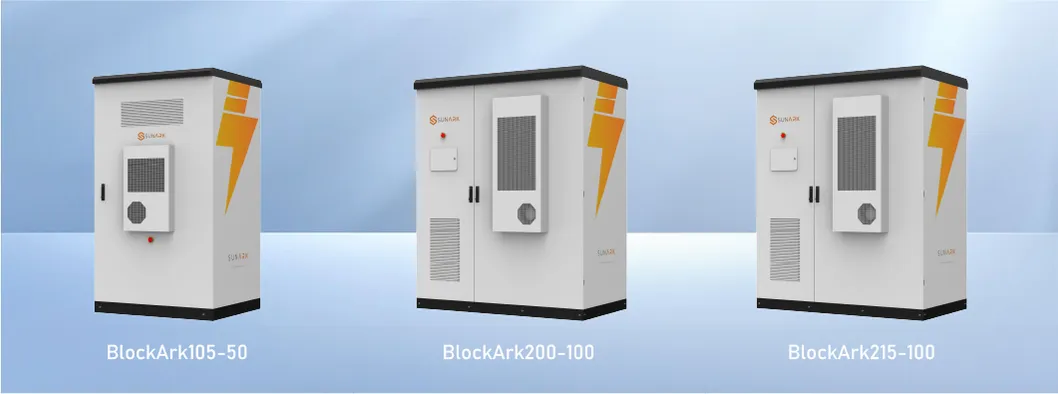

Energy Storage System Overview
📊

Technical Specifications

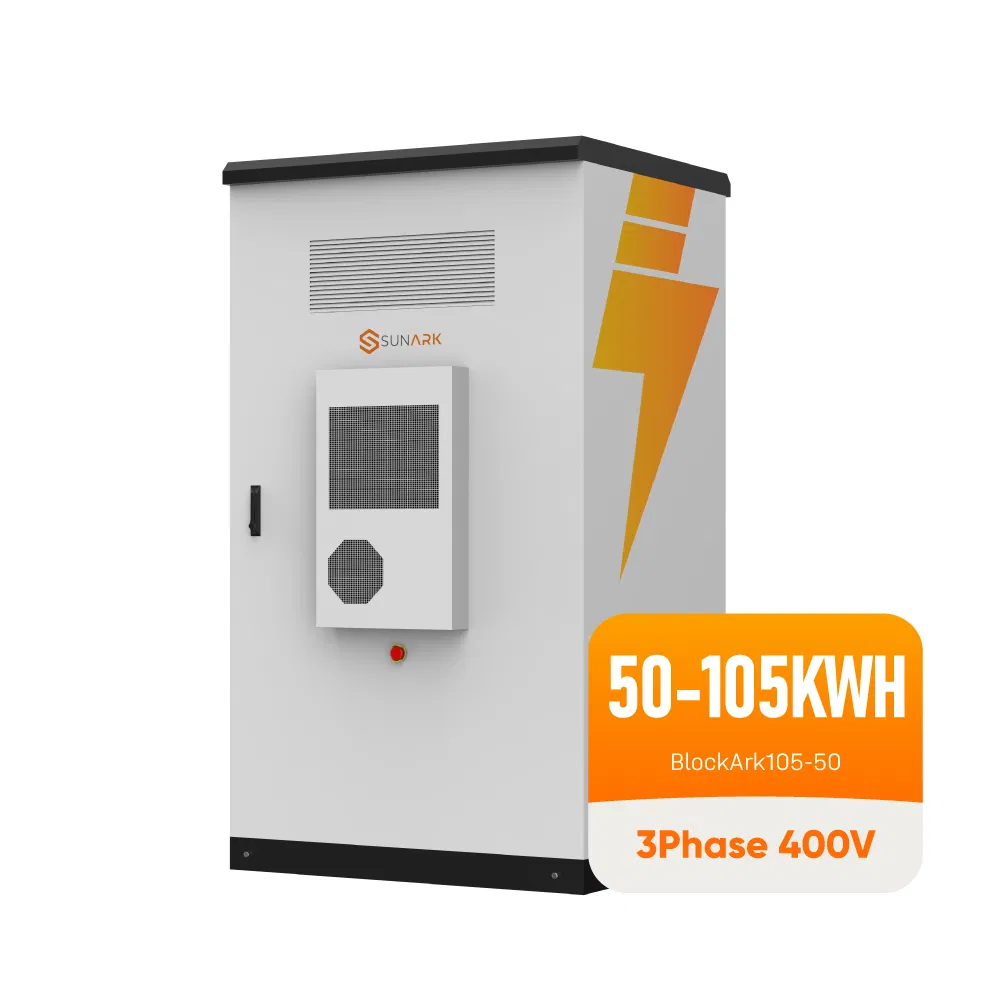

MODULE BlockArk105-50 BlockArk200-100 BlockArk215-100
System Parameter 50kW/105kWh 100kW/200kWh 100kW/215kWh
Cooling Method Air-Cooled
Battery Parameters
Rated Battery Capacity 105kWh 200kWh 215kWh
Rated System Voltage 512V 716.8V 768V
Battery Type Lithium Iron Phosphate Battery (LFP)
Cell Capacity 205Ah 280Ah 280Ah
PV Parameters
Max. PV Input Voltage 1000V
Max. PV Power 100kW 200kW 200kW
MPPT Quantity 2/4 4/8 4/8
AC Parameters
Rated AC Power 50kW 100kW 100kW
Rated AC Voltage 400V, 3P+N+PE, 50Hz
General Parameters
Protection Level IP54
Operating Temperature -25~60°C (Derating Above 45°C)
Dimension (W*H*D) 1200×1000×2150mm 850×1000×2300mm 1800×1200×2300mm
Weight (Approx.) 1750kg 2920kg 3020kg

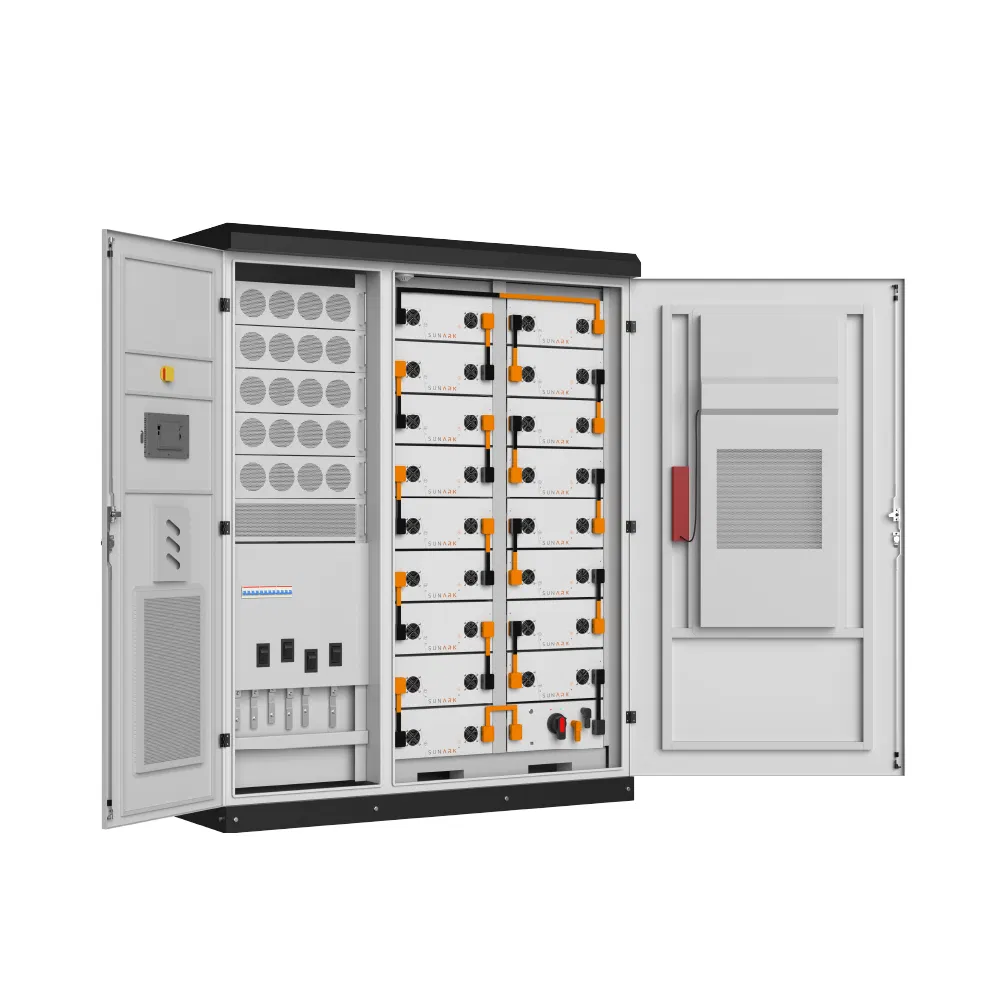

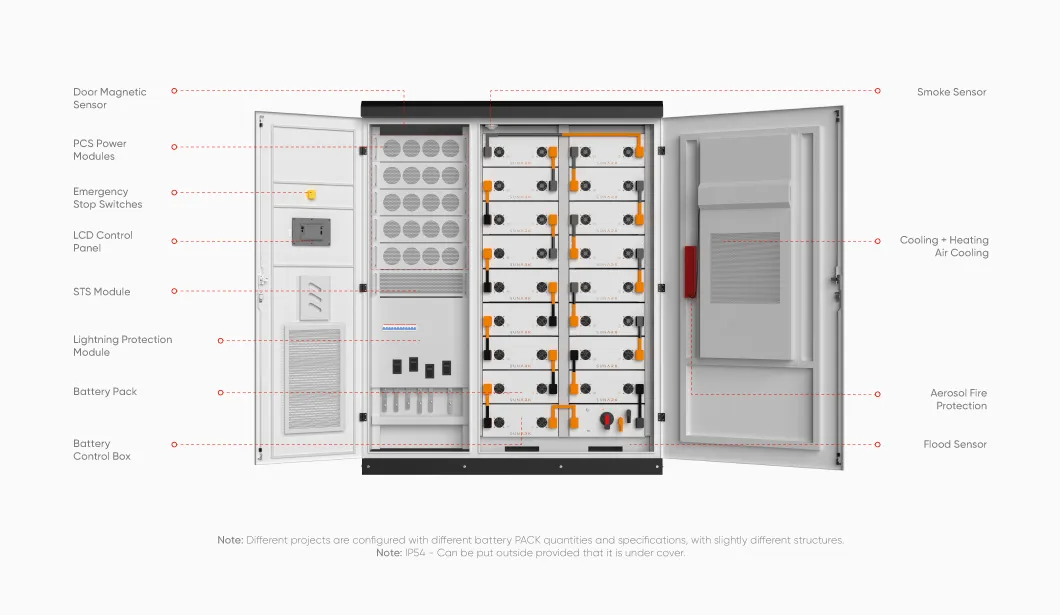

System Structure

Applications

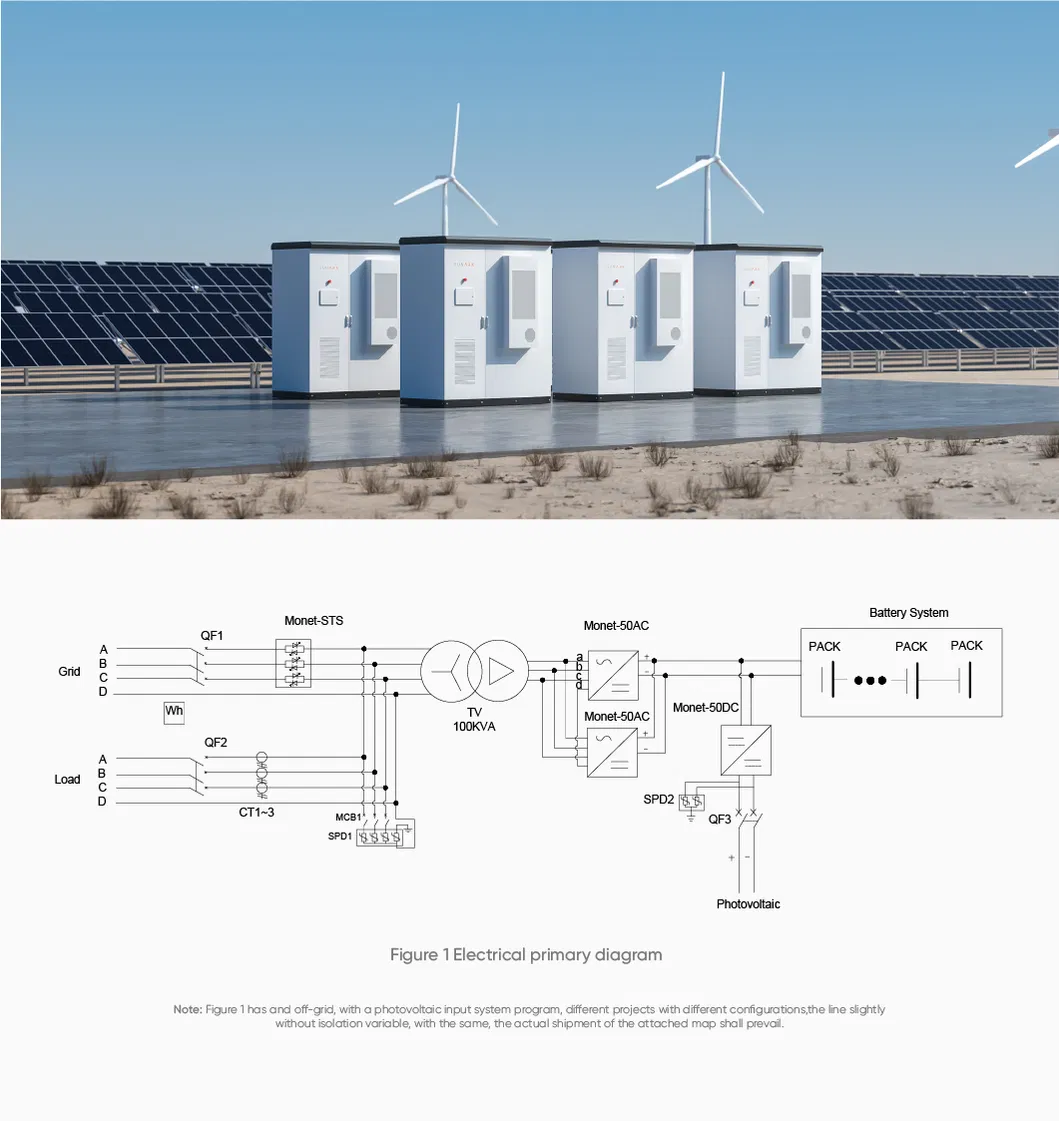

Applications Scenarios
🛠️

Products Series

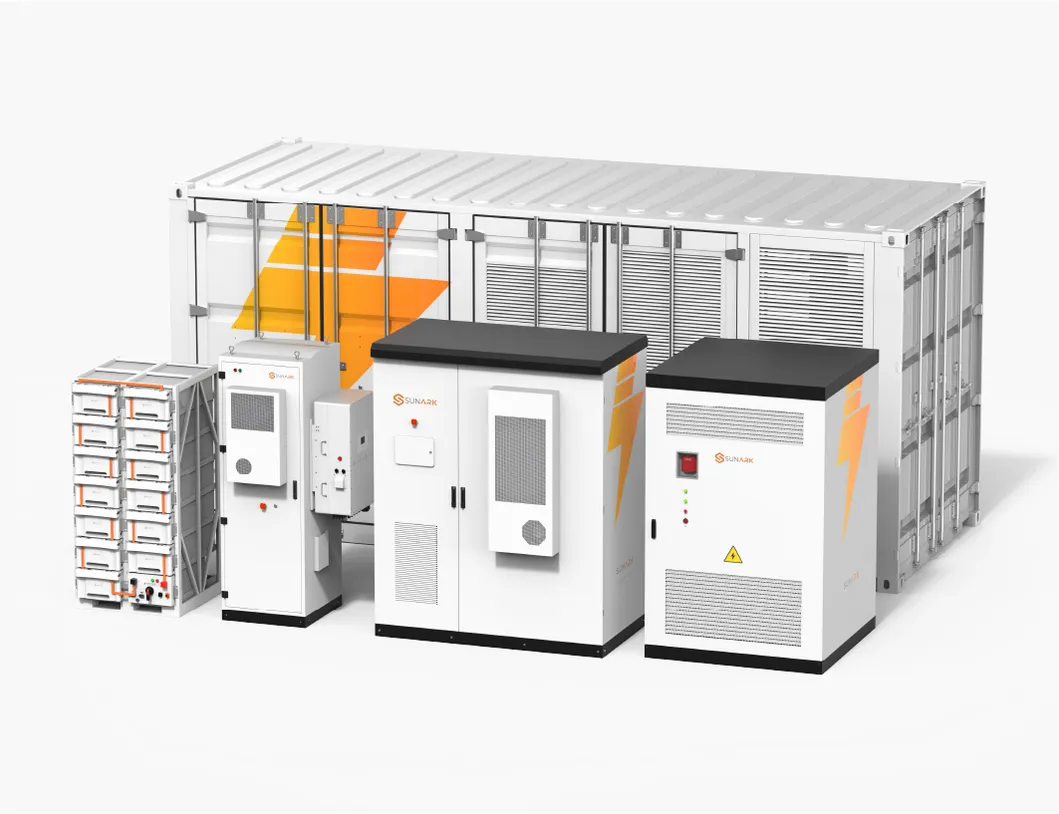

Product Series Overview
WallArk
WallArk Series Wall Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 2.5-15kWh

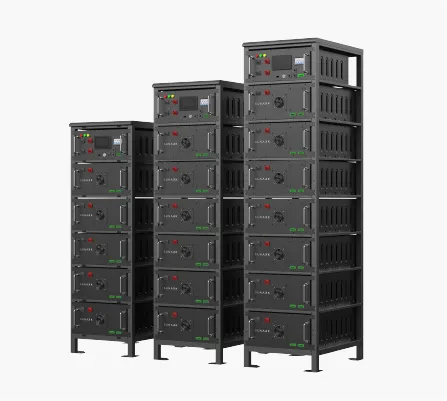

StackArk
StackArk Series Stackable Low & High Voltage
Voltage: 51.2V - 561.6V
Capacity: 5kWh~30kWh

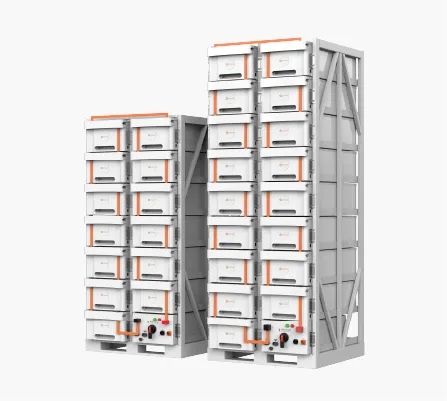

RackArk
RackArk Series Rack Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 50-200Ah
GroundArk
GroundArk Series All In One Energy Storage System
Power: 3-12kW
Capacity: 5-45kWh
BlockArk
BlockArk Series High Voltage Cabinet System
Inverter Power: 50kw/100kw
Capacity: 105-215kwh
RackArk-HV
RackArk-HV Series Rack Mount High Voltage Pack
Voltage: 614.6-1305.6V
Capacity: 72-320kWh
🏭

Manufacturing Excellence

Specializing in residential, commercial, and utility applications, the provider delivers pre-eminent products and fit-for-purpose solutions. With over 20 years of experience producing energy storage products, there are currently 90,000+ systems actively running in over 80 countries, providing reliable and clean energy worldwide. By the end of 2022, a total of 620MWh in BESS and battery strings had been manufactured. The FlexCombo DC coupling microgrid ESS, ranging from 50kW to 500kW, is a well-recognized solution with hundreds of sets deployed across the EU, US, Canada, Brazil, and Africa.
Factory Facility
Production Line
Quality Control
R&D Lab

Frequently Asked Questions

What type of battery cells are used in the ESS?
We use high-quality Lithium Iron Phosphate (LFP) cells, which are preferred for industrial and commercial use due to their superior thermal stability and long cycle life.
What is the protection rating for outdoor units?
The outdoor storage containers are designed with an IP54 protection level, ensuring reliable operation against dust and water splashes in various environments.
How is the temperature regulated inside the container?
The systems utilize an integrated air-cooling method to maintain optimal operating temperatures for the battery modules and power electronics.
What fire protection measures are included?
Safety is our priority. The units can be equipped with advanced fire suppression systems, including Aerosols, perfluorohexanone, or heptafluoropropane options.
Can these systems be monitored remotely?
Yes, the systems feature multiple communication interfaces such as RS485, CAN2.0, and Ethernet, allowing for comprehensive remote monitoring and control.
What is the operating temperature range?
The system operates effectively between -25°C and 60°C, with standard derating applied above 45°C to protect battery health.
