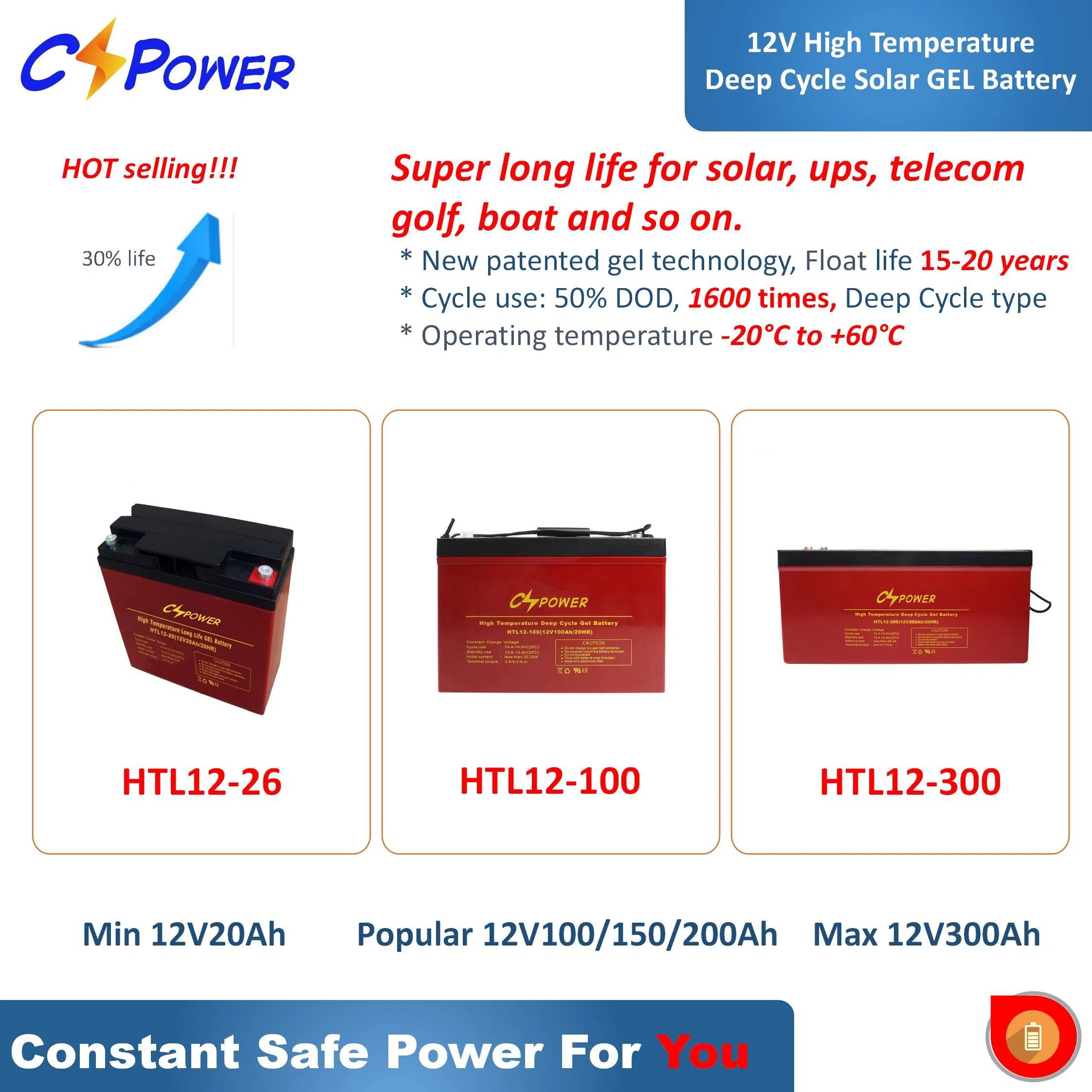

HTL12V Patented High-Temp Deep Cycle Solar gel battery, featuring a 15-20 years design life, is your best partner for solar markets and high-temperature environments.
Our HTL series of 12V GEL deep cycle batteries are recognized as reliable and high-quality systems. Designed with advanced patented GEL technology, they offer 1500-1600 cycles at 50% DOD. Compliant with international standards IEC60896-21/22, BS6290-4, and Eurobat Guide.

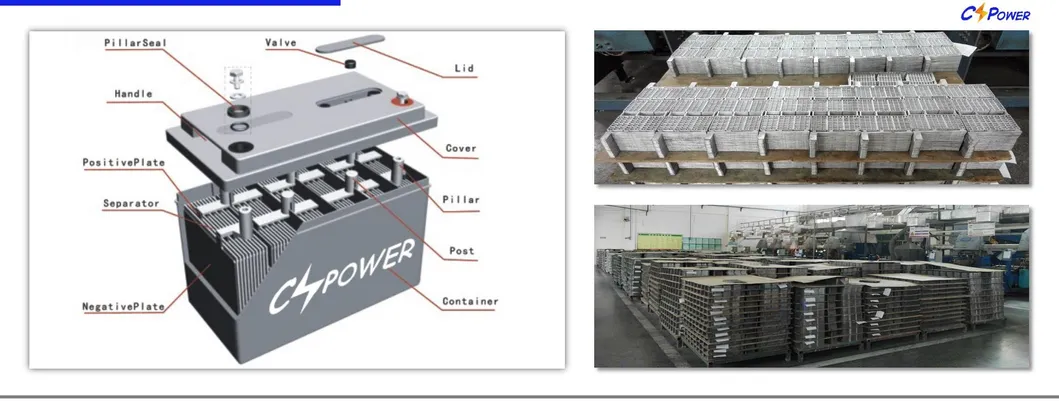

| Component | Positive plate | Negative plate | Container & Cover | Safety valve | Terminal | Separator | Electrolyte |
|---|---|---|---|---|---|---|---|
| Features | Thick high Sn low Ca grid | Balanced Pb-Ca grid | Fire resistance ABS | Flame Si-Rubber | Female Copper Insert | Advanced PVC/AGM | Silicon Gel |

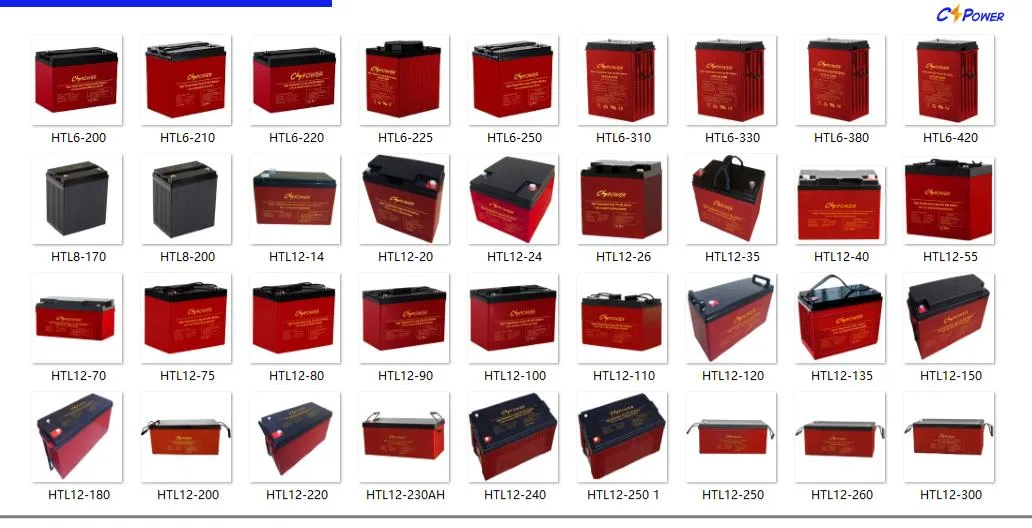

| Model | Voltage (V) | Capacity (Ah) | Length (mm) | Width (mm) | Height (mm) | Net Weight (kg) | Terminal |
|---|---|---|---|---|---|---|---|
| HTL12-55 | 12 | 55 | 229 | 138 | 212 | 16.3 | M6 |
| HTL12-75 | 12 | 75 | 260 | 169 | 215 | 25.3 | M6 |
| HTL12-100 | 12 | 100 | 307 | 169 | 216 | 30.5 | M6/M8 |

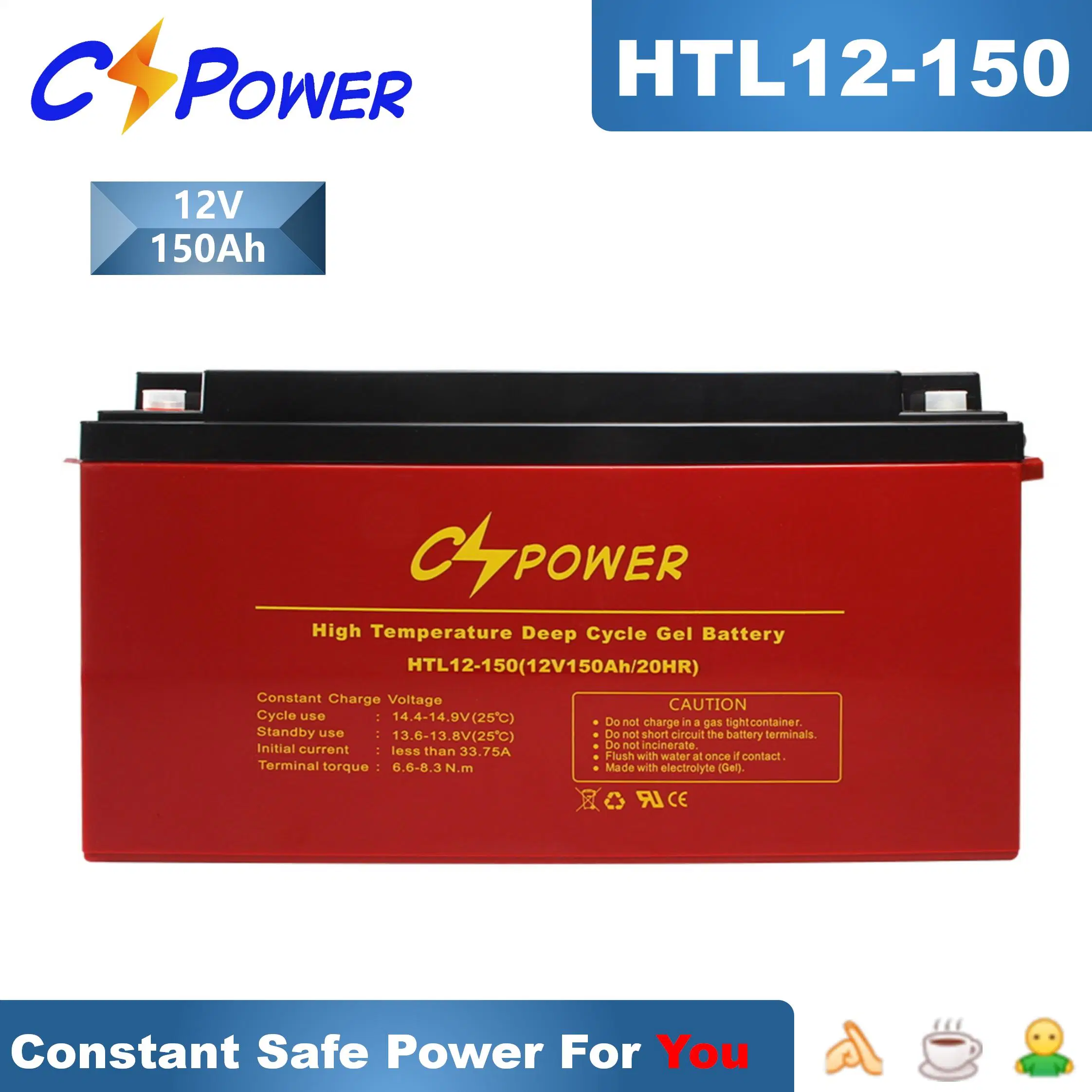

| HTL12-150 | 12 | 150 | 484 | 171 | 241 | 45.8 | M8 |

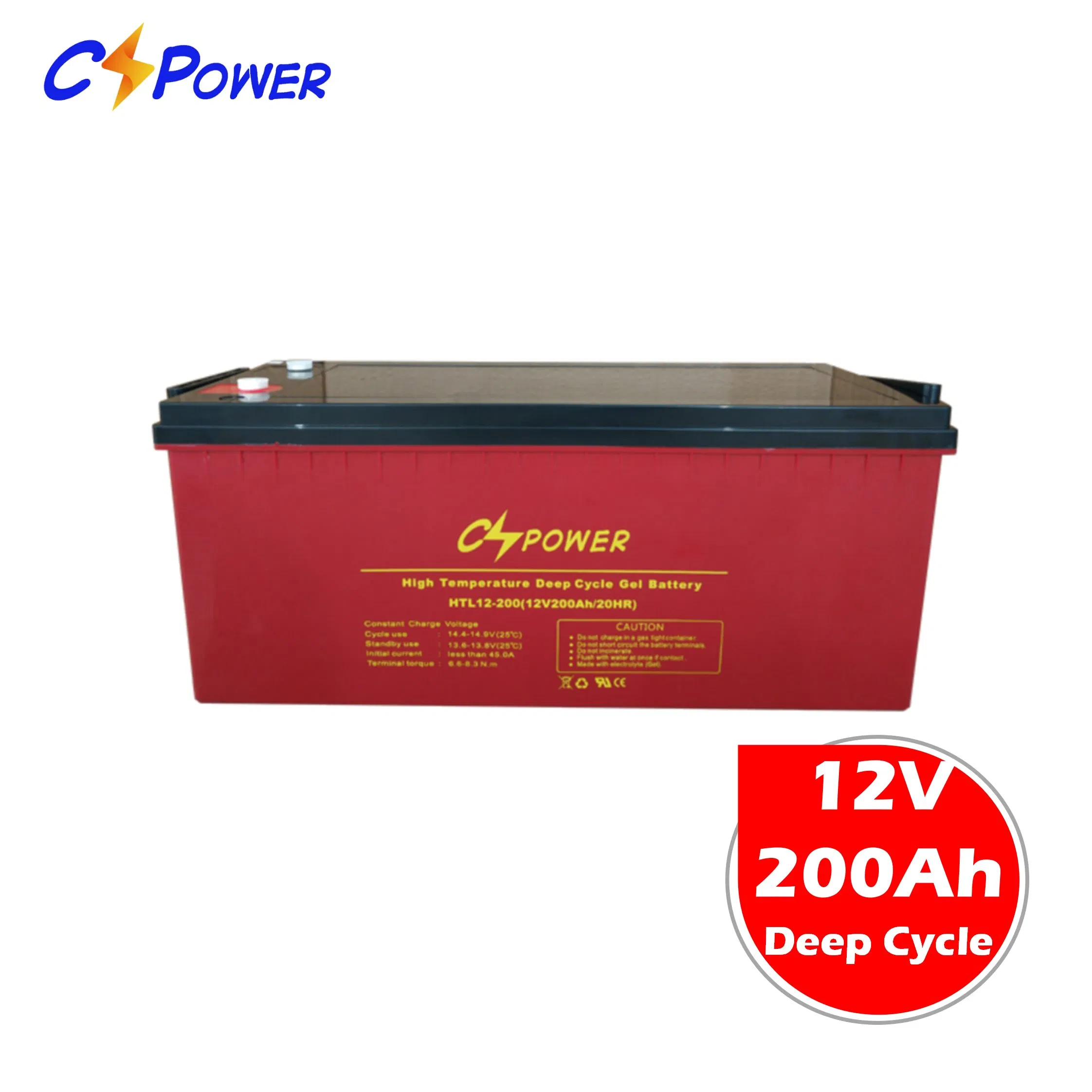

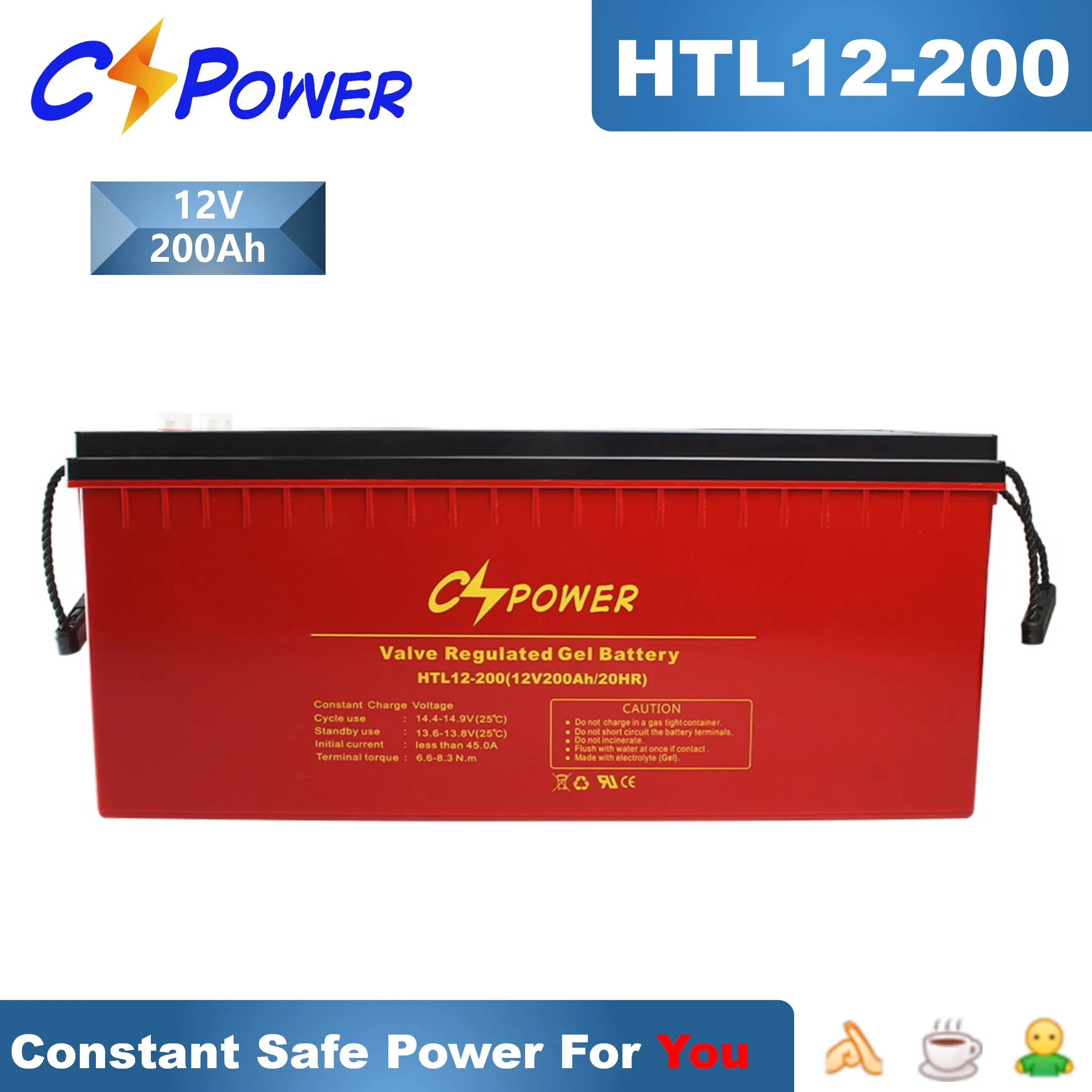

| HTL12-200 | 12 | 200 | 532 | 206 | 220 | 58.7 | M8 |
| HTL12-300 | 12 | 300 | 520 | 268 | 226 | 77.3 | M8 |
