15kwh Home and Industrial Energy Storage Battery 51.2V 280ah 300ah 314ah Vertical PV Panel Rechargeable Solar Lithium Battery

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.
CNS-51.2V280Ah
Product Name
All in One Energy Storage LFP Battery
Controller Type
MPPT
Output Voltage
220-240V
Battery Capacity
280Ah / 300Ah Optional
Communication
Can/RS485/RS232 (Optional WiFi/Bluetooth/4G)

Product Description

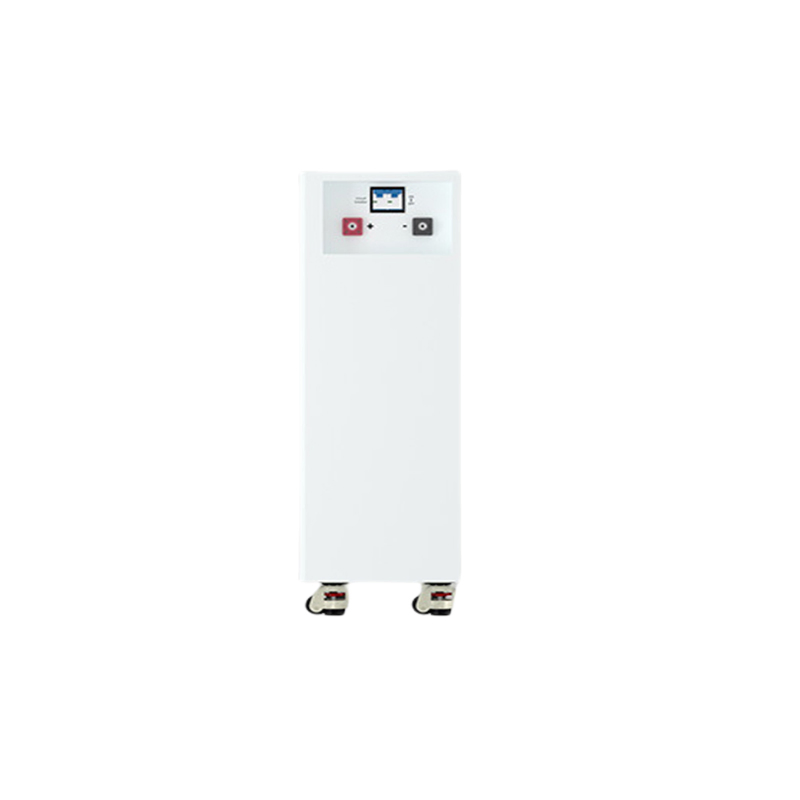

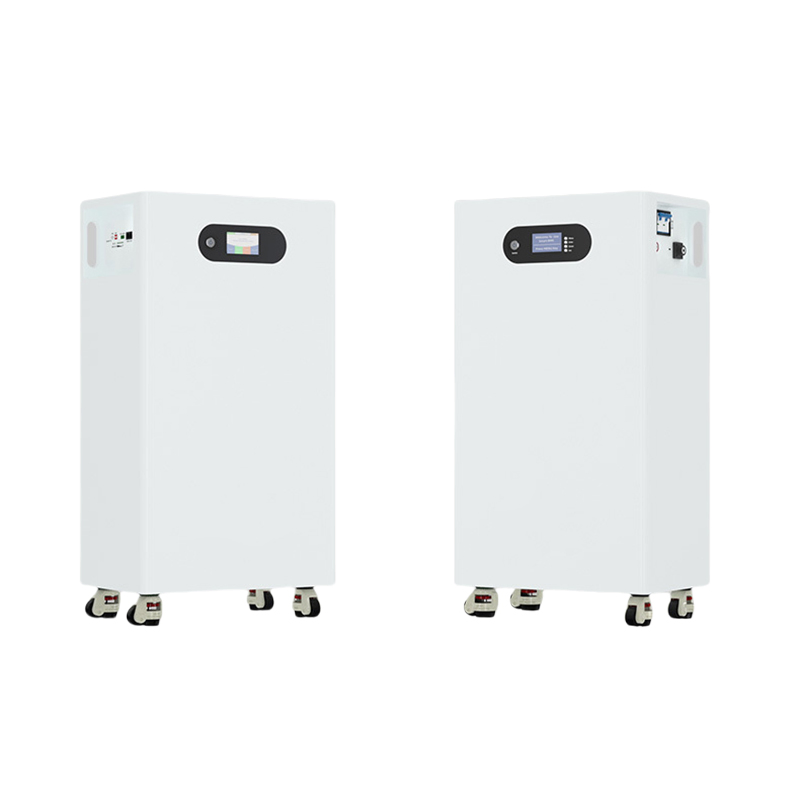

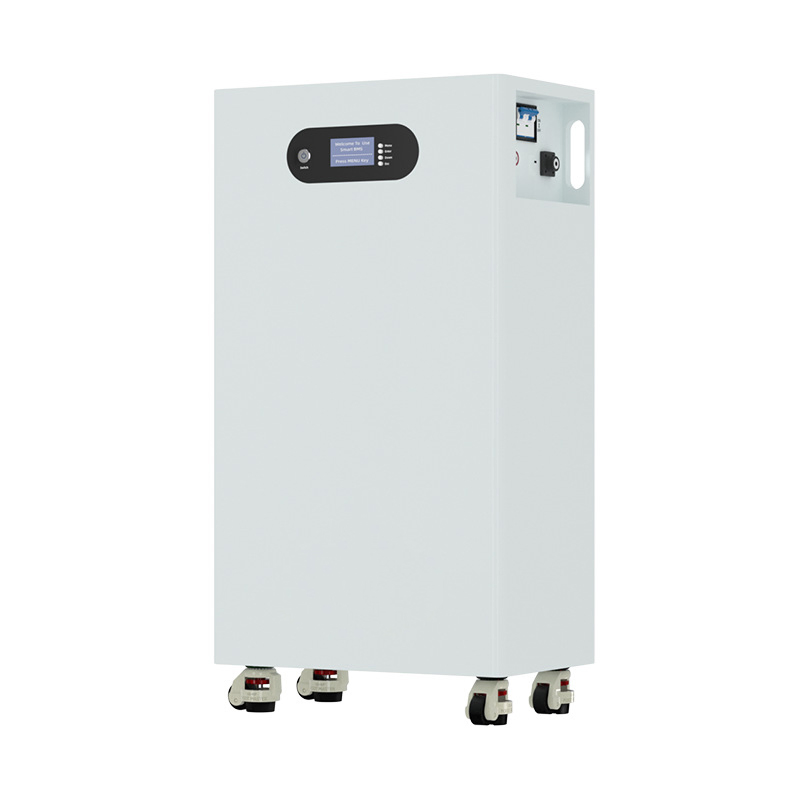

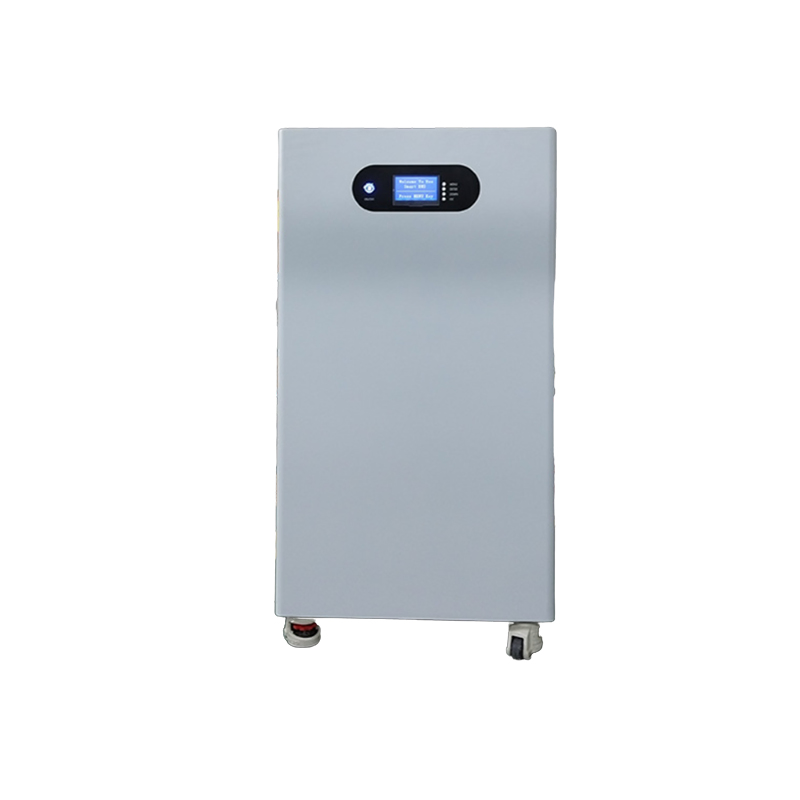

51.2V 280Ah 300Ah Vertical Energy Storage Battery - 15kWh Lithium Iron Phosphate (LiFePO4)

Our home storage ESS solar battery system with an integrated 5.5KW Inverter offers exceptional safety and reliability. Featuring multiple software and hardware protections, it ensures a long service life and easy capacity expansion with a beautiful, modern design.

  • Intelligent Battery Management System (BMS)
  • Overcharge & Over-discharge Protection
  • Advanced Temperature & Current Protection
  • Balancing & Floating Charge Functions
Energy Storage Battery

Technical Parameters

Model Voltage Capacity Method Cycle Life Current (Chg/Dis) Size (mm)
51.2V280Ah 51.2V 280Ah 16S1P 6000+ 100A / 200A 485*290*840
51.2V300Ah 51.2V 300Ah 16S1P 6000+ 100A / 200A 485*290*840
51.2V314Ah 51.2V 314Ah 16S1P 6000+ 100A / 200A 485*290*840
51.2V560Ah 51.2V 560Ah 16S2P 6000+ 100A / 200A 485*290*840
📷

Detailed Photos

Compatible with all major global hybrid and off-grid inverter brands.

System Connection
📦

Packaging & Shipping

Package Size
97.00cm * 56.00cm * 47.00cm
Gross Weight
140.00kg

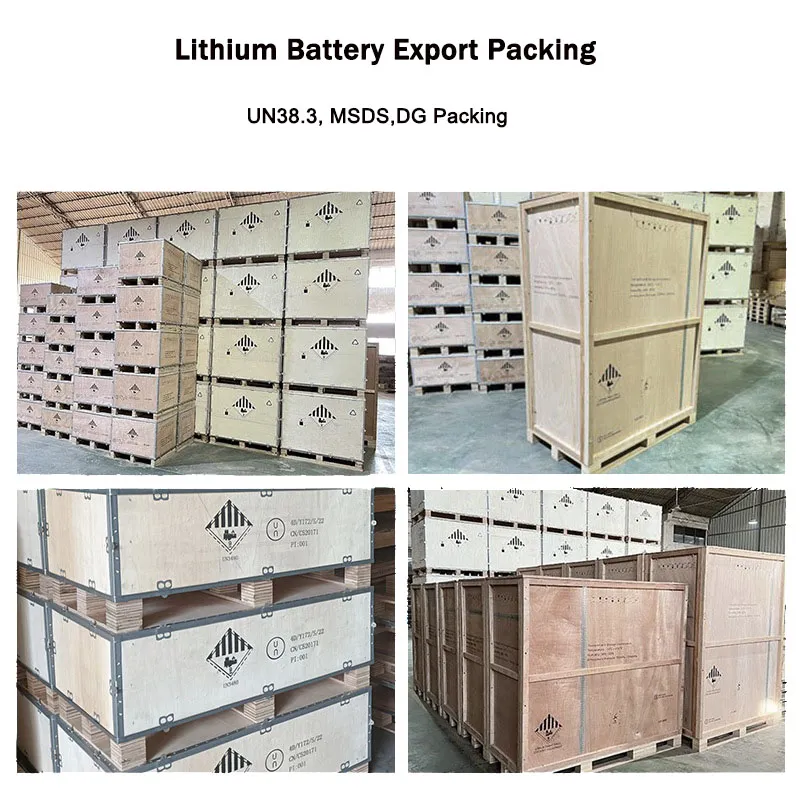

Packaging
🏭

Professional Capability

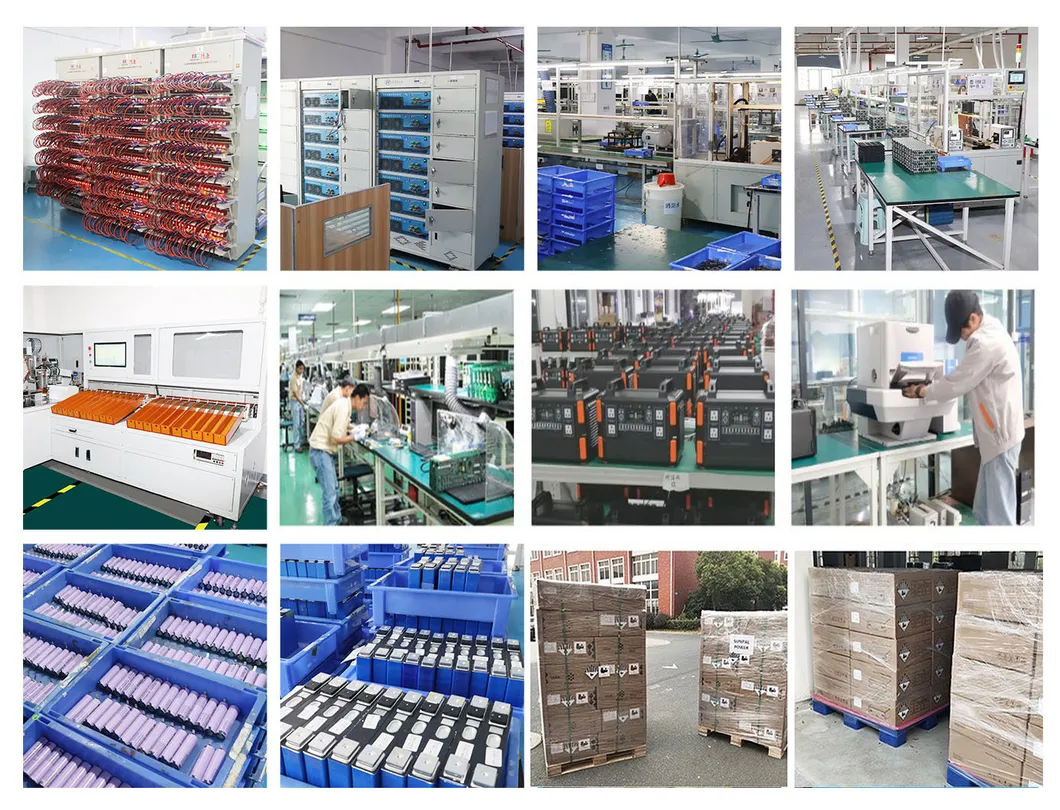

Since 2011, we have focused on one-stop customization of Lead acid and lithium battery products, including electric vehicle batteries, large energy storage systems, and smart home solutions. With over 30 types of cells, we provide OEM battery packs from 12V to 800V.

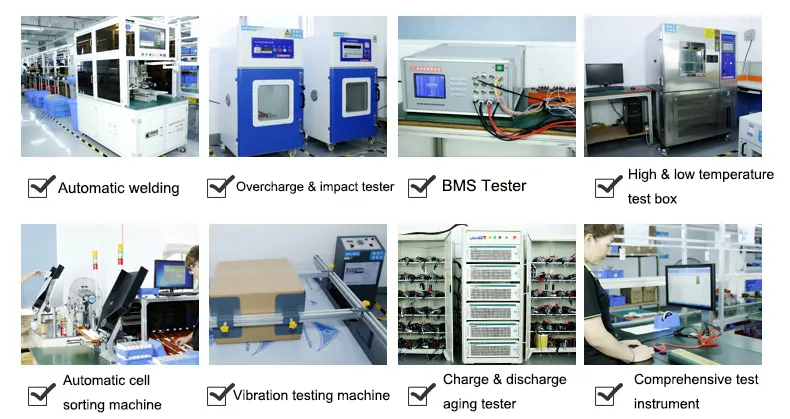

Utilizing advanced automated equipment and technology, we adhere to international quality standards including ISO 9001, ISO 14001, and OHSAS 18001 to ensure the highest reliability for renewable energy development.

?

Frequently Asked Questions

Q1: What are your terms of payment?
A: 30% deposit in advance, 70% balance against goods ready. We will provide photos of the products and packages before final payment.
Q2: Can you print my logo on the battery?
A: Yes, OEM services are available. We can print your provided logo on the battery case as per your requirements.
Q3: How should I maintain the battery?
A: Store the battery in a clean, dry, ventilated, and dark environment. Keep it fully charged when not in use and recharge every 3 to 6 months.
Q4: What are the indications of a failing battery?
A: Common signs include lower performance, low voltage, inability to charge/recharge, a swelled container, or visible acid corrosion.
Q5: How can you tell if a battery is good or bad?
A: Check first for physical defects like short circuits or broken containers. If no outward issues exist, capacity testing using professional measuring techniques is required.
Q6: Do you test all goods before delivery?
A: Yes, we perform 100% testing on all products before delivery to ensure quality and safety.
