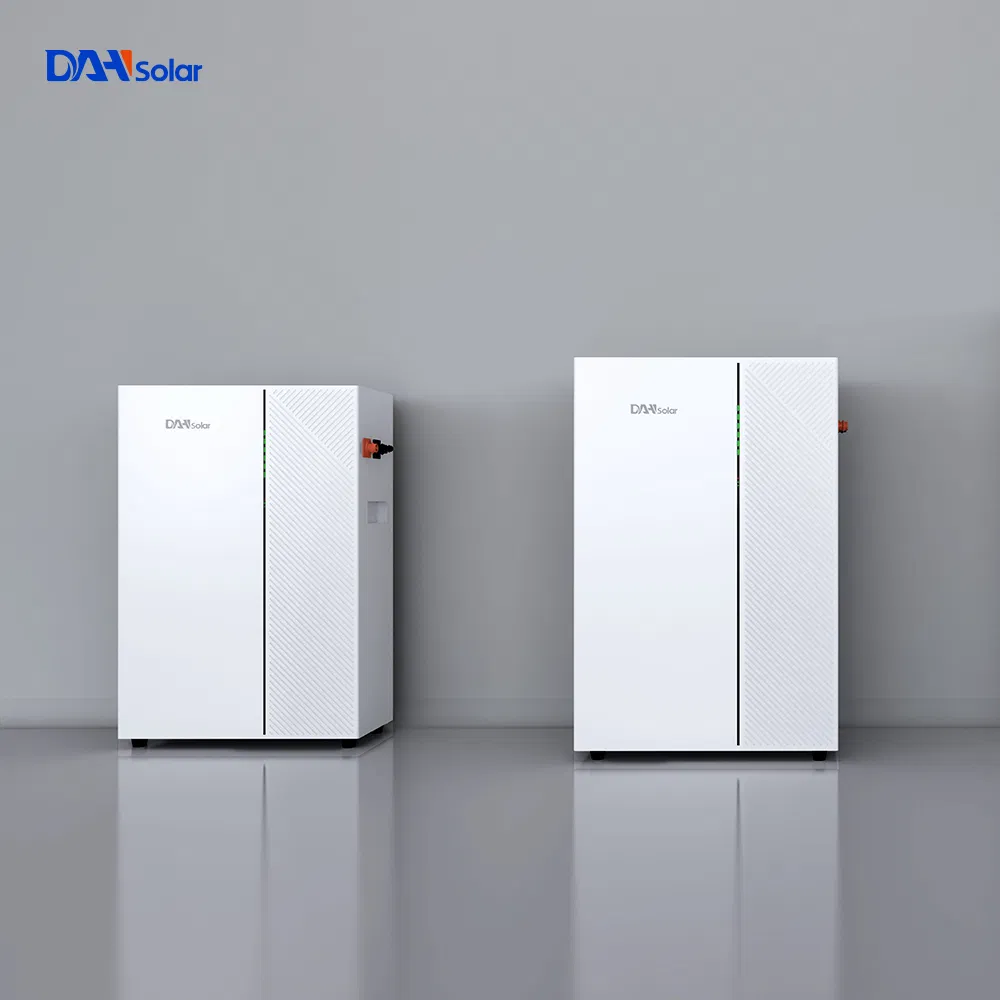

Model: DHN-LVWES15-G1

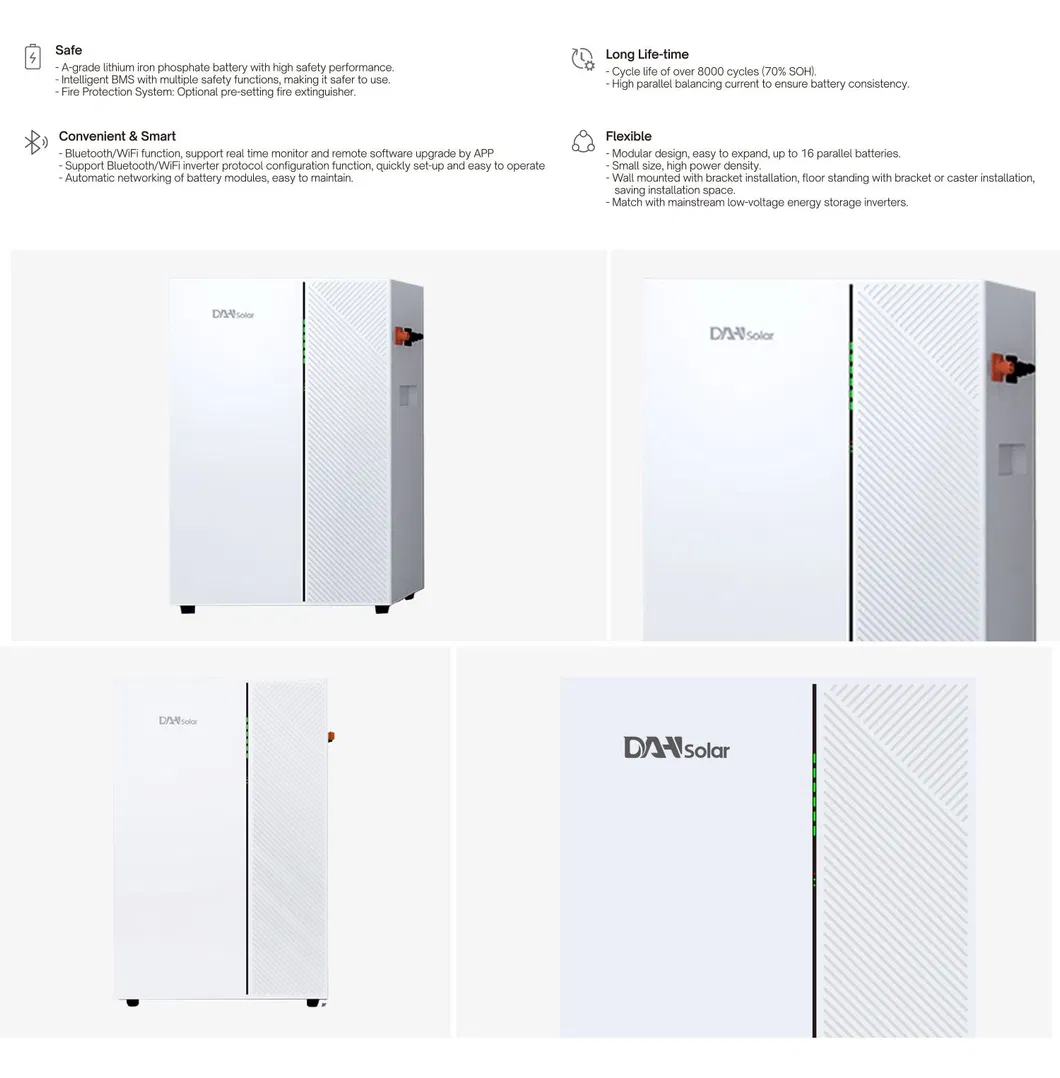

The DHN-LVWES series is a low-voltage energy storage solution designed for households and businesses. Utilizing top-tier Lithium Iron Phosphate (LiFePO4) cells, it delivers high safety standards, long cycle life, and high energy density. The integrated Intelligent Battery Management System (BMS) ensures stable, high-performance operation by monitoring all critical system parameters.
| Model | DHN-LVWES15-G1 |

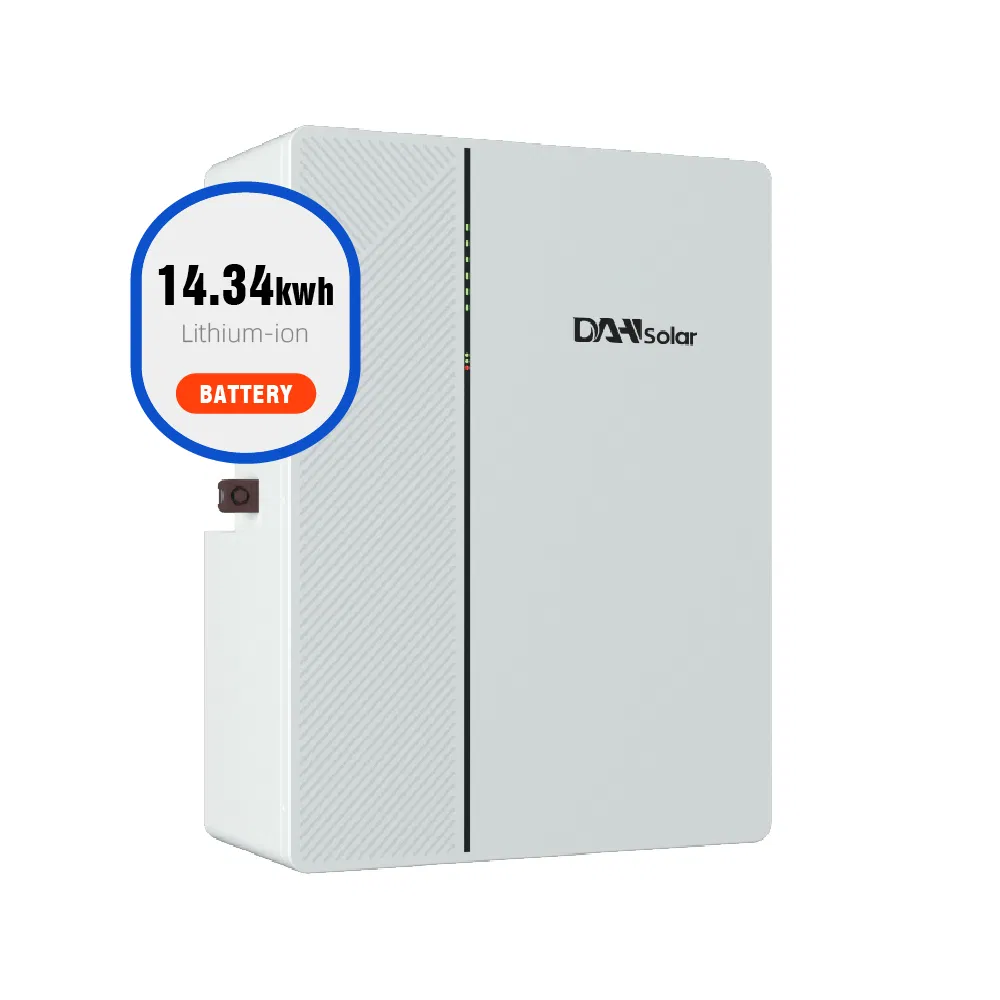

| Battery Rated Energy (kWh) | 14.34 |
| Battery Rated Capacity (Ah) | 280 |
| Scalability | Parallel connection of up to 16 units |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 43.2 ~ 57.6 |
| Recommend Charge/Discharge Current (A) | 140 |
| Max. Charge/Discharge Current (A) | 200 |
| Recommend Depth of Discharge (%) | ≤90% |
| System Dimension (W/D/H, mm) | 520 x 680 x 232 |
| System Weight (kg) | 114 |
| IP Rating | IP20 |
| Cycle Life | ≥8000 Cycles (25±2ºC, 0.5C) |

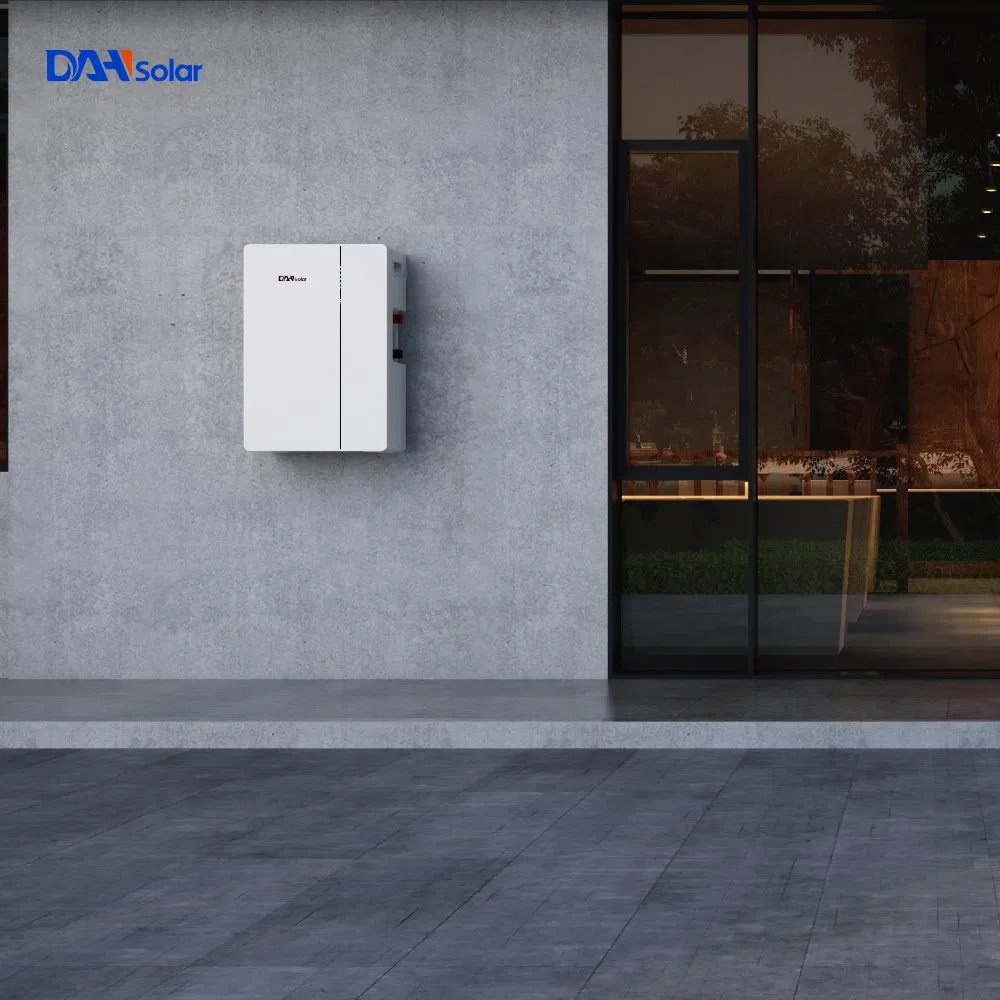

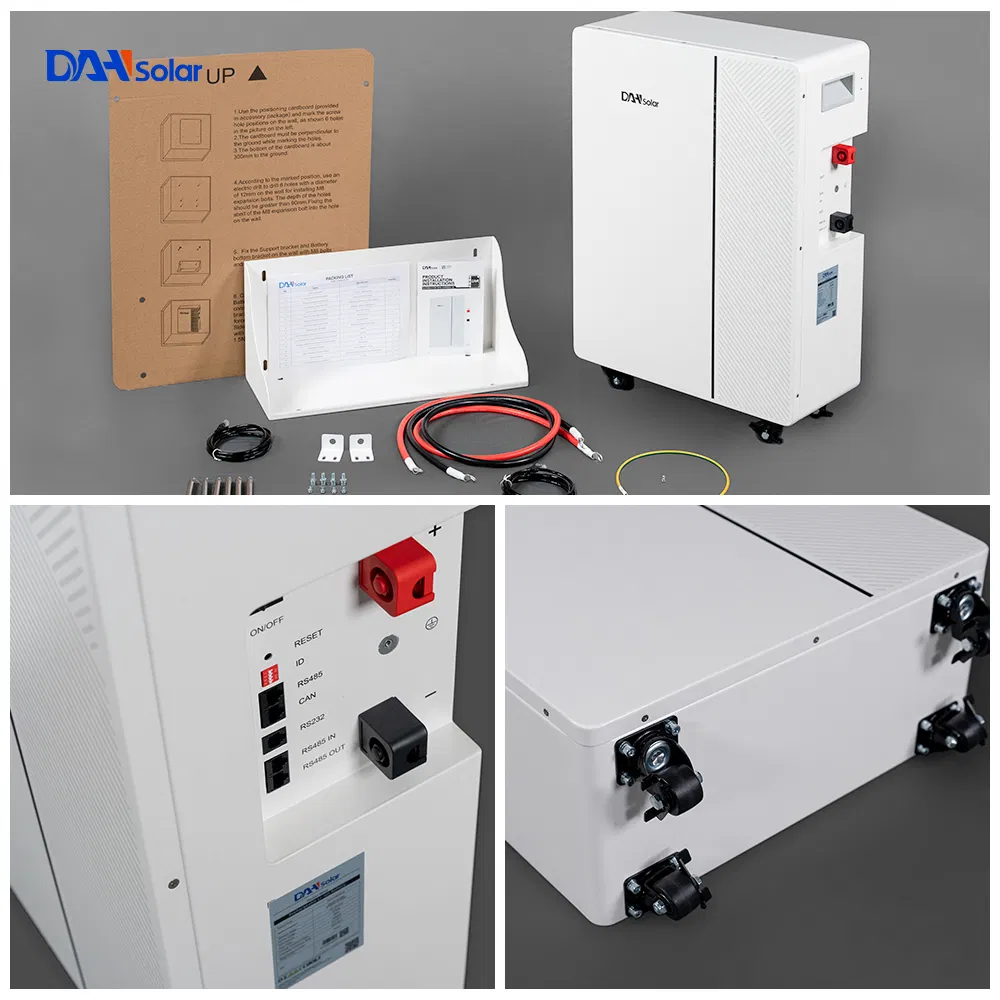

| Installation | Floor-Mounted / Wall-Mounted |
| Communication | CAN2.0 / RS485 |
The system is fully certified to meet international safety and transport standards, ensuring reliability in various global markets.
