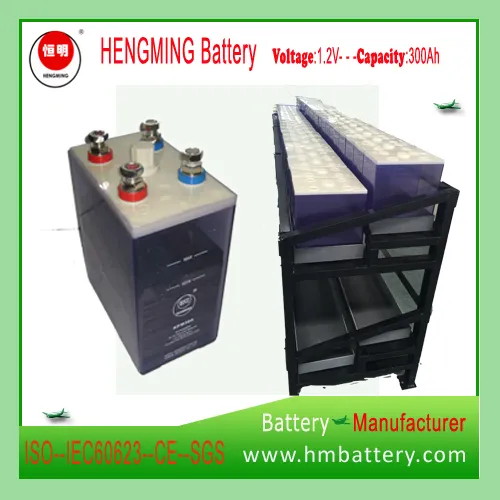

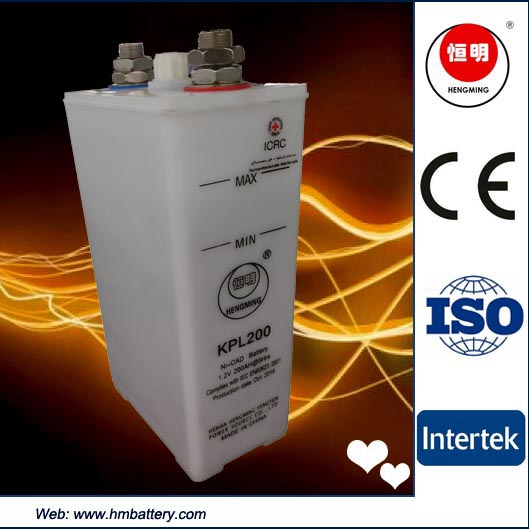

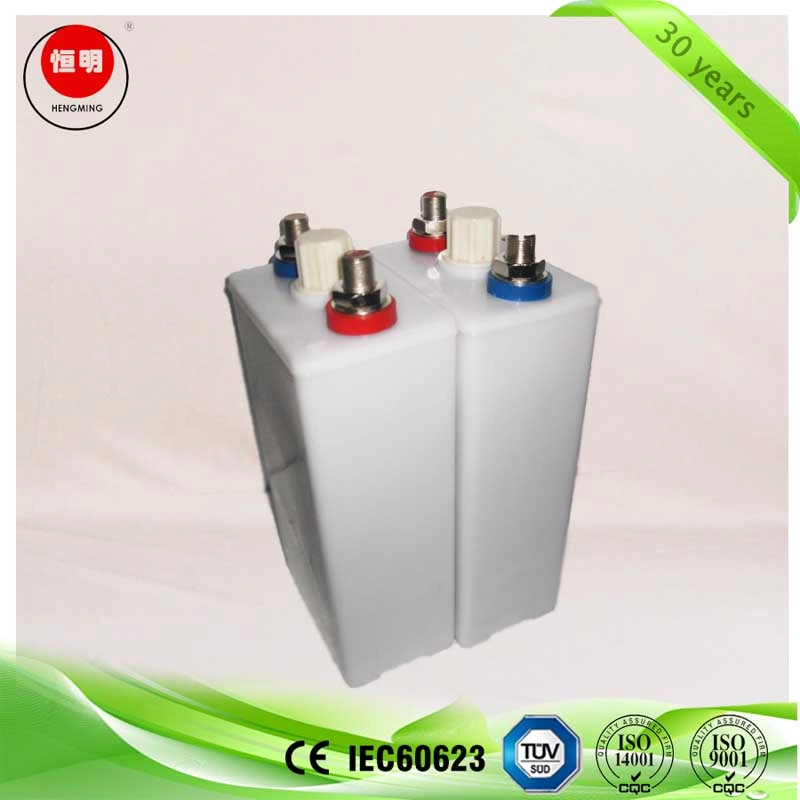

KPL Series nickel cadmium batteries are engineered for critical industrial applications demanding absolute reliability. Utilizing proven pocket-plate technology, these batteries guarantee a long, uninterrupted service life without the risk of sudden power failure.
| Cell Type | Voltage (V) | Capacity (Ah) | Dimension (mm) | Thread of Pole | Weight (kg) | Electrolyte (L) | Material | ||
|---|---|---|---|---|---|---|---|---|---|
| L | W | H | |||||||
| GN10 | 1.2 | 10 | 85 | 39 | 156 | M8 | 1.0 | 0.5 | PP |
| GN20 | 1.2 | 20 | 114 | 52 | 266 | M10 | 2 | 0.6 | ABS |
| GN50 | 1.2 | 50 | 138 | 61 | 266 | M10 | 3.2 | 0.7 | ABS |
| GN100 | 1.2 | 100 | 139 | 79 | 362 | M10 | 6 | 1.4 | ABS/PP |

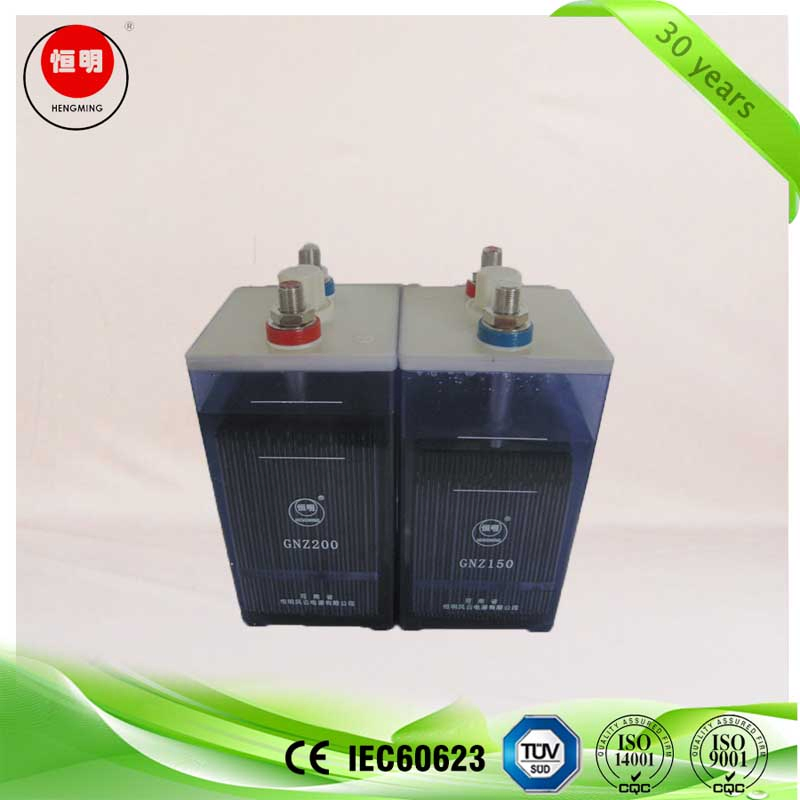

| GN200 | 1.2 | 200 | 167 | 162 | 345 | M20×1.5 | 14 | 3.3 | ABS |
| GN500 | 1.2 | 500 | 285 | 172 | 490 | M20×1.5 | 33.6 | 7.8 | ABS |
| GN1000 | 1.2 | 1000 | 395 | 185 | 560 | M20×1.5 | - | - | ABS |
| GN1200 | 1.2 | 1100 | 395 | 185 | 560 | M20×1.5 | - | - | ABS |
The KPL series uses pocket-plate technology which prevents sudden loss of power and ensures an extremely long, reliable service life, especially in industrial backup roles.
Yes, they are designed to operate in temperatures ranging from -30°C to +40°C, and can withstand extremes from -40°C to +55°C without significant performance loss.

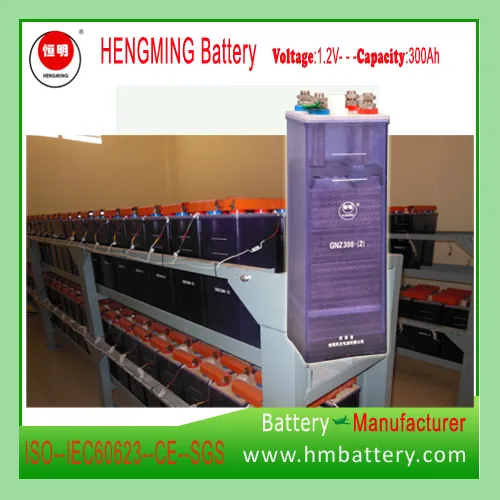

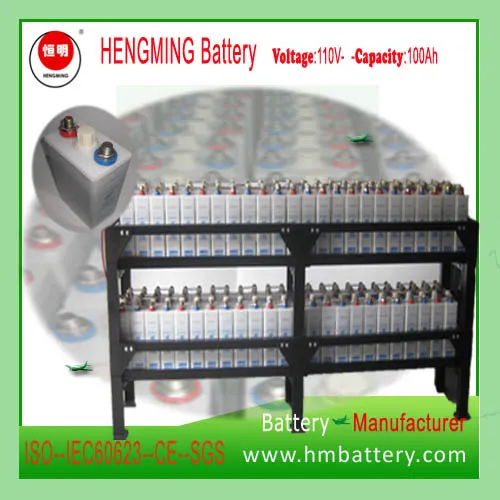

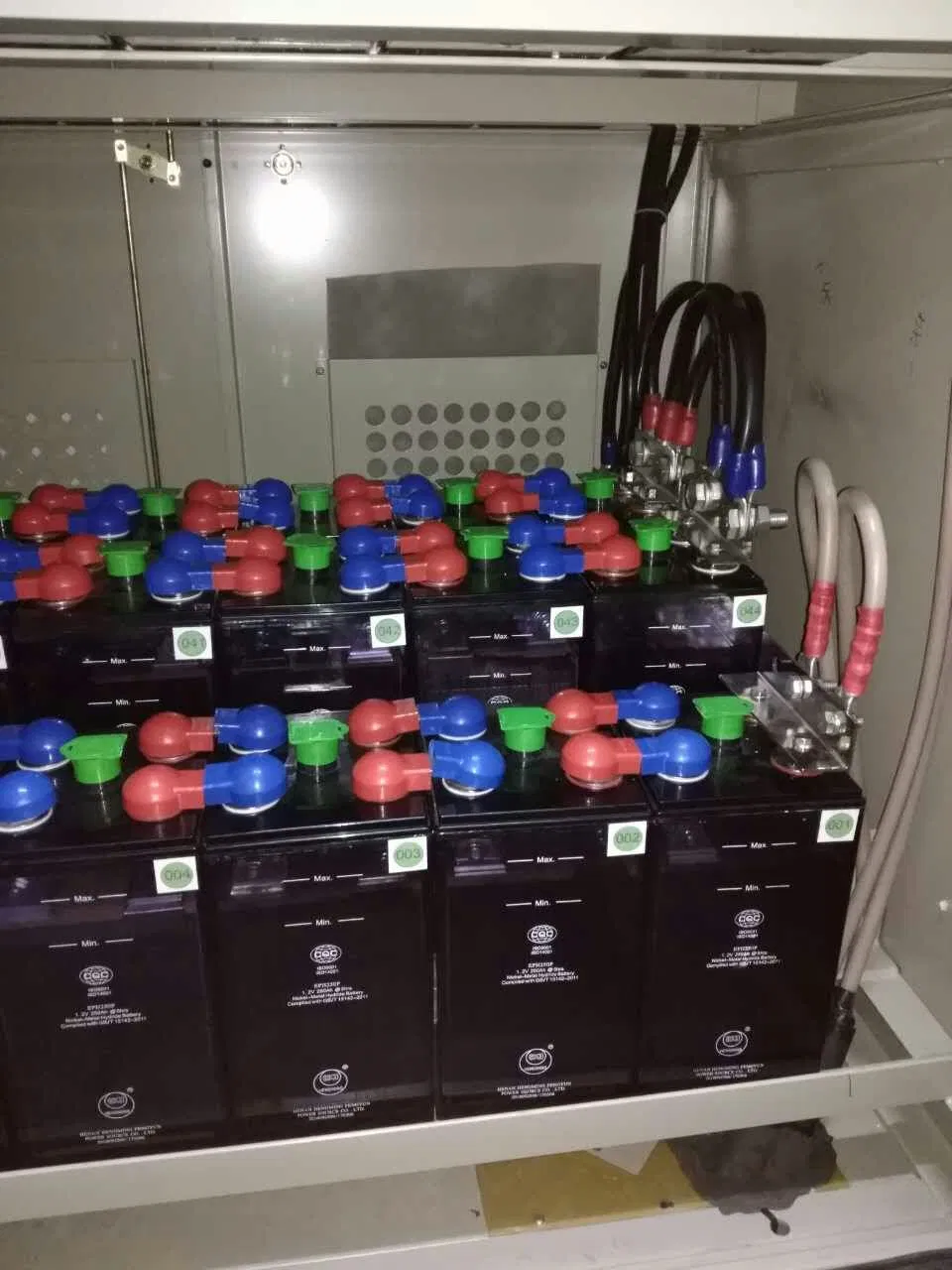

Typical applications include railroad signaling, photovoltaic (solar) energy storage, telecommunications backup, and emergency lighting systems where power is needed over a duration of 1 to 100 hours.

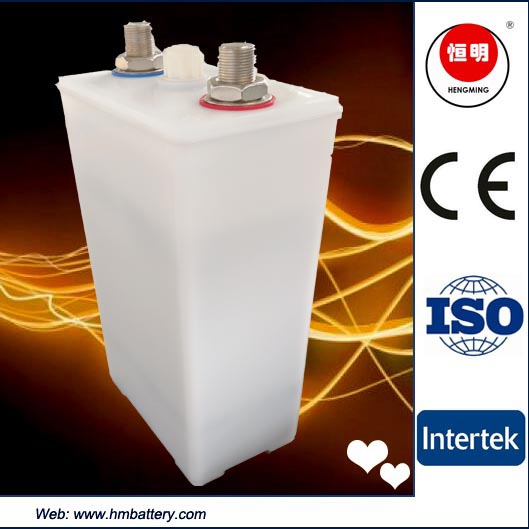

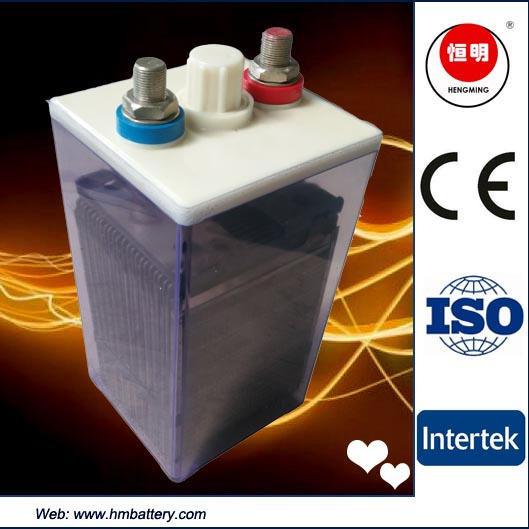

The batteries are housed in high-quality ABS or PP (Polypropylene) containers, which provide excellent resistance to impact and chemical corrosion.
Absolutely. These batteries are specifically designed to be capable of operating with renewable energy sources like solar and wind power due to their robust electrical performance.
The Ni-CD pocket plate technology allows for minimal maintenance compared to other battery types, making them a cost-effective solution for remote or critical installations.
