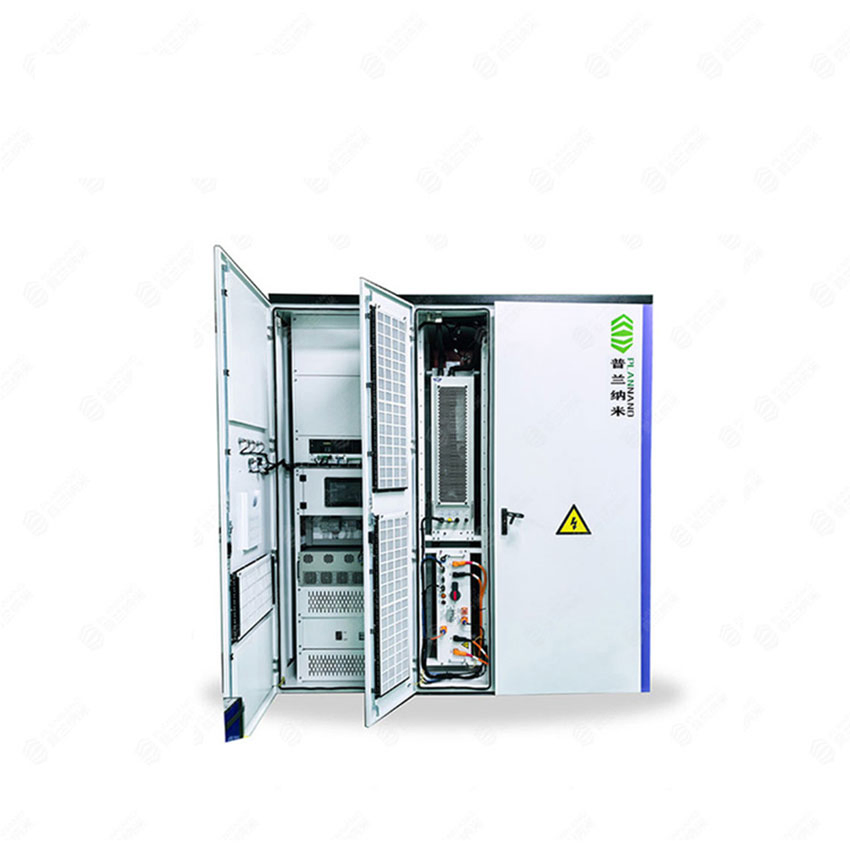

LiFePO4 Solar Photovoltaic 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage System

Customization: Available
Nominal Voltage: 768
Warranty: Yes

Product Description

Basic Information
Model NO.
100K/215A-L
Nominal Capacity
215
Cycle Life
20000
Battery Type
302V/280ah
Rated Output Power
110kVA
Rated Grid Voltage
768V
Rated Grid Frequency
50Hz/60Hz
Origin
China
Packaging & Delivery
Package Size
150.00cm * 205.00cm * 145.50cm
Package Gross Weight
3000.000kg
Product Description

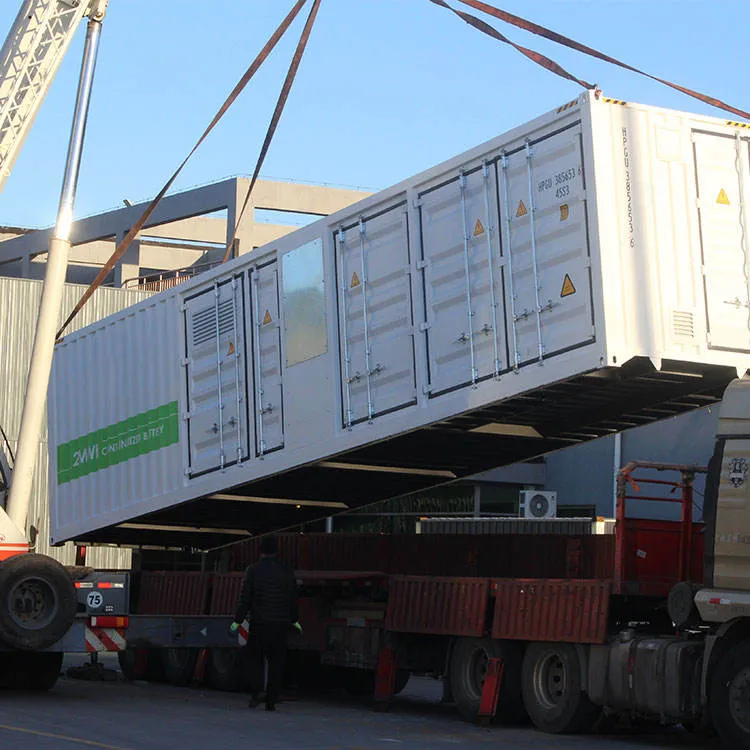

Industrial Energy Storage System Commercial Battery Solution Container Energy Storage
Product Parameters
Model 100K/215A-L 100K/215A-H 100K/215L-L 125K/261L-H
Battery Parameters
Nominal Capacity(Ah) 280 280 280 314
Rated Capacity(KWh) 215.04 215.04 215.04 261.248
Rated Voltage(V) 768 768 768 832
Grid-connected / Off-line Parameters
Rated Power(KW) 100 100 100 125
Max. Power(KVA) 110 110 110 137.5
System Parameters
Fire Fighting Methods Aerosol / Perfluorohexanone Perfluorohexanone
Cooling Method Air-cooled Liquid-cooled
Fire Rating IP54
Size(W*H*D, mm) 1500*2050*1455 1500*2400*1100 1550*2100*1400 1000*2300*1350
Product Details

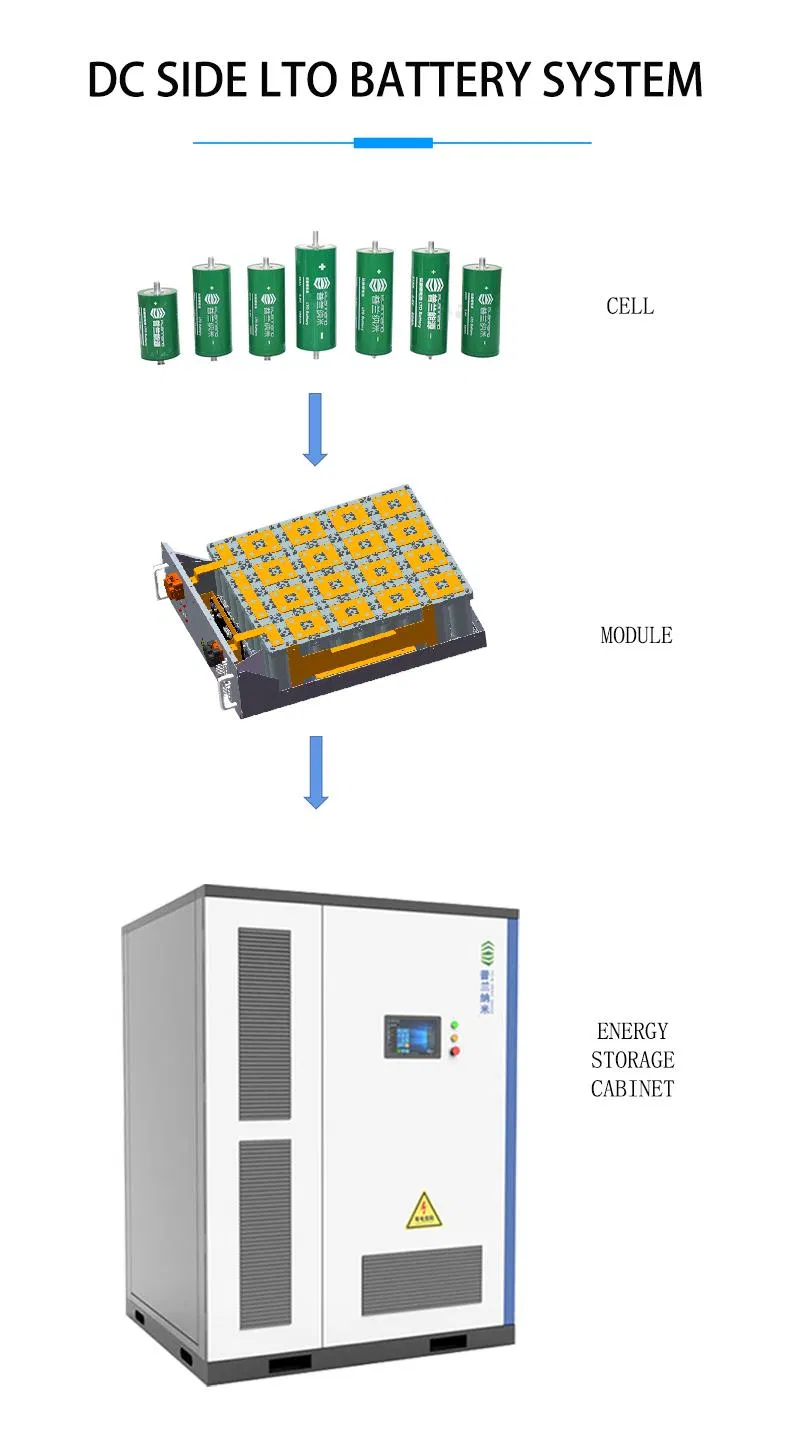

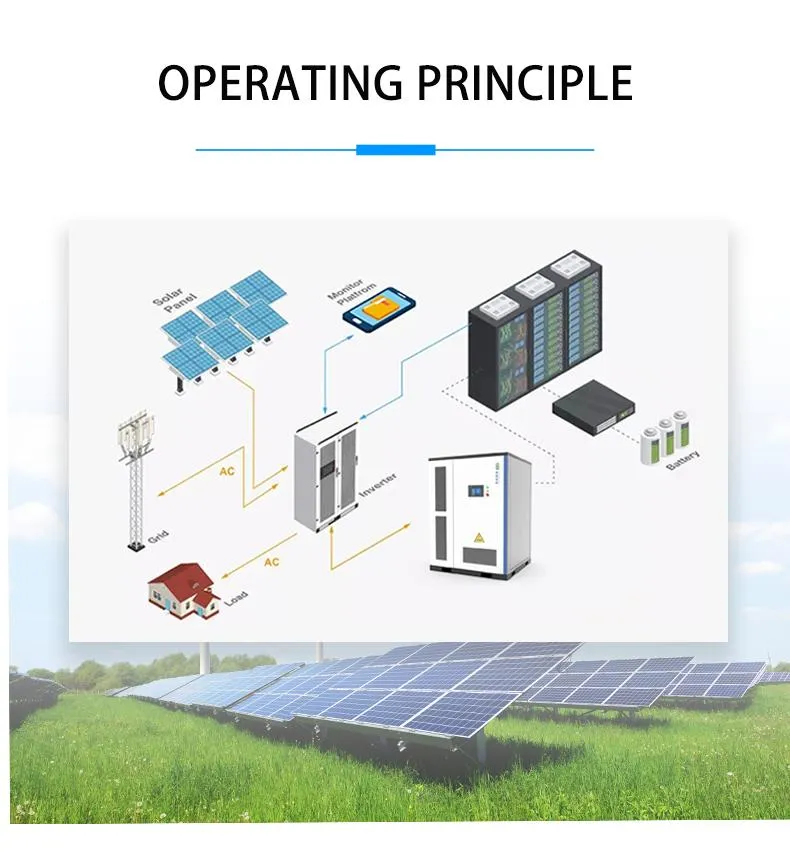

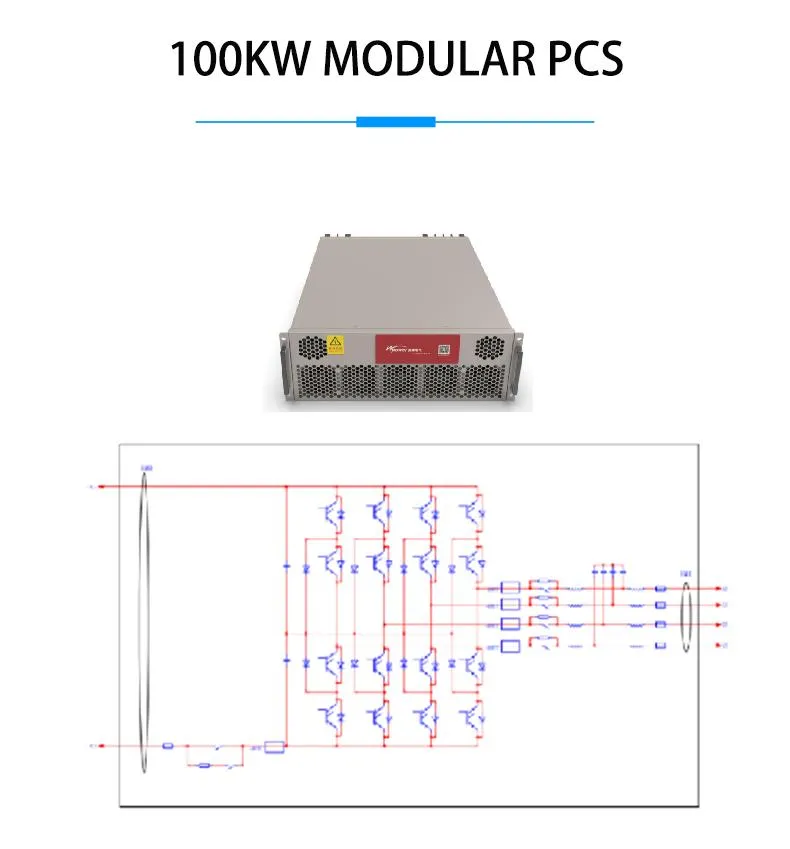

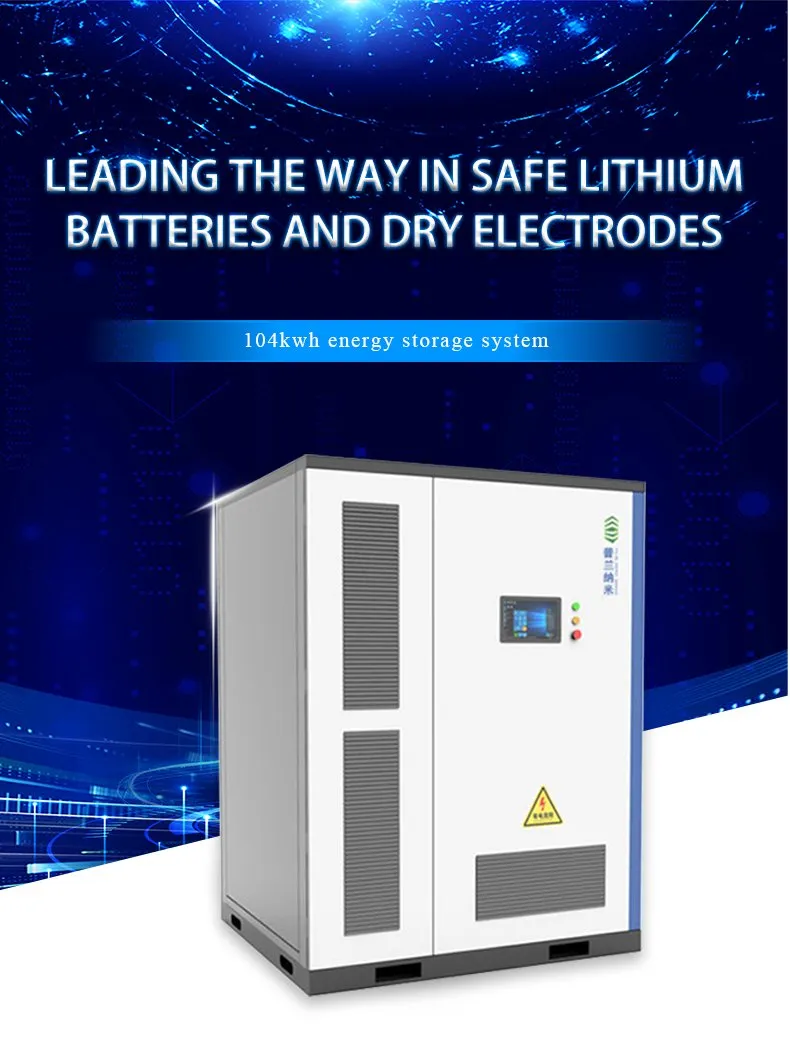

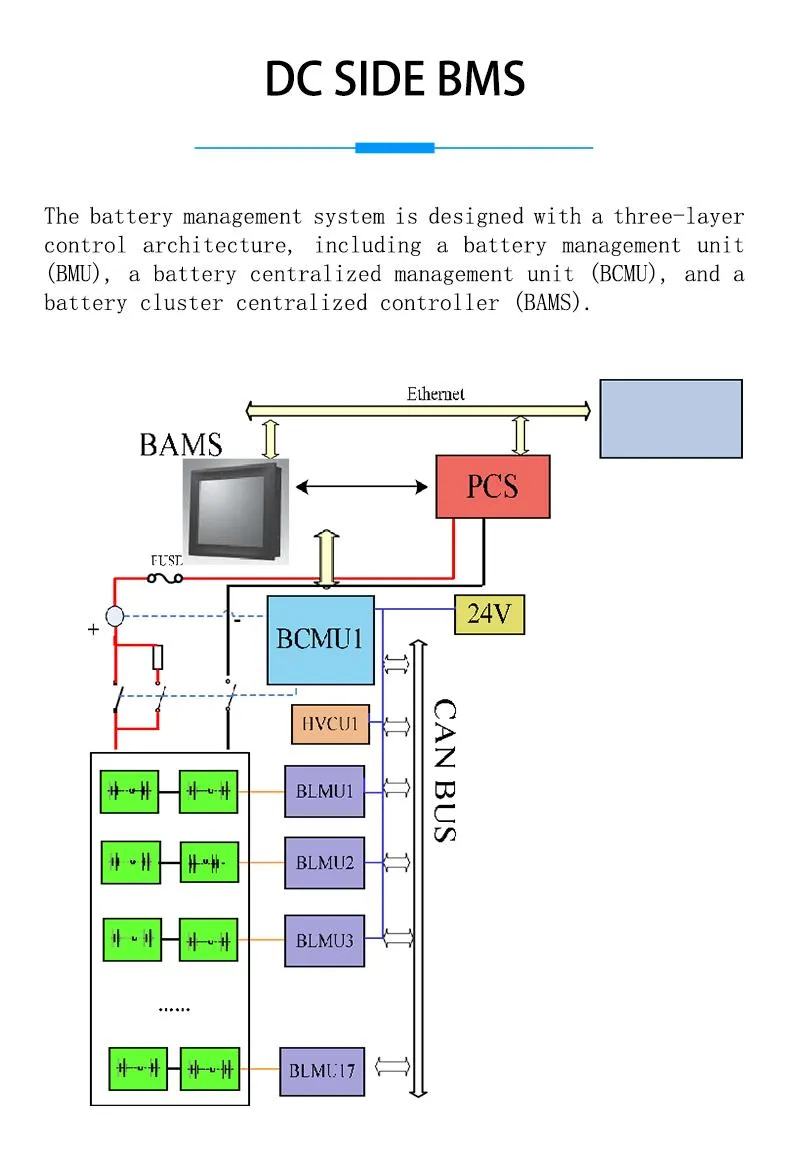

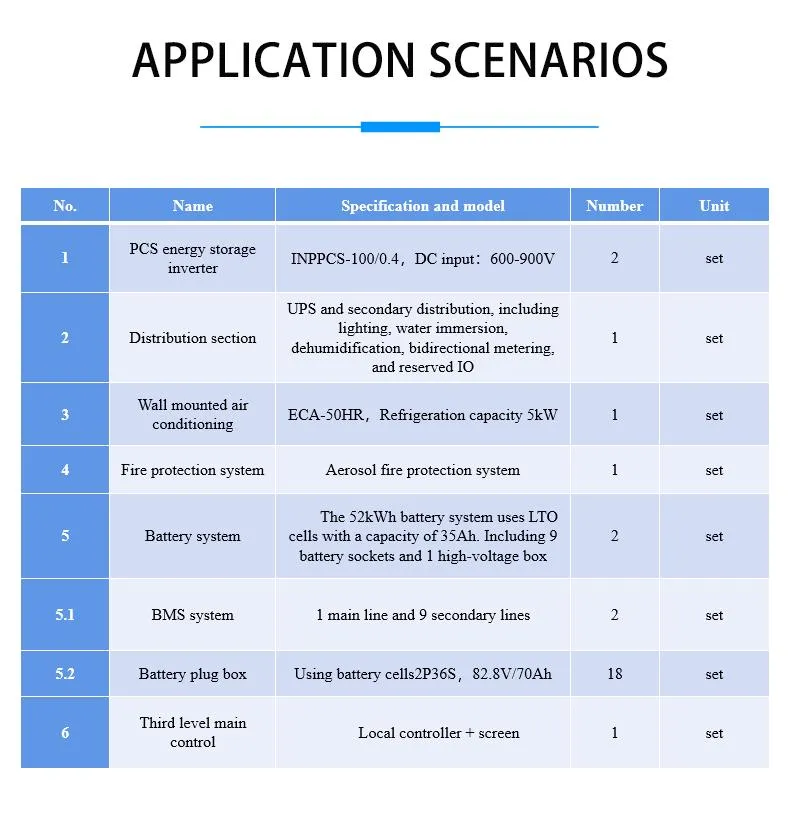

Detail 1 Detail 2 Detail 3 Detail 4 Detail 5 Detail 6 Detail 7 Detail 8 Detail 9 Detail 10 Detail 11 Detail 12

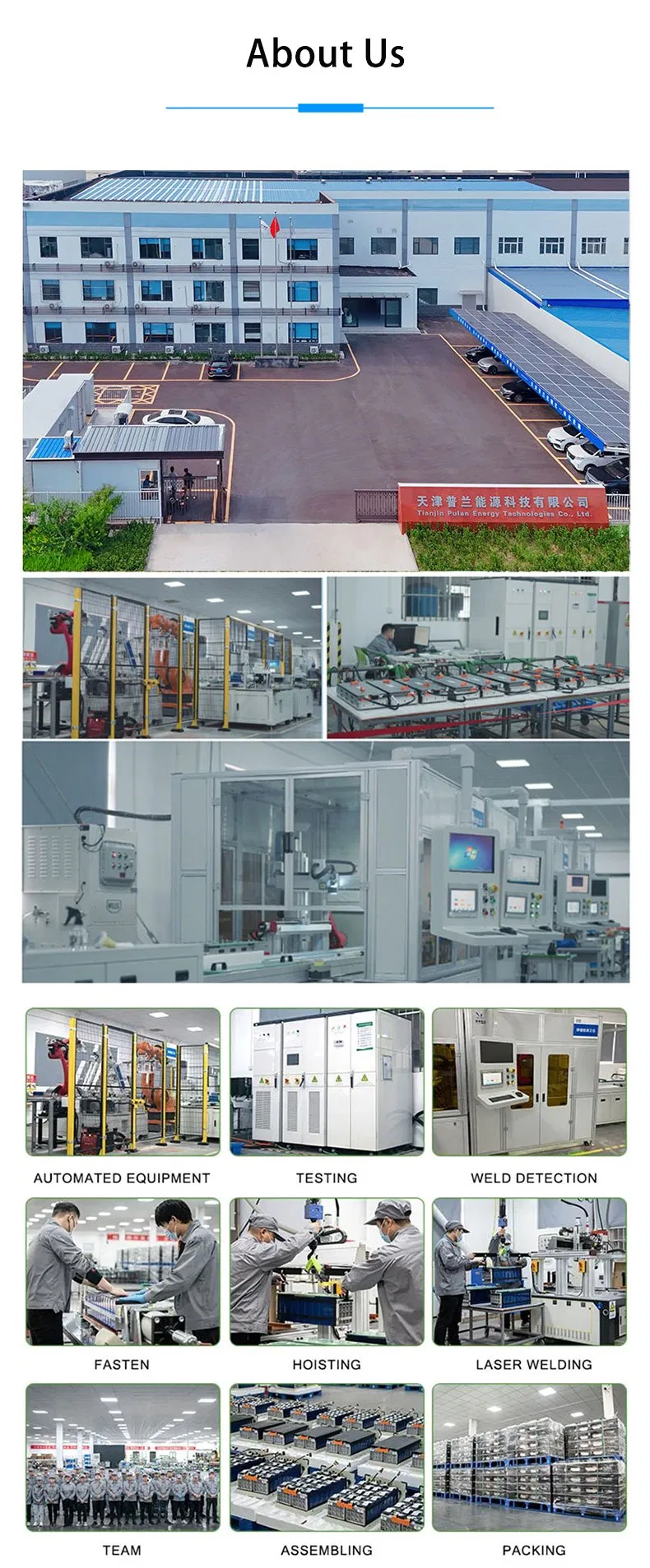

Company Profile
A high-tech company focusing on the research and development, manufacturing, marketing and technical service of graphene-based materials and their applications in clean energy. Based on excellent technical service and support, the company is aimed to supply a complete solution to green-energy storage and products in power system for clients.

Equipped with high-standard test instruments and a top-class technical management team, the company owns more than 50 patents in graphene-based materials. Production lines are fully established for materials and products, including graphene, LTO, Si/C materials, and super capacitor cells ranging from 0.1F to 3000F.

The main products are widely applied to new-energy vehicles, rail transportation, smart grid, micro grid, engineering machinery, and industrial energy-saving fields. The goal is to manufacture advanced clean-energy products with high quality and supply reliable solutions to energy-related systems globally.
Frequently Asked Questions
What is the cycle life of this energy storage system?
This system offers an exceptional cycle life of up to 20,000 cycles, ensuring long-term reliability for industrial and commercial applications.
What fire suppression systems are integrated?
The system is equipped with advanced safety features, including Aerosol and Perfluorohexanone fire-fighting methods to ensure maximum security.
What are the cooling options available?
Depending on the specific model and environment requirements, we offer both Air-cooled and Liquid-cooled system configurations.
Is this system suitable for outdoor installation?
Yes, the system features an IP54 fire and protection rating, making it suitable for various environmental conditions.
Can the system operate at high altitudes?
The system is rated for operation at altitudes ≤2000m. For operations above 2000m, power reduction parameters may apply.
What communication methods are supported?
The system supports multiple communication protocols including CAN, RS485, and LAN for seamless integration with monitoring systems.
