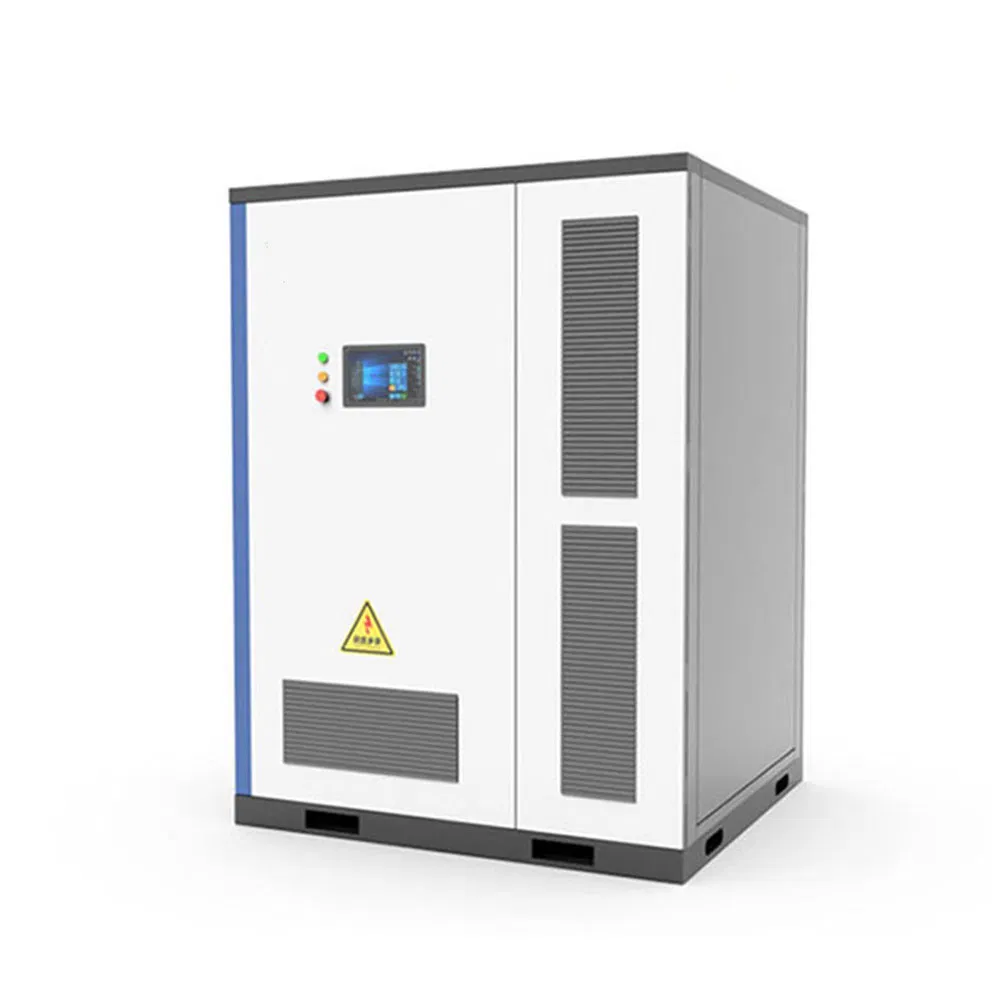

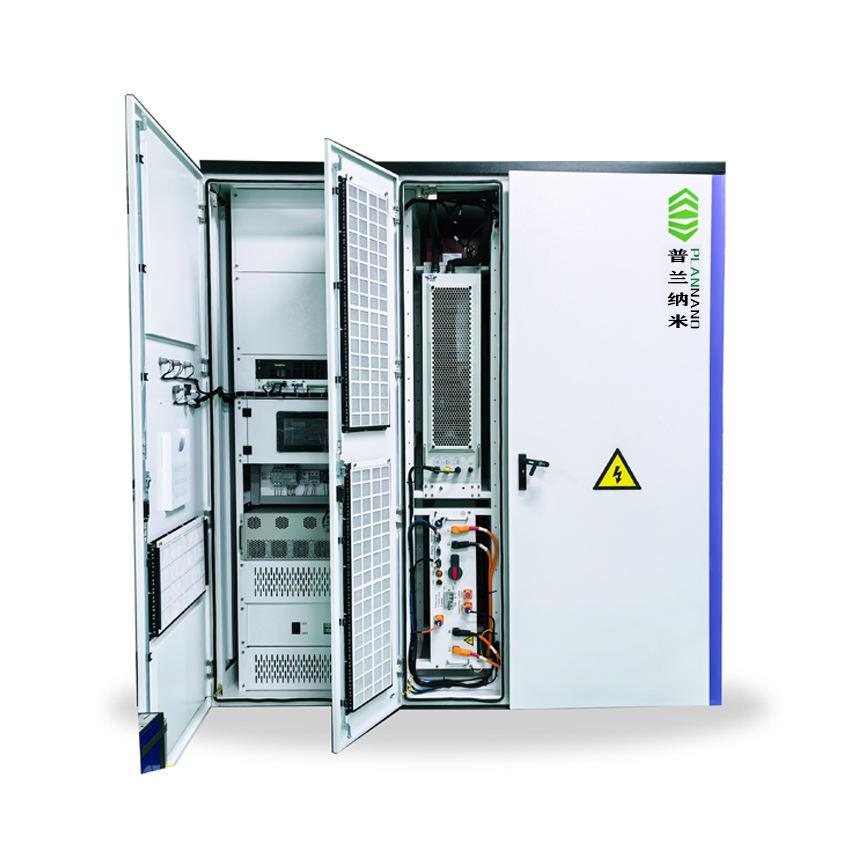

| Battery & Cell Parameters | |
| Product Model | PLPF0280C0-1331R2A |
| Battery Configuration | 1p416s |

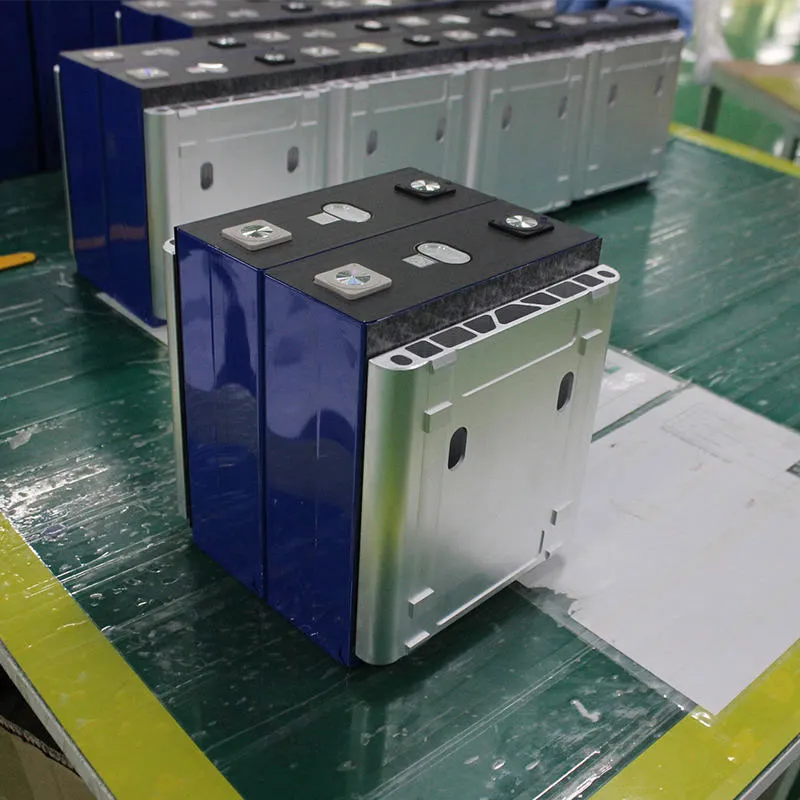

| Cell Type | 3.2V / 280Ah |
| Cell Life | ≥6000 @ 100% DOD, 80% EOL |
| Rated Battery Capacity | 373 kWh |
| AC Parameters | |
| Rated Output Power | 110 kW |
| Rated Grid Voltage | 690 V |
| Grid Frequency | 50Hz / 60Hz (±2.5Hz) |
| Power Factor | -1 (leading) ~ 1 (lagging) |
| THDI | <= 3% (at rated power) |
| Off-grid Voltage | 400 V (±10% adjustable) |
| System Parameters | |
| Product Size (W x H x D) | 2300 x 2500 x 1400 mm |
| Humidity Range | 0 ~ 95% (No condensation) |
| Operating Temperature | -30 ~ 60ºC (>40ºC derating) |
| Cooling Method | Air / Liquid Cooled |
| Fire Extinguishing System | Aerosol / Perfluorocopper (optional) |
| Maximum Altitude | 4000 m |
| Communication Protocol | ModBus-TCP / ModBus-RTU / IEC104 |
The company is a high-tech enterprise focusing on the research, development, manufacturing, and marketing of graphene-based materials and their applications in clean energy. By providing excellent technical service and support, the team supplies complete solutions for green-energy storage and power system products.

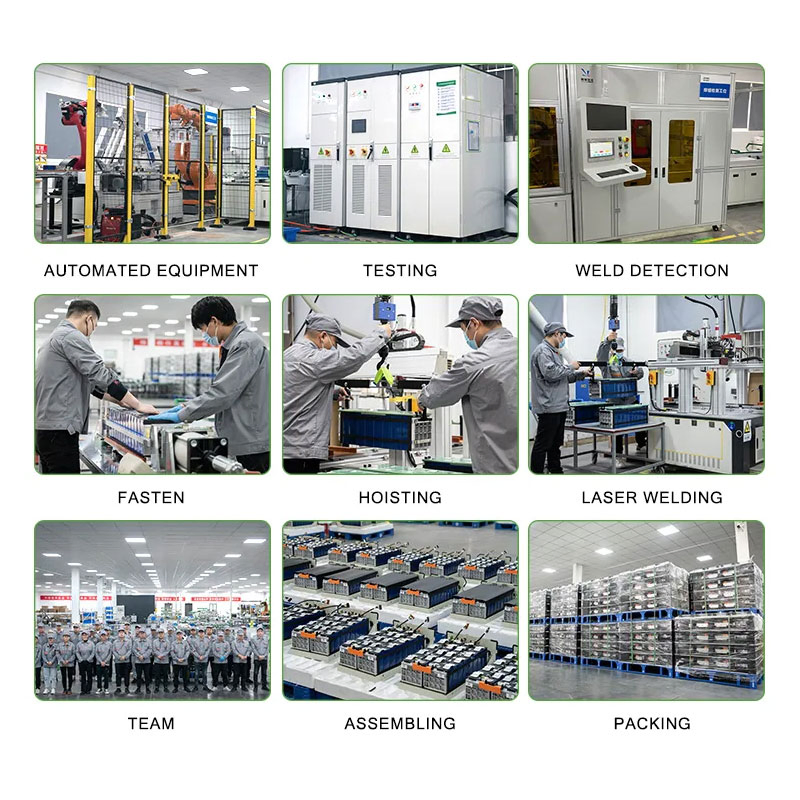

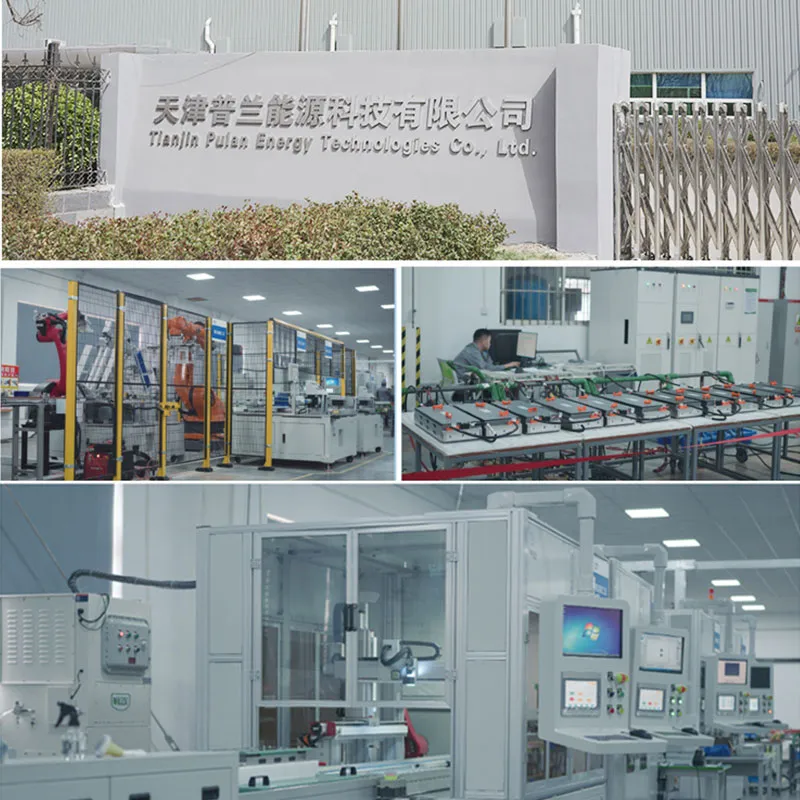

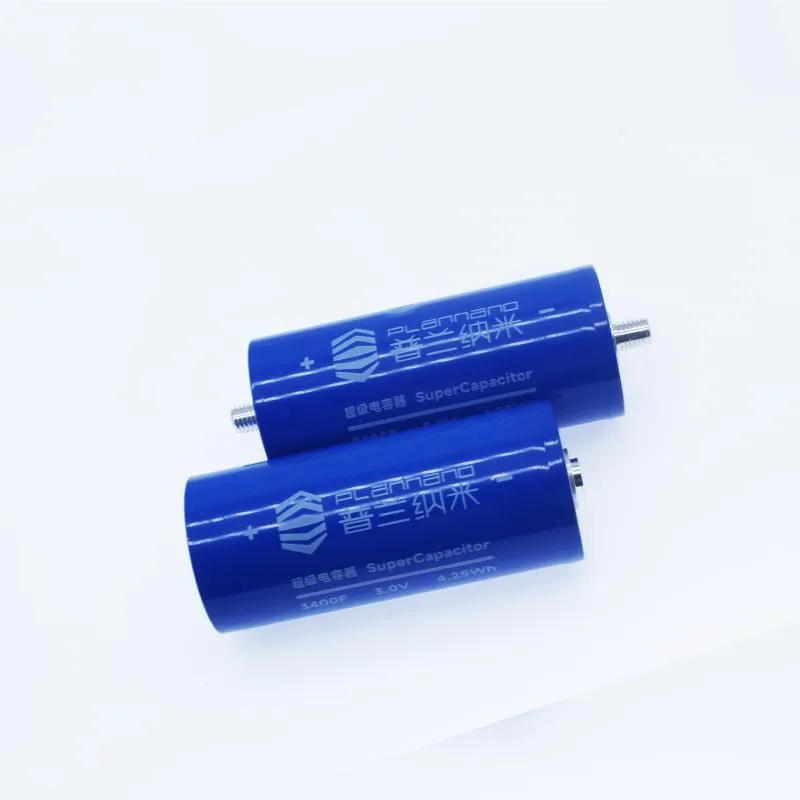

Equipped with high-standard test instruments and a top-class technical management team, the facility has secured more than 50 patents related to graphene-based materials. Production lines are fully operational for mass-producing products such as graphene, LTO, Si/C materials, and supercapacitor cells ranging from 0.1F to 3000F.

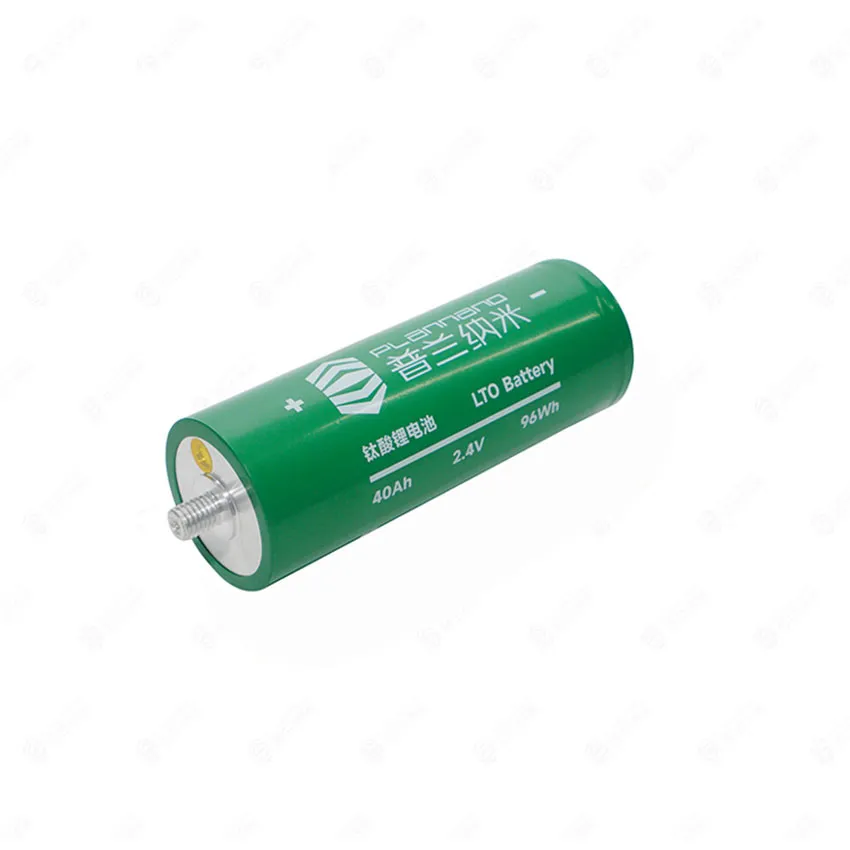

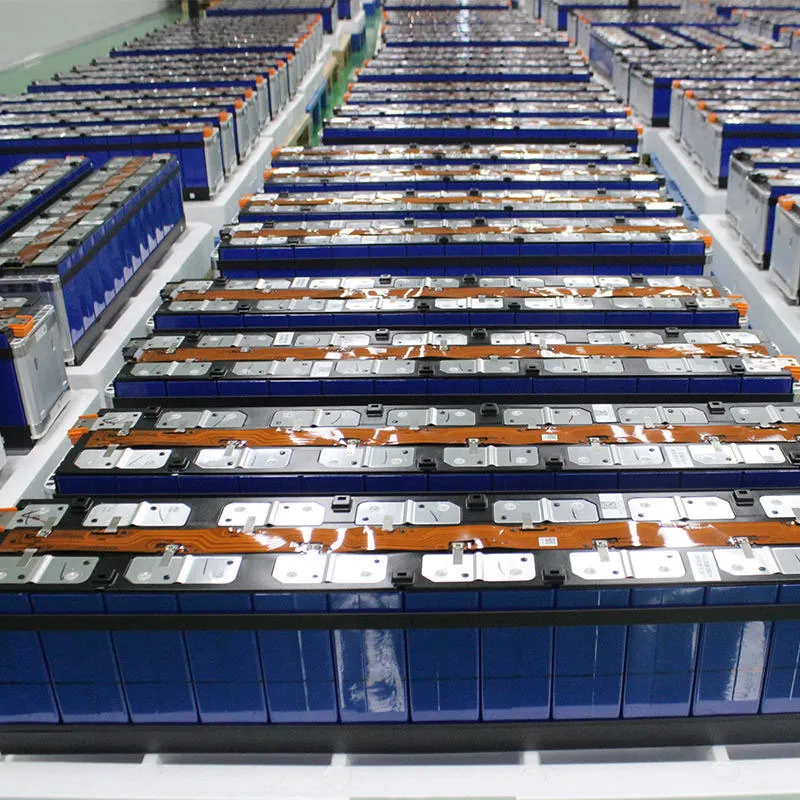

The core product lineup includes supercapacitor modules (16V500F/48V165F) and LTO battery cells/modules ranging from 20Ah to 500Ah. These products are widely utilized in new-energy vehicles, rail transportation, smart grids, microgrids, engineering machinery, and industrial energy-saving fields. The mission is to manufacture advanced clean-energy products with high quality and supply reliable solutions globally.
