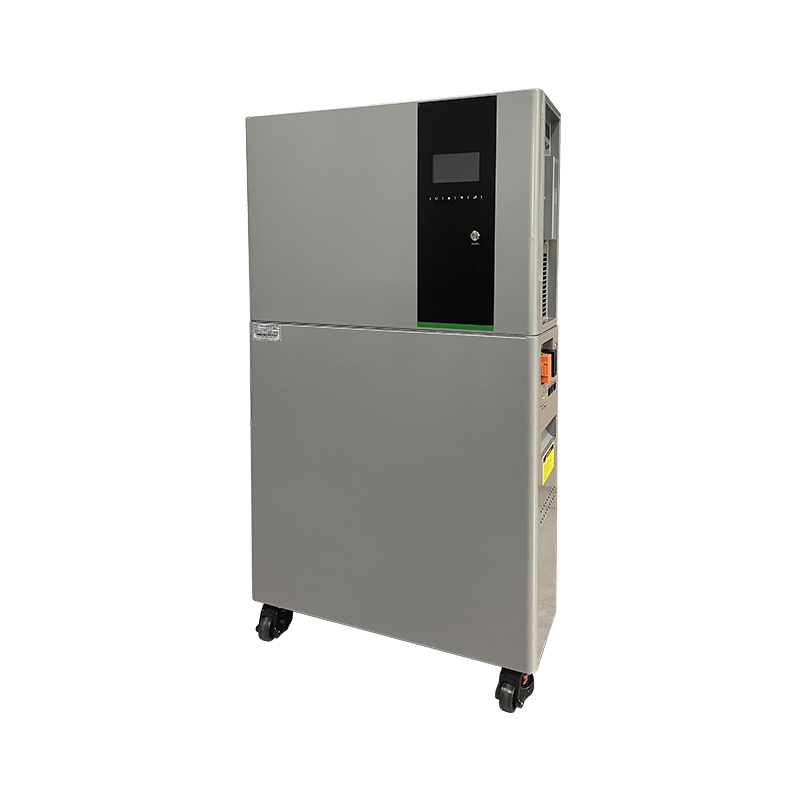

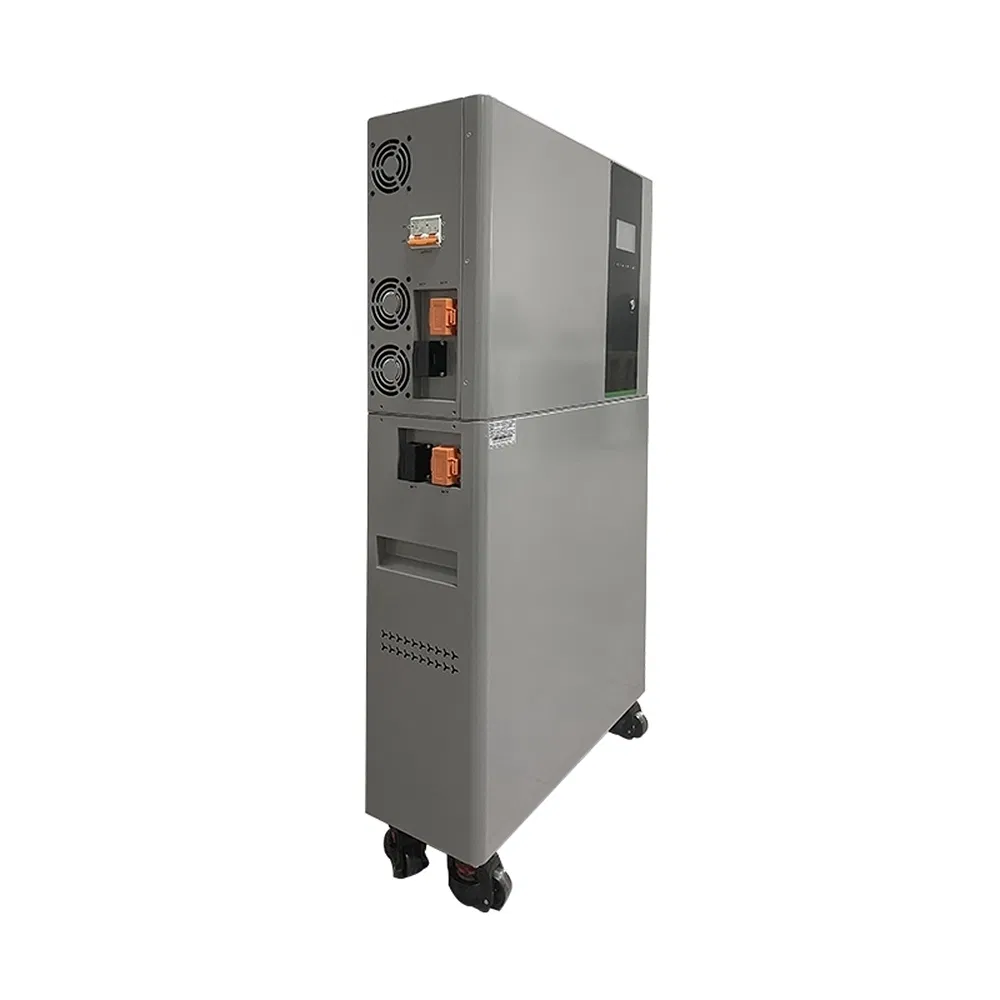

ENERGY STORAGE BATTERY SYSTEM
All-in-One Energy Storage Battery System integrates multiple components into a single compact unit for complete energy management solutions. This system provides reliable backup power and energy storage capabilities with simplified installation and maintenance requirements.
The intelligent design features advanced battery management, high efficiency performance, and compatibility with various power sources. With extended service life and smart monitoring capabilities, these integrated systems deliver energy independence and cost savings for diverse applications.
A complete integrated system combines the inverter, battery, and control functions in a single unit, eliminating wiring and reducing installation time.
Designed for residential applications, providing backup power and energy independence with performance for household energy consumption.
High inverter compatibility and a broad input voltage range ensure seamless integration with various solar panel configurations.
| TECHNICAL PARAMETERS | |
|---|---|
| Product Name | Energy Storage Battery System |
| Keywords | All In One Battery System |
| Model | OLU-10000A-15 |
| INVERTER PARAMETER | |
| Rated Power | 10kW |
| AC Rated Voltage | 230VAC |
| Voltage Range | 90-280VAC |
| Efficiency | 93.50% |
| Waveform | Sine wave |
| Max. PV Array Power | 11kW |
| BATTERY PARAMETER | |
| Rated Capacity | 15.36 kWh |
| Nominal Voltage | 51.2V |

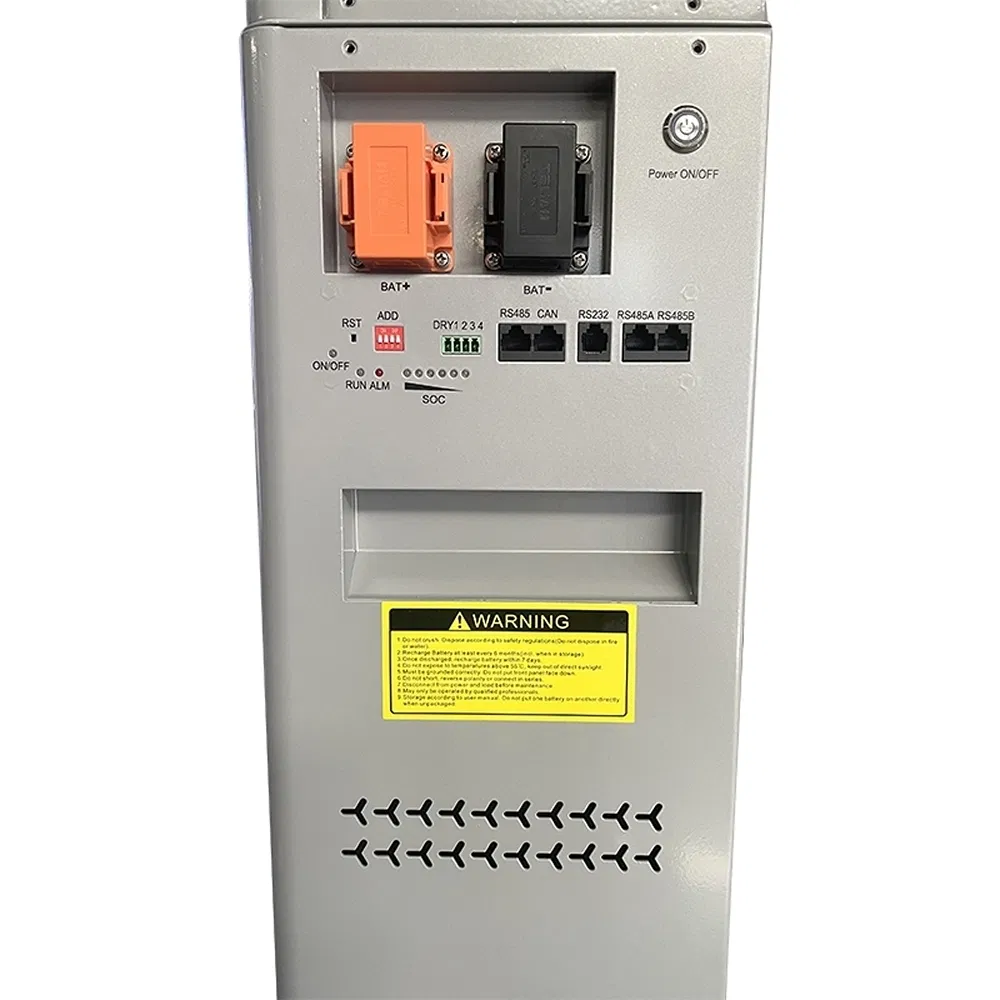

| Communication Interface | RS485/RS232/CAN |
| Cycle Life | ≥ 6000 cycles (EOL 80%) |
| Working Temp | Charge: 0~60℃ / Discharge: -20~60℃ |
INTELLIGENT MANAGEMENT
EXTENDED SERVICE LIFE
HIGH EFFICIENCY
SMART PROTOCOL
