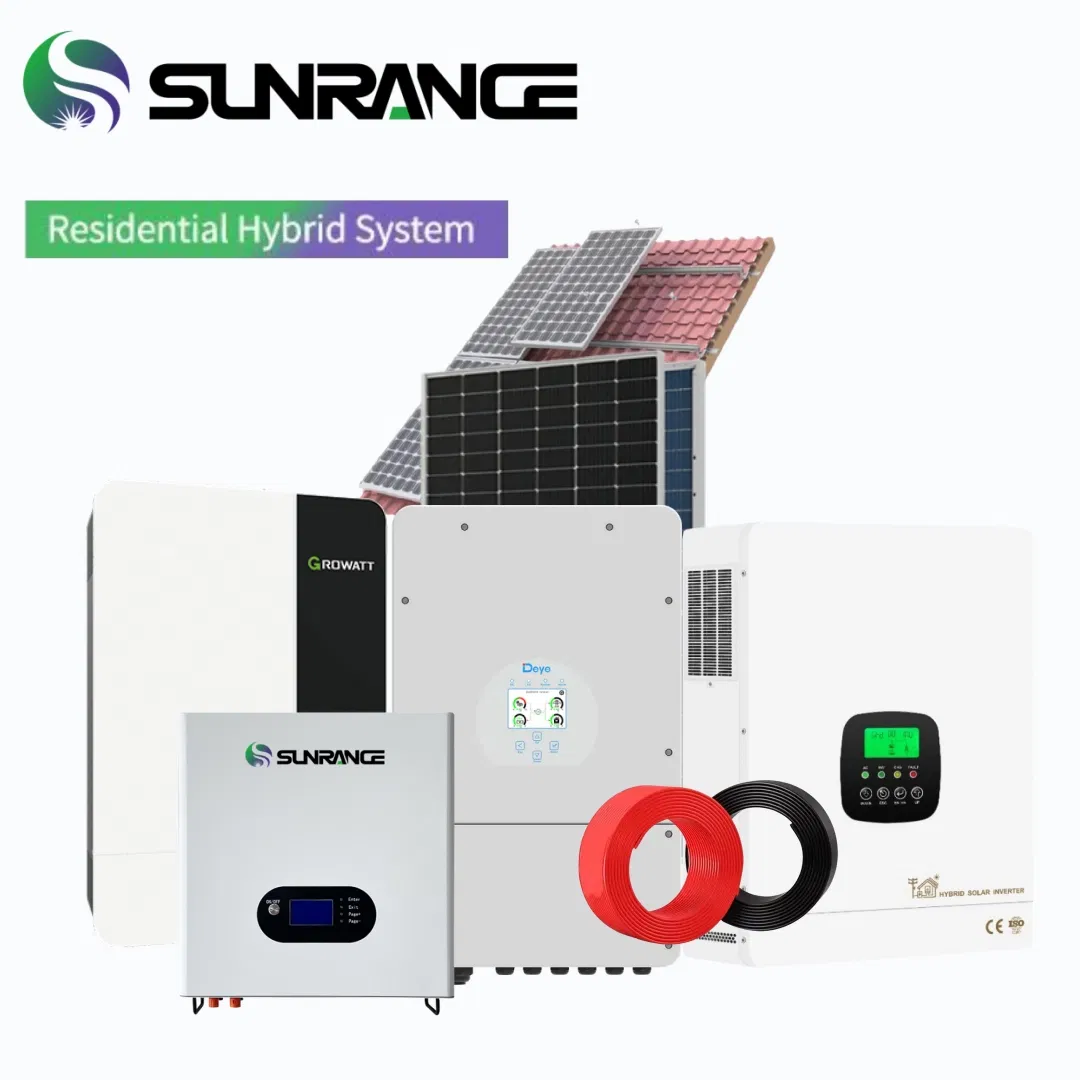

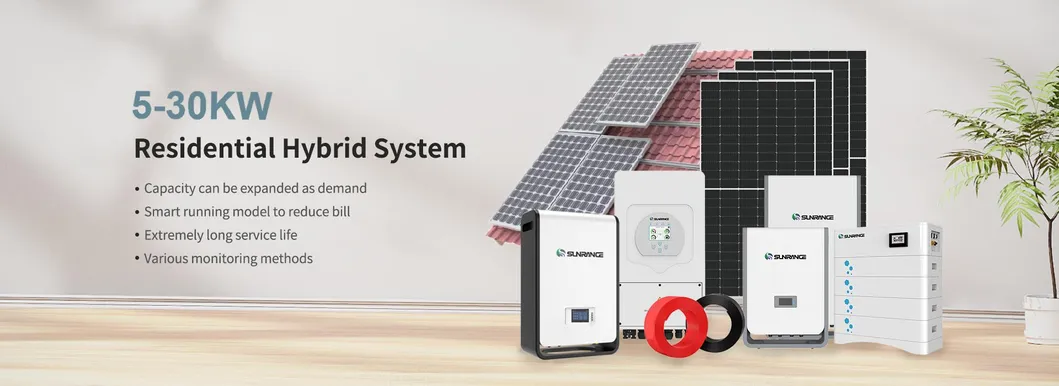

Deye Growatt Solis Solar Systems Complete Kit Home 10kw 15kw 20kw off Grid Hybrid Power Inverter Lithium Battery Storage Home Energy Storage System

📊

Basic Information

Model NO.

SR-5/10/15/20/30KW-HY

Cycle Life

6000+

Nominal Capacity

Customize

Solar Panel

Monocrystalline 400-700W

Battery Type

Gel / LiFePO4 Lithium Battery

Load Power

2.5kw to 30kw

Controller

MPPT Intelligent Controller

Inverter Type

Hybrid Storage Solar Inverter

Mounting Type

Ground / Roof Mounting

Packing

Standard Wooden Box

🛠️

Product Description

Model No.	SR-5KW-HY	SR-10KW-HY	SR-15KW-3HY	SR-20KW-3HY	SR-30KW-3HY
AC Rated Power	5KW	10KW	15KW	20KW	30KW
Grid Voltage	220/230VAC		380/400VAC
Solar Panels	12 PCS	21 PCS	30 PCS	42 PCS	56 PCS
Total PV Power	6.96KW	12.18KW	17.4KW	24.36KW	32.48KW
Battery Capacity	10.24KWH	14.336KWH	30.72KWH	40.96KWH	57.344KWH

⚙️

Product Parameters

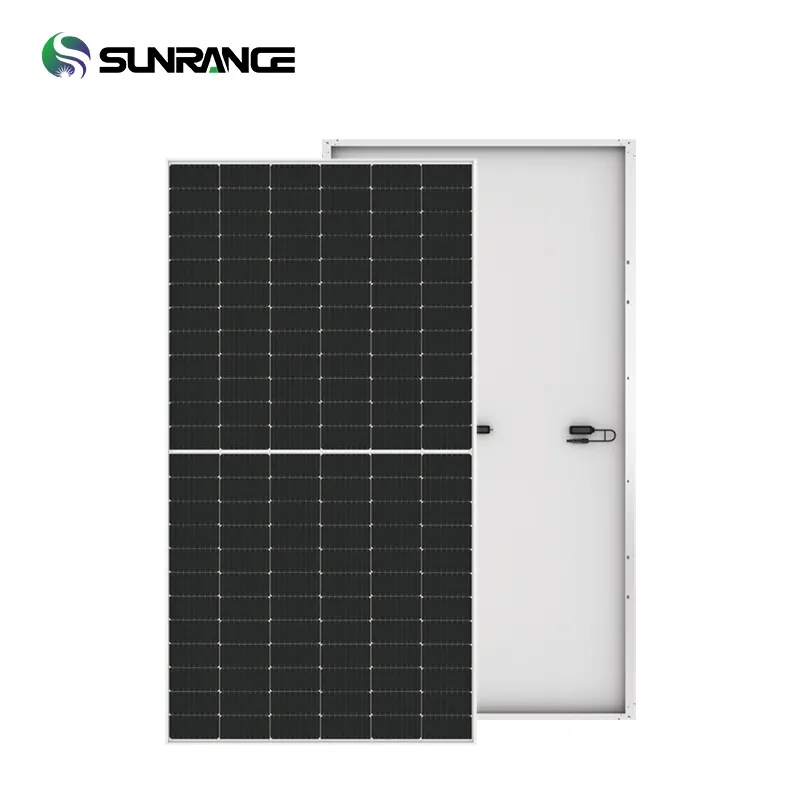

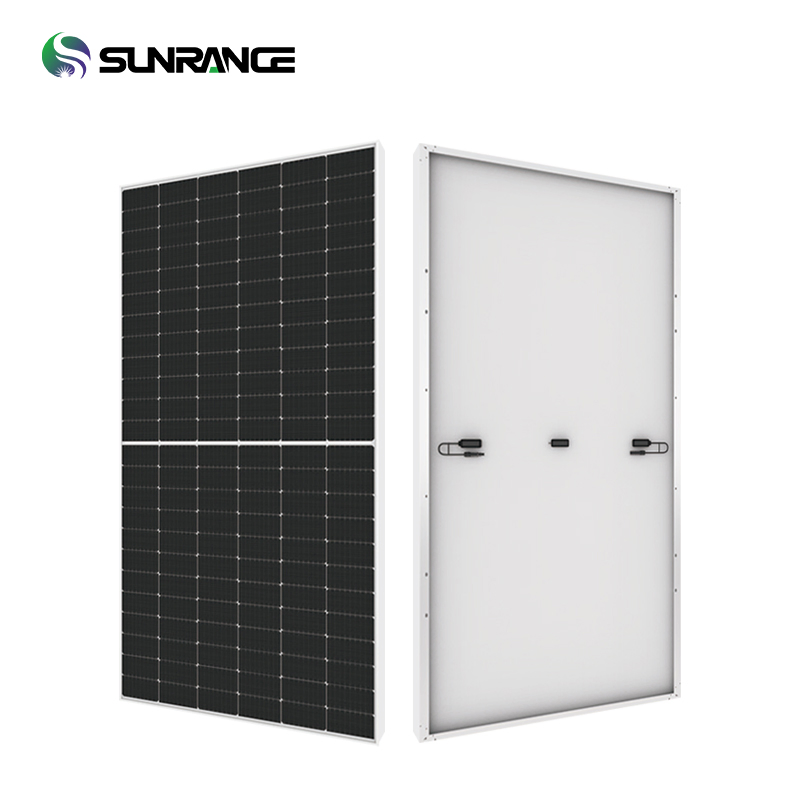

N-Type Topcon Solar Panel

Model: SR72P-580N

Maximum Power (Pmax): 580W

Voc: 51.57V | Isc: 14.33A

Vmpp: 43.09V | Impp: 13.46A

Efficiency: 22.44%

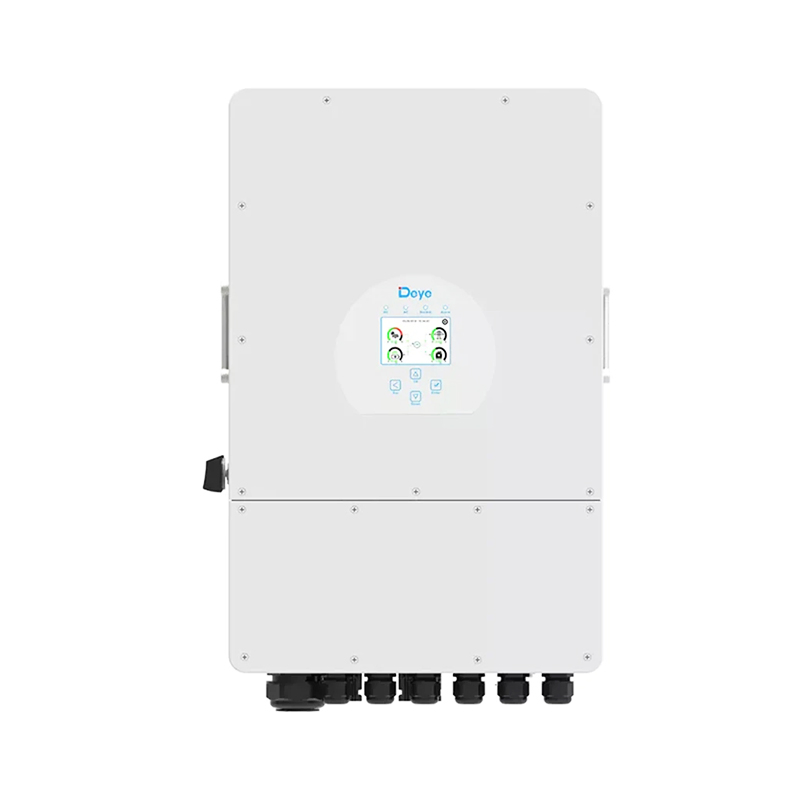

All-in-One Hybrid Inverter

Supports PV, battery, DG, grid, and load connections
System capacity easily expandable
Dynamic power distribution to fulfill load demand
Integrated MPPT intelligent control

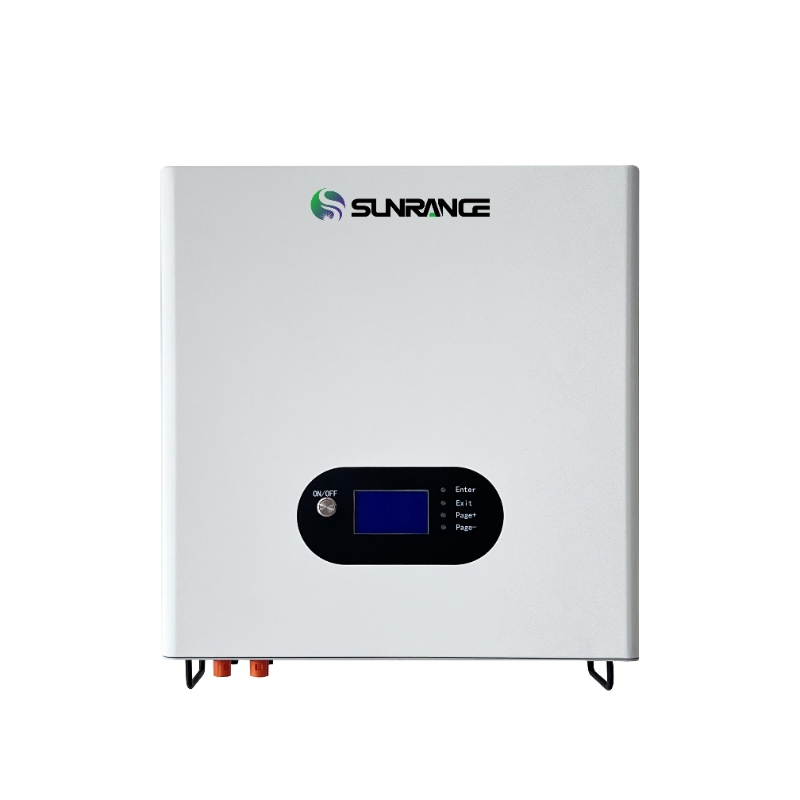

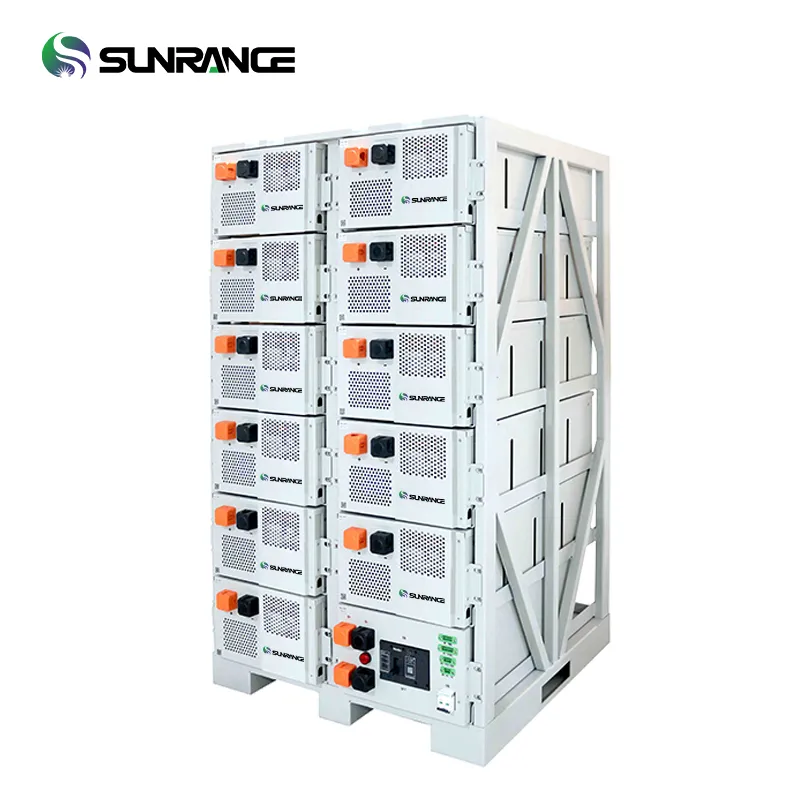

Solar Battery Packs

Type: GEL / LiFePO4 Lithium Ion

Lifespan: 6000+ Cycles (90% DOD)

Design: Rack mounted, easy installation

Voltage: Wide range 48V - 153.6V available

Mounting & Accessories

PV Mounting: Ai6005 & Sus304 Rails, adjustable clamps for 30-40mm panels.

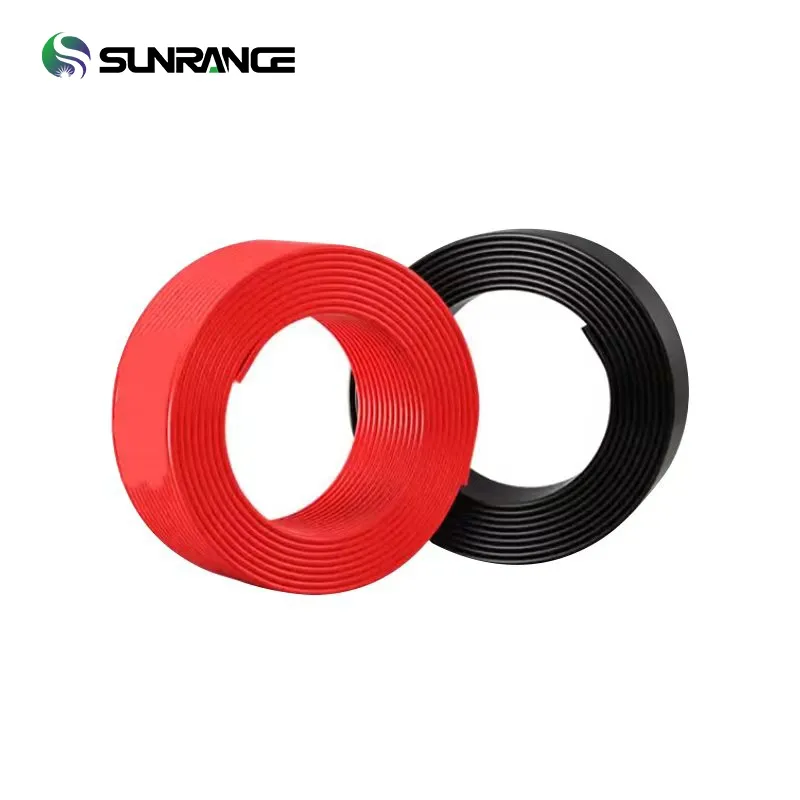

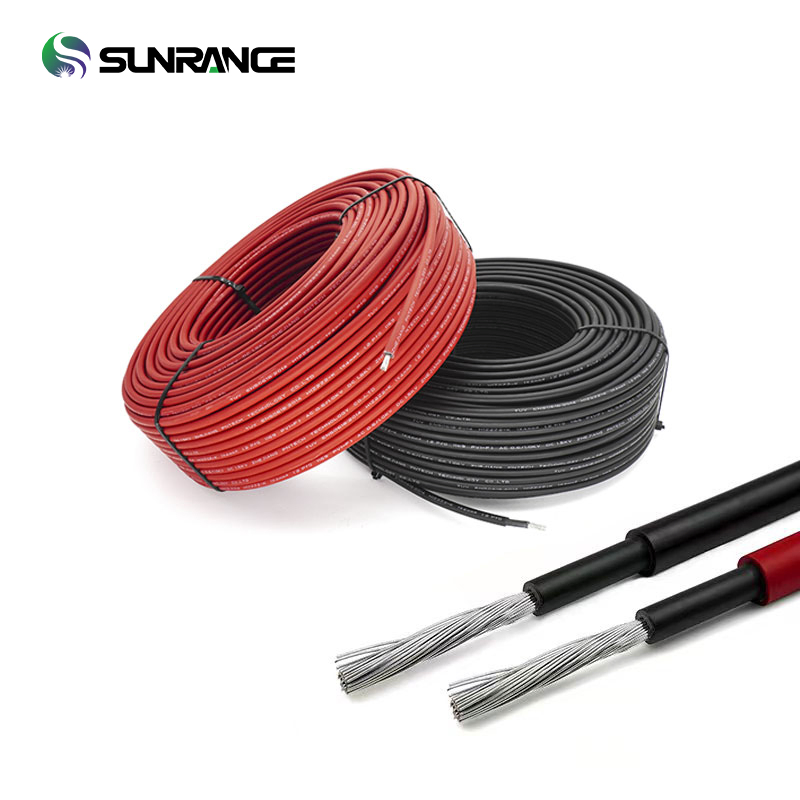

DC Cable: 4mm2 / 6mm2 / 10mm2 (TUV rated), 1000VDC.

MC4 Connectors: Rated 55A/70A, 25 years lifetime.

📞

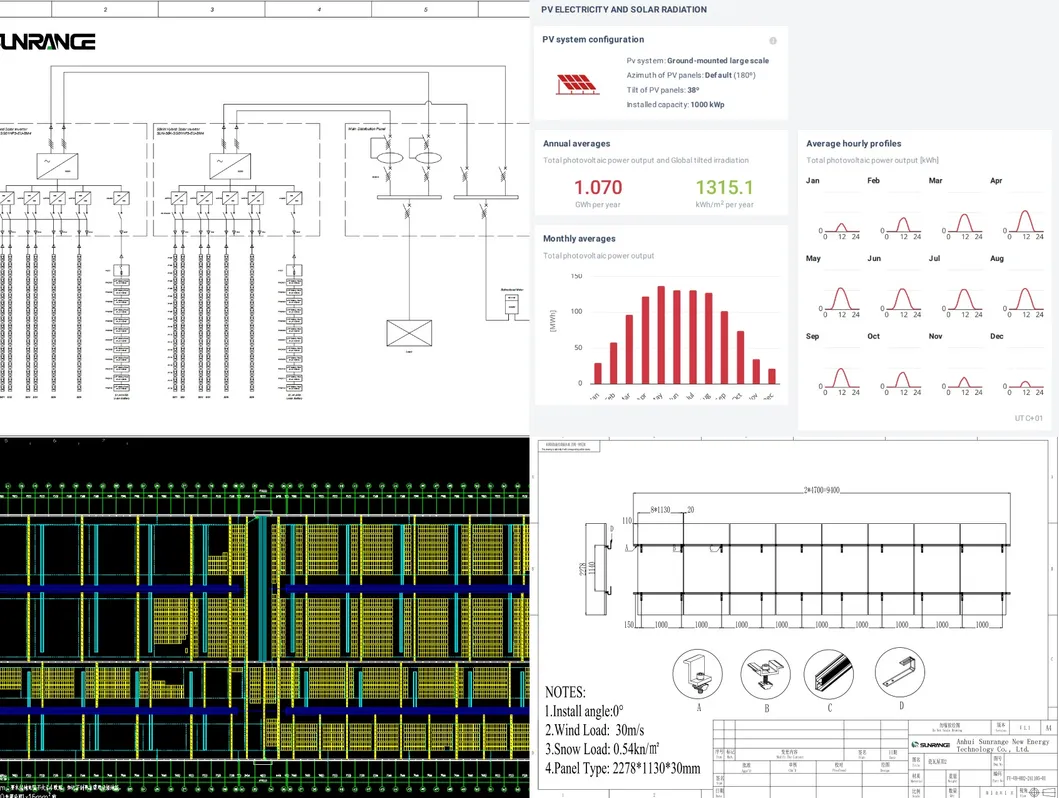

Complete Technical Support

📦

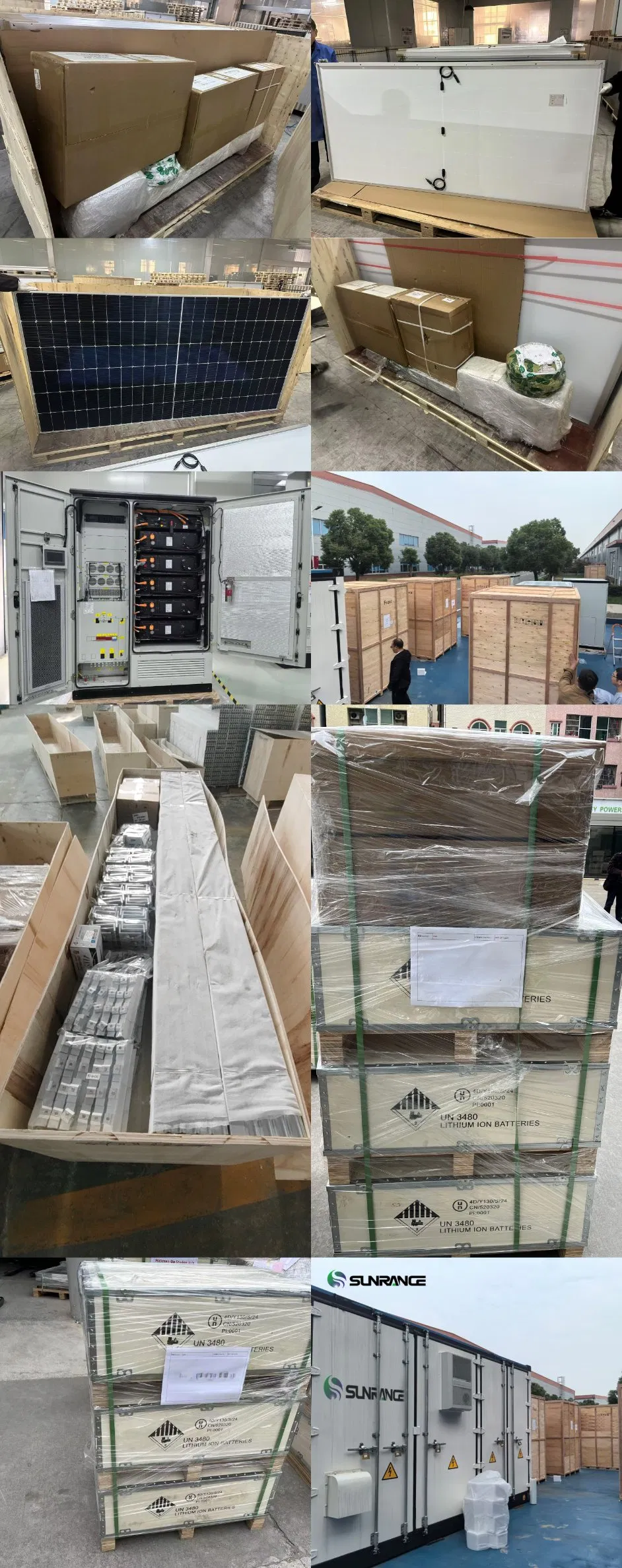

Packaging & Shipping

🏆

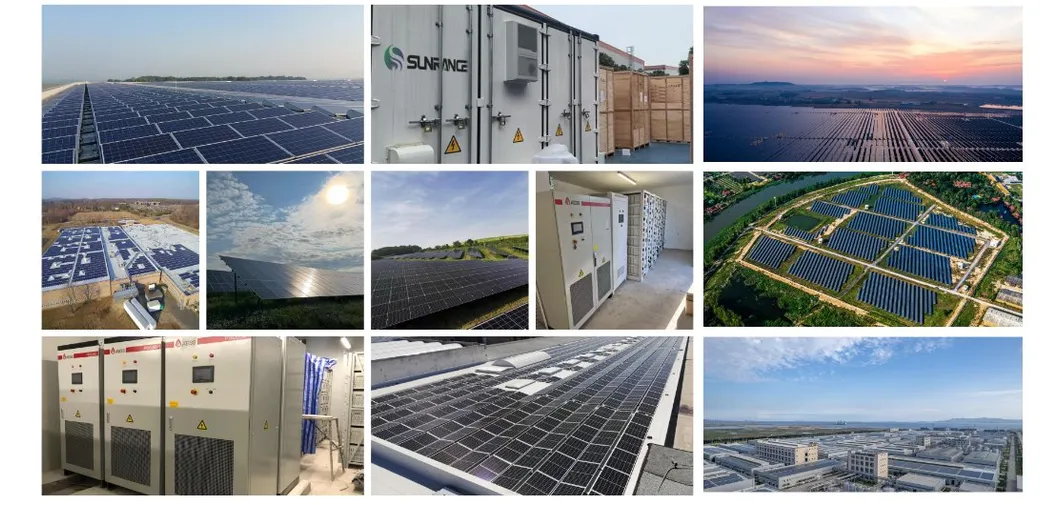

Project Case

🏢

Our Professional Service

We are an emerging leader in the photovoltaic industry with a global presence across all continents. We provide the highest quality products and professional design solutions tailored for large, medium, and small projects. Our commitment is to continuous technological development to enhance user experience.

❓

Frequently Asked Questions

What is the lifespan of the lithium battery provided?

Our lithium batteries (LiFePO4) offer a cycle life of over 6000 times with up to 90% Depth of Discharge (DOD), ensuring long-term reliability for your energy storage needs.

Can this hybrid system work both off-grid and on-grid?

Yes, the hybrid storage solar inverter supports PV, battery, and grid connections, allowing it to function efficiently in both off-grid and grid-connected environments.

What types of solar panels are included in the kit?

We provide N-Type Topcon Monocrystalline solar panels, typically the SR72P-580N model, which features high efficiency (up to 22.44%) and excellent low-light performance.

Is the mounting system customizable for different roofs?

Absolutely. We offer PV mounting solutions for both ground and various roof types (including asphalt shingles and tile), with adjustable clamps to fit different panel thicknesses.

How is the product packaged for international shipping?

All systems are packed in standard high-strength wooden boxes to ensure the safety of panels, inverters, and batteries during long-distance transport.

Do you provide technical support for installation?

Yes, we provide complete technical support throughout the installation process to ensure your system is set up and configured correctly for optimal performance.
