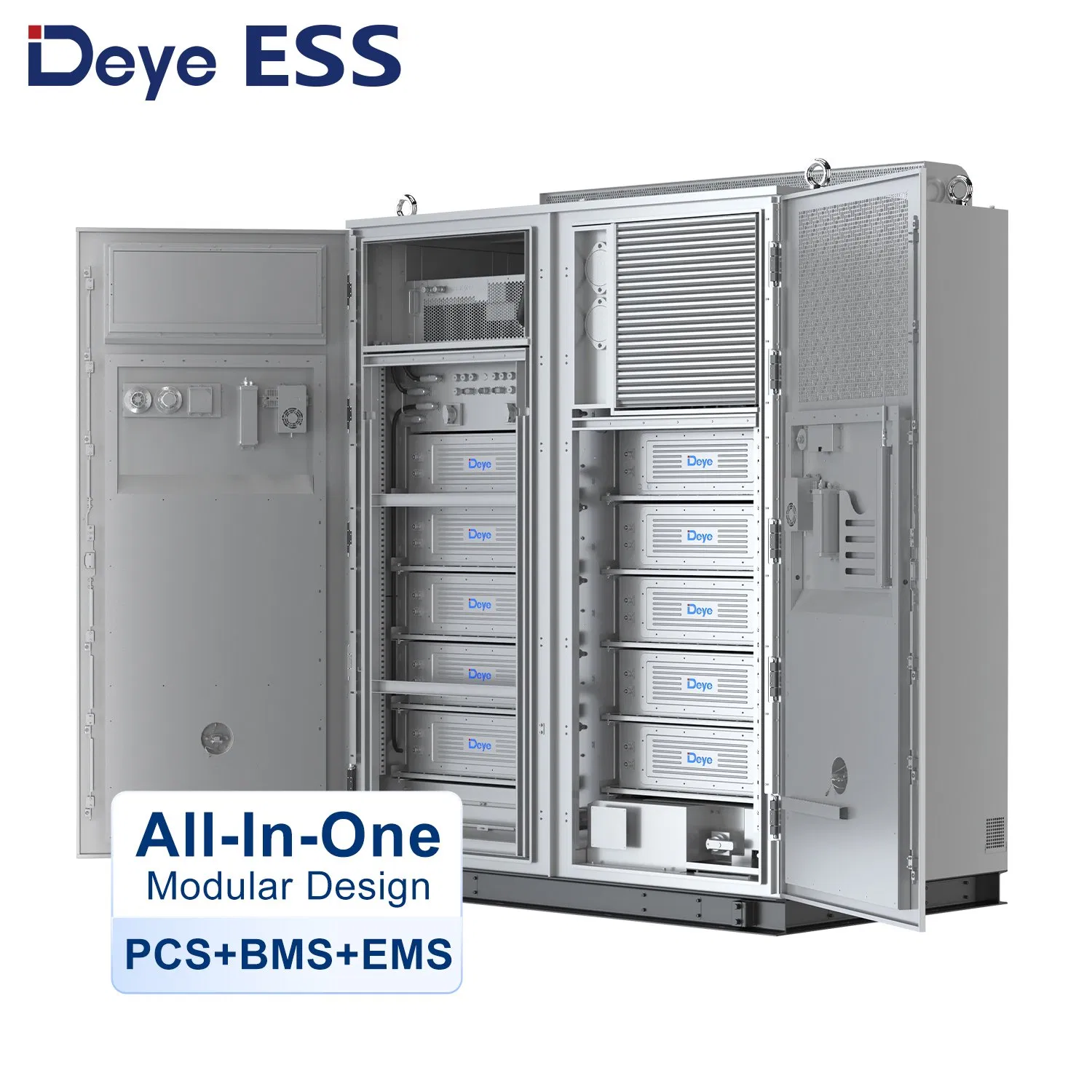

Deye Ess Mc-L430-2h2 Liquid Cooling 200kwh Solar Lithium Battery Commercial and Industrial Energy Storage System

1 / 5

Deye Ess Mc-L430-2h2 Liquid Cooling 200kwh Solar Lithium Battery Commercial and Industrial Energy Storage System

Customization:	Available
Type:	Li-ion Battery
Cathode Material:	LFP

Send Inquiry

Product Description

Basic Specifications

Model

MC-L430-2H2

Size

Large

Battery

LiFePO4

Cooling Type

Liquid Cooling

Fire Suppression

Aerosol, Water

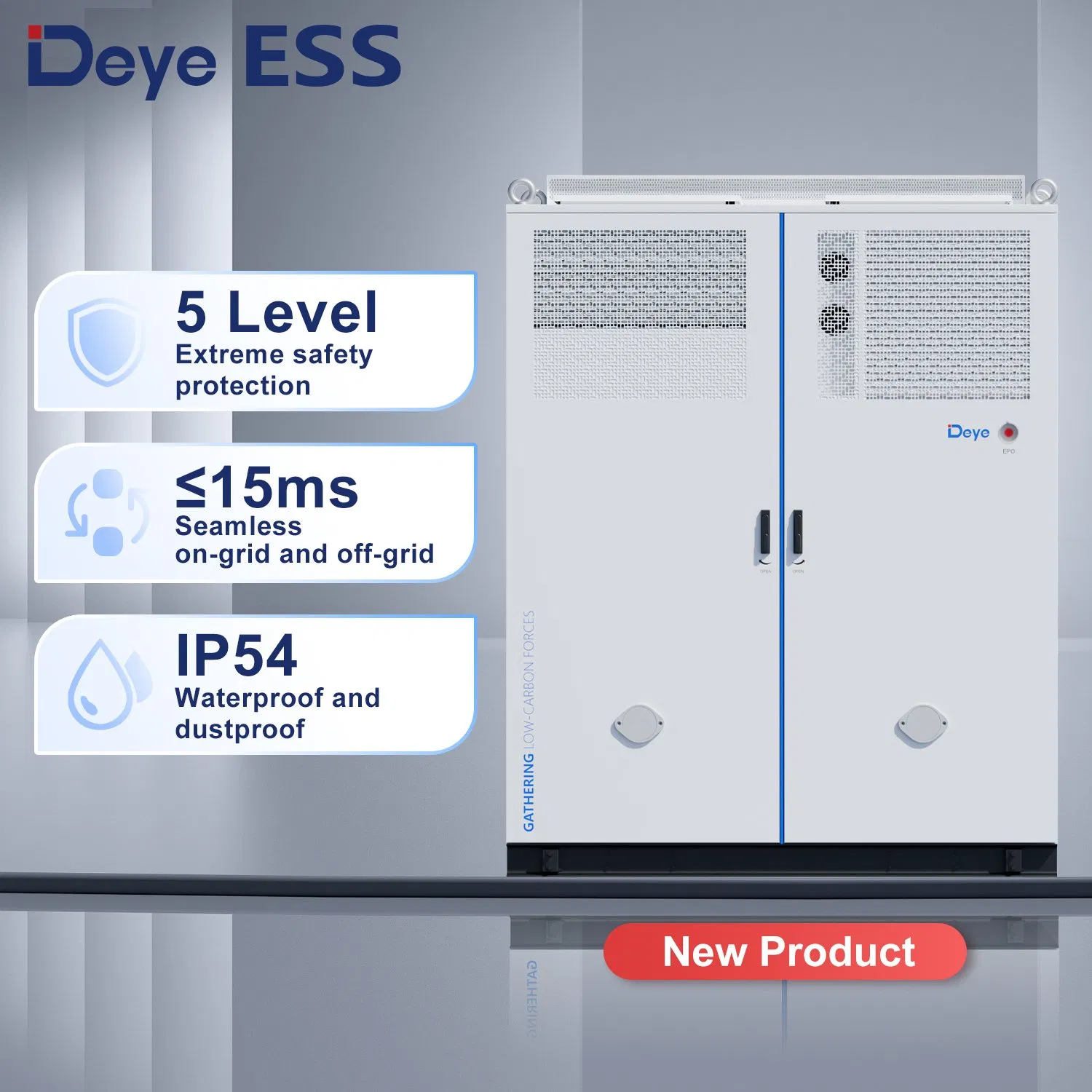

Protection Rating

IP 54

Nominal Energy

430.08kwh

Nominal DC Voltage

768vd.C.

Liquid Cooling Commercial and Industrial Energy Storage System

Product Description

System Parameters
Operating Temperature	-25ºC-+55ºC
Storage Temperature	-30ºC-+60ºC
Humidity	0-95% (No condensation)
Type of Cooling	Liquid cooling
Fire Suppression	Aerosol, Water
Ingress Protection	IP54
Anticorrosion Grade	≥C4
Altitude	≤2000m
Communication	RS485, Modbus TCP, DIDO
Weight	≤4600kg

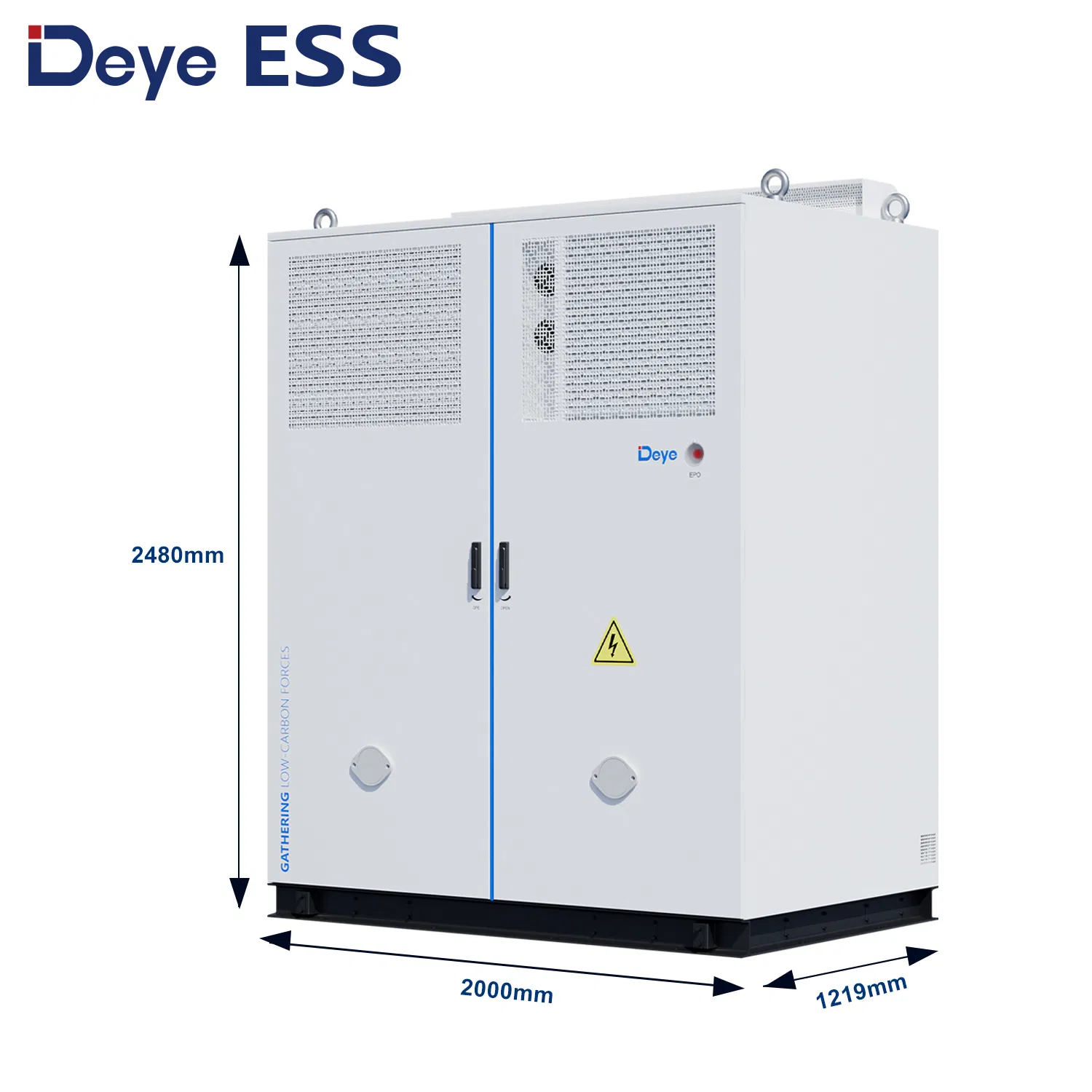

Dimensions (W×D×H)	2000×1300×2480mm
Active Balancing Function	No
DC Data
Battery Type	LiFePO4
Nominal Capacity	280Ah
Nominal Energy	430.08kWh
Nominal DC Voltage	768Vd.c.
DC Voltage Range	636Vd.c-876Vd.c.
Charge and Discharge Rate	0.5P

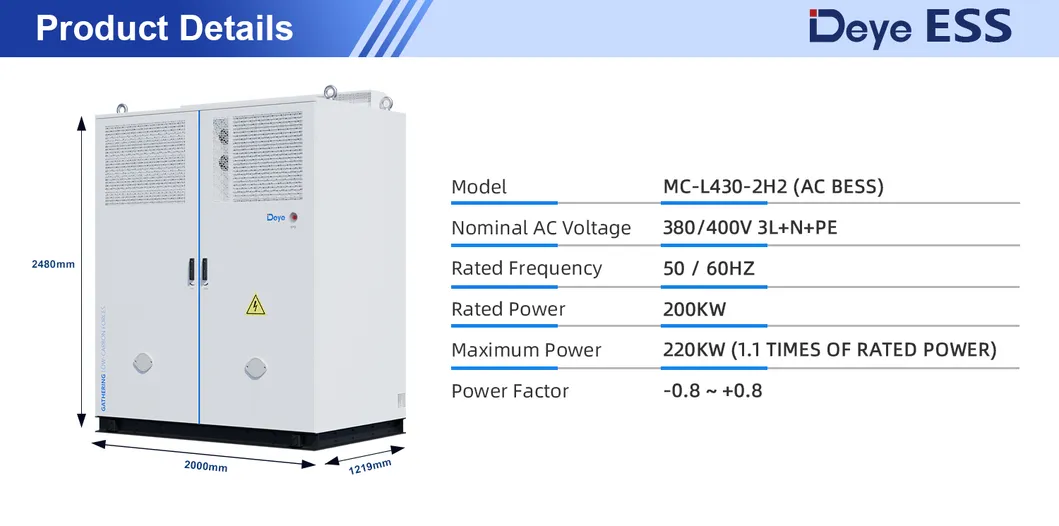

AC Data
Nominal AC Voltage	380/400V 3L+N+PE
Rated Frequency	50/60Hz
Rated Power	200kW
Maximum Power	220kW (1.1 times of rated power)
Power Factor	-0.8 - +0.8

Our Energy Storage Profile

Energy Storage Infrastructure and Technology

Seasonal changes bring inspiration, showing the magic of energy conversion. Our Energy Storage Systems, with advanced energy storage technologies, bring high-quality solutions to the world.

After decades of development, the manufacturer has turned itself into a large-scale Sci-Tech enterprise, listed on the main board of the stock exchange, possessing a full range of inverter and energy storage products. Equipped with a mode of development driven by innovation, the enterprise has become a High-Tech energy storage product manufacturer, an all-in-one entity integrating R&D, production, sales, and service.

Our world-class engineering team continues to develop safe, durable, and environmentally friendly energy storage products, as well as system solutions for renewable energy applications, making our planet more sustainable.

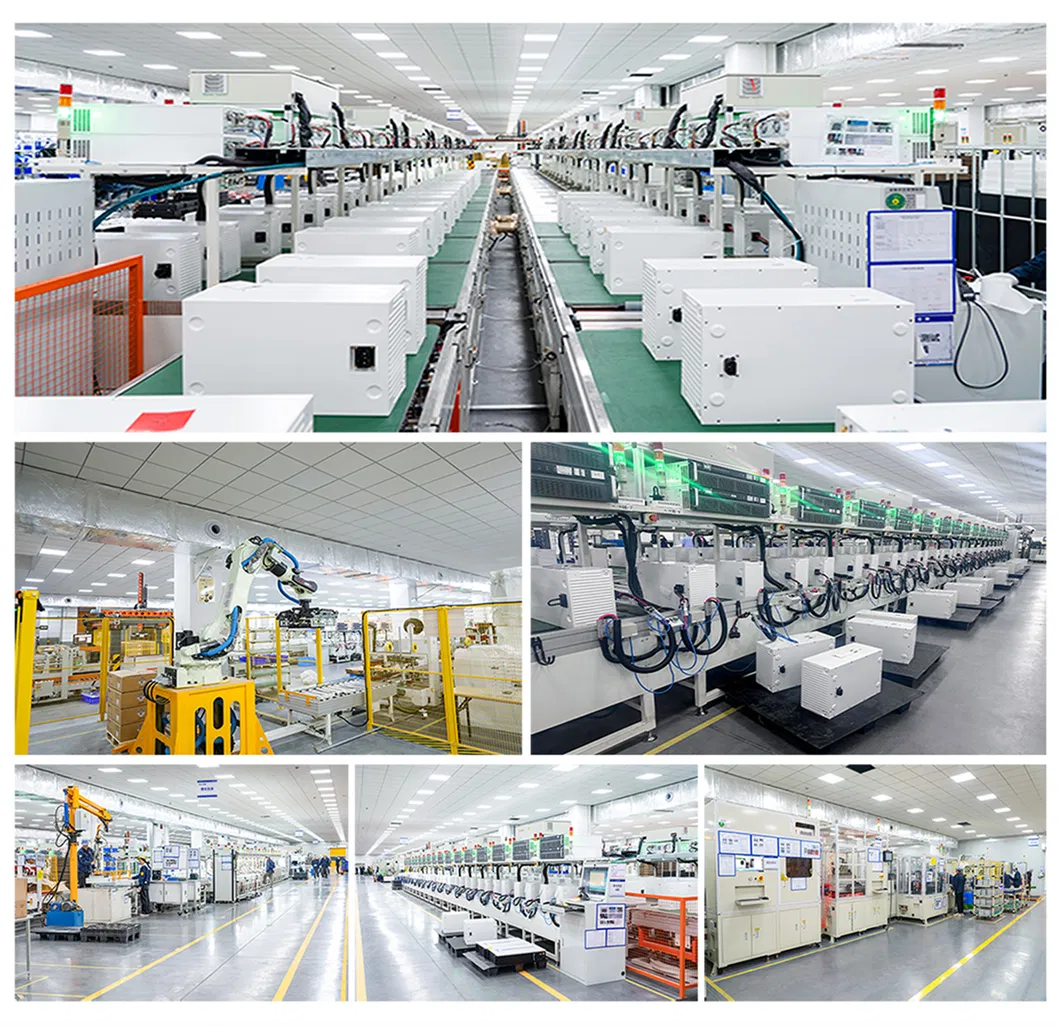

Our intelligent manufacturing base produces world-class energy storage systems, intelligent Battery Management Systems, and energy IoT products for global customers, where sustainability and efficiency are continually focused.

Our major product lines cover low-voltage household energy storage products, high-voltage household energy storage products, portable power products, and utility energy storage. As a one-stop ESS solution provider, we deliver comprehensive coverage for diverse energy storage applications.

Frequently Asked Questions

What type of cooling system does the MC-L430-2H2 utilize?

The MC-L430-2H2 system utilizes an advanced Liquid Cooling system, which provides highly efficient and uniform temperature control for the battery cells, ensuring longevity and stable operation under heavy workloads.

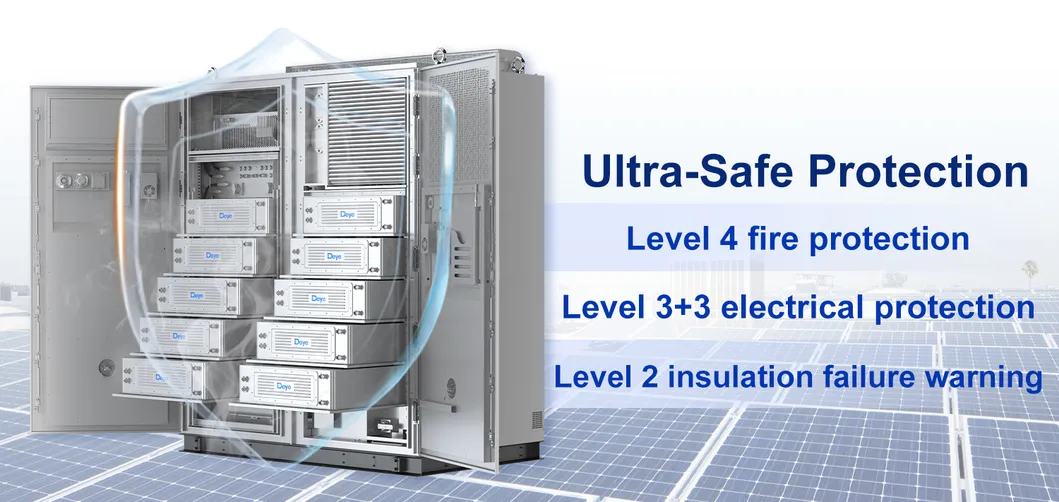

What safety and fire suppression features are built into the unit?

To guarantee maximum safety for commercial and industrial deployments, the system is fully equipped with both Aerosol and Water-based fire suppression mechanisms, paired with a reliable IP54 ingress protection rating.

What is the battery chemistry and nominal capacity of this system?

The system relies on premium Lithium Iron Phosphate (LiFePO4) battery chemistry, which features a nominal capacity of 280Ah and a robust nominal energy storage of 430.08kWh.

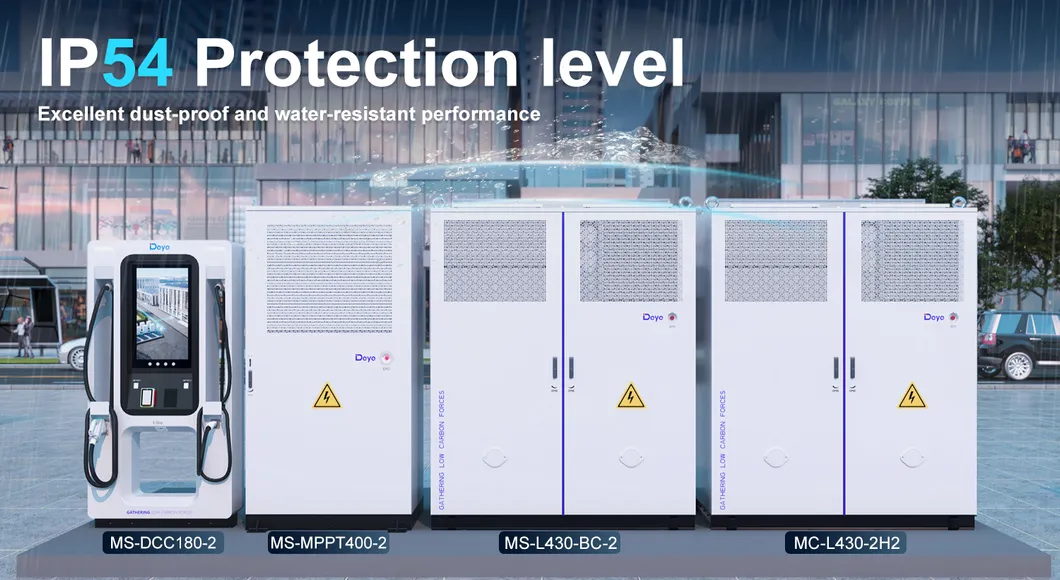

Is this system compatible with harsh outdoor environments?

Yes. With an IP54 protection level, an operating temperature range of -25ºC to +55ºC, and an anti-corrosion grade of ≥C4, the unit is fully optimized for tough outdoor climates and altitude installations up to 2000m.

What communication protocols are supported for system integration?

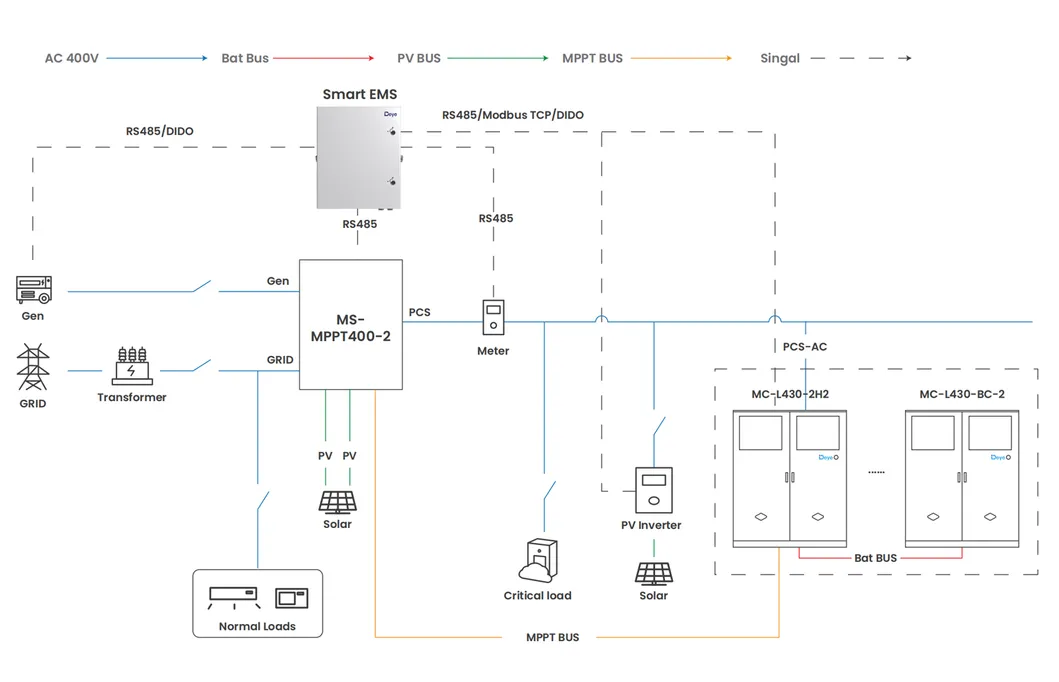

The unit supports modern, industry-standard communication protocols including RS485, Modbus TCP, and DIDO, enabling smooth integration with external Energy Management Systems (EMS) and IoT networks.

What are the electrical AC output specifications of this unit?

The nominal AC output voltage is 380/400V 3L+N+PE with a rated frequency of 50/60Hz. It has a rated AC power of 200kW, with a maximum capability of 220kW, and an adjustable power factor between -0.8 and +0.8.
