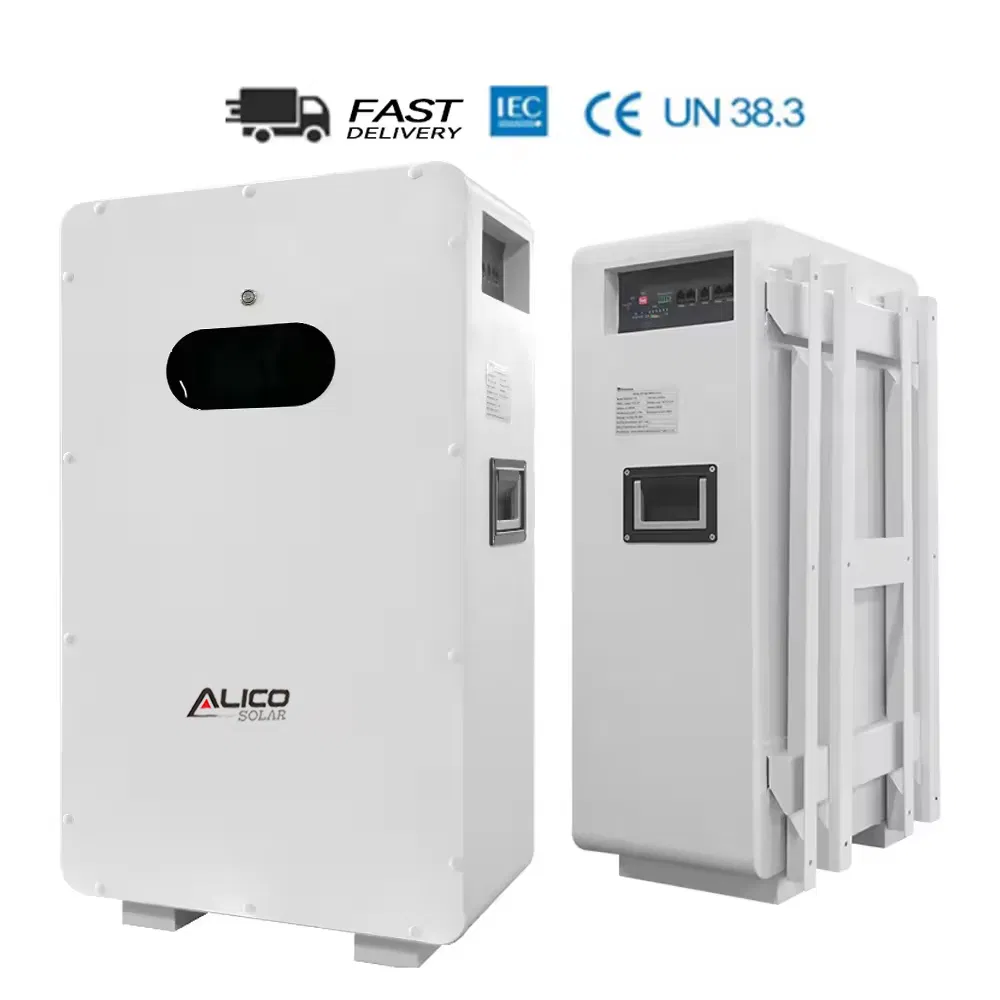

Series and Parallel Batteries 15kw Hybrid Solar System with Lithiumbattery

Product Description

Product Description
Hybrid Solar System Lithium Battery
Series and Parallel Batteries
Energy Battery Charging Voltage Standard Charge Current Max Charge Standard Discharge Current Maximum Continuous Discharge Current Dimension (L×W×H) Weight
15 KWH 51.2V 300Ah 58V 50A 100A 50A 120A 840*600*258mm 120Kg
Solar Battery Technical Specifications
Energy Battery Charging Voltage Disharging Voltage Max Charge Maximum Continuous Discharge Current Dimension(L×W×H) Weight
2.5 KWH24V 180Ah29.2V20V100A100A610*440*215mm26.5kg
5.0 KWH24V 200Ah29.2V20V100A100A610*440*215mm52.5kg
7.5 KWH24V 300Ah29.2V20V100A100A610*440*215mm68kg
2.4 KWH48V 50Ah54V44V50A50A510*480*180mm32kg
5 KWH48V 100Ah54V44V120A120A650*480*190mm53kg
7 KWH48V 150Ah54V44V120A120A650*480*190mm65kg
10 KWH48V 300Ah54V44V120A120A680*485*180mm97Kg
Series and Parallel Batteries
Energy Battery Charging Voltage Disharging Voltage Max Charge Maximum Continuous Discharge Dimension(L×W×H) Weight
2.5 KWH24V 100Ah29.2V20V100A100A610*440*215mm26.5kg
5.0 KWH24V 200Ah29.2V20V100A100A610*440*215mm52.5kg
7.5 KWH24V 300Ah29.2V20V100A100A610*440*215mm68kg
2.4 KWH48V 50Ah54V44V50A50A510*480*180mm32kg
5 KWH48V 100Ah54V44V120A120A650*480*190mm53kg
7 KWH48V 150Ah54V44V120A120A650*480*190mm65kg
10 KWH48V 200Ah54V44V120A120A650*480*190mm97kg
Battery Rack Options
Energy Battery Charging Voltage Std Charge Current Max Charge Std Discharge Current Max Continuous Discharge Dimension(L×W×H) Weight
5KWH 48V/51.2V 100Ah 54V / 58V 20V/50A 120A 50A 300A(1S) 650*480*190mm 53 / 58.5Kg
7KWH 48V/51.2V 150Ah 54V / 58V 20V/50A 120A 50A 300A(1S) 650*480*190mm 65 / 73.3Kg
10KWH 48V/51.2V 200Ah 54V / 58V 20V/50A 120A 50A 300A(1S) 650*480*190mm 85 / 96Kg
Energy Storage System
Energy Battery Charging Voltage Standard Charge Current Max Charge Standard Discharge Current Maximum Continuous Discharge Dimension Weight
2.4 KWH 48V 50Ah 54V 20V/50A 50A 50A 100A 510*480*180mm 32Kg
4.8 KWH 48V 100Ah 54V 20V/50A 50A 100A 250A 510*480*180mm 58.5Kg

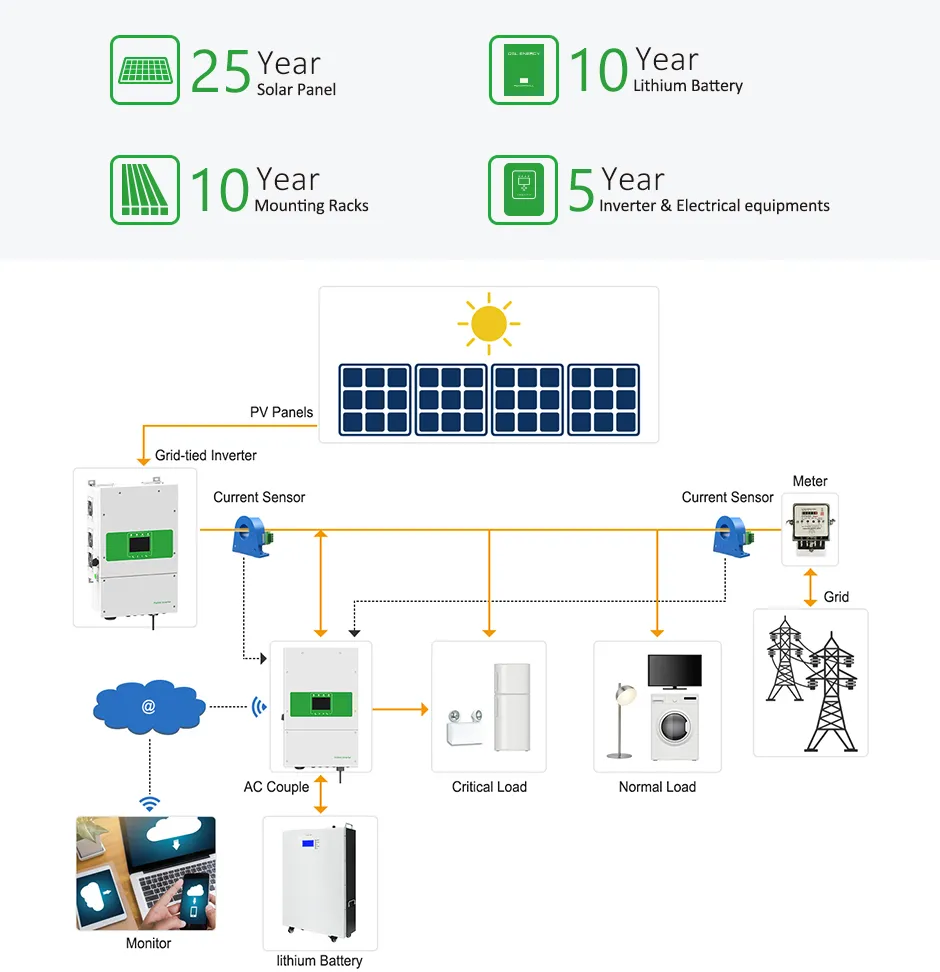

System Configuration
Company Profile
Facility Overview

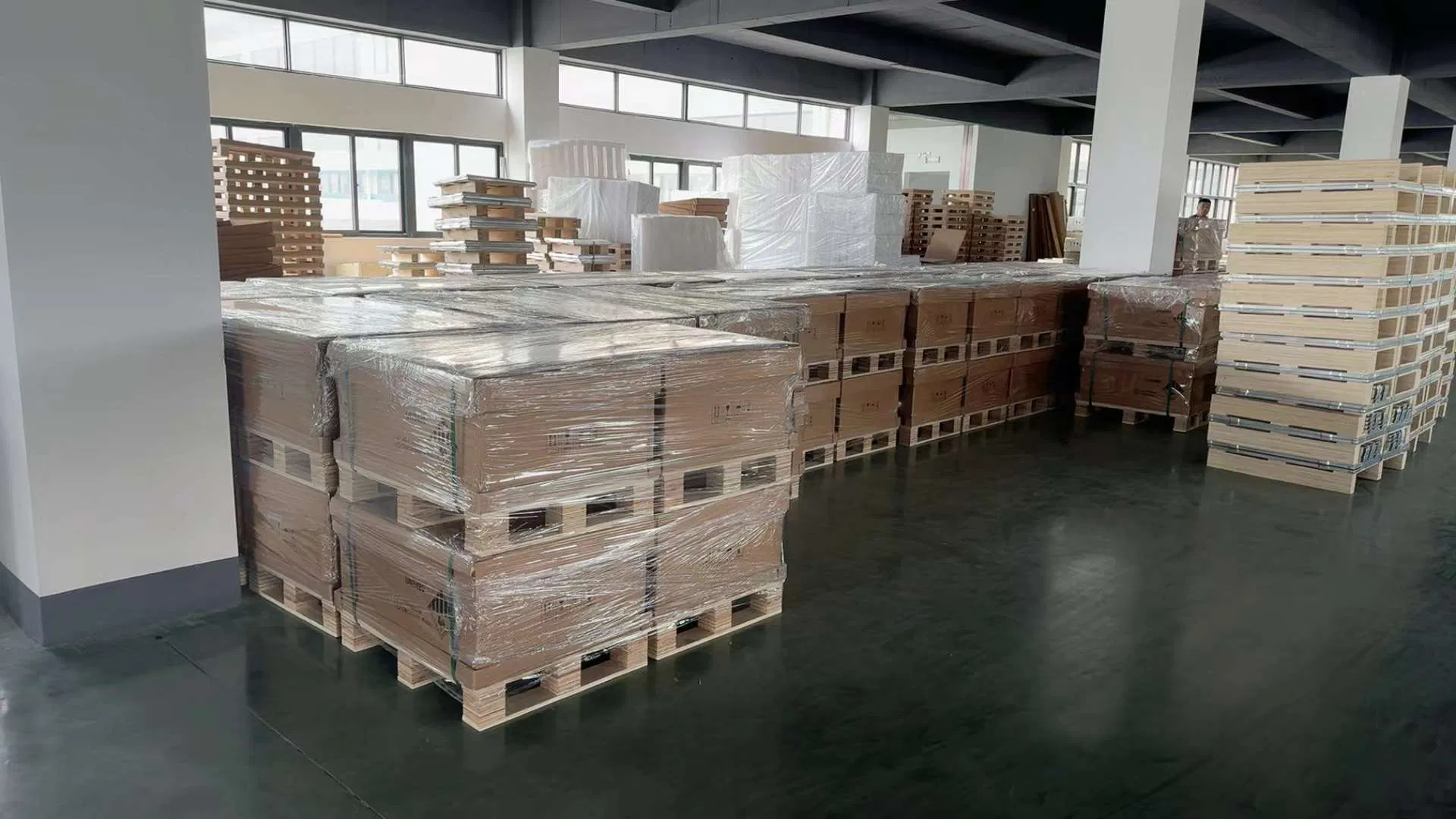

Packaging & Shipping
Safe Packaging
Go Solar
Renewable Energy Solutions
Frequently Asked Questions
What is the lifespan of these lithium solar batteries?
Our lithium batteries are designed for high durability, typically offering 6,000+ cycles at 80% Depth of Discharge (DoD), which equates to over 10 years of daily use depending on environmental conditions.
Can these batteries be connected in parallel for larger capacity?
Yes, the systems support parallel connection to increase total energy storage. Please ensure you use the same model and follow the technical guidelines for wiring and BMS communication.
Are these batteries compatible with my existing solar inverter?
Our batteries are compatible with most major hybrid and off-grid inverters on the market. They support multiple communication protocols such as RS485 and CAN.
How does the Built-in Battery Management System (BMS) work?
The integrated BMS monitors every cell in real-time, protecting the battery against overcharge, over-discharge, over-current, short circuits, and extreme temperature fluctuations for maximum safety.
What is the advantage of LiFePO4 over lead-acid batteries?
LiFePO4 batteries are lighter, more compact, have a much longer cycle life, and offer higher discharge efficiency. They are also safer and more environmentally friendly as they contain no toxic heavy metals.
Is it possible to use the 15kWh system for a completely off-grid home?
Yes, a 15kWh system provides significant storage capacity. When paired with an appropriately sized solar array and inverter, it can support a standard household's essential loads during the night or cloudy periods.
