Product Description

📊 Basic Information

Model NO.	ELT5000H	Rechargeable	Yes
Voltage	48V/51.2V	Capacity	100ah to 800ah
Energy	5kwh - 50kwh	Cycle Life	≥ 6000 Cycles
Warranty	5 Years	Certification	CE/RoHS/Un38.3/MSDS
Features	Stackable/Wall Mounted	Communication	Can/RS485/RS232

📝 Product Description

This original Lithium Ion LiFePO4 Battery Pack is designed with over 15 years of experience in the Energy Storage System (ESS) industry. The solution includes High Voltage and 48V 100Ah Stackable Low Voltage Battery Packs, PowerWall options, and All-in-One Home Storage systems.

Performs 6000+ cycles for long-term reliability.

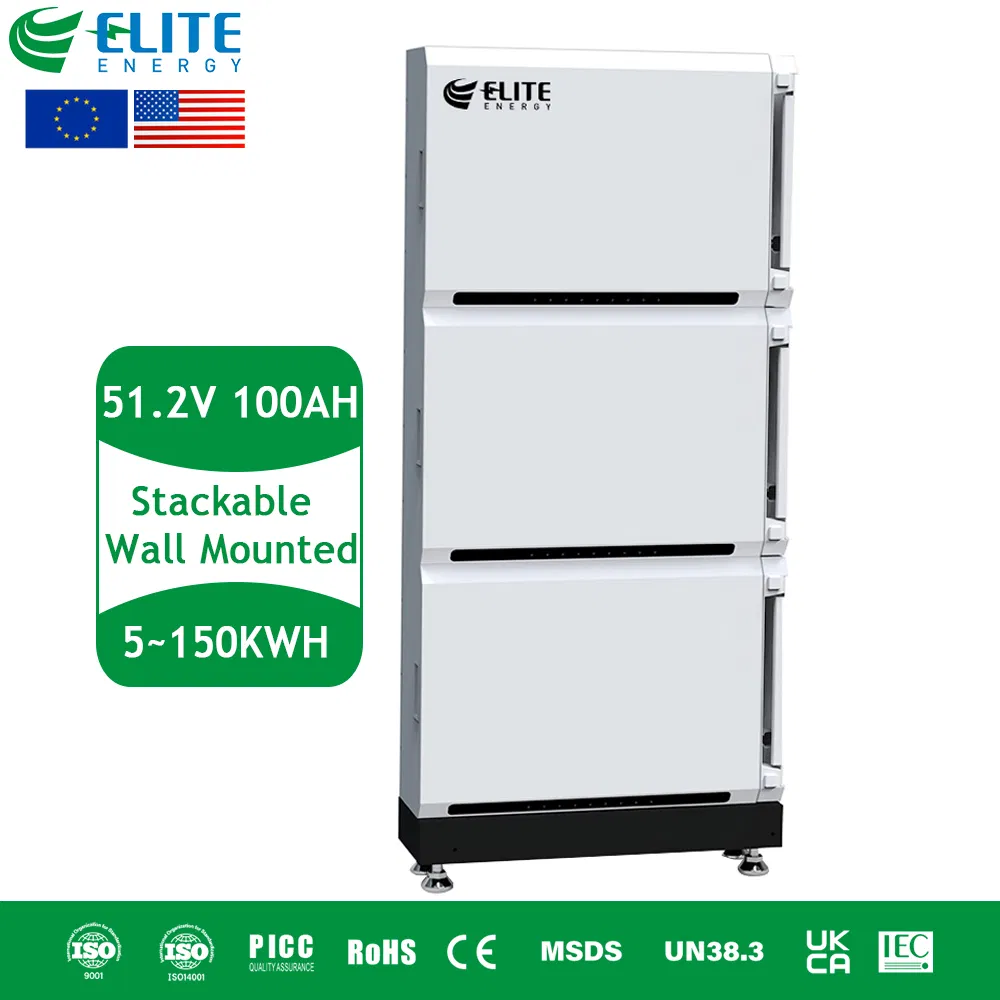

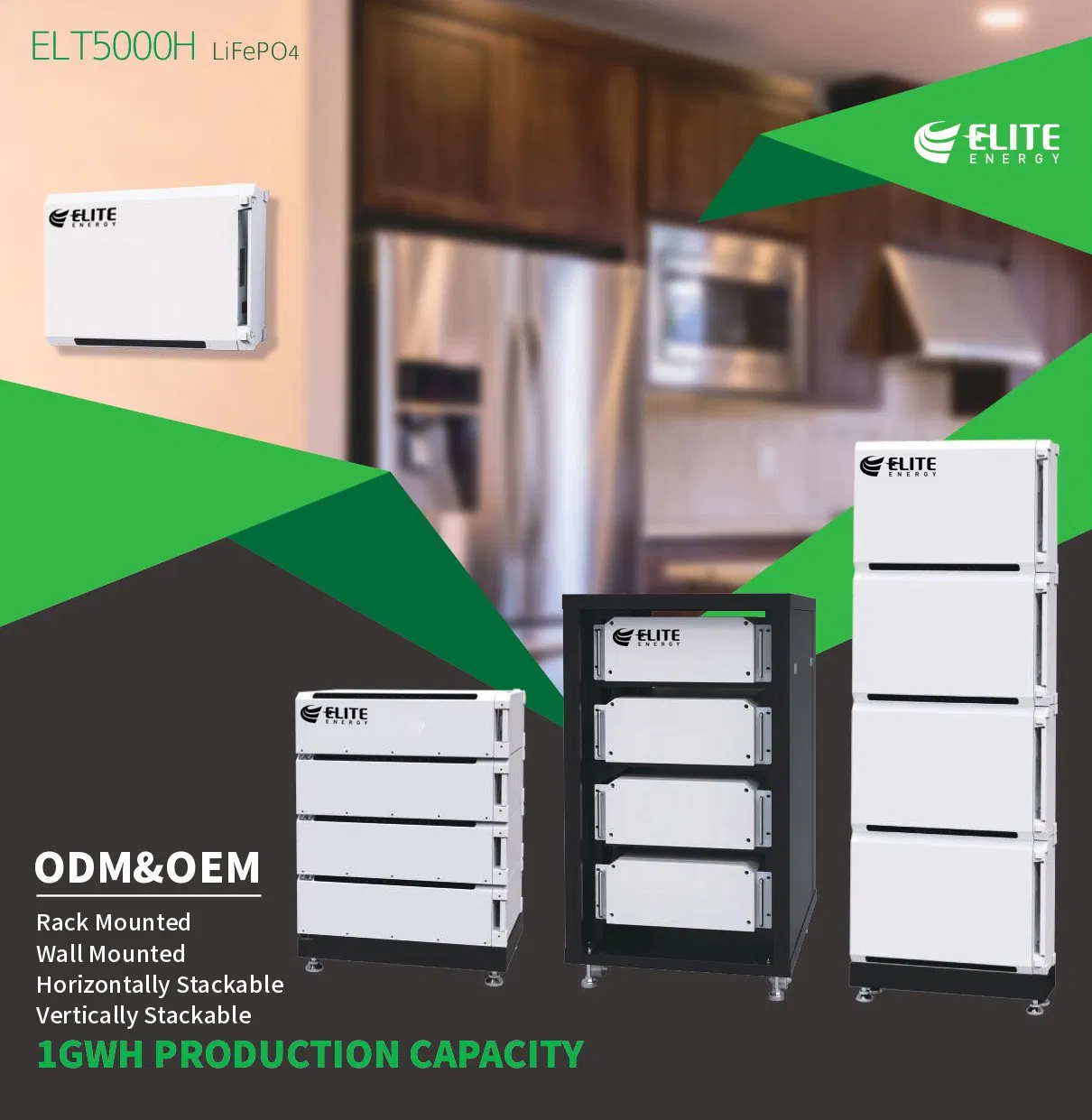

Flexible connection with 4 installation ways: Side stackable, Flat stackable, Rack mounted, or Wall mounted.
Supports up to 30pcs in parallel to increase capacity to 150kWh.

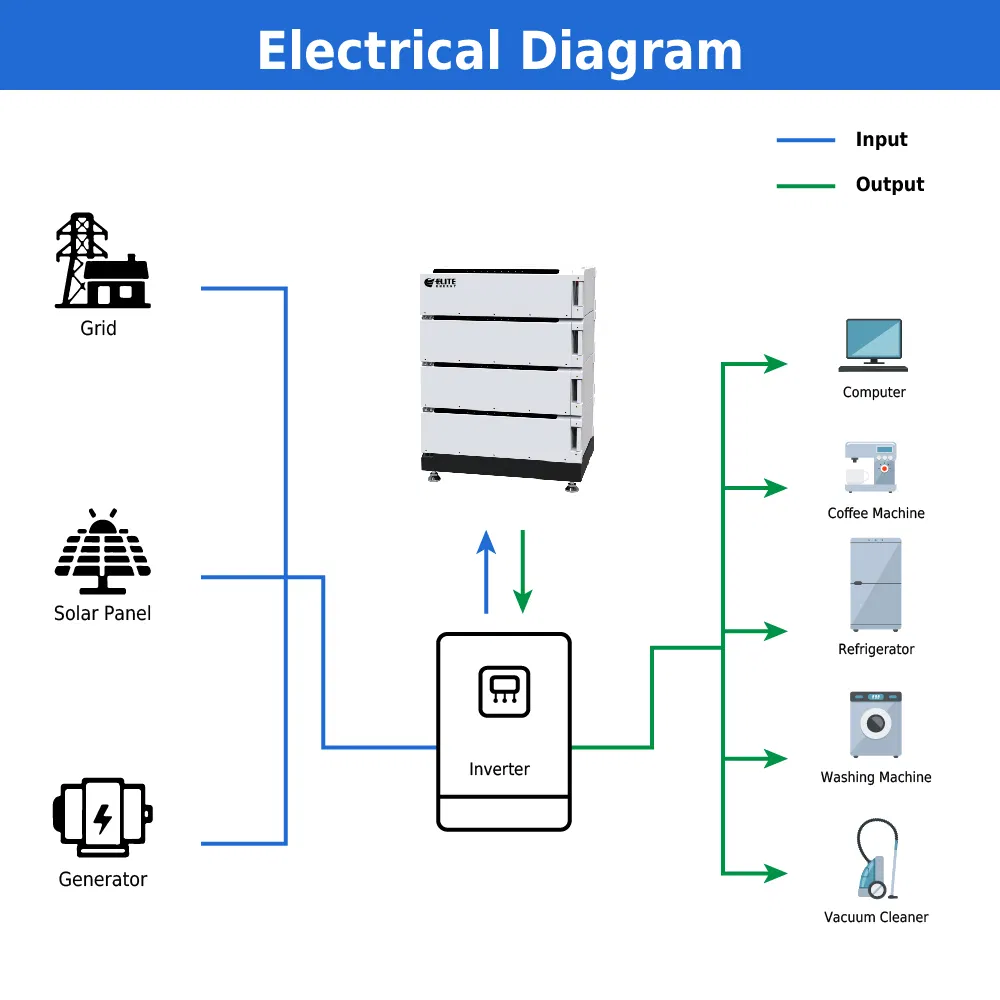

Wide compatibility with main brand inverters and multiple communication protocols.
Built-in Bluetooth for real-time monitoring via mobile App.

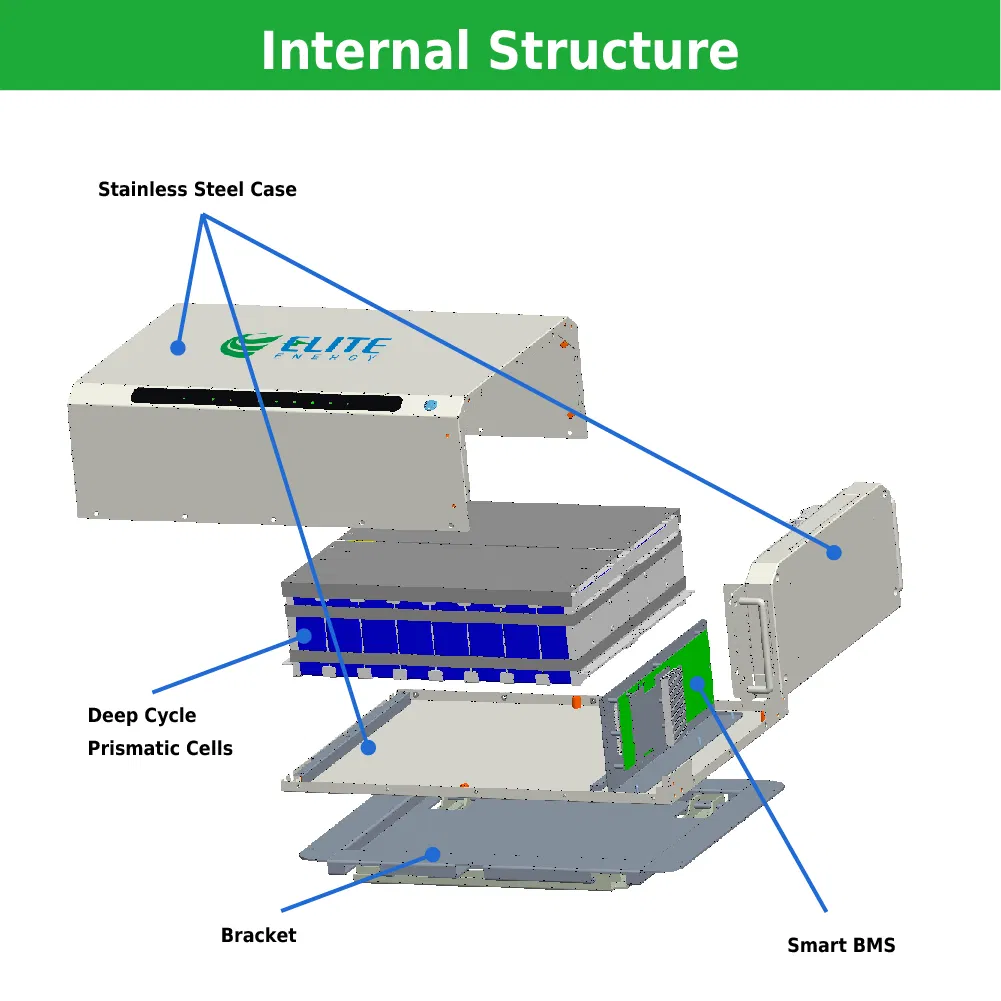

Smart BMS for protection against high temperatures and safety risks.

📋 Technical Specifications

Parameter	Details
Typical Model	ELT5000H
Battery Type	LiFePO4 Battery Cell
Nominal Energy	5120Wh
Nominal Voltage	51.2V
Operating Voltage	40V - 58.4V
Max. Continuous Current	100A

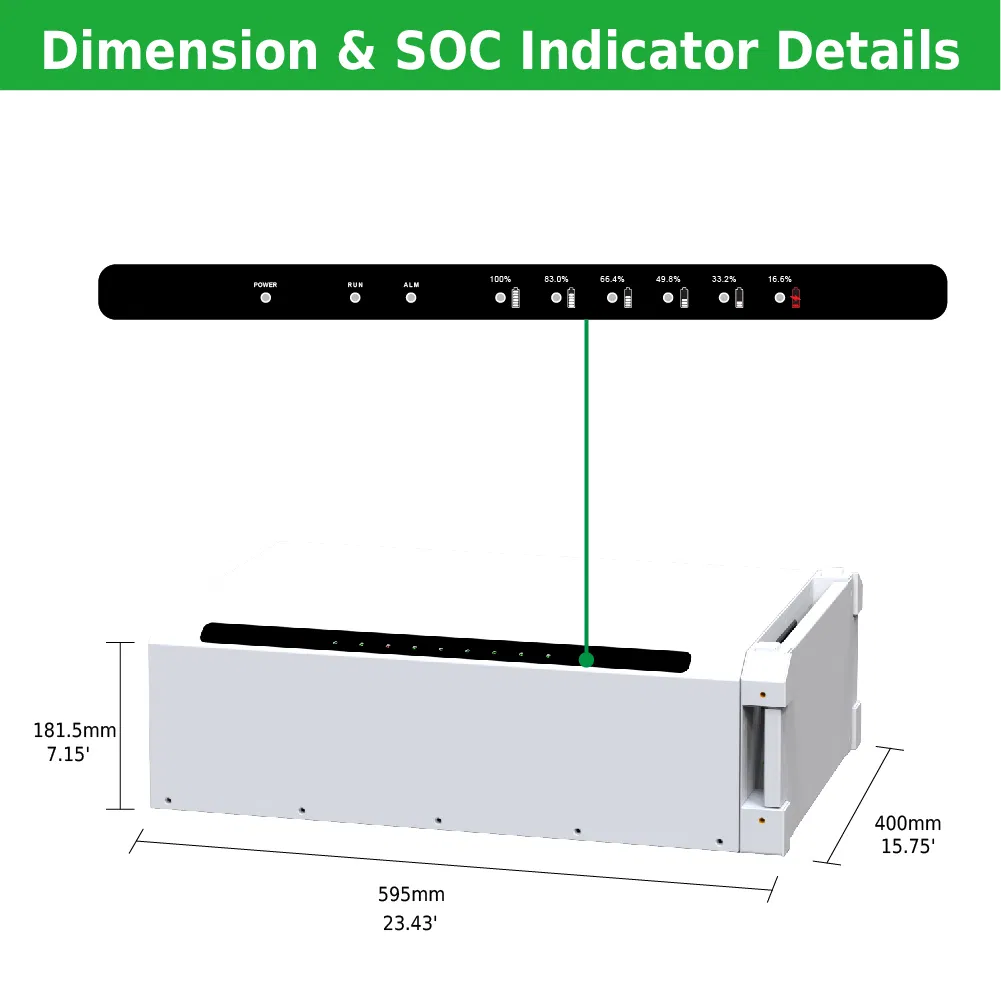

Display	SOC LED Indicator & Bluetooth 5.0
Dimensions	592400176mm
Weight	47kg
Operating Temp	Charge: 0~55ºC / Discharge: -20~65ºC

❓ Frequently Asked Questions

Do you have a Minimum Order Quantity (MOQ)?

No, there is no MOQ limit. 1-piece sample orders or small quantities are available.

What is the lead time for orders?

Standard products take 3-5 days for samples and 3-4 weeks for bulk orders. Customized products usually require 3-4 weeks.

How long do LiFePO4 batteries last?

Our LiFePO4 batteries provide 4000+ to 6000+ cycles, lasting 8 to 10 times longer than standard lead-acid batteries.

What is a BMS and why is it important?

A Battery Management System (BMS) protects the cells from unsafe conditions like overvoltage, extreme temperatures, and short circuits, ensuring the safety and longevity of the battery pack.

Are these batteries safe for home use?

Yes. The stable Lithium Iron Phosphate chemical structure is resistant to burning or exploding. Our batteries are CE certified and feature built-in BMS protections.

Can I monitor the battery status?

Yes, the batteries feature a built-in Bluetooth 5.0 module, allowing you to monitor the real-time state of the battery via a mobile app.
