Suntherra Battery
1 / 5

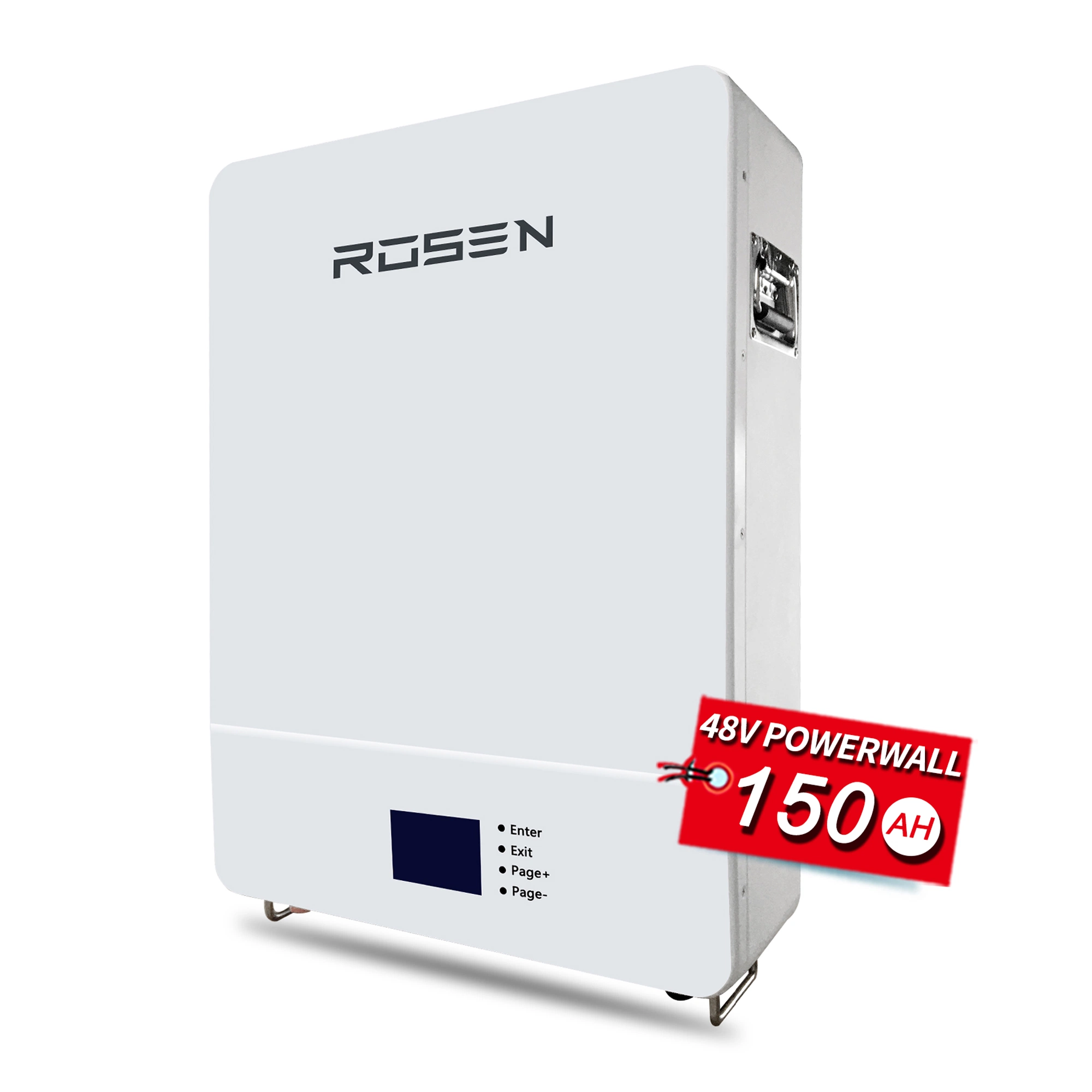

Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables & accessories ready for installation. OEM with logo design is accepted.
Lithium Ion Powerwall series are widely used in Solar Systems for residential and commercial use. With more than 6000 times deep cycle, up to 90% DOD and phosphate battery Cell, it has won global approval!
Powerwall can be installed in parallel with combiner box for protection, with integrated BMS communication protocol to comprehensive hybrid and off grid inverters!
| Model | LFP48V50AH | LFP48V100AH | LFP48V150AH | LFP48V200AH |
|---|---|---|---|---|
| Battery Capacity | 50Ah | 100Ah | 150Ah | 200Ah |
| Nominal Energy [kwh] | 2.4 | 4.8 | 7.2 | 9.6 |
| Max Discharge [A] | 50 | 100 | 150 | 200 |
| Net Weight [kg] | 35 | 68 | 95 | 108 |
| Dimension [mm] | 442*480*88 | 680*495*185 | 680*495*185 | 680*495*185 |
| Voltage | 48Vdc | |||
| Life Cycles | >6000 | |||
| Communication | CAN / RS485 / DRY CONTACT | |||

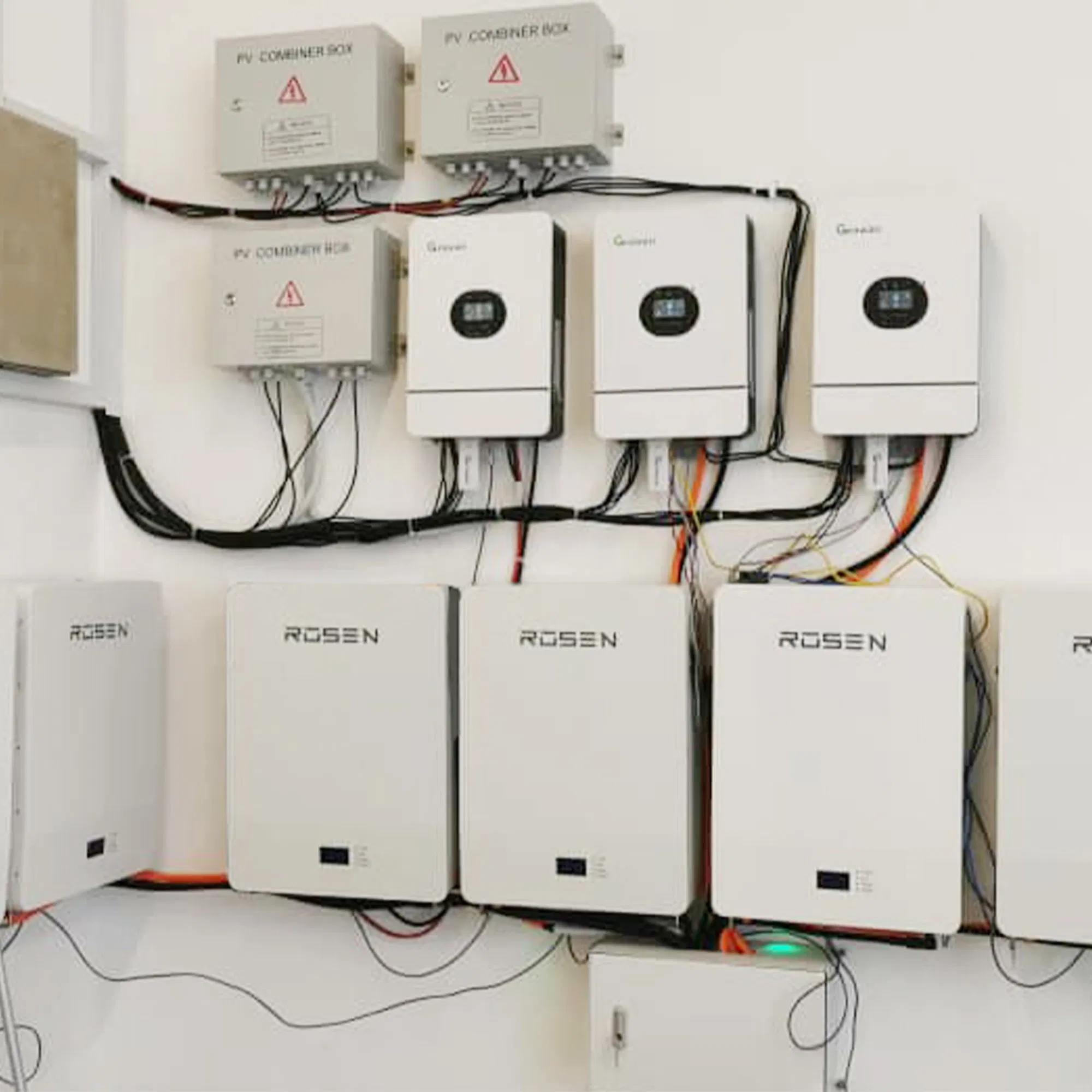

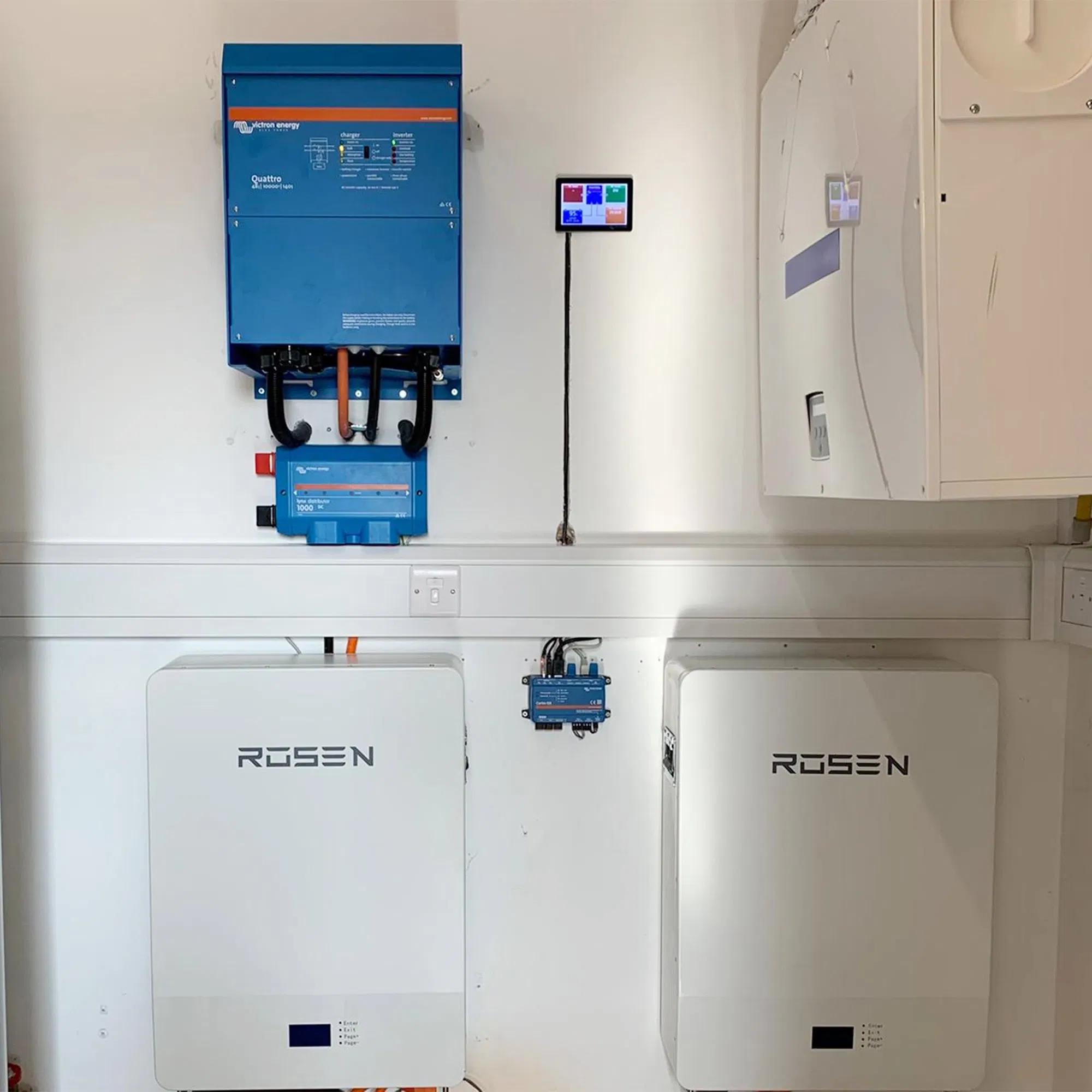

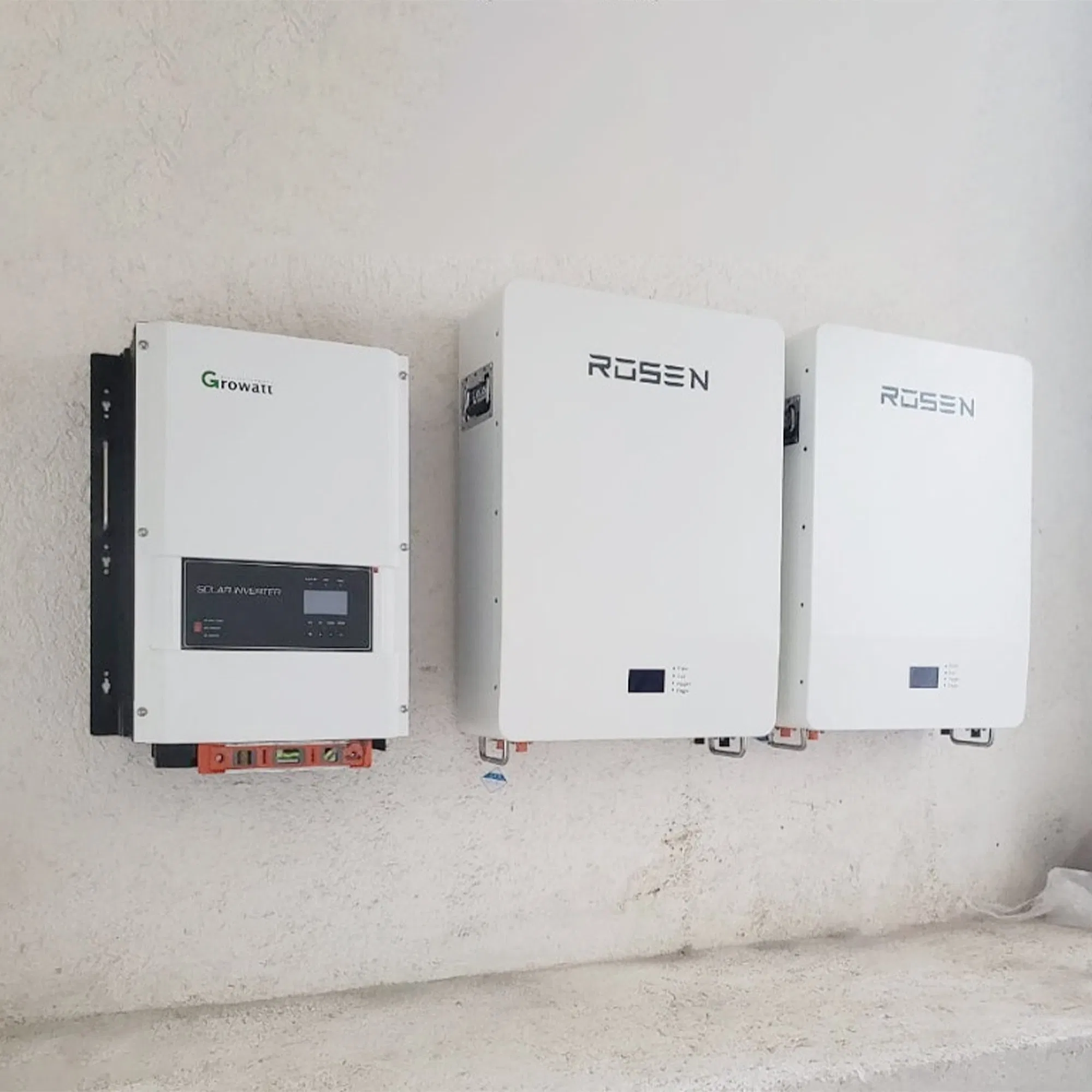

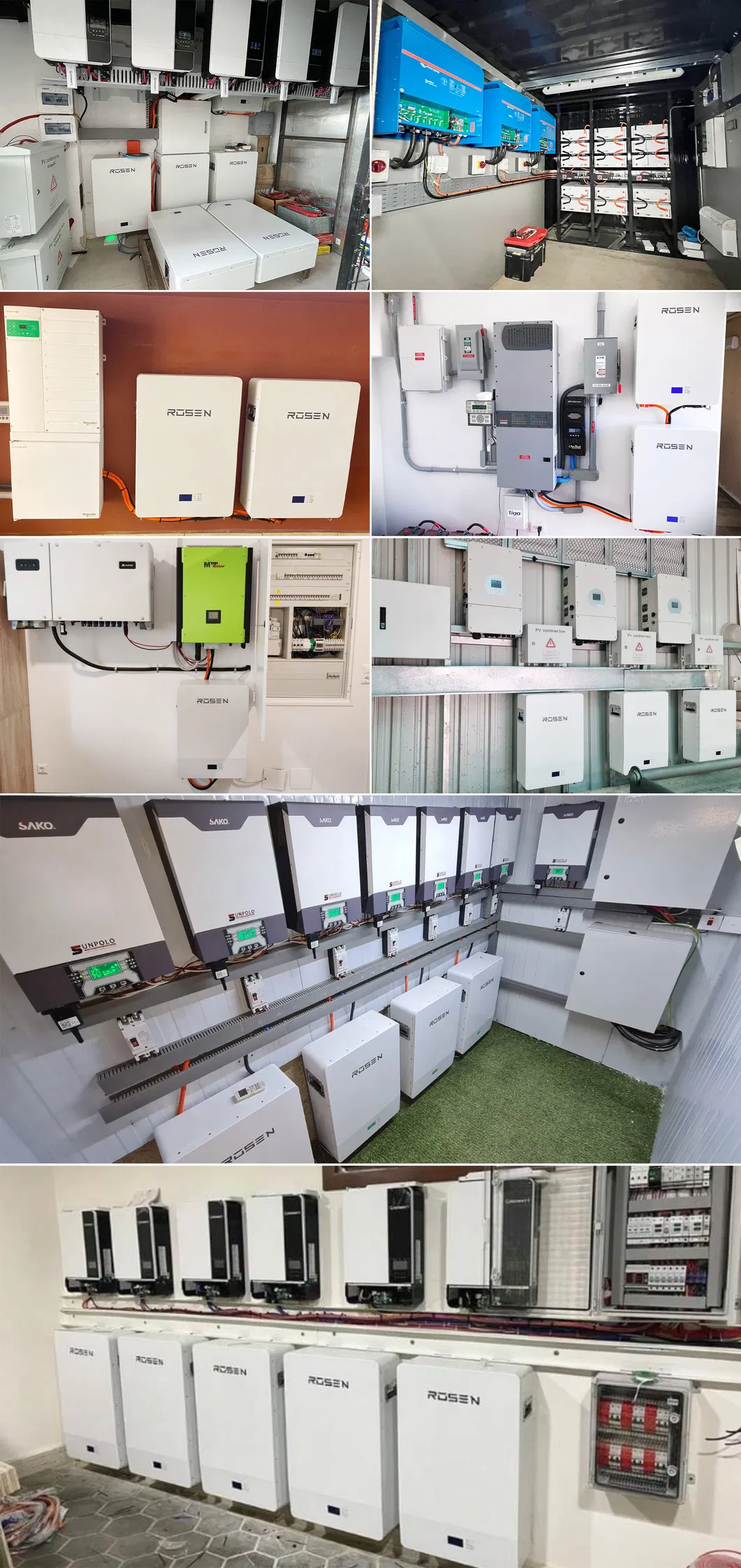

Lithium battery projects are installed for home and commercial solar projects. Home projects commonly use power wall types (48Vdc or 51.2Vdc) in 50Ah to 400Ah capacities. These systems are compatible with hybrid solar storage inverters (3kw to 12kw) and offer over 6000 cycles for long-life usage.
Commercial BESS projects are designed for factories (100kw to 10MW) featuring containerized design and programmable EMS. The batteries come with a 10-year warranty and carry MSDS/UN38.3 safety certifications.
