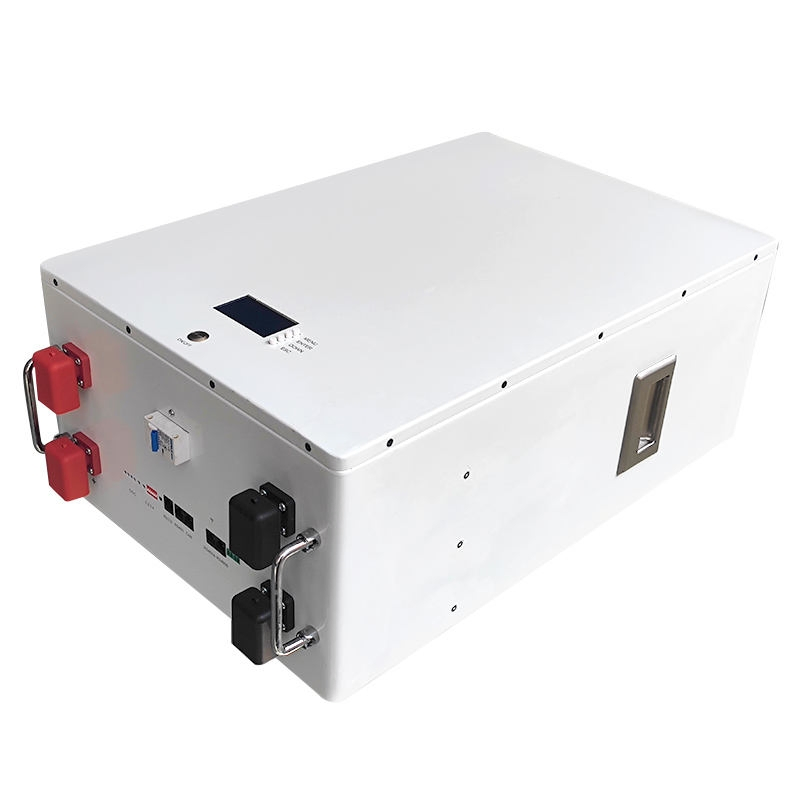

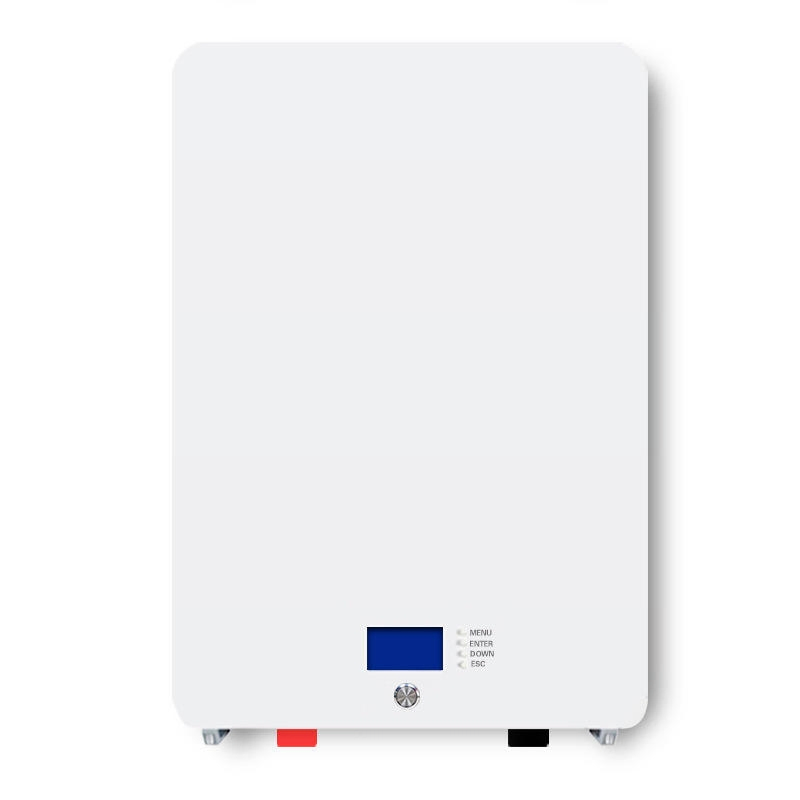

10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
1 / 5
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage

10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview & Basic Info

Model NO.
J48100-100
Cycle Life
6000 Cycles
Nominal Capacity
5/7.5/10kwh
Battery Type
LiFePO4
System Voltage
48 V
Output Power Range
10-20kw
Grid Connection
off Grid, Hybrid Grid
System Type
Wall-Mounted
Application
Energy Storage System
Voltage
48V/51.2V
Capacity
10000 Piece/Pieces Per Month

Product Description

Wall Mounted LiFePO4 Cell Hybrid Solar Energy Storage System Lithium Battery 10kwh Home Battery

  • High-Capacity Storage10kWh provides ample energy for extended use.
  • Lithium Iron PhosphateOffers long lifespan and safety compared to other types.
  • Wall-Mounted DesignEasy installation and space-saving solution.
  • Grade A CellsEnsures high-quality performance and reliability.
  • No Grid Connection RequiredSuitable for off-grid applications.

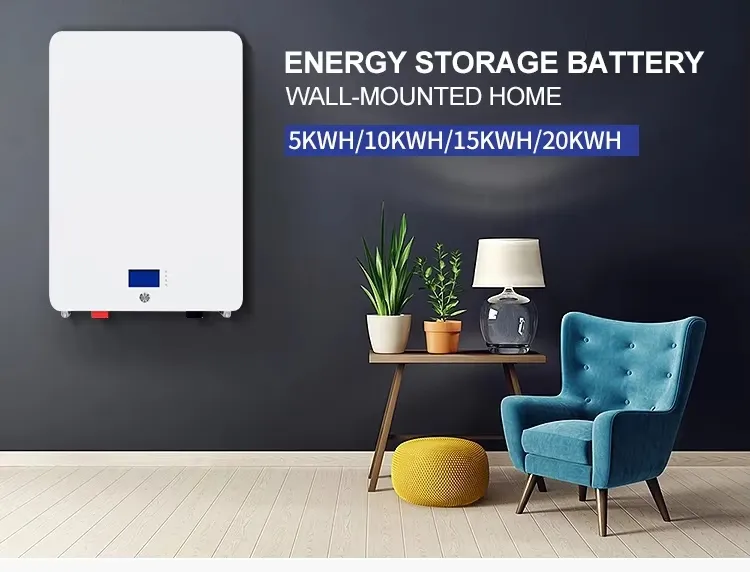

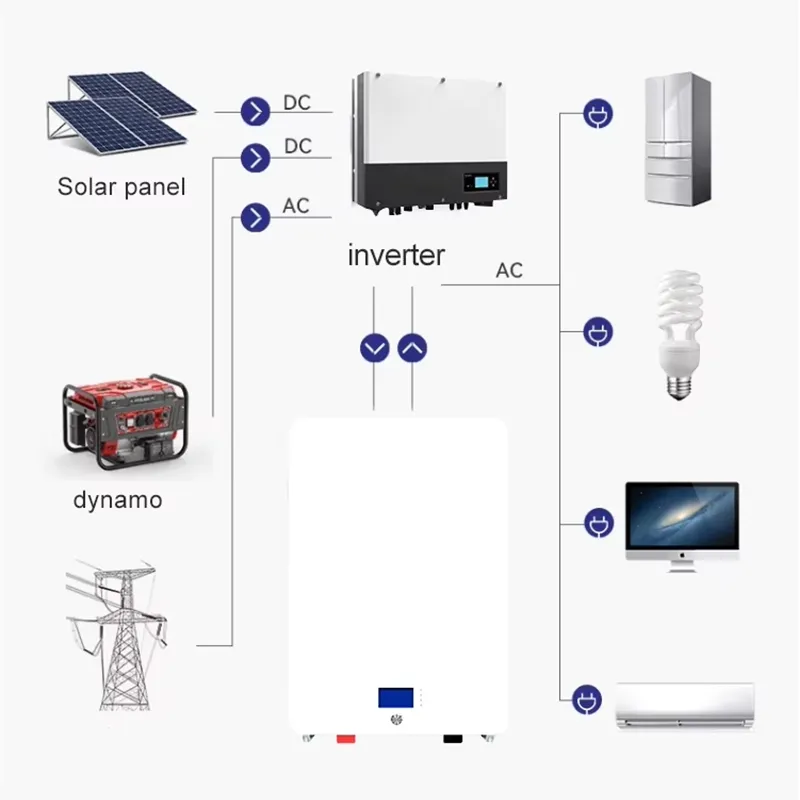

Home Solar Storage System

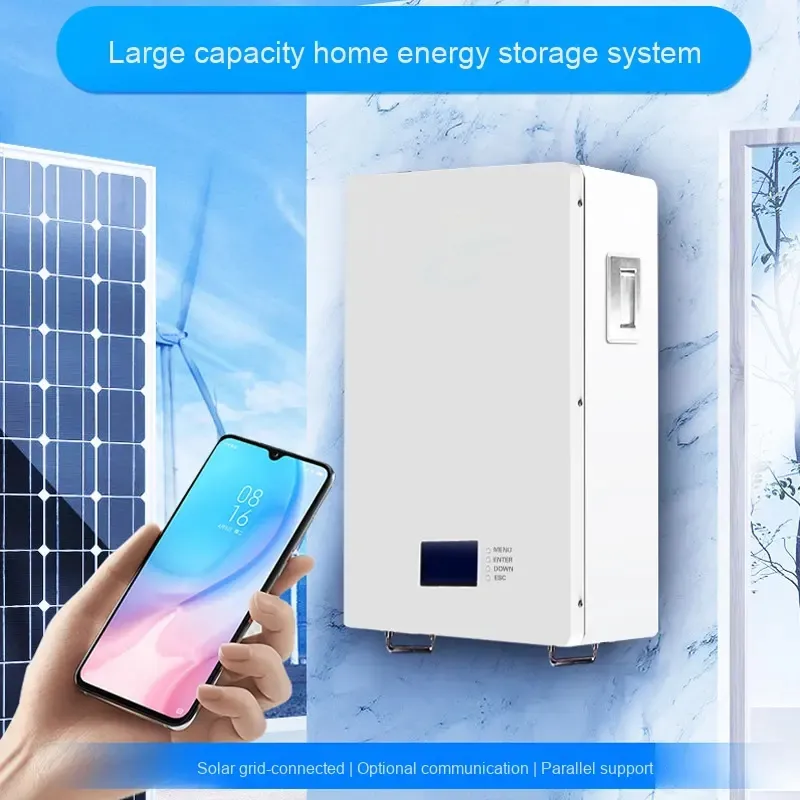

LiFePO4 Battery Details

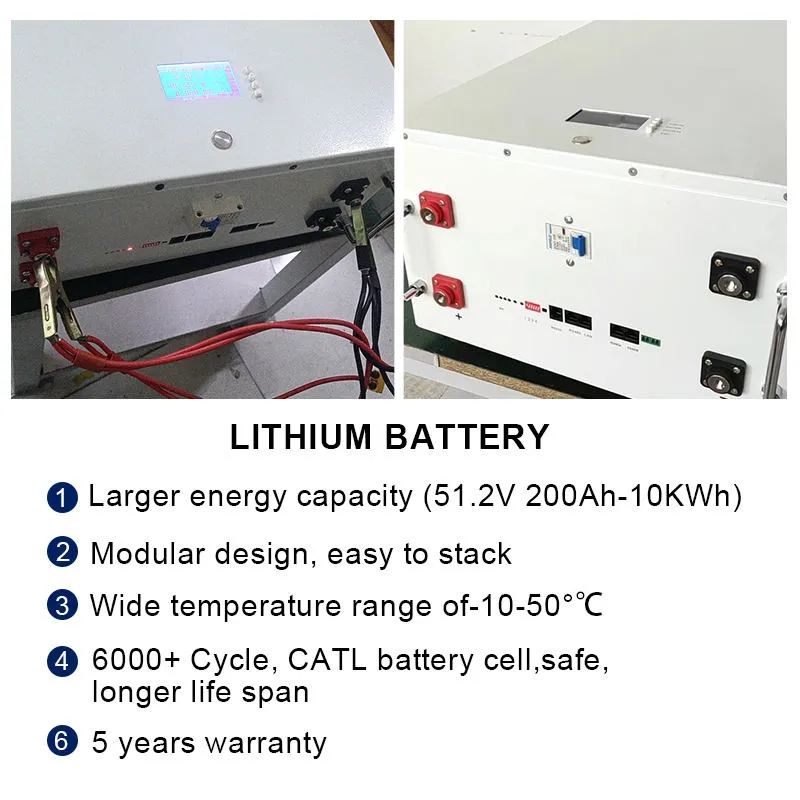

Energy Storage Interface

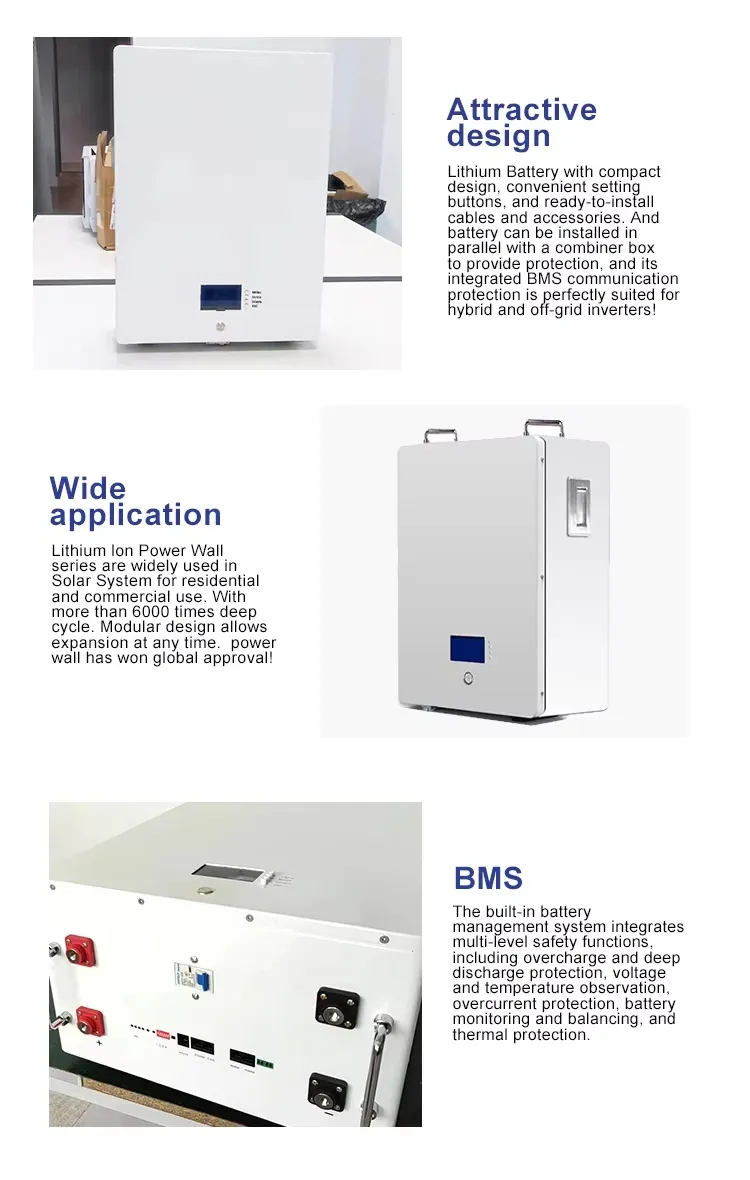

Wall Mounted Installation
Battery Internals

Technical Specification

Items Parameter
Charging MethodCC-CV
Charging Voltage57.6±0.2V
Over Charging Protect3.75±0.025V
Standard Charging Current20A (0.2C)
Max. Charging Current100A
Cut-off Charging Current2A (0.02C)
Standard Discharging Current20A (0.2C)
Max. Continue Discharging Current100A
Maximum instantaneous current200A (1mS)
Discharging cut-off Voltage40V
Over Discharging Protect2.50±0.05V
Over Discharge Current30%-80%
Cell Balance Threshold3.6±0.025V
Cell Balance current40±10mA
Internal Resistance<60mOhm
Standard Charge Temperature0~55℃
Standard Discharge Temperature-20~60℃
Storage Humidity65%RH not condensed
Storage Temperature-20~45℃
Weight48kg
Product Dimensions

Packaging & Delivery

Package Size
55.00cm * 40.00cm * 20.00cm
Package Gross Weight
50.000kg
Transport Package
Inner Box -Carton -Pallet-Container
Battery Packaging

Production Display

Production Facility
Assembly Line

Frequently Asked Questions

Q: What core advantages do commercial energy storage systems have for industrial users?
A: Our systems adopt high-performance lithium batteries and advanced BMS, featuring high energy density, long cycle life (≥6000 cycles), and intelligent grid connection. They help users reduce electricity costs via peak-valley arbitrage and ensure stable power supply.
Q: Can your energy storage systems integrate with photovoltaic (PV) systems?
A: Yes. Our systems are fully compatible with PV systems, enabling solar energy storage and on-demand power supply, which maximizes the utilization of renewable energy and reduces reliance on the grid.
Q: What is the lead time for custom commercial energy storage projects?
A: The lead time varies by project scale—typically 4–12 weeks for design, production, and commissioning. We provide a detailed project timeline and real-time progress updates for clients.
Q: What after-sales services do you offer for energy storage systems?
A: We provide one-stop after-sales services, including on-site installation guidance, system debugging, operation training, and 24/7 remote monitoring. The warranty period is 24–36 months for the core components.
Q: Are your energy storage systems compliant with grid connection standards?
A: Yes. Our systems meet IEC, UL, and GB standards, and we can provide grid connection certification documents required by different countries to ensure smooth project implementation.
Q: What is the recommended storage environment for these batteries?
A: The storage humidity should be 65%RH (not condensed) and the storage temperature should be between -20~45℃ to ensure long-term stability.
