Suntherra Battery
1 / 5

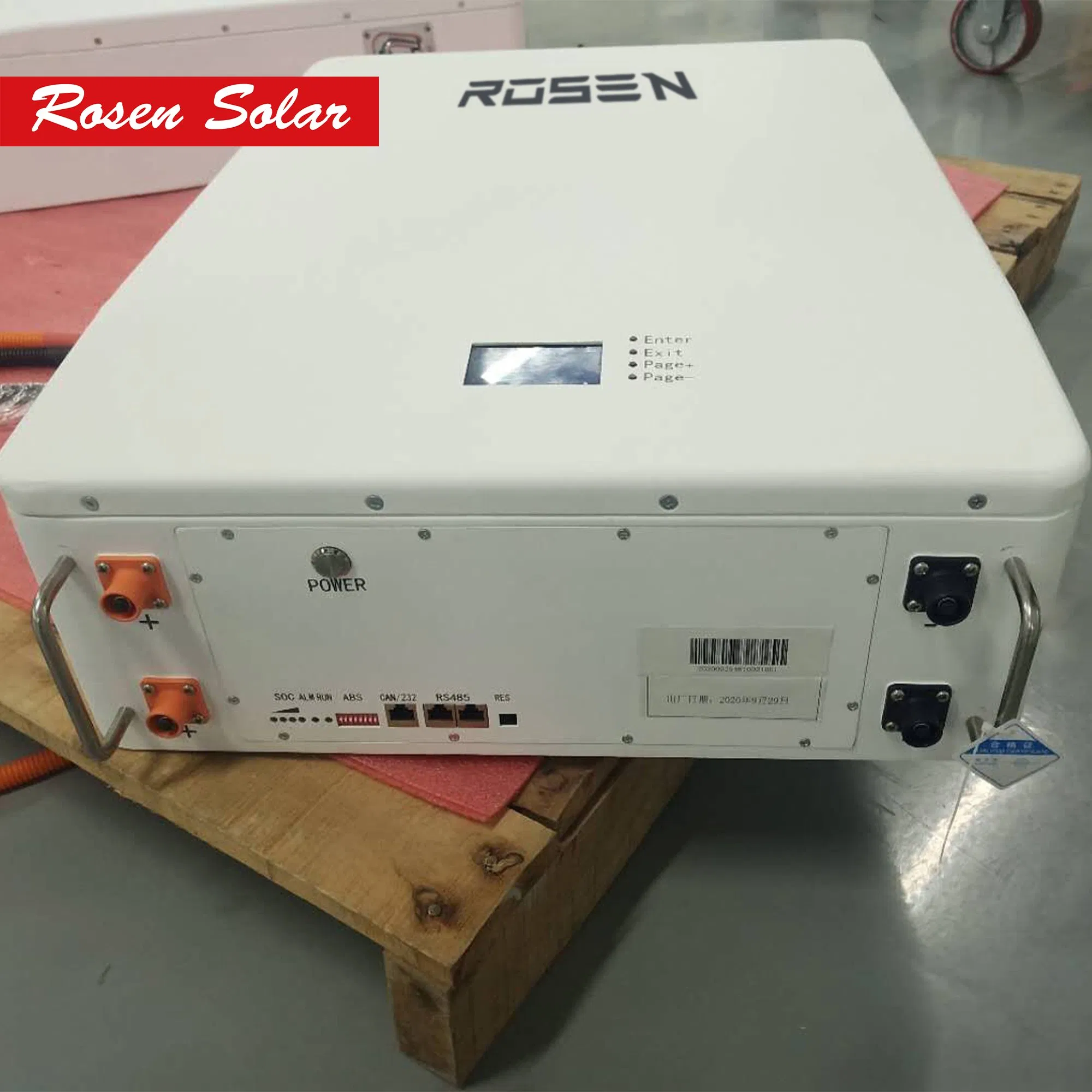

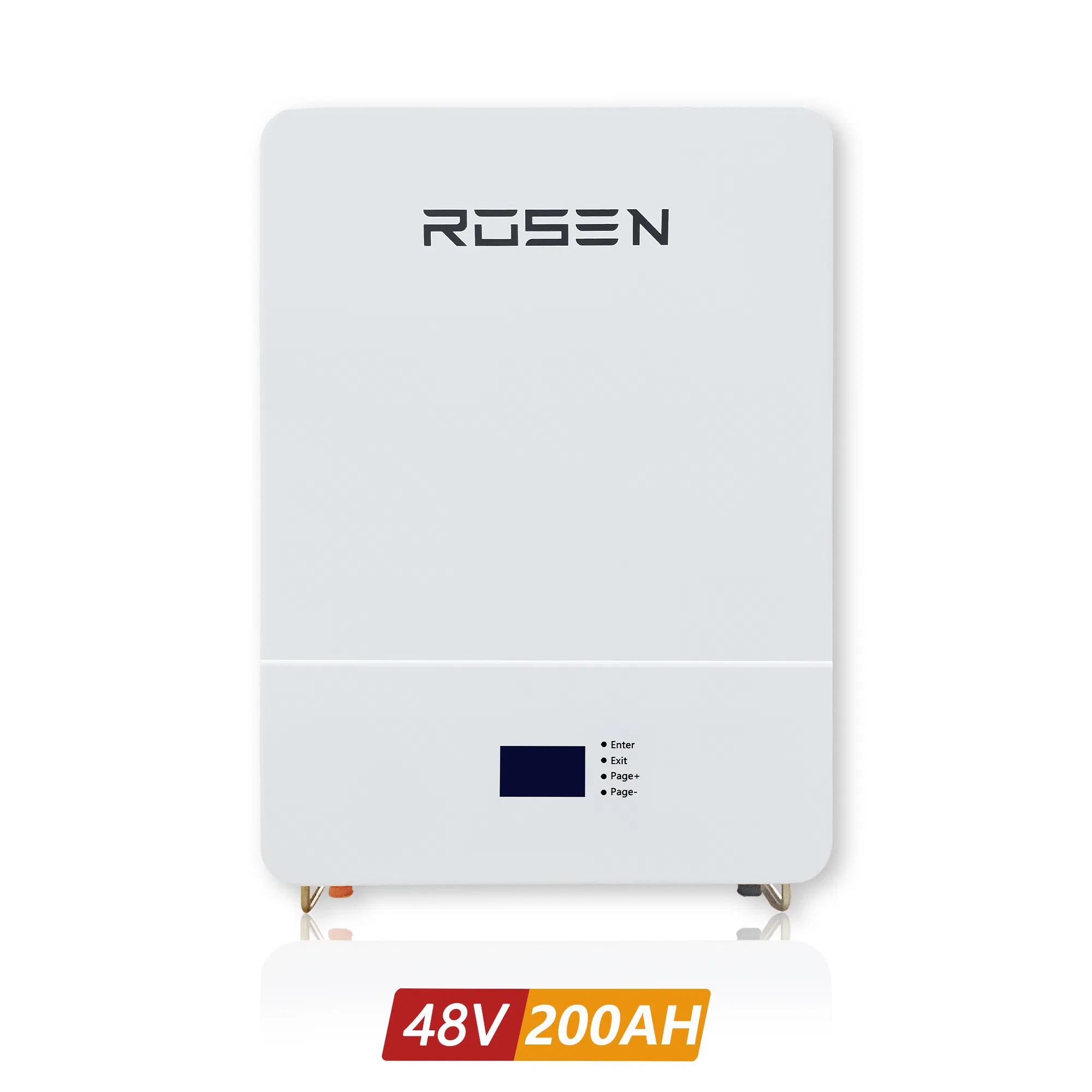

Compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables & accessories ready for installation.
Widely used in Solar Systems for residential and commercial use. With more than 6000 times deep cycle and up to 90% DOD.
Can be installed in parallel with combiner box for protection, with integrated BMS communication protocol to hybrid and off grid inverters.
| Type | Module | Powerwall Options | ||
|---|---|---|---|---|
| Model | LFP48V50AH | LFP48V100AH | LFP48V150AH | LFP48V200AH |
| Battery Capacity [Ah] | 50Ah | 100Ah | 150Ah | 200Ah |
| Nominal Energy [kwh] | 2.4 | 4.8 | 7.2 | 9.6 |
| Max Discharge Current [A] | 50 | 100 | 150 | 200 |
| Net Weight (kg) | 35 | 68 | 95 | 108 |
| Life Cycles | >6000 Cycles | |||
| Communication | CAN / RS485 / DRY CONTACT | |||
| Warranty | 10 Years | |||

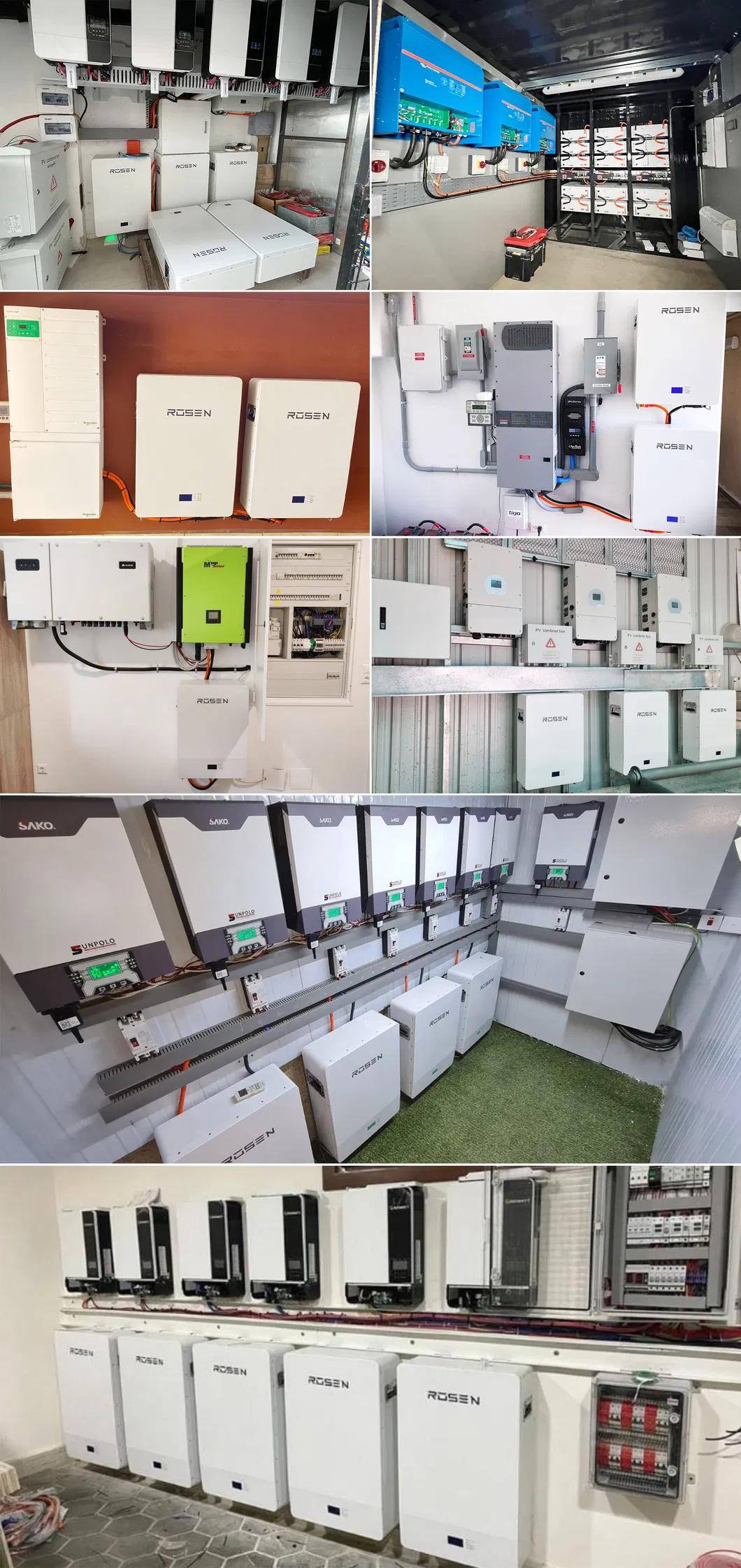

Lithium battery projects are installed for home and commercial solar projects. Home projects use 48Vdc or 51.2Vdc models compatible with hybrid solar storage inverters 3kw, 5kw, 8kw, 10kw, 12kw etc. Commercial projects BESS are available for factories from 100kw up to 10MW with containerized design and EMS programmable.
