Product Description

Basic Information

Model NO.
LFP-ABS
Nominal Voltage
12V / 24V / 48V
Product Name
Lifep04 Battery LFP-ABS
Cycle Life
6000 Times
Rechargeable
Yes
DOD
> 95%
Origin
China
HS Code
8507600090

Key Features

Lead-Acid Alternative LiFeP04 Lithium Battery (LFP-ABS 24/48V, 1.28-5.12KWH)

  • 24VDC 48VDC Deep Cycle Energy storage Lead-acid alternative LiFePo4 lithium battery
  • Capacity Options: 25.6VDC (50Ah, 100Ah, 120Ah, 200Ah) and 51.2VDC (50Ah, 60Ah, 100Ah)
  • 6000 Cycle life (80% DOD@25ºC), 10 times more than AGM batteries
  • Discharge DOD over 95%, 25-50% more than AGM batteries
  • Compact Size and light weight, > 50% smaller and lighter than AGM batteries
  • Wide Compatibility, works with most mainstream inverters
  • Embedded BMS with full protection and balanced charge/discharge
  • Options for LCD Display and Bluetooth communication
  • Series connection support up to 48VDC

Technical Specifications

MODEL LFP24050-ABS LFP24100-ABS LFP24120-ABS LFP24200-ABS LFP48050-ABS LFP48060-ABS LFP48100-ABS
Rated Voltage25.6VDC25.6VDC25.6VDC25.6VDC51.2VDC51.2VDC51.2VDC
Rated Capacity50AH100AH120AH200AH50AH60AH100AH
Rated Energy1280WH2560WH3072WH5120WH2560WH3072WH5120WH
Load Capacity≤1280W≤2560W≤3072W≤5120W≤2560W≤3072W≤5120W
Max Cont. Charge Current50A100A120A200A50A60A100A
IP GradeIP65 Indoor
Design LifeOver 10 years

Product Display

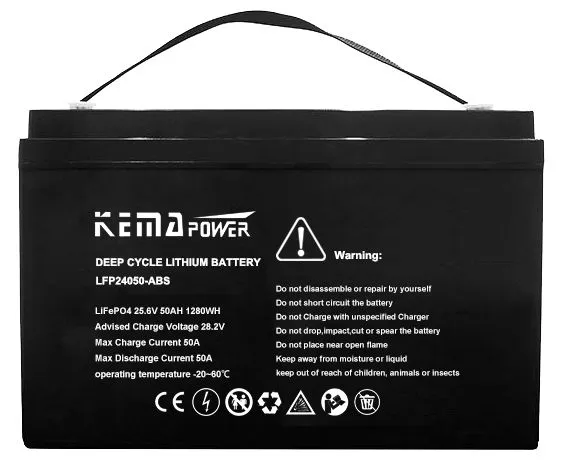

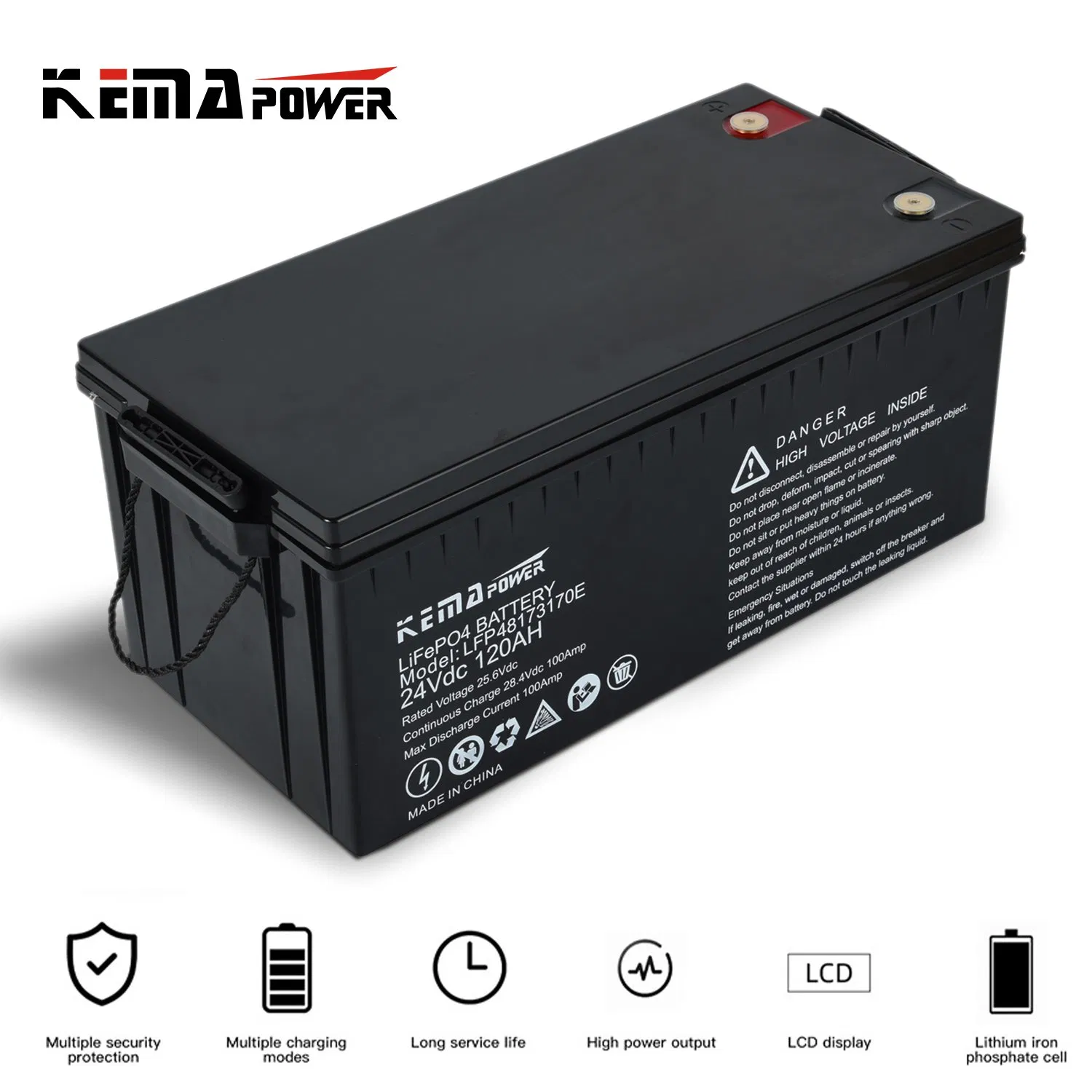

LFP24050-ABS LCD Display Option Bluetooth Option

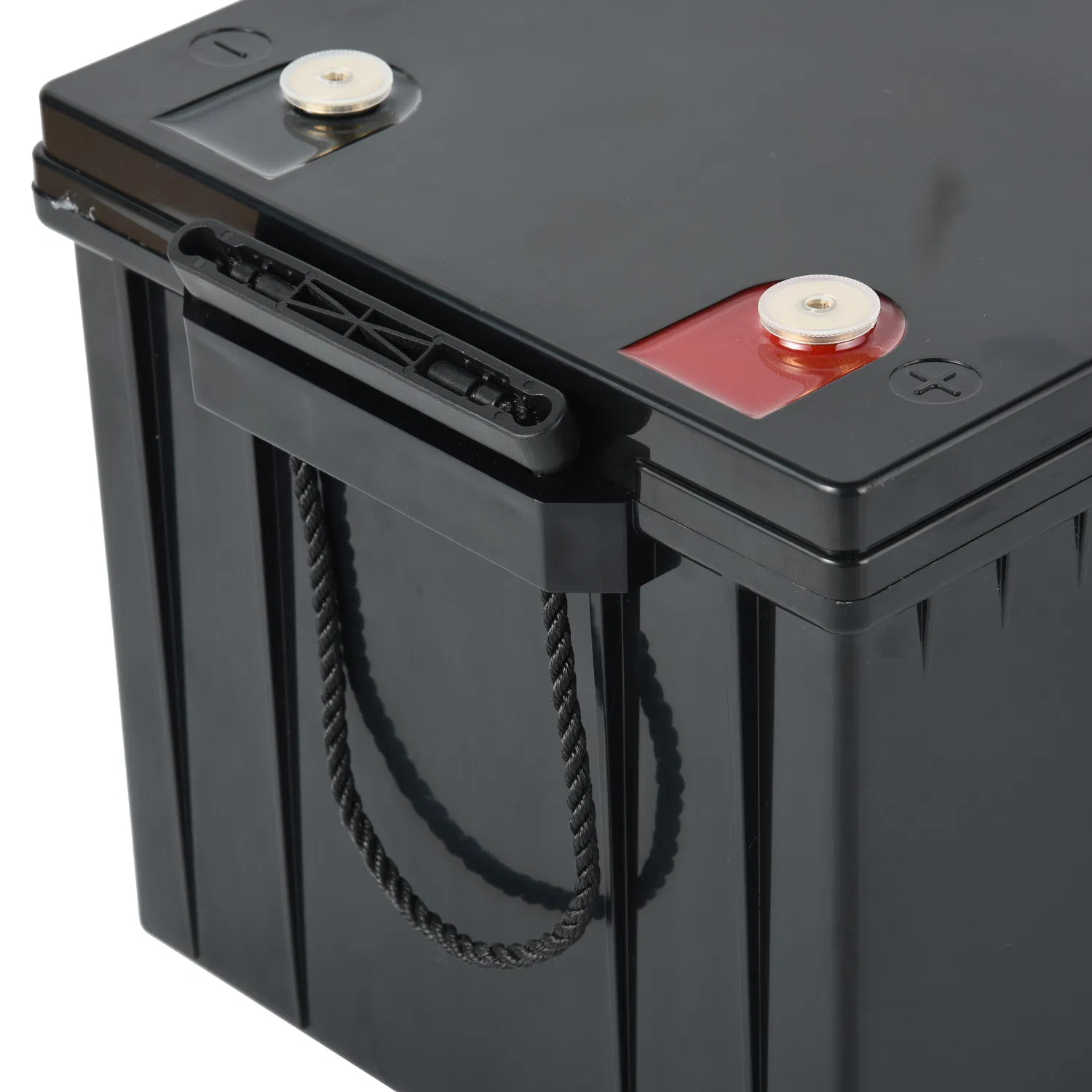

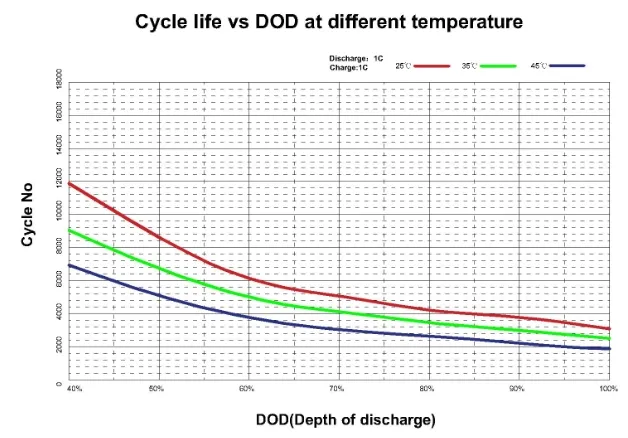

Battery Internals Product Size Battery Connectors

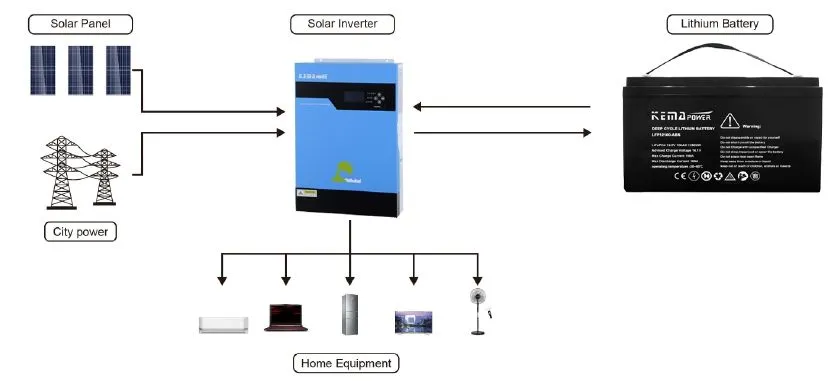

ABS Case Energy Storage System

Applications

RV Car, Marine, Golf Car, Buggies, Remote Monitoring, Switching Applications, UPS and more.

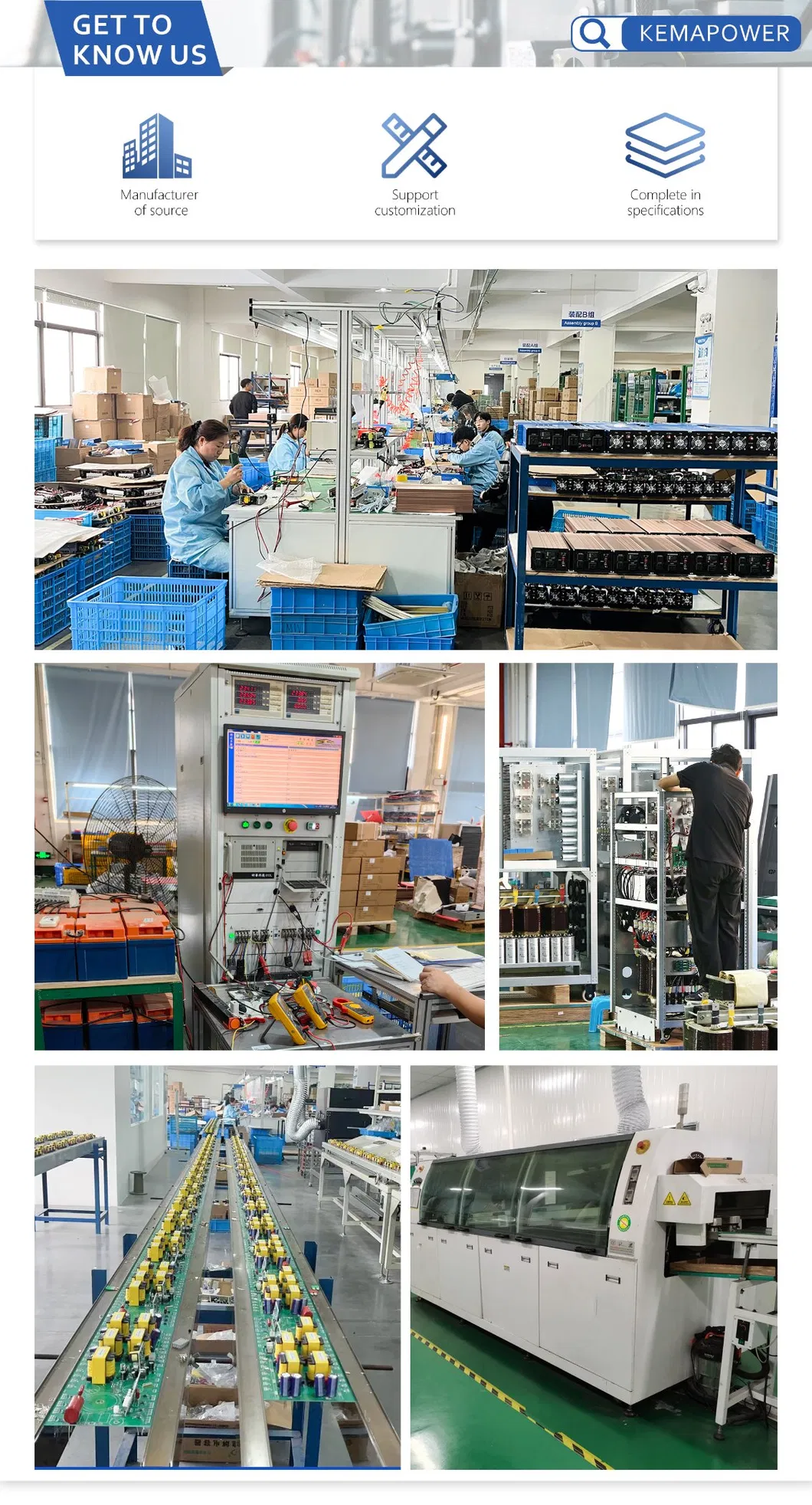

Application Details 1 Application Details 2 Application Details 3 Application Details 4

Frequently Asked Questions

What is the cycle life of the LFP-ABS battery?
The battery offers a long cycle life of 6000 times at 80% Depth of Discharge (DOD) at 25ºC, which is significantly higher than traditional AGM batteries.
Can these batteries be connected in series?
Yes, series connection is an option. You can connect up to 4 units in series to reach 48VDC configurations.
Is the battery compatible with mainstream inverters?
Yes, the LFP-ABS series is designed with wide compatibility to cooperate seamlessly with most inverters on the market.
What kind of protection does the built-in BMS provide?
The embedded Battery Management System (BMS) provides full protection against overcharge, over-discharge, over-temperature, over-current, and internal short circuits, along with cell balancing.
How does the size compare to Lead-Acid batteries?
The LiFePO4 battery is very compact and lightweight, typically over 50% smaller and lighter than an equivalent capacity AGM lead-acid battery.
Can I monitor the battery status remotely?
Yes, there are options for an LCD display and Bluetooth communication, allowing you to monitor the battery status via an App or PC.
