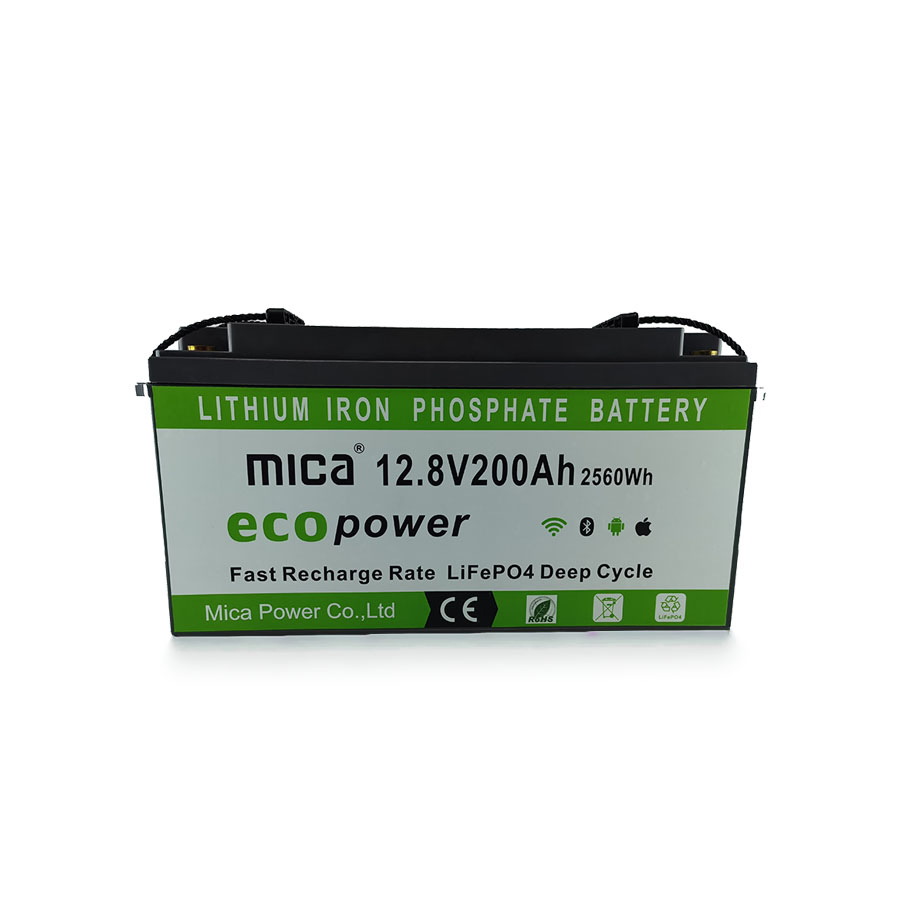

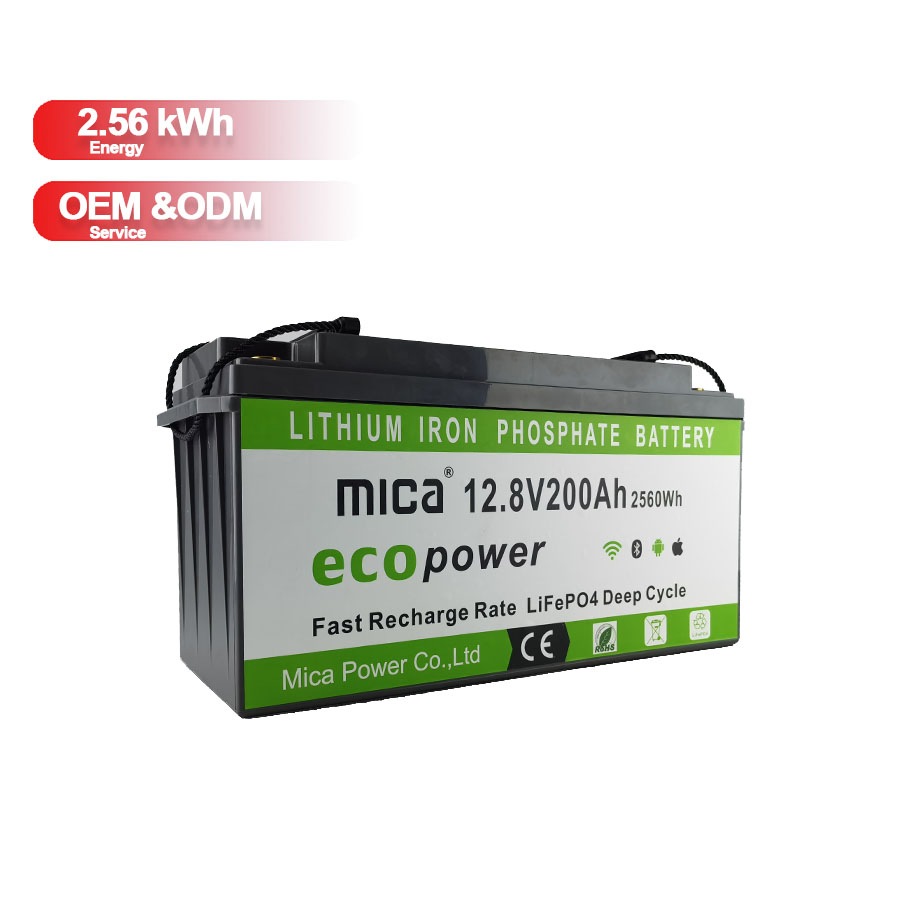

| Model NO. | MC-LFP12200 |
| Nominal Voltage | 12.8V |
| Discharge Rate | 100A |
| Shape | ABS Case |
| Electrolyte | LiFePO4 |
| Installation | Floor |
| Rechargeable | Chargeable |
| Weight | 20.5kg |
| Charge Voltage Max | 14.6V |
| Discharge Current Max | 100A |
| Max Discharge Current | 200A |
| IP Level | IP65 |
| Standard Charge Current | 0.2c |
| Max Charge Current | 1c |
| Discharge Cut-off Voltage | 10V |
| Terminal | M6 |
| Handhold | Yes |
| Transport Package | Un Carton |
| Specification | 483*170*240mm (W x D x H) |
| Origin | China |
| HS Code | 8507600090 |
| Production Capacity | 100000 |
| Package Size | 58.00cm * 29.00cm * 29.80cm |
| Package Gross Weight | 22.000kg |
| Lead Time |
15 days (1 - 10 Pieces) 30 days (11 - 100 Pieces) To be negotiated ( > 100 Pieces) |
Our 12v 200ah lithium batteries always perform well, no matter what the temperature. They can operate in temperatures ranging from -20°C to -60°C, so they can handle all kinds of weather, from hot summers to very cold winters. You can trust these batteries to keep your devices powered up, no matter what the weather is like.

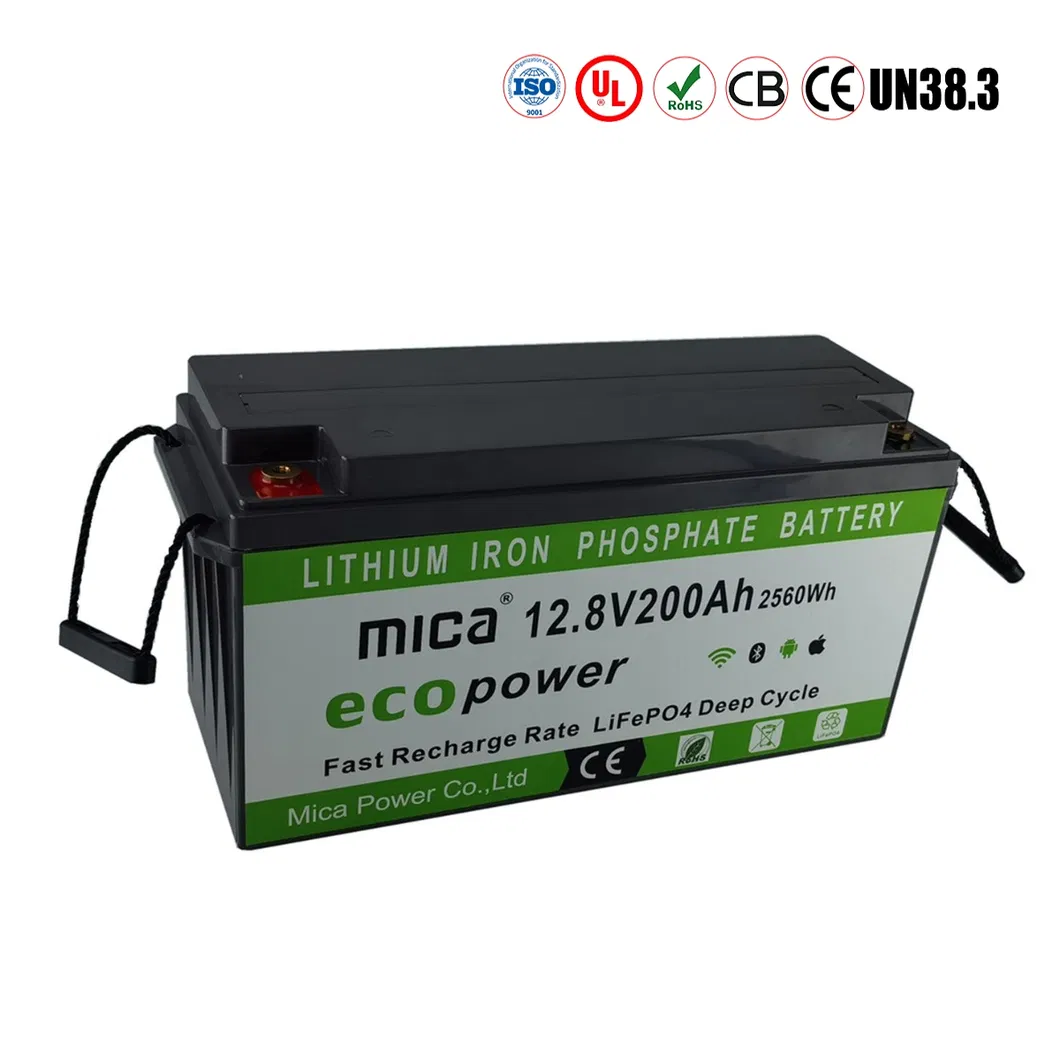

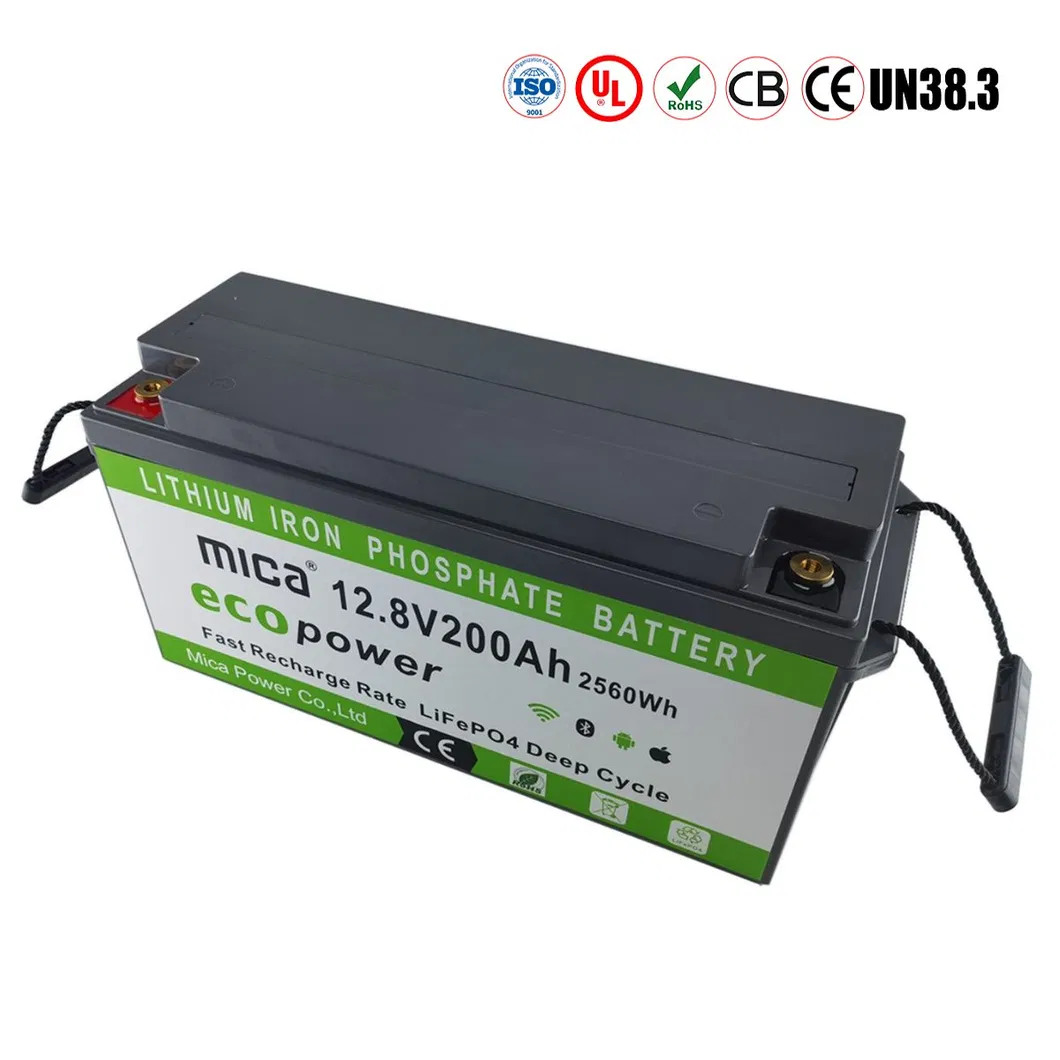

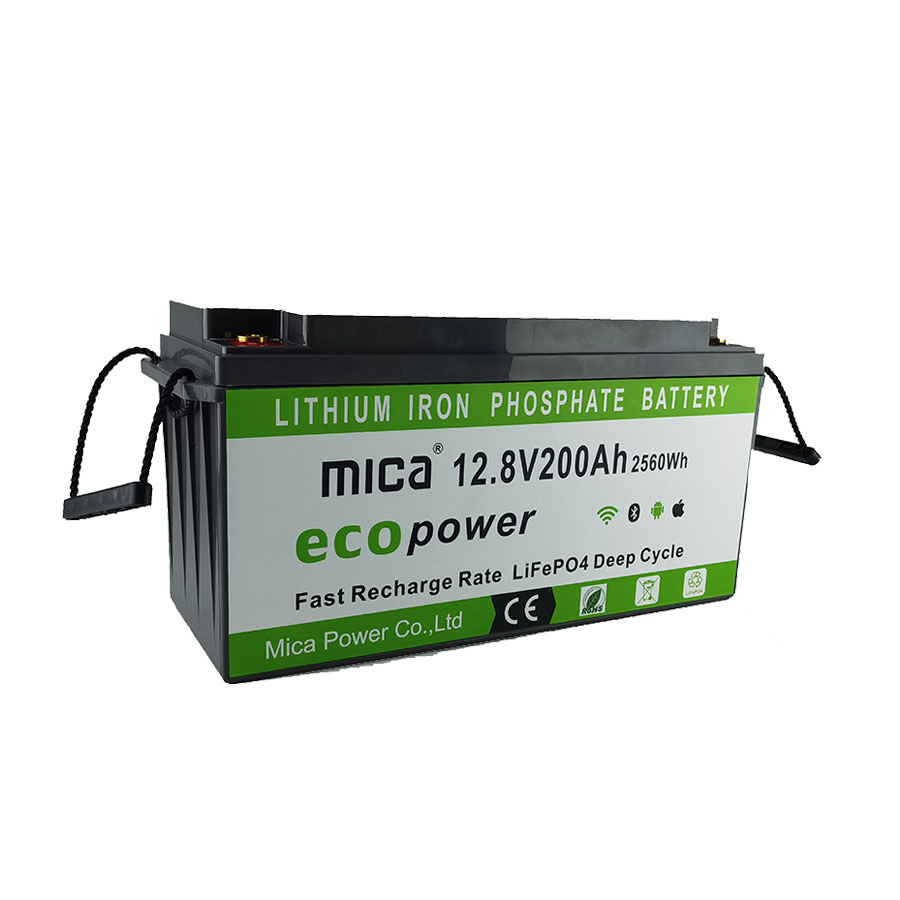

The 12V 200Ah LiFePO4 battery features an integrated 200 Amp Battery Management System (BMS) that makes sure it performs optimally and offers comprehensive protection for your application. One important feature is the Low-Temp Cut-Off Protection, which stops the battery from getting damaged if it's as low as 0°C. This makes sure the battery can be used effectively and for a long time, even when the weather is not good.

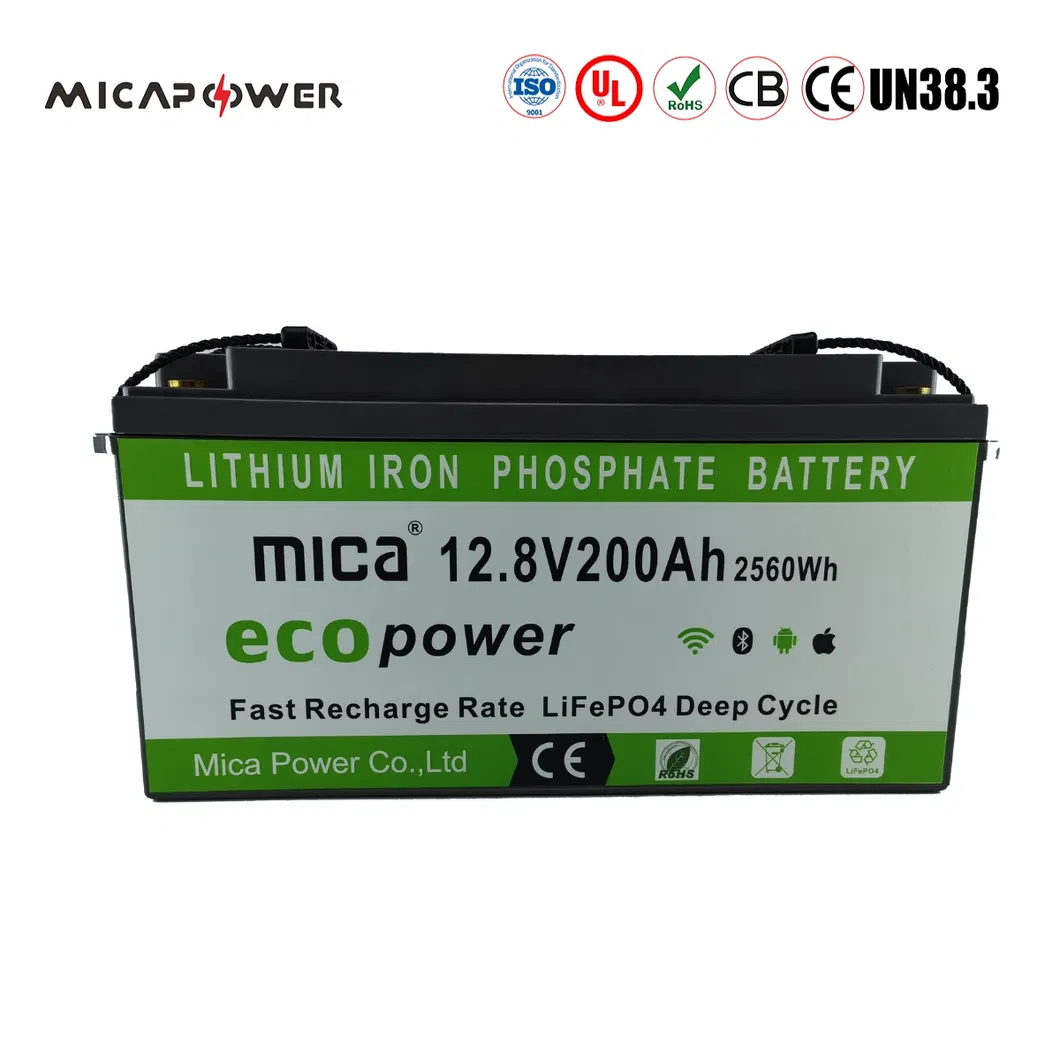

| Technical Specifications | |
|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah (25ºC, C10) |
| Nominal Energy | 2560Wh (25ºC, C10) |
| Operation Voltage | 10.4~14.4V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Dimension | 483*170*240mm (W x D x H) |
| Weight | About 20.5KG |
| Warranty Period | 5 years |
| Environment Protection | IP56 |
| Cycle Life 100% DOD | >3000 cycles (2560Wh 25ºC, C10) |
| Cycle Life 80% DOD | >4000 cycles (2048Wh 25ºC, C10) |
| Cycle Life 50% DOD | >6000 cycles (1280Wh 25ºC, C10) |
| Charge Voltage Max | 14.4V |
| Charge Current Max | 100A |
| Discharge Current Max | 100A continuous, 200A burst (10 seconds) |
| Built-in Protections | Over-charge, Over-discharge, Over-current, Over-temperature, Cell balancing function |
12v 200ah Lithium iron phosphate (LiFePO4) batteries are an excellent alternative to lead-acid batteries thanks to their lightweight nature, long lifespan, lack of toxicity and zero maintenance requirements. They're super versatile and can be used in all sorts of applications, like golf carts, marine trolling motors, RVs, camping, and as a reliable backup power source for solar off-grid homes.

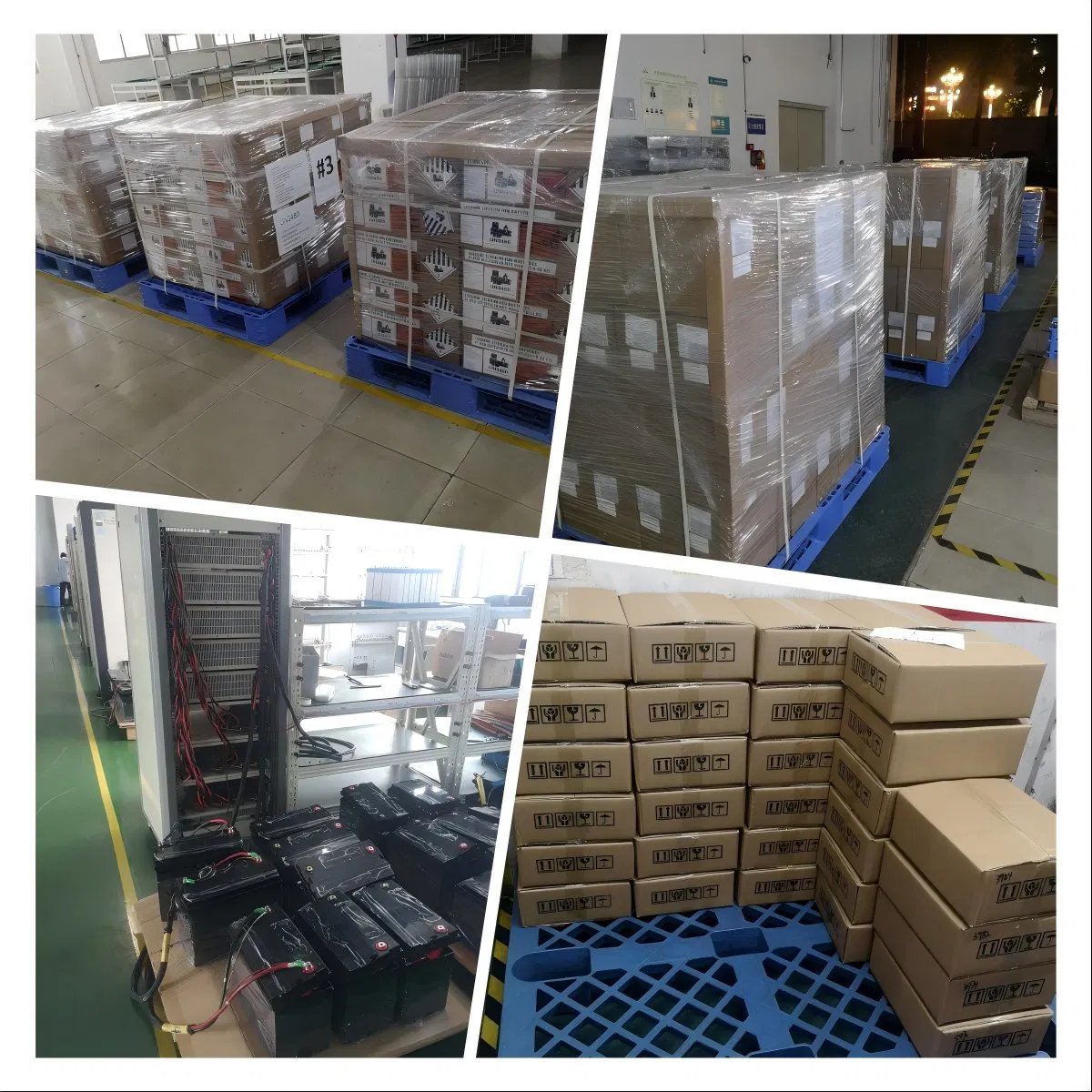

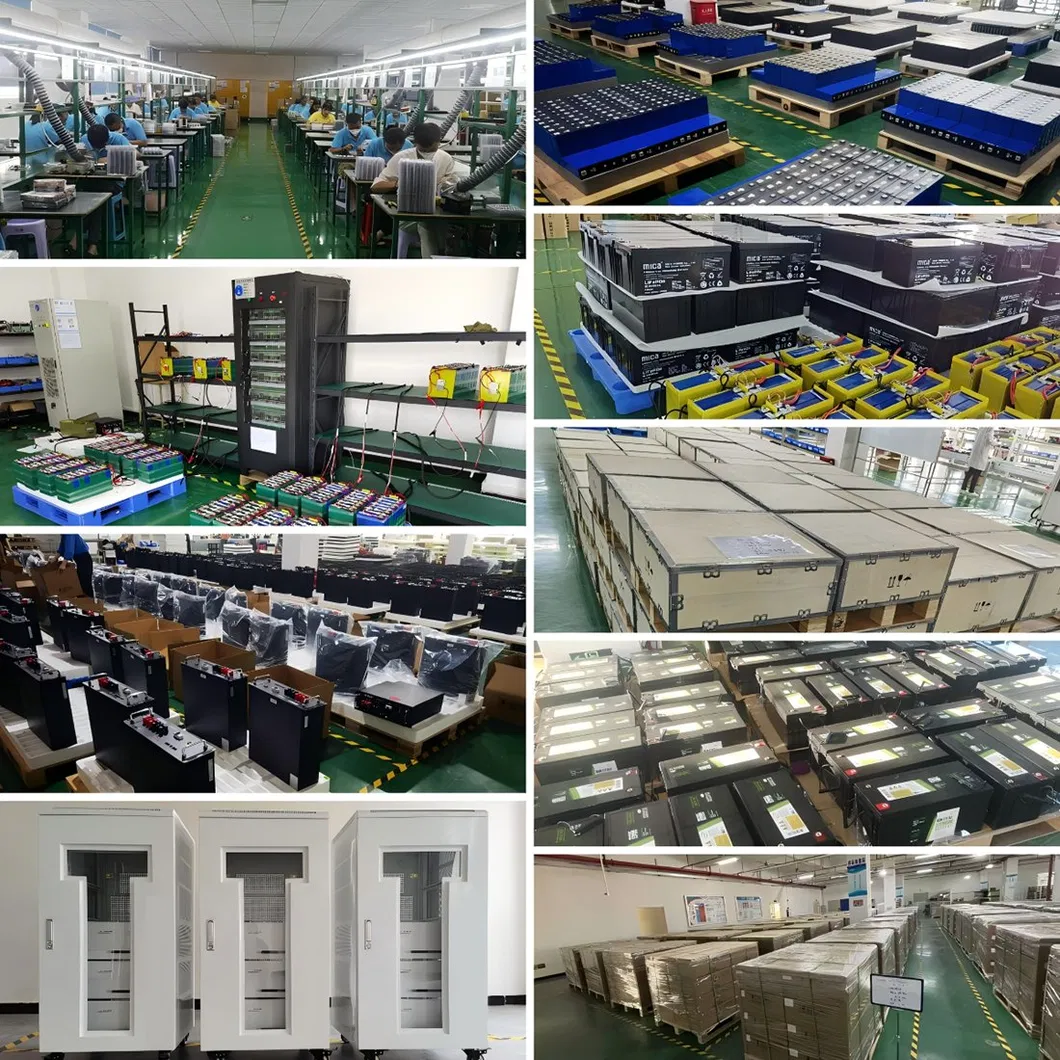

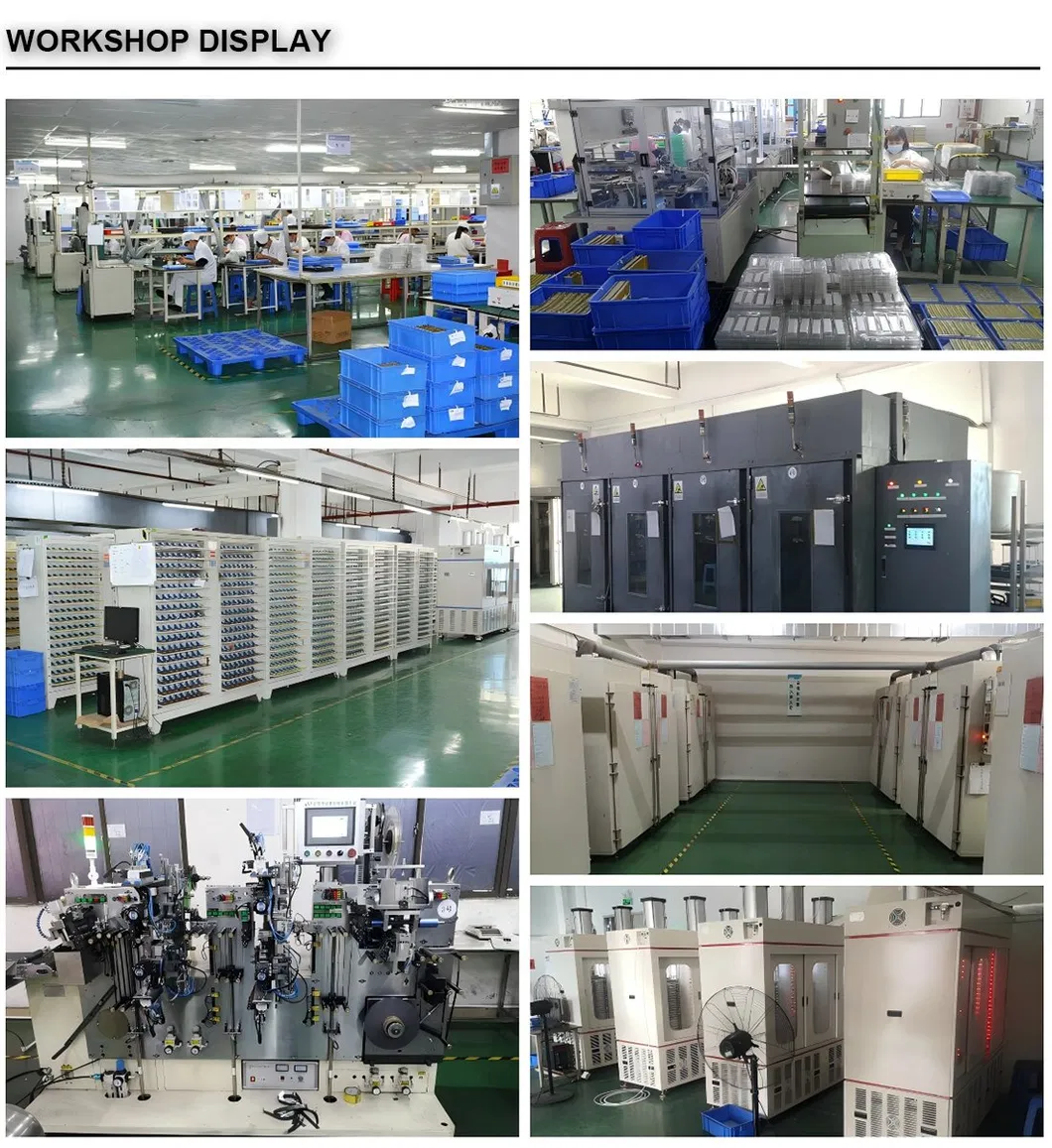

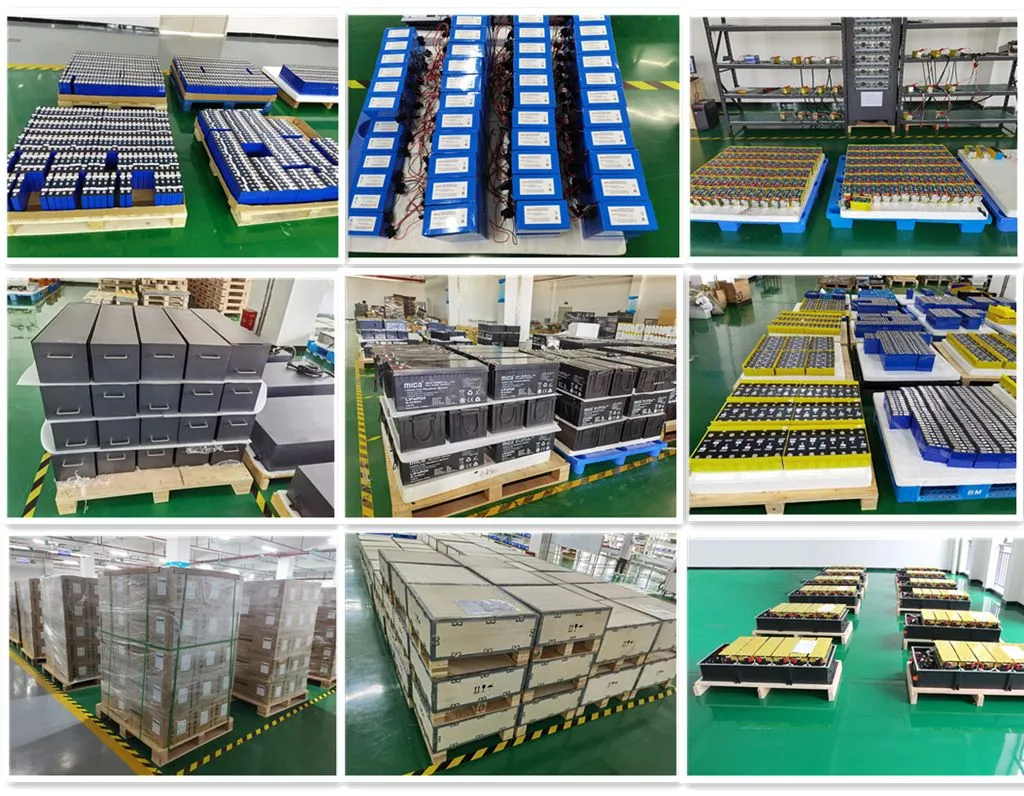

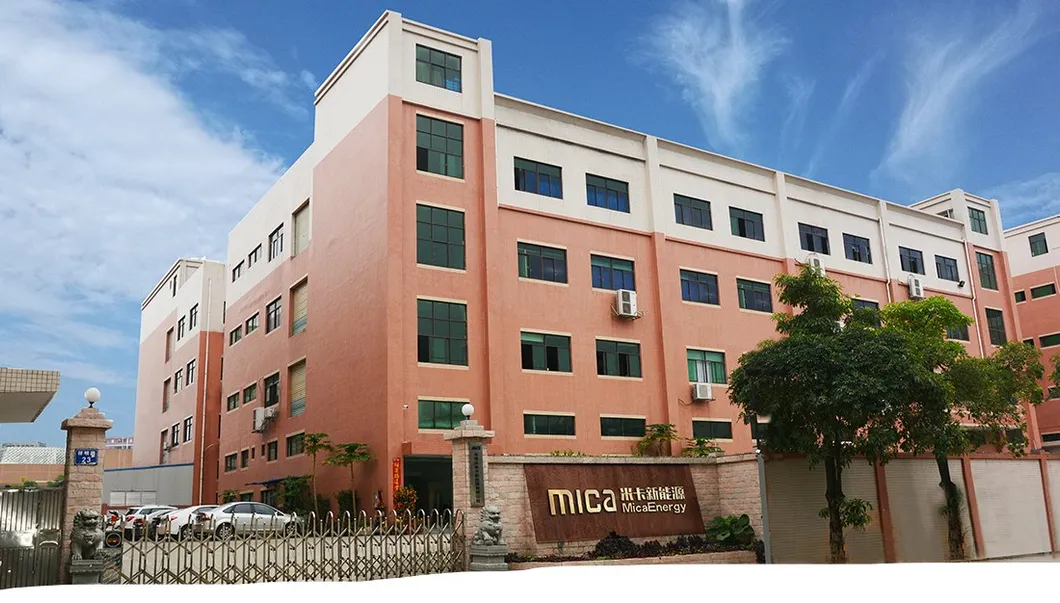

Our management team has over 15 years of experience in rechargeable batteries. Our factory is 15,000 square metres big and has over 500 employees. We make batteries and have 15 years' experience in rechargeable batteries. Our production plant has its own R&D and production capabilities in key areas, which can provide customers with professional solutions and services for energy systems and lithium batteries. Our products are used in many different ways: for example, they can be used to replace lead-acid batteries, for household energy storage systems, in industry, data centres, 5G, UPS, low-speed EV, portable power stations and more.
