Basic Information
Model NO.12V7.0
Nominal Voltage12V
Discharge RateHigh Discharge Rate
ShapeSquare Battery
ElectrolyteAcid
InstallationPackaged
RechargeableChargeable
Nominal Capacity7.0ah
Cycle Use Voltage14.4-15.0V
Standby Use13.5-13.8V
Initial CurrentBelow 2.1A
Operation Temperature (Charging)0~50ºC
Operation Temperature (Discharging)-20~60ºC
Storage Temperature10~35ºC
Storage Humidity<75%Rh
WeightAbout 2.1kg
Specification (LxHxW)151x65x94mm
HS Code85072000
Production Capacity5,400,000 PCS/Year
Packaging & Delivery Info
Package Size16.10cm * 7.50cm * 10.40cm
Package Gross Weight2.200kg
Transport PackageExplosion-Proof Carton & Pallet

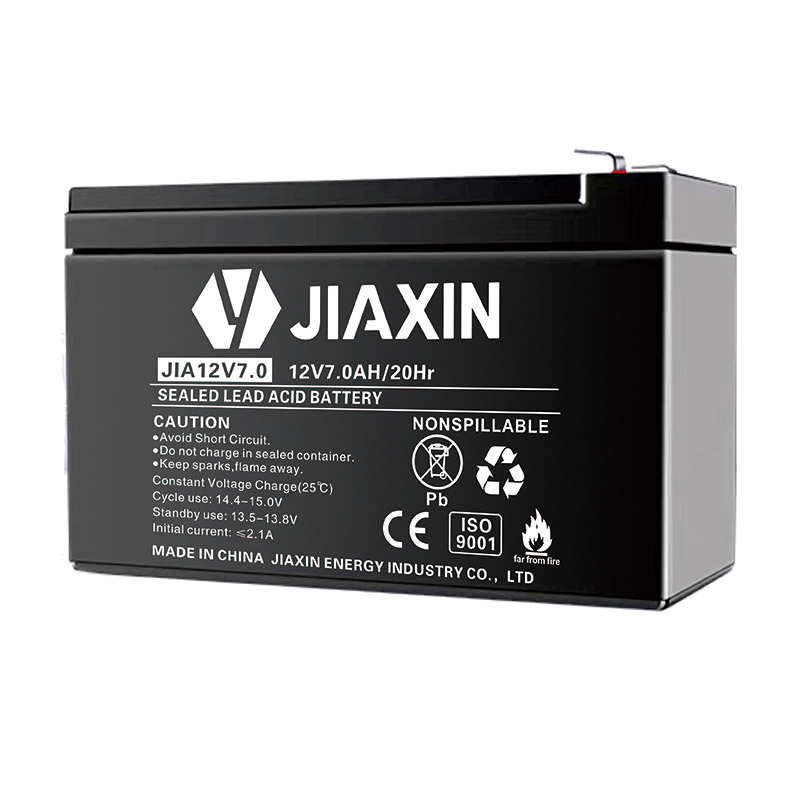

AGM High Capacity UPS Battery: Dynamic 12V 7Ah SLA VRLA Sealed Lead Acid Battery perfectly tailored for emergency backup, solar storage, electronic scales, kids' ride-on cars, fire safety control panels, and dependable uninterrupted power supply setups.
Key Features & Technical Advantages
⚡
Excellent Discharge Power
Superior high-rate discharge and powerful cycle character over conventional batteries.
⚙️
Ultra-Low Self-Discharge
Retains high internal capacity over long-term storage; simple maintenance checks every 6 months.
💎
99.996% Pure Lead
Constructed with high purity raw materials, offering unmatched operational life.
🛡️
Corrosion-Resistant Grids
Lead-Tin multiple alloy bus bars with minimal internal resistance for persistent floating charge resilience.
🔋
Advanced AGM Separator
Absorbs optimum electrolyte without leaving free liquid; allows versatile placement in any orientation.
📦
High-Grade ABS Casing
Heavy-duty flameproof ABS engineering plastics build that is firm, rugged, and completely weather-resistant.
⚙️
Silver-Plated Terminals
Copper-plated silver terminals yield high conductivity, reducing power loss and preventing rust.
🔒
Zero Maintenance VRLA
Recombines gas into water internally. Spillproof design means zero maintenance or distilled water additions.

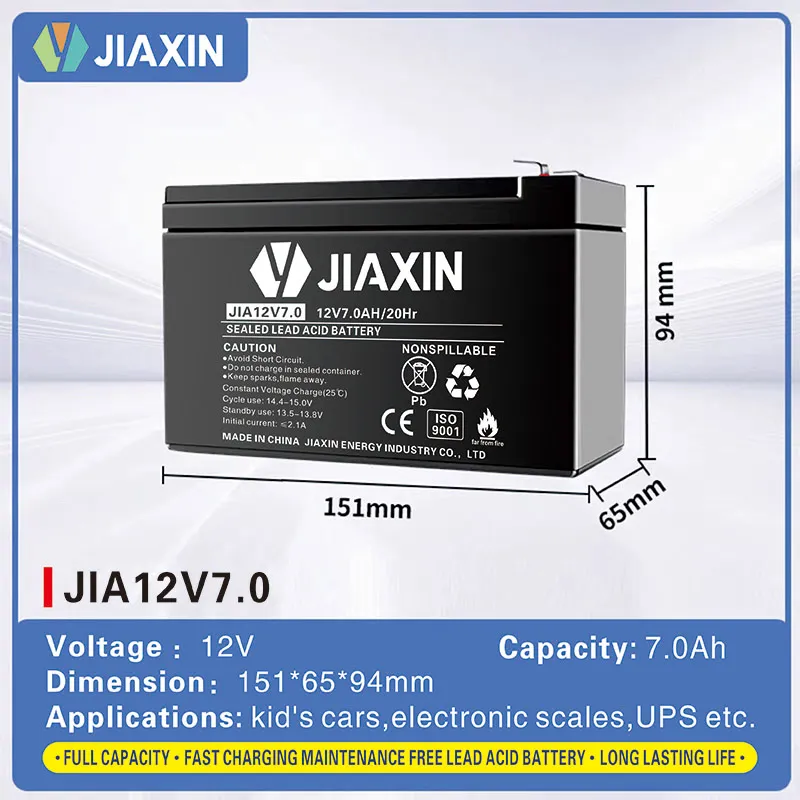

12V 7Ah VRLA Backup Battery
Premium Safety Terminals Structure
Detailed Specifications & Design
This optimized 12V 7.0Ah battery is specifically engineered to support Fire Safety Panels, Video Surveillance Systems (CCTV), access control hubs, electronic doors, and emergency lighting arrays. A strong focus on fire-retardant outer shell materials ensures utmost functional safety in high-stress corporate and residential environments.

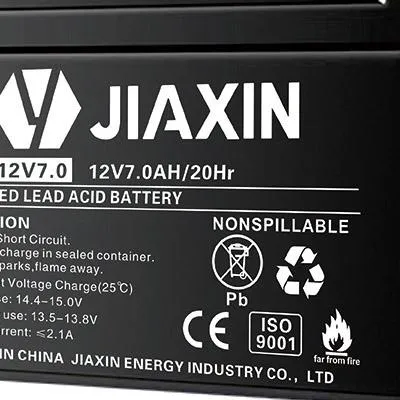

Full Capacity Lead Plates

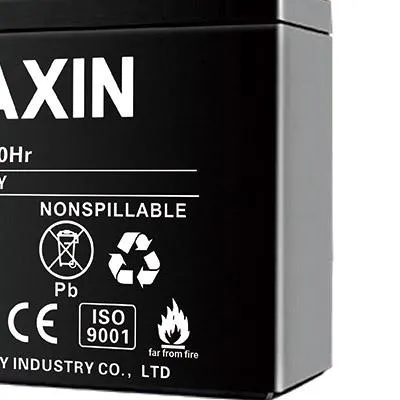

Explosion Proof ABS Cover
Silver-Plated Copper Interface
📈
Non-Labeled True Power
Uses exceptionally dense internal lattice structures to promote steady, reliable electrochemical response under intense peak discharge currents.
🌡️
All-Weather Temperature Range
Proprietary AGM + PP partitions and highly flame-retardant outer housing protect against extreme temperature spikes and winter drops.
🔌
Minimized System Power Drop
Silver terminal coatings ensure minimal impedance, allowing maximum power transmission and zero voltage anomalies.

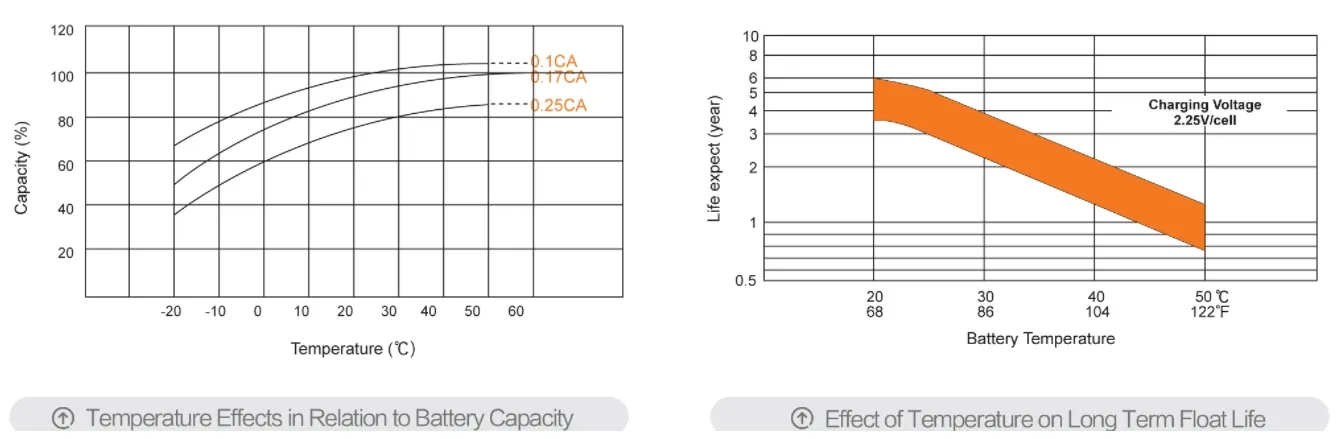

Float Charging & Operating Curves

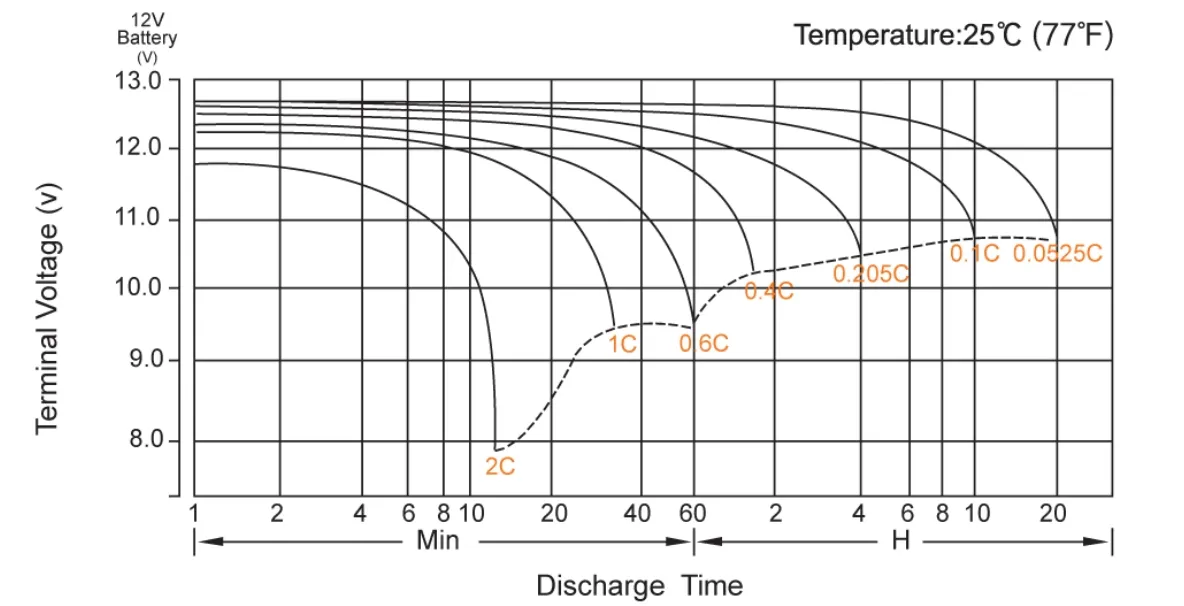

Battery Discharge Characteristics

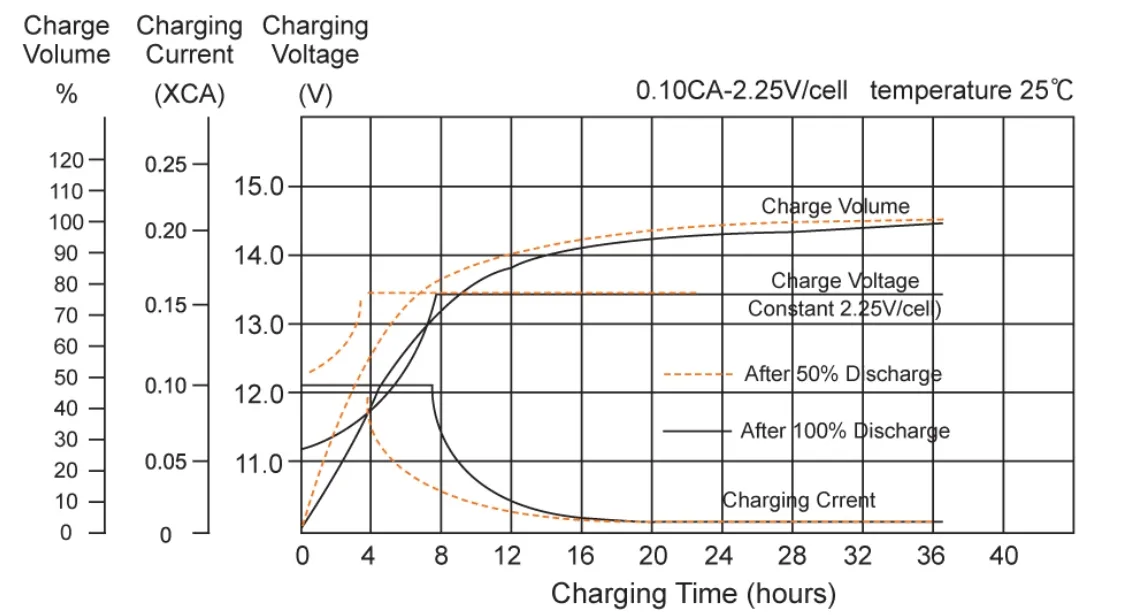

Float Charging Characteristics Graph
Comprehensive Recharging Guide Curve

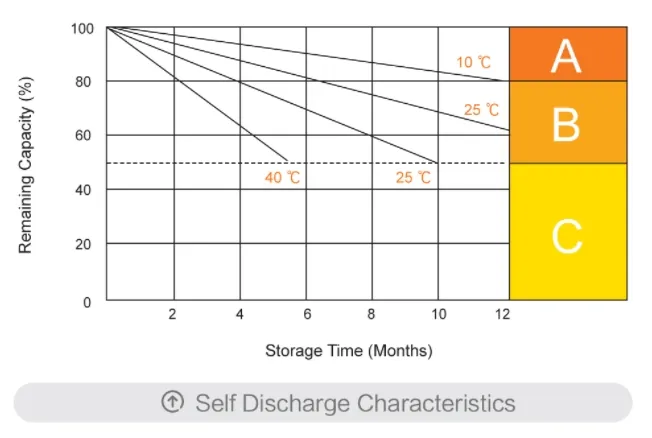

Self Discharge Performance Curve
Self Discharge Rules:
A: No supplementary charge needed if stored under optimal ambient conditions.
B: Fresh refreshing charge highly recommended before active service deployment.
C: Never store the battery depleted to prevent capacity fade.

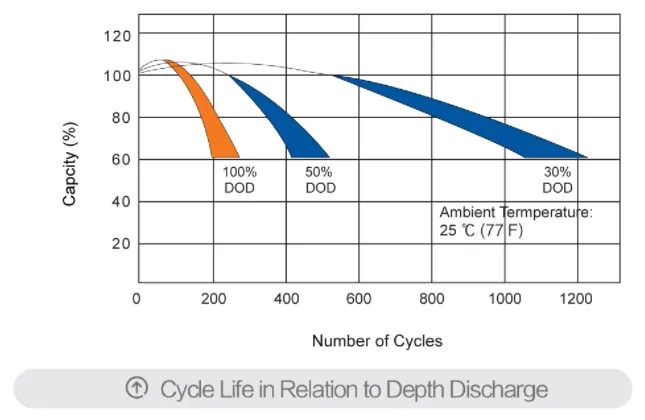

Cycle Life in Relation to Depth of Discharge
Test Settings:
Discharge: Current 0.17C (F.V 1.7V/cell)
Recharging target volume: 125% of discharged capacity.
Product Models & Specifications List
| Model |
Nominal Voltage (V) |
Rated Capacity (AH) |
External Dimensions (±2mm) |
Weight (kgs) |
| Length |
Width |
Height |
Total Height |
| mm |
mm |
mm |
mm |

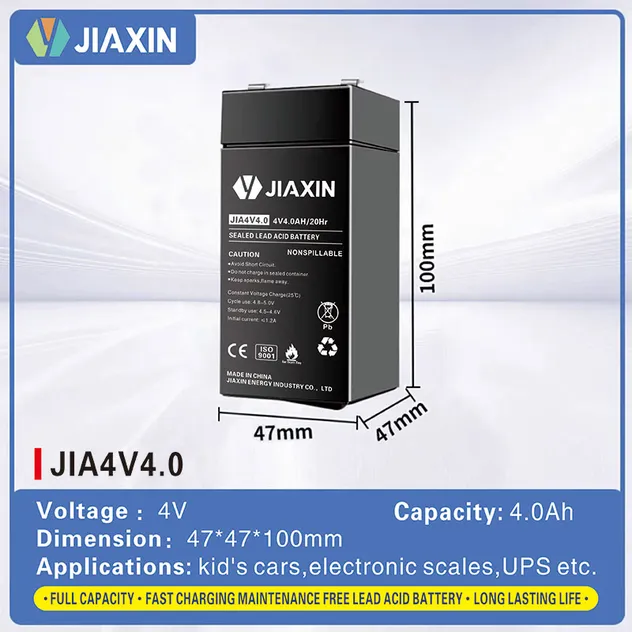

| Model 4-4.0 | 4 | 4 | 47 | 47 | 101 | 106 | 0.47 |
| Model 6-1.3 | 6 | 1.3 | 97 | 24 | 52 | 58 | 0.28 |
| Model 6-2.8 | 6 | 2.8 | 66 | 33 | 97 | 104 | 0.55 |
| Model 6-3.2 | 6 | 3.2 | 134 | 35 | 61 | 67 | 0.65 |
| Model 6-3.4 | 6 | 3.4 | 134 | 35 | 61 | 67 | 0.70 |
| Model 6-4.0 | 6 | 4 | 70 | 47 | 101 | 106 | 0.68 |

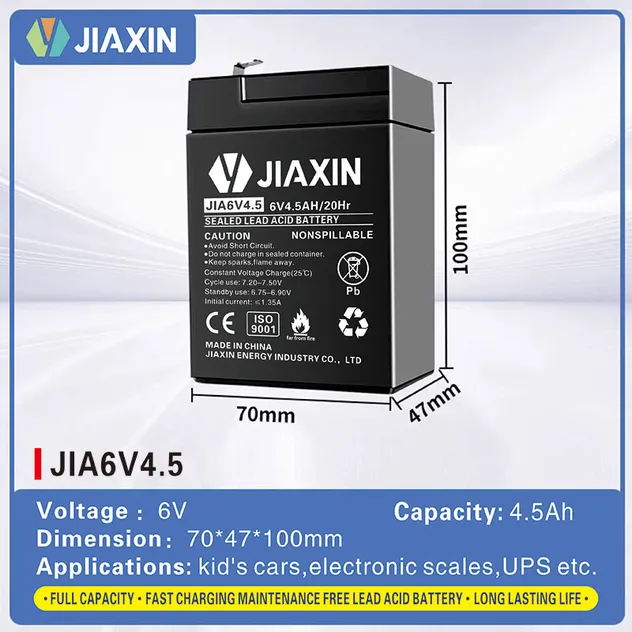

| Model 6-4.5 | 6 | 4.5 | 70 | 47 | 101 | 106 | 0.72 |
| Model 6-5.0 | 6 | 5 | 70 | 47 | 101 | 106 | 0.78 |
| Model 6-5.2 | 6 | 5.2 | 70 | 47 | 101 | 106 | 0.81 |
| Model 6-5.5 | 6 | 5.5 | 70 | 47 | 101 | 106 | 0.85 |

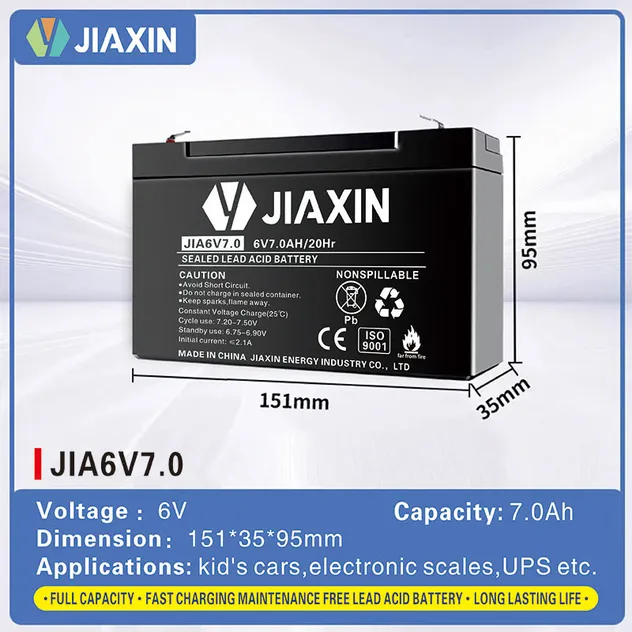

| Model 6-7.0 | 6 | 7 | 151 | 34 | 94 | 100 | 1.10 |
| Model 6-10 | 6 | 10 | 151 | 50 | 94 | 100 | 1.65 |

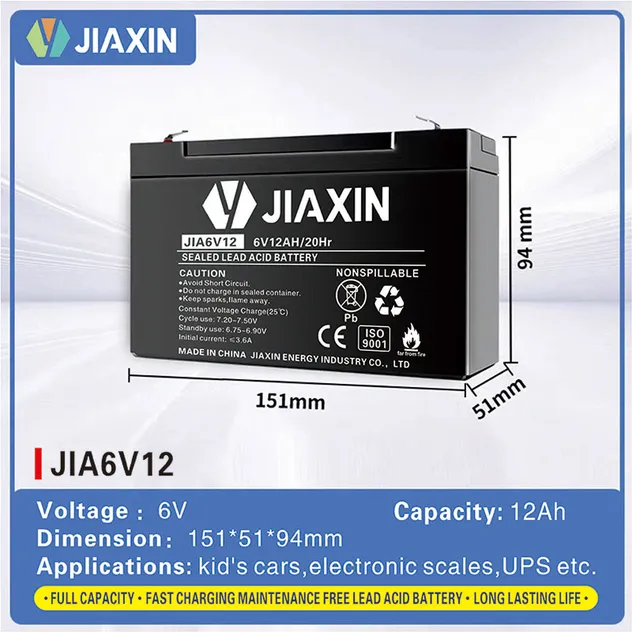

| Model 6-12 | 6 | 12 | 151 | 50 | 94 | 100 | 1.80 |
| Model 6-14 | 6 | 14 | 151 | 50 | 94 | 100 | 2.10 |
| Model 6-100 | 6 | 100 | 195 | 170 | 207 | 212 | 16.20 |
| Model |
Nominal Voltage (V) |
Rated Capacity (AH) |
External Dimensions (±2mm) |
Weight (kgs) |
| Length (mm) |
Width (mm) |
Height (mm) |
Total Height (mm) |
| Model 6-180 | 6 | 180 | 307 | 169 | 220 | 225 | 27.8 |
| Model 12-0.8 | 12 | 0.8 | 96 | 25 | 62 | 62 | 0.30 |
| Model 12-1.3 | 12 | 1.3 | 97 | 43 | 52 | 58 | 0.56 |
| Model 12-2.2 | 12 | 2.2 | 178 | 35 | 61 | 67 | 0.85 |
| Model 12-2.8 | 12 | 2.8 | 132 | 33 | 98 | 104 | 1.20 |
| Model 12-3.2 | 12 | 3.2 | 134 | 67 | 61 | 67 | 1.30 |
| Model 12-5.0 | 12 | 5.0 | 90 | 70 | 101 | 107 | 1.55 |
| Model 12-7.0 | 12 | 7.0 | 151 | 65 | 94 | 100 | 2.10 |
| Model 12-7.2 | 12 | 7.2 | 151 | 65 | 94 | 100 | 2.20 |
| Model 12-10 | 12 | 10.0 | 151 | 98 | 95 | 101 | 3.40 |
| Model 12-18 | 12 | 18.0 | 181 | 77 | 167 | 167 | 5.15 |
| Model 12-24 | 12 | 24.0 | 166 | 175 | 125 | 125 | 7.40 |
| Model 12-40 | 12 | 40.0 | 196 | 165 | 171 | 171 | 13.06 |
| Model 12-100 | 12 | 100.0 | 328 | 172 | 214 | 243 | 29.50 |
| Model 12-200 | 12 | 200.0 | 522 | 240 | 219 | 244 | 59.50 |
Applications & Deployment
These AGM batteries are highly stable energy platforms suited for active duty in critical equipment: UPS back-up systems, high-efficiency lighting installations, safety monitoring systems, children's toys, and industrial power management matrices.
High-Integrity System Applications

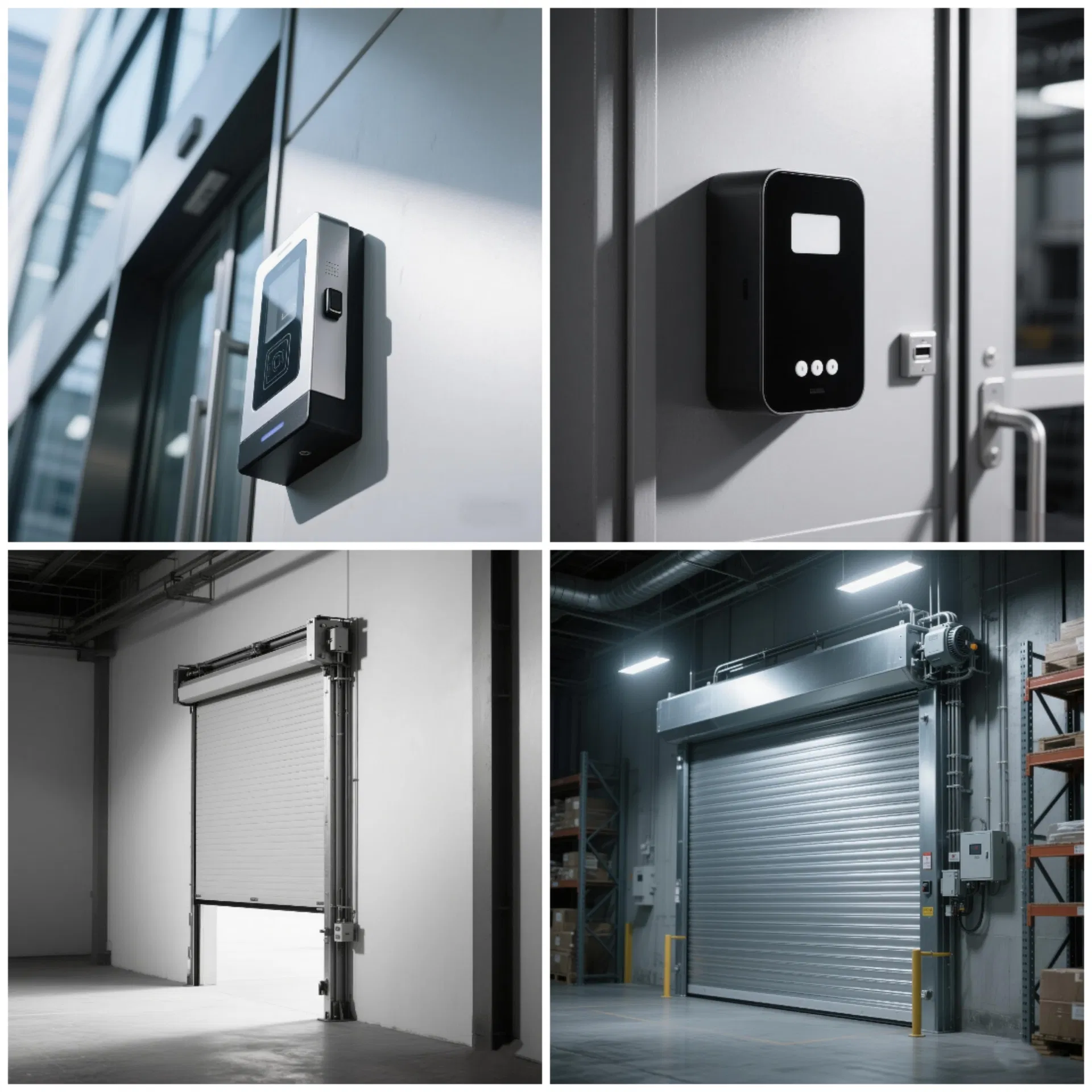

Versatile Equipment Scenarios
OEM & ODM Custom Manufacturing
Advanced production floor capabilities with optimized processing lines cater efficiently to custom structural sizes, electrical specifications, specific safety values, and private labeling.
Industrial OEM Engineering Flow
International Certifications
Manufactured strictly compliant with top international standards, ensuring optimal stability, low environmental footprint, and extreme hazard prevention.
Global Quality & Safety Certifications
Explore Other Lead Acid Batteries

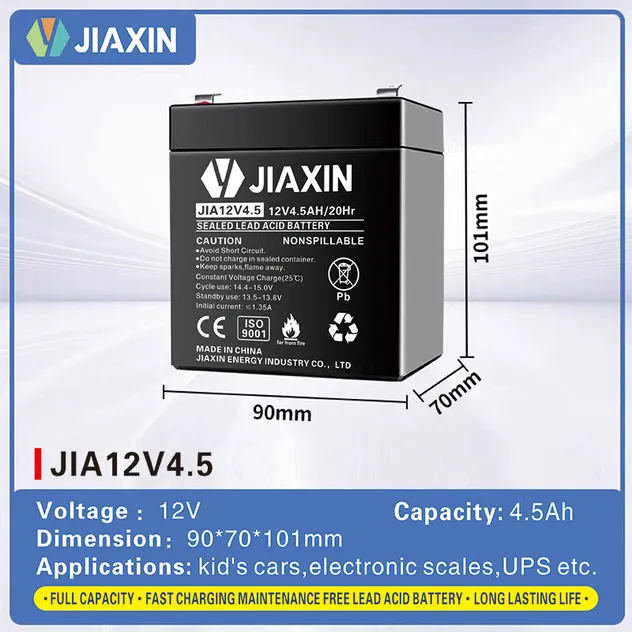

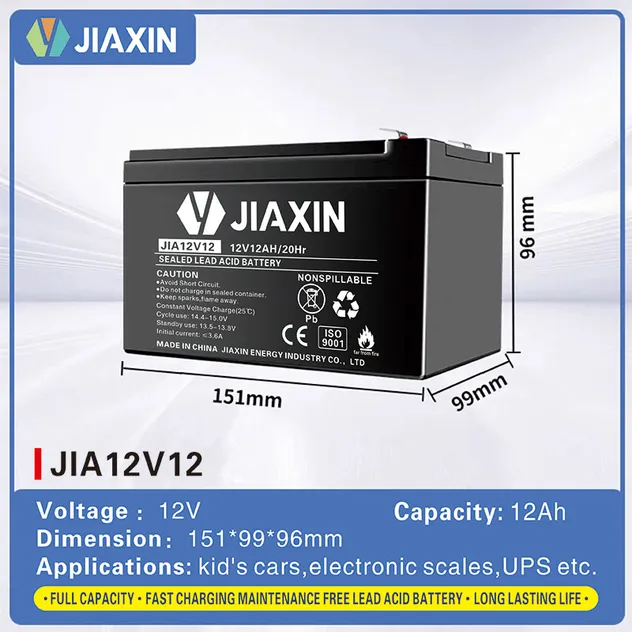

Specialty High Rate Lead Acid Battery
Deep Cycle Stationary Storage Unit
Advanced VRLA Gel Battery Pack
Heavy-Duty VRLA Solar Battery
Long Life UPS Standby Battery
High-Efficiency Grid Power Cell
Compact VRLA Backup Unit
Emergency Lighting Optimized Battery
Heavy-Duty AGM Power Solution

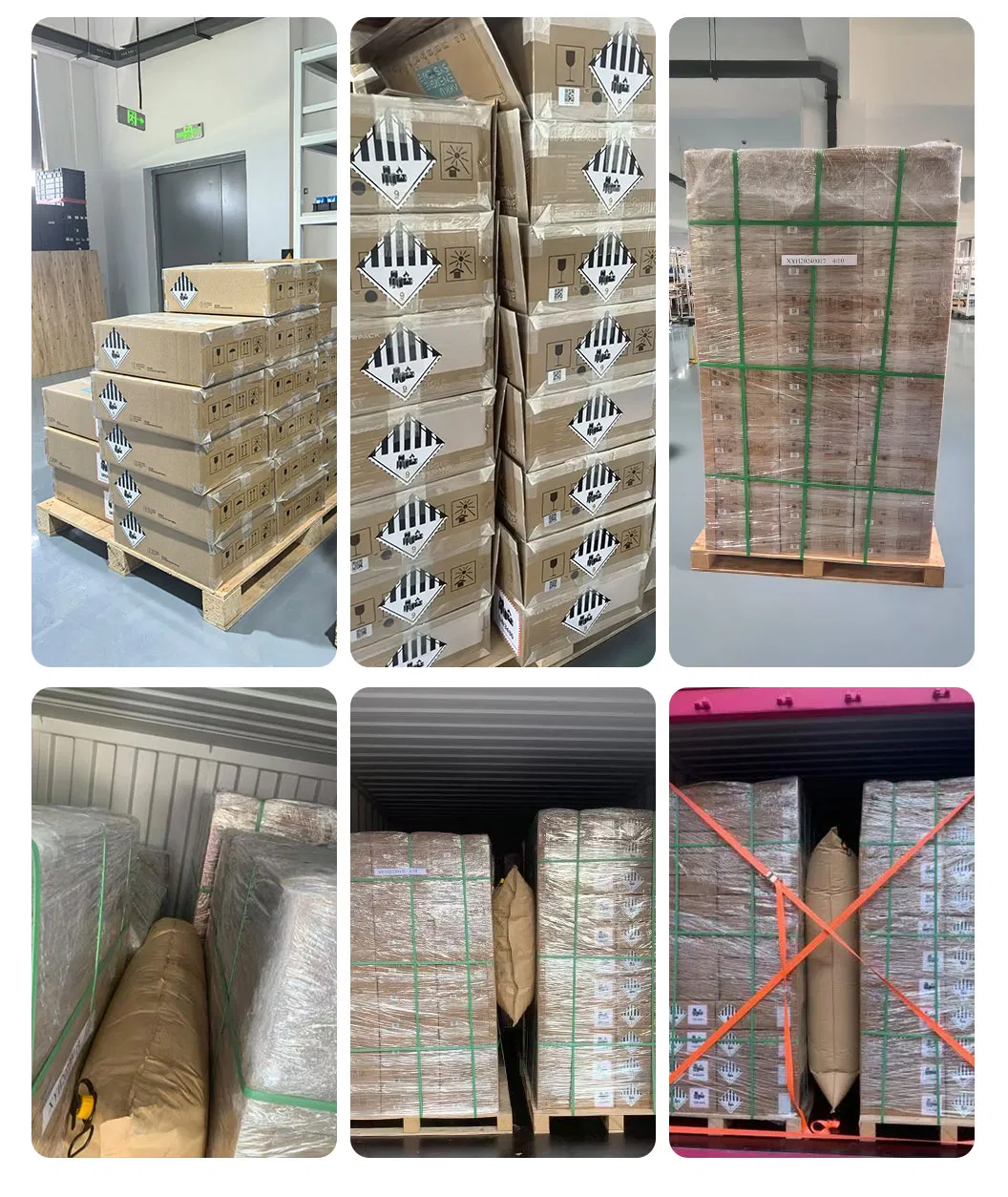

Robust Packing & Worldwide Cargo Delivery
Every shipping batch is secured inside explosion-proof packaging cartons and placed on reinforced cargo pallets to withstand tough transit forces over maritime, continental, or express delivery paths.
Standard Professional Export Pallet Packaging
Frequently Asked Questions (FAQ)
What are the main applications of this 12V 7Ah SLA VRLA battery?
This battery is widely used in emergency systems, rolling shutter doors, CCTV security surveillance, fire alarms, fire protection panels, medical devices, electric tools, children's ride-on cars, electronic scales, and UPS systems.
Does this battery require regular maintenance like refilling water?
No, this battery features a negative-absorption sealed construction that internally recombines gas into water. It is completely leakproof and spillproof, meaning there is zero need to add distilled water or electrolyte throughout its lifespan.
Can this AGM battery be installed in horizontal or vertical positions?
Yes! The advanced AGM separator design absorbs all free liquid electrolyte inside the battery, which ensures it is non-spillable and completely safe to be mounted and operated in any orientation or position.
How often should the battery be recharged if left in storage?
To maintain optimal plate health, it is recommended to recharge the stored battery every 6 months to prevent self-discharge capacity degradation and ensure long lasting service life.
What benefits do the copper-plated silver terminals offer?
The copper-plated silver terminals offer extremely low electrical contact resistance, allowing stable power delivery, reducing heat generation under high load currents, and preventing corrosive rust.
What makes this battery safe for domestic fire and security systems?
It utilizes heavy-duty, flame-resistant ABS engineering plastic for its shell alongside a highly reliable silicon-fluorine rubber safety cap. These features guarantee explosion-proof capability and prevent any corrosive leaks, assuring safety in residential or commercial settings.
