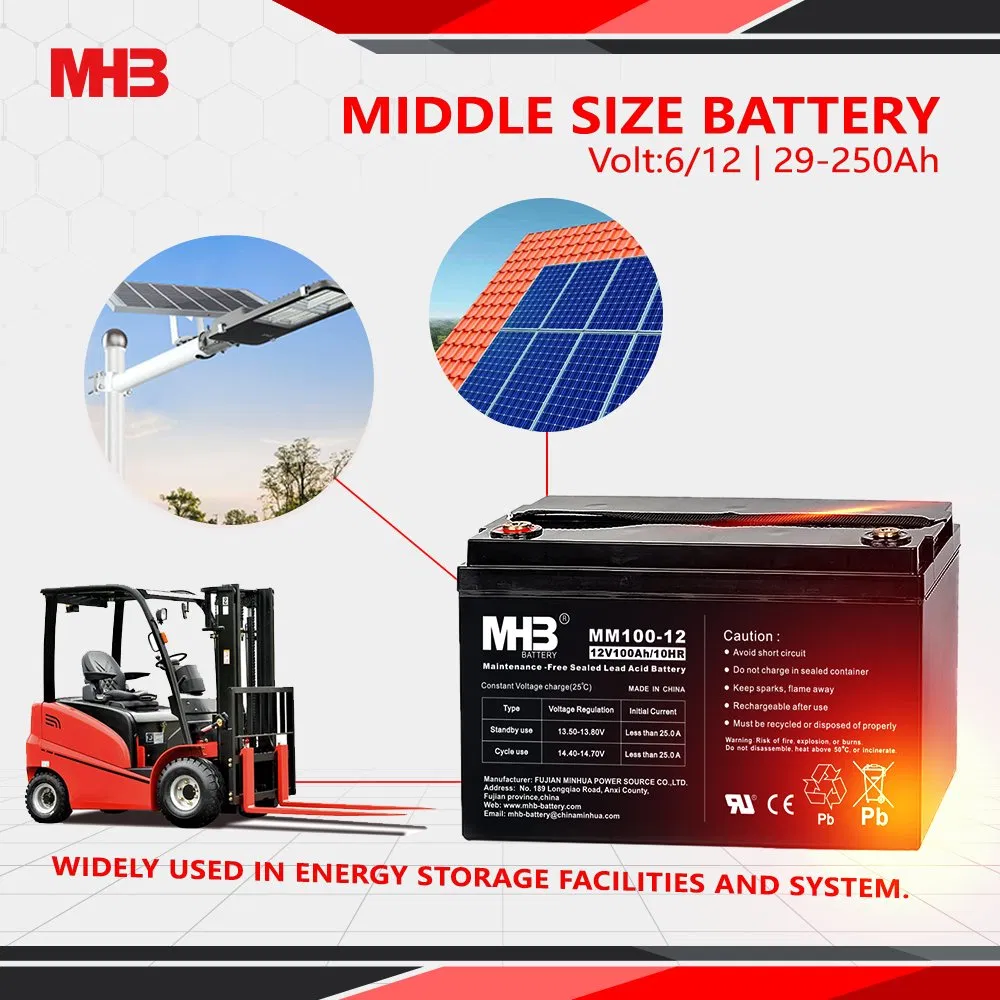

Mhb Mmg200-12 Wholesale VRLA AGM Deep Cycle UPS 12V 200ah 12 Volt Gel Solar Storage Energy Lead Acid Dry Battery for Solar and Wind System

Still deciding? Get samples of $ !
Order Sample

Product Description

Product Overview

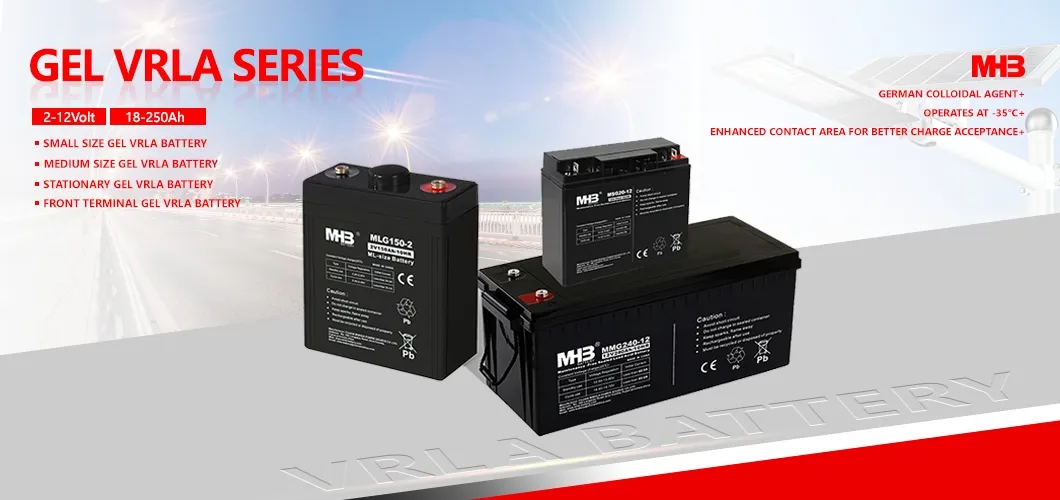

Deep Cycle Gel Battery
Model NO.
MMG 200-12
Nominal Voltage
12V
Capacity
200ah
Cycle Life
5000 Times
Material
ABS
Electrolyte
Acid / Gel
Weight
58.00 Kg
Shelf Life
3-5 Years
Key Advantages
High Performance Gel Technology: Colloidal electrolyte prevents leakage and plate vulcanization, ensuring stable capacity output even during deep cycles.
Maintenance-Free: Sealed valve-controlled (VRLA) structure eliminates the need for water addition or regular upkeep.
Environmental Adaptability: Reliable operation within a wide temperature range of -20°C to 50°C.
Low Self-Discharge: Maintains charge effectively during long-term storage, making it ideal for backup systems.

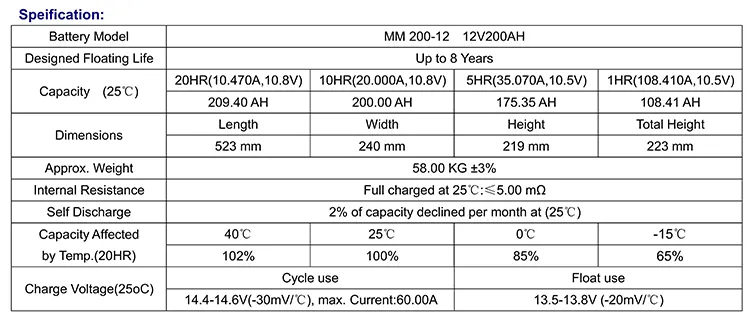

Battery Advantages
Technical Specifications

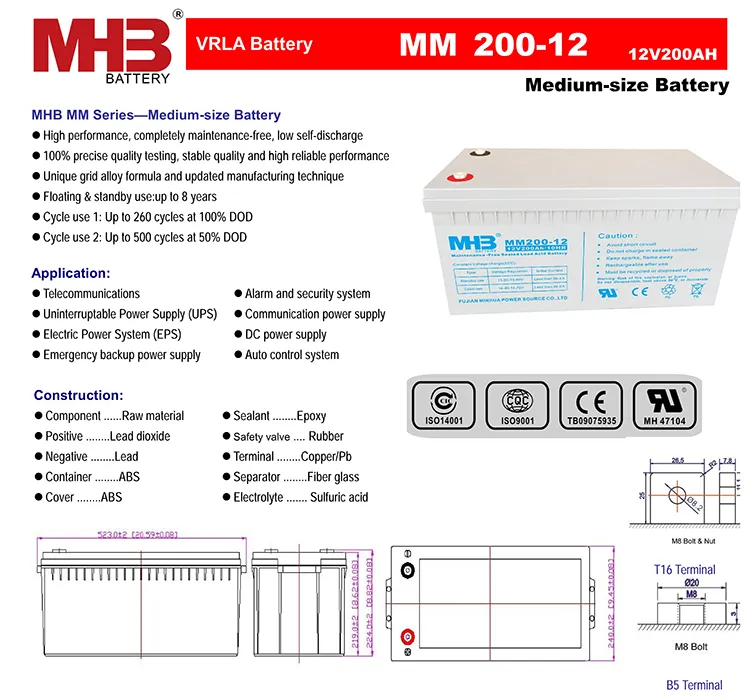

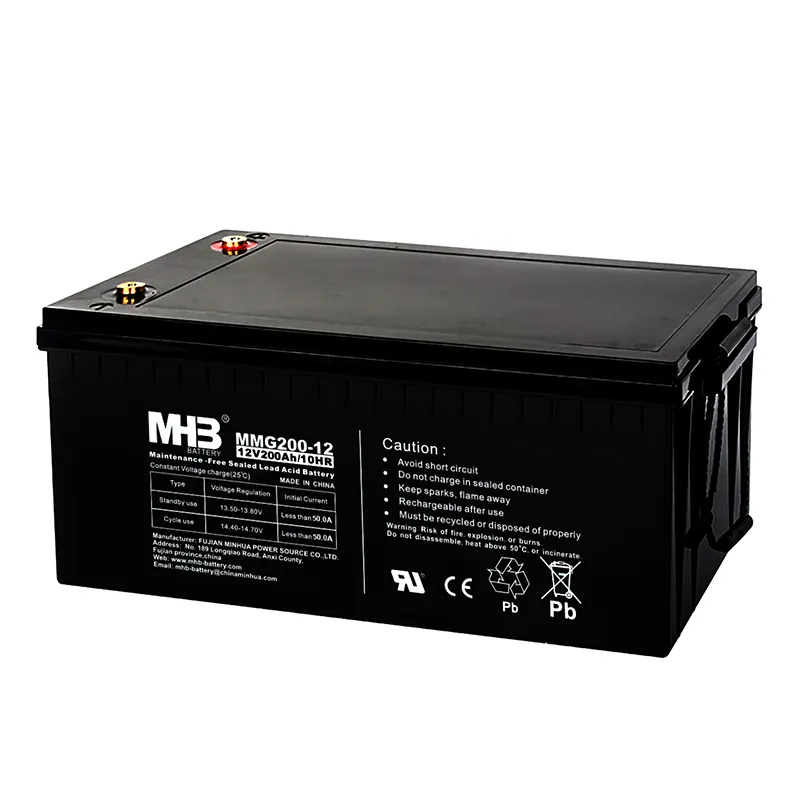

Specification Chart 1 Specification Chart 2

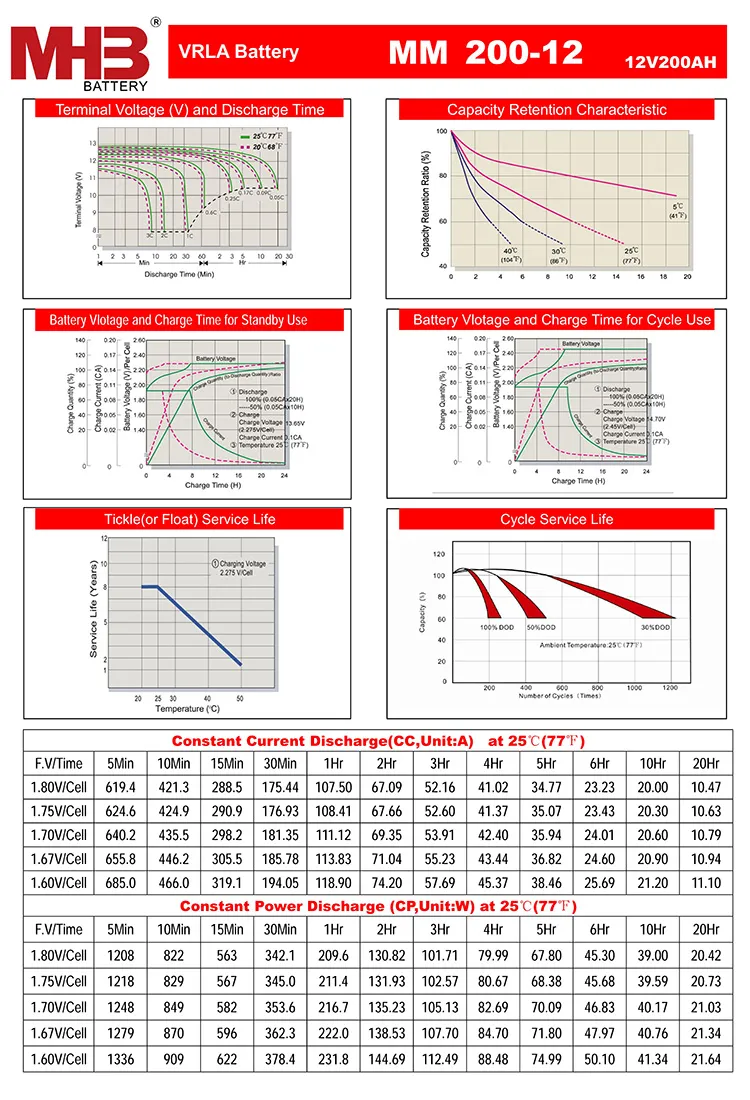

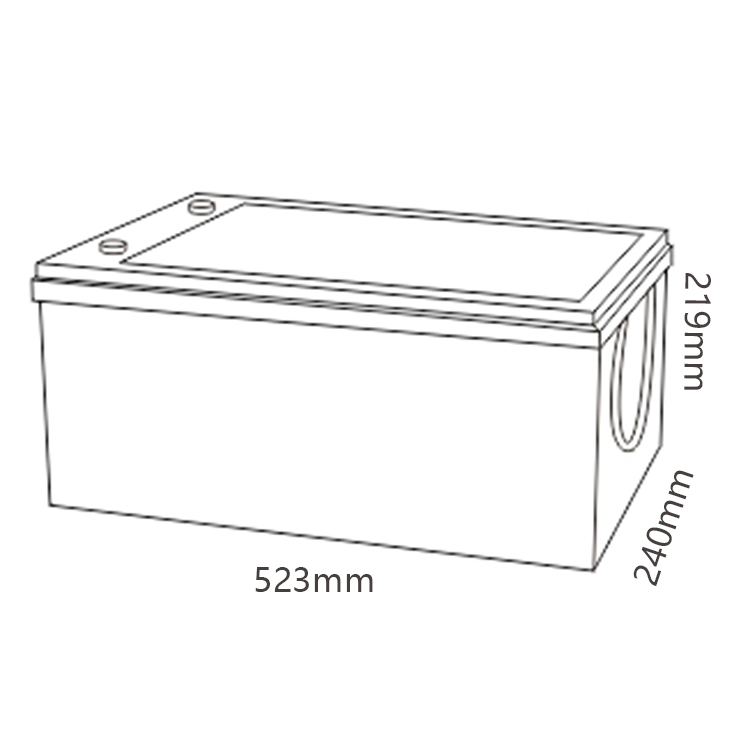

Technical Drawing Performance Graph
Battery Application
Product Categories
Category Header
UPS Battery Small Size Storage Battery Middle Size 2V Battery Series
Gel Battery Series Deep Cycle Series Front Terminal Series
Manufacturing Process

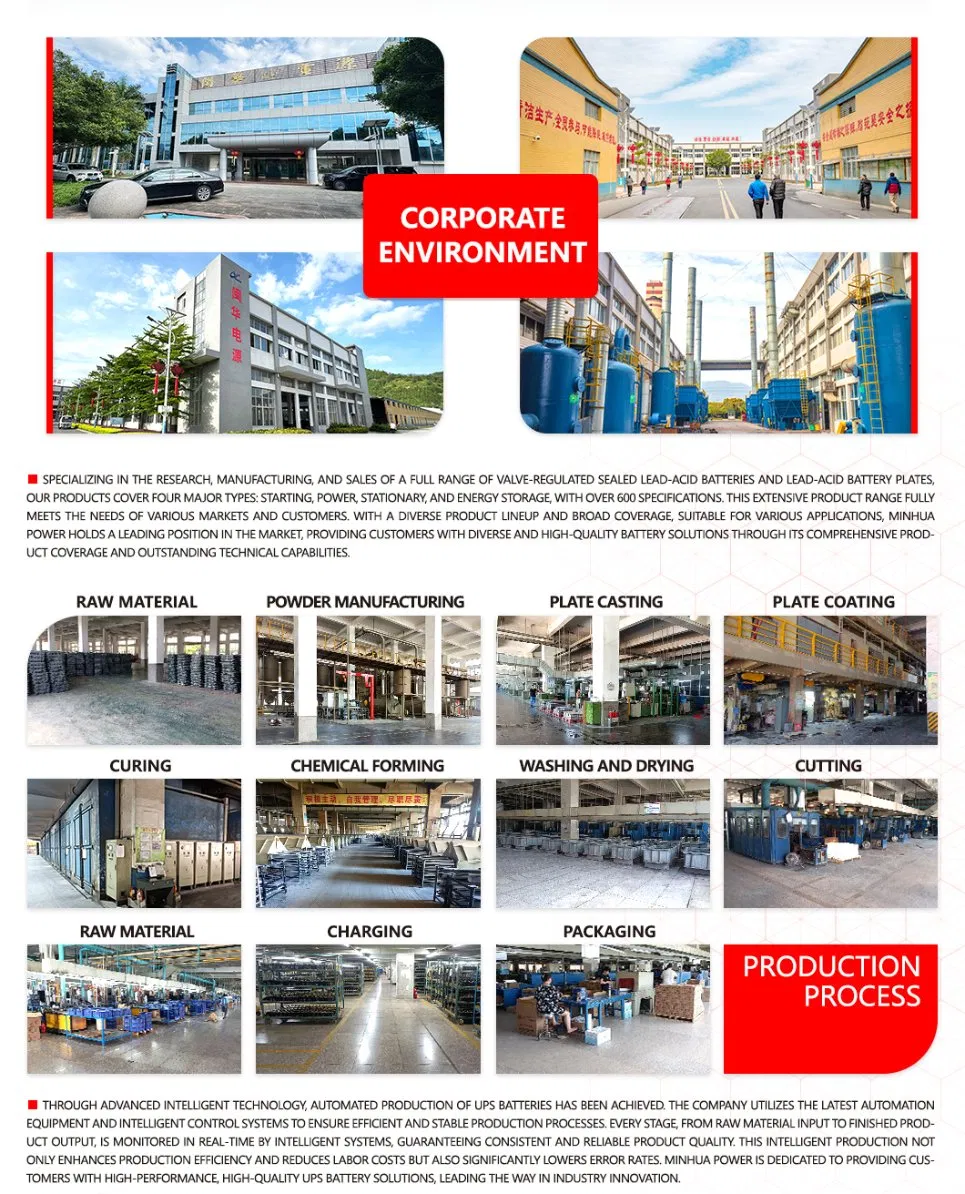

Production Workflow
Packaging & Delivery
Package Size
55.00cm * 26.00cm * 27.00cm
Gross Weight
60.000kg
Transport Package
Kraft Brown Outer Box / Colored Boxes
Shipping Info
Frequently Asked Questions
What are the main applications for the MMG 200-12 battery?
This battery is highly versatile and used in UPS/EPS systems, solar and wind energy storage, medical equipment, electric wheelchairs, and emergency power systems.
How many cycles can I expect from this Gel battery?
The MMG 200-12 is designed for deep cycle performance and offers a cycle life of up to 5000 times under optimal conditions.
Does this battery require regular maintenance?
No, it features a maintenance-free VRLA (Valve Regulated Lead Acid) structure. It is completely sealed, so there is no need to add water.
Can this battery work in extreme temperatures?
Yes, it is engineered to maintain stable performance in environments ranging from -20°C to 50°C.
What is the self-discharge rate of this model?
The battery has a very small self-discharge rate, allowing it to retain significant power even after long-term storage without frequent recharging.
What is the design life of the Gel battery series?
The design life typically ranges from 10 to 15 years, significantly reducing replacement frequency and long-term costs.
