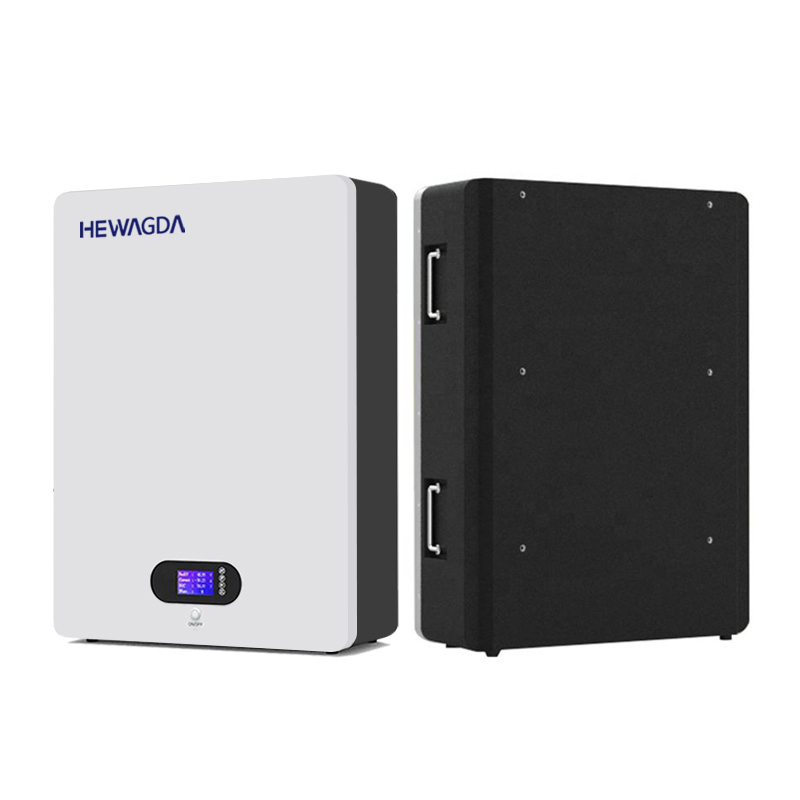

High-Capacity 51.2V 200ah LiFePO4 Battery 100ah 200ah 300ah 10kwh-15kwh Wall-Mounted Design for Solar Backup Power
High-Capacity 51.2V 200ah LiFePO4 Battery 100ah 200ah 300ah 10kwh-15kwh Wall-Mounted Design for Solar Backup Power
High-Capacity 51.2V 200ah LiFePO4 Battery 100ah 200ah 300ah 10kwh-15kwh Wall-Mounted Design for Solar Backup Power
High-Capacity 51.2V 200ah LiFePO4 Battery 100ah 200ah 300ah 10kwh-15kwh Wall-Mounted Design for Solar Backup Power
High-Capacity 51.2V 200ah LiFePO4 Battery 100ah 200ah 300ah 10kwh-15kwh Wall-Mounted Design for Solar Backup Power
1 / 5
High-Capacity 51.2V 200ah LiFePO4 Battery 100ah 200ah 300ah 10kwh-15kwh Wall-Mounted Design for Solar Backup Power
High-Capacity 51.2V 200ah LiFePO4 Battery 100ah 200ah 300ah 10kwh-15kwh Wall-Mounted Design for Solar Backup Power
High-Capacity 51.2V 200ah LiFePO4 Battery 100ah 200ah 300ah 10kwh-15kwh Wall-Mounted Design for Solar Backup Power
High-Capacity 51.2V 200ah LiFePO4 Battery 100ah 200ah 300ah 10kwh-15kwh Wall-Mounted Design for Solar Backup Power
High-Capacity 51.2V 200ah LiFePO4 Battery 100ah 200ah 300ah 10kwh-15kwh Wall-Mounted Design for Solar Backup Power

High-Capacity 51.2V 200ah LiFePO4 Battery 100ah 200ah 300ah 10kwh-15kwh Wall-Mounted Design for Solar Backup Power

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.51.2V 200Ah
Cycle Life6000 Cycles
Nominal Capacity10.24kWh
Product NameWall Mounted Battery
Voltage51.2(V)
Capacity200Ah
ApplicationHousehold Energy Storage
Specification580*230*650mm
OriginGuangdong, China
HS Code8507600090
Battery Design

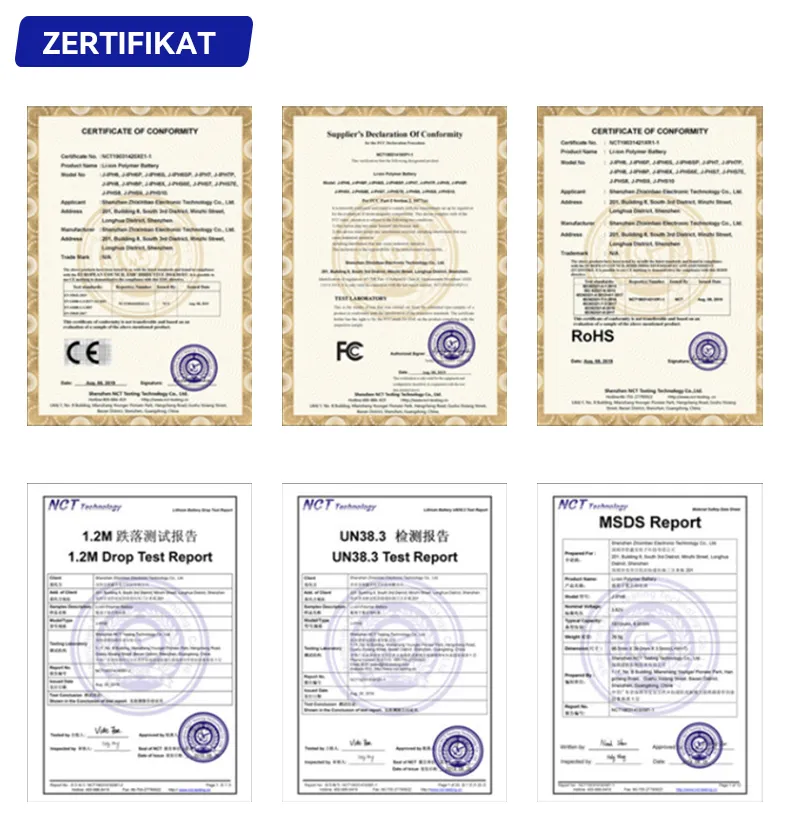

Battery Details

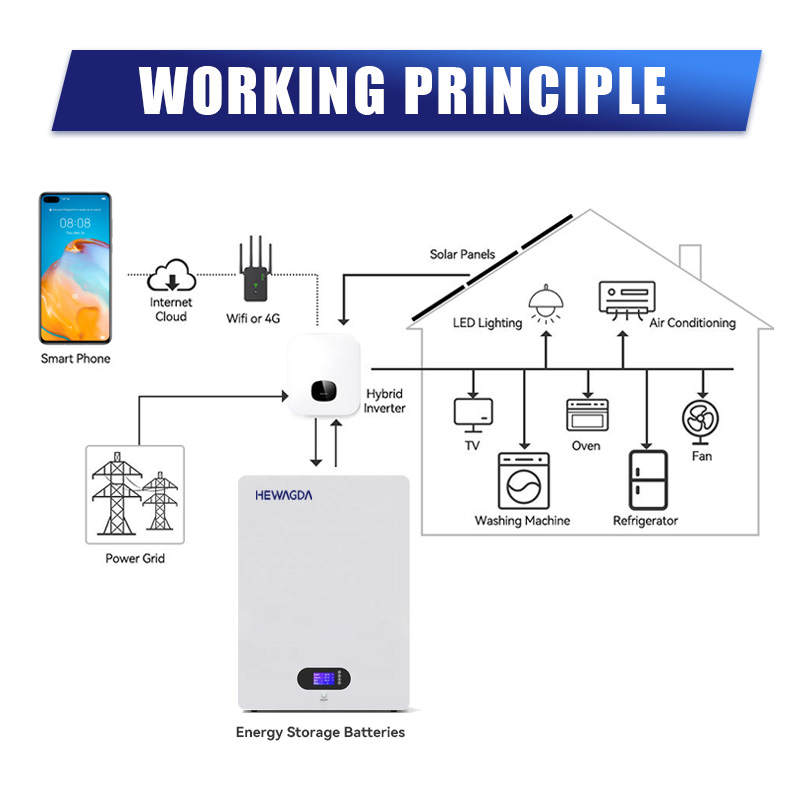

Solar Backup Power
★

Product Introduction

Focusing on new energy lithium battery solutions, we provide intelligent energy storage systems for small and medium-sized enterprises. Our lithium batteries are designed for environmental sustainability, power efficiency, and long-term household energy storage. We aim to create value and a better life through high-quality technology and win-win cooperation.

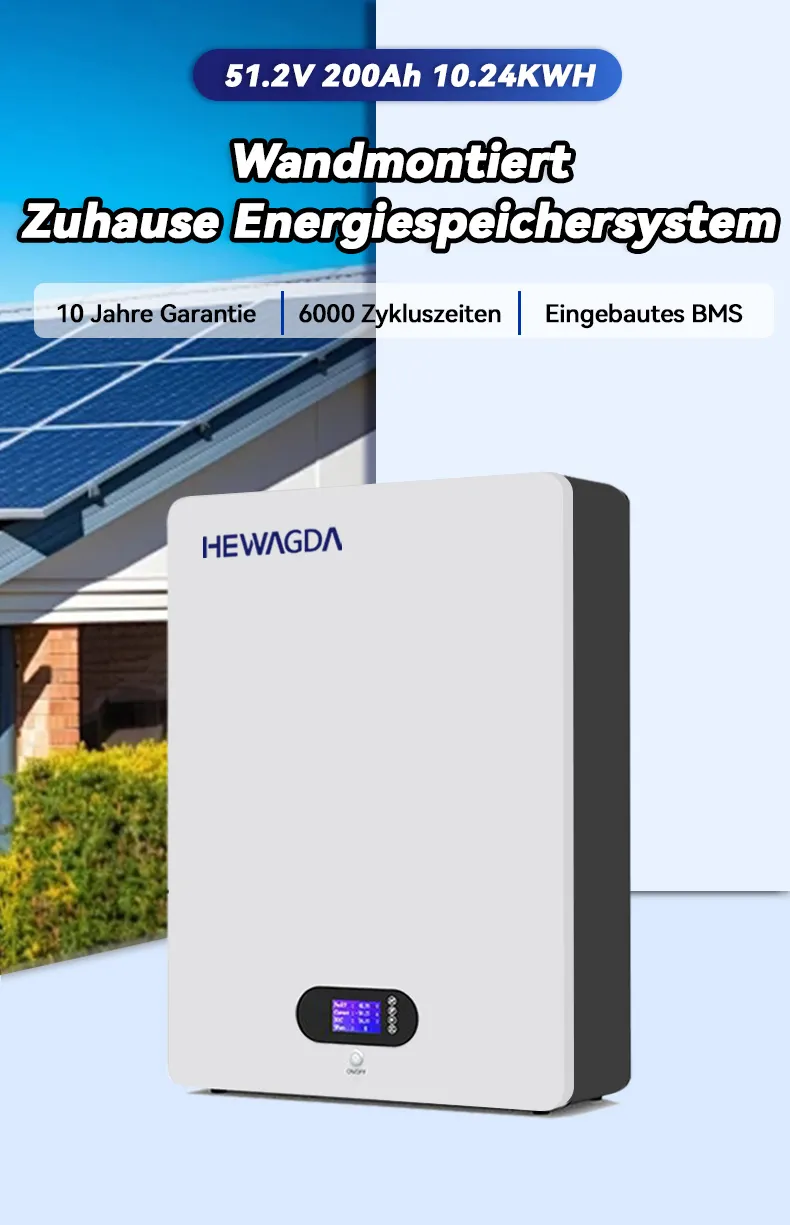

Production View

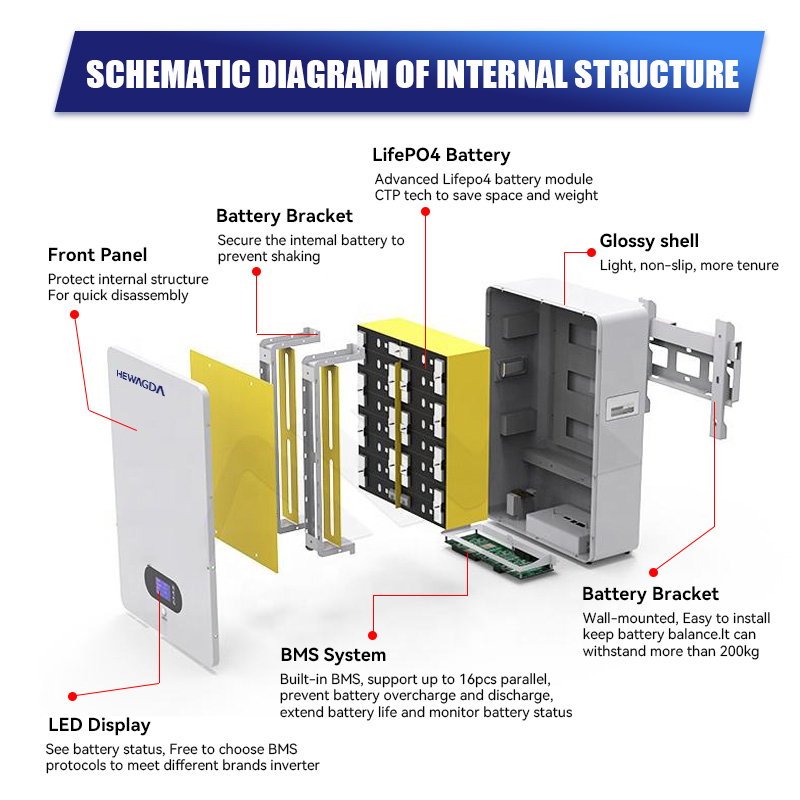

Battery Internal

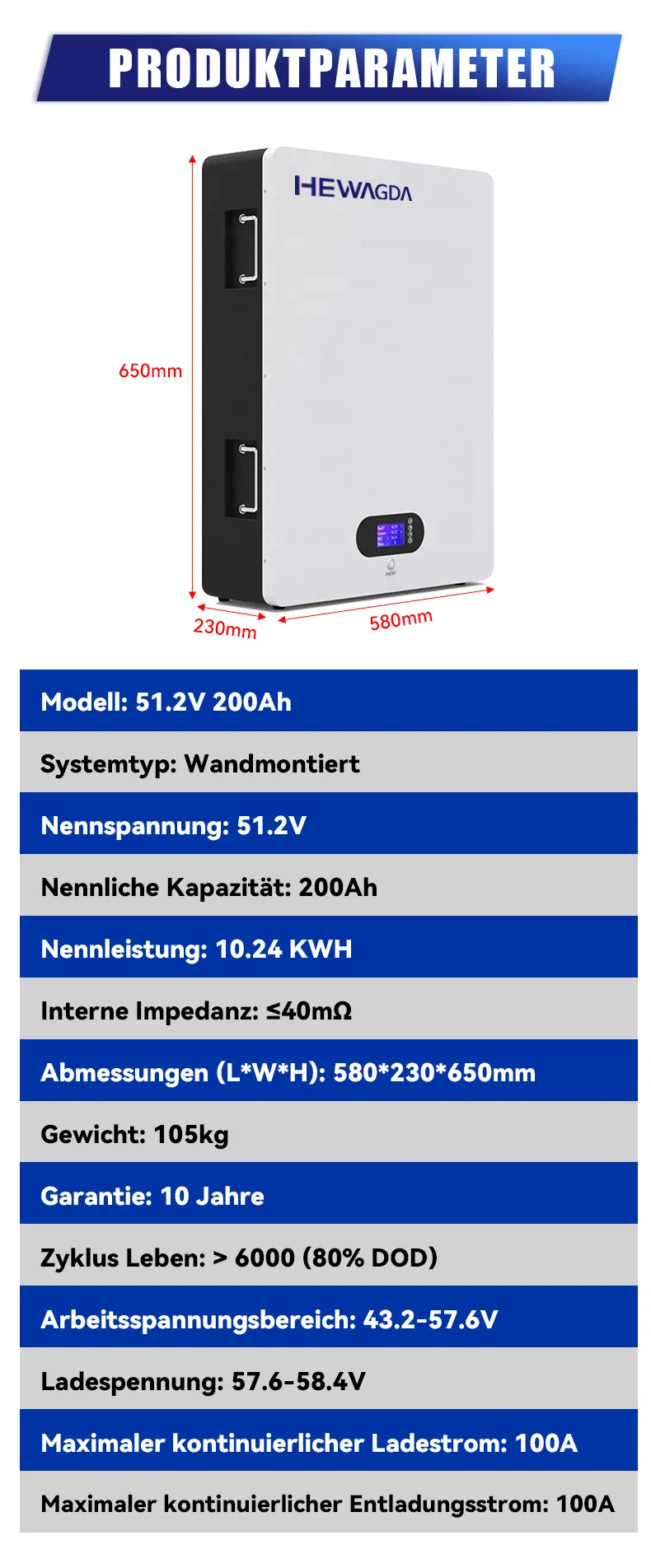

Technical Specs
📋

Cell Parameters (CATL)

Model V & Ah Impedance (mΩ) Weight (kg)
CATL 50AH3.7V 50Ah≤2.01.38
CATL 120AH3.2V 120Ah≤0.72.86
CATL 200AH3.2V 200Ah≤0.253.84
CATL 280AH3.2V 280Ah≤0.35.34
CATL 314AH3.2V 314Ah≤0.185.5
CATL 340AH3.2V 340Ah≤0.185.55
⚙

System Configuration Tips

  • 48V System: Requires 16 pieces of cells.
  • 24V System: Requires 8 pieces of cells.
  • 12V System: Requires 4 pieces of cells.
  • Suitable for: 12V / 24V / 48V / 72V / 96V Solar Storage Systems.
  • Applications: Home backup, Campers, RVs, Yachts, and Off-grid power.
🔋

Battery Pack Options

Voltage Capacity Nominal Energy Dimensions (mm) Weight
12.8V100Ah1280 WH260*175*21112 kg
12.8V230Ah2560 WH522*240*24525 kg
25.6V100Ah2560 WH522*240*21522 kg
25.6V200Ah5120 WH530*238*25048 kg
51.2V100Ah5120 WH580*320*22020 kg
51.2V200Ah10240 WH580*320*22048 kg

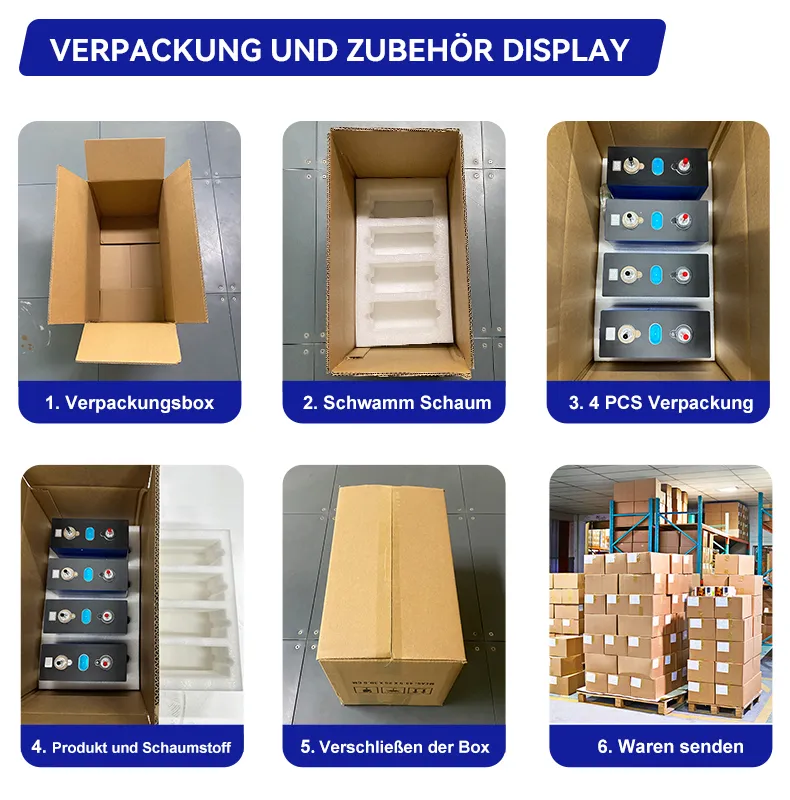

Packaging
Safety Testing
  • High hardness custom sponge for protection.
  • 5-layer dangerous goods export corrugated cartons.
  • Insulation tape on positive and negative terminals.
  • Each cell labeled with test data before delivery.
?

Frequently Asked Questions

Do the batteries come with busbars and bolts?
Yes, the cells include free Bus bars and Bolts or studs. Each battery comes with 1 piece of busbar and 2 pieces of bolts/studs.
Are the batteries tested before they are shipped?
Absolutely. Every battery undergoes a Capacity Test (less than 2% error), Voltage Test (deviation < 0.01V), and Resistance Test (deviation < 0.05mΩ) prior to shipping.
What is the expected cycle life of these batteries?
These batteries are designed for long-term use, offering a cycle life of approximately 6000 cycles under standard conditions, making them ideal for solar storage.
Can I use these batteries for my RV or Boat?
Yes, these LiFePO4 batteries are perfect for backup power in household energy storage systems, campers, RVs, yachts, and other off-grid applications.
What are the requirements for DIY assembly?
For DIY battery packs, cells must be balanced (same voltage) before assembly. It is highly recommended to use a proper BMS (Battery Management System) for protection.
How is the battery protected during shipping?
We use high-hardness custom sponge reinforcements and 5-layer export-grade corrugated cartons. If required, wooden packaging can also be provided.
