24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
1 / 5
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery

24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery

Customization: Available
Type: Lead-Acid Batteries
Usage: Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat
Send Inquiry

Product Description

iBasic Info.

Model NO.
GEL
Nominal Voltage
12V
Discharge Rate
Low Discharge Rate
Shape
Square Battery
Electrolyte
Acid
Installation
Packaged
Rechargeable
Chargeable
Size
520*240*224cm
Application
Solar Power System
Product Name

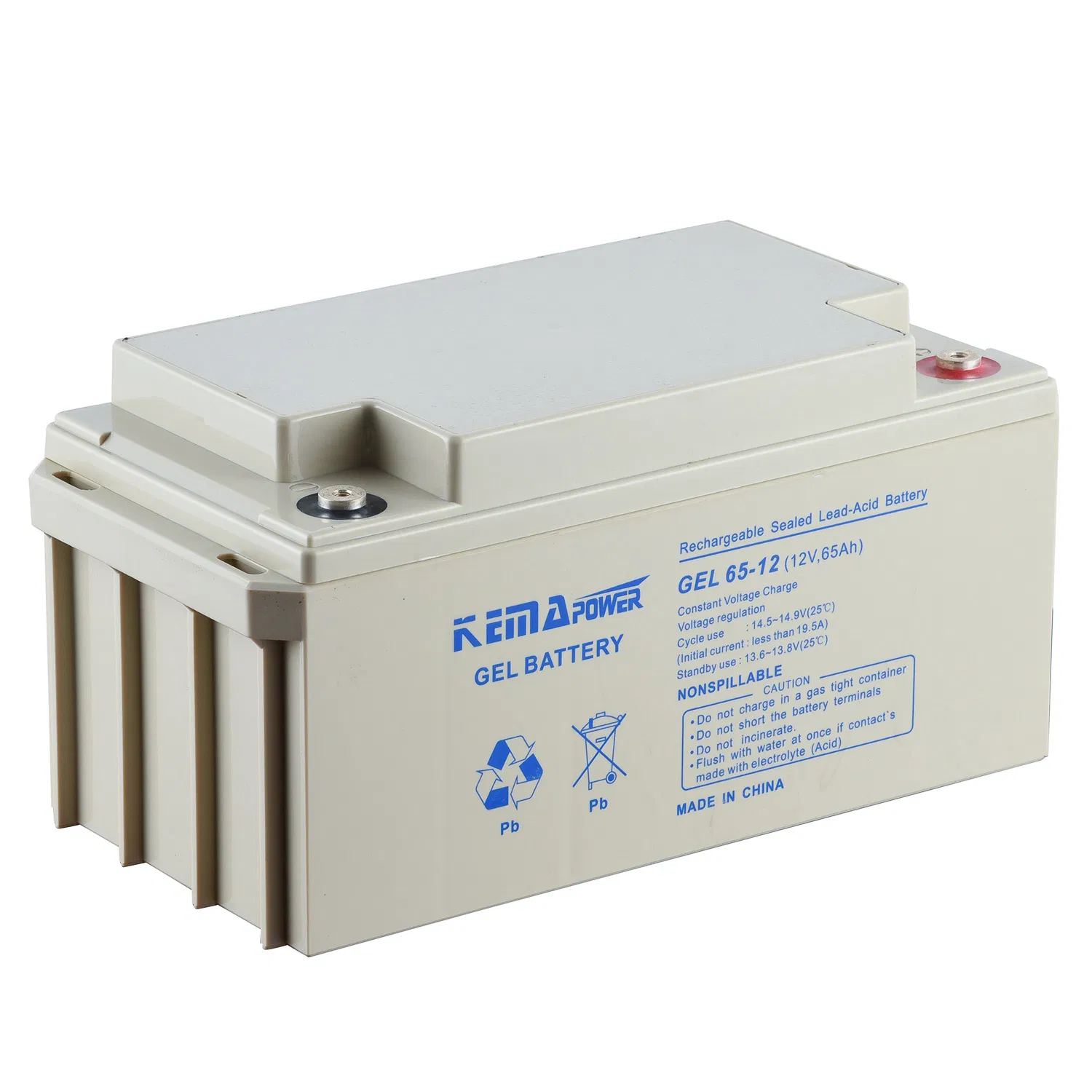

Gel65-12 Flat Plate Gel VRLA 12VDC Battery
Service Life
10years
Transport Package
Seaworthy Packing
Specification
24AH-250AH
Origin
China
HS Code
8507200000
Production Capacity
60, 000PCS/Year

📦Packaging & Delivery

Package Size
166.00cm * 125.00cm * 182.00cm
Package Gross Weight
9.000kg

FLAT PLATE GEL VRLA 12VDC BATTERY

GEL 24-230AH

Key Features

✓
Premium Materials Primary material is gas silicon dioxide from import.
✓
Fully Sealed Design With cover and pole double seal design to prevent leakage of electrolysis, and for the reliability of safe-vale, prevent oxygen and dust from outside enter into the battery.
✓
Maintenance Free With the performance of water reproduce and high sealed reaction efficiency, no need for any compensation of and water during use.
✓
Safety Protection Without acid leaked, reliable gas pressure venting system and equipped with anti-explosion device, which make the battery safer during use.
✓
Long Cycle Life Anti-erosion pb-ca multi-alloy, ABS plastic material and high sealed reaction efficiency to assure the service life.
✓
Temperature Adaptability The battery can be used safely during -25-50ºC.
✓
Convenient & Safe Charged with load before leaving the factory, without free electrolysis, allowed to be placed breadth ways and transported by sea and railway as nonhazardous material.
✓
Highly Economical With high performance, long service life and lowest maintenance cost to offer consumers the most economical products.

Technical Specifications

BATTERY MODEL Voltage Capacity Resistance Charge Voltage (VDC) Charge Current Product Size (MM) Product Weight Terminal Type
(VDC) (Ah) (mΩ) Equalization and Cycle Float Maximum Amp L W H T/H KG
GEL24-12 12 24 <=13 14.4-15 13.65 6Amp 166 125 175 182 8.00 M6
GEL26-12 12 26 <=11 14.4-15 13.65 7.5Amp 166 125 175 182 8.50 M6
GEL38-12 12 38 <=10 14.4-15 13.65 9.5Amp 197 165 170 182 12.00 M6
GEL40-12 12 40 <=8 14.4-15 13.65 12Amp 197 165 170 182 12.00 M6
GEL55-12 12 55 <=6.5 14.4-15 13.65 14Amp 227 138 206 228 17.20 M6/L-6
GEL65-12 12 65 <=6.1 14.4-15 13.65 16.25Amp 350 166 178 178 21.00 M6
GEL100-12D-15 12 100 <=5 14.4-15 13.65 25Amp 330 173 220 240 27.00 M8
GEL100-12D-17 12 100 <=5 14.4-15 13.65 25Amp 330 173 220 240 28.50 M8
GEL100-12M 12 100 <=4.4 14.4-15 13.65 25Amp 407 174 238 238 31.00 M8
GEL120-12-15 12 120 <=4 14.4-15 13.65 25Amp 407 174 238 238 33.00 M8
GEL150-12-15 12 150 <=3 14.4-15 13.65 35Amp 485 171 241 241 37.00 M8
GEL150-12-17 12 150 <=3 14.4-15 13.65 35Amp 485 171 241 241 43.00 M8
GEL200-12-15 12 200 <=3 14.4-15 13.65 50Amp 520 240 224 244 57.00 M8
GEL200-12-17 12 200 <=3 14.4-15 13.65 50Amp 520 240 224 244 63.00 M8
GEL230-12 12 230 <=1 14.4-15 13.65 55Amp 520 269 203 203 67.00 M8

Note:

1. 10 year Service life, ABS shell.

2. The rated capacity (10 hour rate) is the average tested by several times at 25ºC.

3. The total height of the battery includes the terminal.

4. "L" terminal denotes quadrate terminal and postfix "o" terminal denotes cylindrical terminal.

5. It is to be noted that all these parameters are subject to change without notice.

Product Display

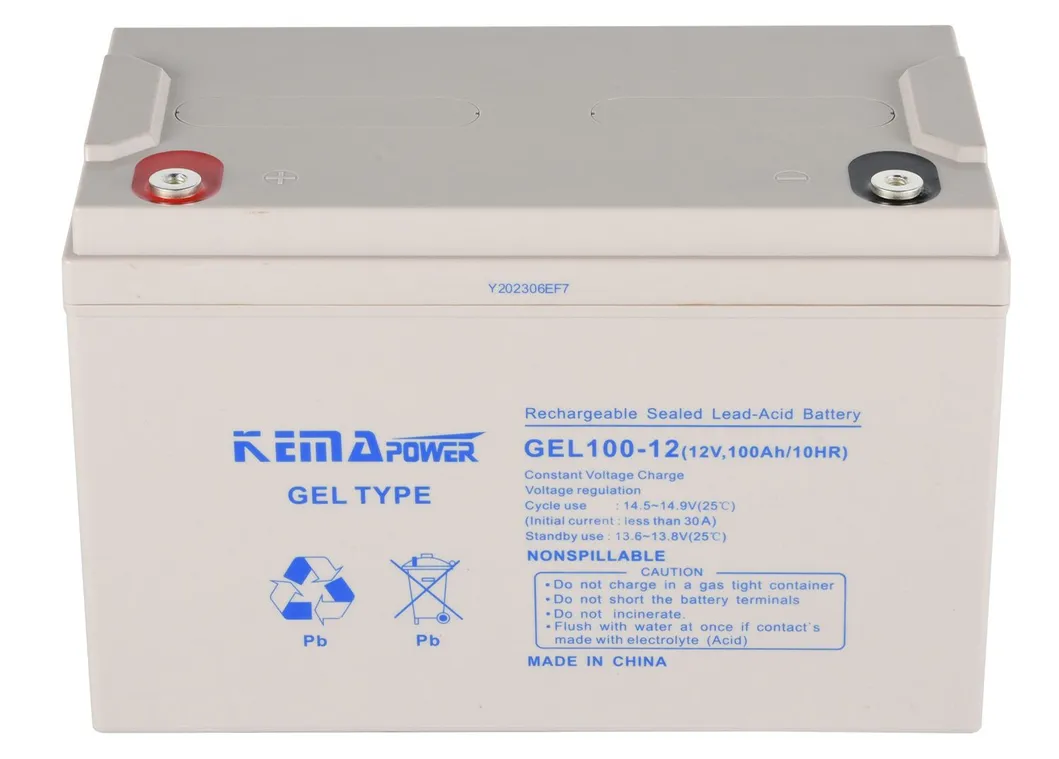

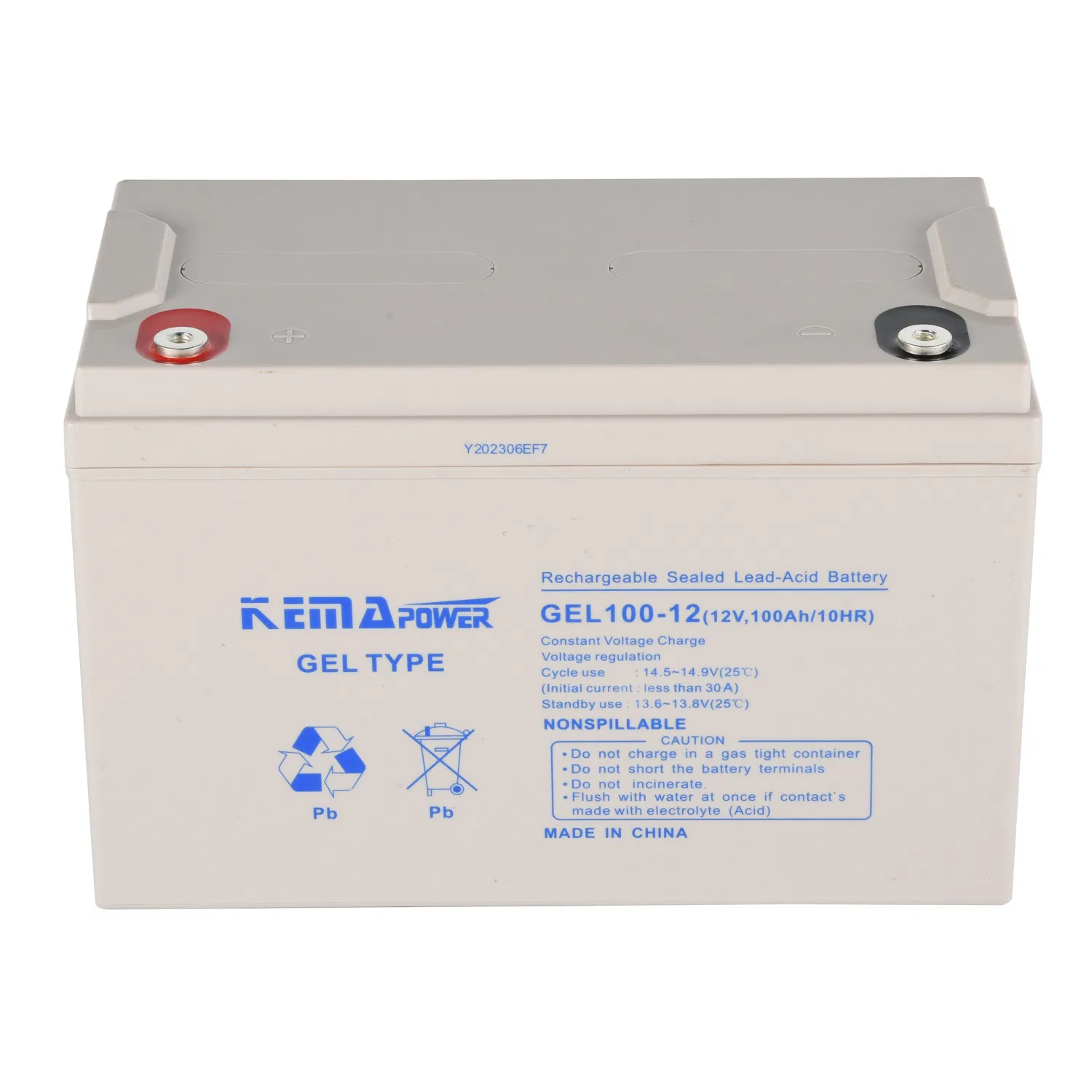

Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery Front View
Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery Side View
Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery Interior/Angle View
12V Solar Gel Battery Specifications Detail Part 1 12V Solar Gel Battery Specifications Detail Part 2 12V Solar Gel Battery Internal Structure Diagram 12V Solar Gel Battery Performance Testing Curves

Frequently Asked Questions

?What makes this Flat Plate GEL VRLA battery maintenance-free?
The battery features high sealed reaction efficiency and highly effective water reproduction performance. During normal operations, there is no electrolyte leakage or water loss, eliminating the need to add water or perform regular electrolyte compensation during its service life.
?What is the expected service life and temperature tolerance of the GEL battery?
This battery is constructed using anti-erosion Pb-Ca multi-alloy grid formulas and durable ABS casing, providing a design service life of up to 10 years. It also boasts remarkable temperature adaptability, operating securely in temperatures ranging from -25ºC to 50ºC.
?How does the fully sealed design improve battery safety?
It employs a unique double-seal design on both the cover and battery poles. Together with a highly reliable gas pressure safety valve and anti-explosion protection devices, it effectively prevents acid leakage and blocks external dust or oxygen from entering, ensuring maximum safety.
?Can these GEL batteries be safely transported?
Yes. Since there is absolutely no free electrolyte in the gel structure and the unit is fully sealed, it can be positioned flat/sideways and transported smoothly by railway and sea as a non-hazardous material. All batteries are charged with load prior to leaving the factory.
?What are the main applications of these 12VDC batteries?
These 12V flat plate VRLA GEL batteries are exceptionally suited for Solar Power Systems, energy storage applications, and deep-cycle requirements that demand a highly reliable, low discharge rate, and cost-effective power source.
