| Basic Specifications | |
|---|---|
| Model NO. | HWE-4F100 |
| Rechargeable | Yes |
| Size | Medium |
| Capacity | 100ah |
| Energy | 2560wh |
| Depth of Discharge | 98%~100% |
| Over-Discharge Cut-off Voltage | 10V |
| Over-Charge Protection Voltage | 14.6V |
| Cycle Life | >4000 Cycles |

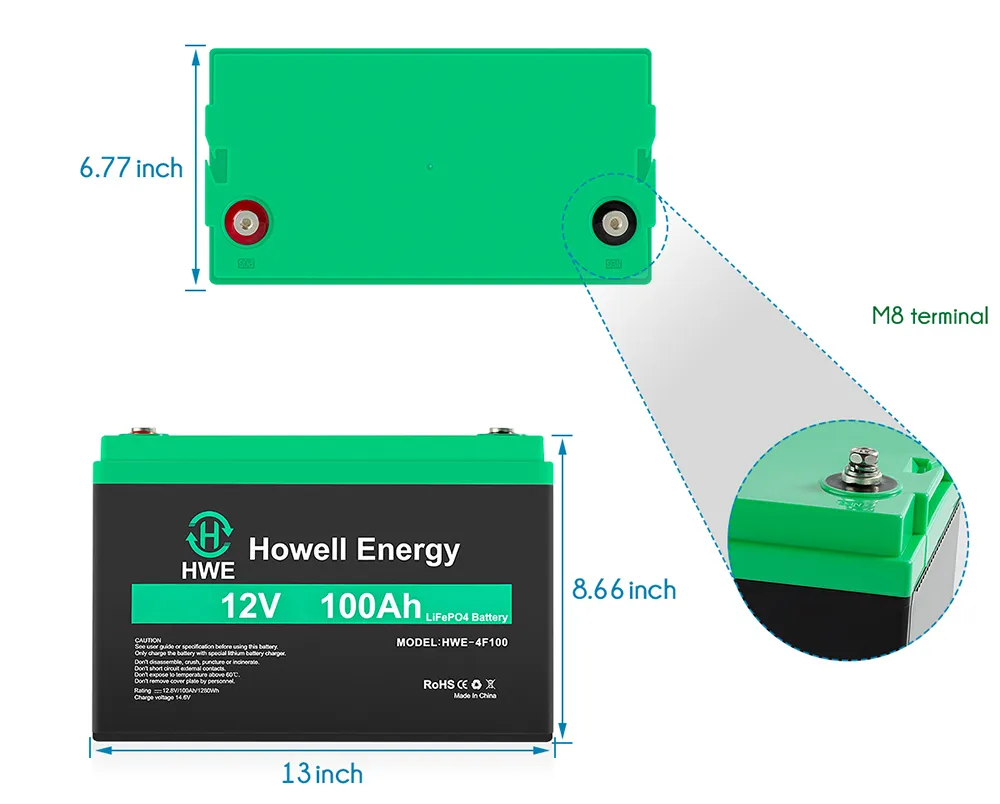

| Dimensions | 330*172*215/220mm |
| Weight | 11kg |
| Maximum Charge Current | 100A |
| Max. Continual Discharge Current | 100A |
| Discharge Temperature | -20-60 Degrees |
| Certifications | Bis/IEC62133/CE/RoHS/Un38.3/SGS/ISO9001 |
| Application | RV/Marine/Golf Cart/Solar Storage/UPS |
| Charge Temperature | 0-45 Degrees |
| Transport Package | 1PC/Carton |
| Specification | 330*172*215/220mm |
| Origin | China |
| HS Code | 8507600090 |
| Production Capacity | 600PCS/Day |
| Electrical & Package Details | |
|---|---|

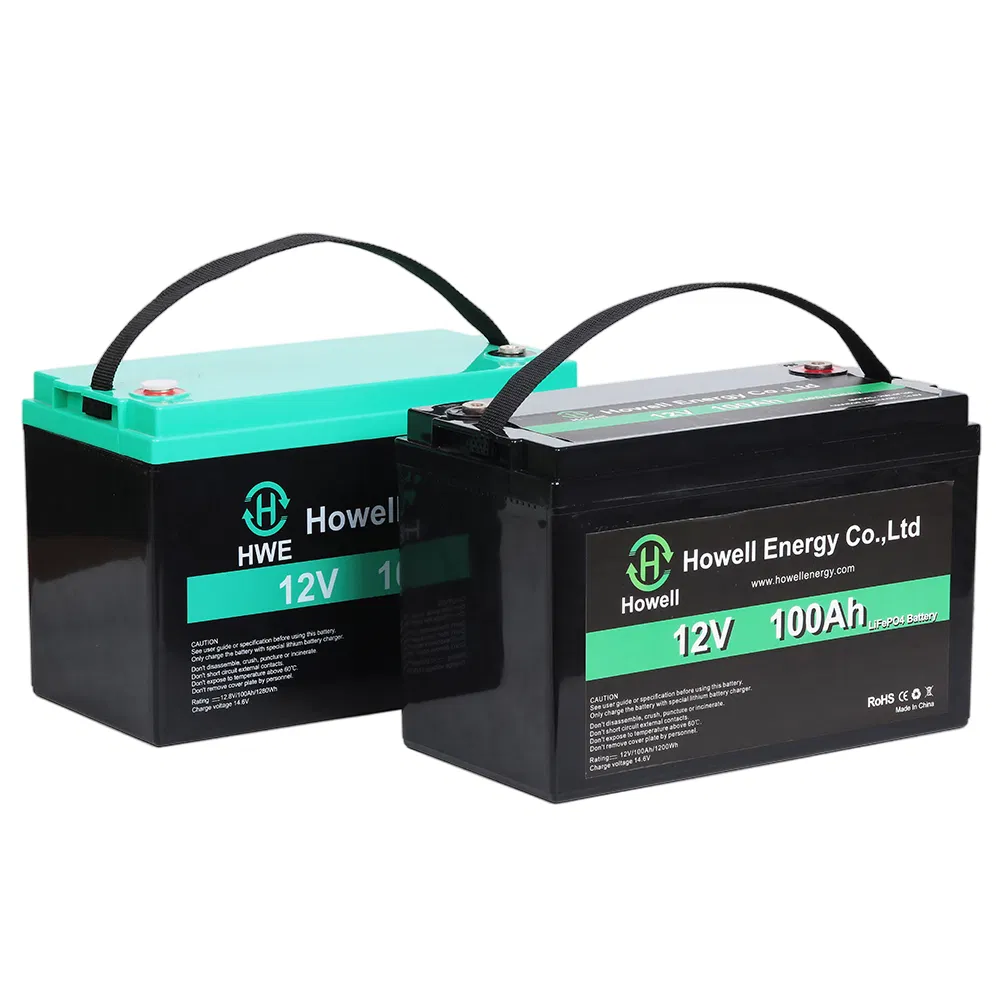

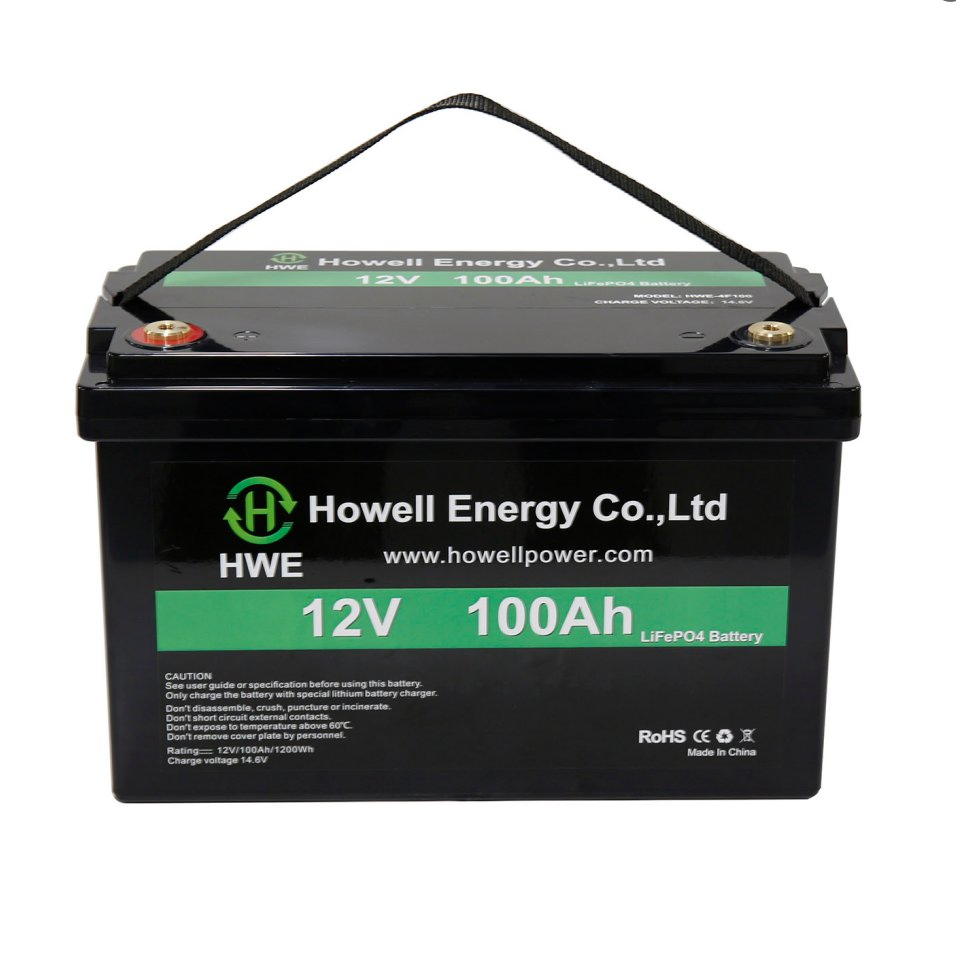

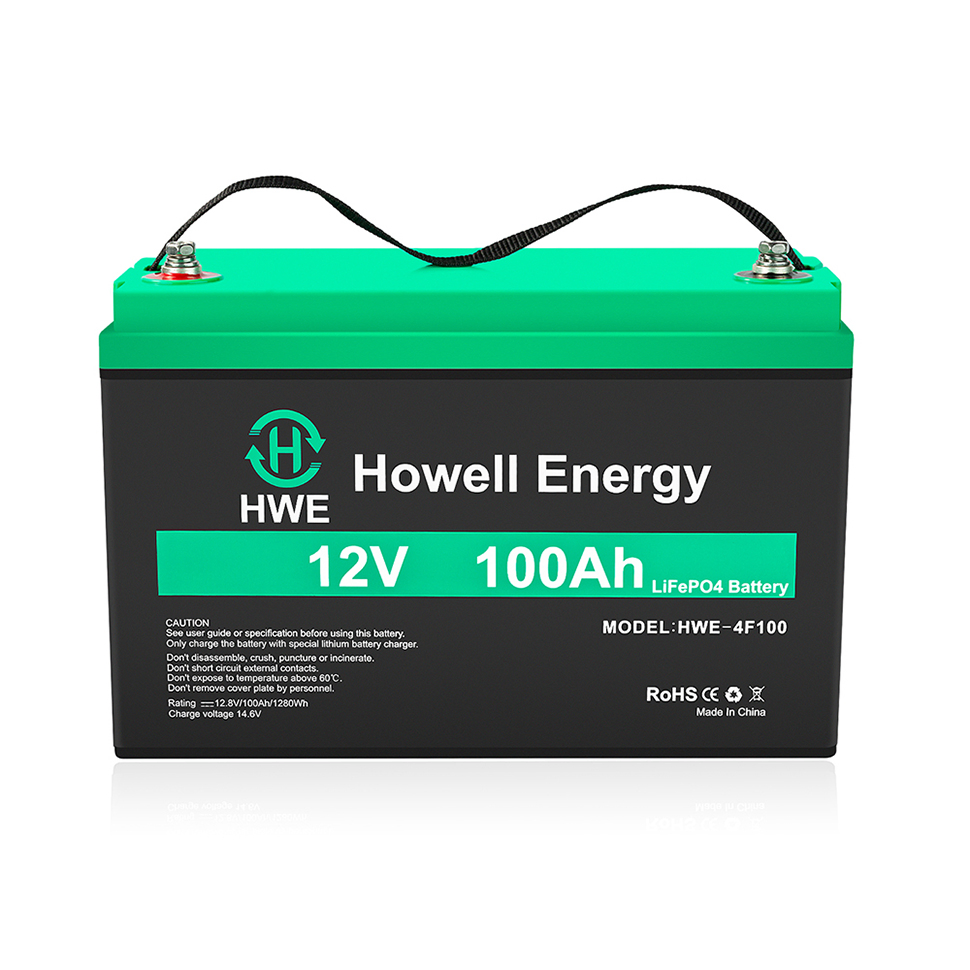

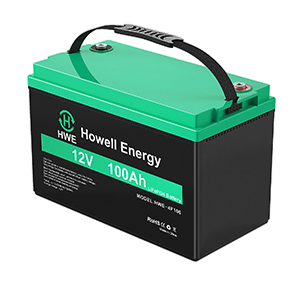

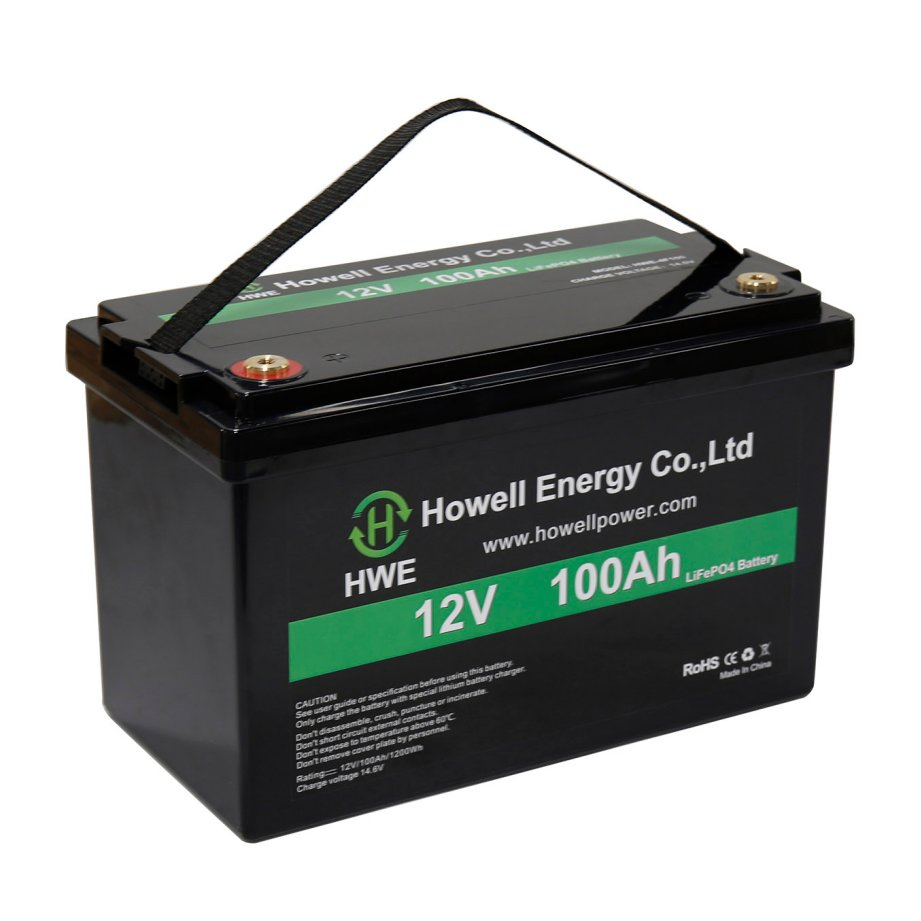

| Product | LiFePO4 battery 12V 100Ah |
| Nominal Voltage | 12.8V |
| Rated Capacity | 100Ah |
| Energy | 1280Wh |
| Cycle Life | >4000 cycles |
| Discharge Cut Off Voltage | 10.0V |
| Charge Voltage | 14.6V |
| Charge Method | CC/CV |
| Housing Material | ABS+PC |
| Max. Charge Current | 0.5C |
| Max. Discharge Current | 1C |
| Peak Discharge Current | 2C |
| Operate Temperature | -20~85ºC |
| Dimension | 330*172*215/220mm |
| Weight | 13.2kg |
| Package Size | 35.00cm * 22.00cm * 26.00cm |
| Package Gross Weight | 10.000kg |
The 12V lithium battery is a perfect replacement for conventional lead-acid, AGM, and gel batteries due to its high performance and increased efficiency. It is widely applied across various fields, including camping cars, RV motorhomes, golf carts, marine yachts, electric skateboards, LED backup lighting, engine starting, mobile POS systems, and mining lights.

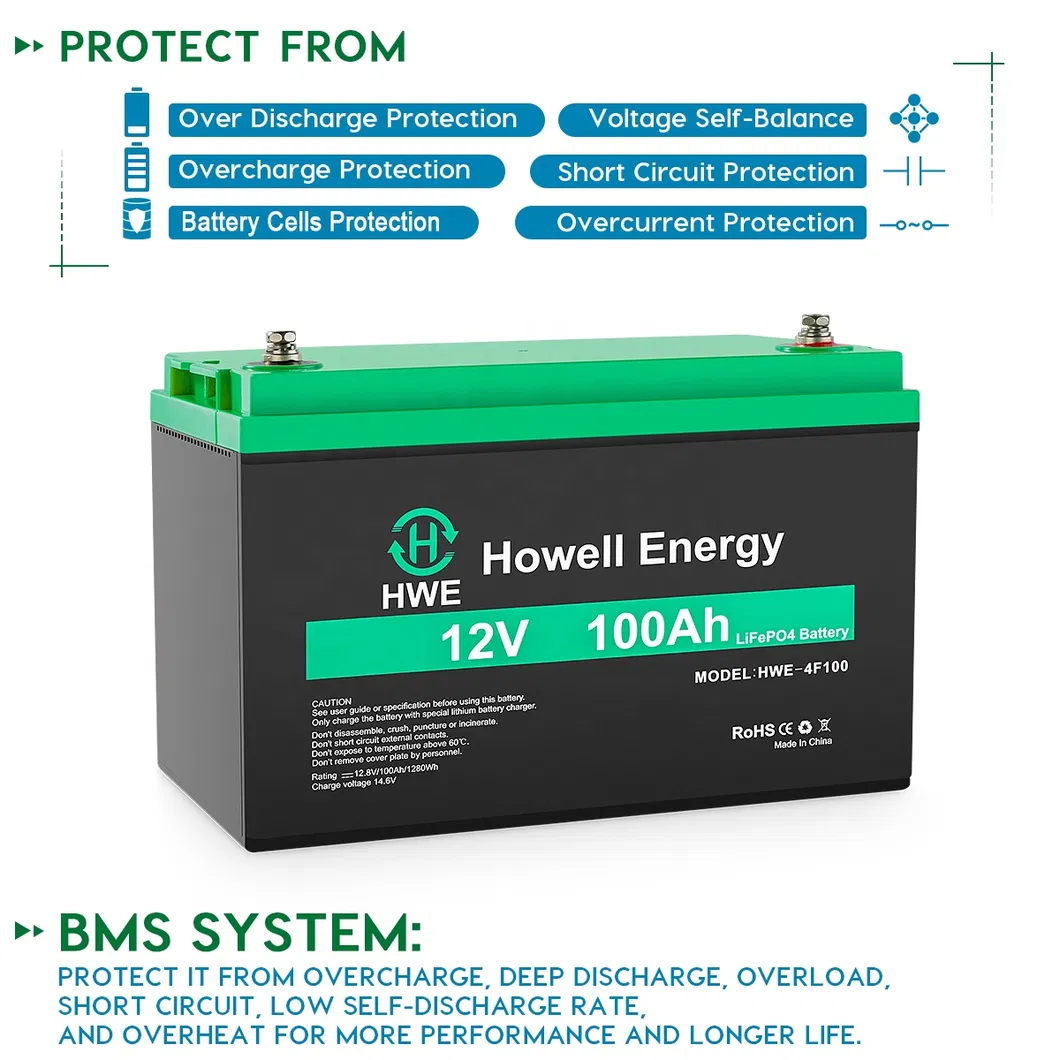

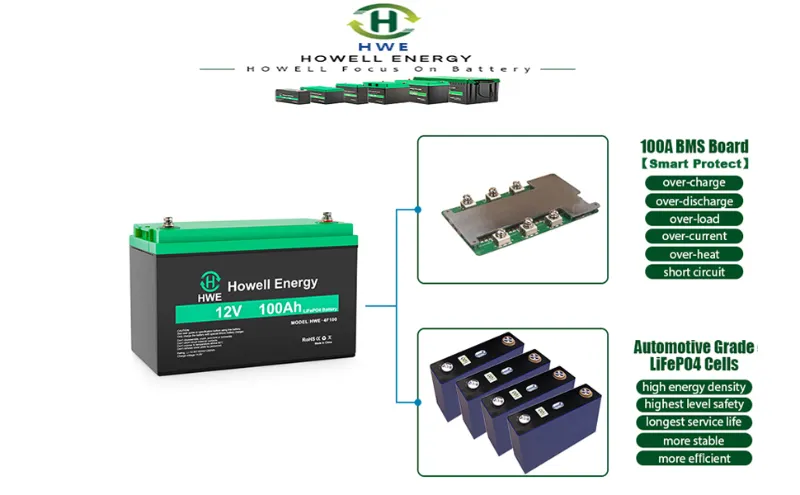

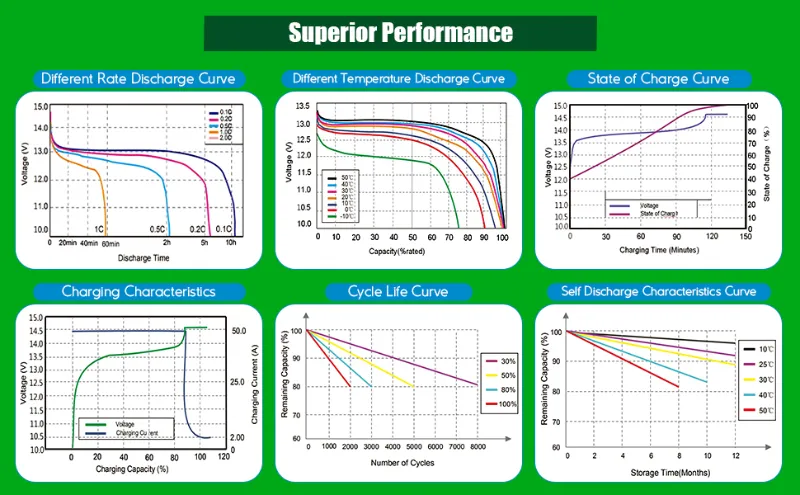

Utilizing high-safety lithium iron phosphate (LiFePO4) as the cathode material, the battery provides superior stability, high cycle life, remarkable specific power, and excellent low-temperature performance. It supports large current charging and discharging while ensuring robust protection through a built-in BMS (Battery Management System). With zero memory effect and zero maintenance requirements, it delivers reliable operational life for over 10 years.
