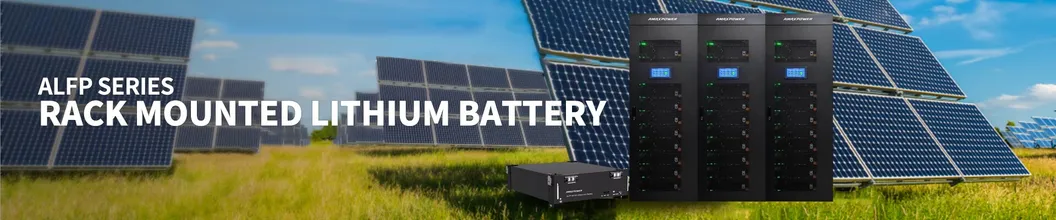

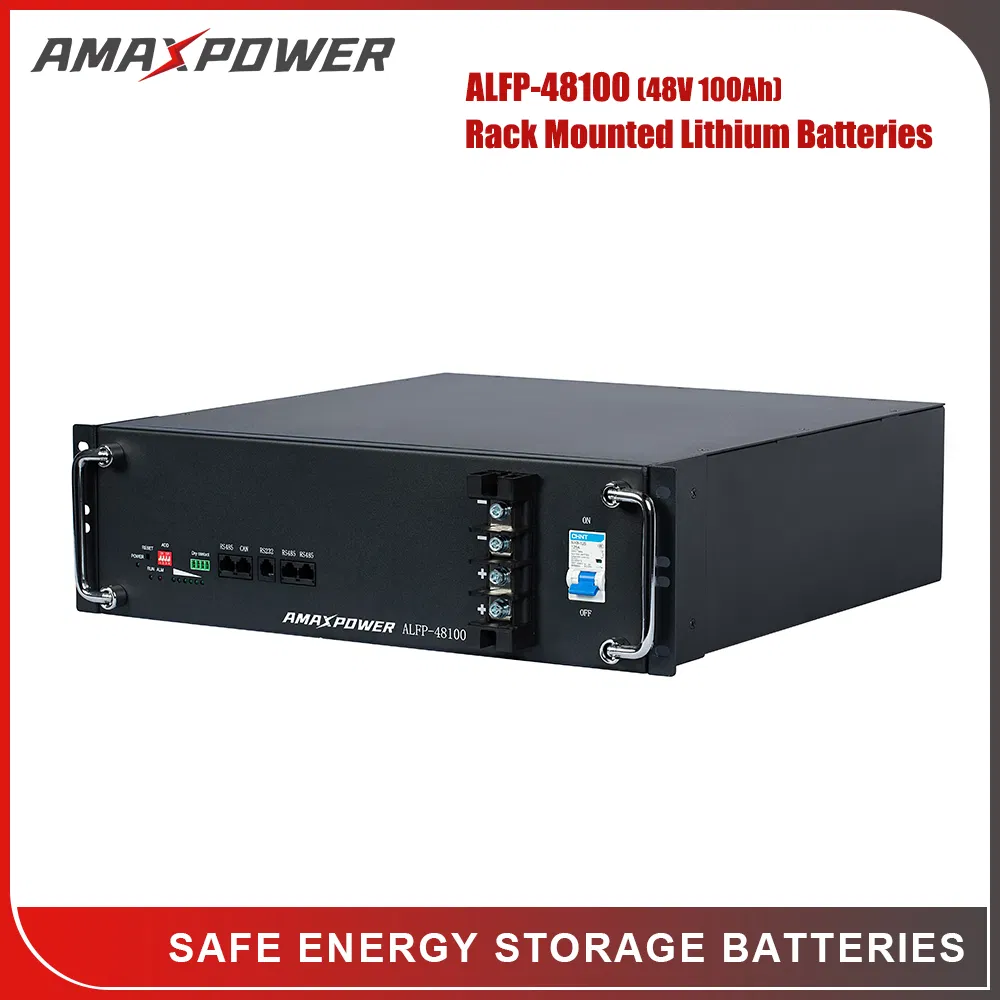

ALFP Series Rack Mounted lithium Battery systems are designed for communications back-up and telecom base stations. Utilizing advanced LiFePO4 (lithium iron phosphate) technology, these products offer long cycle life, compact size, lightweight build, and exceptional safety. The system is ideal for harsh outdoor environments due to its strong environmental adaptability.

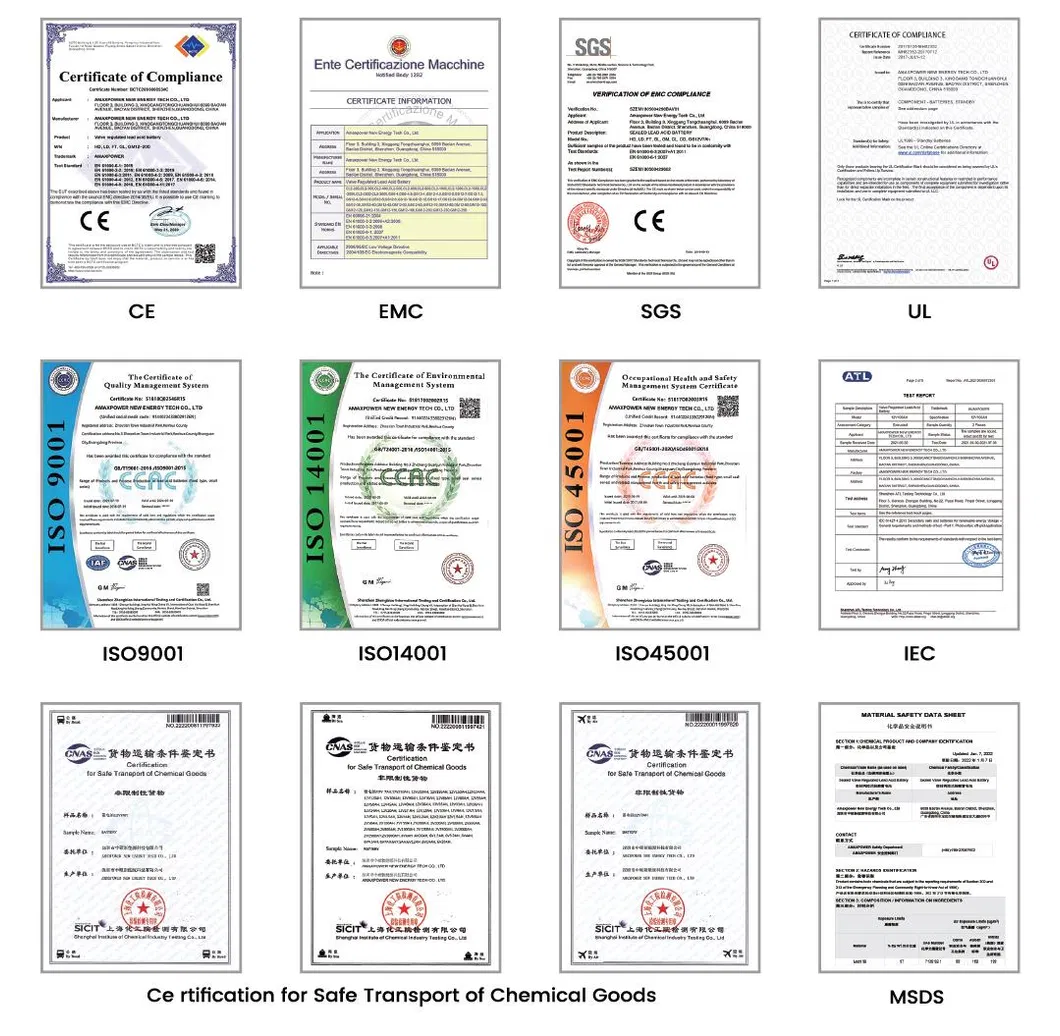

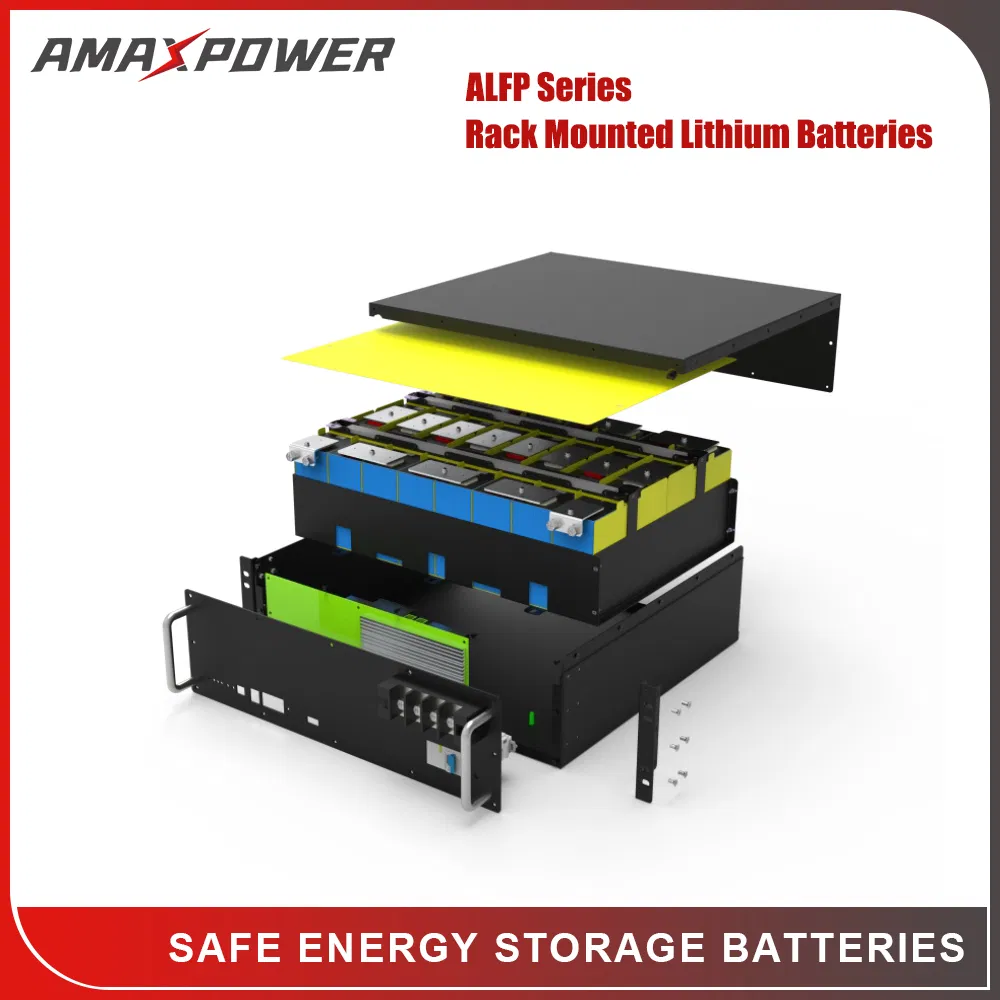

SAFETY: High-quality prismatic LiFePO4 cells suitable for energy storage. Low voltage system ensures application safety. Certified by UN38.3, MSDS, and CE.

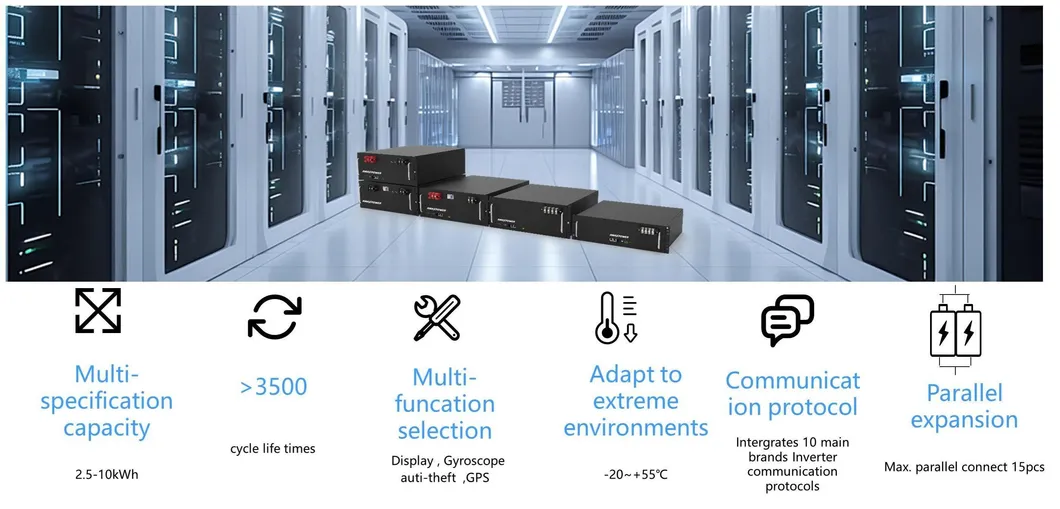

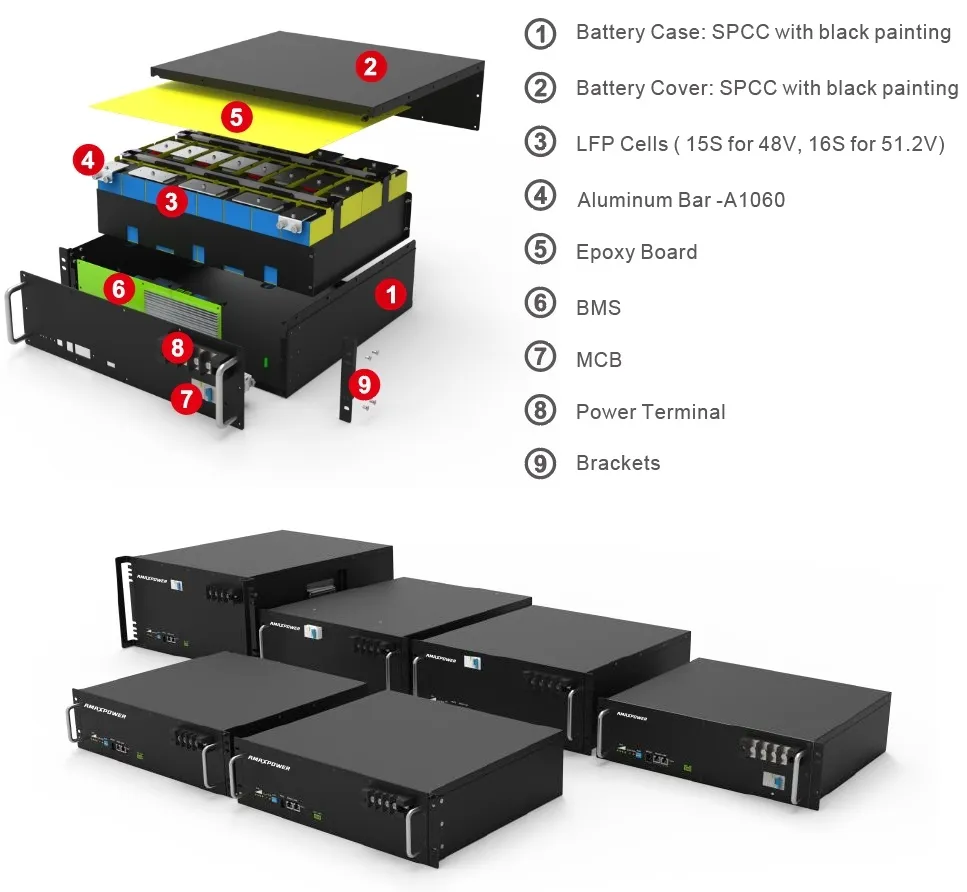

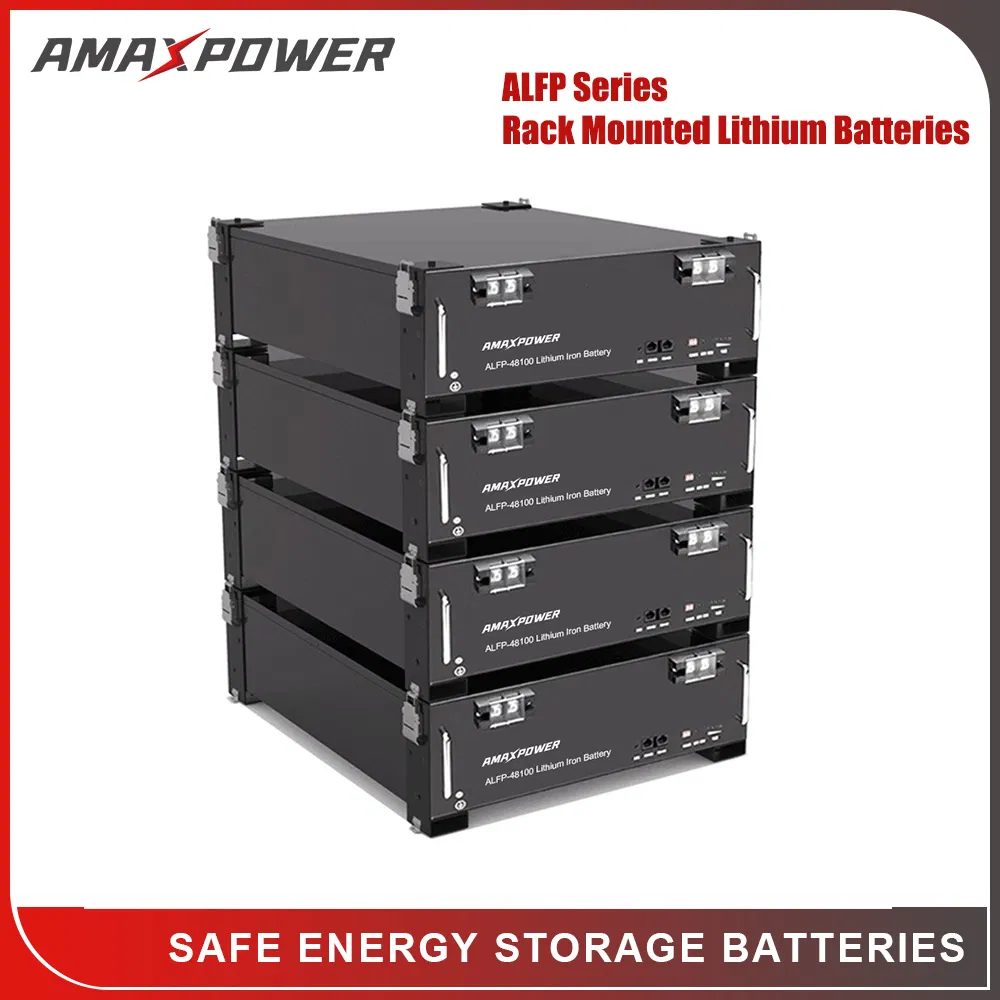

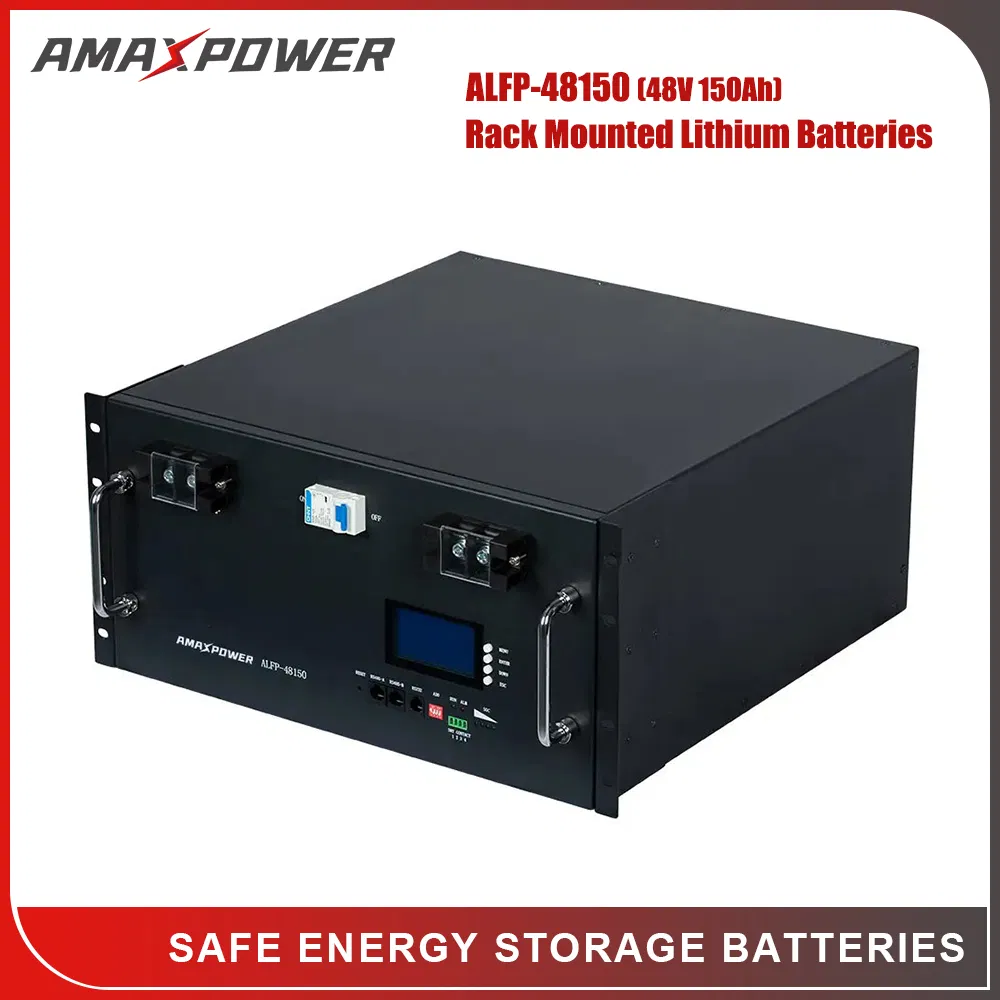

DESIGN: Standard 19" rack design for flexible installation. Supports parallel connection for increased capacity. Maintenance-free operation with optional LCD display and GPS anti-theft.
BMS: Integrated hardware Battery Management System with independent charge/discharge protection. Includes RS232, RS485, and CAN communication ports.

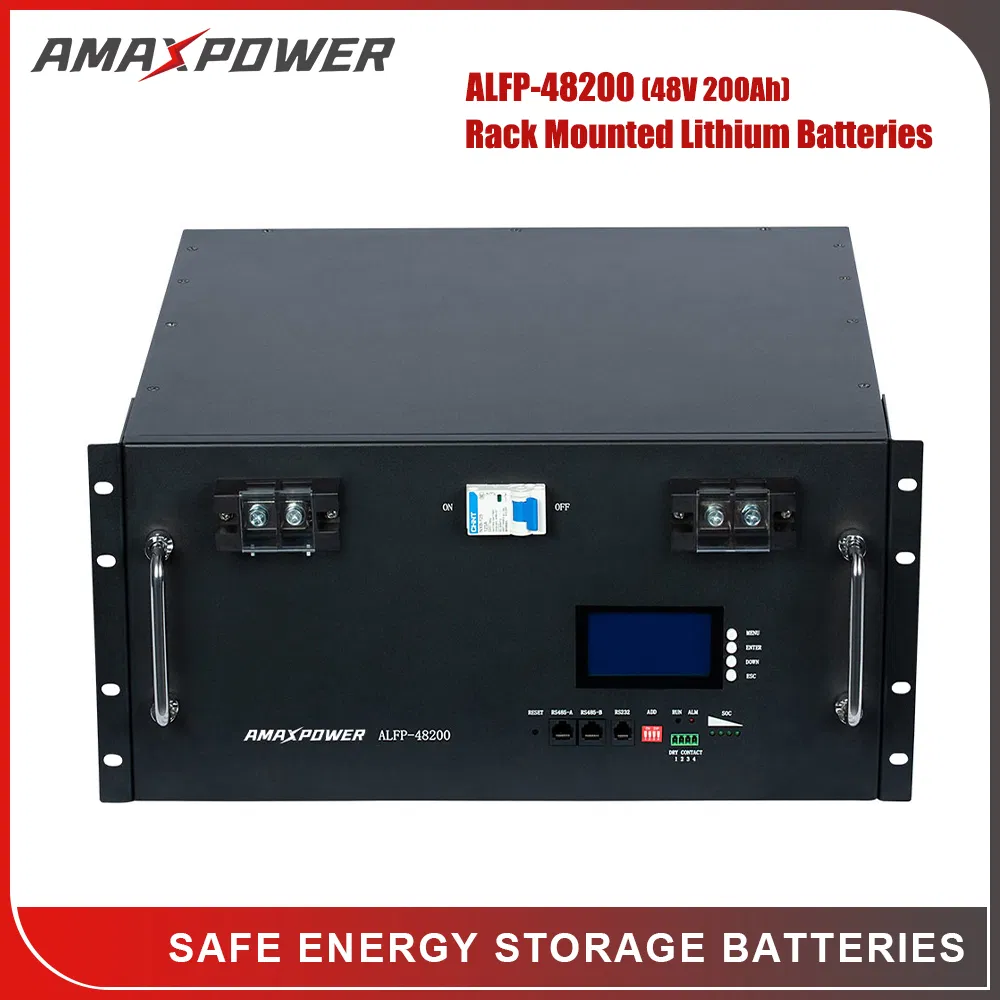

| SPECIFICATION | 48V 100Ah | 48V 200Ah | 51.2V 100Ah | 51.2V 200Ah |
|---|---|---|---|---|
| Nominal Energy | 4.8KWh | 9.6KWh | 5.12KWh | 10.24KWh |
| Dimensions | 442*133*450mm | 442*222*480mm | 442*133*450mm | 442*222*510mm |
| Weight | 43KG | 80KG | 45KG | 84KG |
| Cycle Life | ≥3500 - 6000 cycles @80%DOD @25ºC | |||
| IP Class | IP30 | |||
| Warranty | 3 Years | |||

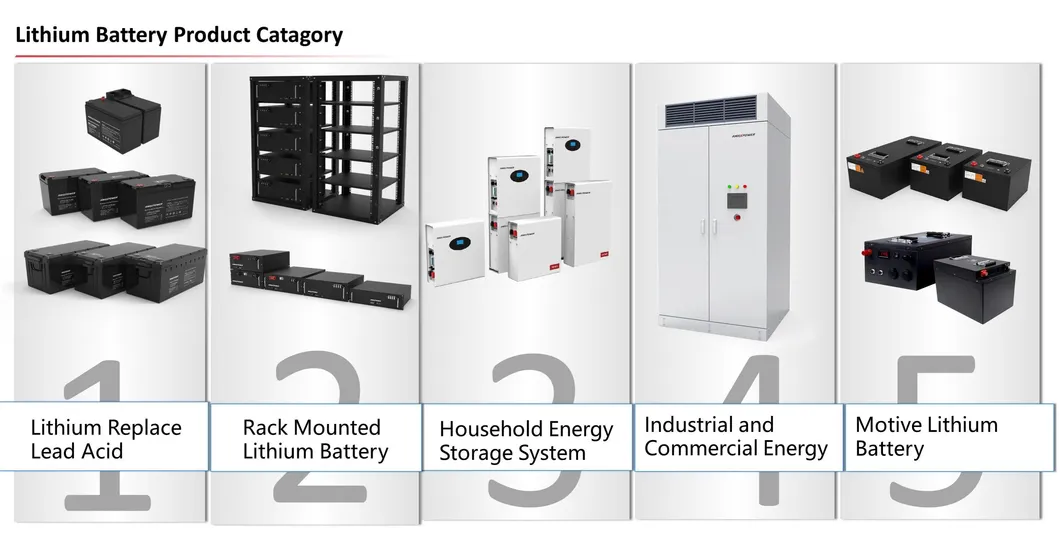

These batteries are versatile and can be used for household solar energy, RV/Marine storage, low-speed vehicles, forklifts, solar street lights, communication base stations, UPS backup power, and off-grid power generation.

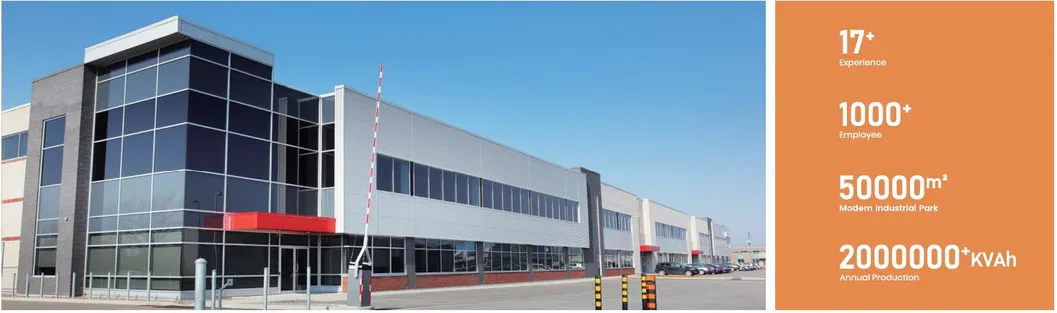

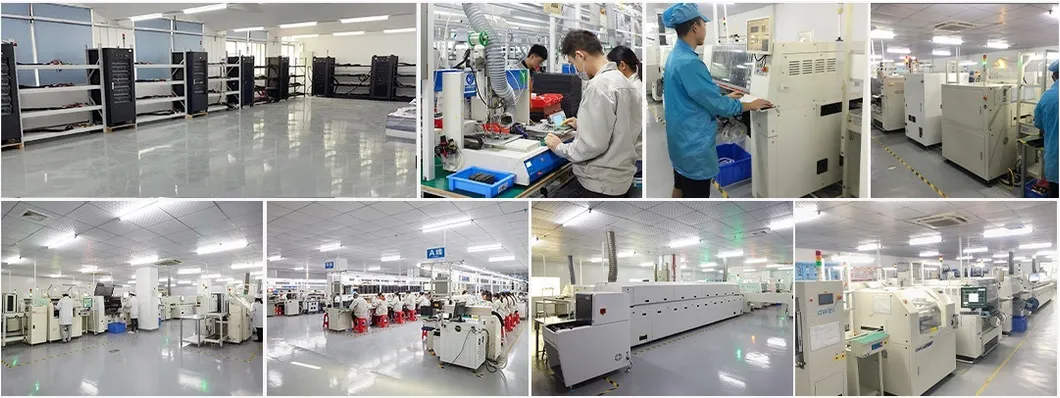

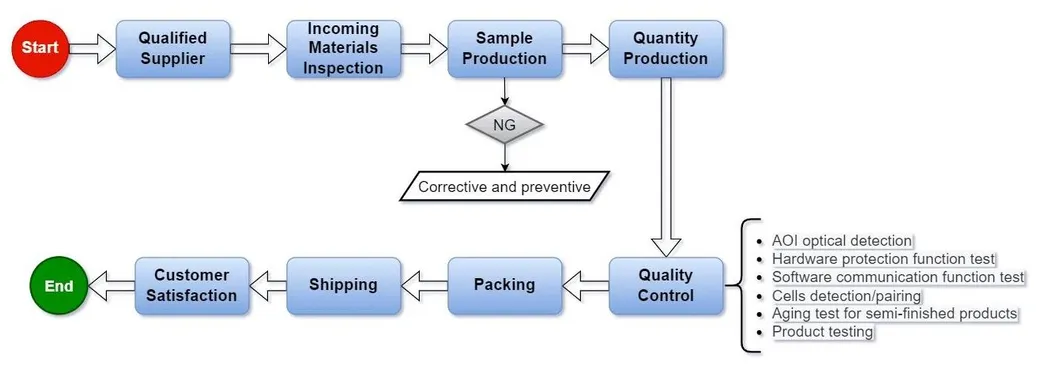

With over 17 years of industrial experience, the production facility spans 500,000 square meters. We utilize automatic production lines and strictly comply with ISO quality management systems.

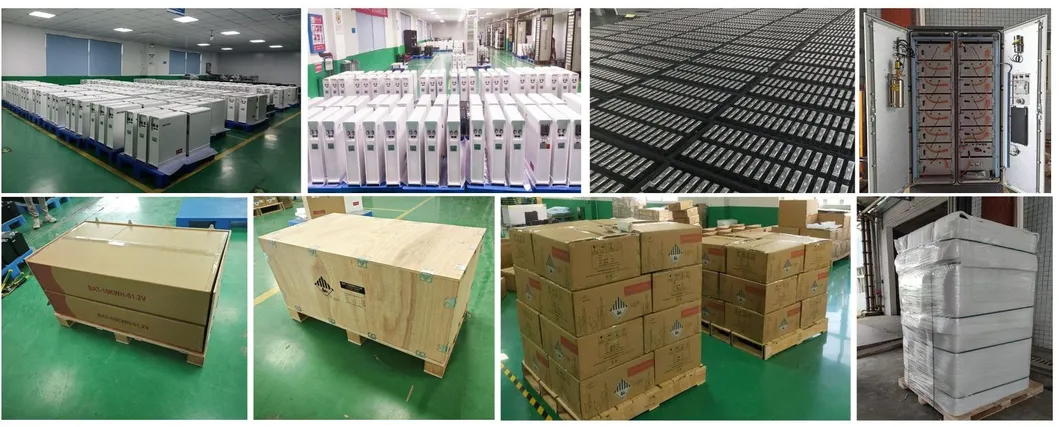

We ensure safe delivery through hard carton and foam packaging, 100% full inspection before shipment, and complete MSDS/UN38.3 certifications for customs clearance.
