Constant Safe Power For You!
High-Temp Deep cycle GEL Battery is designed with advanced patented GEL technology, offering a long service life of 15-20 years. It provides 1500-1600 cycles at 50% DOD, complying with international standards such as IEC60896-21/22 and BS6290-4.

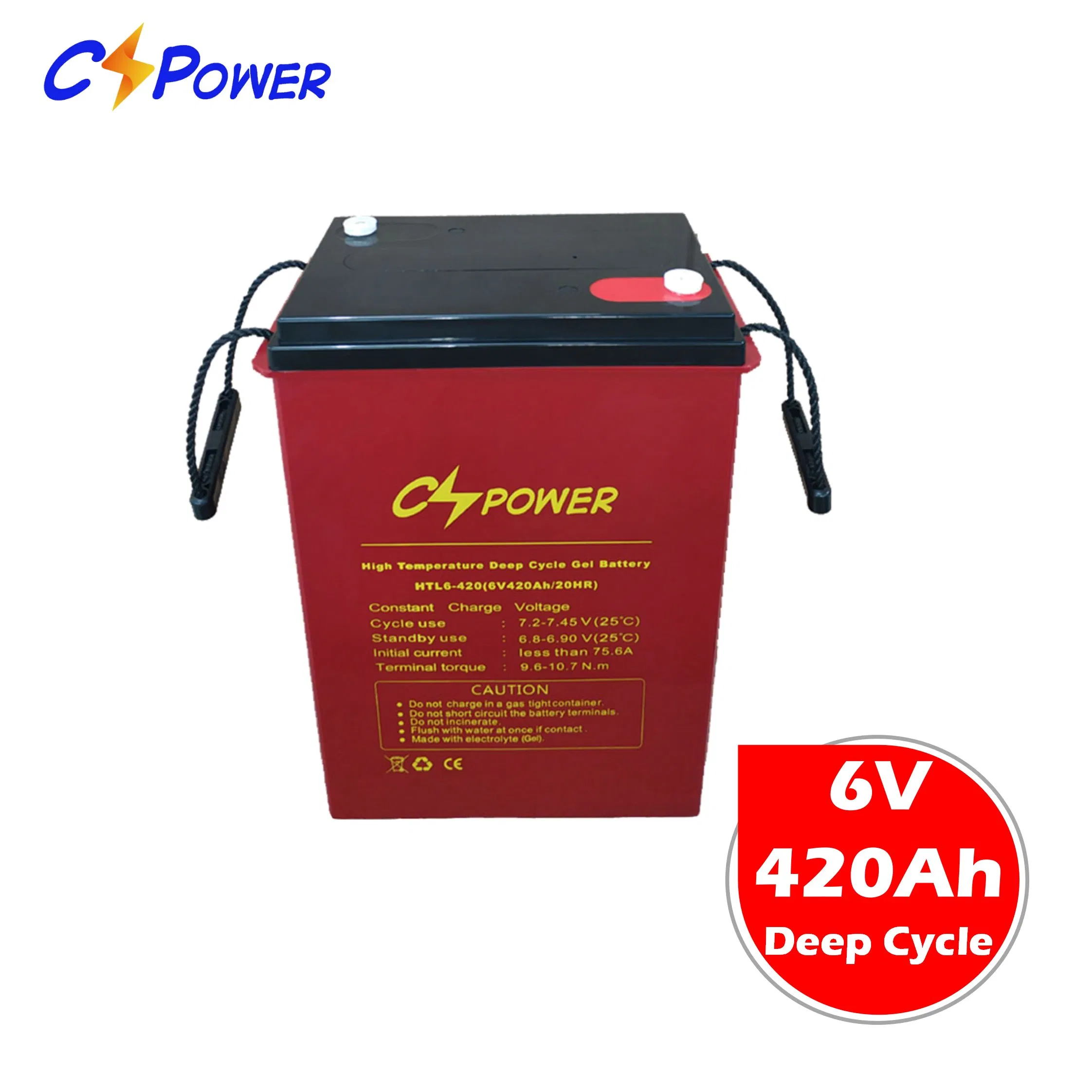

| HTL6-420 Specification | |
|---|---|
| Nominal Voltage | 6V (3 cells per unit) |
| Design Floating Life @ 25ºC | 20 Years |
| Nominal Capacity @ 25ºC | 420Ah (20 hour rate) |
| Internal Resistance | ≤1.5mΩ (Fully Charged) |
| Max. Discharge Current | 1260A (5s) |
| Self-Discharge @ 25ºC | 3% per Month |
| Dimension (L*W*H) | 295 * 178 * 404 mm |
| Net Weight | 57kg ± 3% |

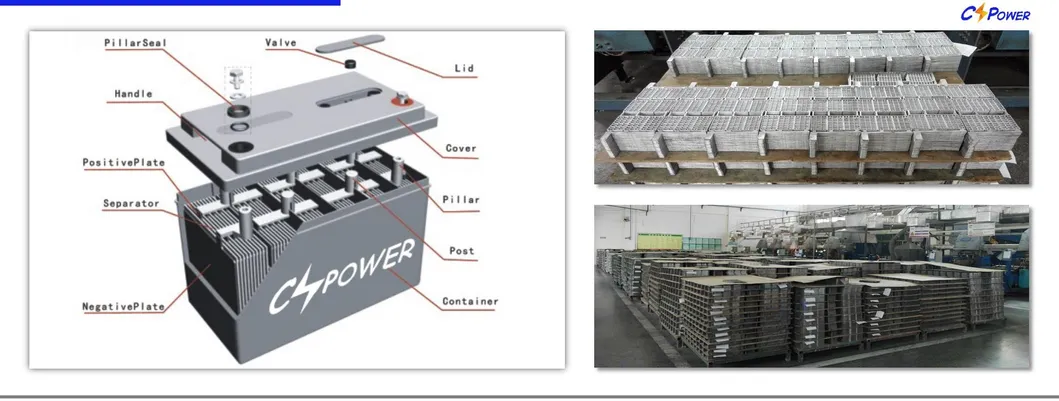

| Positive plate | Negative plate | Separator | Electrolyte |
|---|---|---|---|
| Thick high Sn low Ca grid | Balanced Pb-Ca grid | Imported PVC Separator | Nano Silicon GEL |
