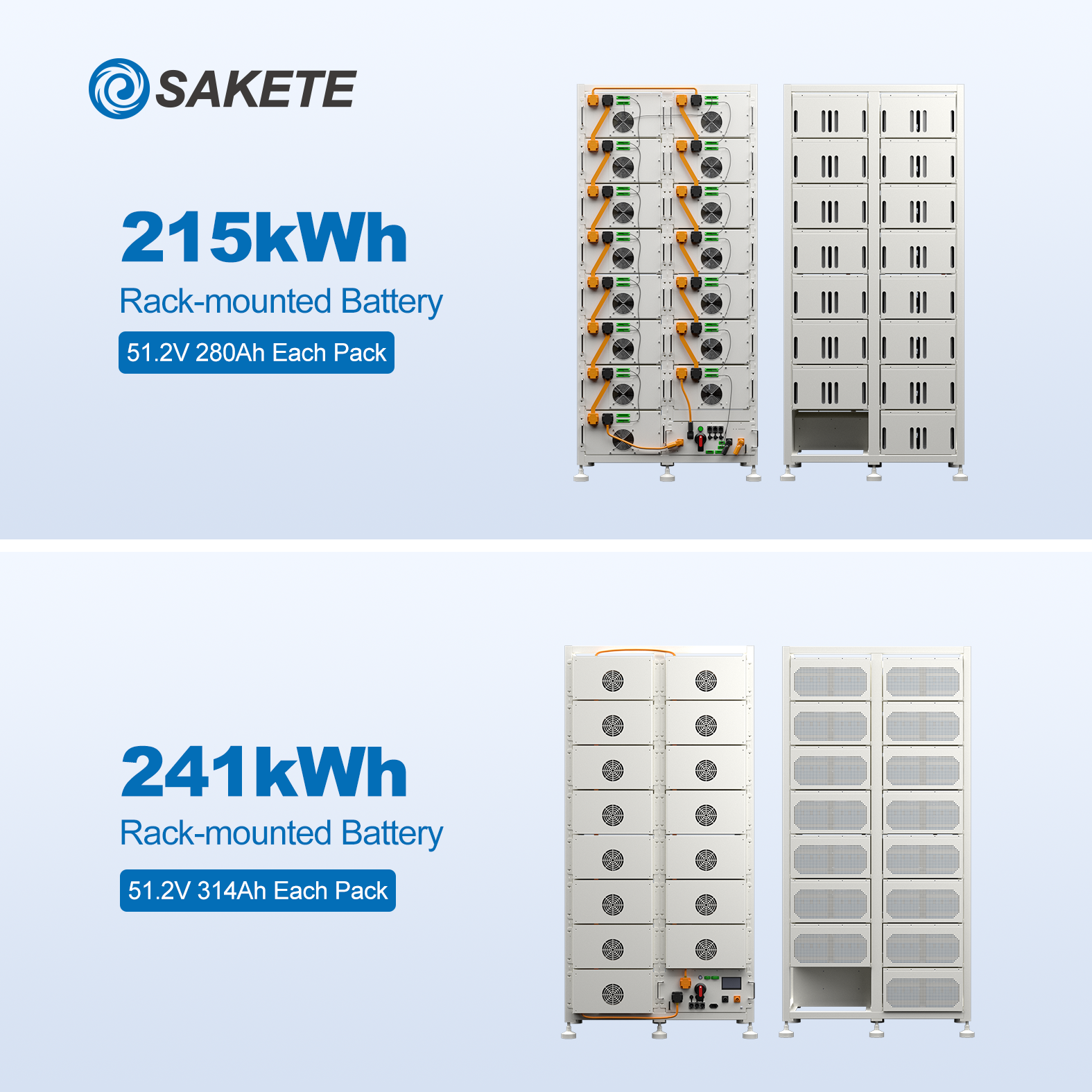

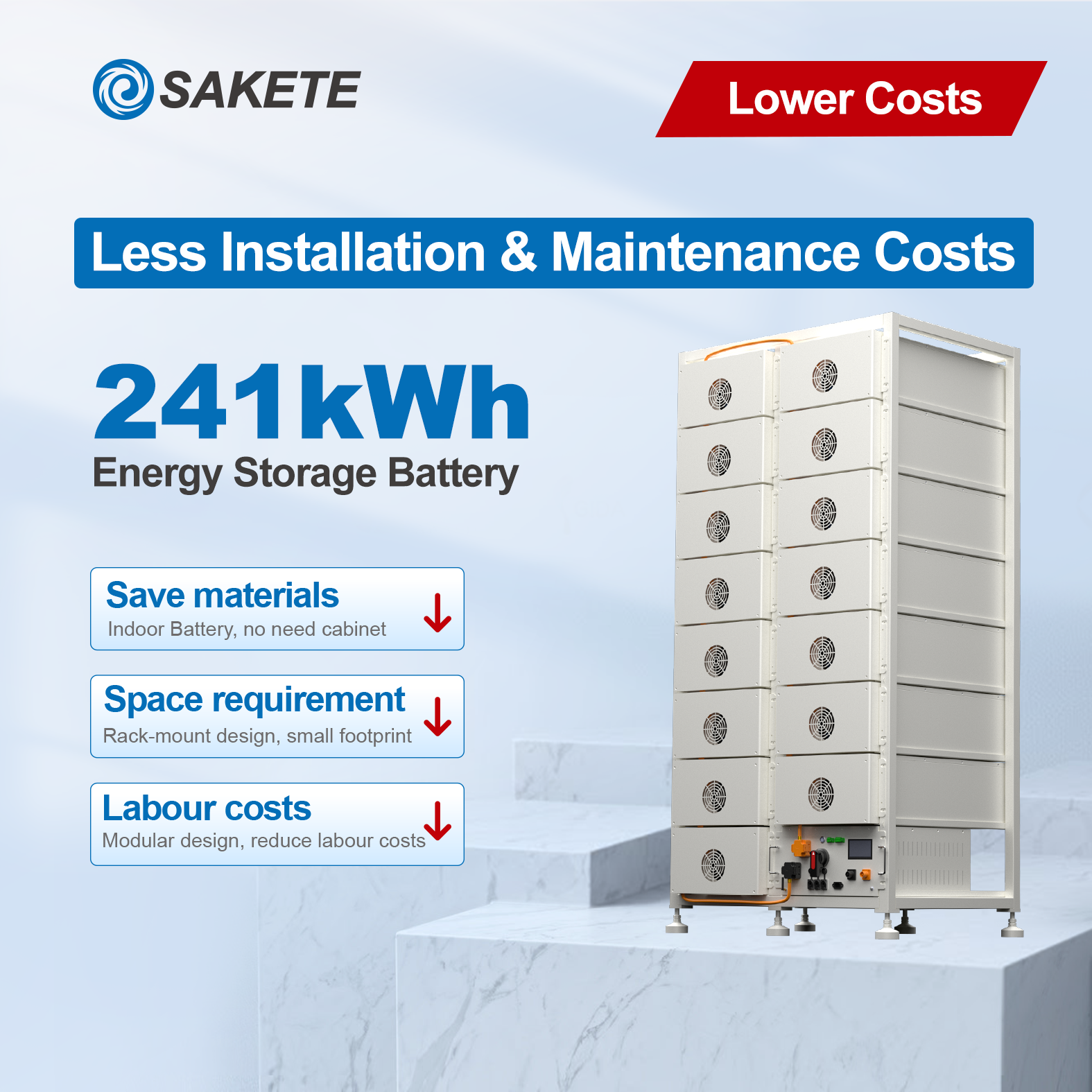

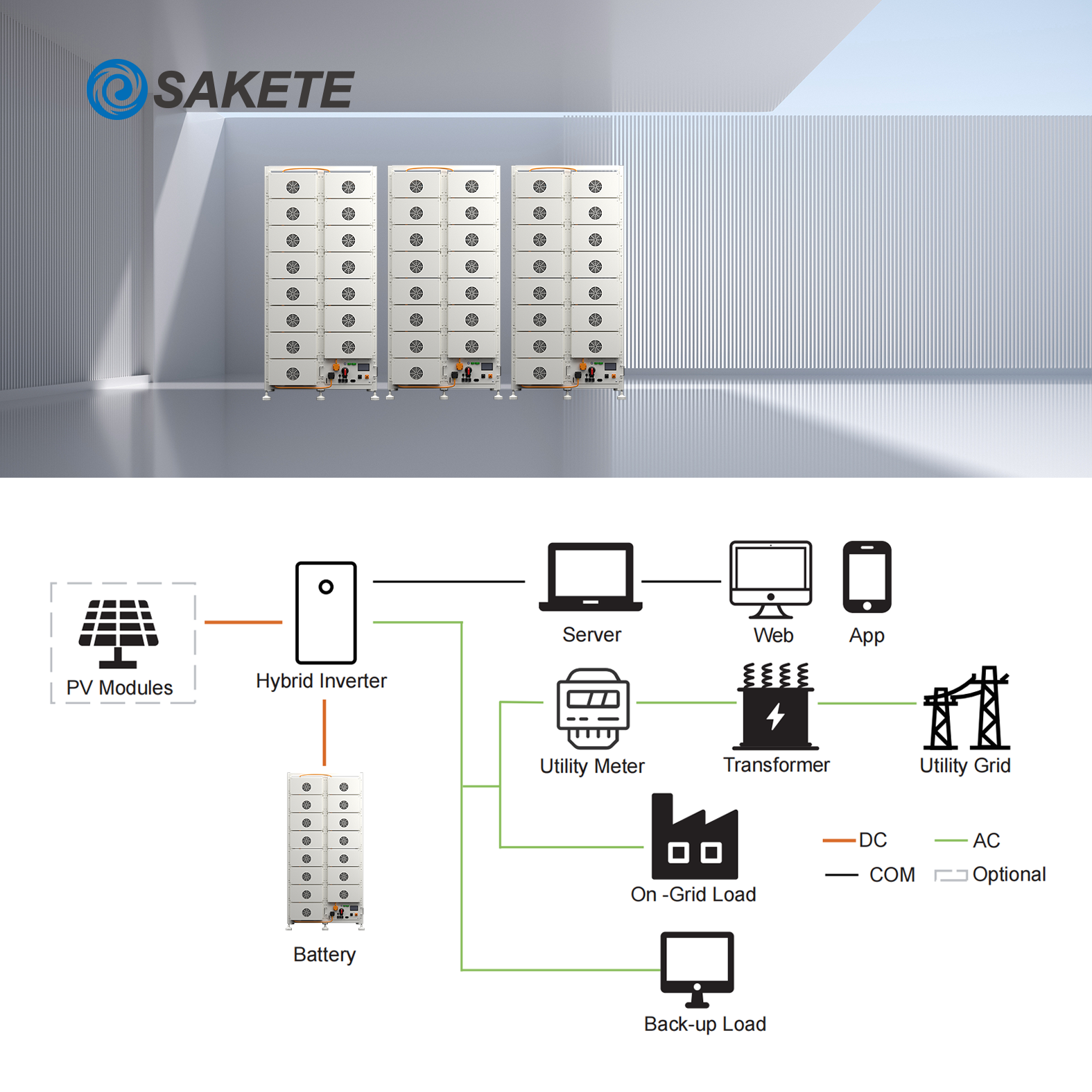

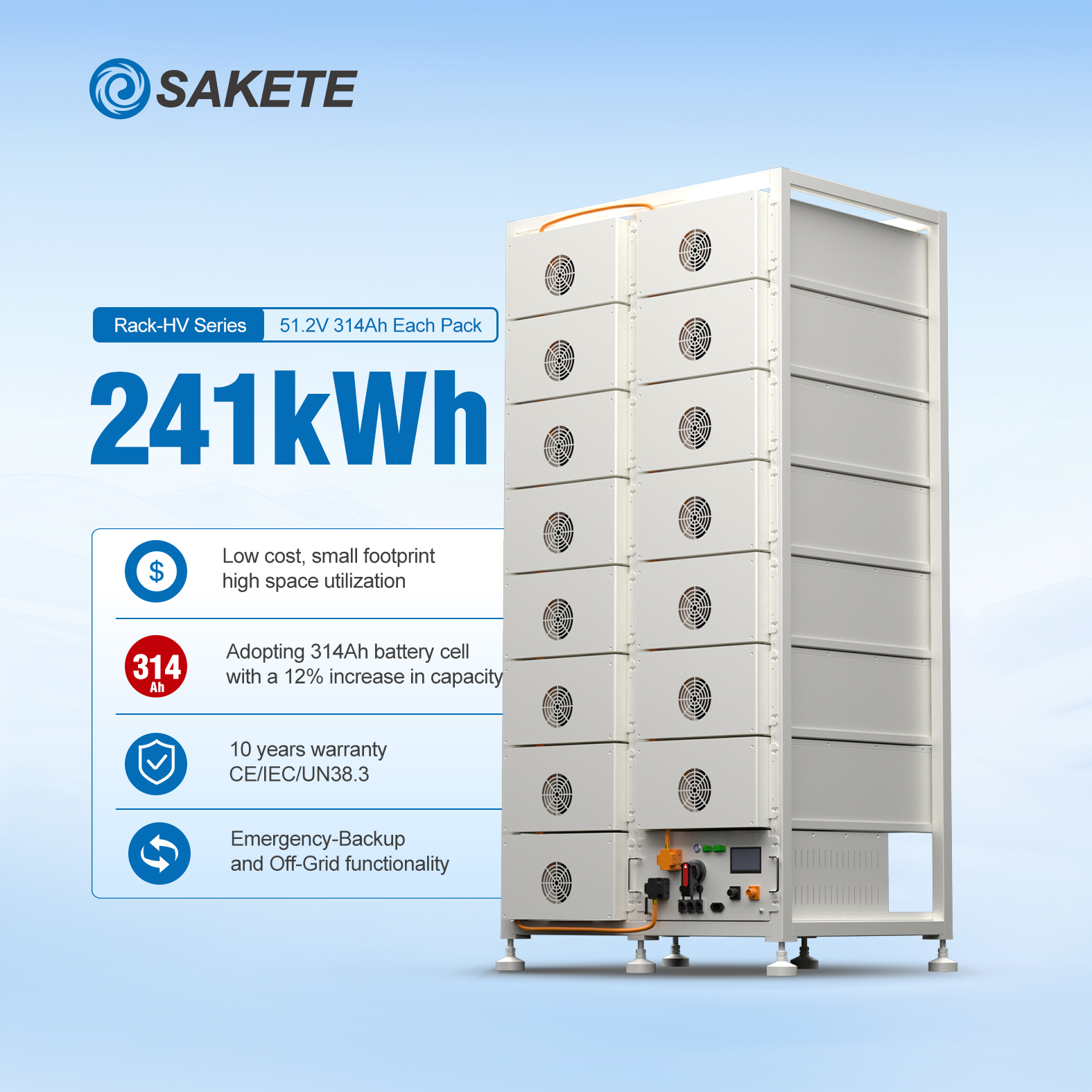

Sakete 100kWh 200kWh Commercial Battery Storage System With PCS For Industrial Solar Integration
Sakete 100kWh 200kWh Commercial Battery Storage System With PCS For Industrial Solar Integration
Sakete 100kWh 200kWh Commercial Battery Storage System With PCS For Industrial Solar Integration
Sakete 100kWh 200kWh Commercial Battery Storage System With PCS For Industrial Solar Integration
Sakete 100kWh 200kWh Commercial Battery Storage System With PCS For Industrial Solar Integration
1 / 5
Sakete 100kWh 200kWh Commercial Battery Storage System With PCS For Industrial Solar Integration
Sakete 100kWh 200kWh Commercial Battery Storage System With PCS For Industrial Solar Integration
Sakete 100kWh 200kWh Commercial Battery Storage System With PCS For Industrial Solar Integration
Sakete 100kWh 200kWh Commercial Battery Storage System With PCS For Industrial Solar Integration
Sakete 100kWh 200kWh Commercial Battery Storage System With PCS For Industrial Solar Integration

Sakete 100kWh 200kWh Commercial Battery Storage System With PCS For Industrial Solar Integration

Send Inquiry

Product Description

Product Overview
Product Overview
●Standard Embedded Design:
Mainstream size for easy installation and convenient maintenance.
●High Safety LiFePO₄ Cells:
Low self-discharge rate, supports aerosol fire extinguishing for enhanced protection.
●Intelligent BMS:
Offers over-charge, over-discharge, over-current, and temperature protection with automatic cell balancing.
●Wide Temperature Adaptability:
Stable performance from -20°C to 50°C, ensuring reliable operation in diverse climates.
●Flexible Scalability:

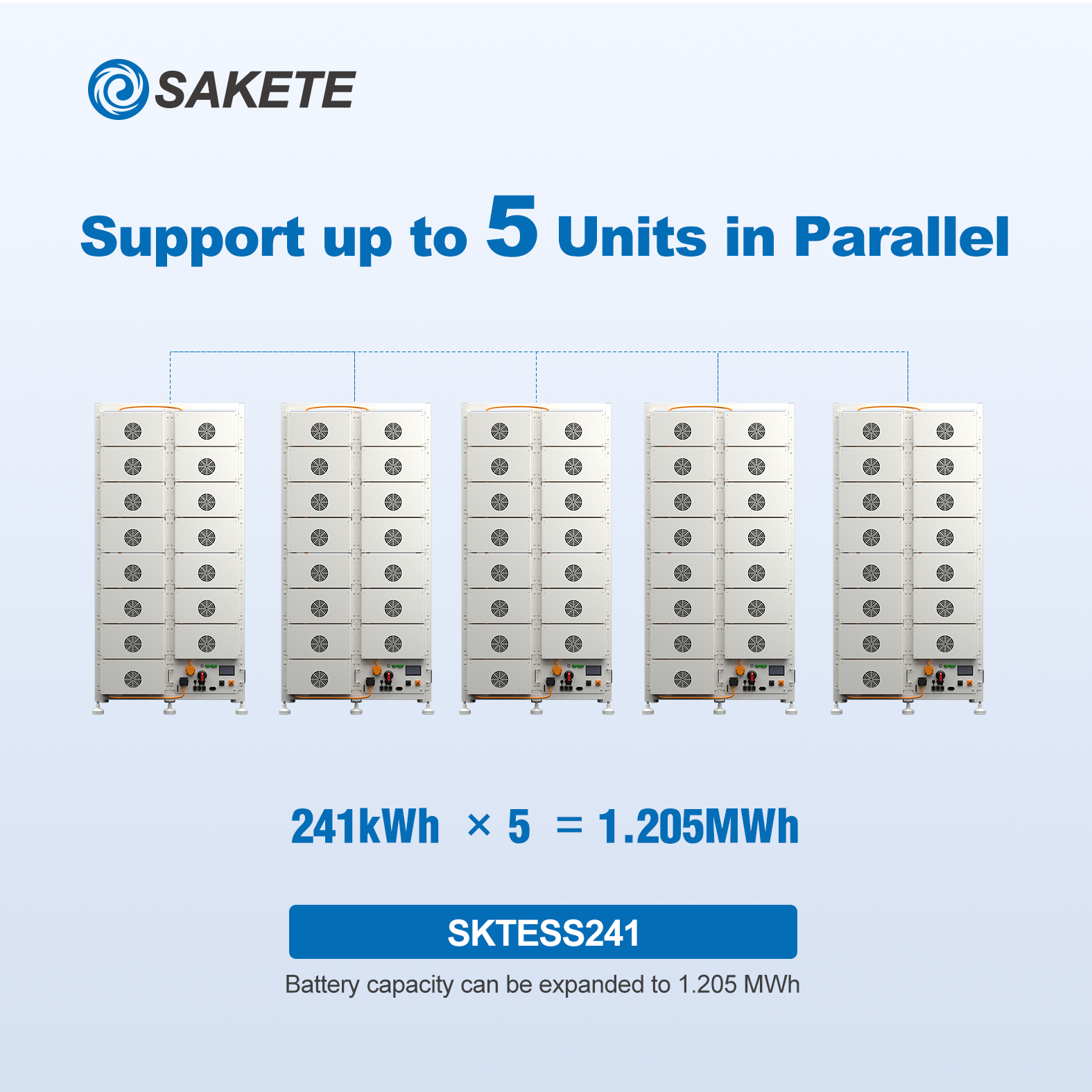

Supports parallel connection of up to 5 clusters for capacity and power expansion.
●Economical Rack Structure:
Maximizes space utilization and reduces system cost for higher overall efficiency.
Technical Specifications
ModelSKTESS241
Battery TypeLiFePO4
Battery Capacity314Ah
Pack Configuration1P16S*15
Nominal Capacity241.152kWh
Nominal Voltage768V
Operating Voltage Range672~852V
Max. Continuous Charge/ Discharge Current157A
Charge/Discharge Rate0.5C
Ingress ProtectionIP20
Anti-Corrosion GradeC3 (C4 Optional)
Cycle Life≥6000 / 5 Years (@25℃ ±2℃, 0.5C / 0.5C, 70% EOL)
Operating Temperature Range-20°C ~ 50℃
Relative Humidity5~95 %(non-condensing)
CommunicationCAN / RS485
CoolingFAN
Dimension1032 × 800 × (2142±0.5)mm
Weight≤1800kg
Max. Parallel5

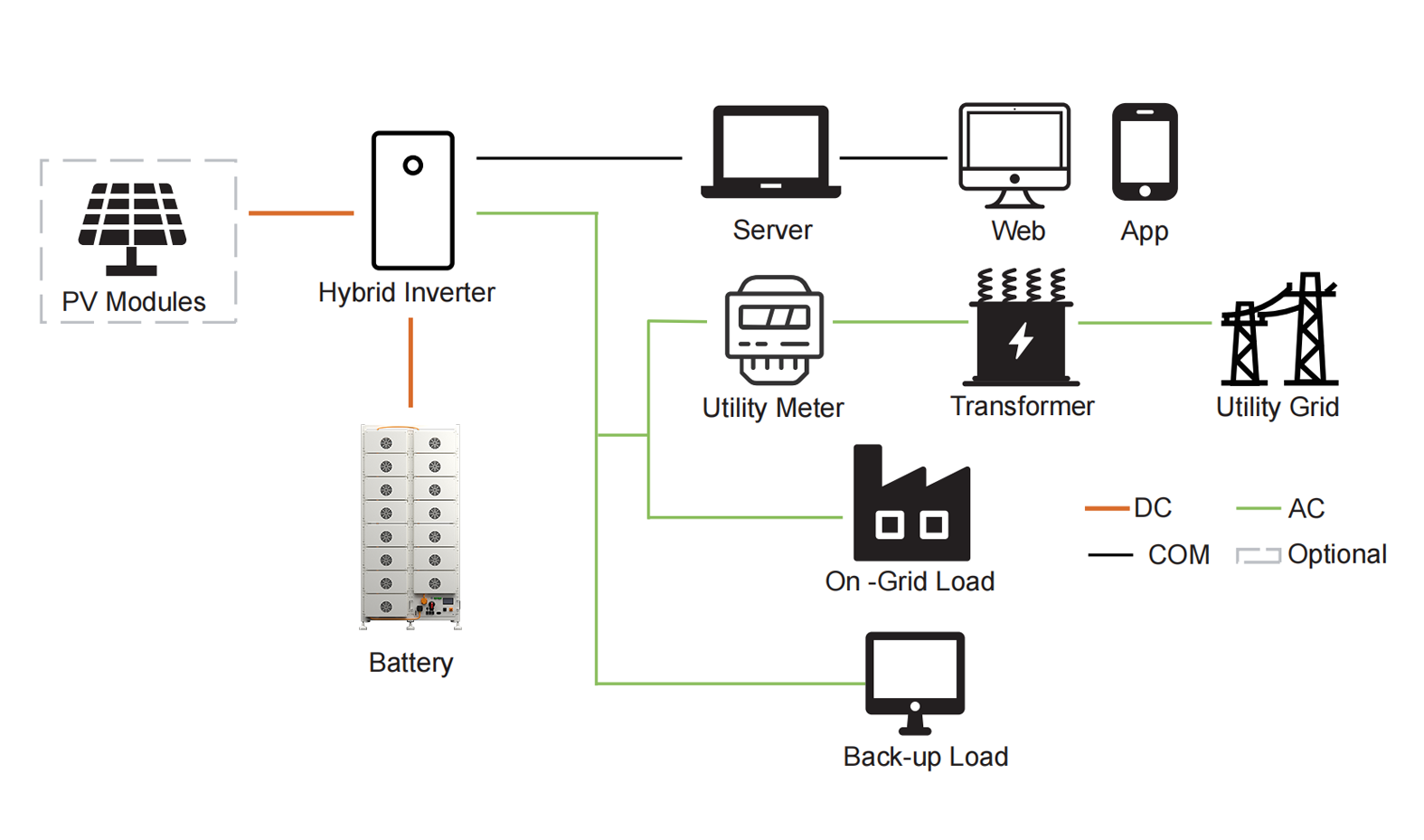

Spec Image
Product Advantages
Advantages 1

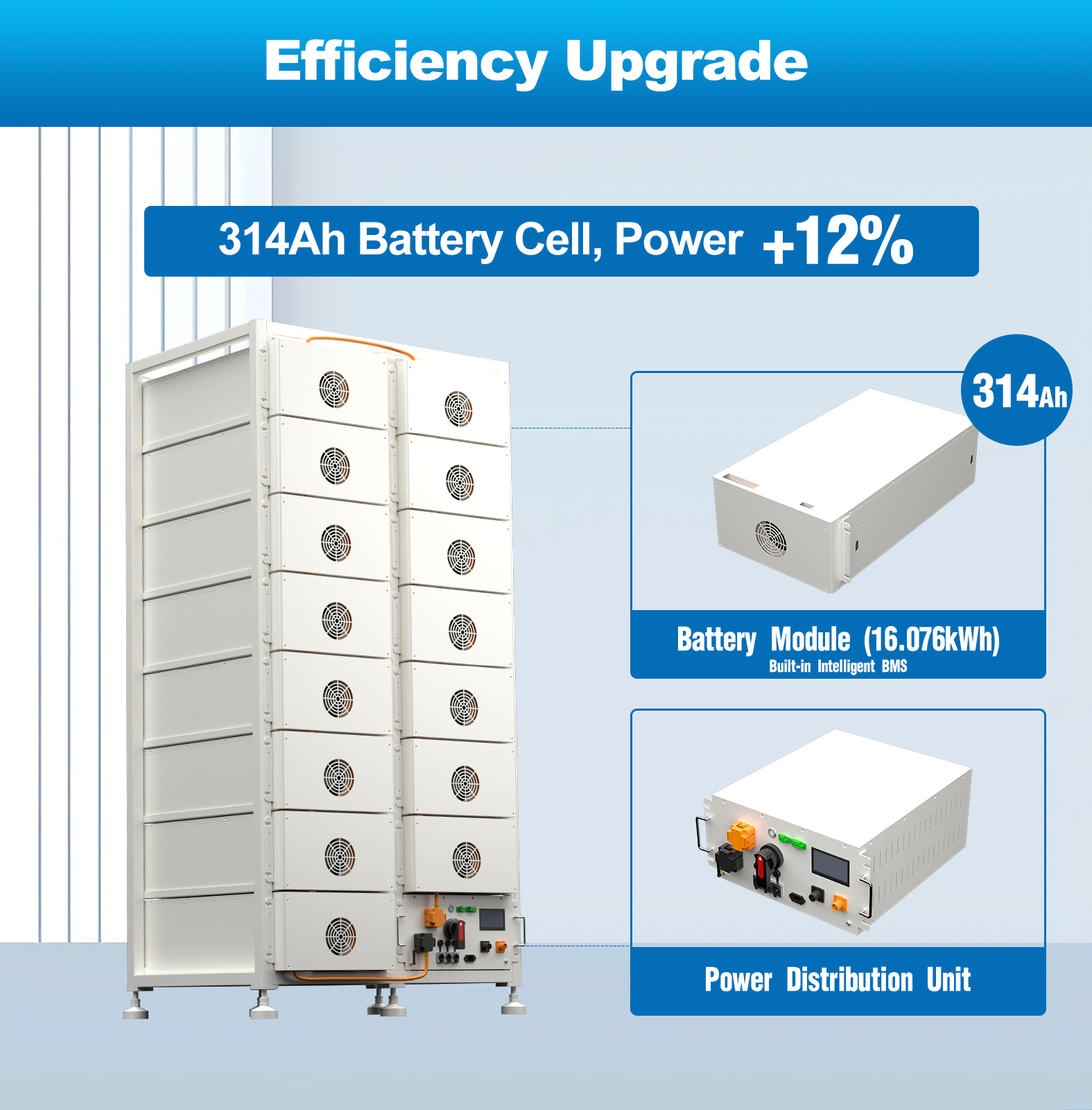

Advantages 2

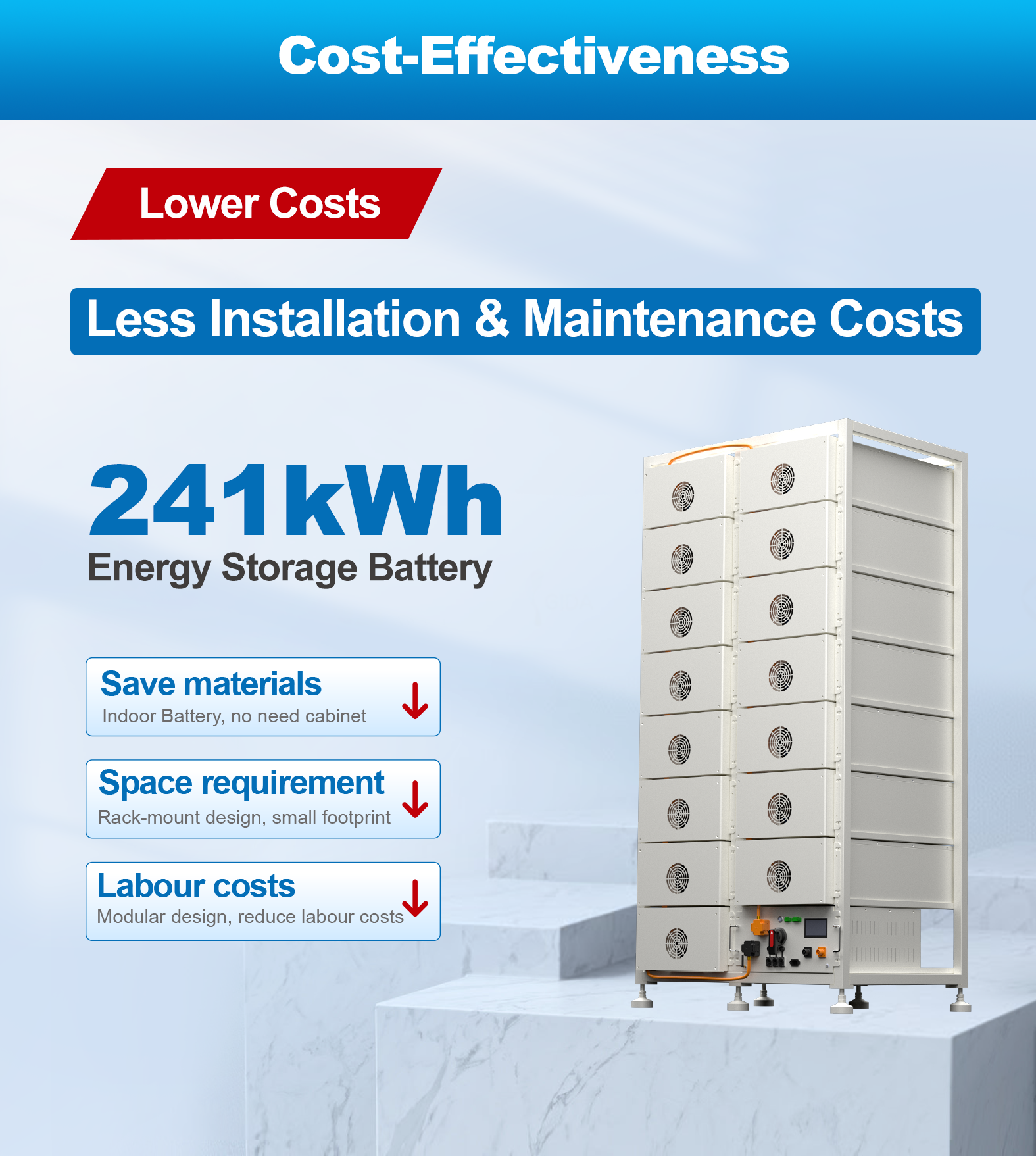

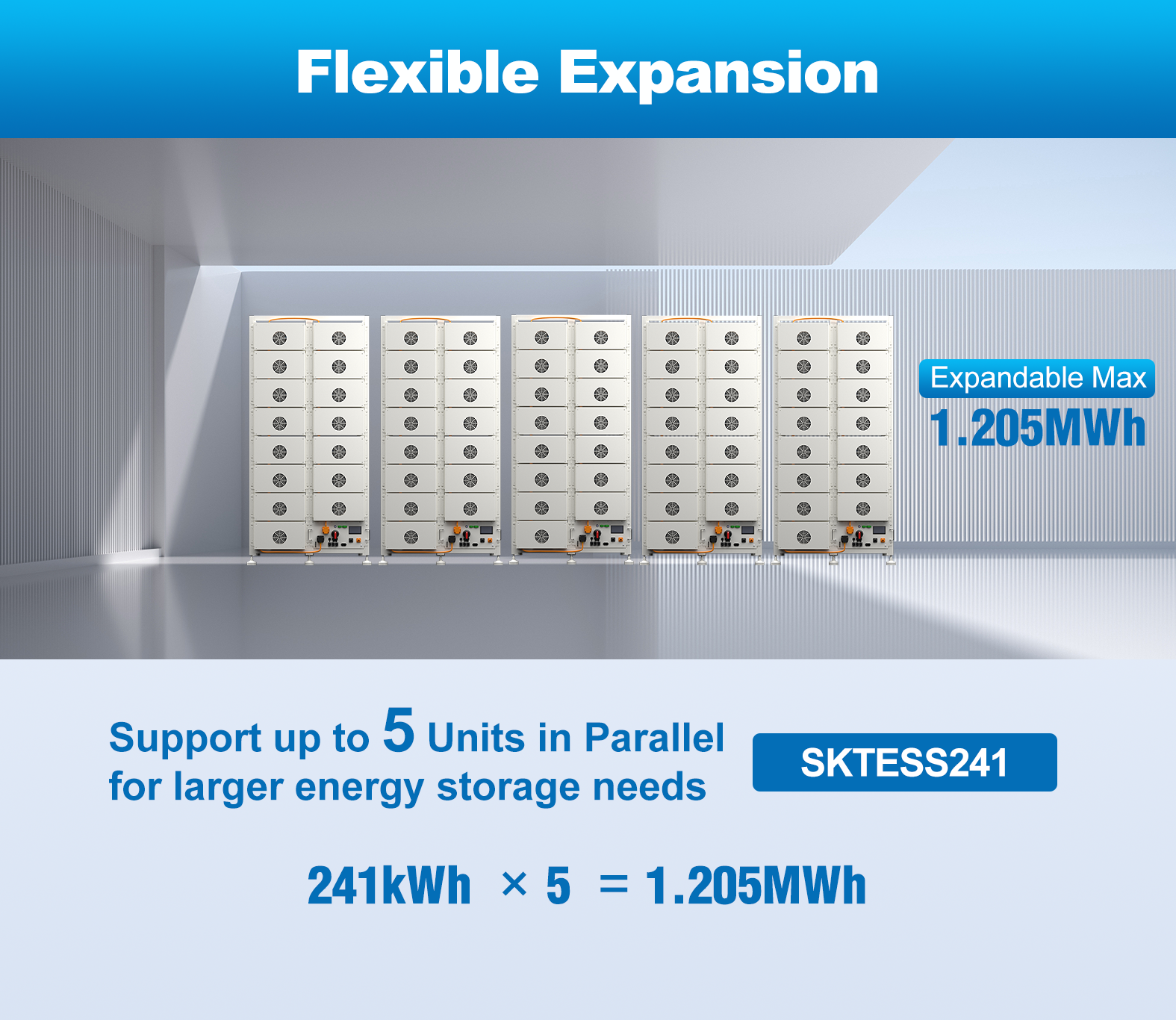

Advantages 3 Advantages 4
Products Description

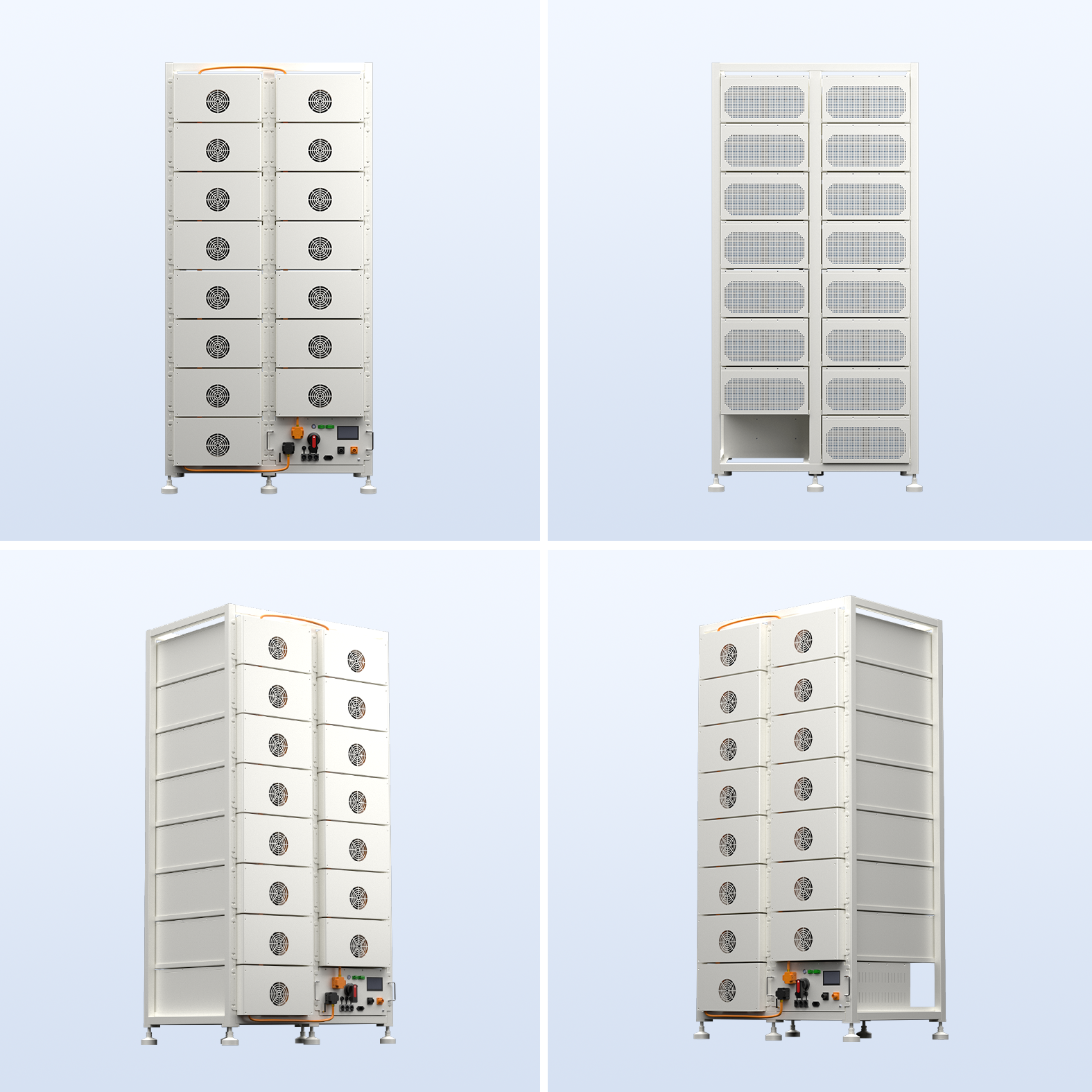

Description

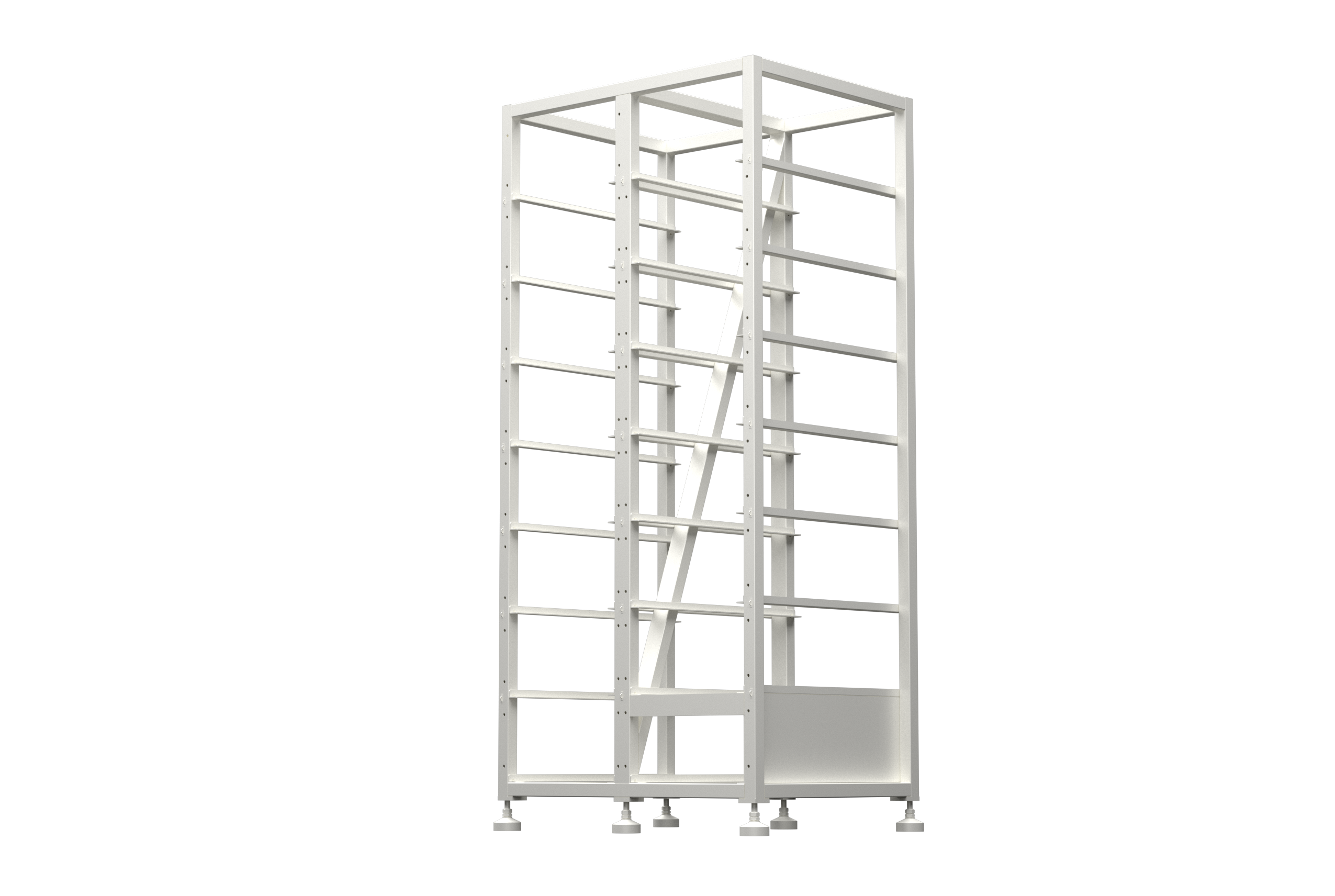

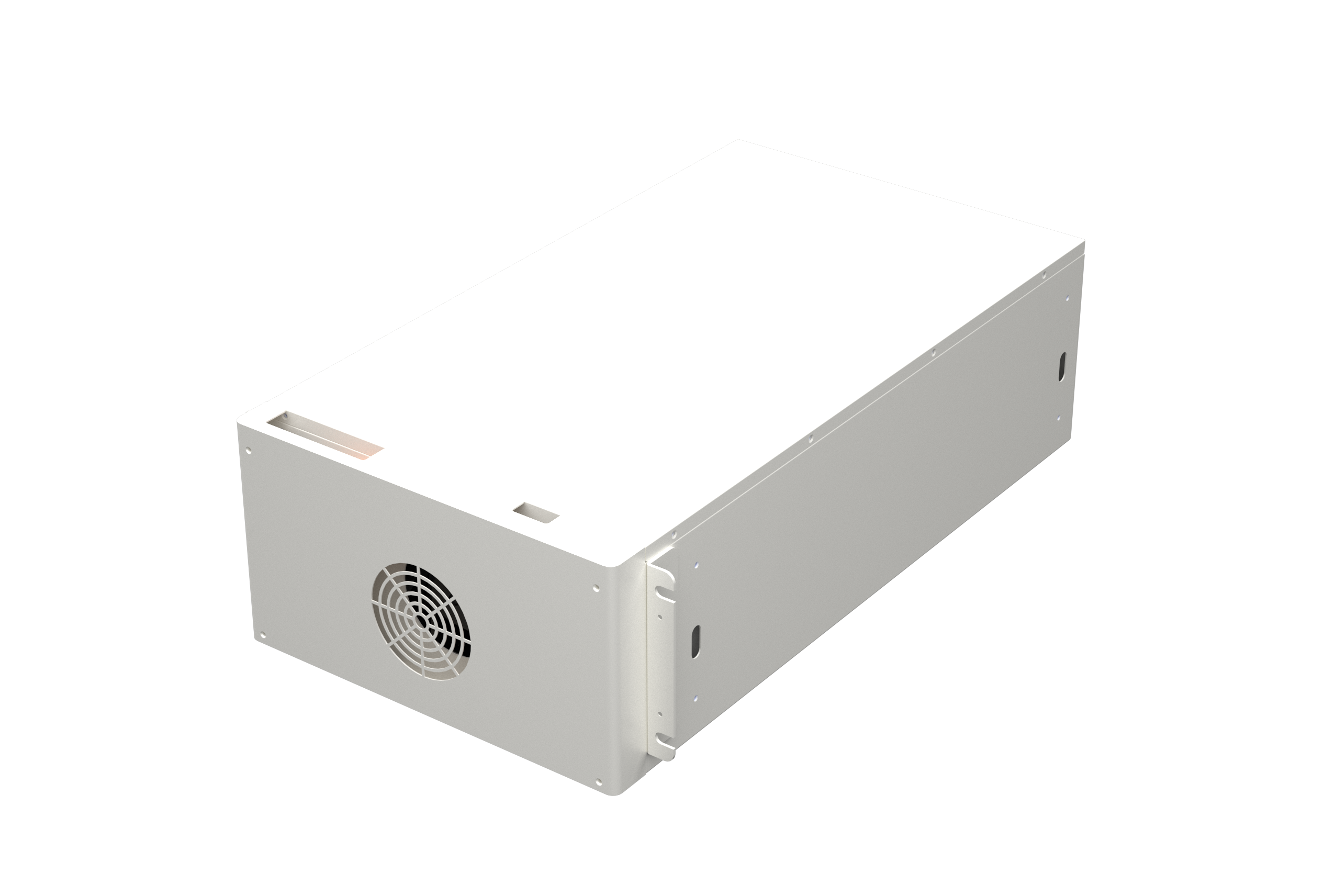

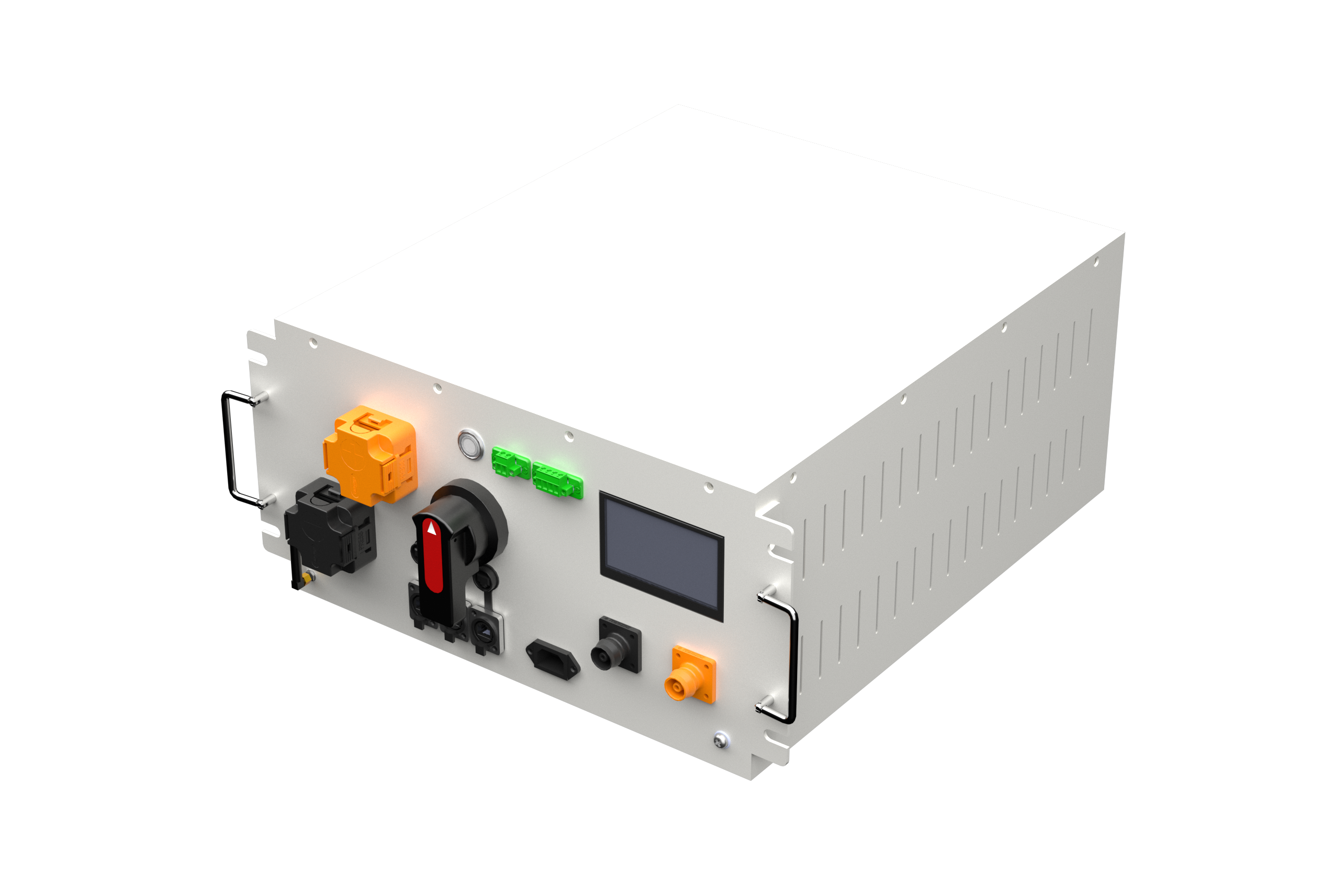

Layout 1 Layout 2 Layout 3
Projects & Packaging
Projects
Packaging
Our Strengths
Strength Image 1
Strength Image 2
✓ Integrating research, development, production, sales and service
✓ Providing integrated green energy solutions for multiple scenarios
✓ Comprehensive product portfolio featuring a diversified industrial, commercial and residential storage product matrix
✓ Robust ‘3S’ (BMS, EMS, PCS) product architecture ensuring seamless stability
✓ Possesses OEM & ODM capabilities
✓ Industry certifications guaranteeing safety, reliability and efficiency
✓ 24-hour professional technical support team
Bottom Info 1
Bottom Info 2
Frequently Asked Questions
Q1: What is the cycle life of the SKTESS241 battery system?
A: The system offers a cycle life of ≥6000 cycles at 25°C with 70% End of Life (EOL), ensuring over 5 years of reliable performance.
Q2: Can I expand the capacity of this energy storage system?
A: Yes, the system supports parallel connection of up to 5 clusters, allowing for flexible expansion of both capacity and power output.
Q3: How does the system handle extreme temperatures?
A: The SKTESS241 is designed for wide temperature adaptability, with a discharge operating range from -20°C to 50°C and a charge range from 0°C to 45°C.
Q4: What safety features are included in the Intelligent BMS?
A: The Intelligent Battery Management System (BMS) provides comprehensive protection against over-charge, over-discharge, over-current, and temperature fluctuations, alongside automatic cell balancing.
Q5: What are the main applications for this storage system?
A: With its robust 3S architecture and standard embedded design, it is ideal for smart industrial, commercial, and large-scale residential energy storage scenarios.
Q6: What communication protocols are supported for system monitoring?
A: The system supports standard CAN and RS485 communication protocols, ensuring compatibility with most monitoring and management platforms.
