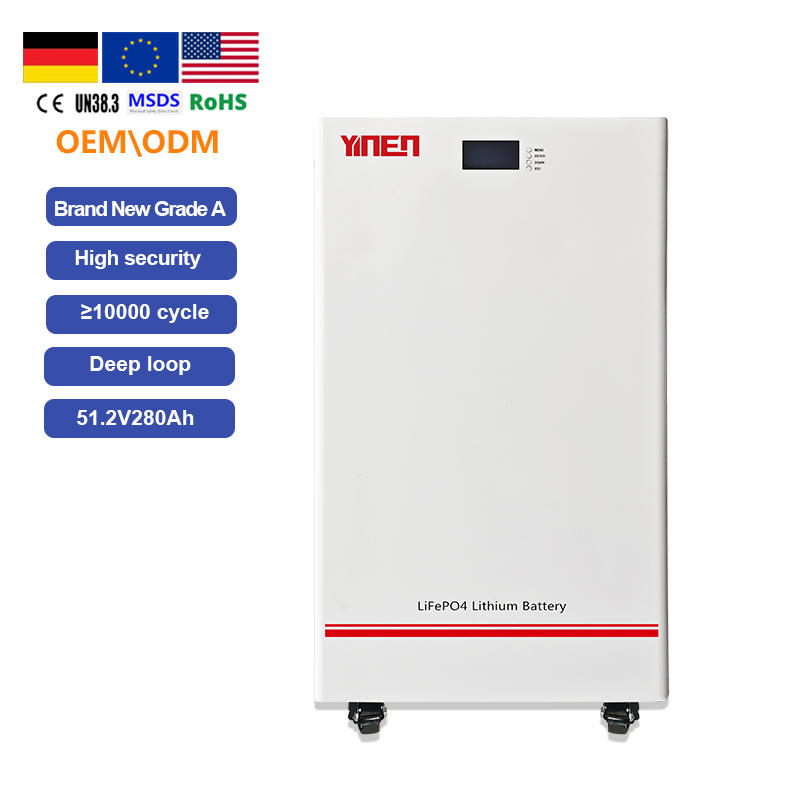

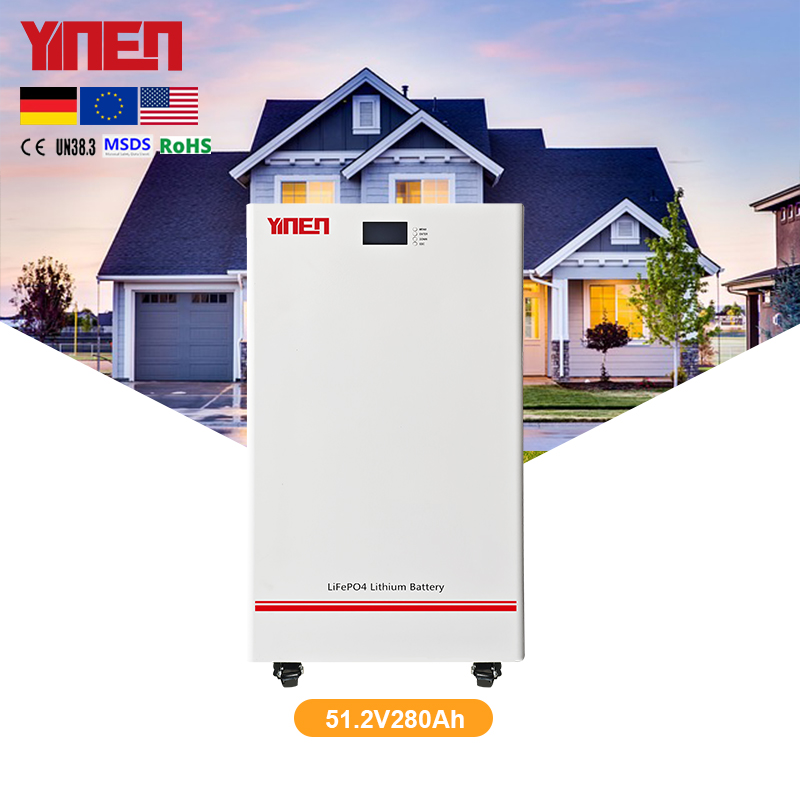

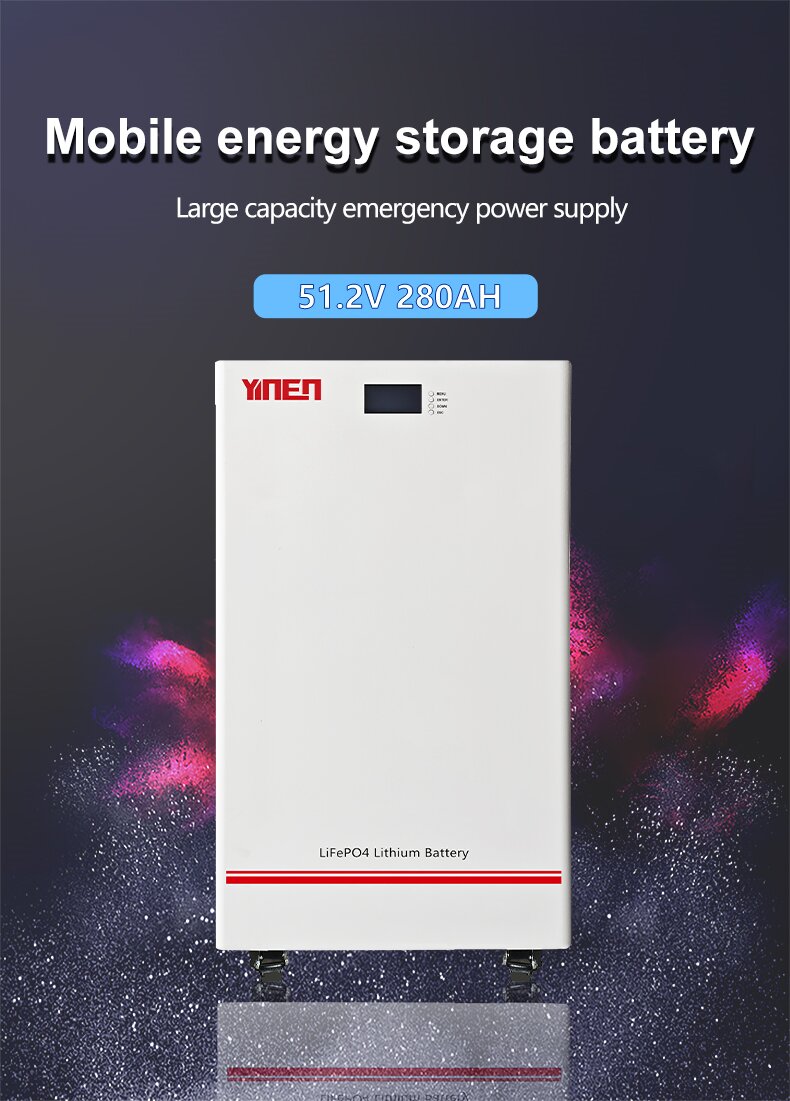

Suntherra Battery
1 / 5
[Product Video Presentation]
| Parameter | Specifications |
|---|---|
| Cell size | 50mm×160mm×116mm |
| Cell Nominal voltage | 3.2V |
| Cell Nominal capacity | 280Ah/314Ah |
| Nominal voltage | 51.2V |
| Nominal capacity | 280Ah/314Ah |
| Product size | 800mm×450mm×250mm |

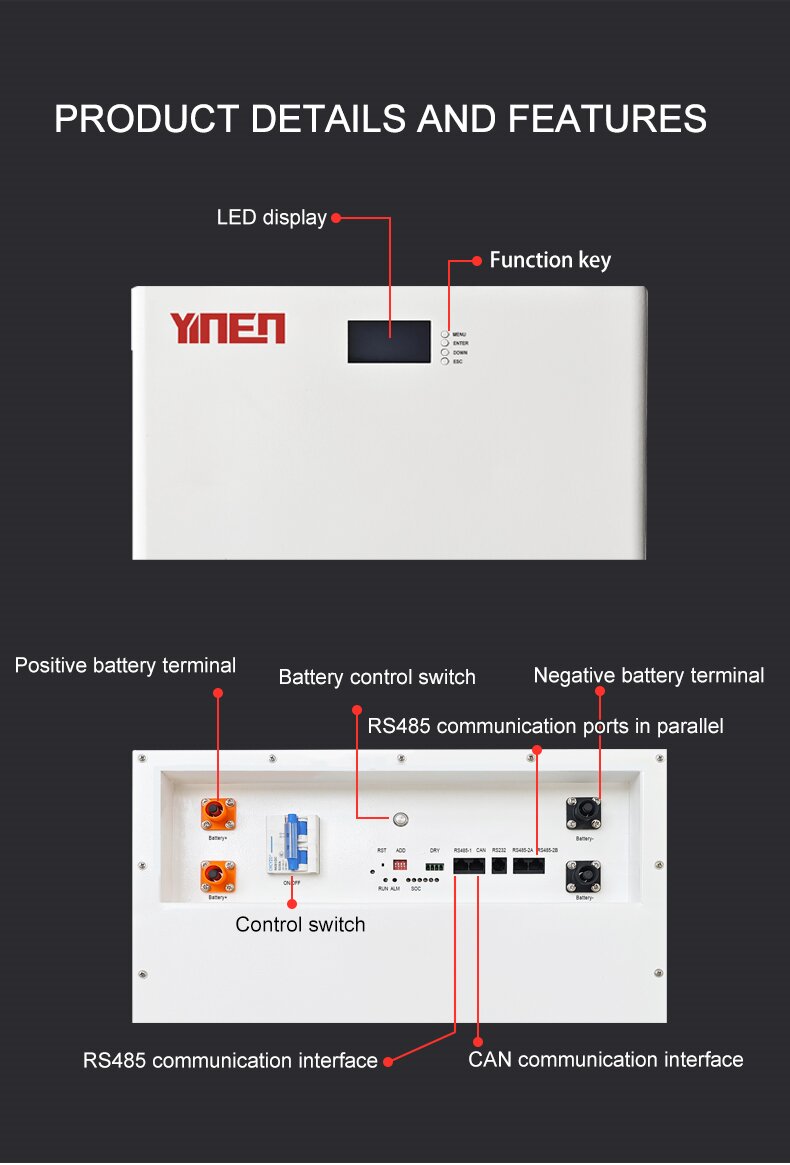

| Charging /Discharge port | 200A Energy Storage Connector |
| Compound mode | 16S1P |

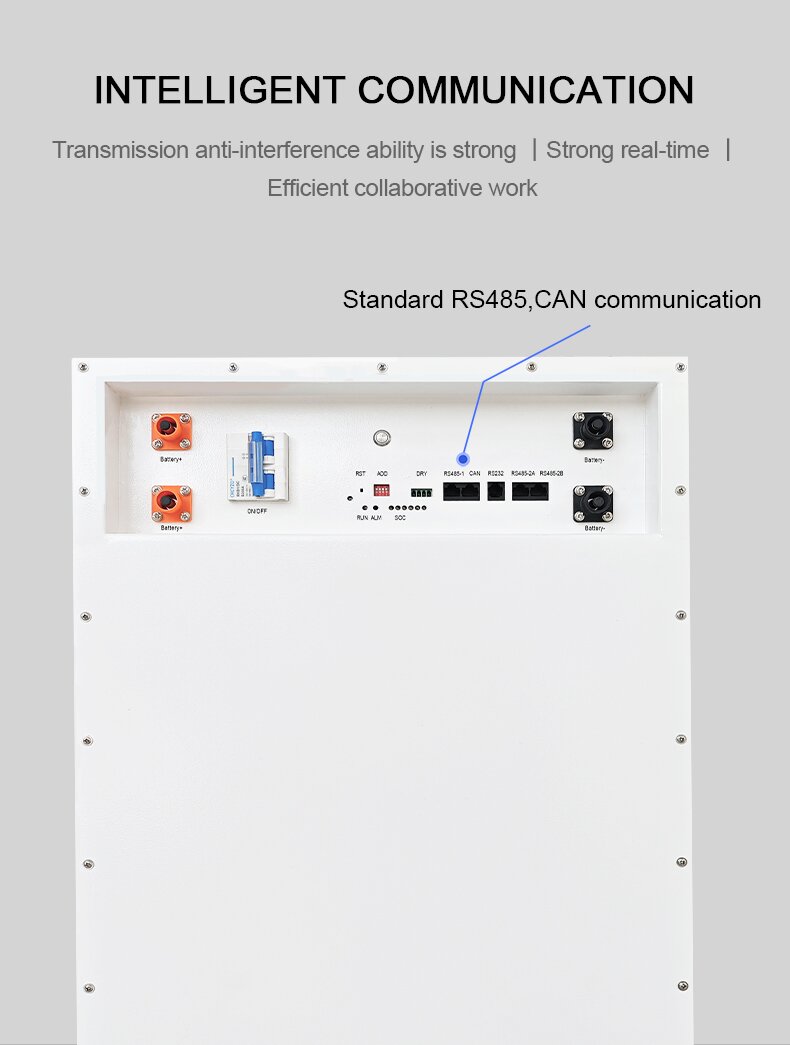

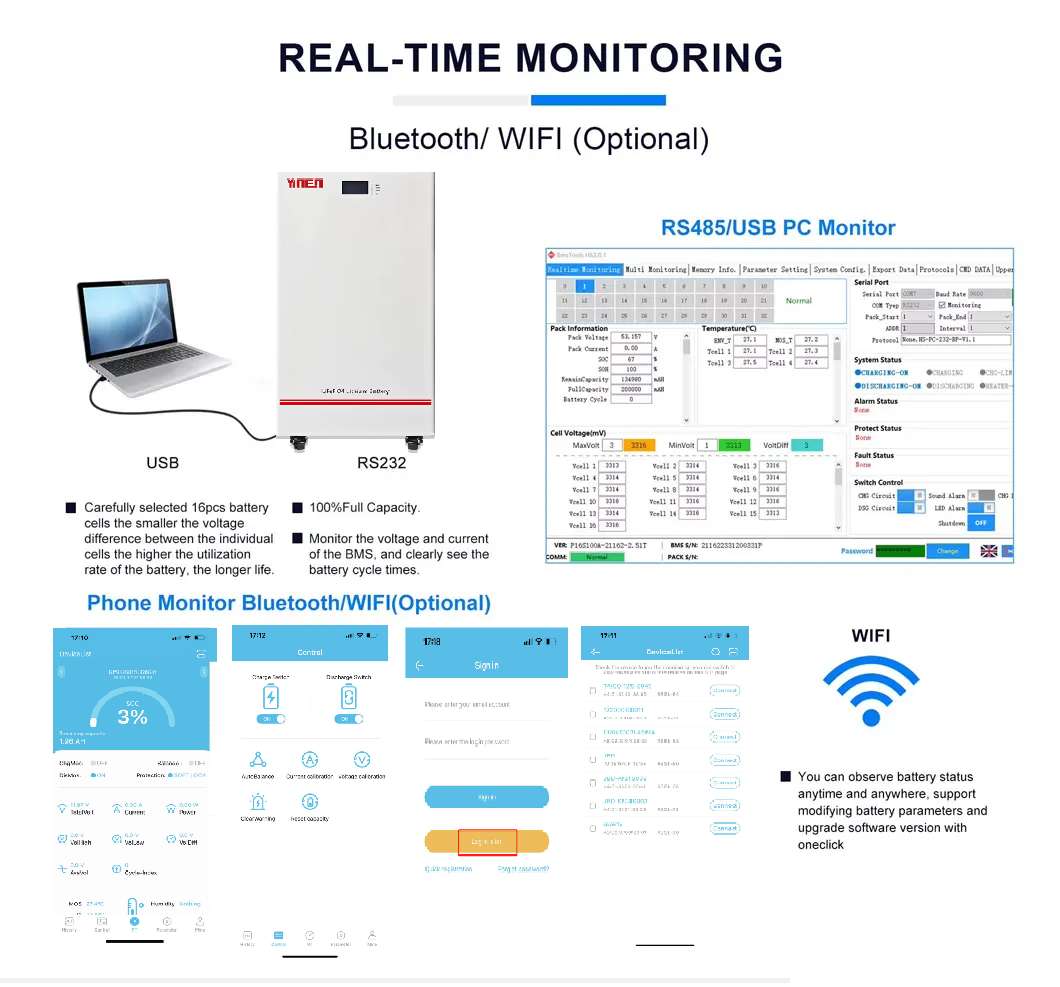

| Protocol | CAN RS485 |
| Product weight | 90KG |
| Nominal charge and discharge current | 100A |
| Maximum continuous charge and discharge current | 200A |
| Peak discharge current | 210A |
| Charging cut-off voltage | 58.4V |
| Discharge cut-off voltage | 40V |
| Optimum operating temperature range | 10℃ - 35℃ |
| Discharge temperature range | -30℃ - 60℃ |
| Charging temperature range | 0℃ - 60℃ |
| Cycles | ≥10000 cycles |
| Battery protection grade | IP54 |

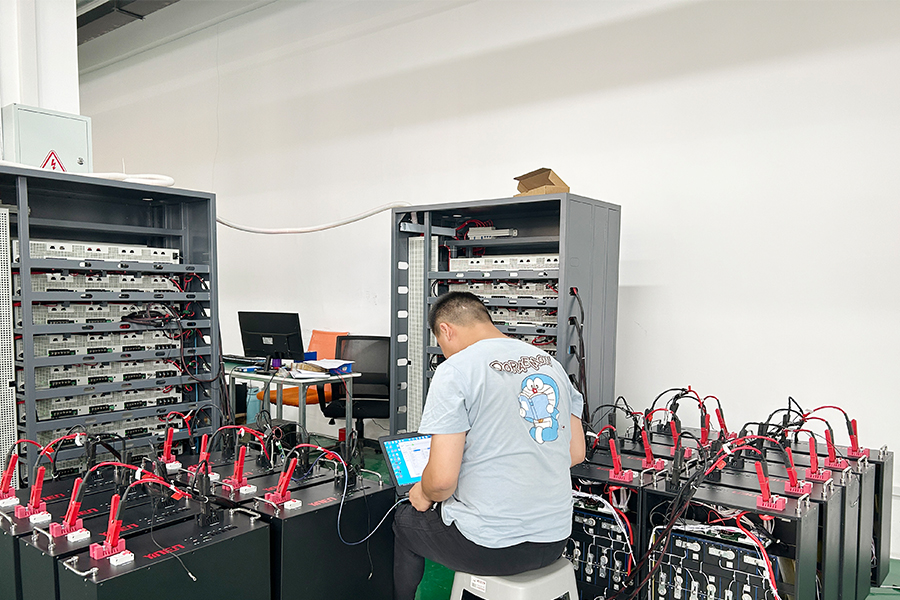

100% tested guaranteed. Matched voltage & IR guaranteed. Welcome QC checking & on-line video checking before shipping.
5 years warranty. 100% technical support & 100% after-sales service.
With an experienced team of energy storage structural and software engineers, we offer flexible customization services. Additionally, our marketing team provides one-on-one support, offering a full range of marketing solutions and services to help you expand your business in local markets.
Only 100% original A Grade. Keep Long-term supply for your project. No worry about stocks problem.
