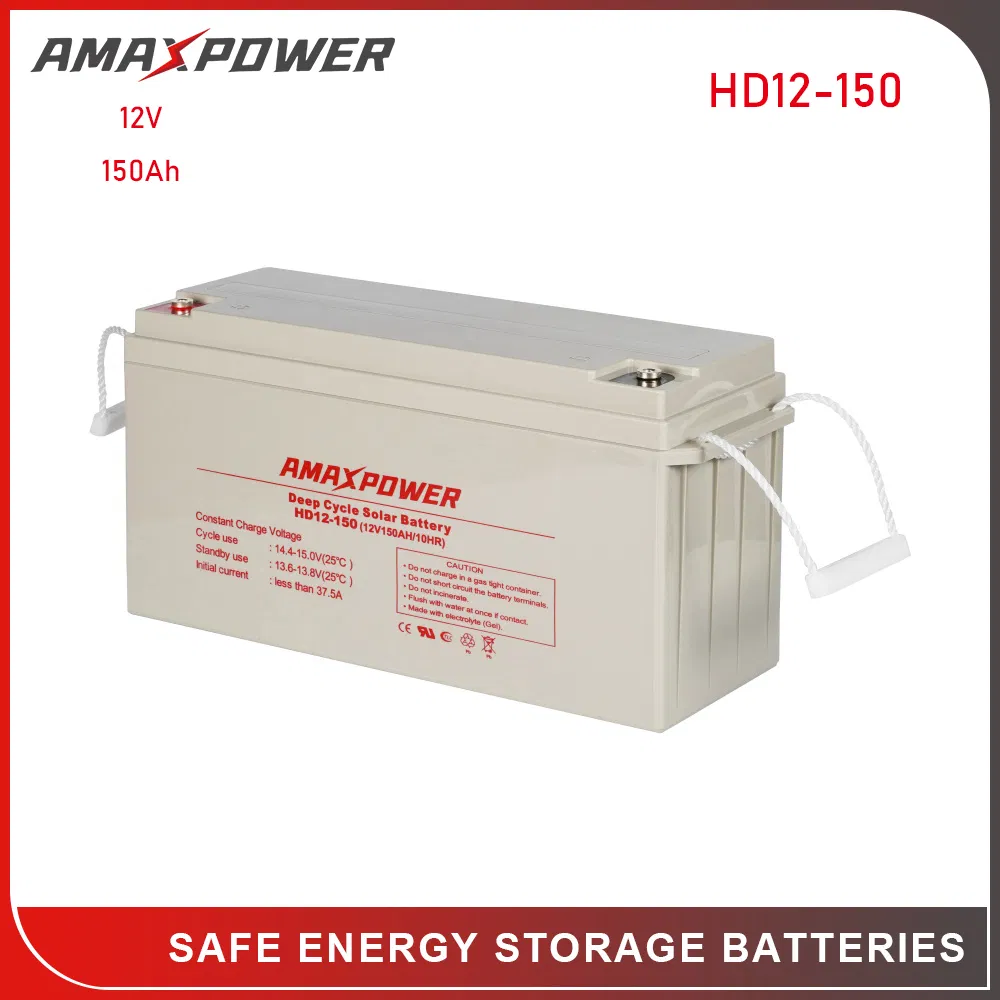

HD Series Deep Cycle Gel Battery
The HD Series is a maintenance-free deep cycle gel battery with a 15-20 year design life in float service. It offers 30% more life than standard gel batteries and 50% more than regular lead-acid AGM batteries. Utilizing 4BS lead paste technology and high-quality nano silica gel electrolyte, it is engineered for frequent cycle discharge in extreme hot and cold environments.
Designed life exceeds 15 years through advanced lead-tin alloy technology.
Reliable performance in a wide temperature range from -30ºC to 60ºC.
Low internal resistance and low self-discharge rate for maximum power retention.
| Item | Specifications (12V 150Ah) |
|---|---|
| Nominal Voltage | 12V (6 cells) |
| Nominal Capacity | 150Ah @ 10 hour-rate |
| Dimensions (L*W*H) | 484±2 * 171±2 * 241±2 mm |
| Weight | Approx. 45kg (99lbs) |
| Max. Discharge Current | 900A (5S) |
| Internal Resistance | Approx. 5.0mΩ (Full Charged) |
| Cycle Use Voltage | 14.4V - 15.0V |
| Float Use Voltage | 13.6V - 13.8V |

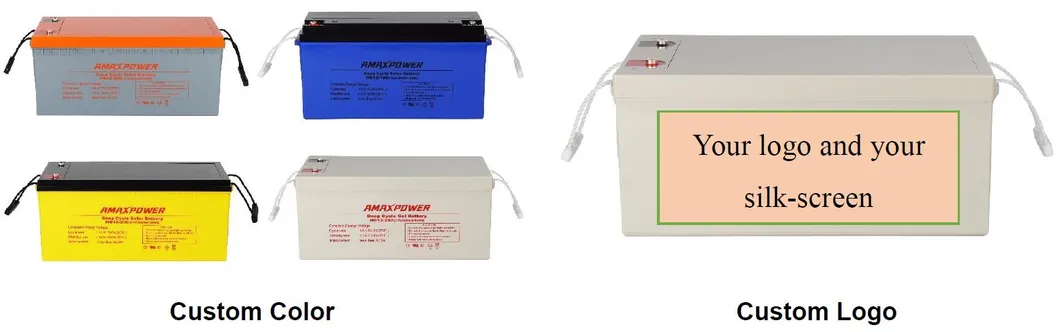

Comprehensive OEM & ODM services are provided for global clients. With extensive manufacturing expertise, we support brand customization and advanced product R&D.
Primary Applications

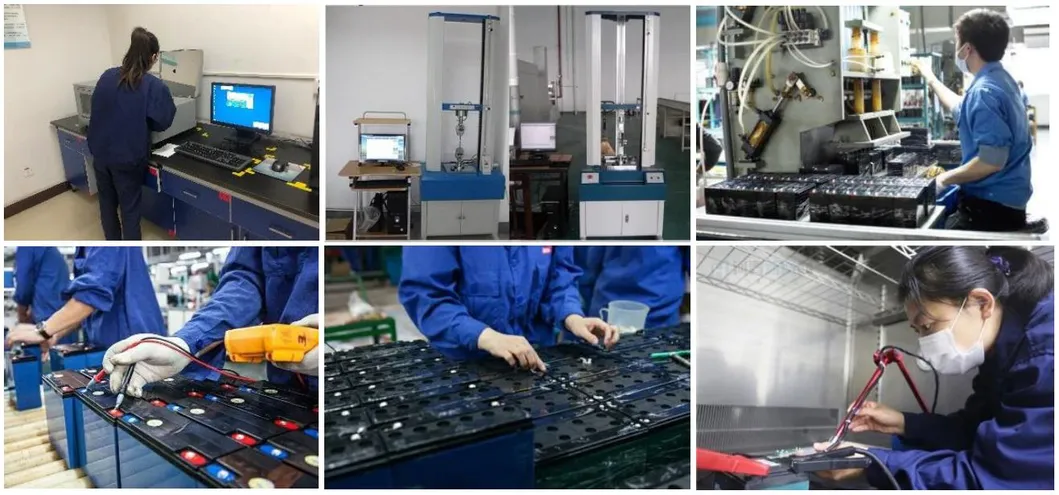

Strict QC Process:
| Model No. | Voltage(V) | Capacity(Ah) | Weight(kg) | Length(mm) | Width(mm) | Height(mm) | Terminal |
|---|---|---|---|---|---|---|---|
| HD12-38 | 12 | 38 | 12.2 | 197 | 166 | 174 | T2 |
| HD12-65 | 12 | 65 | 20.5 | 350 | 166 | 179 | T3 |
| HD12-100 | 12 | 100 | 31.5 | 407 | 174 | 209 | T5 |

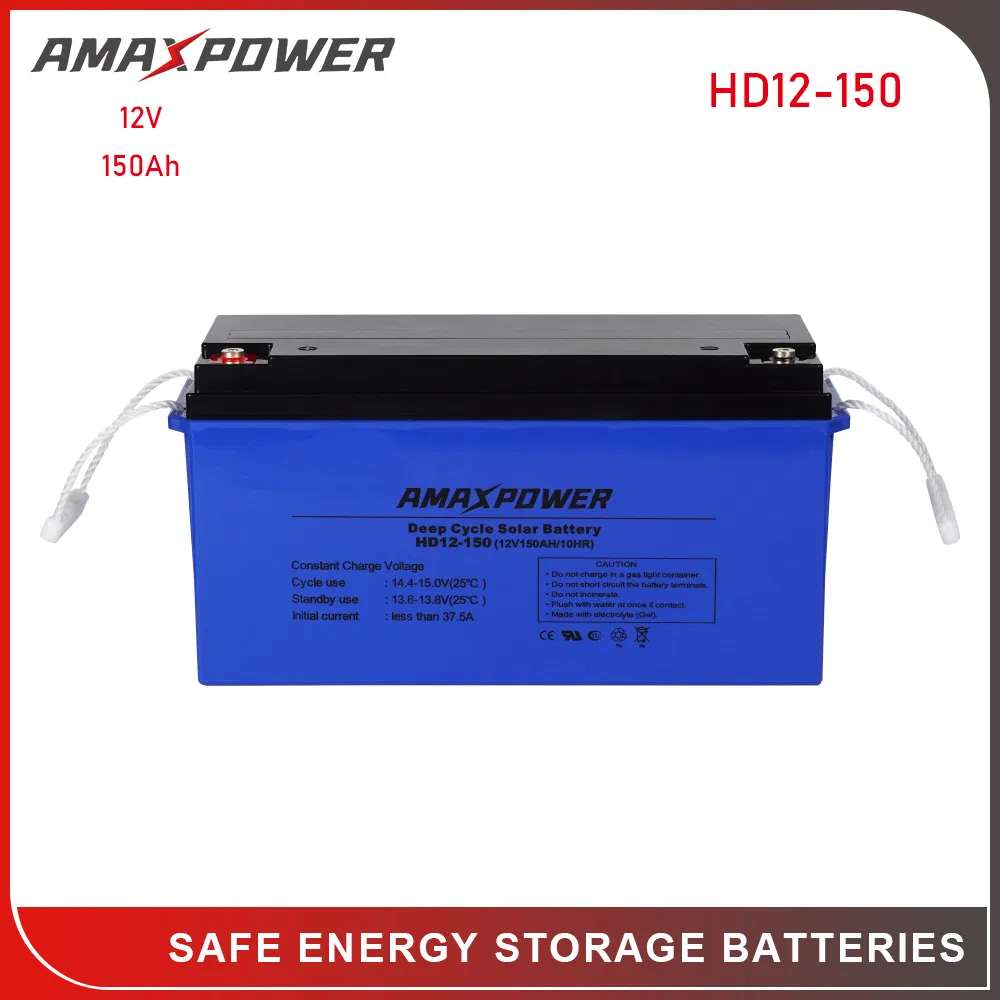

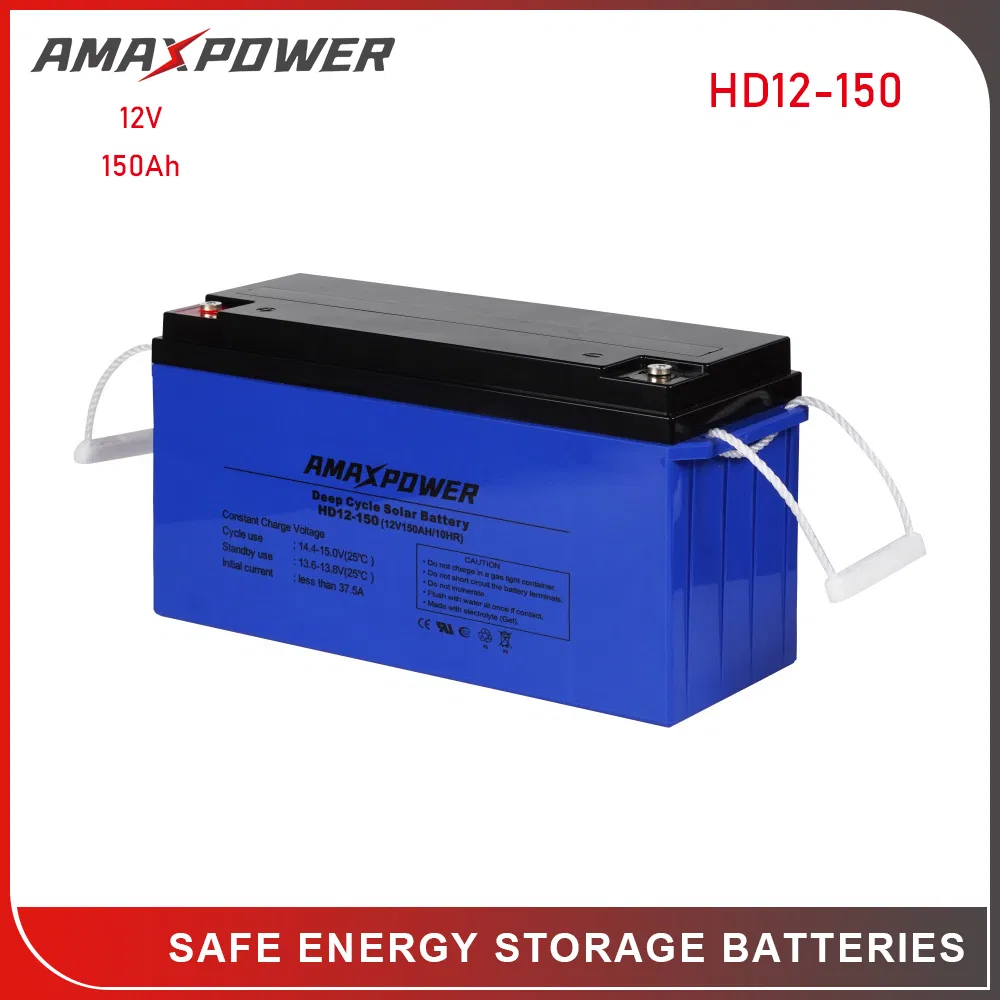

| HD12-150 | 12 | 150 | 45.0 | 484 | 171 | 241 | T4 |
| HD12-200 | 12 | 200 | 64.0 | 522 | 240 | 216 | T4 |
| HD12-250 | 12 | 250 | 75.5 | 520 | 268 | 220 | T4 |
| HD6-200 | 6 | 200 | 29.6 | 260 | 180 | 247 | T5 |
