Constant Safe Power Solutions - HLC Series 6V/12V
The HLC series lead carbon batteries are recognized as one of the most reliable and high-quality battery systems in the industry. Designed with advanced patented AGM technology, these batteries offer a service life of 18-20 years. They are specifically engineered for solar markets and high-temperature environments, complying with international standards such as IEC60896 and BS6290-4.

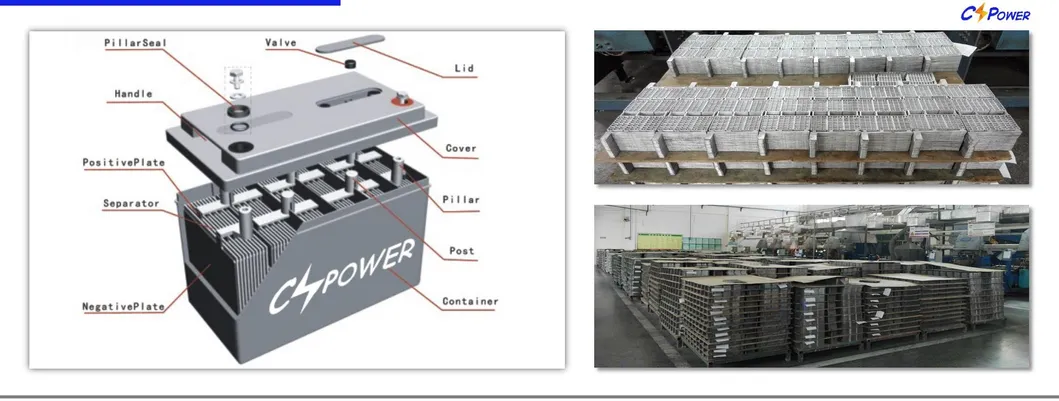

| Component | Positive Plate | Negative Plate | Separator | Electrolyte |
|---|---|---|---|---|
| Features | Thick high Sn low Ca 3D flat pasted plate | Balanced Pb-Ca grid with Supper-C additives | Advanced PVC/AGM for high pressure | Nano SILICON GEL |

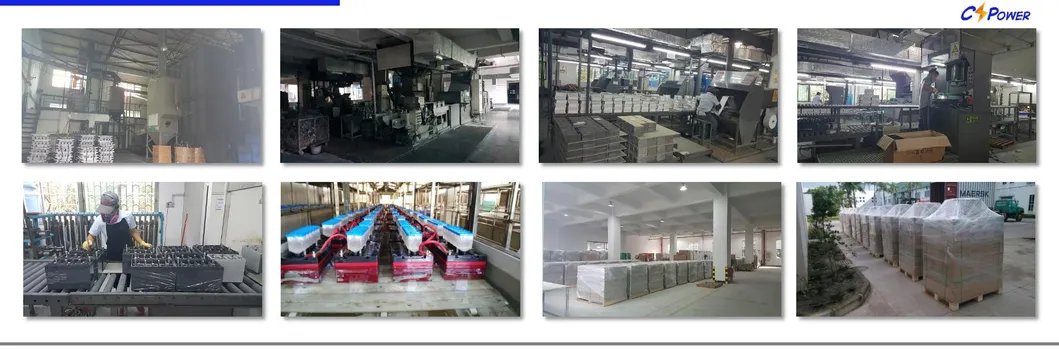

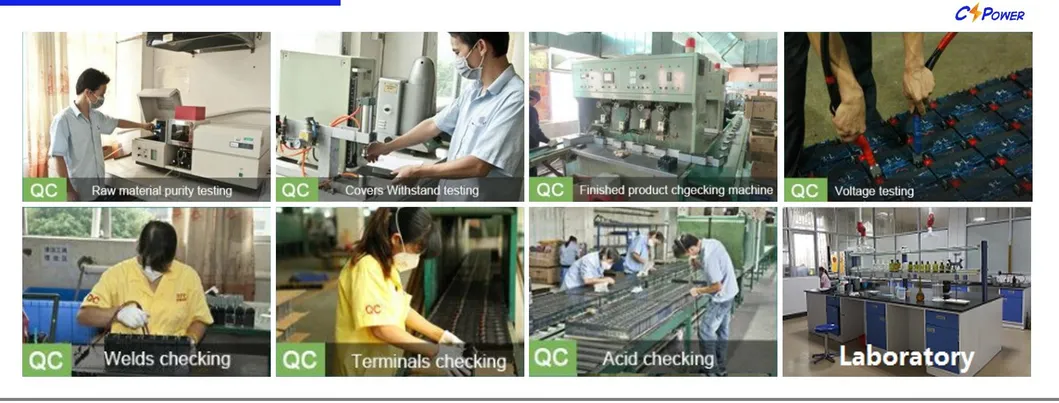

Our production facilities adopt strict quality control systems including IQC, PQC, and OQC to ensure zero defects. Certified by ISO 9001, ISO 14001, CE, UL, and IEC 61427.
| Model | Voltage (V) | Capacity (Ah) | Dimensions (L*W*H mm) | Weight (kg) |
|---|---|---|---|---|

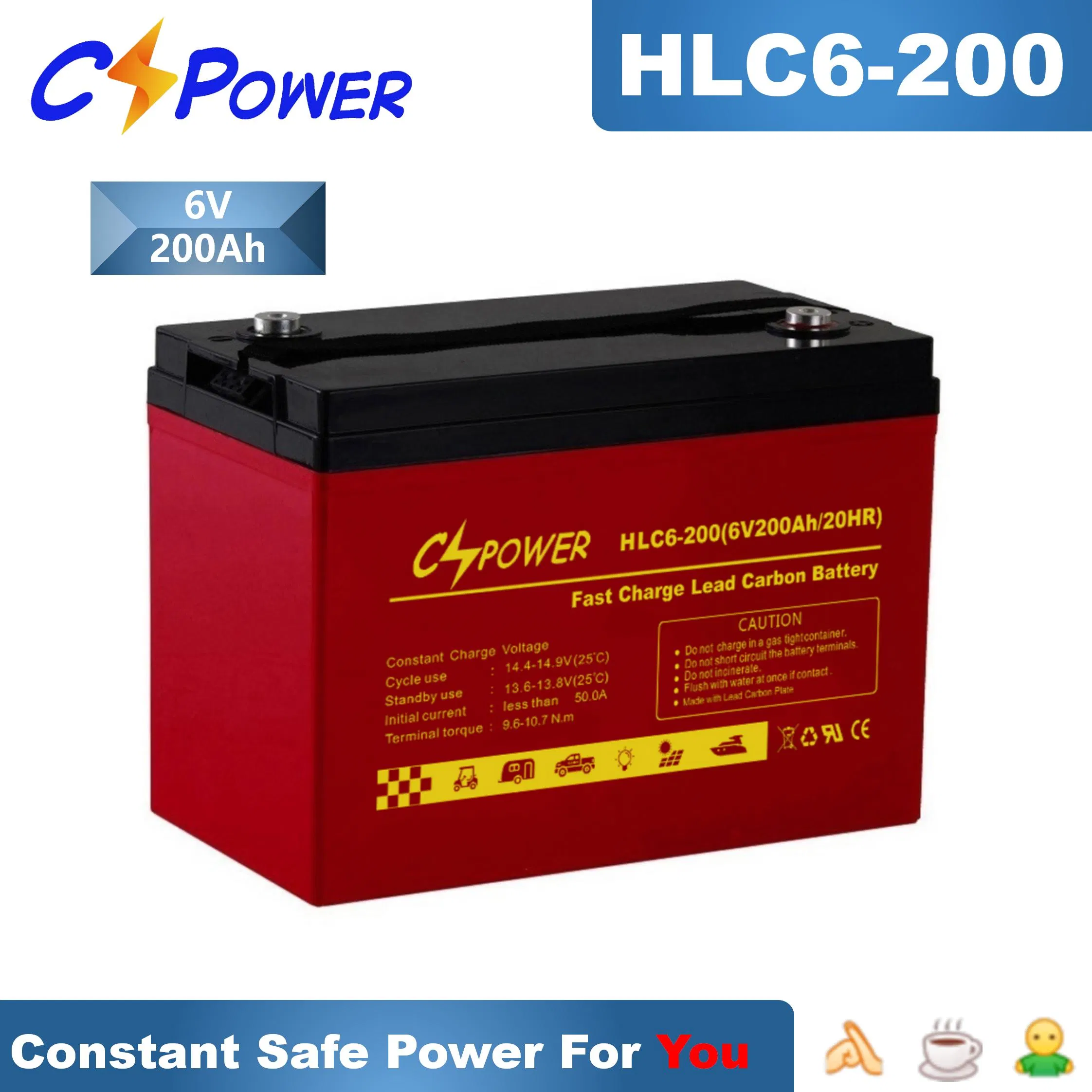

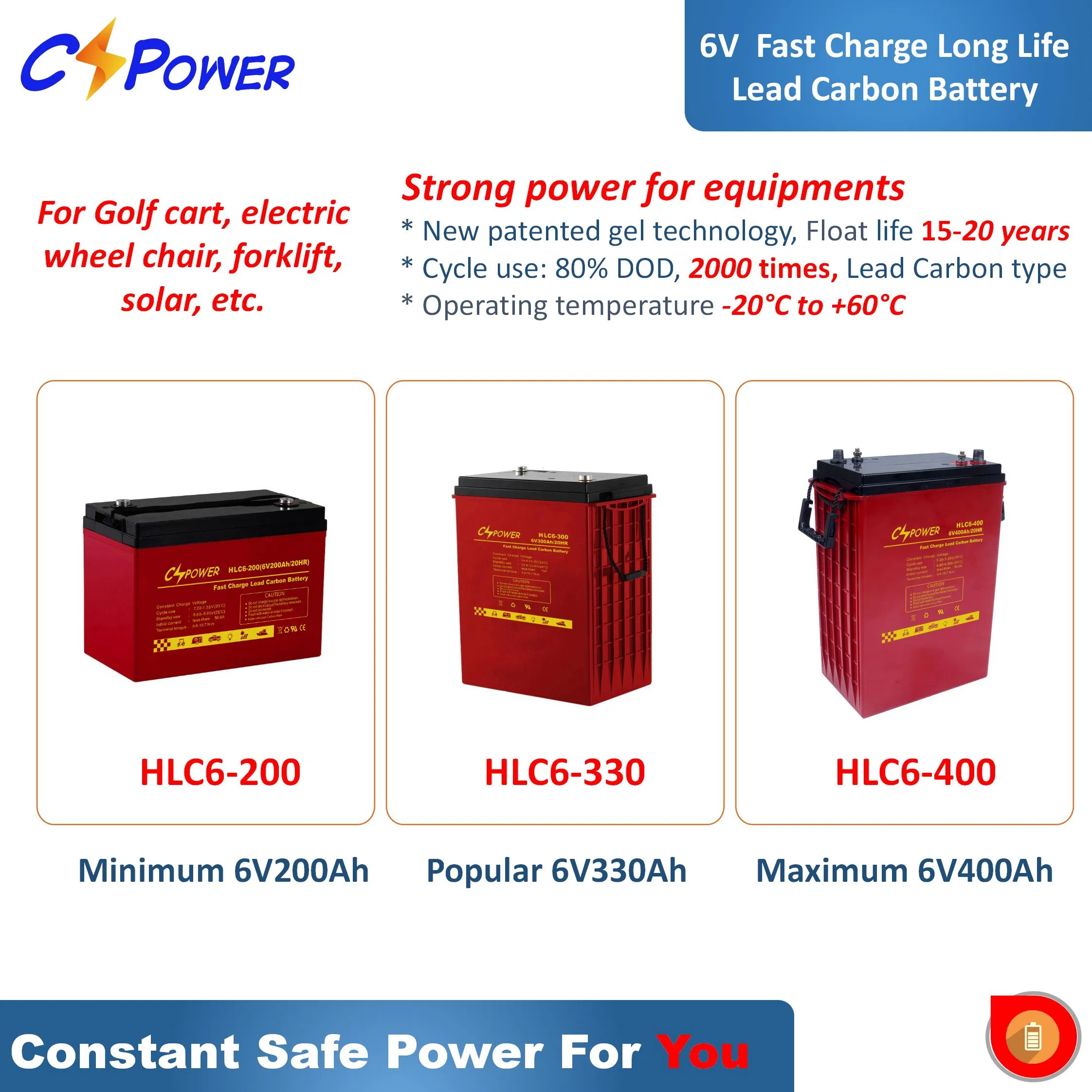

| HLC6-200 | 6V | 200 | 306*168*226 | 31.0 |
| HLC6-225 | 6V | 225 | 243*187*275 | 32.5 |

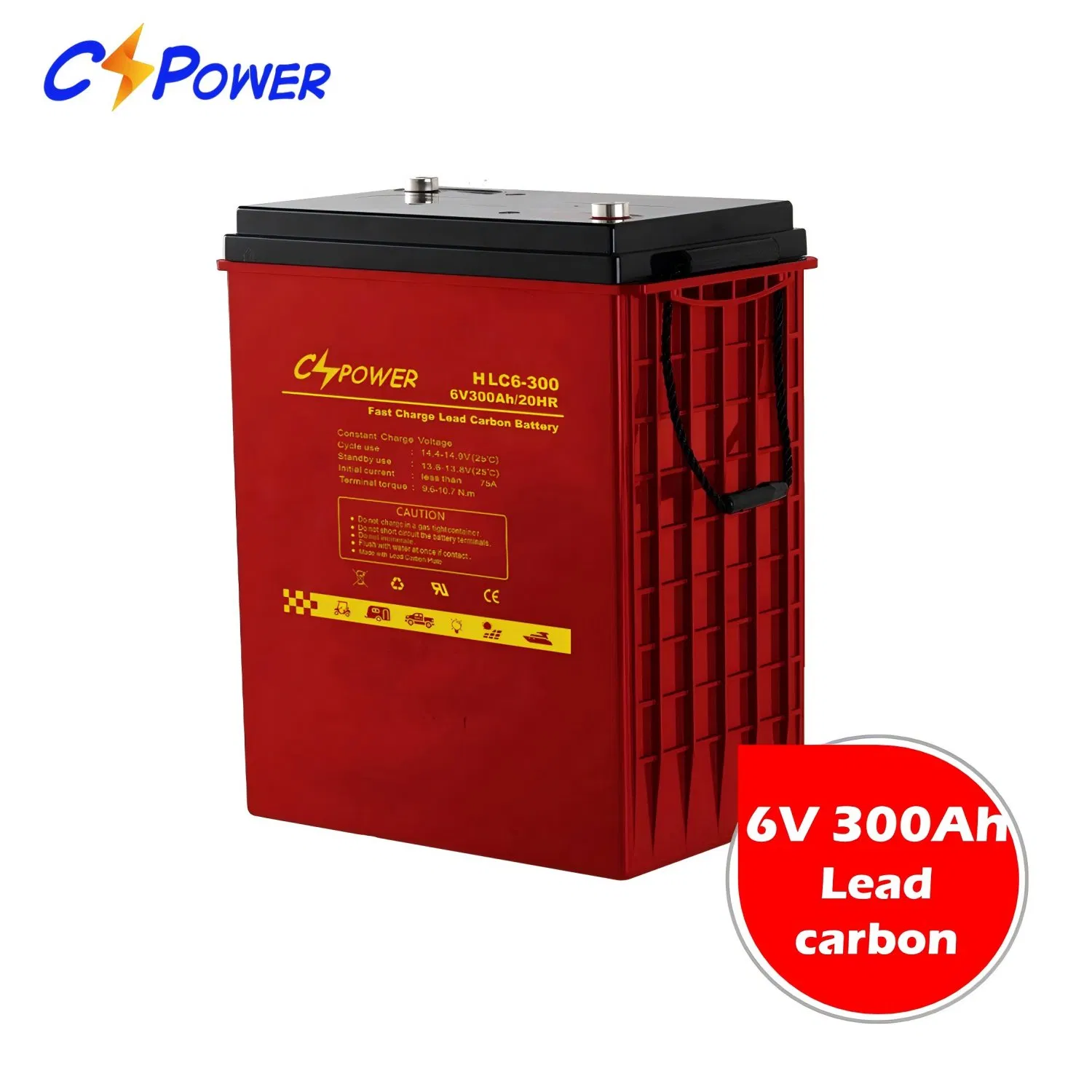

| HLC6-300 | 6V | 300 | 295*178*350 | 46.5 |

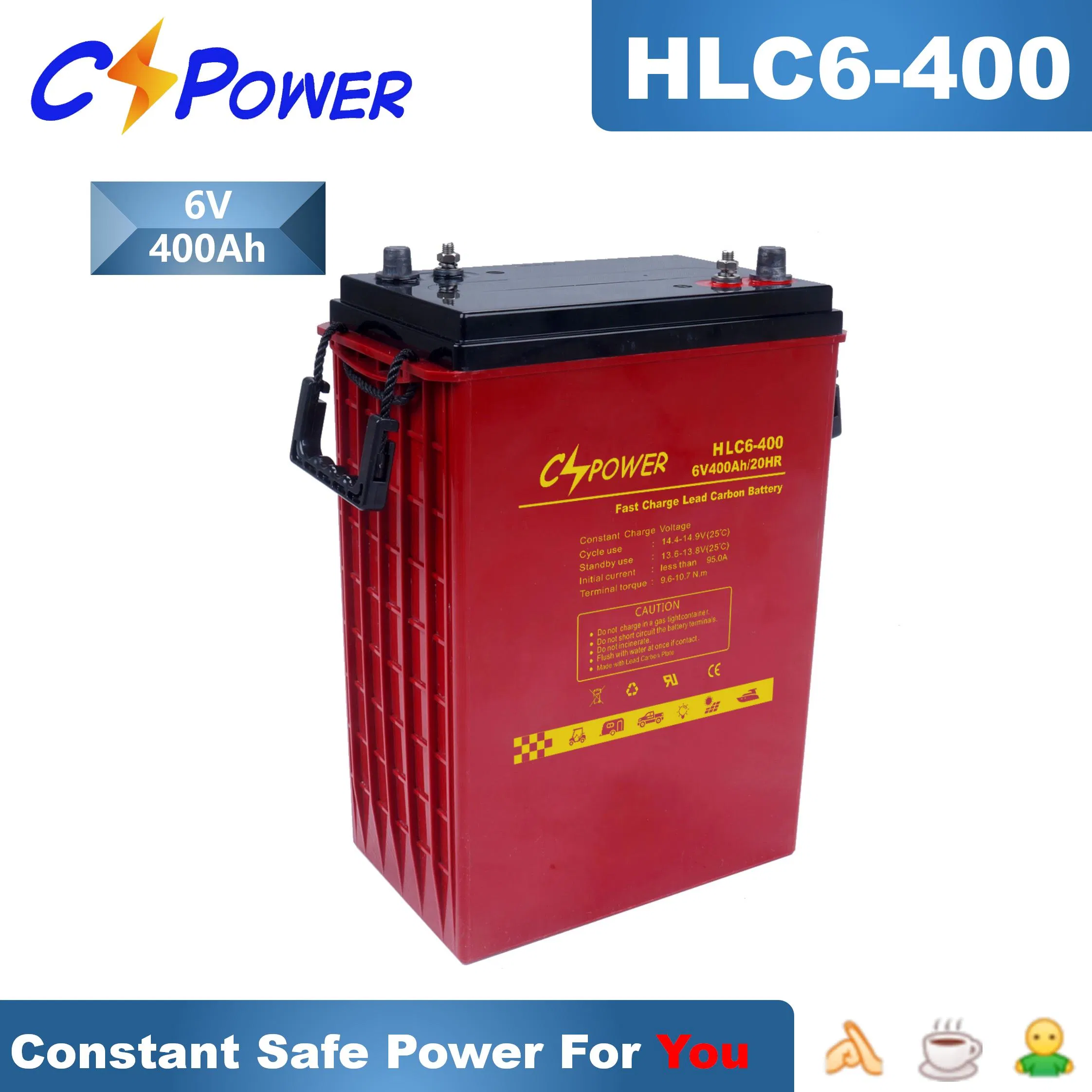

| HLC6-400 | 6V | 400 | 295*178*408 | 57.2 |
