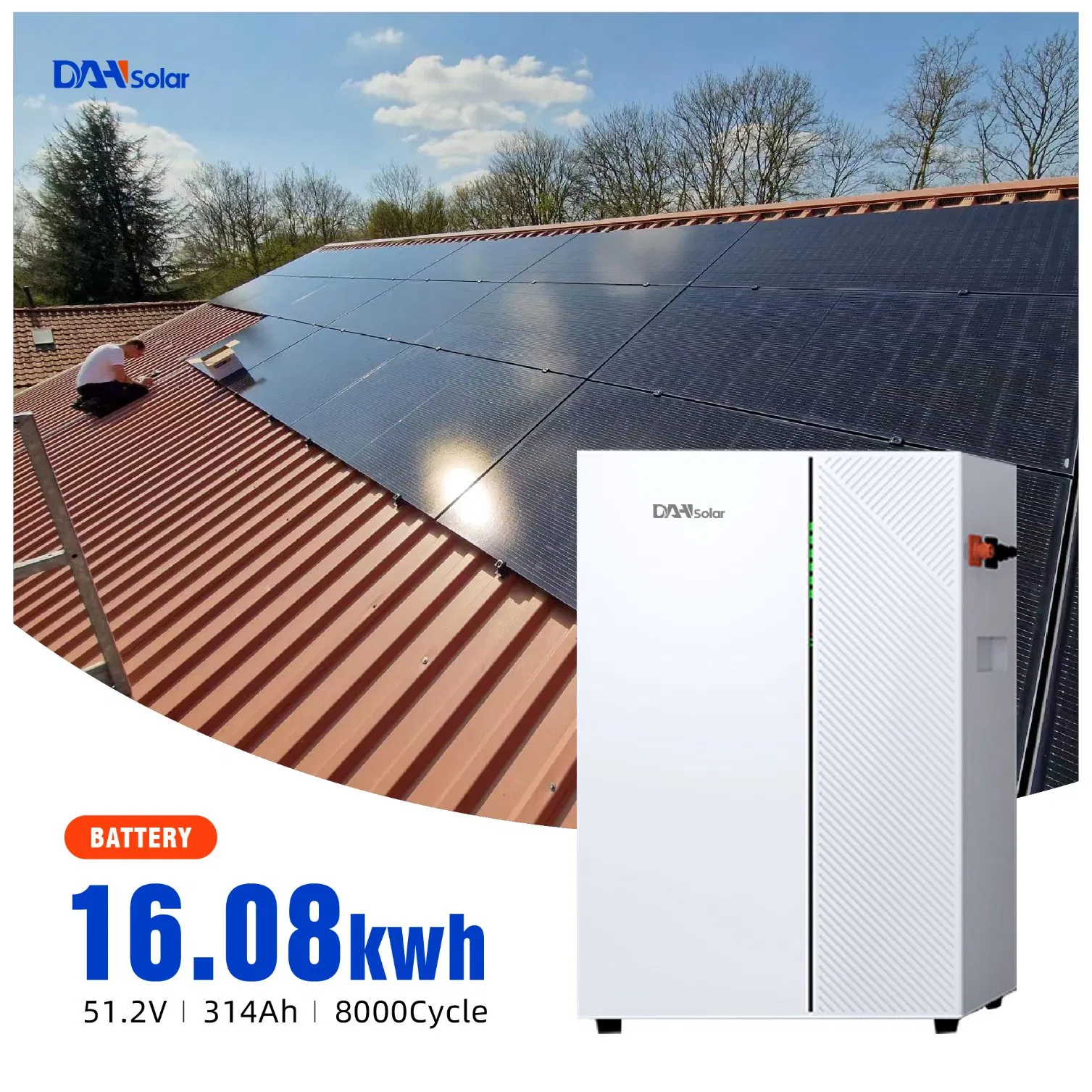

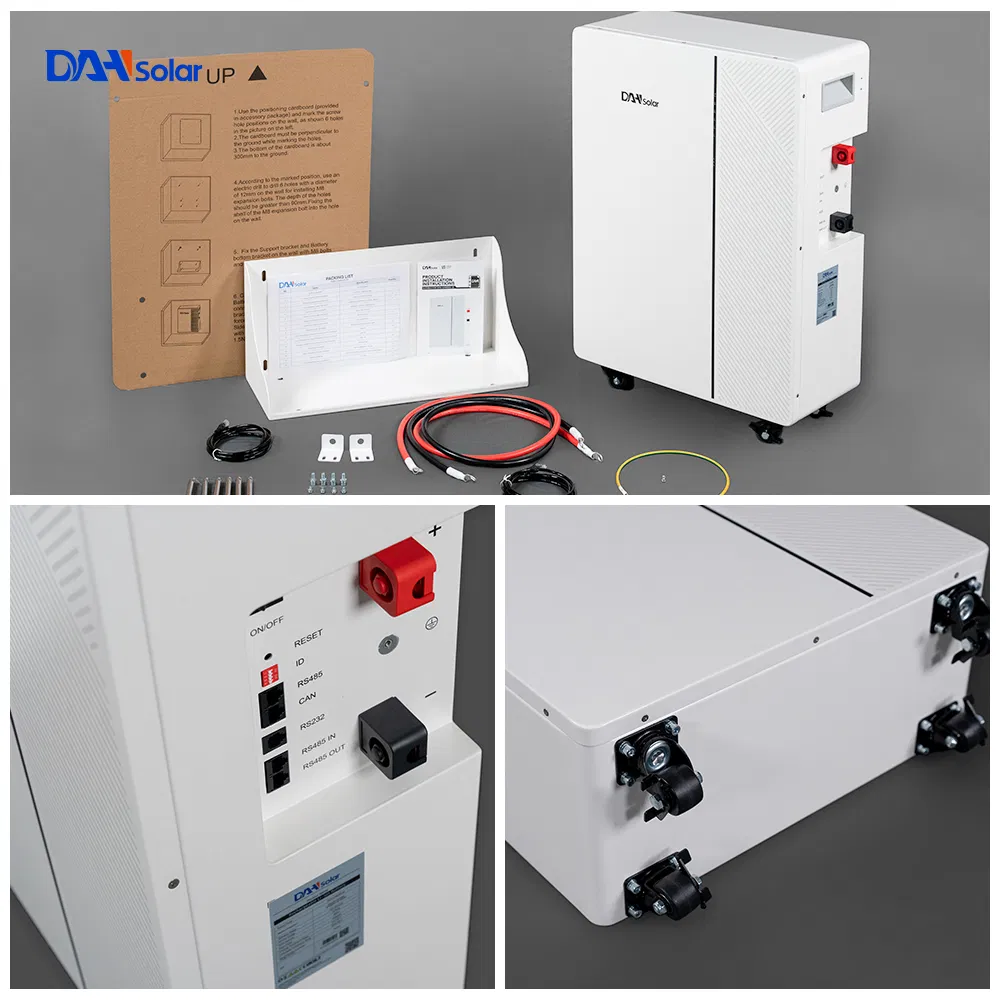

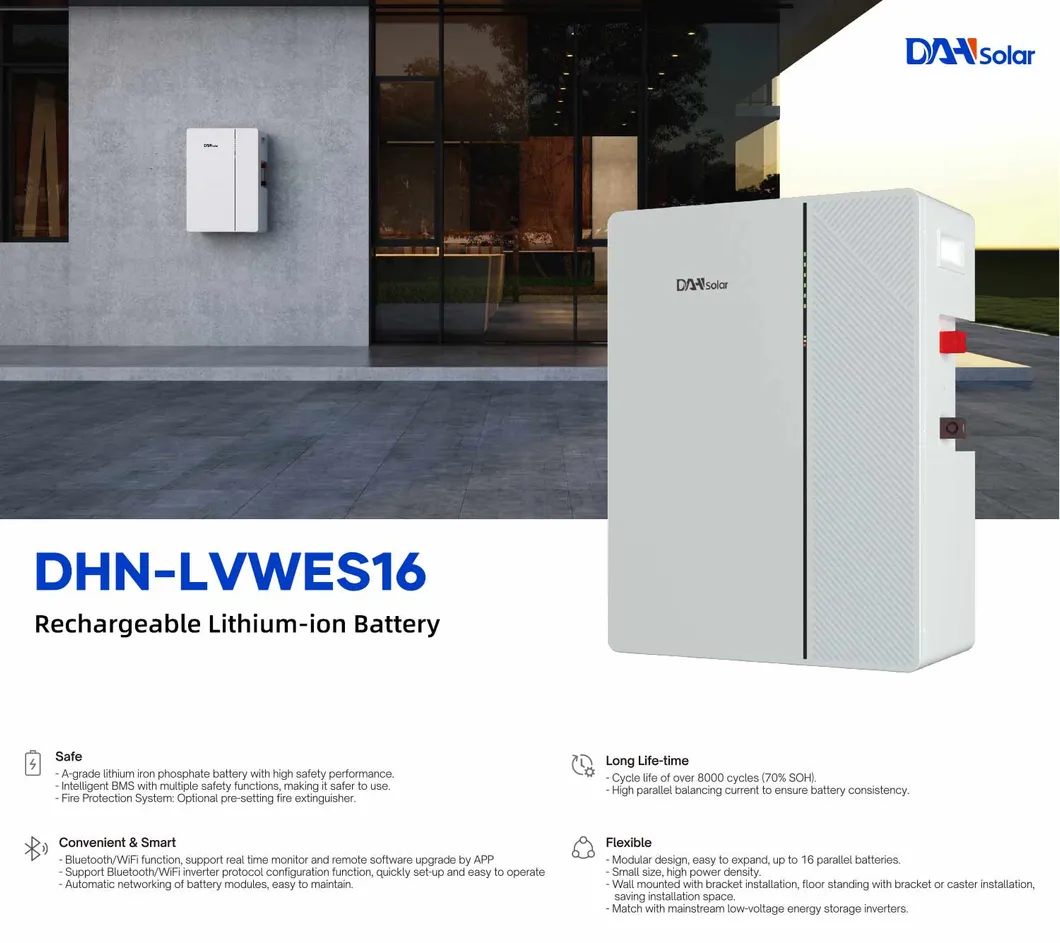

The DHN-LVWES series product is a low-voltage energy storage battery designed to provide efficient and reliable energy storage solutions for households, businesses, and specific occasions. Adopting top-tier brand lithium iron phosphate battery cells, with high safety, stability, energy density, and long cycle life. Built-in efficient intelligent battery management system (BMS), comprehensively monitoring and controlling the battery energy storage system to ensure its safe, stable, and high-performance operation.
| Parameter | Specification (DHN-LVWES16-G2) |
|---|---|
| Battery Type | LiFePO4 |
| Rated Energy (kWh) | 16.08 |
| Rated Capacity (Ah) | 314 |
| Scalability | Parallel connection of up to 16 units |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage(V) | 43.2~58.4 |
| Charge/Discharge Current (Recommend) | 157A |
| Charge/Discharge Current (Max) | 200A |
| Recommend Depth of Discharge | ≤90% |
| Dimension (W/D/H, mm) | 535x710x235 |
| Weight (kg) | 120 |
| Cycle Life | >8000 (25±2°C, 0.5C/0.5C, 70%EOL) |
| Compatible Inverters | SMA/VICTRON/SE/DEYE/SOLIS/GOODWE/GROWATT etc. |
