Suntherra Battery
1 / 5

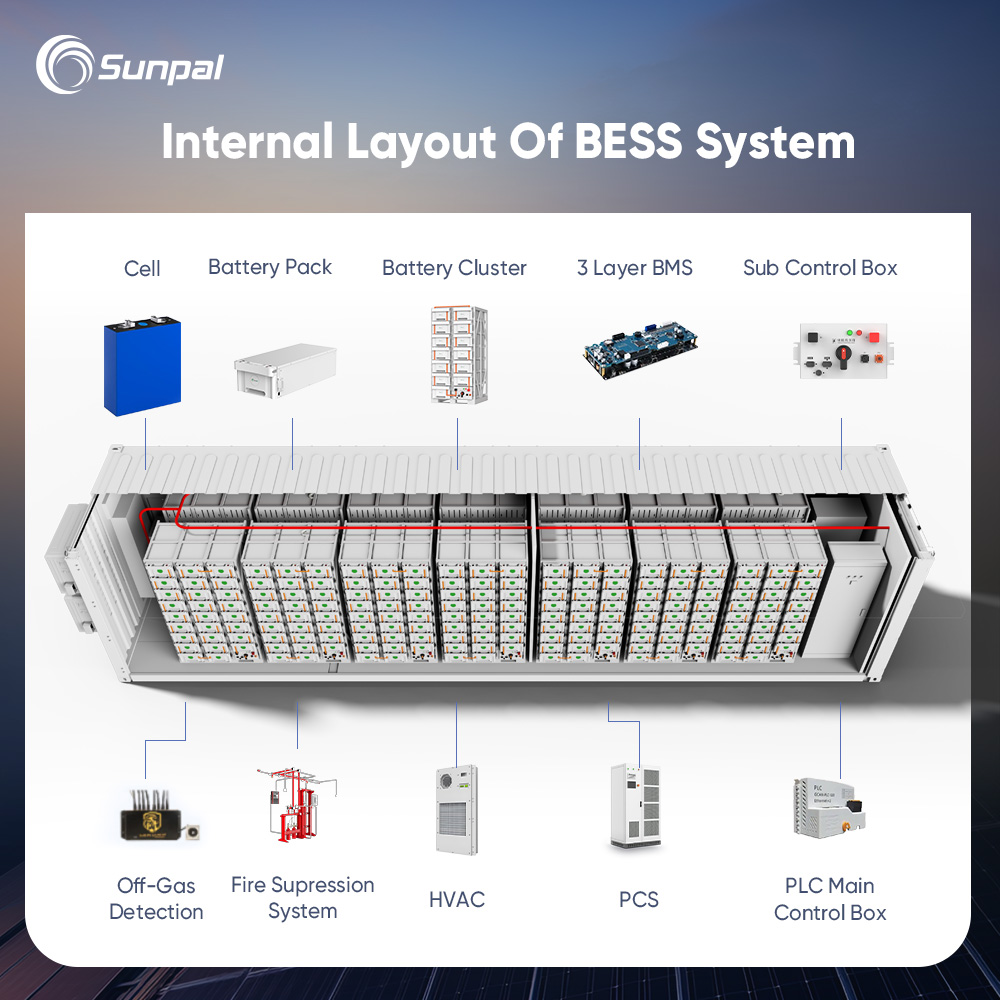

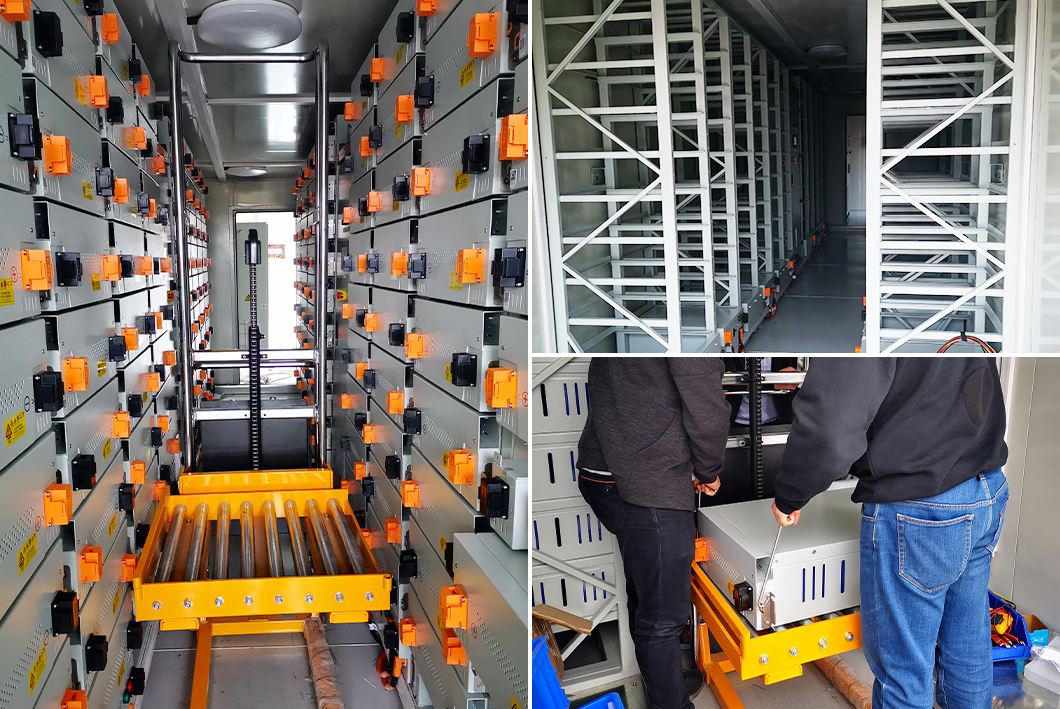

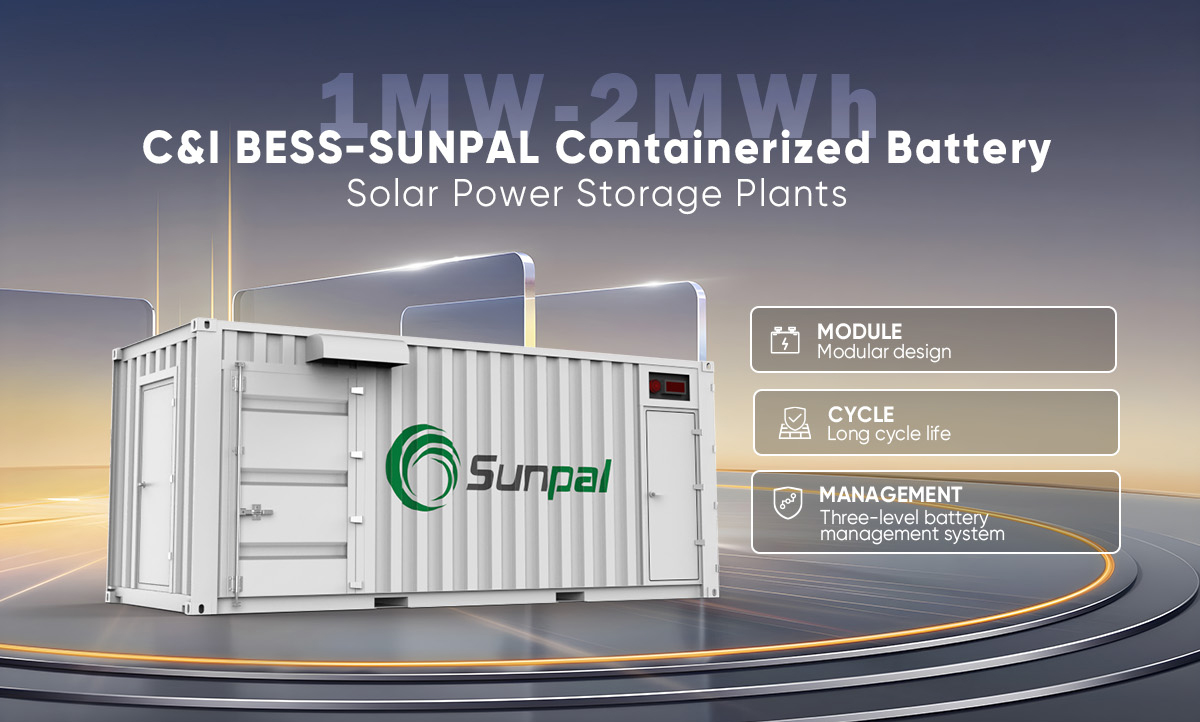

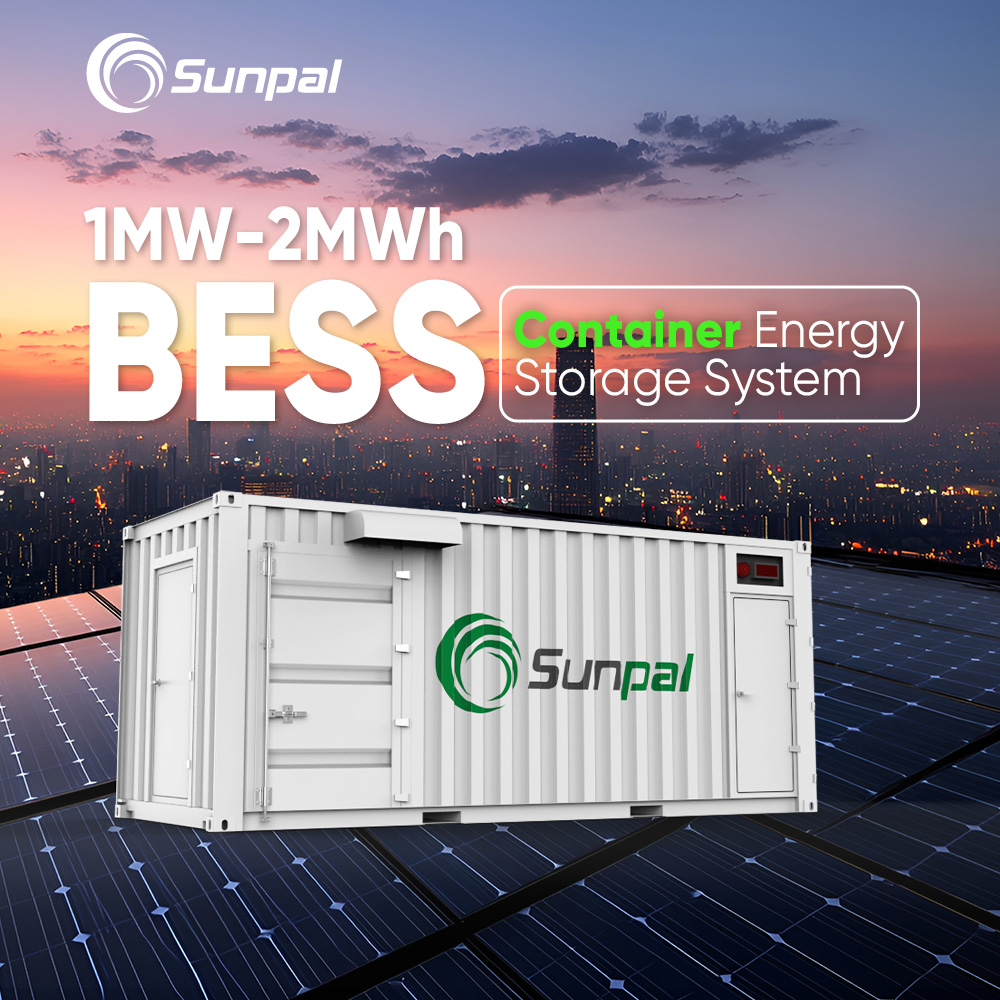

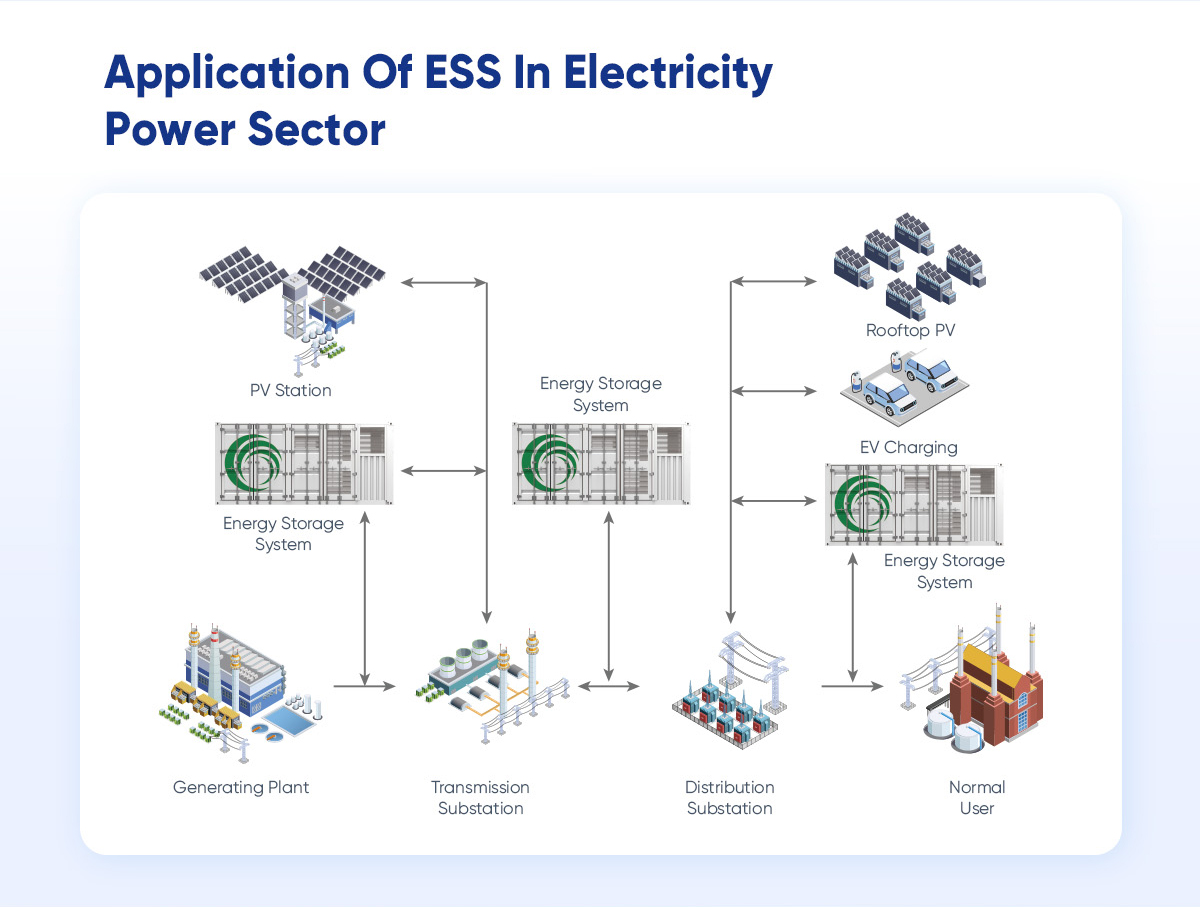

1mW/2mWh Containerized Battery Solar Power Storage Plants are suitable for use in public buildings, communities, medium and large enterprises, utility-scale storage systems, off-grid systems, electric vehicles and backup systems. The storage system's container allows you to store energy generated through a wind turbine, photovoltaic, or CHP. Because of their long lifetime, the storage containers can also be used for peak shaving, thus reducing power bills.
| Model | 1000kW-2150kWh |
| Adaptive Battery | Lithium / Lead-acid / Solarpanel (MPPT) |
| Operating Mode | Constant current, constant power, MPPT, AC voltage source, DC voltage source |
| Rated Max. AC Power | 1000kW |
| Rated AC Current | 180A*4 |
| Rated AC Voltage | 400V, 3W+N+PE |
| Rated AC Frequency | 50/60Hz ± 5Hz |
| THDi | ＜3% (Rated power) |
| Power Factor | -1 leading to +1 lagging |
| Degree of Protection | IP21 (Indoor) / IP55 (Outdoor) |
| Isolation Method | Transformer isolation |
| Noise Level | ＜78dB |
| Ambient Temperature | -25℃ to +60℃ (derating above 45℃) |

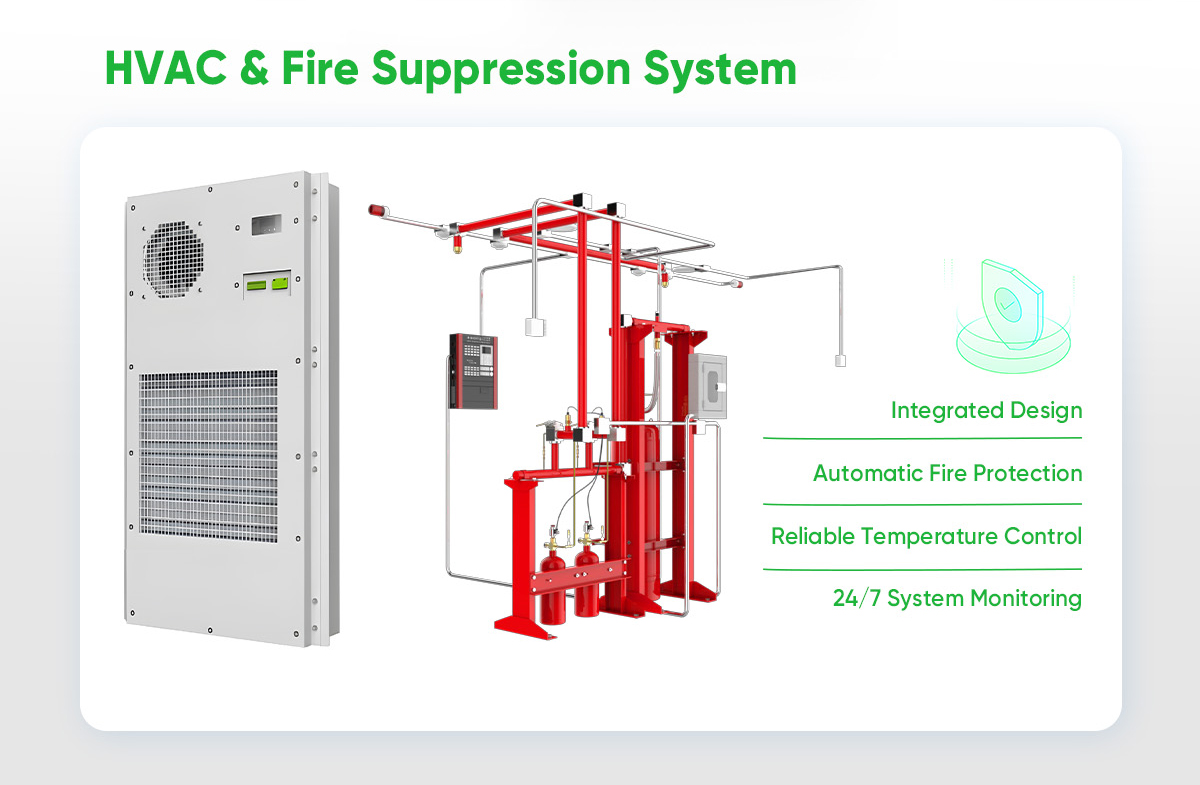

| Cooling Mode | Intelligent air-cooled / Air Conditioning |
| Communication Interface | RS485 / CAN / Ethernet |
| PV Port Voltage Range | 315~550V (MPPT) |
| Battery Rated Voltage | 768V |
| Dimensions (W*D*H) | 12196 * 2438 * 2896 mm (Standard Container) |
