The Solar Storage Battery is an advanced energy storage solution that offers powerful performance, intuitive control and reliable efficiency. With up to 12kWh of solar energy storage capacity, this battery is an excellent choice for any renewable energy system. It also provides a dependable power source when the grid is not available, making it a great choice for off-grid living, emergency backup and emergency preparedness.
The Solar Storage Battery boasts a number of advantages that make it appealing. It has a long life expectancy of up to 10 years before needing to be replaced, and its sophisticated charging and discharging systems run at optimum efficiency while providing the highest levels of safety. In addition, its intuitive control system makes it easy to use and manage, allowing you to adjust your stored power as needed.
When it comes to features, the Solar Storage Battery is packed with plenty of useful options. It boasts a range of power management features to help maximize its usefulness, as well as advanced technology to ensure reliable and efficient operation. Additionally, its user-friendly control system makes it easy to maintain, helping you to enjoy reliable power from the battery for years to come.
The Solar Storage Battery is a cost-effective, reliable and efficient energy storage solution for any environment where clean, affordable, and unlimited power is desired. With its powerful performance, intuitive control system and reliable efficiency, it is an ideal choice for powering your home or business.
Discharge: -20°C to 60°C / -4F to 140F Storage: -10°C to 50°C / 14F to 122F Charge: 0°C to 50°C / 32F to 122°F
Model Parameters

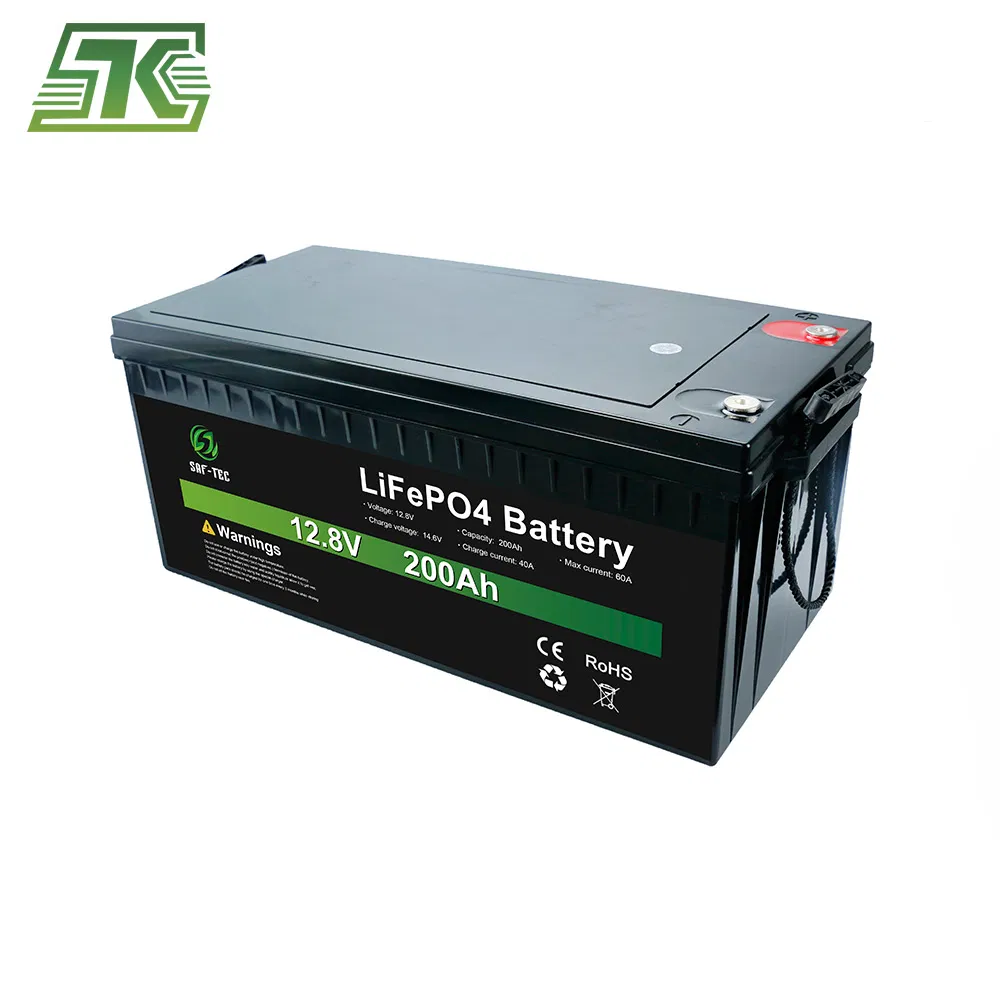

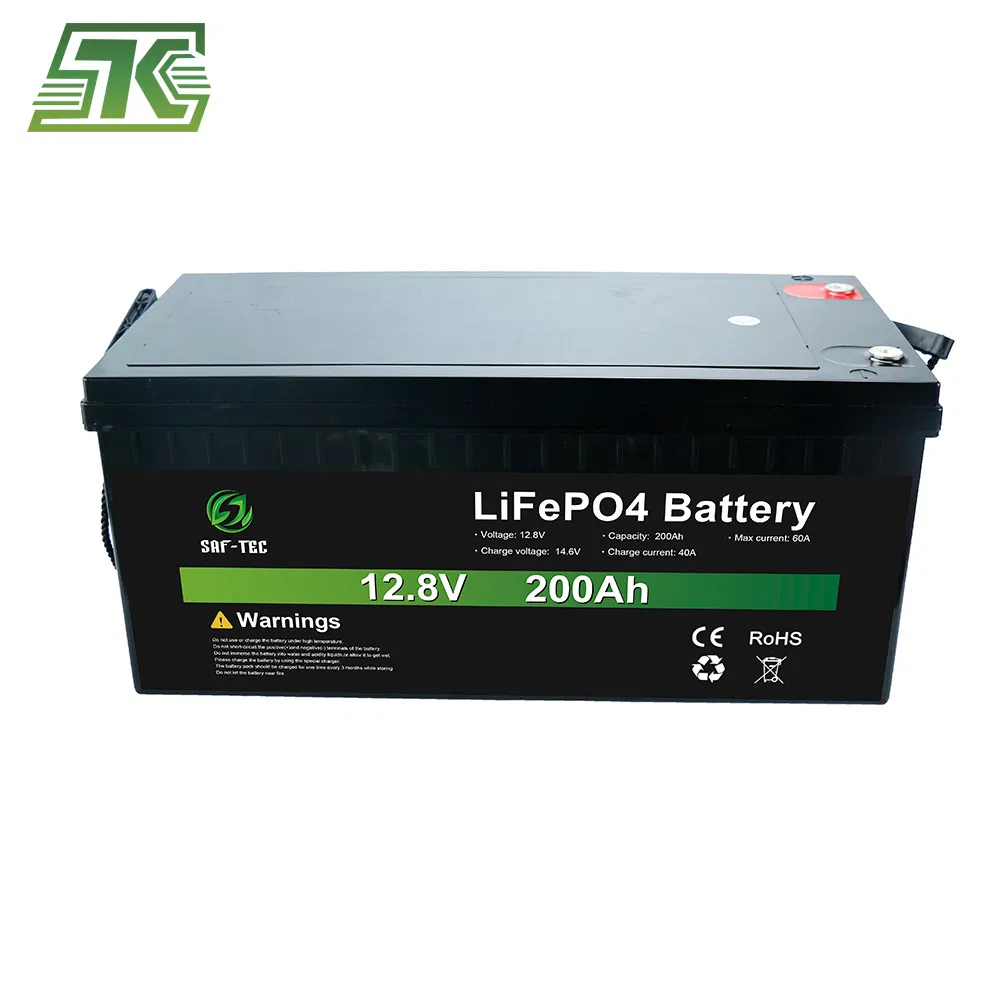

STC12-200M
Voltage12.8V
Capacity204A
Dimension522X239X218
Weight17.5kg
Charge Current40A
Max Charge Current60A
Max Discharge Current60A
Charge Voltage14.6V
STC12-6M
Voltage12.8V
Capacity6Ah
Dimension152mmx65mmx96mm
Weight0.752kg
Charge current1.2A
Max charge current1.8A
Max discharge current1.8A
Charge voltage14.6V

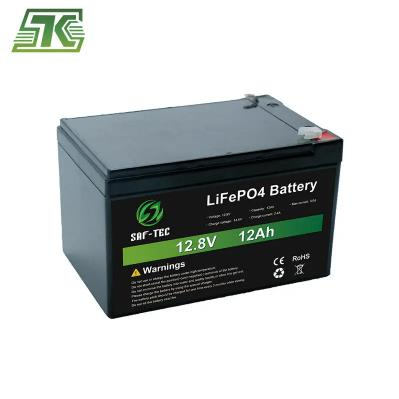

STC12-12M
Voltage12.8V
Capacity12Ah
Dimension150mmx99.5mmx99.7mm
Weight1.336kg
Charge current2.4A
Max charge current3.6A
Max discharge current3.6A
Charge voltage14.6V
STC12-18M
Voltage12.8V
Capacity18Ah
Dimension181mmx78mmx183mm
Weight2.17kg
Charge current3.6A
Max charge current5.4A
Max discharge current5.4A
Charge voltage14.6V
STC12-24M
Voltage12.8V
Capacity24Ah
Dimension165mmx125.5mmx175mm
Weight2.854kg
Charge current4.8A
Max charge current7.2A
Max discharge current7.2A
Charge voltage14.6V

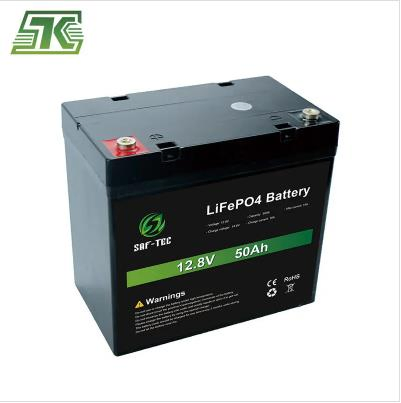

STC12-50M
Voltage12.8V
Capacity50Ah
Dimension229mmx138mmx208mm
Weight6.588kg
Charge current10A
Max charge current15A
Max discharge current15A
Charge voltage14.6V

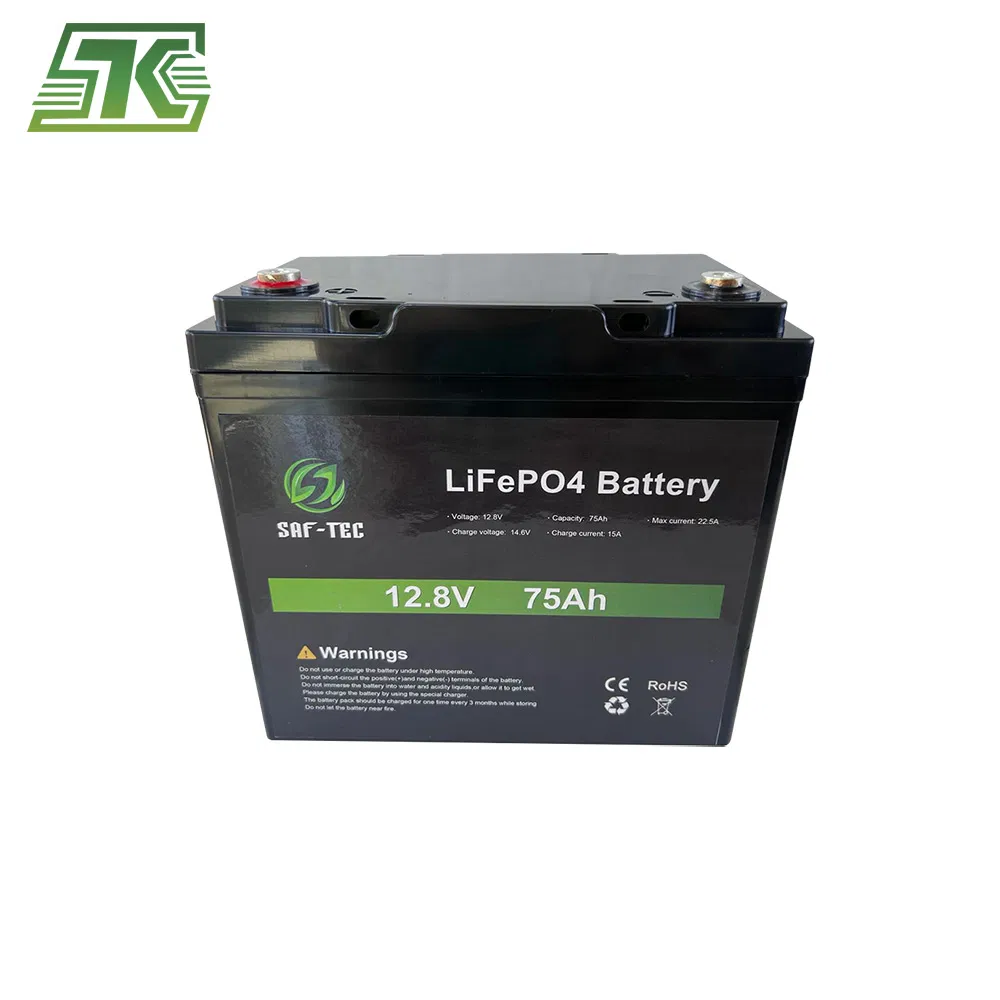

STC12-75M
Voltage12.8V
Capacity75Ah
Dimension260mmx168mmx209mm
Weight8.338kg
Charge current15A
Max charge current22.5A
Max discharge current22.5A
Charge voltage14.6V

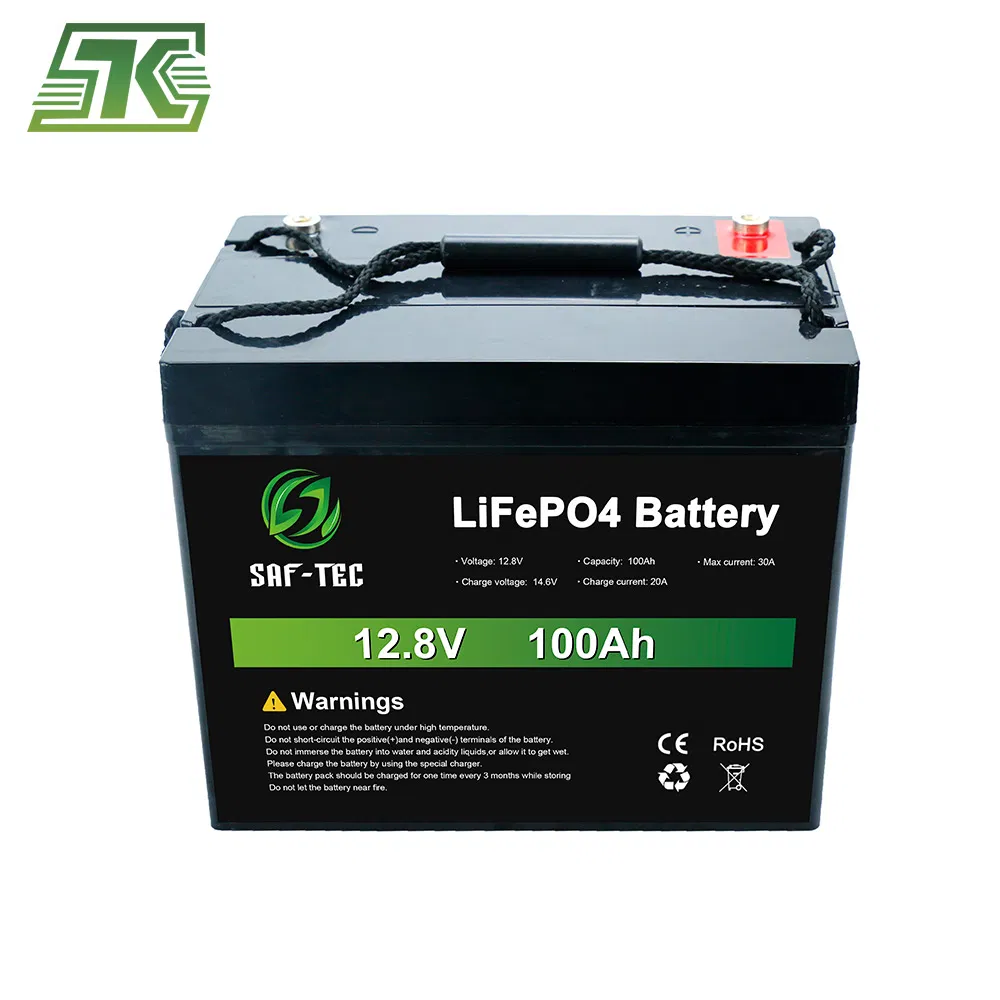

STC12-100M
Voltage12.8V
Capacity100Ah
Dimension328mmx172mmx230mm
Weight9.428kg
Charge current20A
Max charge current30A
Max discharge current30A
Charge voltage14.6V
STC12-150M
Voltage12.8V
Capacity150Ah
Dimension483mmx170mmx240mm
Weight17.78kg
Charge current30A
Max charge current45A
Max discharge current45A
Charge voltage14.6V
12.8V 150ah Gel Battery Ups Battery Deep Cycle Battery 12V Battery Solar Battery Advantages
Long service life
High discharge rate
Low self-discharge rate
Deep cycle
Super cycling ability
Excellent high current performance
Safe and reliability
No memory effect
Variety of installation
High temperature resistance
Vibration resistance
Wide operating temperature range
Applications
Electricity& Communication System
Solar &Wind Energy Storage System
Uninterrupted Power Supply system(UPS)
Emergency Power Supply system(EPS)
Emergency Lighting System &Small Lamp
Control Equipments
Medical Equipment
Railway, Aerospace and navigation
EV
Our Advantages

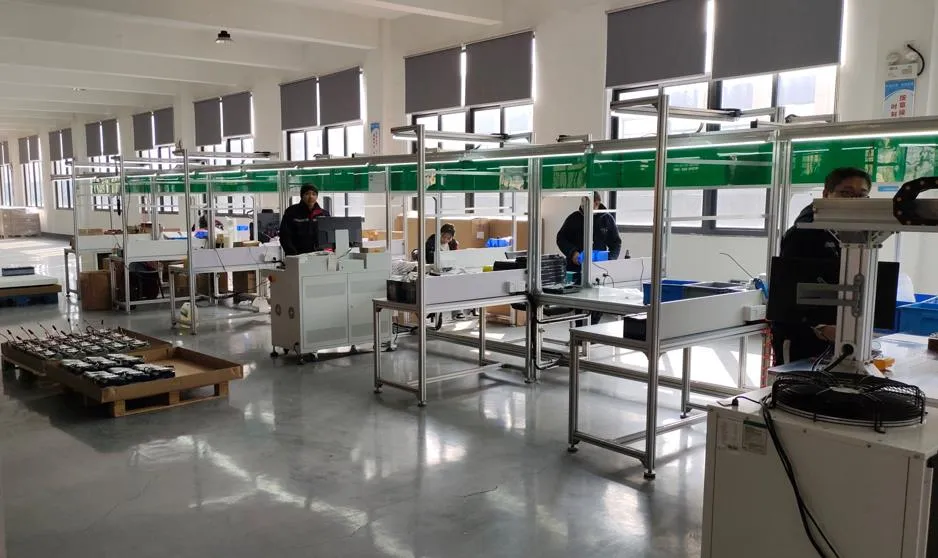

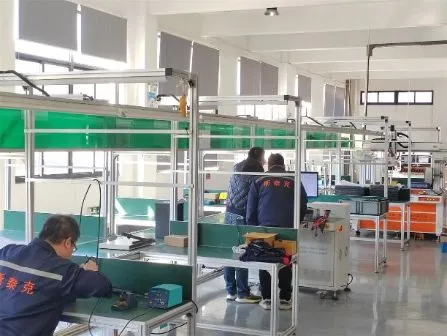

Battery factory since 2007
Certificate of ISO9001, ISO1400, SGS, CE, UN38.3 and other certifications
UPS batterySolar BatteryDeep cycle batteryVRLA batterySealed Lead Acid batteryLead Acid BatteryEmergency Battery12v BatteryBackup batterySealed BatteryEmergency Light BatteryValve Regulated Lead Acid batteryStorage batteryrechargeable batteryUninterrupted power batteryEPSelectric vehicle batterywind batteryCommunication SystemInverter battery

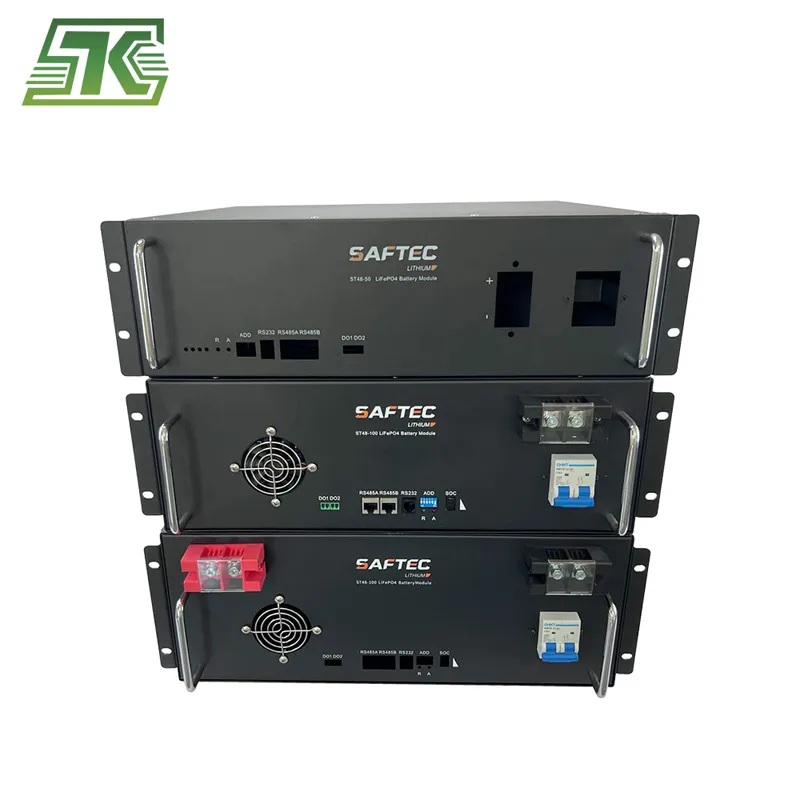

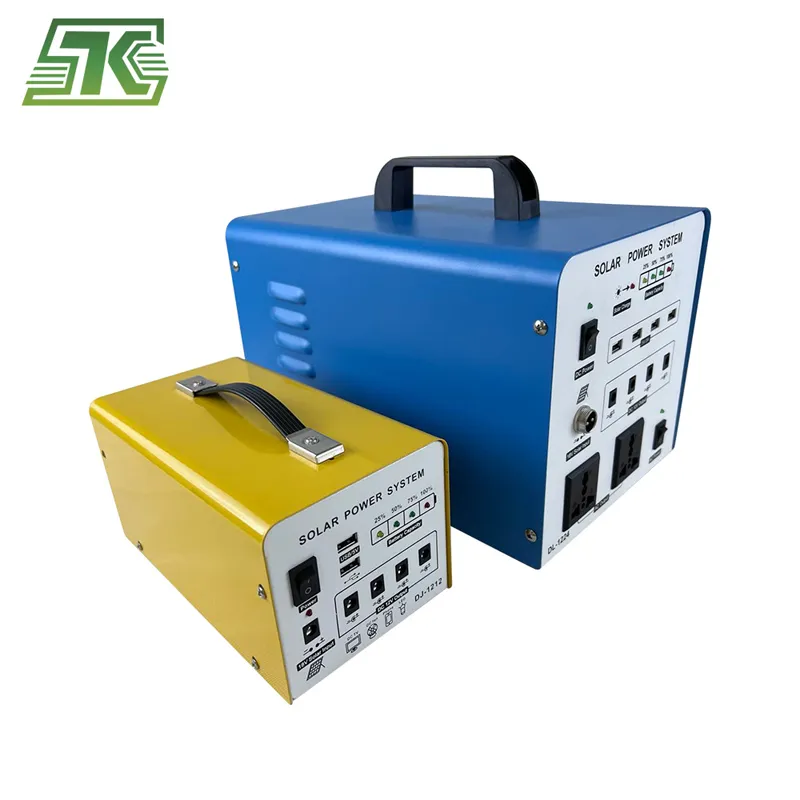

Other Products
Frequently Asked Questions (FAQ)
What is the expected lifespan of the Solar Storage Battery?
The Solar Storage Battery has a long life expectancy of up to 10 years before requiring a replacement, making it a reliable choice for long-term renewable energy setups.
What type of cell technology is used in these batteries?
These solar storage batteries utilize premium LiFePO4 (Lithium Iron Phosphate) cells, renowned for their outstanding safety profiles, long cycle life, and thermal stability.
How many cycles can the battery achieve under standard conditions?
The battery supports up to 4,000 cycles at a temperature of 25°C, with a 0.5C charge/discharge rate and 80% Depth of Discharge (DOD).
Does the battery include built-in protection management?
Yes, it features an integrated Battery Management System (BMS) Board (100A / 200A depending on the specific model) that monitors charging and discharging systems to guarantee maximum safety and high operating efficiency.
What is the housing material and IP classification?
The battery enclosure is built from flame-retardant ABS plastic material, providing robust physical protection. It is certified under the IP56 protection class rating for reliable environmental resistance.
What are the optimal operating temperature thresholds?
The systems function safely within broad temperature bounds: discharging from -20°C to 60°C (-4°F to 140°F), charging from 0°C to 50°C (32°F to 122°F), and storage limits ranging from -10°C to 50°C (14°F to 122°F).
