Manufacturer Ecell Batteries 51.2V 48V 24V 12V 18ah 5ah 7ah 7.5ah 8ah 9ah 12ah 17A 75ah 100ah150ah 200ah 250ah Lithium LiFePO4 Solar AGM UPS Battery for Telecom

Overview & Basic Specifications

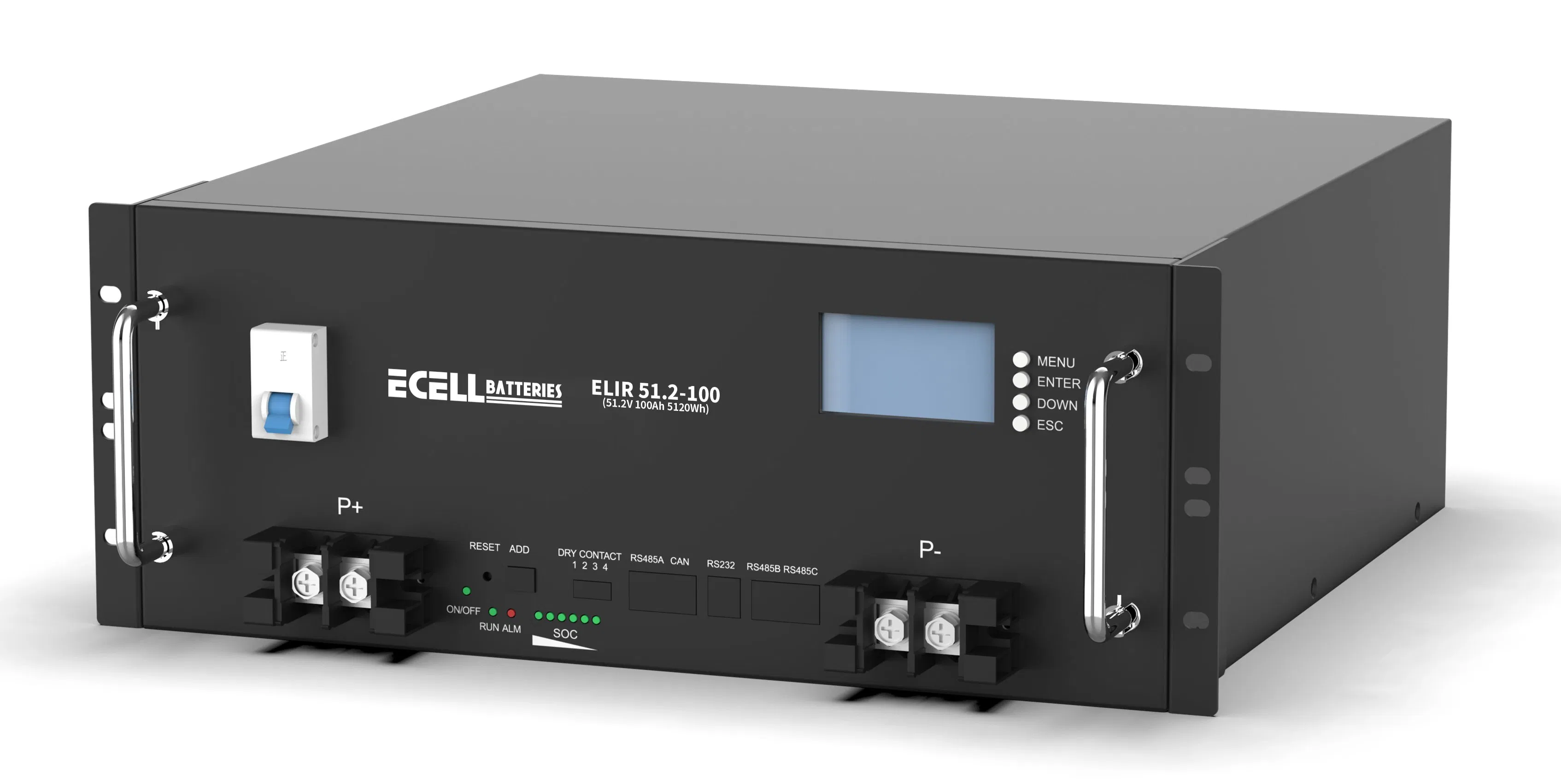

Model NO.

ELIR 51.2-100

Rechargeable

Yes

Size

Medium

Battery Type

LiFePO4 (Lithium Iron Phosphate) / Deep Cycle

Category Specific Parameters

12.8V / 25.6V / 48V / 51.2V Available

Communication

RS485 / CAN / RS232

Cycle Life

>6000 Cycles @ 80% DOD

OEM/ODM

Support

BMS Protection

Over-Charge, Over-Discharge, Over-Current, Short-Circuit

Certifications

CE / UN38.3 / MSDS / IEC62619

Parallel Support

Max 16 units in Parallel

Operating Temperature

Charge: 0°C to 55°C; Discharge: -20°C to 60°C

Production Capacity

200 Containers Per Month

HS Code

8507600090

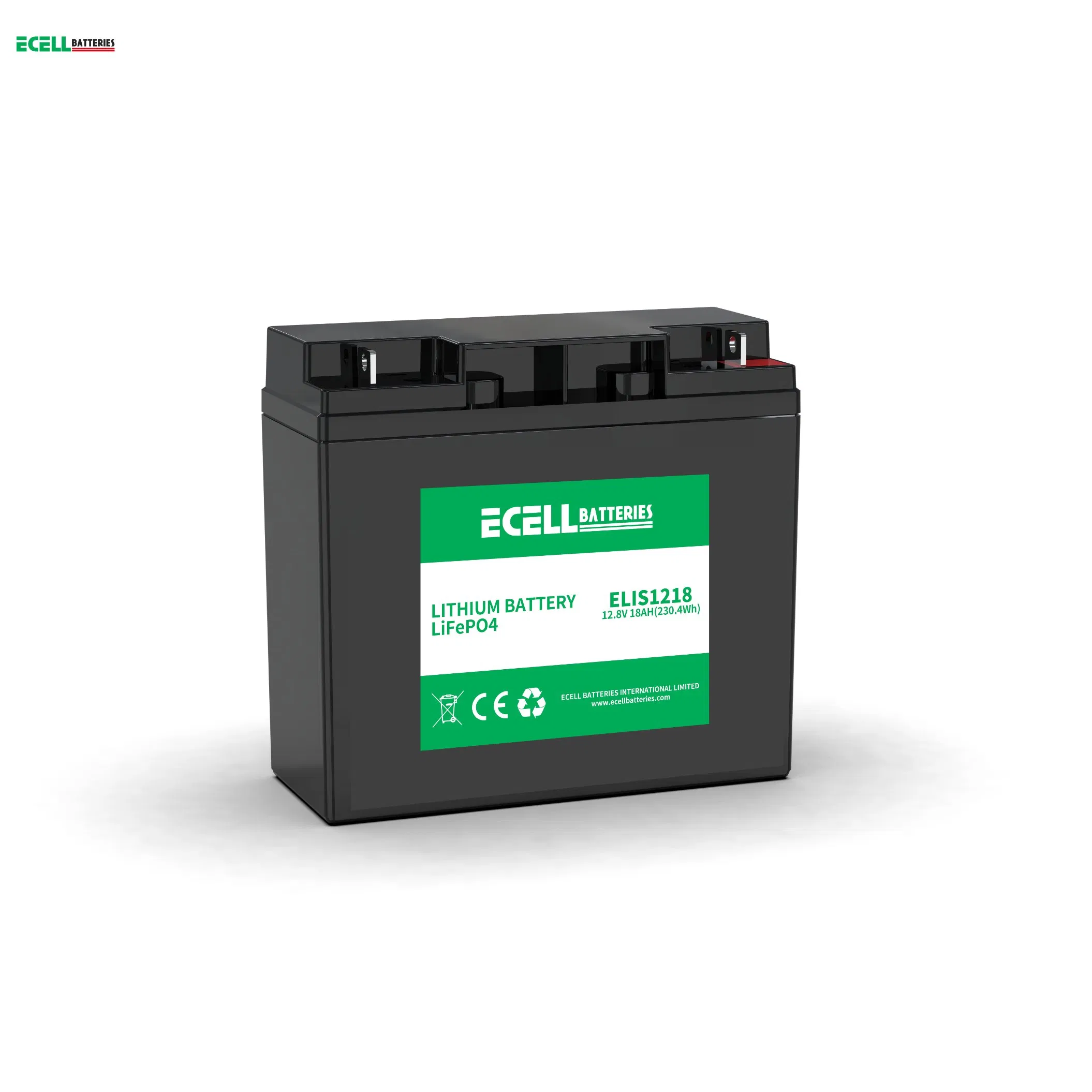

LiFePO4 Lithium Battery 12V 18Ah

The series features a comprehensive range of 12.8V and 25.6V LiFePO4 batteries (4Ah to 320Ah). Engineered as a direct 'drop-in' replacement for traditional lead-acid batteries, the series delivers lighter weight, higher capacity, and superior safety with our advanced BMS technology (Bluetooth optional). Ideal for diverse applications including UPS, Solar Energy Storage, and Telecom.

Model	Voltage (V)	Capacity (Ah)	Dimension (mm) ±2				Weight (kg) ±5%	Terminal	Type
Model	Voltage (V)	Capacity (Ah)	L	W	H	TH	Weight (kg) ±5%	Terminal	Type
EC6-1.3	6	1.3	97	24	52	58	0.29	F1/F2	VRLA AGM
EC6-3.2	6	3.2	134	35	61	67	0.65	F1/F2	VRLA AGM
EC6-4	6	4	70	47	101	107	0.68	F1/F2	VRLA AGM
EC6-4.5	6	4.5	70	47	101	107	0.72	F1/F2	VRLA AGM
EC6-5	6	5	70	47	101	107	0.80	F1/F2	VRLA AGM
EC6-7	6	7	151	35	94	100	1.09	F1/F2	VRLA AGM
EC6-7.5	6	7.5	151	35	94	100	1.18	F1/F2	VRLA AGM
EC6-9	6	9	151	35	94	100	1.31	F1/F2	VRLA AGM
EC6-10	6	10	151	50	94	100	1.55	F1/F2	VRLA AGM
EC6-12	6	12	151	50	94	100	1.75	F1/F2	VRLA AGM
EC12-1.3	12	1.3	97	43	52	58	0.55	F1/F2	VRLA AGM
EC12-2.3	12	2.3	178	35	61	67	0.90	F1/F2	VRLA AGM
EC12-2.6	12	2.6	70	48	98	104	0.78	F1/F2	VRLA AGM
EC12-2.9	12	2.9	79	56	99	105	1.05	F1/F2	VRLA AGM
EC12-3.2	12	3.2	134	67	61	67	1.25	F1/F2	VRLA AGM
EC12-4	12	4	90	70	101	107	1.36	F1/F2	VRLA AGM
EC12-4L	12	4	195	47	70	76	1.42	F1/F2	VRLA AGM
EC12-4.5	12	4.5	90	70	101	107	1.43	F1/F2	VRLA AGM
EC12-5	12	5	90	70	101	107	1.50	F1/F2	VRLA AGM
EC12-5A	12	5	90	70	101	107	1.60	F1/F2	VRLA AGM
EC12-6	12	6	151	65	94	100	1.88	F1/F2	VRLA AGM
EC12-6.5	12	6.5	151	65	94	100	1.99	F1/F2	VRLA AGM
EC12-7	12	7	151	65	94	100	2.05	F1/F2	VRLA AGM
EC12-7.2	12	7.2	151	65	94	101	2.10	F1/F2	VRLA AGM

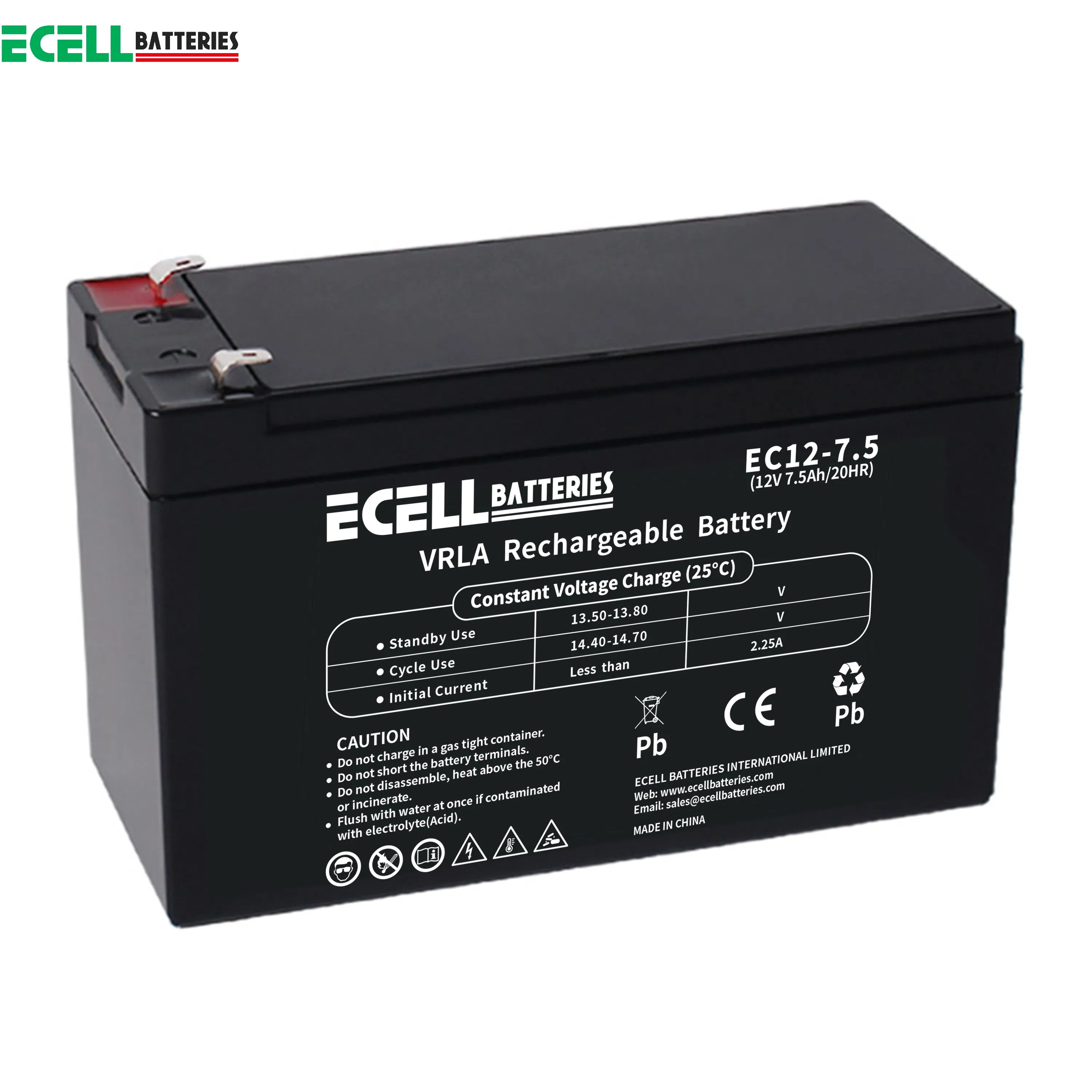

EC12-7.5	12	7.5	151	65	94	100	2.20	F1/F2	VRLA AGM
EC12-8	12	8	151	65	94	100	2.30	F1/F2	VRLA AGM
EC12-8.5	12	8.5	151	65	94	100	2.45	F1/F2	VRLA AGM
EC12-9	12	9	151	65	94	100	2.52	F1/F2	VRLA AGM
EC12-9HR	12	9	151	65	94	100	2.70	F1/F2	VRLA AGM
EC12-10	12	10	151	98	95	101	3.15	F1/F2	VRLA AGM
EC12-10L	12	10	151	65	111	117	2.75	F1/F2	VRLA AGM
EC12-12	12	12	151	98	95	101	3.45	F1/F2	VRLA AGM
EC12-12A	12	12	151	98	95	101	3.60	F1/F2	VRLA AGM
EC12-12B	12	12	151	98	95	101	3.90	F1/F2	VRLA AGM
EC12-17	12	17	181	77	167	167	5.00	L1/M5	VRLA AGM
EC12-18	12	18	181	77	167	167	5.30	L1/M5	VRLA AGM
EC12-20	12	20	181	77	167	167	5.70	L1/M5	VRLA AGM
EC12-24H	12	24	165	125	175	175	7.50	L2/M6	VRLA AGM
EC12-24	12	24	166	175	125	125	7.60	L2/M6	VRLA AGM
EC12-26	12	26	166	175	125	125	7.90	L2/M6	VRLA AGM
EC12-28	12	28	166	175	125	125	8.20	L2/M6	VRLA AGM
EC24-3.5	24	3.5	179	70	101	106	2.61	F2	VRLA AGM
EC24-4	24	4	179	70	101	106	2.75	F2	VRLA AGM
EC24-5	24	5	179	70	101	106	2.91	F2	VRLA AGM

Professional Lithium Iron Phosphate (LiFePO4) Batteries

Offering a comprehensive range of 12.8V and 25.6V LiFePO4 batteries (4Ah to 320Ah). Engineered as a direct 'drop-in' replacement for traditional lead-acid batteries, delivering lighter weight, higher capacity, and superior safety with our advanced BMS technology (Bluetooth optional). Ideal for diverse applications including UPS, Solar Energy Storage, and Telecom.

Our production team delivers a comprehensive portfolio of lithium-ion solutions, including compact series for lead-acid replacement and rack-mounted modules for advanced energy storage. Our products are engineered to provide lighter weight, faster charging, and uncompromising safety compared to traditional technologies.

Premium Safety: Utilizing LiFePO4 chemistry—the safest lithium technology available today.
Factory-Direct Quality: Rigorous testing ensures every unit meets international standards.
Bluetooth Optional: Real-time battery status monitoring via smartphone app for enhanced user control.
Long Cycle Life: 5,000 - 6,000 Cycles @ 80% DOD.
BMS Safety: Integrated Over-current & Short-circuit Protection.

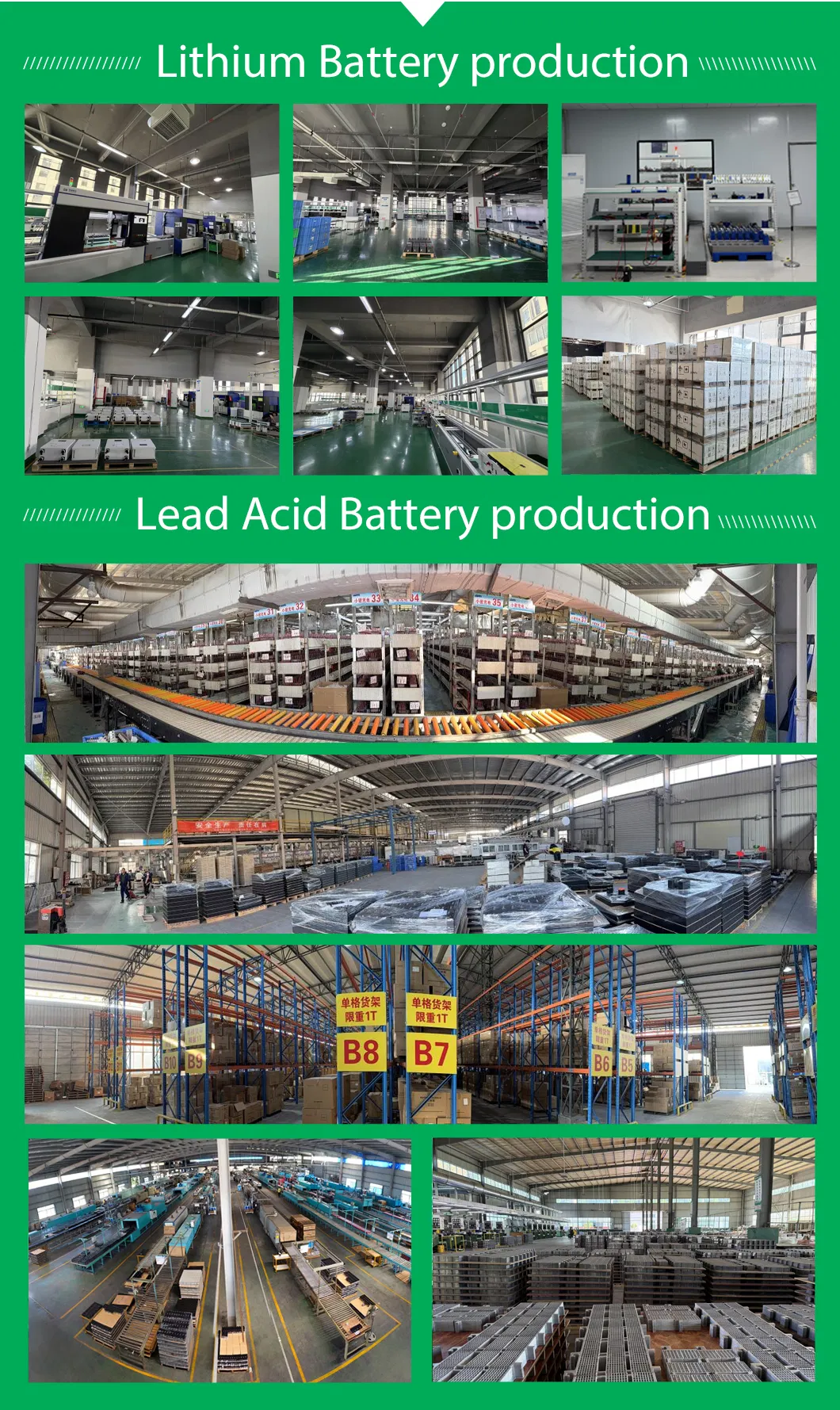

Advanced Manufacturing Quality

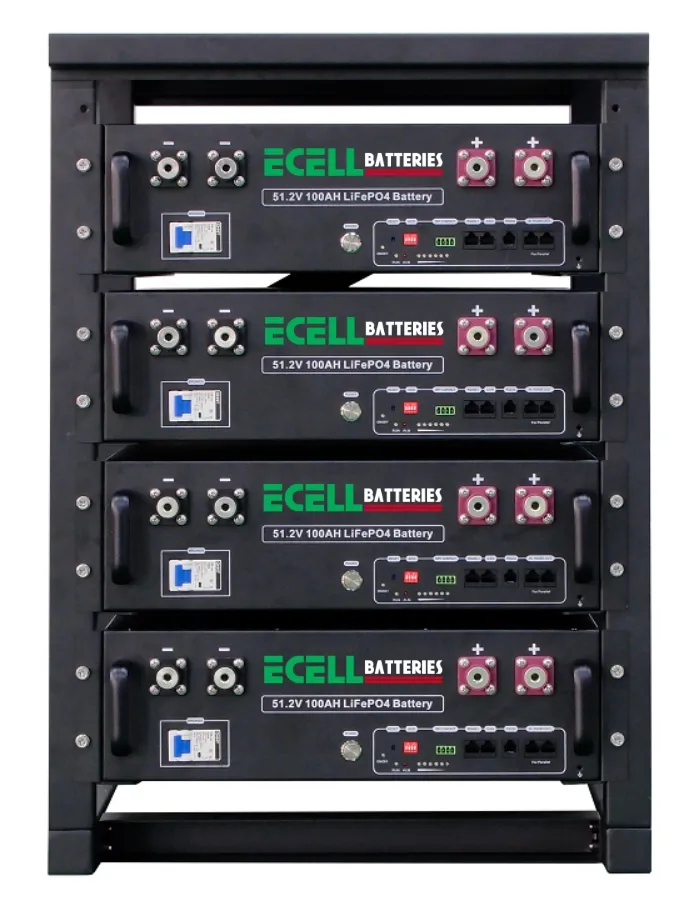

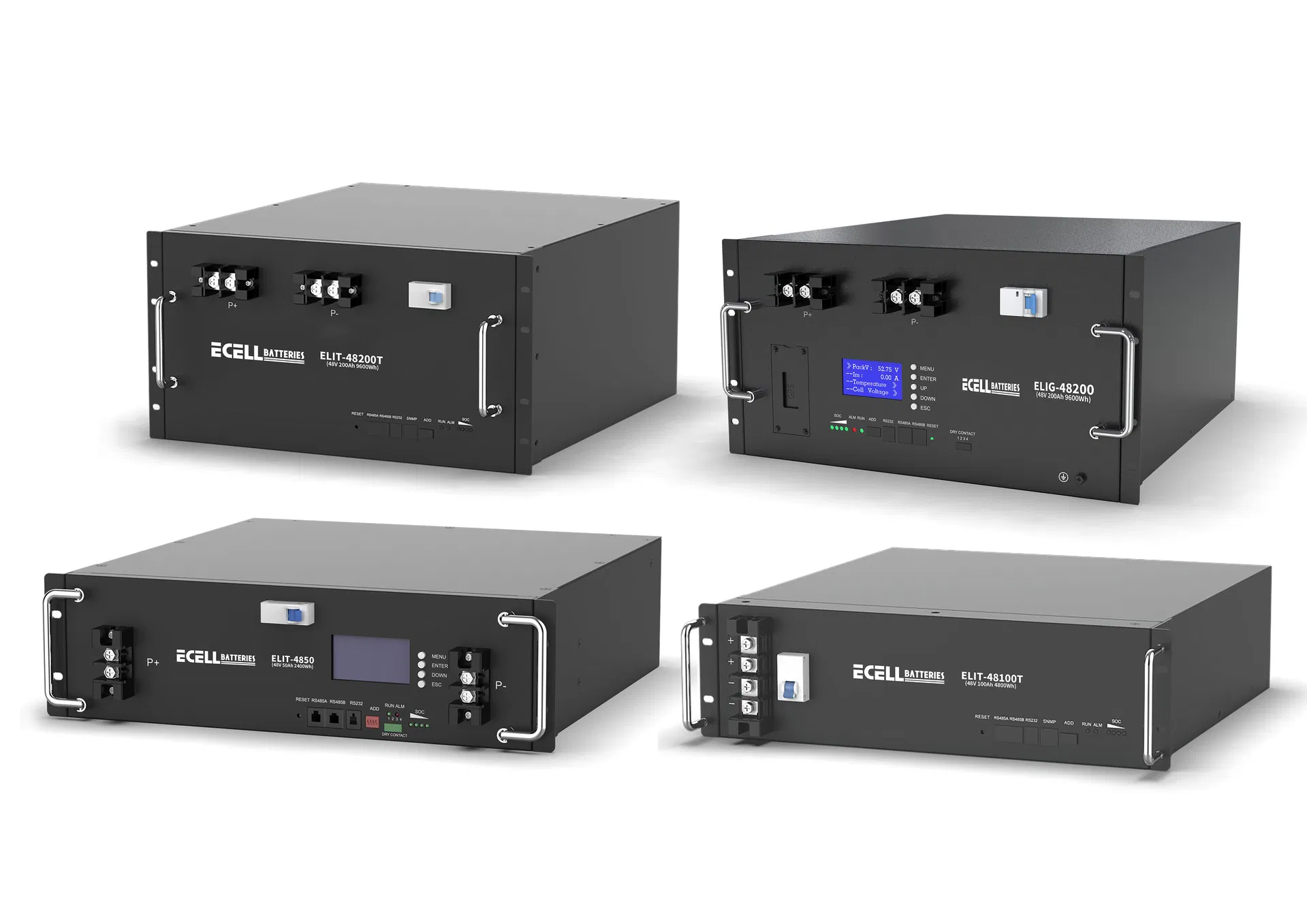

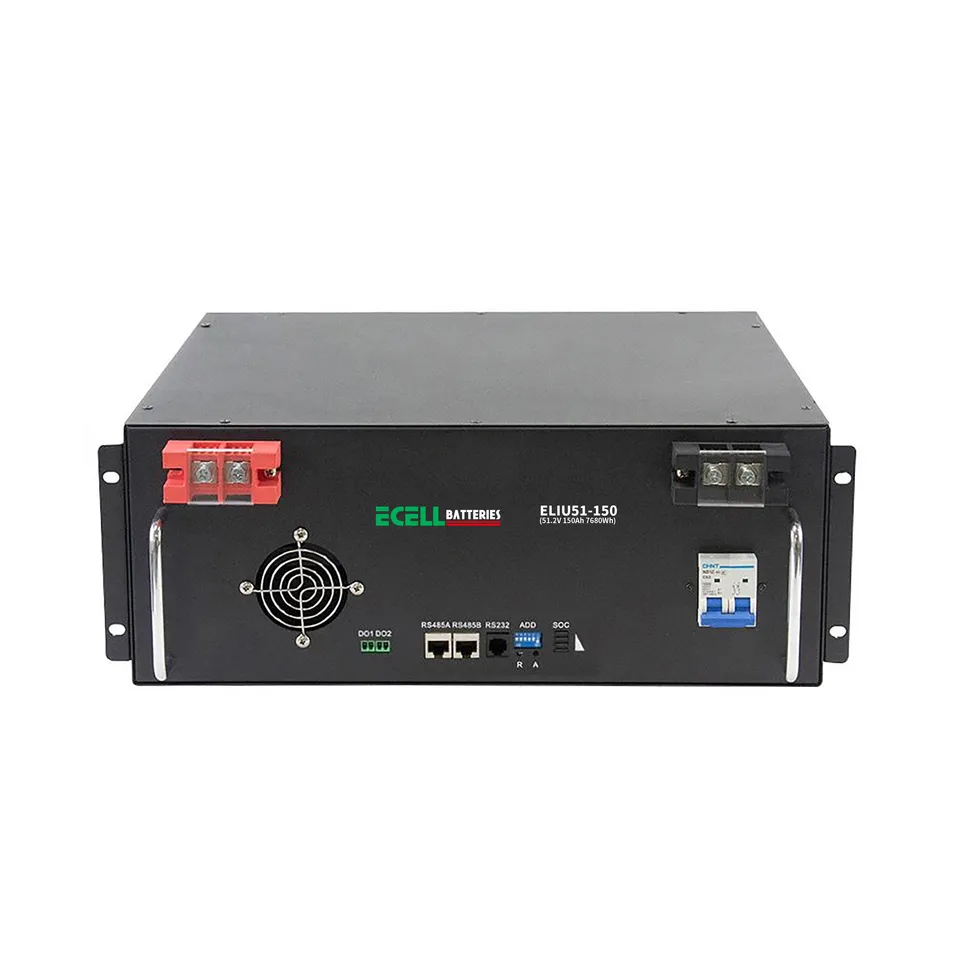

Standard 5kWh 48V 100Ah and 10kWh 48V 200Ah rack-mounted modules are engineered specifically for residential energy storage and small-to-medium commercial applications. This series is the ideal choice for those seeking maximum space efficiency and system stability.

Designed with standard 3U/5U dimensions to fit seamlessly into mainstream server racks. The compact structure not only saves indoor space but also makes installation and maintenance extremely simple.

Supports parallel connection of up to 15 modules. Whether starting with a basic 5kWh requirement or scaling up to a 150kWh commercial backup system, the modules grow seamlessly with your energy demands.

Utilizing Grade-A LiFePO4 cells, our batteries maintain exceptional chemical stability even under extreme overcharge or short-circuit conditions, safeguarding home and commercial assets.

Technical Specifications

Voltage (V)	Capacity (Ah)	Energy (Wh)	Height (U)	Dimension (mm)			Weight (kg)	Communication	Type
Voltage (V)	Capacity (Ah)	Energy (Wh)	Height (U)	L	W	H	Weight (kg)	Communication	Type
25.6	100	2560	4U	422	350	177	26.00	RS485/CAN/RS232	LiFePO4
25.6	200	5120	4U	442	450	177	43.00	RS485/CAN/RS232	LiFePO4
51.2	50	2560	3U	442	442	132	28.00	RS485/CAN/RS232	LiFePO4

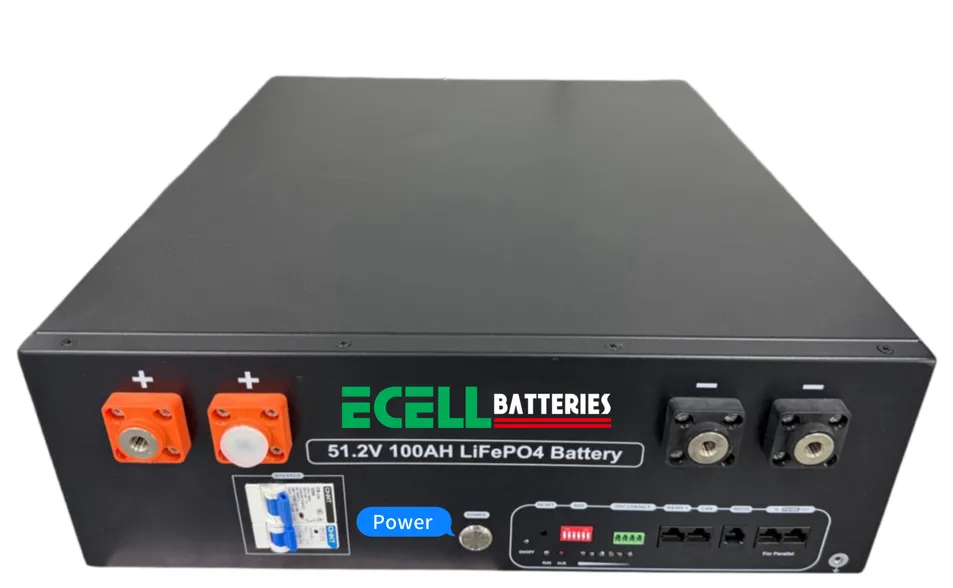

51.2	100	5120	4U	442	431	177	43.00	RS485/CAN/RS232	LiFePO4
51.2	100	5120	3U	442	460	133	43.00	RS485/CAN/RS232	LiFePO4
51.2	150	7680	4.5U	442	550	198	64.00	RS485/CAN/RS232	LiFePO4
51.2	200	10240	5.5U	442	550	244	82.00	RS485/CAN/RS232	LiFePO4
48	50	2400	3U	442	422	132	26.00	RS485/CAN/RS232	LiFePO4
48	100	4800	3U	442	450	133	40.50	RS485/CAN/RS232	LiFePO4
48	150	7200	4.5U	442	520	198	59.00	RS485/CAN/RS232	LiFePO4
48	200	9600	5.5U	442	520	244	77.00	RS485/CAN/RS232	LiFePO4
48	100	4800	3U	442	450	133	40.50	RS485/CAN/RS232	LiFePO4
48	200	9600	5.5U	442	520	244	79.20	RS485/CAN/RS232	LiFePO4
48	100	4800	3U	442	450	132	40.50	RS485/CAN/RS232	LiFePO4
48	200	9600	5.5U	442	520	244	75.30	RS485/CAN/RS232	LiFePO4
48	100	4800	4.5U	440	460	197	43.00	RS485/CAN/RS232	LiFePO4
48	200	9600	5.5U	440	524	235	79.00	RS485/CAN/RS232	LiFePO4
51.2	50	2560	3U	440	450	133	27.00	RS485/CAN/RS232	LiFePO4
51.2	100	5120	3U	440	500	133	42.00	RS485/CAN/RS232	LiFePO4
73.6	100	7360	3U	442	700	132	65.00	RS485/CAN/RS232	LiFePO4
204.8	25	5120	4U	442	680	173	58.00	RS485/CAN/RS232	LiFePO4

Voltage (V)	Capacity (Ah)	Energy (Wh)	Dimension (mm)			Weight (kg)	Terminal	Bluetooth	Type
Voltage (V)	Capacity (Ah)	Energy (Wh)	L	W	H	Weight (kg)	Terminal	Bluetooth	Type
12.8	6	76.8	151	65	94	0.75	F1/F2	Optional	LiFePO4
12.8	7	89.6	151	65	94	0.953	F1/F2	Optional	LiFePO4
12.8	9	115.2	151	65	94	1.06	F1/F2	Optional	LiFePO4
12.8	12	153.6	151	98	94	1.47	F1/F2	Optional	LiFePO4

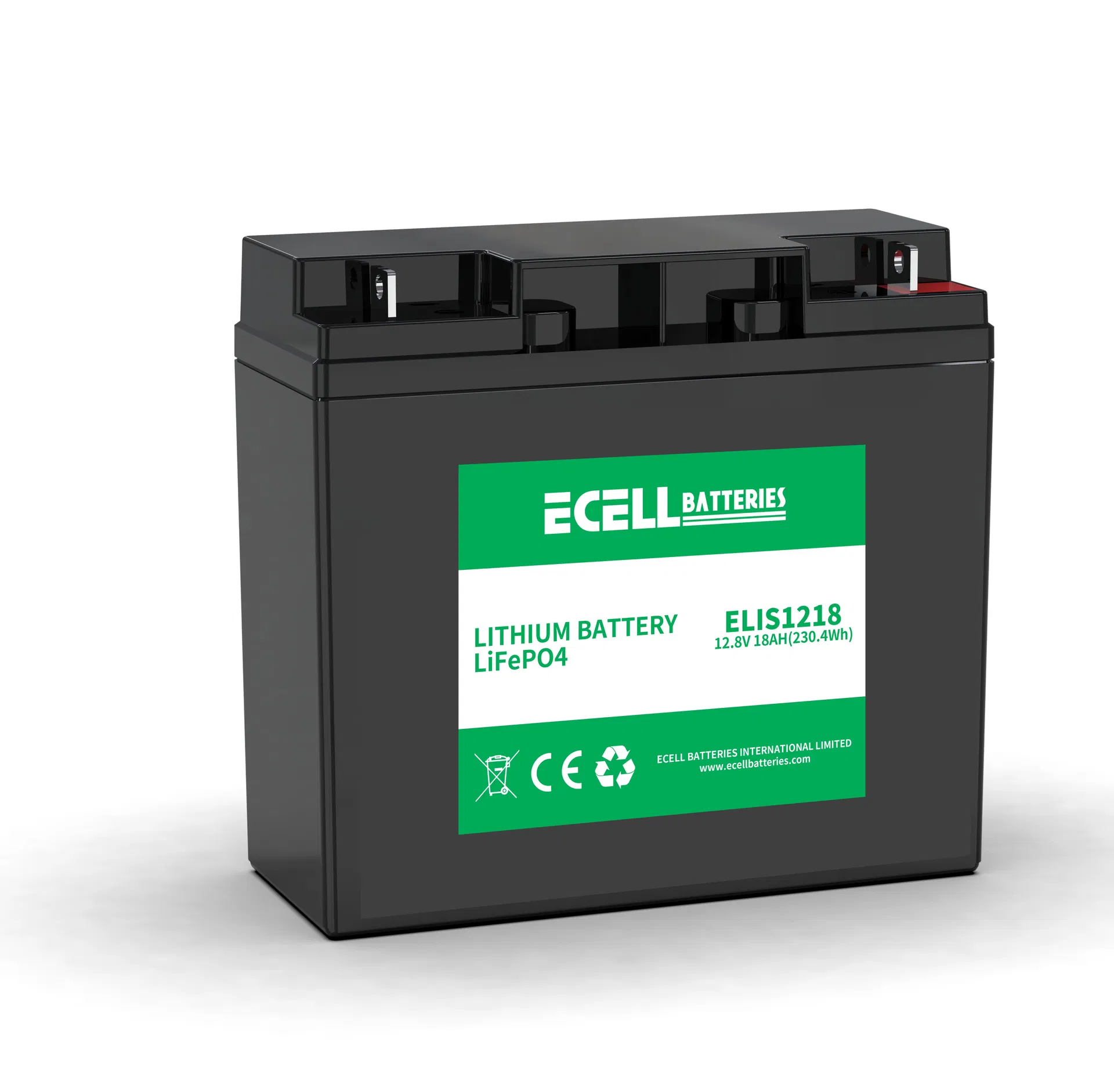

12.8	18	230.4	181	77	165	2.25	M5	Optional	LiFePO4
12.8	20	256	181	77	165	2	M5	Optional	LiFePO4
12.8	24	307.2	181	77	165	2.9	M5	Optional	LiFePO4
12.8	26	332.8	175	166	124	3.12	M6	Optional	LiFePO4
12.8	30	384	183	84	175	3.55	M6	Optional	LiFePO4

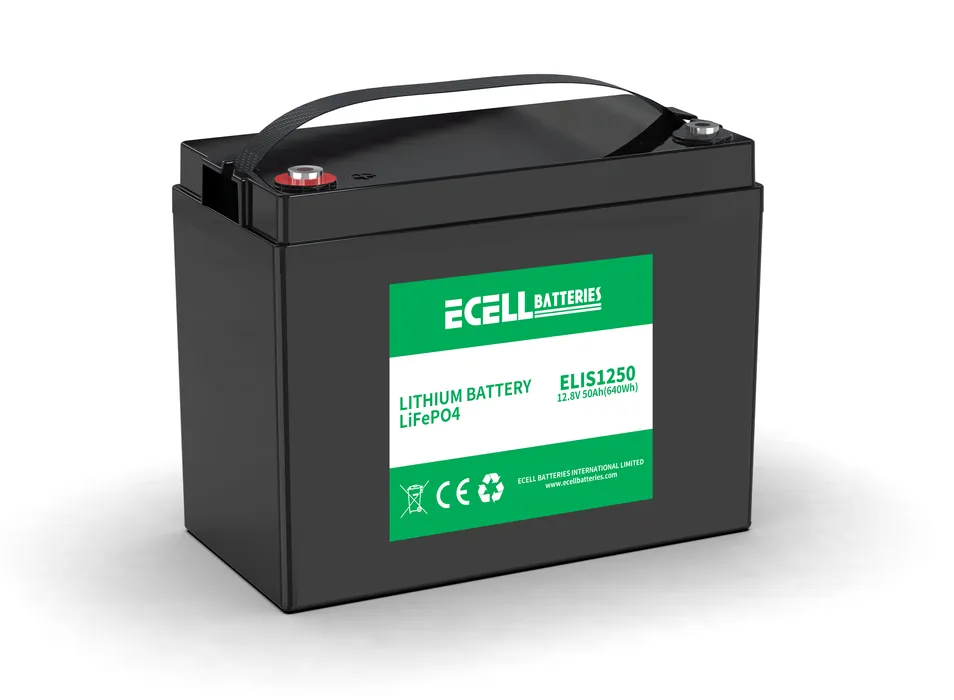

12.8	50	640	227	143	212	5.3	M6	With Bluetooth	LiFePO4
12.8	100	1280	330	170	221	11	M8	With Bluetooth	LiFePO4
12.8	150	1920	359	174	218	15	M8	With Bluetooth	LiFePO4
12.8	150	1920	552	110	288	14.6	M8	With Bluetooth	LiFePO4
12.8	200	2560	521	241	222	20	M8	With Bluetooth	LiFePO4
12.8	280	3584	531	206	217	27.32	M8	With Bluetooth	LiFePO4
12.8	320	4096	531	206	217	28	M8	With Bluetooth	LiFePO4
25.6	50	1280	382	193	249	12	M8	With Bluetooth	LiFePO4
25.6	100	2560	531	206	217	9.5	M8	With Bluetooth	LiFePO4
25.6	150	3840	359	174	218	13.5	M8	With Bluetooth	LiFePO4
25.6	200	5120	520	268	222	40	M8	With Bluetooth	LiFePO4

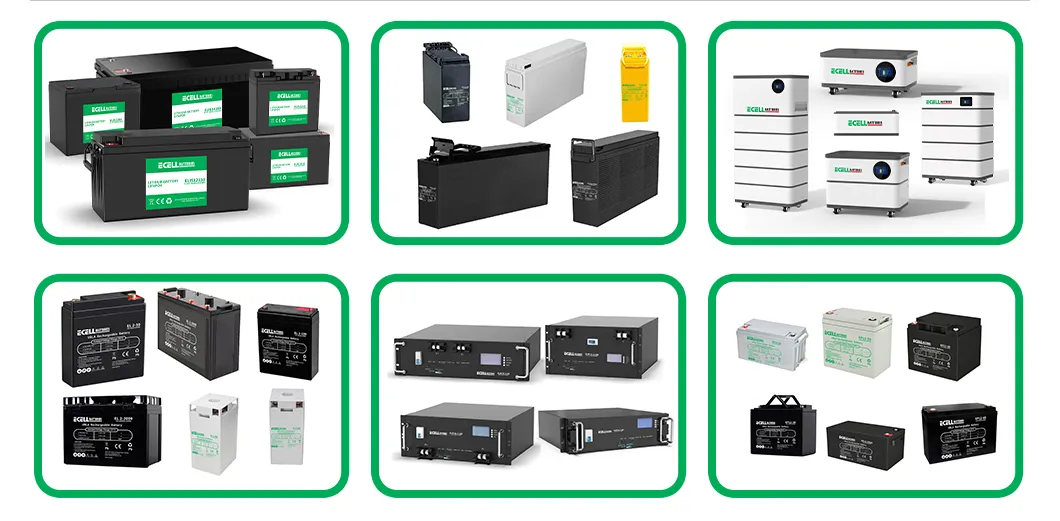

Main Products

We are a professional manufacturer specializing in high-performance Lithium and Lead Acid battery solutions. We integrate advanced R&D with large-scale production to provide reliable energy systems for global industrial and commercial applications. Our team offers comprehensive OEM and ODM services, ensuring customized solutions that meet specific technical and branding requirements for our partners worldwide.

Company Profile

Established in 2006, our factory is a leading industrial manufacturer dedicated to the production of high-performance Lithium Iron Phosphate (LiFePO4) and Valve Regulated Lead-Acid (VRLA) batteries. Our wholly-owned production facility operates with advanced technology and strict quality guidelines. As a major supplier, we combine vertical integration with strict control over every stage of manufacturing to ensure superior product consistency.

With nearly two decades of expertise, we are a trusted OEM/ODM partner for critical applications, including UPS systems, telecommunications, renewable energy storage, and industrial mobility. We operate under a comprehensive quality management framework, holding ISO 9001, ISO 14001, ISO 45001, UL, RoHS, EN IEC 61000, and CE certifications.

Beyond manufacturing, our experienced logistics team navigates the complexities of global battery export. We provide full compliance documentation—including UN38.3, MSDS, and DG Packing Certification—guaranteeing secure and compliant sea transport to markets worldwide.

Our Advantages

Certifications & Standards

Application Scenarios

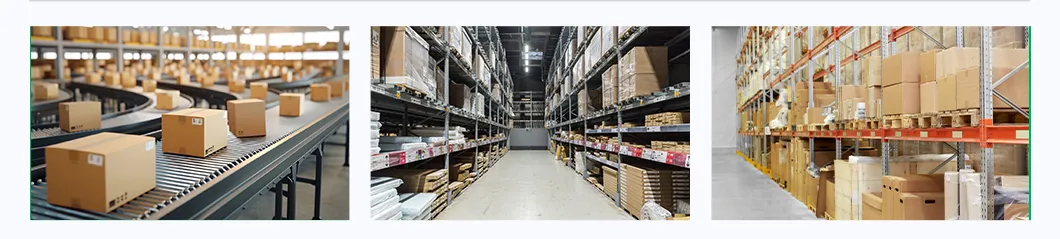

Package & Shipping

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a leading professional battery manufacturer. We specialize in the R&D, production, and global distribution of both Lithium-ion (LiFePO4) and Lead-Acid batteries with an advanced production facility.

Do you support OEM and ODM services?

Yes, absolutely. As an innovation-driven manufacturer, we provide comprehensive OEM and ODM solutions. From customized casing designs and private labeling to specific BMS firmware adjustments, we tailor our energy solutions to meet your brand's unique market requirements.

What makes the movable battery series unique?

The series features a unique floor-standing residential energy storage solution. Unlike traditional fixed systems, it features a unique movable design with industrial wheels and handles. It offers over 6000 cycles at 80% DOD, an integrated Smart BMS, and is compatible with most global inverter brands.

How do I choose between Lithium (LiFePO4) and Lead-Acid batteries?

It depends on your application:
LiFePO4: Best for residential energy storage (ESS) and high-usage scenarios due to its 15-year lifespan, lighter weight, and faster charging (1C rate).
Lead-Acid: A cost-effective and mature technology ideal for UPS systems, telecommunications, and applications where initial budget is the primary concern.

Are the batteries compatible with my existing solar inverter?

Our lithium battery systems are engineered for broad compatibility. We support communication protocols for the majority of mainstream inverter brands worldwide. Please contact our technical team to verify your specific model.

What certifications do your batteries hold?

Safety is our top priority. Our products are manufactured under ISO 9001 standards and hold international certifications including CE, IEC, UN38.3 (for Lithium safety), and MSDS. We ensure every unit meets the stringent import requirements of global regions.
