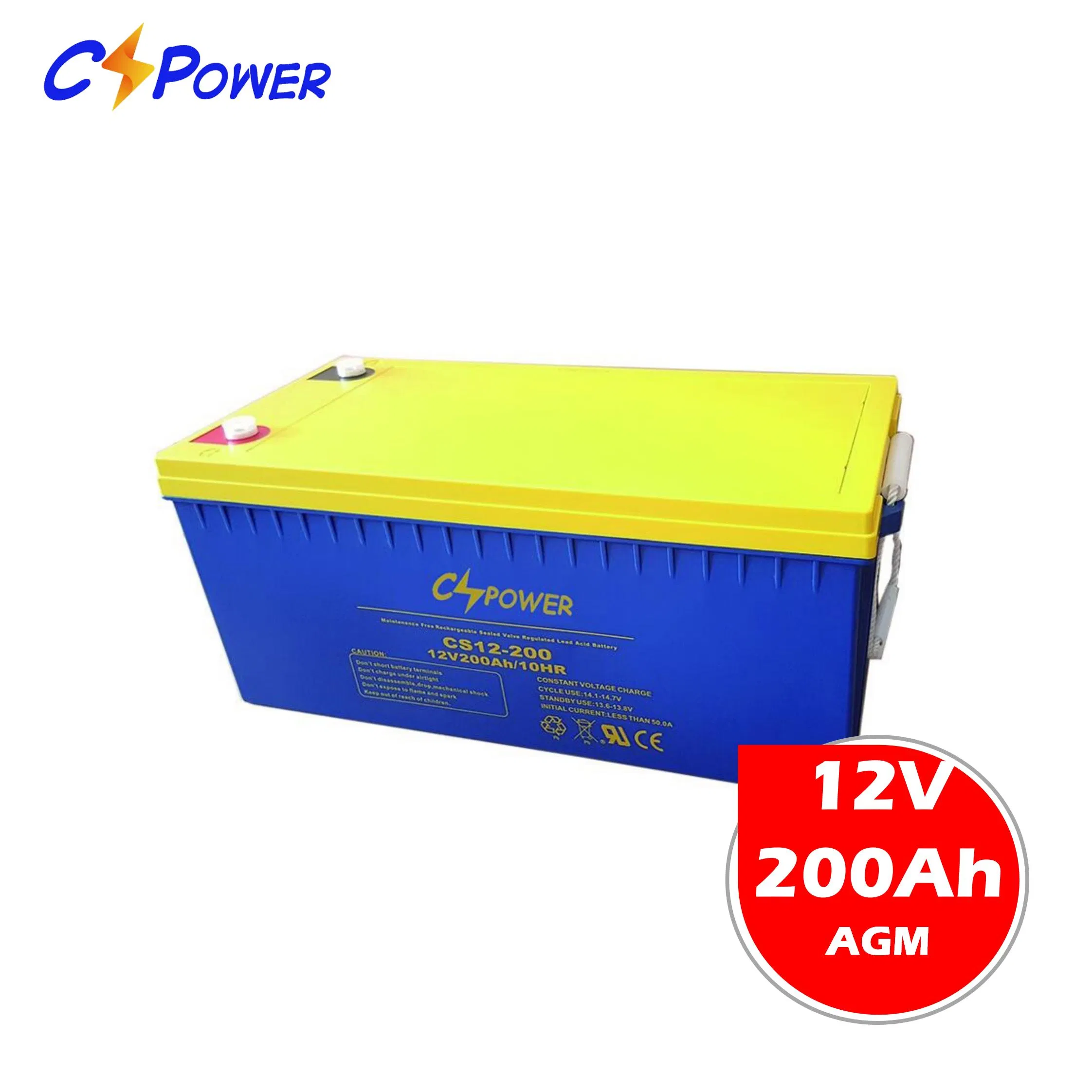

Cspower IEC-Approved 12V 200ah Accumulators/Solar-VRLA-AGM-Battery/UPS-Backup -Battery/Maitnenace Rechargeable Acid Storage-Battery/ CSL

1 / 5

Cspower IEC-Approved 12V 200ah Accumulators/Solar-VRLA-AGM-Battery/UPS-Backup -Battery/Maitnenace Rechargeable Acid Storage-Battery/ CSL

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO. CS12-200 (12V 200AH AGM)

Nominal Voltage 12V 6V

Discharge Rate 0.2c-0.5c

Shape Block

Electrolyte Acid

Installation Fixed

Rechargeable Chargeable

Suitable For Solar, Wind, Telecom, UPS, Inverter, Golf Cart

Advantage Water Proof, Non Spillable

Size 522*240*242mm

Weight 56-58kgs

Sealed Sealed, Free Maintenance

Warranty 3years Free Replacement

Maximum Power 300ah

Delivery Time 15-20days After Deposit

OEM Logo Print Free Charge

Life Span 15-20years

Case Color Black

Case Material ABS

Maintenance Type Free Maintenance

Sealed Type Sealed

Shipping Method Sea Shipping

Transport Package Export Standard Package

Specification CE, UL, ISO, IEC, SGS

Trademark OEM

Origin China

HS Code 8507200000

Production Capacity 100,000PCS/Month

Packaging & Delivery

Package Size 54.00cm * 26.00cm * 24.00cm

Package Gross Weight 56.500kg

Constant Safe Power For You!

Durable AGM VRLA Battery CS Series, own 8-10 years long life, your best partner for solar market and hot area. Recognized as the most reliable and high-quality battery system in the industry, designed with advanced patented AGM technology. Complies with key international standards including IEC60896-21/22, BS6290-4, and Eurobat Guide.

Advanced Features

Sealed Free Maintenance VRLA AGM Battery 12V100Ah, 150Ah, 200Ah models:

✓Environmentally friendly

✓Completely Maintenance-Free

✓Non-Spillable construction design

✓Wide Operating Temperature Range (-20°C to +50°C)

✓Longer designed life (10 years)

✓Explosion Proof

✓Valve Regulated & High Discharge Rate Capability

✓Low Self Discharge

✓Independent of Position

✓Ease of Shipment

✓No need of balanced charge or boost

✓No Memory

Product Parameters

CS12-200B Specifications
Nominal Voltage			12V (6 cells per unit)
Design Floating Life @ 25ºC			10 Years
Nominal Capacity @ 25ºC		10 hour rate (20A, 10.8V)	200Ah
Capacity @ 25ºC		20 hour rate (11.0A, 10.8V)	220Ah
		5 hour rate (35.4A, 10.5V)	177Ah
		1 hour rate (132A, 9.6V)	132Ah
Internal Resistance		Full Charged Battery @ 25ºC	≤2.5mΩ
Ambient Temperature		Discharge	-15ºC to 45ºC
		Charge	-15ºC to 45ºC
		Storage	-15ºC to 45ºC
Max. Discharge Current			1200A (5s) @ 25ºC
Capacity affected by Temperature (10 hour)		40ºC	105%
		25ºC	100%
		0ºC	85%
		-15ºC	65%
Self-Discharge @ 25ºC per Month			3%
Charge (Constant Voltage) @ 25ºC	Standby Use	Initial Charging Current Less than 50A, Voltage 13.6-13.8V
Charge (Constant Voltage) @ 25ºC	Cycle Use	Initial Charging Current Less than 50A, Voltage 14.4-14.9V
Dimension (mm)	Length 522±1 * Width 240±1 * Height 219±1 (Total Height 224±1)
Weight (kg)	56 ± 3%

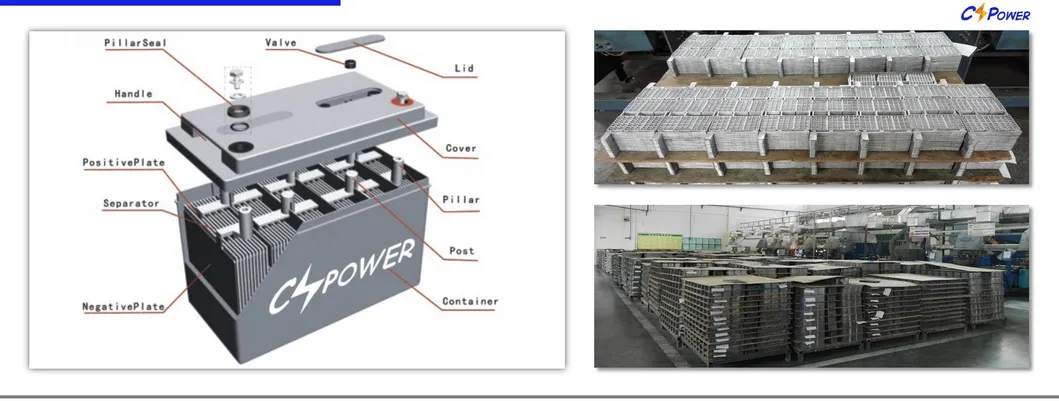

Product Structure

Component	Positive plate	Negative plate	Container & Cover	Safety valve	Terminal	Separator	Electrolyte	Pillar seal
Features	Sn low Ca grid with Special paste	Balanced Pb-Ca grid for improved recombination efficiency	Fire resistance ABS (UL94-V0 optional)	Flame Si-Rubber and aging resistance	Female Copper Insert	Advanced PVC/AGM separator for high pressure cell design	Silicon Gel	Two layers epoxy resin seal

✦Positive plate: Thick high Sn low Ca 3D flat pasted plate

✦Negative plate: Balanced Pb-Ca grid and AM with Super-C additives

✦Separator: Imported Amer-sil PVC separator for Gel battery

✦Electrolyte: nano GEL electrolyte

✦Battery container and cover: ABS for higher temperature

✦Pillar seal: 100% factory tested, proven two layers epoxy resin seal

✦Relief valve: Complete with integrated flame arrestor

Assembling, Quality Control & Projects

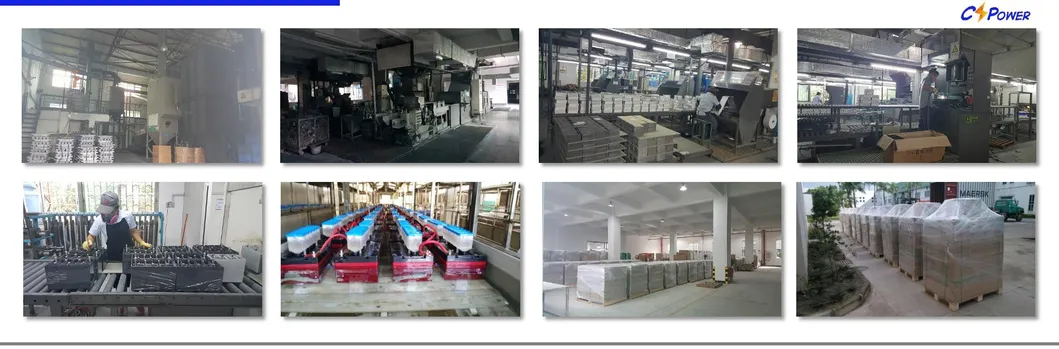

Assembling Process

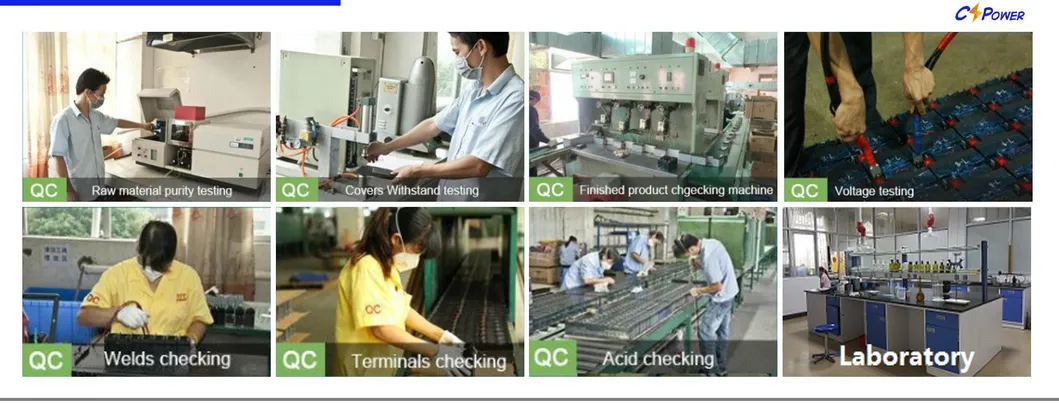

Rigorous Quality Control

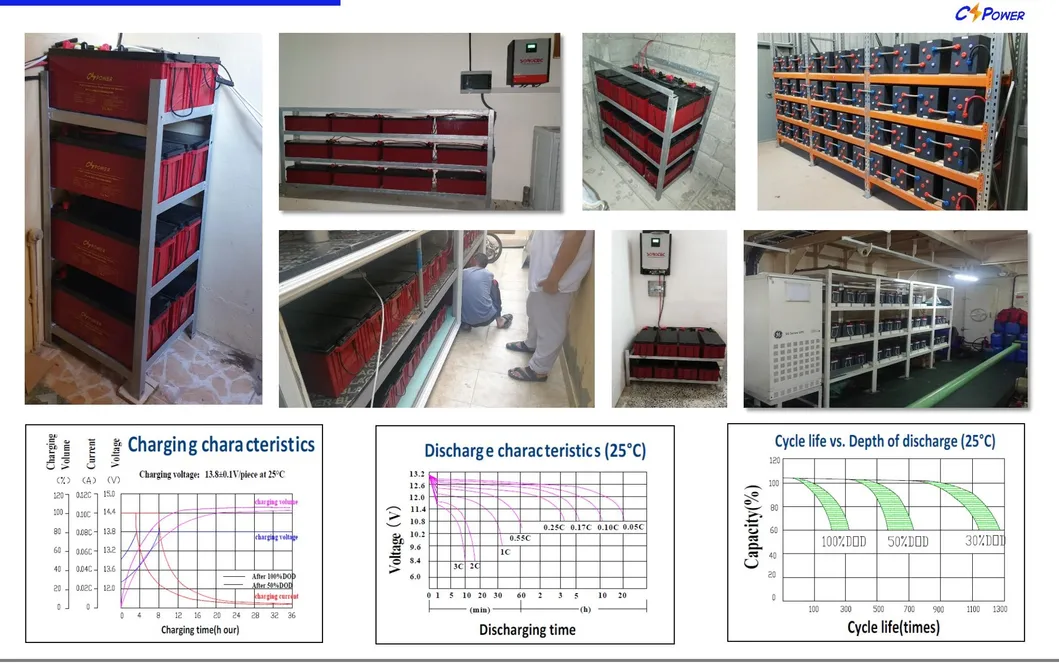

Global Project Installations

Certifications & Applications

Certifications Grid

Application Fields

Standards & Compliance

✓IEC 60896-21/22 & IEC 61427

✓ISO 9001 / 14001 / 18001

✓Eurobat Guide (Long Life compliance)

✓BS6290 Part 4 & GB/T 22473

✓CE & MH63727-UL Approved

Primary Applications

✦Electric Powered Vehicles & Golf Cars

✦Solar and Wind Power Generation Plants

✦BTS Telecom Stations & Emergency Systems

✦UPS, Control Systems & Backup Power

✦Medical Equipment & Security Systems

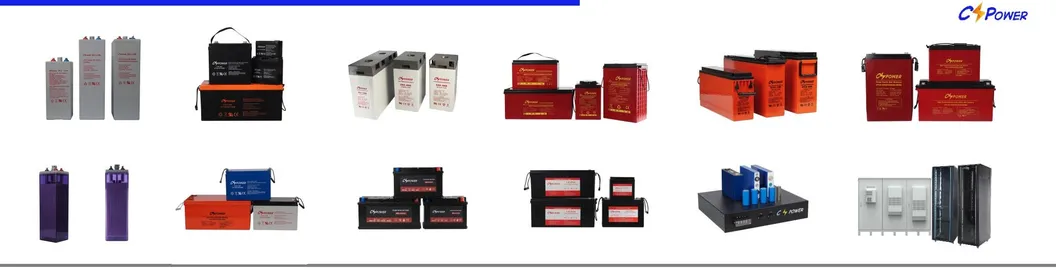

Product Specifications & Models

12V Sealed Free Maintenance AGM Battery Model List
Model	Nominal Voltage (V)	Capacity (Ah)	Dimension (mm)				Net Weight	Gross Weight	Terminal
Model	Nominal Voltage (V)	Capacity (Ah)	Length	Width	Height	Total Height	kgs	kgs	Terminal
CS12-15	12	15/20HR	152	99	96	102	3.8	4	F2
CS12-18	12	18/20HR	181	77	167	167	5.18	5.38	L1
CS12-20	12	20/20HR	181	77	167	167	6	6.2	L1
CS12-24	12	24/10HR	165	126	174	174	7.7	7.9	M6
CS12-26	12	26/10HR	166	175	126	126	8.3	8.6	M6
CS12-33	12	33/10HR	196	130	155	167	10	10.3	M6
CS12-38	12	38/10HR	198	166	174	174	12.3	12.6	M6
CS12-45	12	45/10HR	198	166	174	174	12.9	13.2	M6
CS12-50	12	50/10HR	229	138	208	212	15.8	16.3	M6
CS12-55	12	55/10HR	229	138	208	212	16.3	16.8	M6

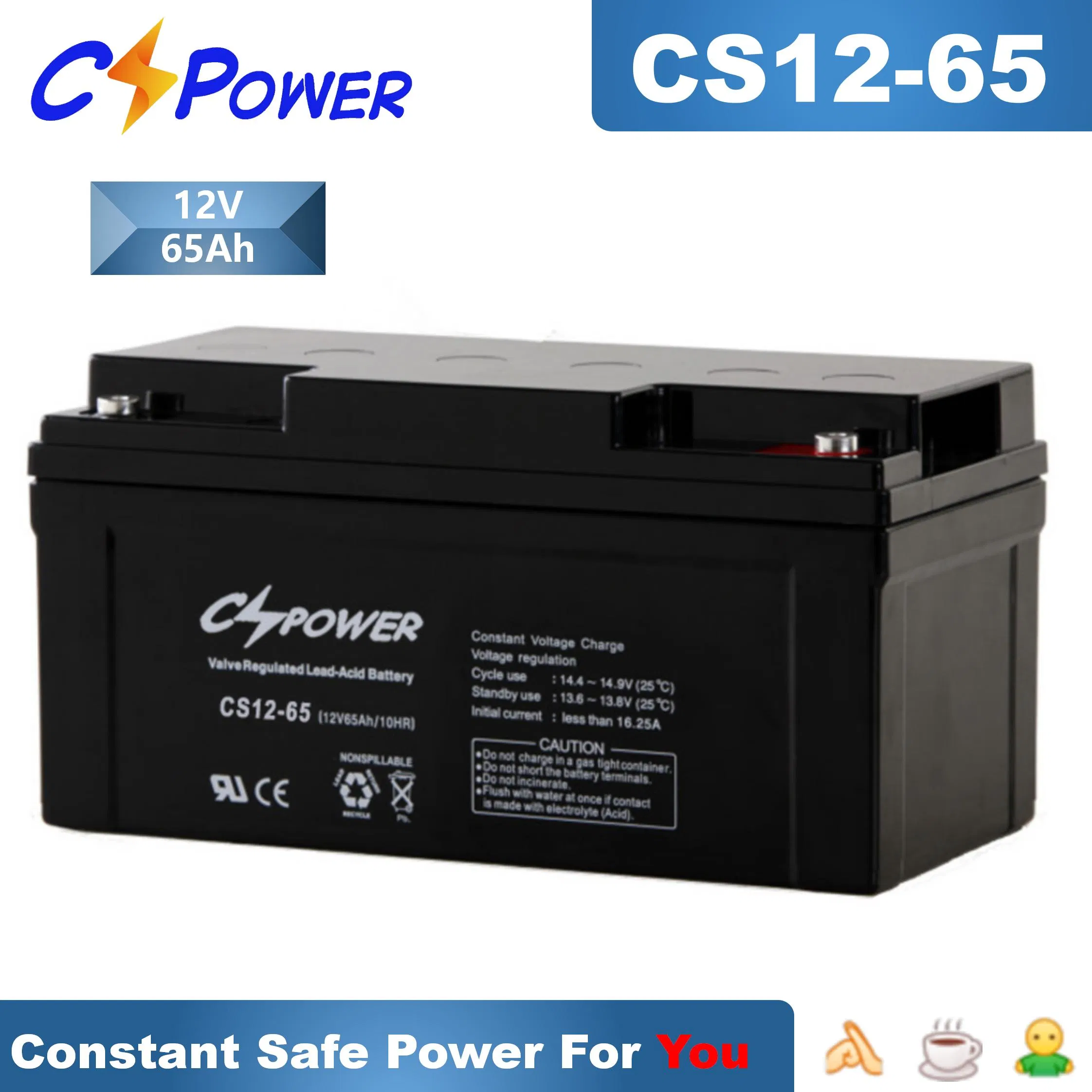

CS12-65	12	65/10HR	350	167	178	178	20.5	21	M6
CS12-70	12	70/10HR	350	167	178	178	21.5	21.7	M6
CS12-75	12	75/10HR	260	169	211	215	22	22.2	M6
CS12-80	12	80/10HR	260	169	211	215	23.5	23.7	M6
CS12-85/90	12	85/90/10HR	331	174	214	219	25	25.3	M6
CS12-100C	12	100/20HR	307	169	211	215	27	27.3	M6
CS12-100B	12	100/20HR	331	174	214	219	28	28.3	M8
CS12-100A	12	100/10HR	331	174	214	219	29	29.3	M8
CS12-120	12	120/10HR	407	174	210	233	33	33.5	M8
CS12-120A	12	120/10HR	407	174	210	233	34	34.5	M8
CS12-150B	12	150/20HR	484	171	241	241	41	41.5	M8
CS12-150A	12	150/10HR	484	171	241	241	43.5	43.7	M8

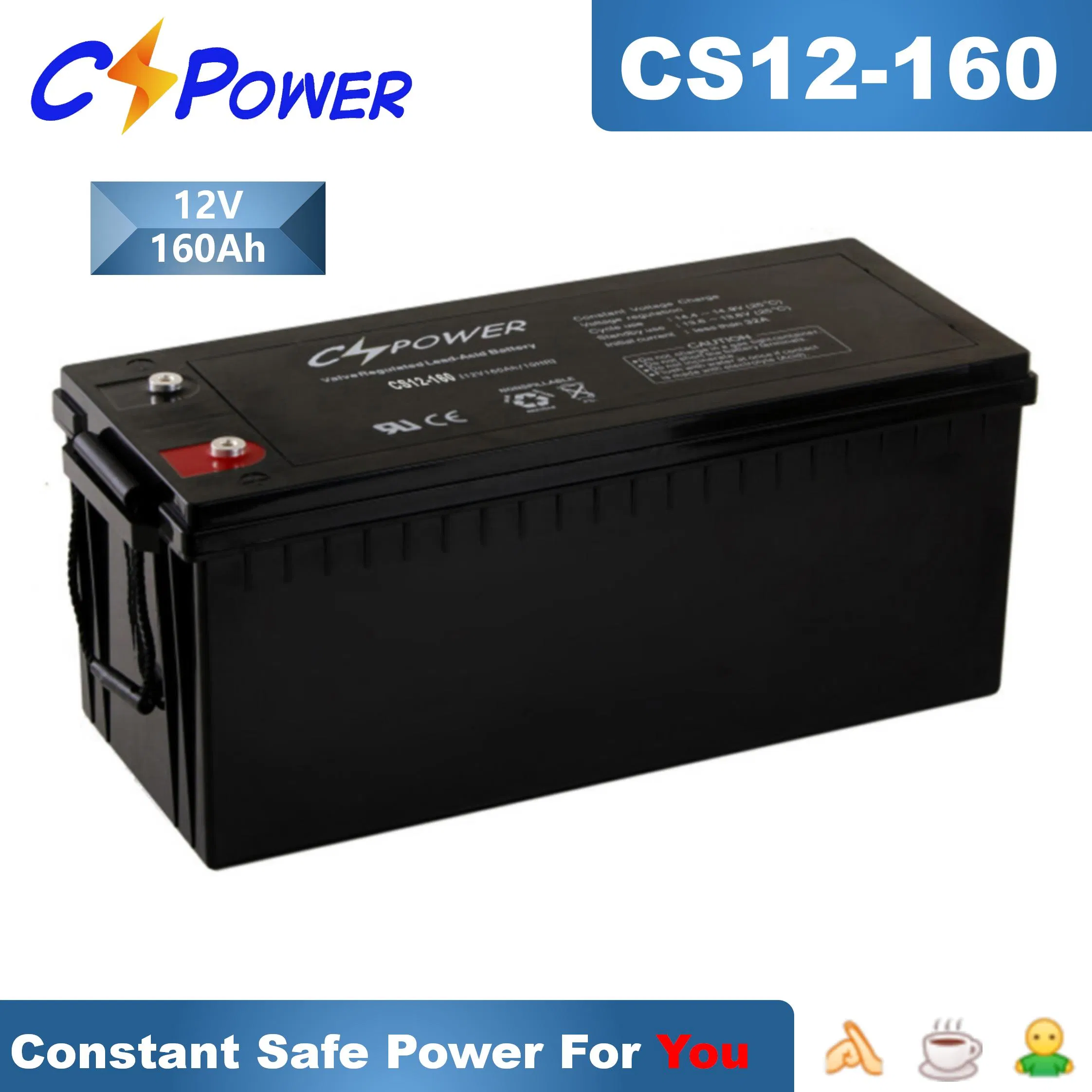

CS12-160	12	160/10HR	532	206	215	219	48.3	48.6	M8
CS12-180	12	180/10HR	532	206	215	219	53	53.3	M8
CS12-200B	12	200/20HR	522	240	219	224	56	56.3	M8
CS12-200A	12	200/10HR	522	240	219	224	58.2	58.5	M8
CS12-230	12	230/10HR	522	240	219	224	60.5	61	M8

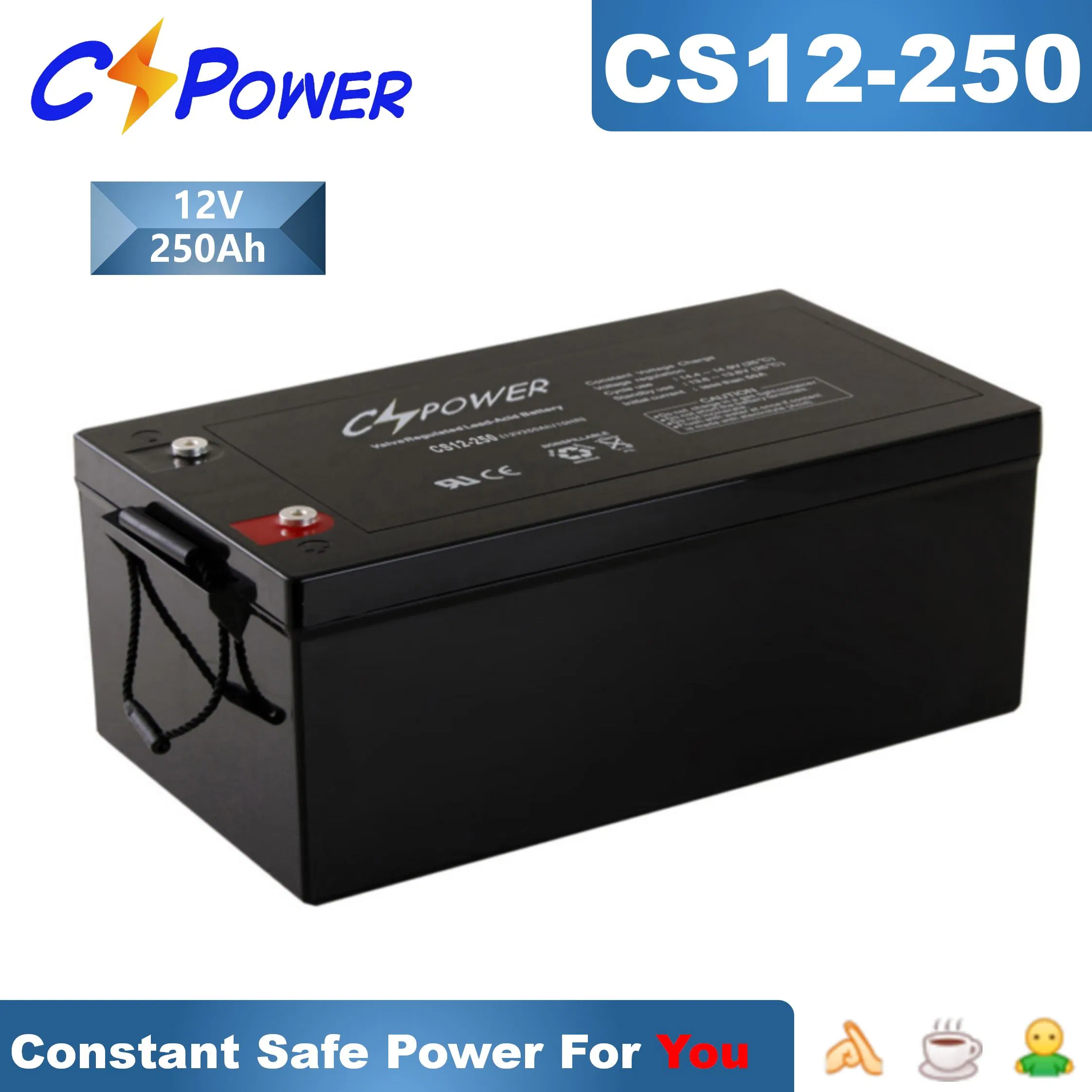

CS12-250	12	250/10HR	520	268	220	225	70	70.5	M8

Solar Battery Benefits

✦Long life and super stability under high temp. environments

✦Electrolyte immobilized as gel state, no leakage and no stratification

✦Super deep cycle life at high temperature

✦Uses super-C additives for high deep discharge recovery capability

✦Super PSOC cycling performance

Packing & Free Customization

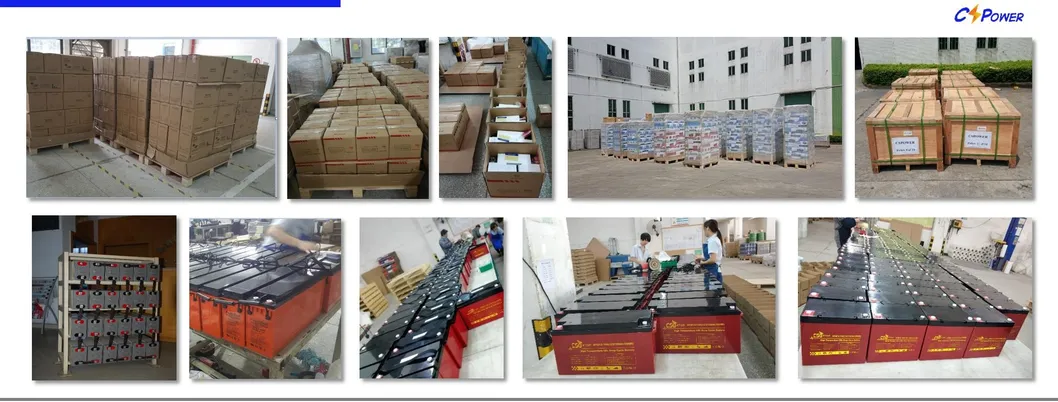

Packing Standard

Free Accessory Gift

Free OEM/ODM Customization: Competent at handling custom ODM and OEM orders according to real-time client requirements. Contact us today to secure a reliable, quality solar and battery manufacturing partnership.

Frequently Asked Questions

Q1: Can your battery be delivered by sea and air?

Yes, our batteries can be delivered both by sea and by air. We have MSDS and safe transportation test reports classifying them as non-dangerous products.

Q2: Can I put my custom logo on the battery?

Yes, you can print your logo on our batteries when your order reaches a 20ft container quantity. For smaller quantities, terms can be negotiated.

Q3: Can I fast charge my battery?

Fast charging is not recommended as it can be harmful to the long-term cycle life of the battery.

Q4: Can I perform a partial replacement of my battery bank?

Partial battery replacement of lead-acid battery banks is not recommended. It is best to replace the bank as a complete set.

Q5: What is your typical delivery lead time?

Typically, it takes about 7 days for stock items, around 20 days for half-container orders, and 30 days for full 20ft container products.

Q6: Why does a battery have different capacities at different hour rates?

The capacity of a battery (in Ah) is dynamic and depends heavily on the discharge current. A lower discharge rate (like a 20-hour rate) draws less current and yields a higher total capacity than a fast, high-current discharge rate (like a 2-hour rate).
