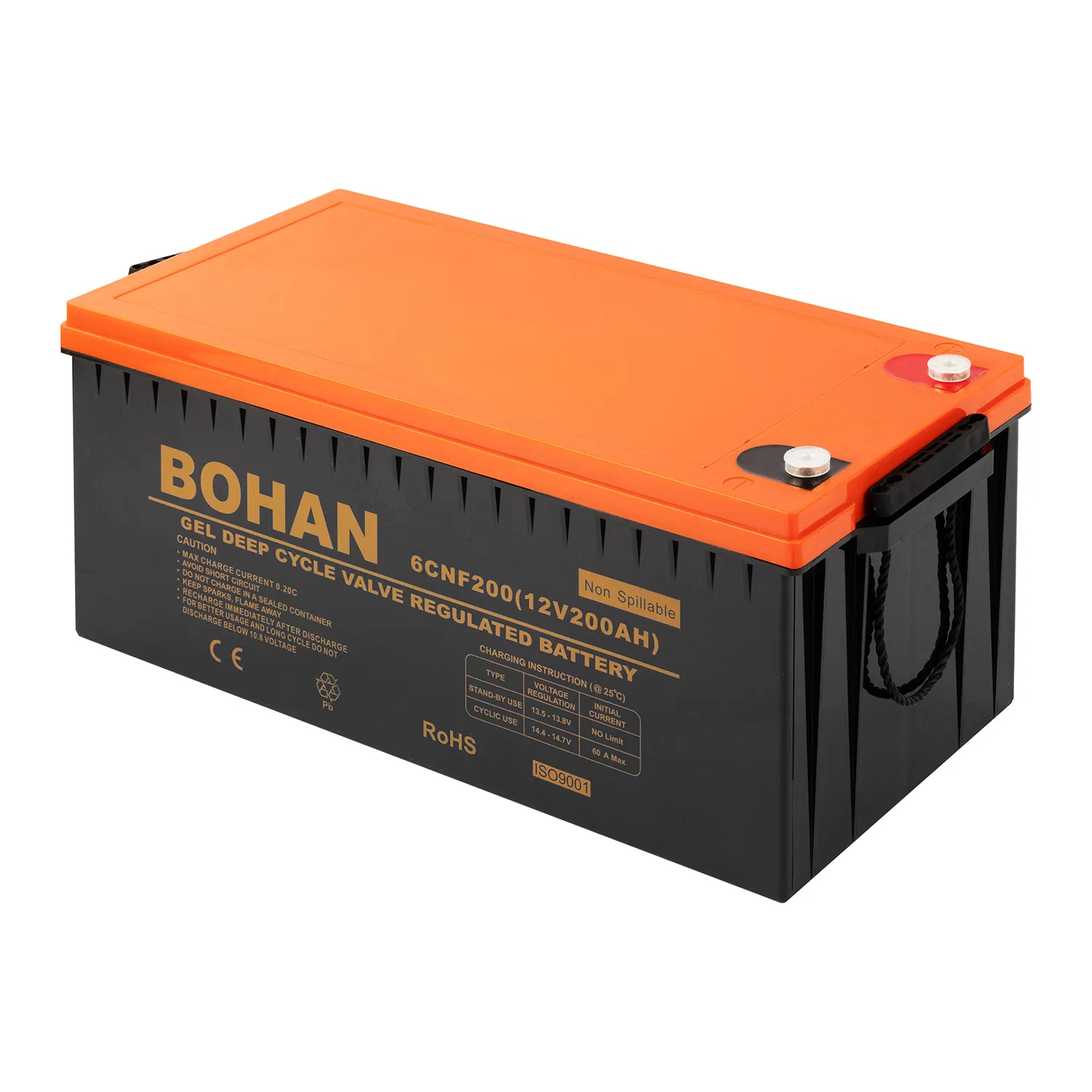

Gel Battery 12V 200ah Solar Battery Gel Battery

Basic Specifications

Model NO.

12V 200Ah

Nominal Voltage

12V

Discharge Rate

High Discharge Rate

Shape

Square Battery

Electrolyte

Acid

Rechargeable

Chargeable

Voltage Range

2V, 6V, 8V, 12V

Dimensions

522*240*241*244mm

Capacity Range

4.5ah-250ah

Certificate

CE, ISO, TS16949, SGS, RoHS

Warranty

5 Years

HS Code

85072000

Packaging & Delivery

Package Size

522.00cm * 240.00cm * 244.00cm

Gross Weight

61.000kg

Transport

Individual Carton, Pallet available

Product Technical Details

SPECIFICATIONS
Nominal Voltage	12 V	Rated Capacity	200AH
Dimensions	522240241*244mm
Weight Approx	60kg
CHARACTERISTICS
Internal Resistance	Fully charged battery at 25° C		8 m Ω
Temp Effect (20hr)	40° C / 25° C / 0° C / -15° C		102% / 100% / 85% / 65%
Self-Discharge	3 / 6 / 12 Months Storage		91% / 82% / 64%
Terminal Type	T9 or T16
Cycle Use Charge	Current < 30A; Voltage 14.60~15.00V
Float Use Charge	Voltage 13.60~13.80V

Core Advantages

Long service life
High discharge rate
Low self-discharge rate
Deep cycle & Super cycling ability
Excellent high current performance
Safe and reliability
No memory effect
Wide operating temperature range
Vibration resistance
High temperature resistance

Applications

Solar & Wind Energy Storage, UPS (Uninterrupted Power Supply), EPS (Emergency Power Supply), Communication Systems, Emergency Lighting, Control Equipment, Medical Equipment, Railway & Navigation, Electric Vehicles (EV), Inverters.

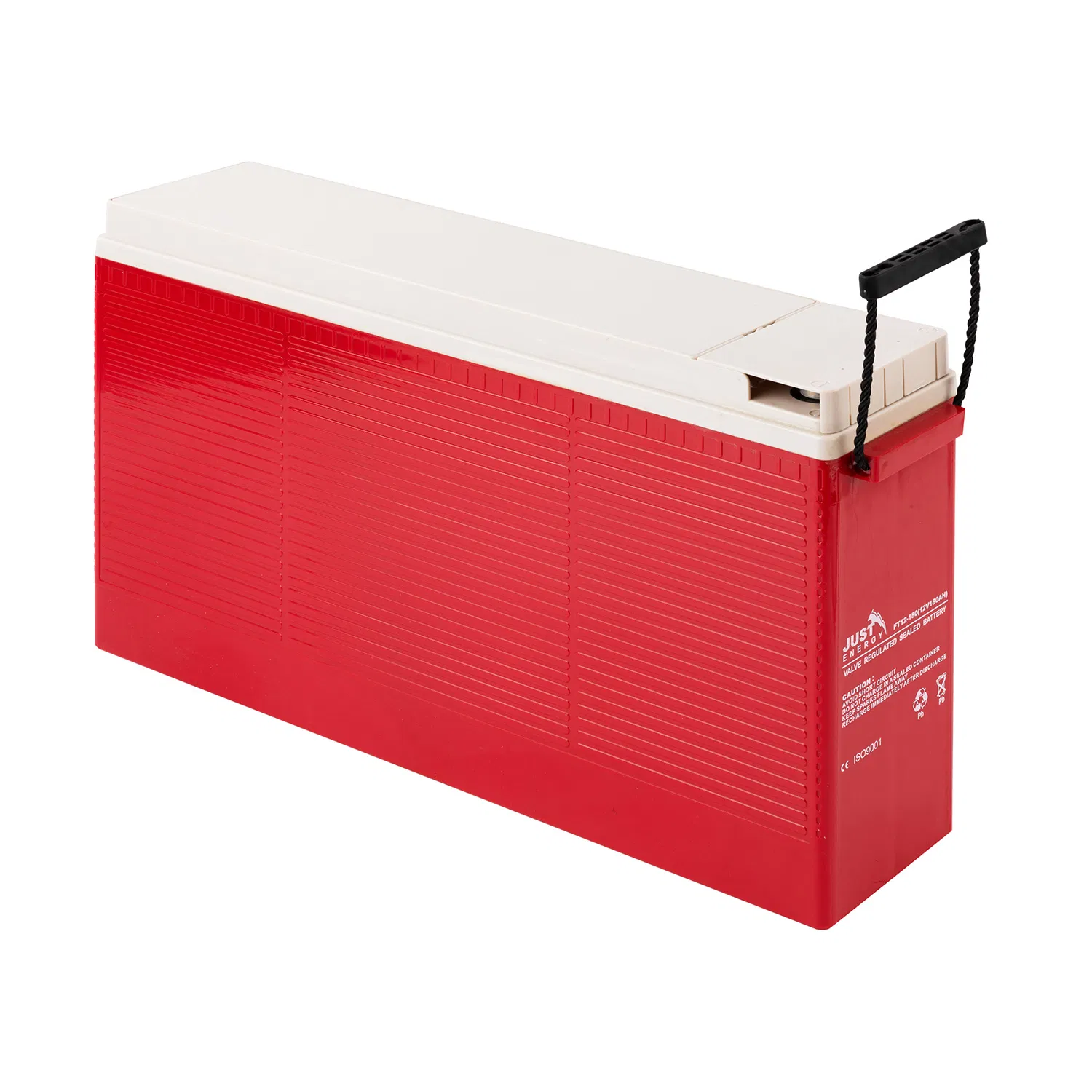

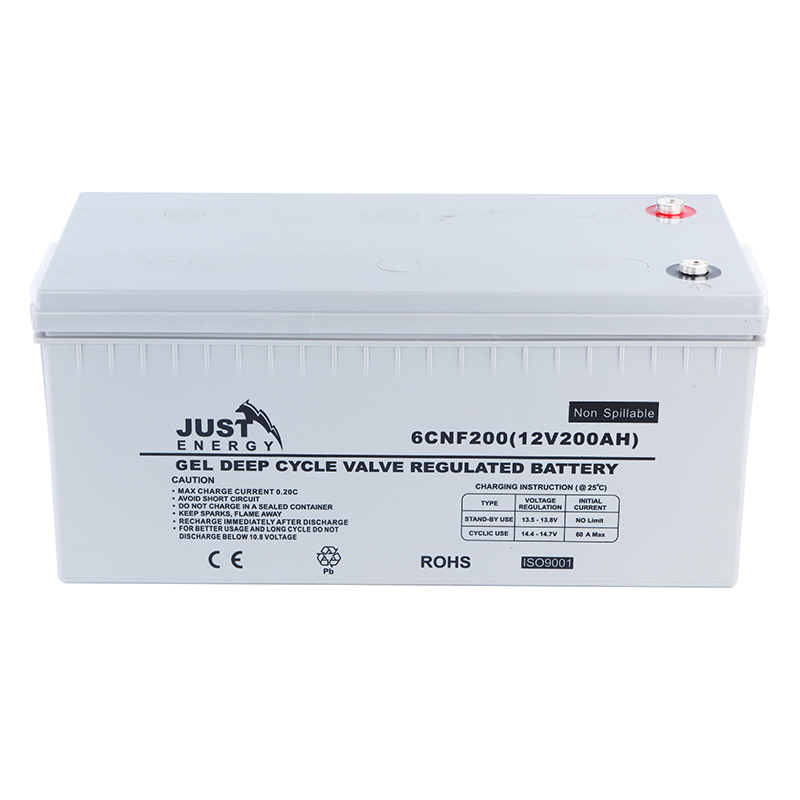

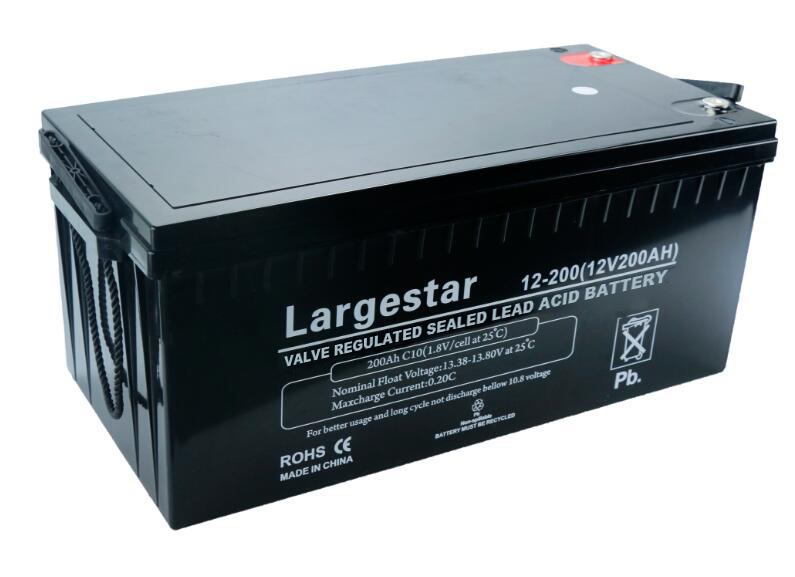

Product Display

Frequently Asked Questions

Q1: What is the lifespan and warranty of this 12V 200Ah battery? A: This battery is designed for long service life with deep cycle capabilities. We provide a 5-year warranty for this model.

Q2: Can this battery be used for both solar and wind power systems? A: Yes, it is specifically designed for solar and wind energy storage, as well as UPS, EPS, and telecommunication systems.

Q3: Does the battery suffer from "memory effect"? A: No, our Gel and VRLA batteries have no memory effect, meaning you can recharge them at any time without affecting capacity.

Q4: What are the recommended charging voltages? A: For cycle use, the voltage should be between 14.60V and 15.00V. For float use, the recommended voltage is 13.60V to 13.80V.

Q5: How does temperature affect the battery performance? A: The battery maintains 100% capacity at 25°C. At higher temperatures (40°C), capacity increases slightly to 102%, while at lower temperatures (-15°C), it maintains approximately 65% capacity.

Q6: What certifications does the product hold? A: Our products are fully certified with CE, ISO, TS16949, SGS, and RoHS, ensuring international quality and environmental standards.
