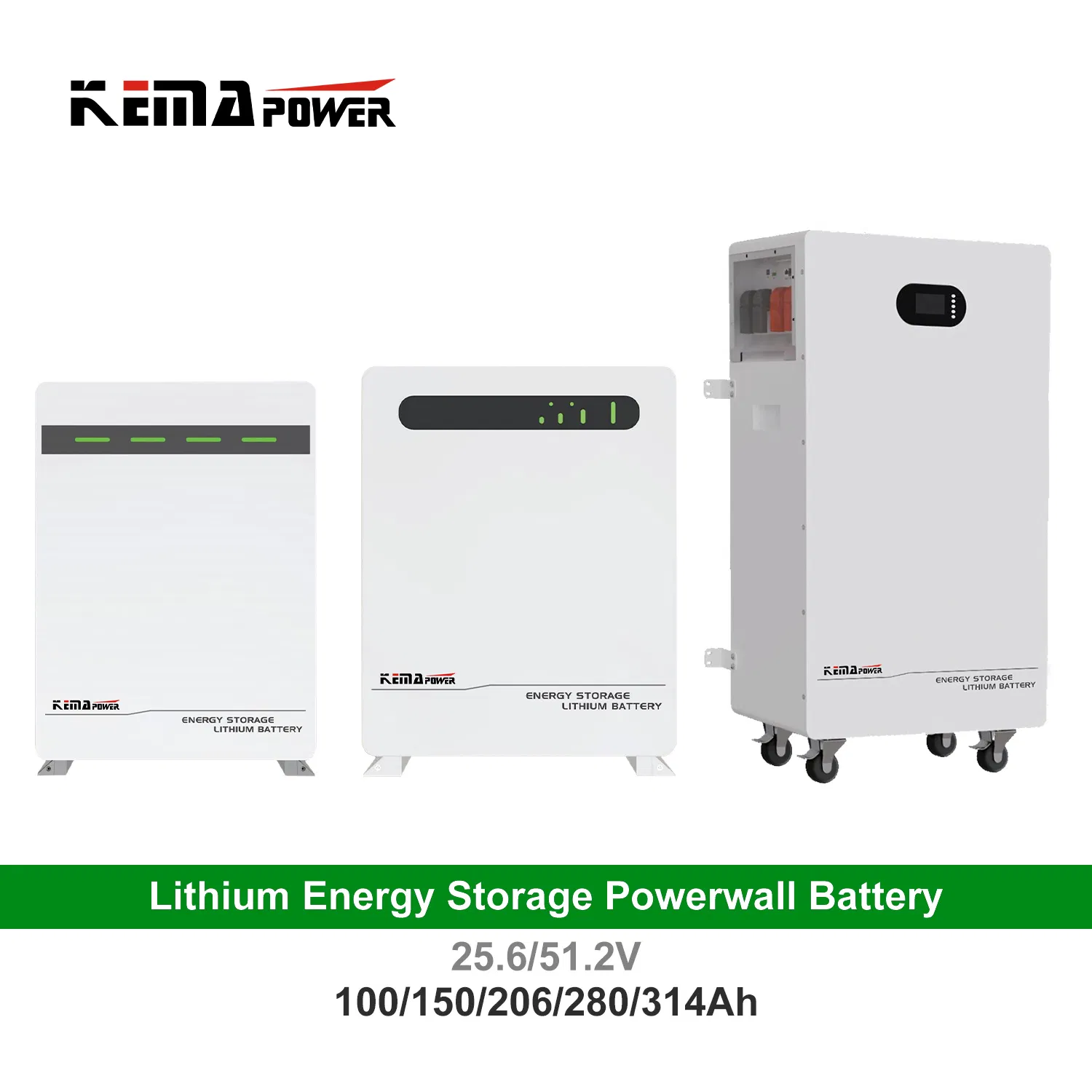

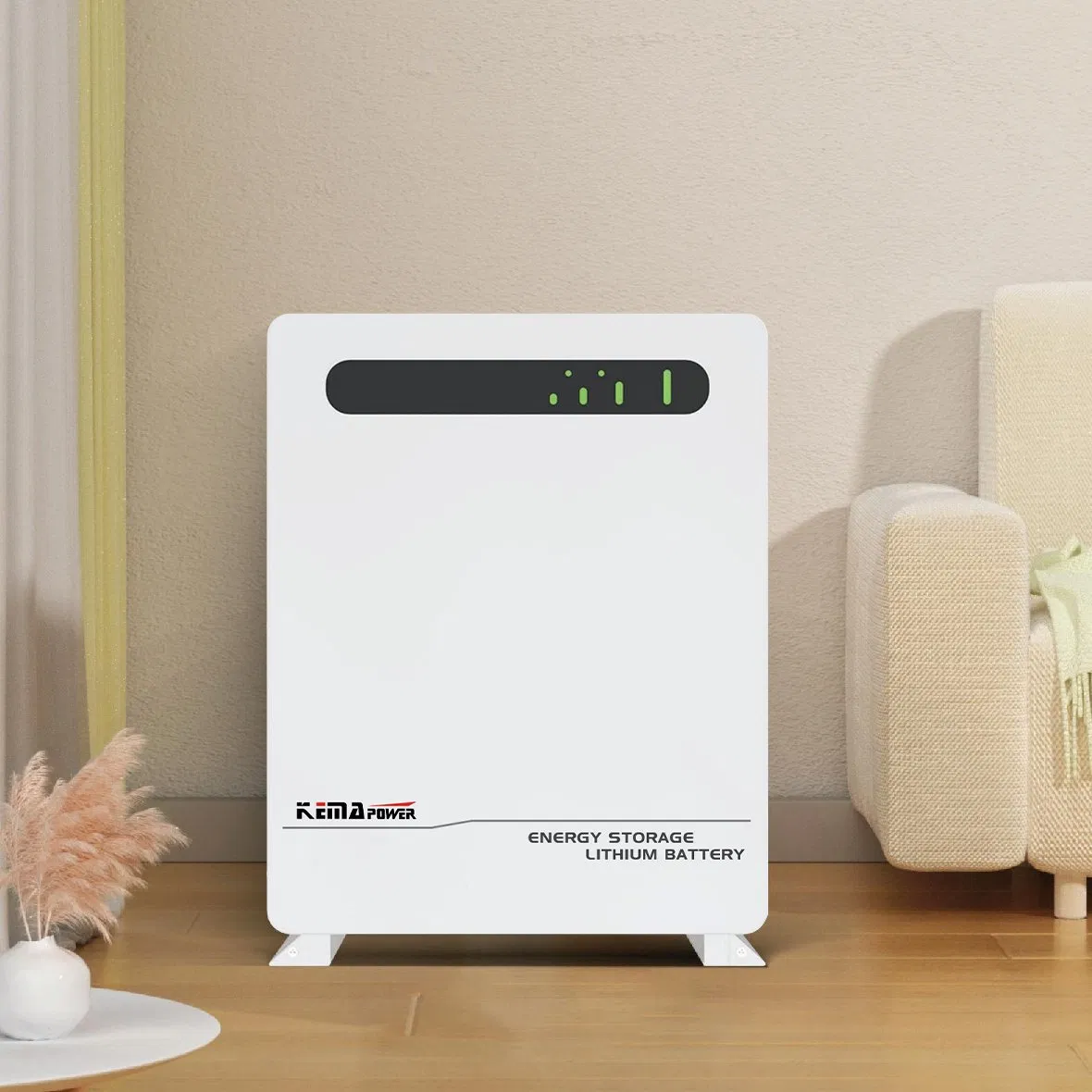

Wall Mounted Solar Battery 51.2V 100ah LiFePO4 Energy Storage System 5.12kwh Home Powerwall 100ah LiFePO4 Wall Mounted Battery
Wall Mounted Solar Battery 51.2V 100ah LiFePO4 Energy Storage System 5.12kwh Home Powerwall 100ah LiFePO4 Wall Mounted Battery
Wall Mounted Solar Battery 51.2V 100ah LiFePO4 Energy Storage System 5.12kwh Home Powerwall 100ah LiFePO4 Wall Mounted Battery
Wall Mounted Solar Battery 51.2V 100ah LiFePO4 Energy Storage System 5.12kwh Home Powerwall 100ah LiFePO4 Wall Mounted Battery
Wall Mounted Solar Battery 51.2V 100ah LiFePO4 Energy Storage System 5.12kwh Home Powerwall 100ah LiFePO4 Wall Mounted Battery
1 / 5
Wall Mounted Solar Battery 51.2V 100ah LiFePO4 Energy Storage System 5.12kwh Home Powerwall 100ah LiFePO4 Wall Mounted Battery
Wall Mounted Solar Battery 51.2V 100ah LiFePO4 Energy Storage System 5.12kwh Home Powerwall 100ah LiFePO4 Wall Mounted Battery
Wall Mounted Solar Battery 51.2V 100ah LiFePO4 Energy Storage System 5.12kwh Home Powerwall 100ah LiFePO4 Wall Mounted Battery
Wall Mounted Solar Battery 51.2V 100ah LiFePO4 Energy Storage System 5.12kwh Home Powerwall 100ah LiFePO4 Wall Mounted Battery
Wall Mounted Solar Battery 51.2V 100ah LiFePO4 Energy Storage System 5.12kwh Home Powerwall 100ah LiFePO4 Wall Mounted Battery

Wall Mounted Solar Battery 51.2V 100ah LiFePO4 Energy Storage System 5.12kwh Home Powerwall 100ah LiFePO4 Wall Mounted Battery

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
LFP-PW
Rechargeable
Yes
Size
Medium
Nominal Voltage
12V / 51.2V
Product Name
LiFePo4 Lithium Energy Storage Powerwall Battery
Cycle Life
4000 - 8000 Times
Operation Temp
-20°C to 60°C
Display
LED or LCD
Capacity Range
100-314AH
Production Capacity
50000PCS/Year
Packaging & Delivery
Package Size
570.00cm * 460.00cm * 500.00cm
Gross Weight
72.000kg
Product Description

LiFePo4 Lithium Energy Storage Powerwall Battery

LFP-PW Series

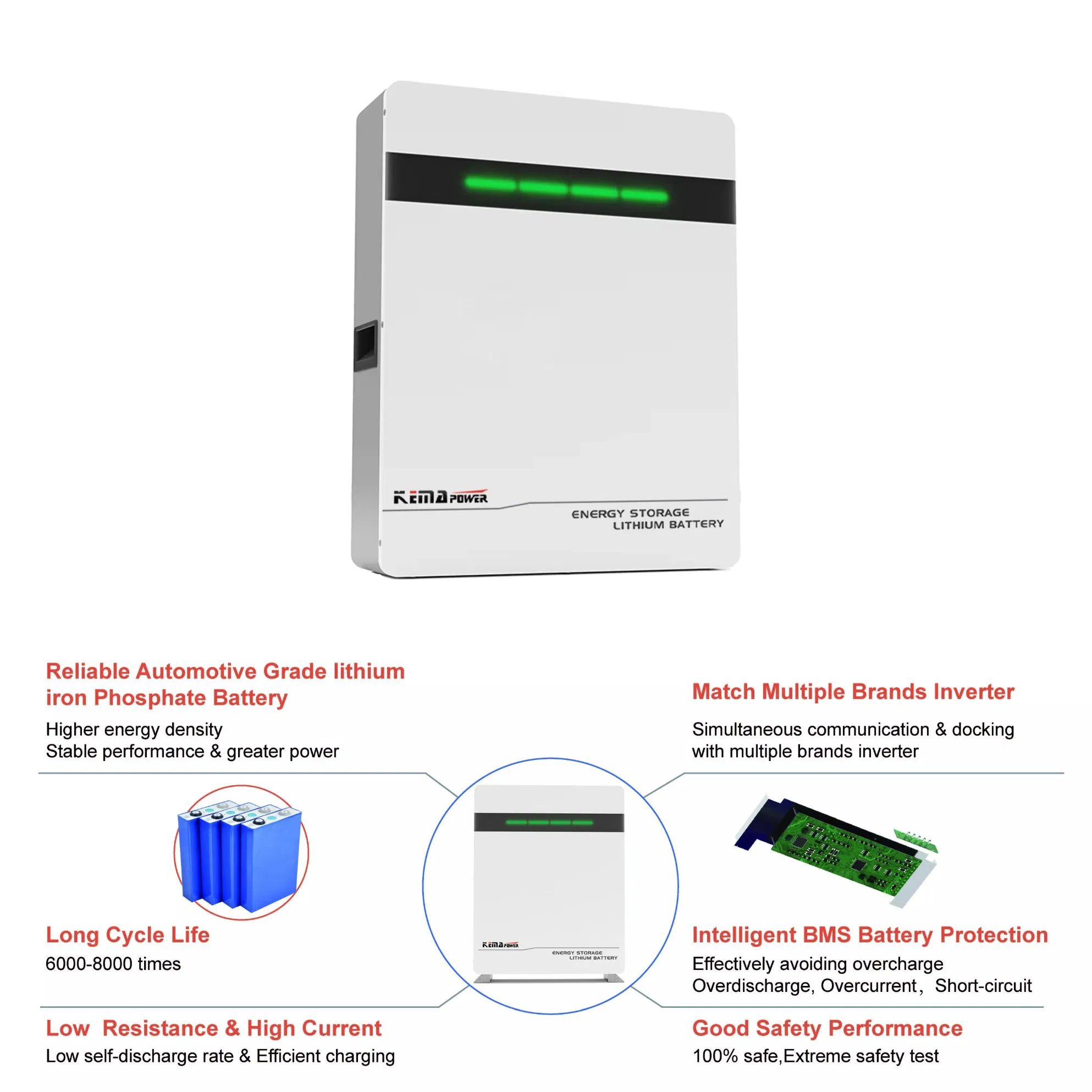

◈ KEY FEATURES
  • ✓Capacity options: 2.56KWH to 16.07KWH
  • ✓4K-8K times Cycle life (80% DOD@25ºC), 10x more than AGM
  • ✓Usable Energy Ratio up to 95%
  • ✓Compact size and lightweight (50% less than AGM)
  • ✓RS485 and CAN communication interface to Inverter
  • ✓LED and LCD display for Cell / Pack / BMS status
  • ✓Wide Compatibility with most hybrid inverters
  • ✓Embedded BMS with full protection and cell balancing
  • ✓Support up to 15 modules in parallel
Technical Specifications
MODEL LFP256100-PW LFP512100-PW LFP512150-PW LFP512206-PW LFP512280-PW LFP512314-PW
Battery Module Rated Voltage 25.6V 51.2V 51.2V 51.2V 51.2V 51.2V
Rated Capacity 100Ah 100Ah 150Ah 206Ah 280Ah 314Ah
Rated Energy 2.56KWH 5.12KWH 7.68KWH 10.34KWH 14.34KWH 16.07KWH
Cycle Life (80% DOD) 4000 times 6000 times 8000 times
Communication RS485 / CAN interface to inverter; USB to PC
IP Grade IP21, Indoor
Operation Temp -20°C to 60°C
Product Display
Powerwall Battery Front Powerwall Battery Side Powerwall Battery Design

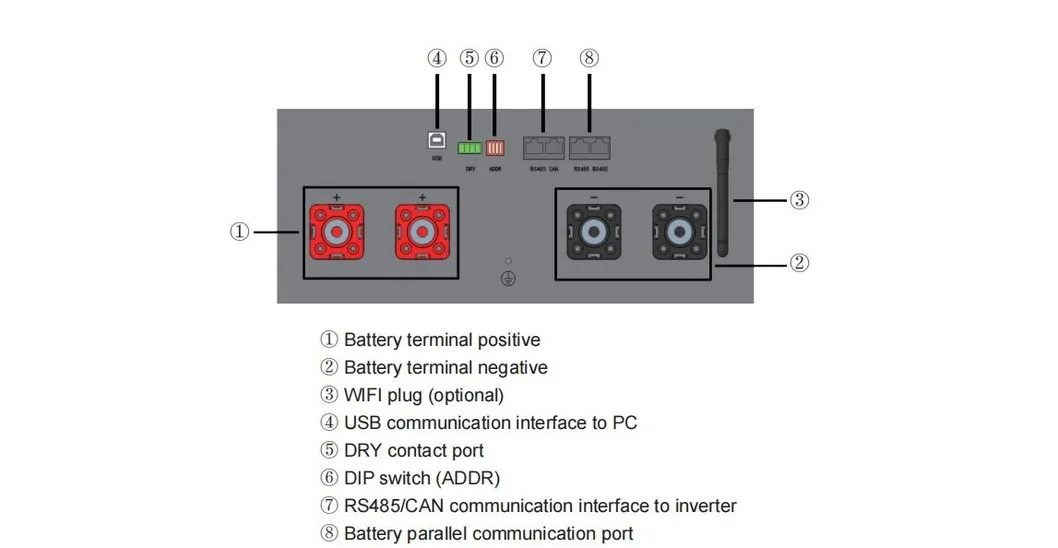

Interface Detail Internal Structure

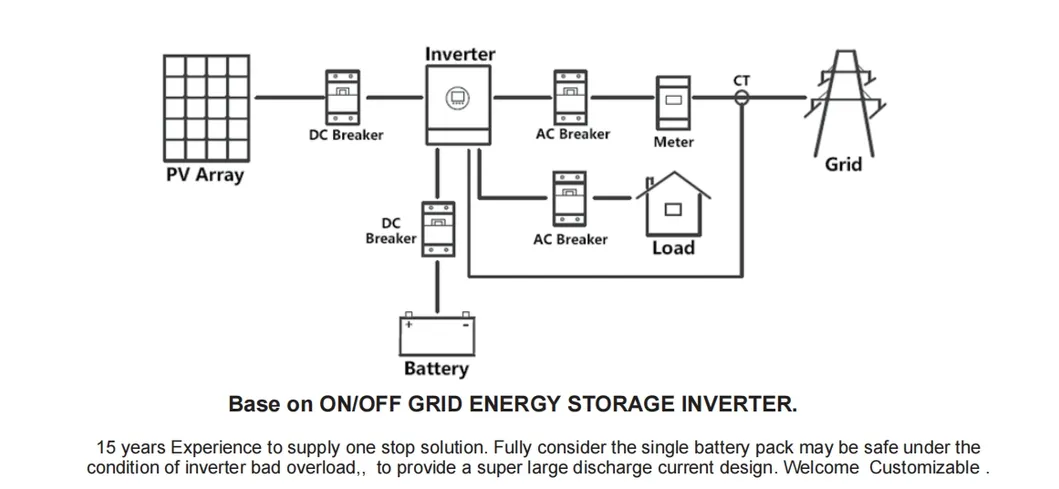

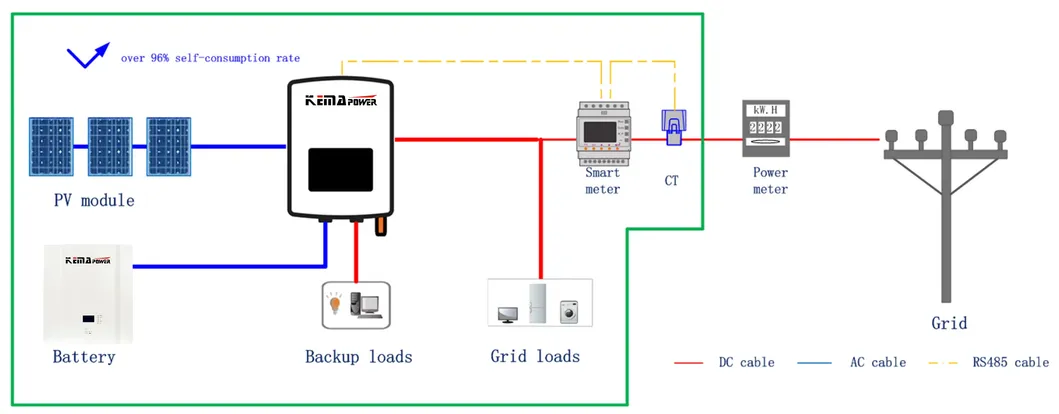

Installation Diagram Parallel Connection
LCD Display Battery Cell
Application Scenario 1 Application Scenario 2 Manufacturing Certifications
Frequently Asked Questions
What is the expected lifespan of the LFP-PW series battery?
The battery offers a long cycle life of 4,000 to 8,000 times at 80% Depth of Discharge (DOD) at 25ºC, which typically equates to over 10 years of design life.
Can I expand my storage capacity later?
Yes, the system supports parallel connection. You can connect up to 15 modules in parallel, though we typically recommend 2-8 units for optimal performance.
What safety protections are included?
The battery features an embedded Battery Management System (BMS) providing protection against over-charge, over-discharge, over-temperature, over-current, and internal short circuits.
Is this battery compatible with my existing inverter?
The LFP-PW series is designed with wide compatibility and works with most mainstream hybrid and off-grid inverters via RS485 and CAN communication.
What information can I see on the display?
The LED and LCD displays show real-time data including cell/pack voltage, current, capacity, temperature, BMS status, and system settings.
What are the installation options?
These units are versatile and can be mounted on a wall or placed on the ground, depending on your space and aesthetic preference.
