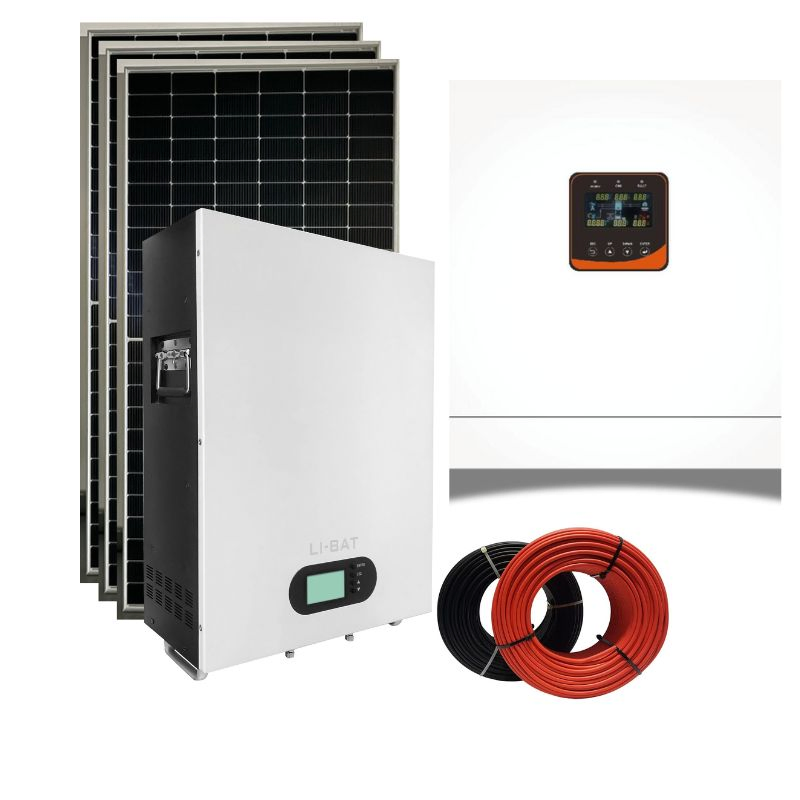

Solar Panel Home Hybrid on off Grid Solar Power Energy System with Lithium Battery and Gel Battery
Solar Panel Home Hybrid on off Grid Solar Power Energy System with Lithium Battery and Gel Battery
Solar Panel Home Hybrid on off Grid Solar Power Energy System with Lithium Battery and Gel Battery
Solar Panel Home Hybrid on off Grid Solar Power Energy System with Lithium Battery and Gel Battery
Solar Panel Home Hybrid on off Grid Solar Power Energy System with Lithium Battery and Gel Battery
1 / 5
Solar Panel Home Hybrid on off Grid Solar Power Energy System with Lithium Battery and Gel Battery
Solar Panel Home Hybrid on off Grid Solar Power Energy System with Lithium Battery and Gel Battery
Solar Panel Home Hybrid on off Grid Solar Power Energy System with Lithium Battery and Gel Battery
Solar Panel Home Hybrid on off Grid Solar Power Energy System with Lithium Battery and Gel Battery
Solar Panel Home Hybrid on off Grid Solar Power Energy System with Lithium Battery and Gel Battery

Solar Panel Home Hybrid on off Grid Solar Power Energy System with Lithium Battery and Gel Battery

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
550w*10pcs
Cycle Life
6000 Pieces
Nominal Capacity
10kw
Type
on / off Grid
Battery
Lithium/Gel
Application
Home
Solar Panel
Mono Type
Package Size
20.00cm * 40.00cm * 20.00cm
Gross Weight
60.000kg
HS Code
9405409000

Product Overview

A hybrid system is when your solar panels remain connected to the grid's power lines and have a backup battery system to store excess power. The sun's energy absorbed by the solar panels goes through an inverter to create usable electricity. From there, electricity either goes to your home, to your battery, or to the grid.
The benefit of a hybrid solar system is that you will always have power in any situation. With a backup battery, the excess energy that your solar panels create (but your home does not use), will be stored in this battery. Then, when the sun is not shining, this battery will provide your power during the night, system blackouts, or inclement weather. With a hybrid solar system, if you were to use up all the power in your battery, you have the ability to draw power from the electrical grid.

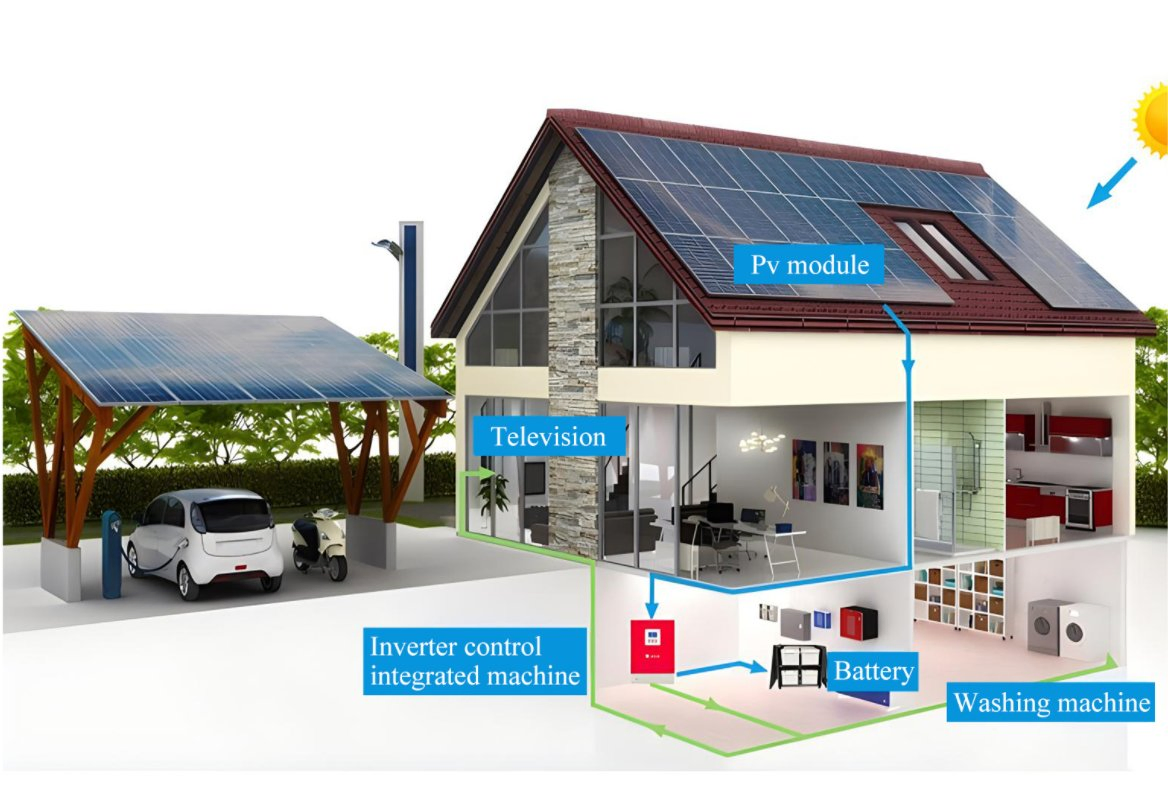

Hybrid Solar Power System Diagram
Component Preview Technical Specifications
Solar Monocrystalline Panels Solar Panels Cell: TNC (N Type Mono)
Arrangement: 144 pieces (6*24)
Size: 2278*1134*30mm
Weight: 31.5KG | Pmax: 580W
Efficiency: 22.5%
Integrated Inverter & Controller Solar Inverter Spec: 10KW/51.2V
Paralleled: 1 to 6 units
Protection: IP65
Cooling: Heat sink + Intelligent air cooling
Warranty: 5 years
Rack Storage Lithium Battery Lithium Battery Model: 51.2V 200AH
Life Cycle: 6000 | DOD: 80%
Design Life: > 10 years
Communication: CAN, RS485
Standard: 19-inch 3U height

Working Principle

Working Principle 1

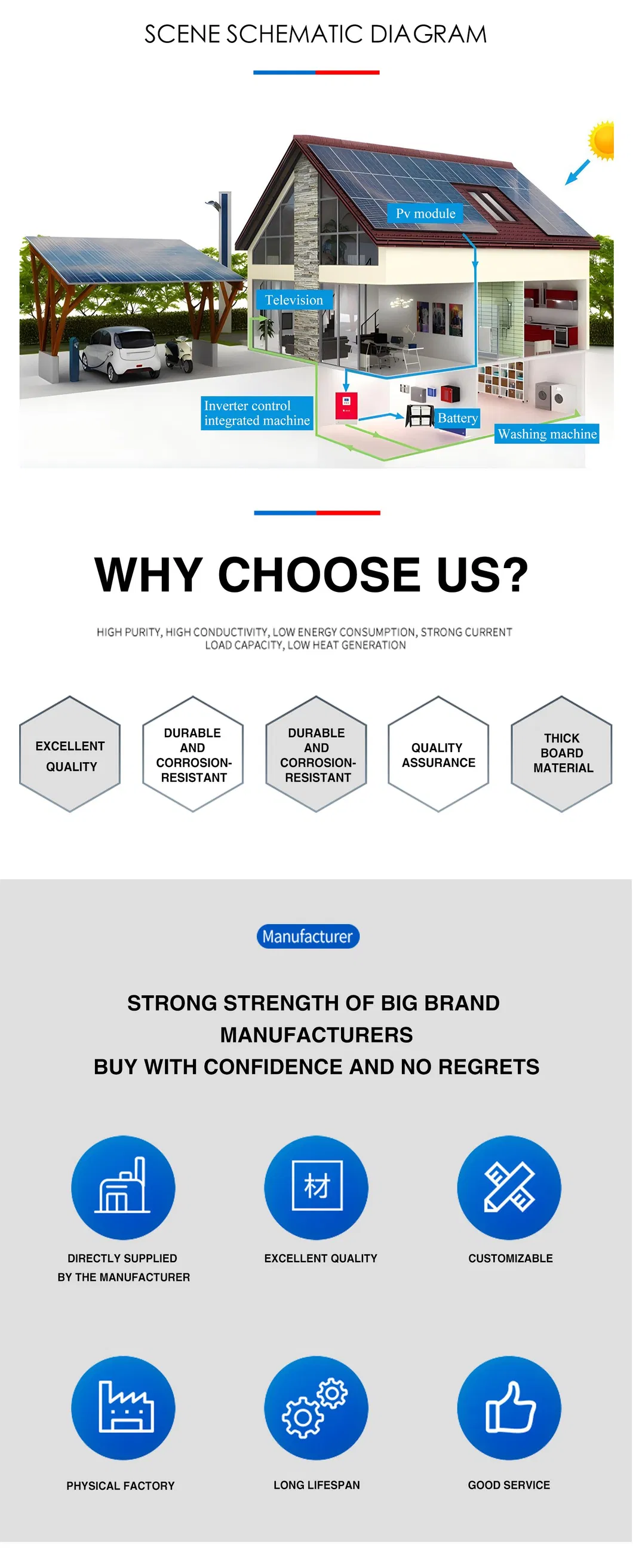

Working Principle 2

Production & Quality

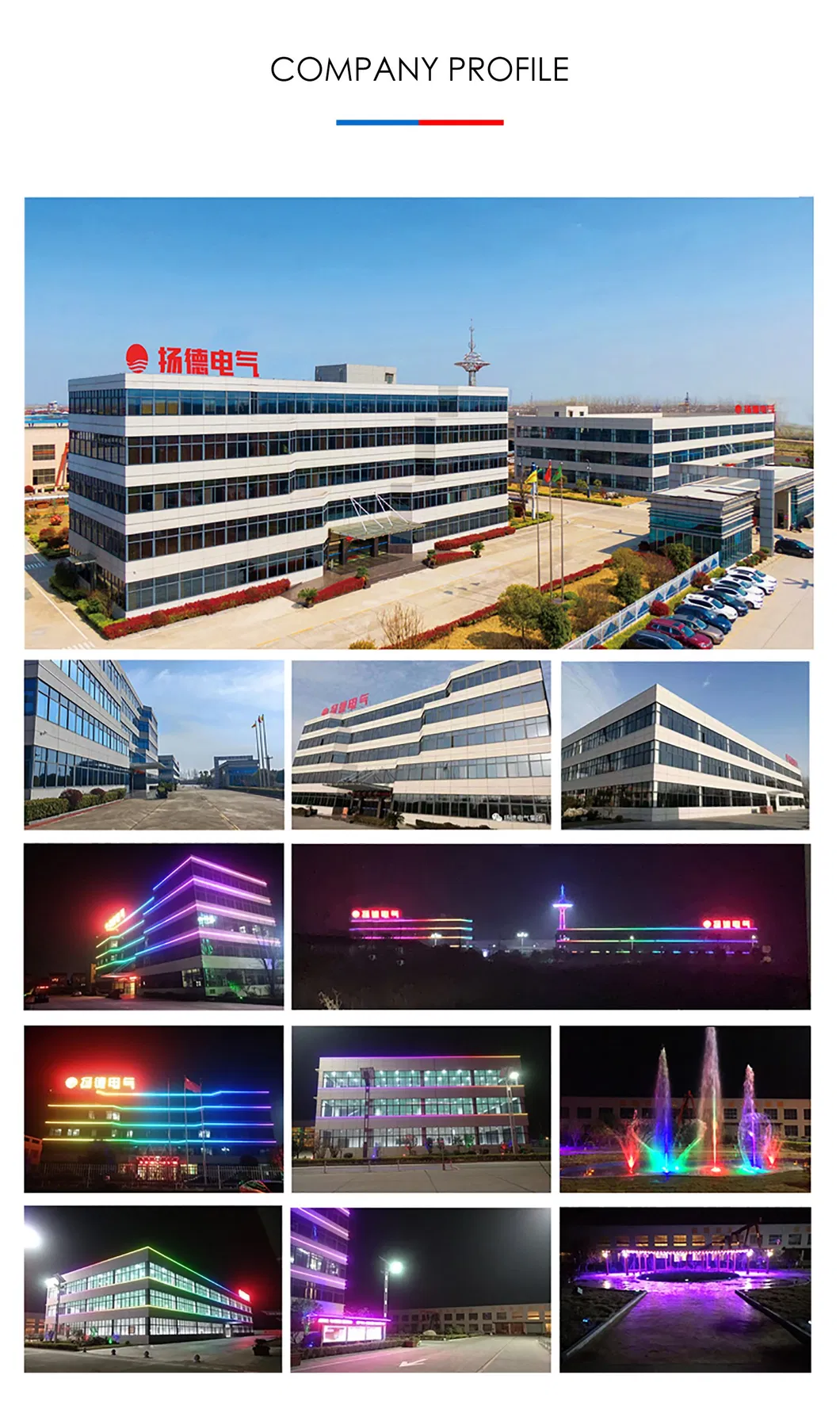

Production Image 1
Production Image 2
Production Image 3
Production Image 4
Production Image 5

Frequently Asked Questions

1. What are the main components of this hybrid solar system?
The system includes high-efficiency monocrystalline solar panels, a 10KW integrated hybrid inverter/controller, and a long-life lithium-ion battery storage unit.
2. Can the system work during a power outage?
Yes. The backup battery stores excess energy during the day, which can be used to power your home during night-time, blackouts, or inclement weather.
3. What is the expected lifespan of the battery?
The lithium battery is designed for over 6,000 cycles and has a design life of more than 10 years with intelligent BMS control.
4. How efficient are the solar panels provided?
The system uses N-type monocrystalline cells with a module efficiency of up to 22.5%, ensuring maximum energy harvest even in limited space.
5. Is the system expandable?
Yes, the 10KW inverter supports paralleling from 1 up to 6 units, allowing you to increase power capacity as your energy needs grow.
6. Is this system suitable for outdoor installation?
The integrated inverter and controller feature an IP65 protection rating, making it highly resistant to dust and water, suitable for various environments.
