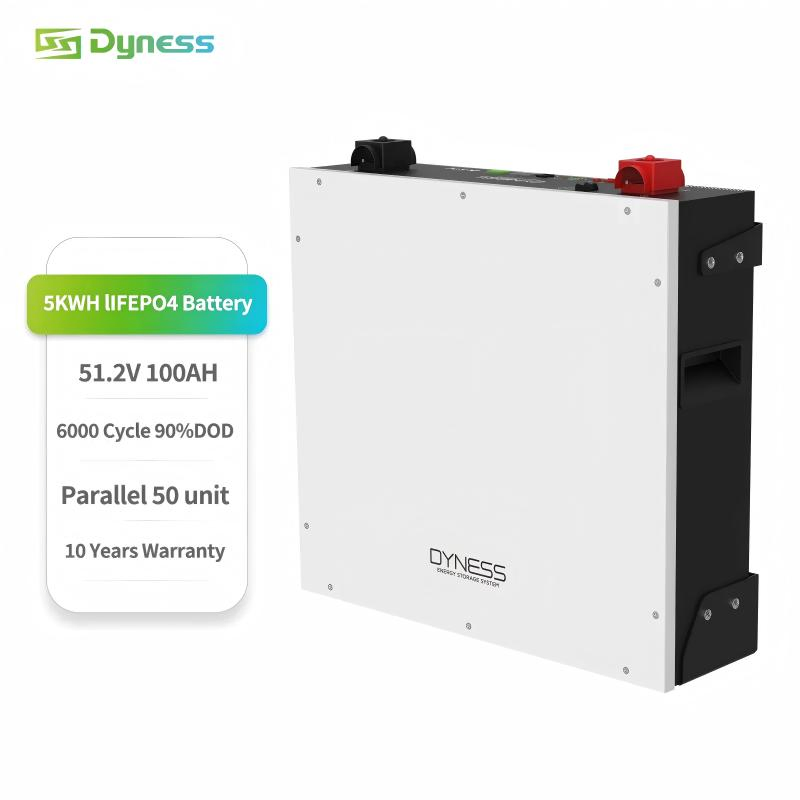

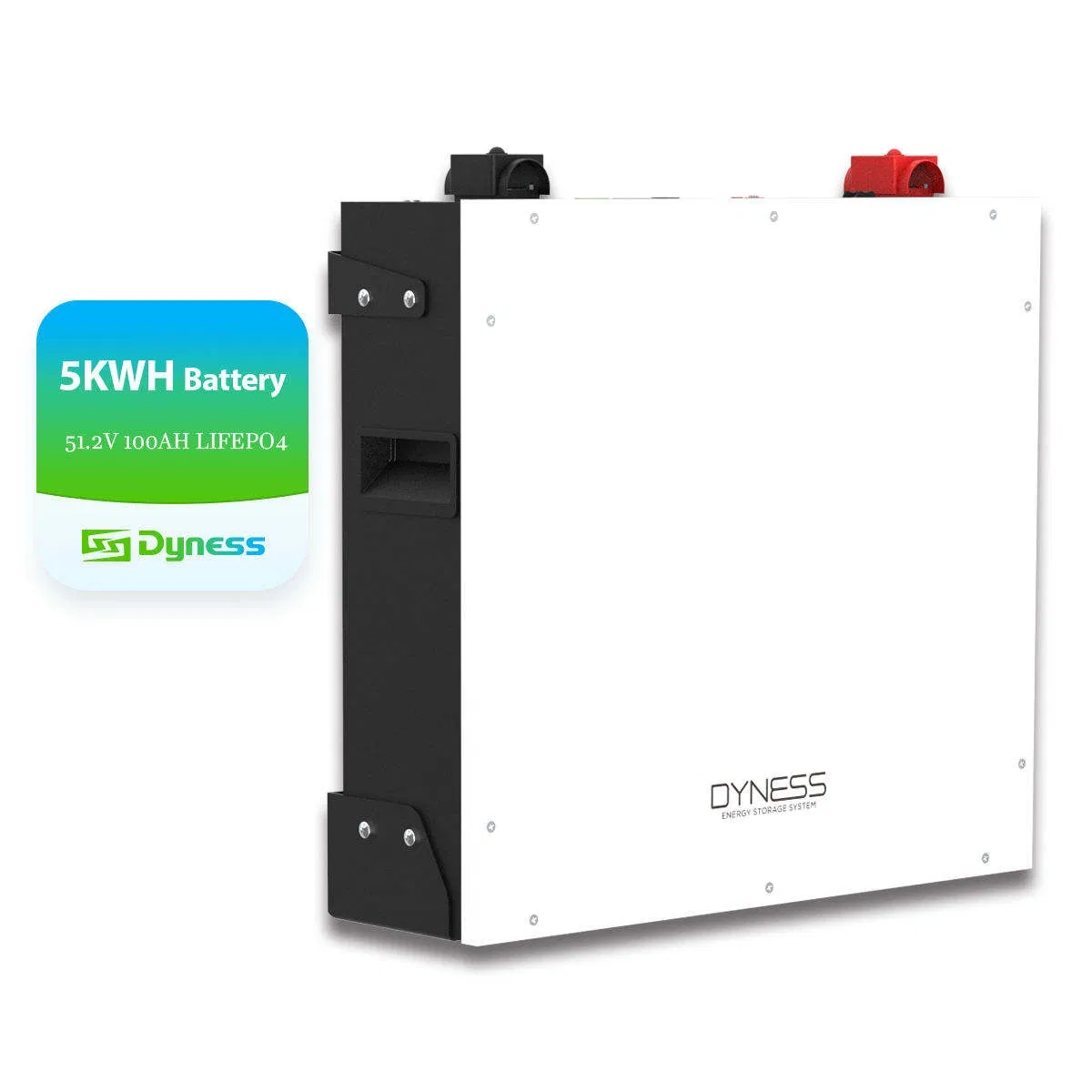

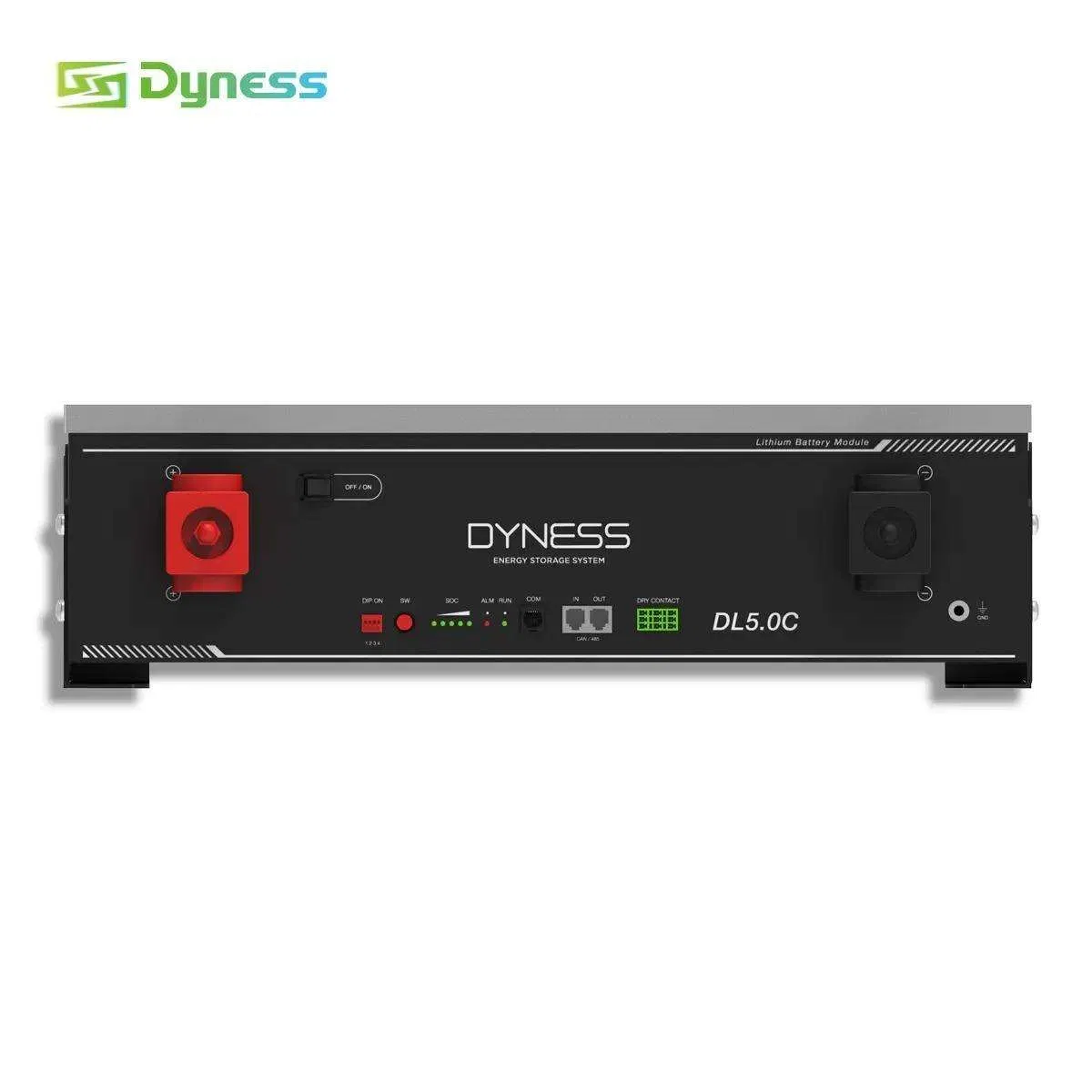

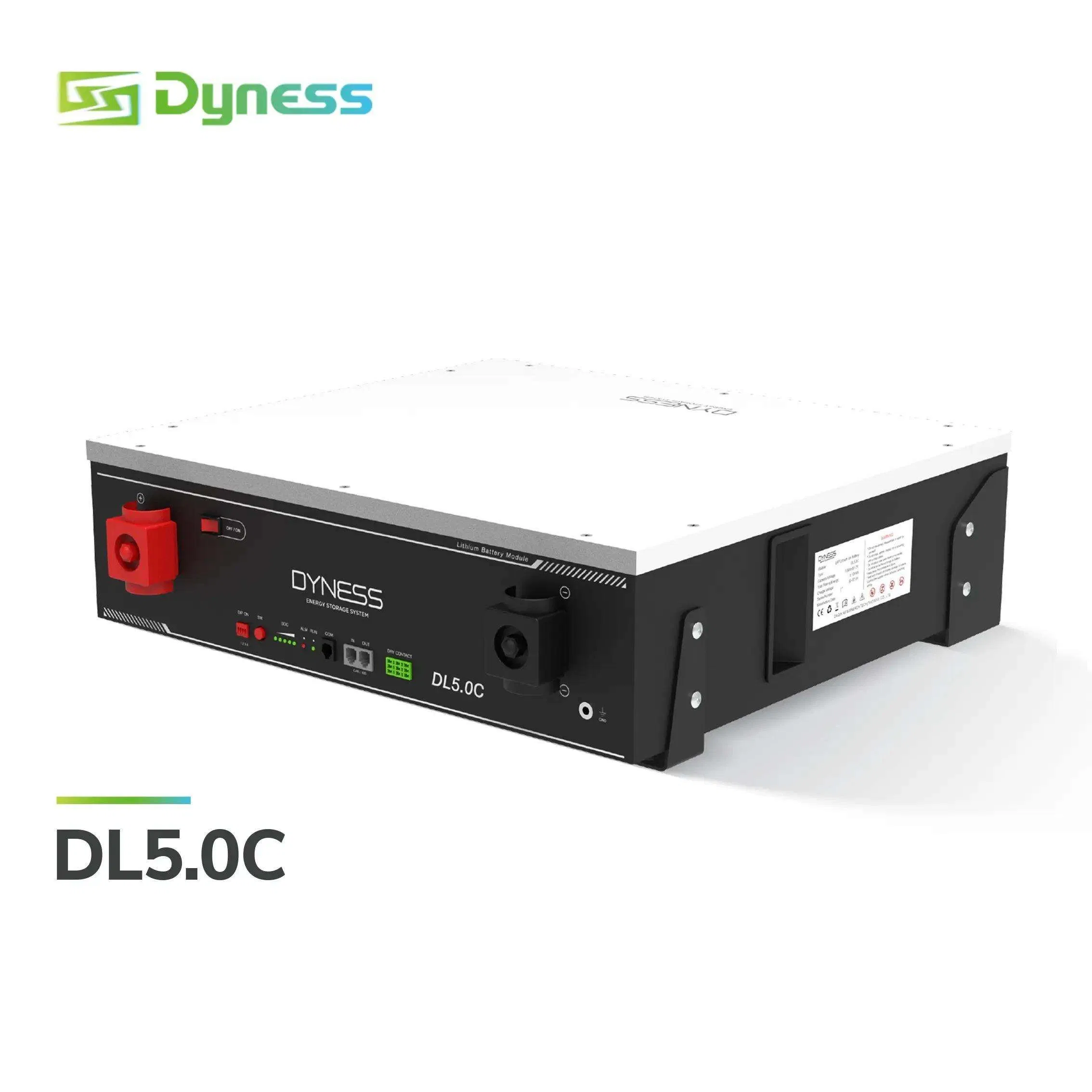

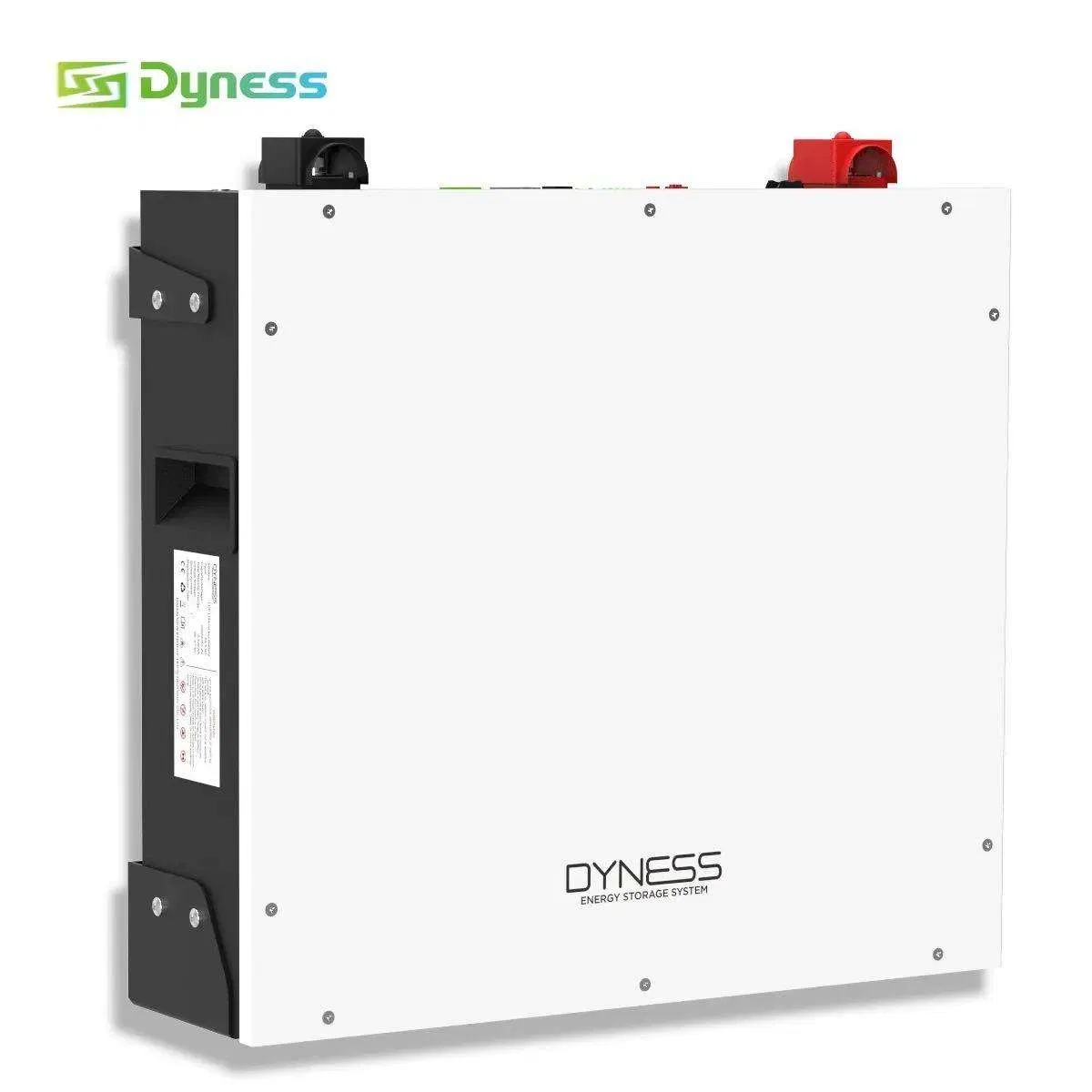

Dyness Brand Dl5.0c Low Voltage LiFePO4 Solar Battery for Home Energy System 51.2V 100ah Wall Mounted 5kwh Lithium Batteries Price

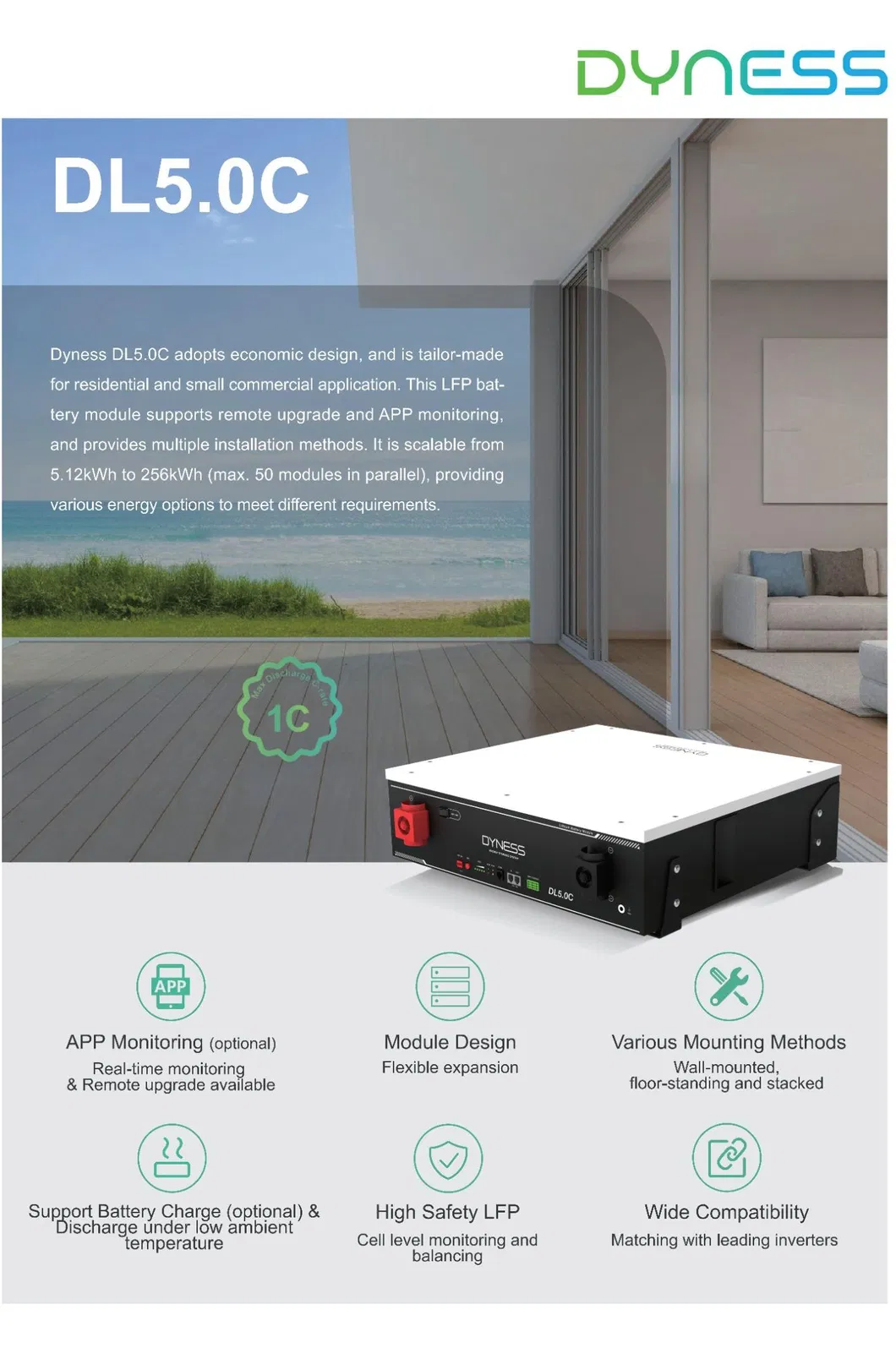

Low Voltage LiFePO4 Solar Battery Showcase

Product Parameters

Model	DL5.0C
Battery Type	LiFePO4
Nominal Battery Energy	5.12kWh
Nominal Capacity	100Ah
Nominal Voltage	51.2V
Operating Voltage	44.8~57.6V
Recommended Charge & Discharge C Rate	0.5C
Maximum Discharge C rate	1C
Recommended Charge/Discharge Current	50A
Max. Charge/Discharge Current	Charge 75A Discharge 100A
Peak Discharge Current	110A(15s)
Depth of Discharge (DOD)	90%
Net Weight	49.9kg
Dimension [W/D/H] (mm)	558/545/150
Charging Temp. Range	0-55 / -20~55 ℃ (with heating function)
Discharging Temp. Range	-20~55 ℃
Communication	CAN / RS485 / RS232
Cycle Life	More than 6000 Cycles
Protection Level	IP20
WIFI Module	Optional
Expansion	Up to 50 units in parallel
Certification & Safety Standard	UN38.3 / CE-EMC / IEC62619 / CEI-021
Compatible Inverters	SMA / Victron energy / Ingeteam / Solis / GoodWe / Growatt / Solplanet / Luxpower / DEYE / APsystems etc.

Ultra Safe LiFePO4

Advanced lithium iron phosphate technology ensures exceptionally high safety standards and stability.

6000+ Lifespans

Engineered to deliver over 6000 operating cycles with deep discharge protection.

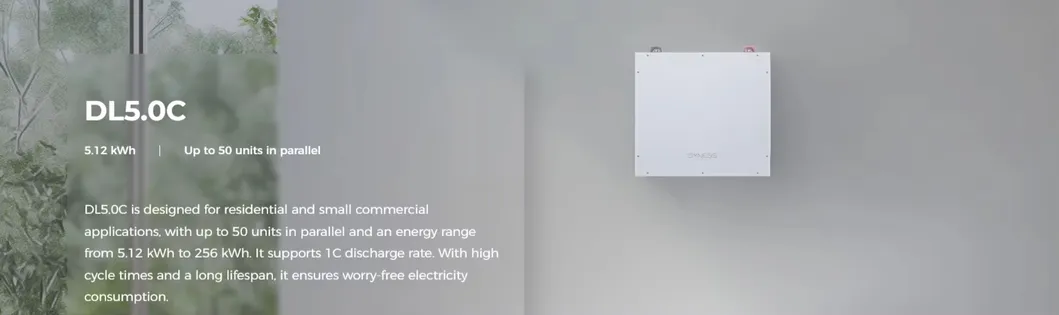

Up to 50 Parallel Units

Highly scalable structure allows robust expansions for high capacity storage needs.

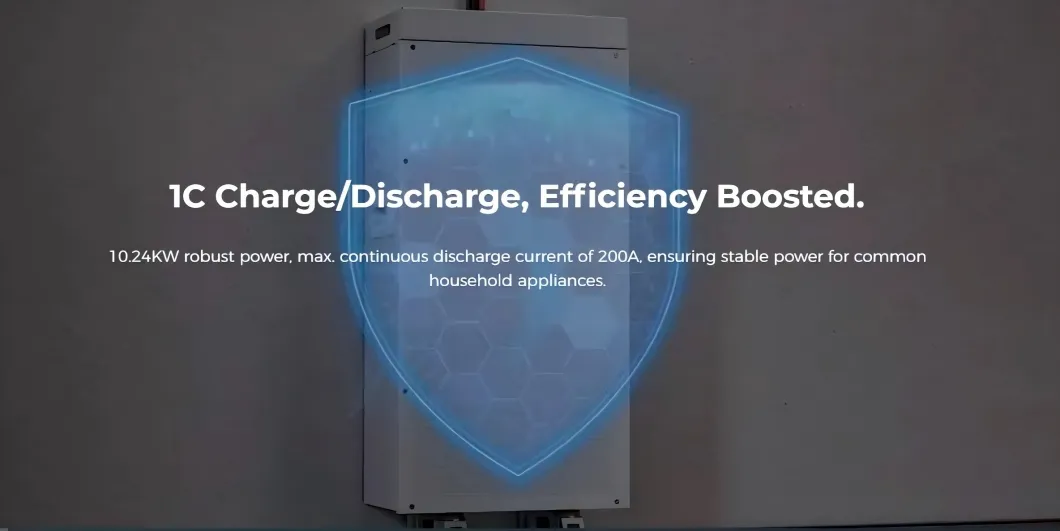

Solar Battery Inverter Compatibility list

Packaging & Shipping

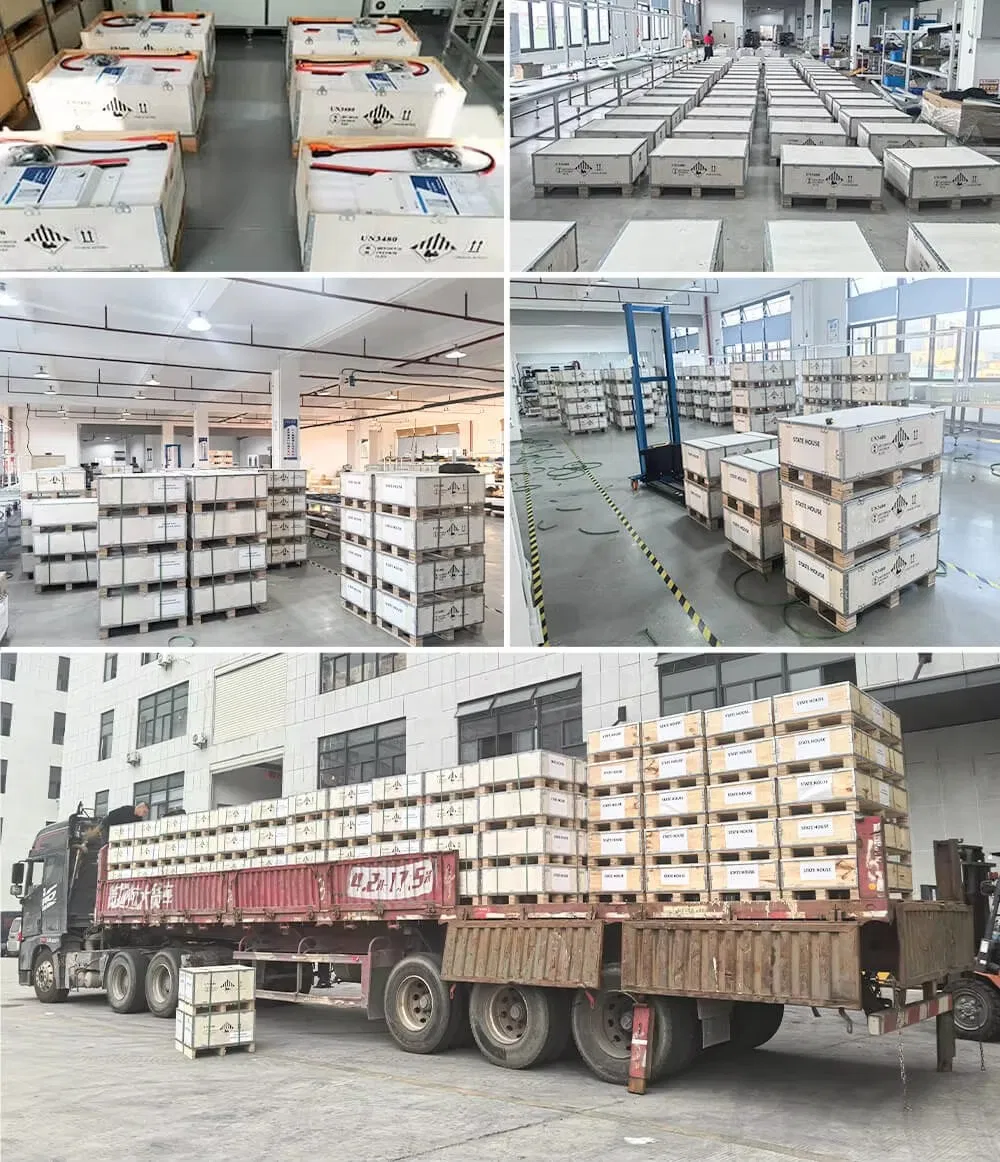

Solar Battery Safety Packaging Specification

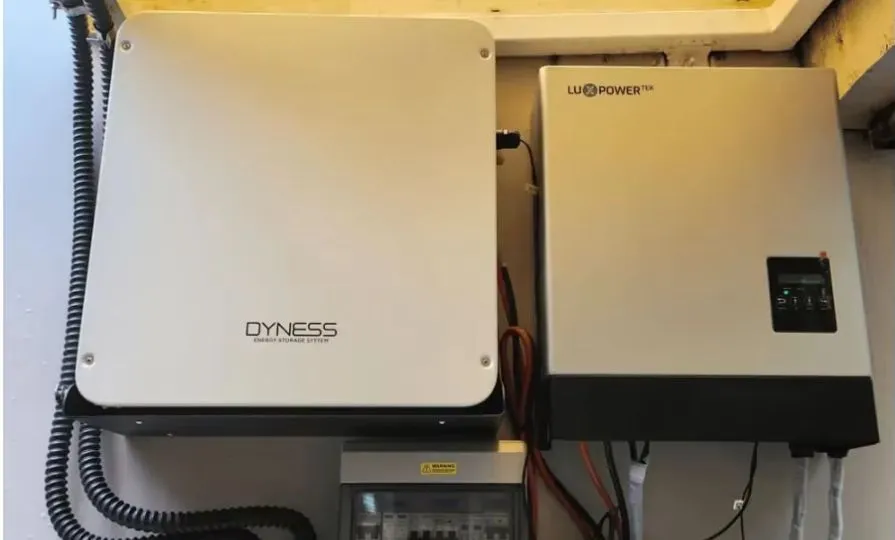

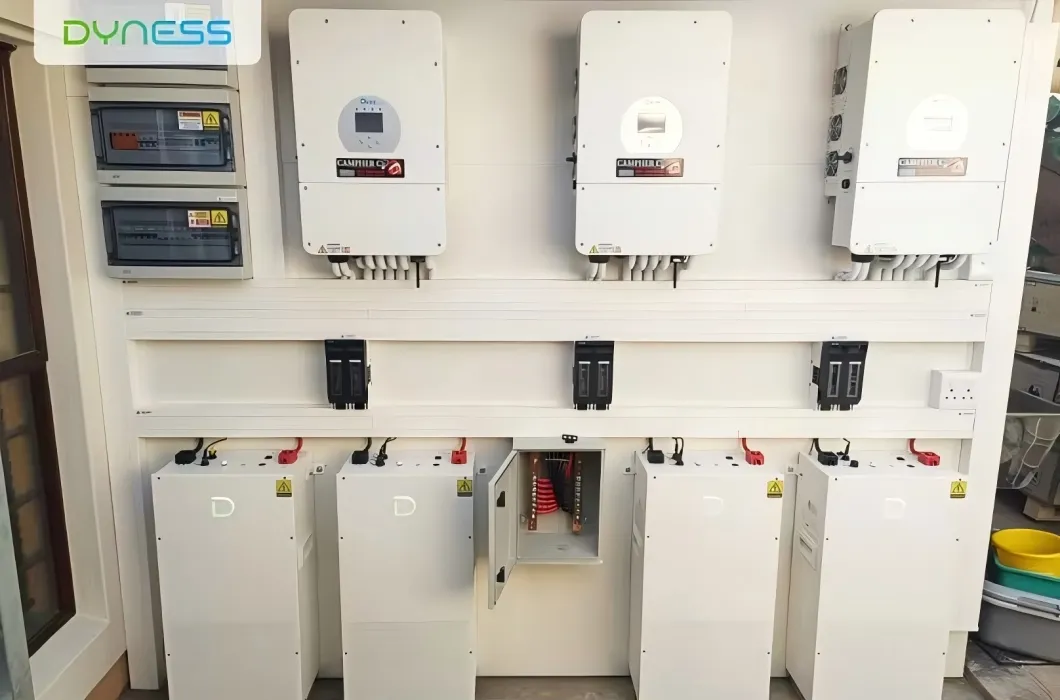

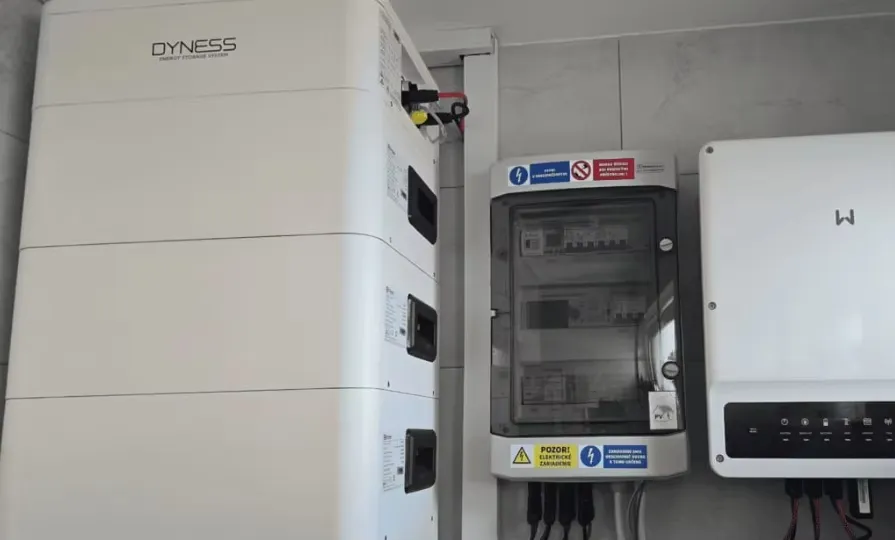

Project Cases

Profile Description

As a professional provider of smart solar solutions, we deliver PV products, applications, and services to promote global sustainable development. Through constant innovation, we continue to push the PV industry forward by creating greater grid parity of PV power and popularizing renewable energy. Our mission is to boost global renewable energy development around the world for the benefit of all of humanity.

We are pioneering development in Smart PV Energy and Energy Internet Solutions. With over 10 years of combined solar energy experience, we continue to be part of the renewable energy transition by helping you harvest clean energy at any given location in the world.

Our solar projects, in coordination with your team, follow our six-step process approach. This will guarantee the success of the installation, commissioning, maintenance, and monitoring of your photovoltaic plant.

Enterprise Manufacturing Factory Overview

Frequently Asked Questions

What is the capacity and operating voltage of the DL5.0C battery?

The DL5.0C low voltage solar battery has a nominal energy capacity of 5.12kWh and a nominal capacity of 100Ah. It operates on a nominal voltage of 51.2V, with a dynamic working voltage range between 44.8V and 57.6V.

What type of battery cell technology is used, and how long does it last?

It uses premium LiFePO4 (Lithium Iron Phosphate) chemical composition, which provides safe operation and high energy density. The cycle life is rated at more than 6,000 cycles at a 90% Depth of Discharge (DOD), promising exceptional durability and long-term home energy system performance.

Can the energy storage system be expanded for higher power needs?

Yes. The DL5.0C features highly flexible expansion scalability, allowing up to 50 battery units to be configured in parallel. This allows systems to scale effortlessly from a single 5.12kWh setup to larger residential or industrial configurations.

Which solar hybrid inverters are compatible with this low-voltage battery?

The battery is universally engineered to support a vast range of top global inverters, including SMA, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, Solplanet, Luxpower, DEYE, APsystems, and many others, via standard communication interfaces such as CAN, RS485, and RS232.

What is the working temperature range and dynamic protection of the unit?

The DL5.0C supports a discharging temperature range of -20°C to 55°C, and a charging range of 0°C to 55°C (with an integrated heating function system allowing low-temperature charging down to -20°C). It is protected up to an IP20 level, keeping internal components safe from dust and foreign particles.
