Basic Specifications
Model NO.
HTL12 Deep Cycle Gel Type
Cycles
50% Dod 1600 Cycles
Installation
Fixed / Sealed

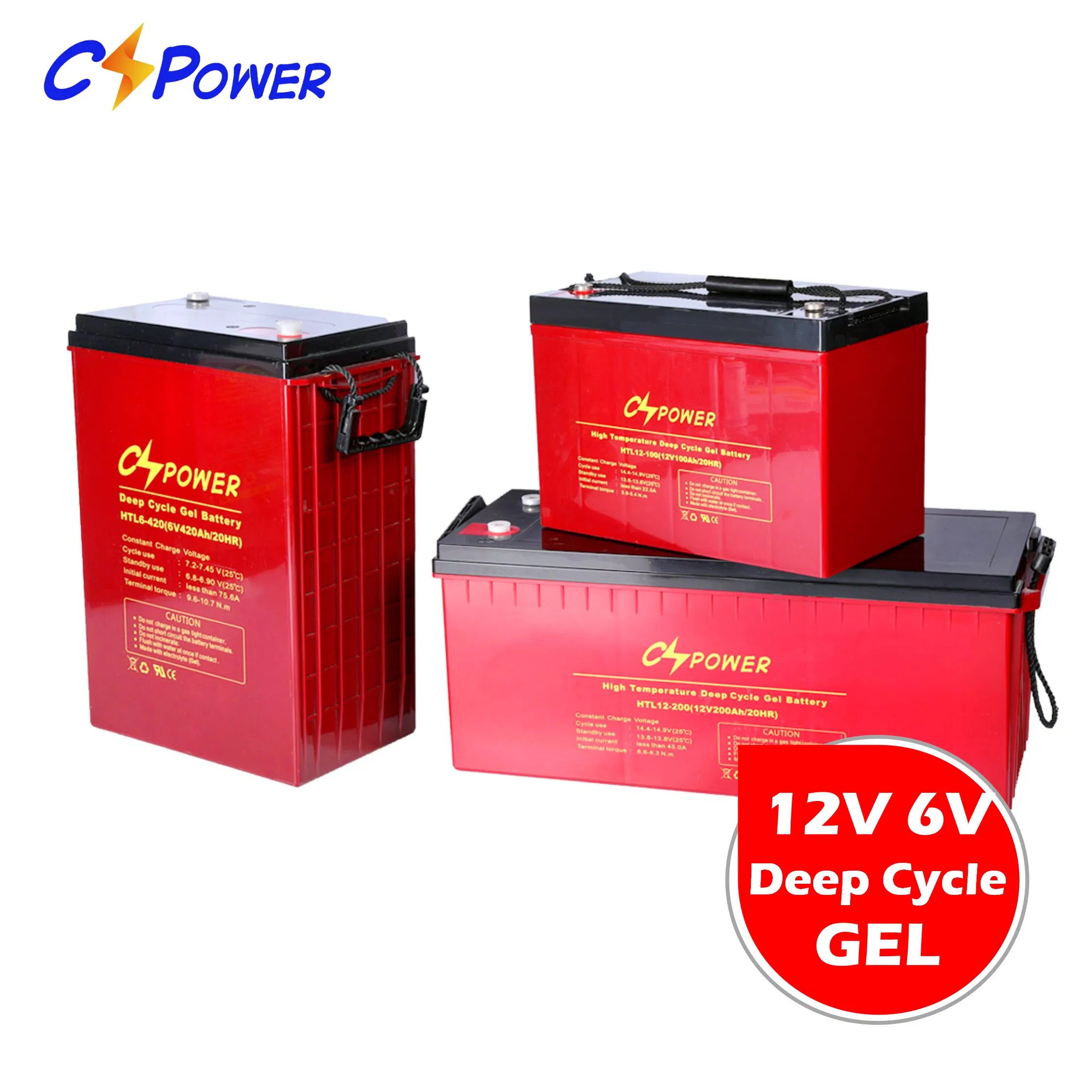

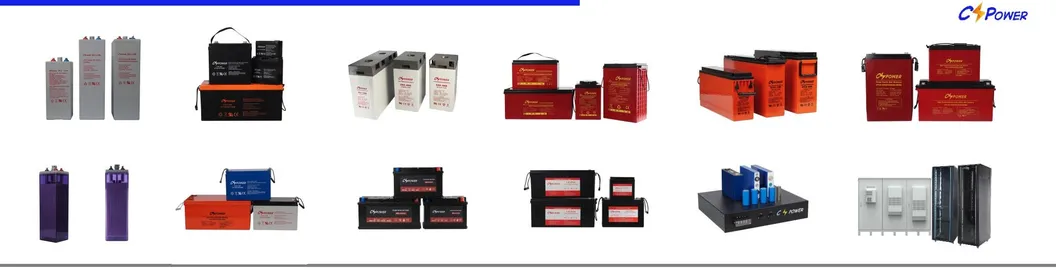

Patented High-Temp Deep Cycle Solar Gel Battery: Designed for 15-20 years of service life in hot areas.
🚀
Advanced Technical Features
✓Completely Maintenance-Free
✓Wide Temperature Range (-20°C~+60°C)
✓Explosion Proof Construction
✓Low Self Discharge Rate
✓Non-Spillable Design
✓High Discharge Rate Capability
🛠️

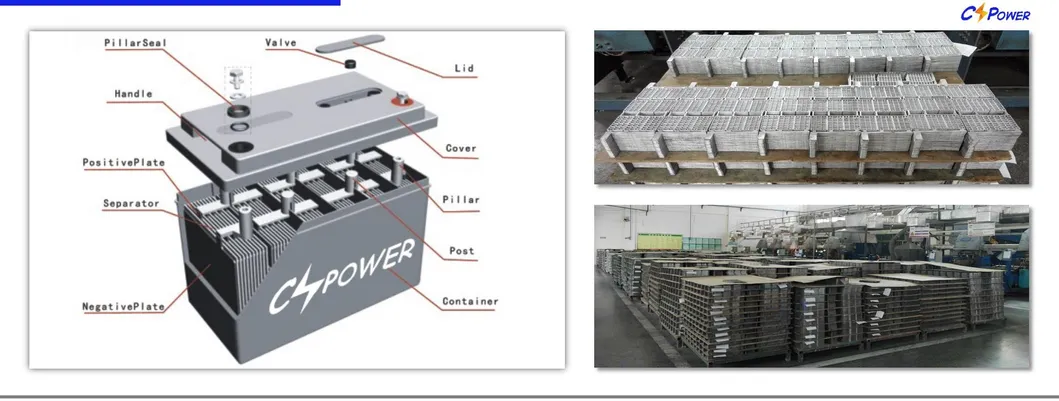

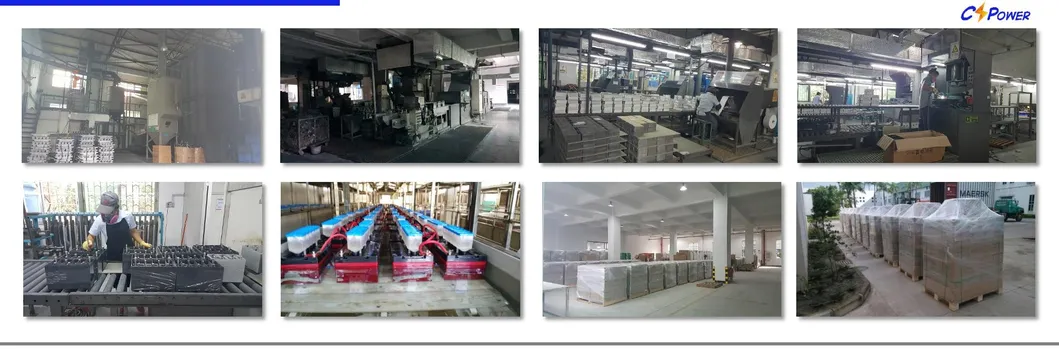

Structure & Manufacturing
📋
Model Selection List
| Model |
Voltage (V) |
Capacity (Ah) |
Length (mm) |
Width (mm) |
Total Height (mm) |
Weight (kg) |
Terminal |
| HTL12-55 | 12 | 55 | 229 | 138 | 212 | 16.3 | M6 |

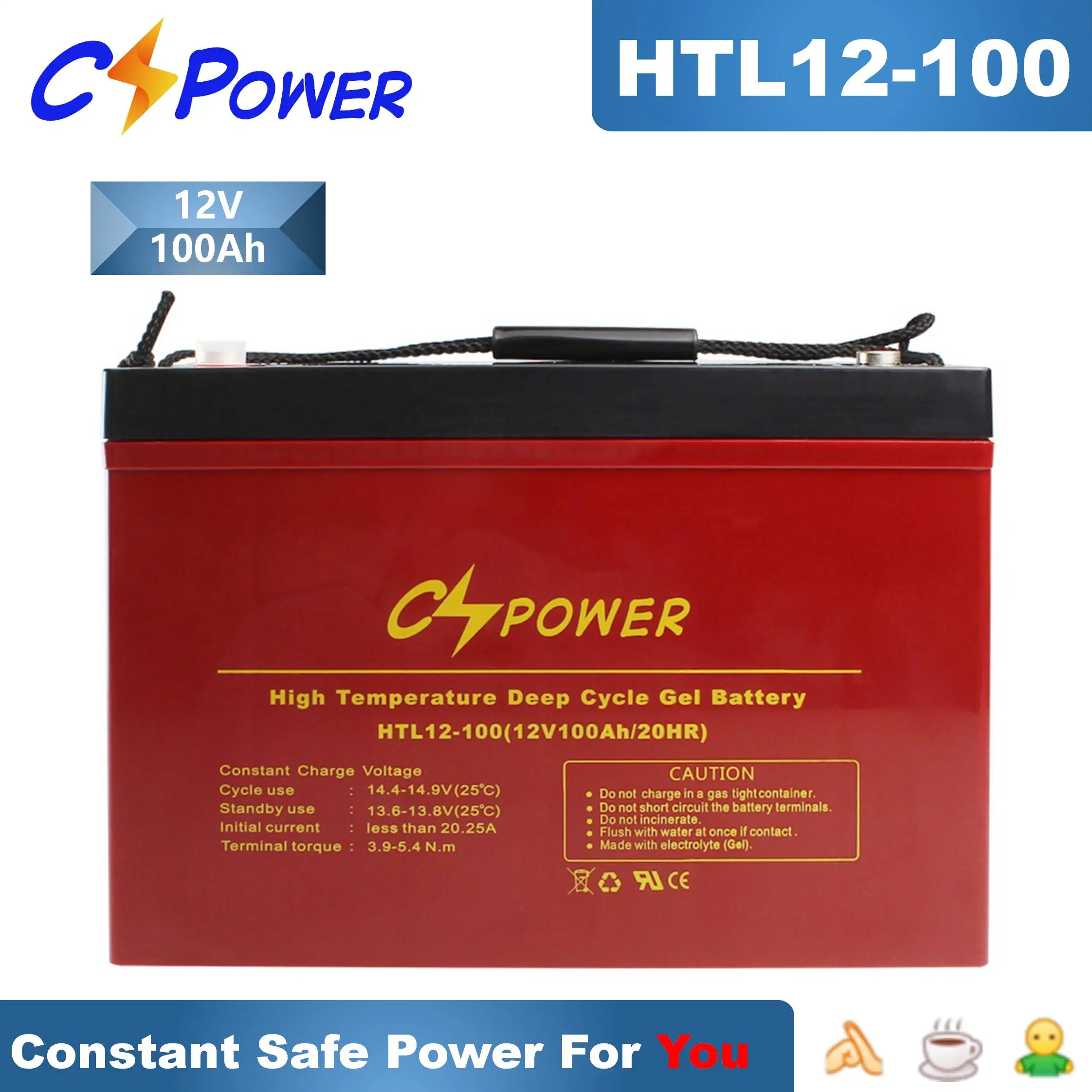

| HTL12-100 | 12 | 100 | 307 | 169 | 216 | 30.5 | M6/M8 |

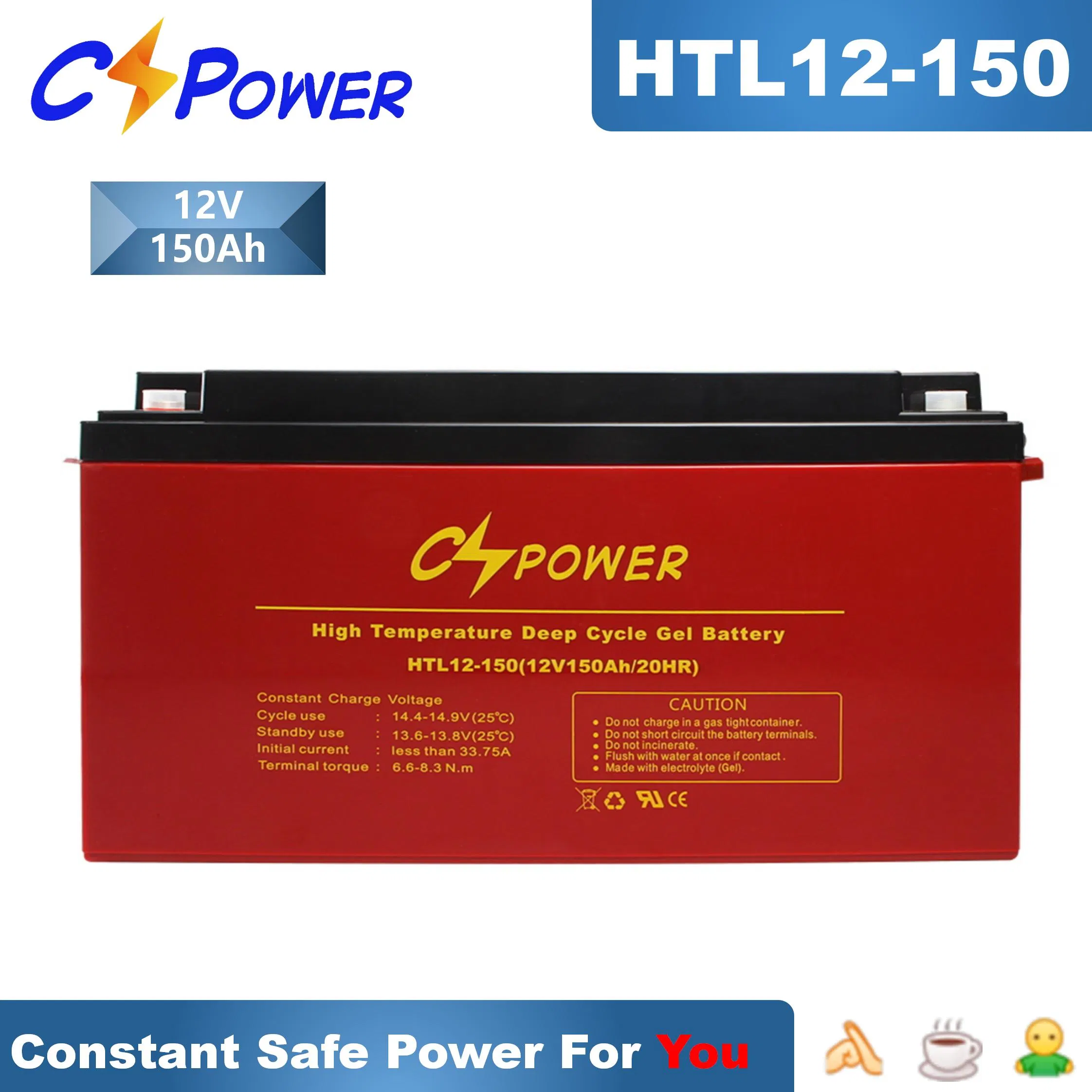

| HTL12-150 | 12 | 150 | 484 | 171 | 241 | 45.8 | M8 |

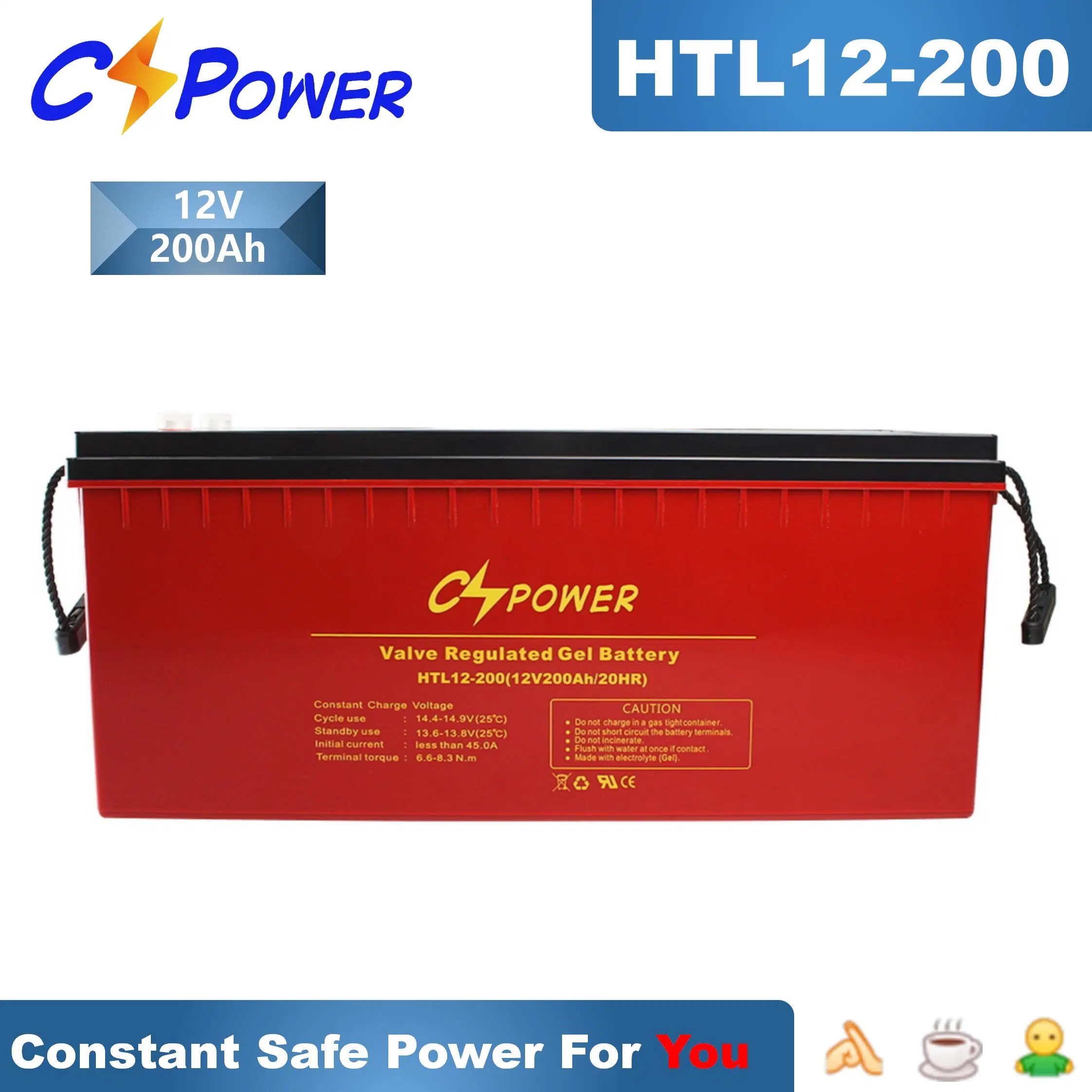

| HTL12-200 | 12 | 200 | 532 | 206 | 220 | 58.7 | M8 |
| HTL12-250 | 12 | 250 | 520 | 269 | 207 | 71.3 | M8 |
| HTL12-300 | 12 | 300 | 520 | 268 | 226 | 77.3 | M8 |
🌍

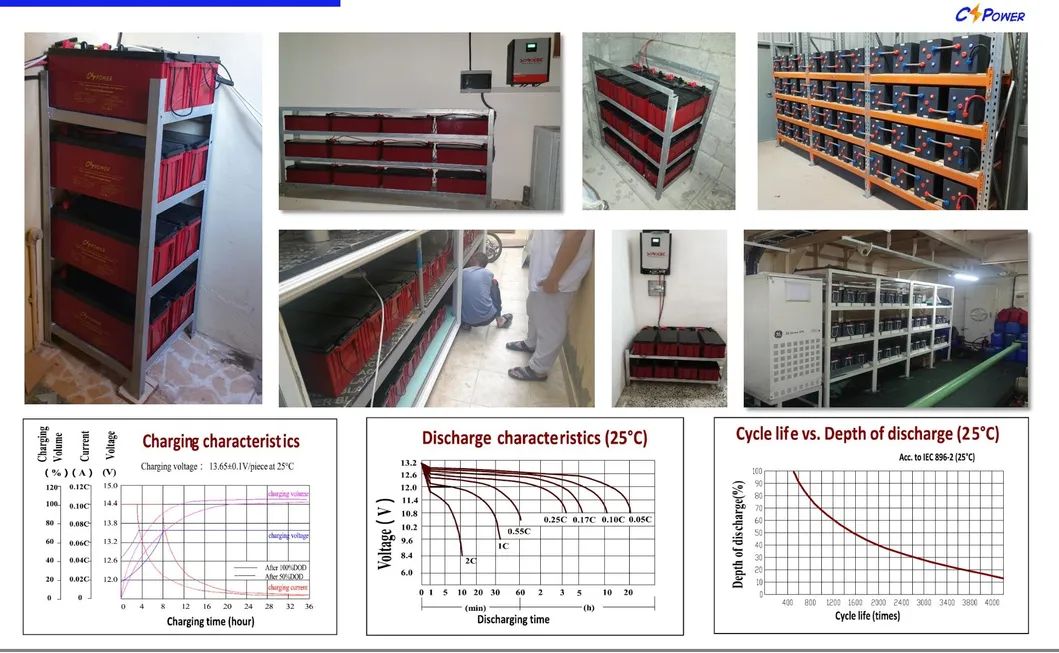

Applications & Projects
📦

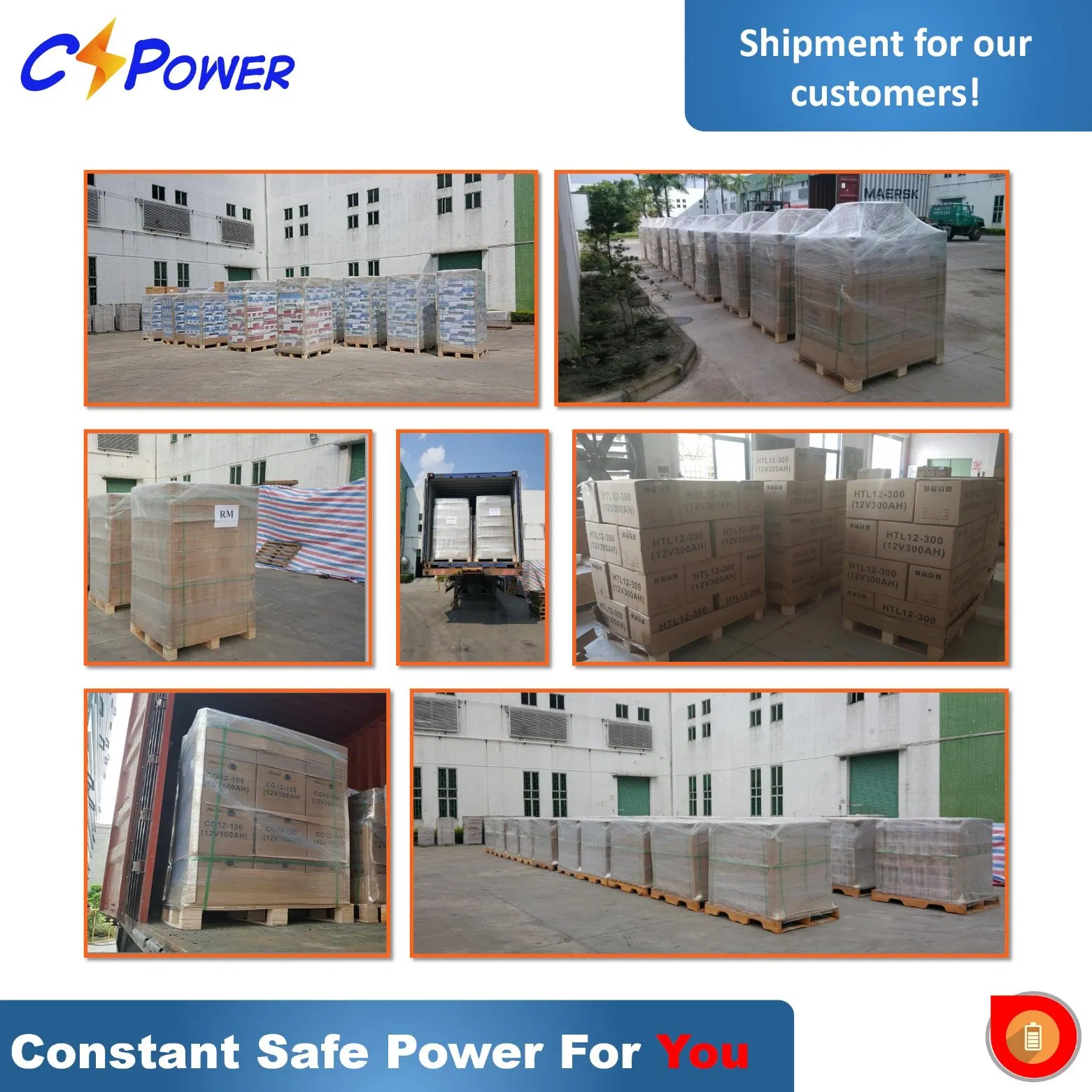

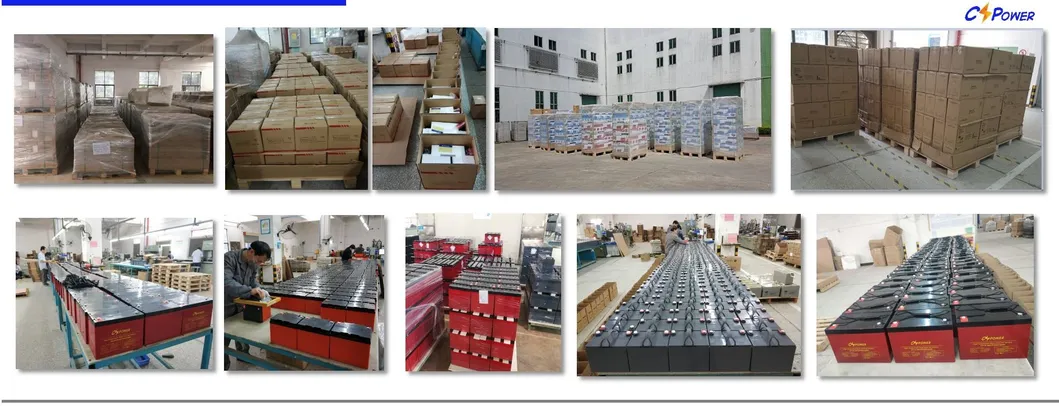

Packaging & Delivery
Package Size
31.50cm * 19.80cm * 43.00cm
Transport
Carton and Pallet (Sea/Air compliant)
❓
Frequently Asked Questions
Can these batteries be delivered by sea and air?
Yes, our batteries are compliant for both sea and air transport. We provide MSDS and test reports for safe handling as non-dangerous products.
What is the expected delivery time?
Typically, stock items take 7 days, while half-container orders take 20 days and full 20ft containers take around 30 days.
Is fast charging recommended for Gel batteries?
Fast charging is generally not recommended as it can be harmful to the internal chemistry and reduce the battery's lifespan.
How do I maintain the battery during long-term storage?
Batteries should be recharged every 6 months at 25°C. In hotter climates, we recommend recharging every 3 months to prevent deep discharge.
Why does the capacity vary with different discharge rates?
Battery capacity is dynamic. A lower discharge current (e.g., a 20-hr rate) allows the battery to deliver more total Amp-hours than a high discharge current.
Can I perform a partial replacement of a battery bank?
No, partial replacement of lead-acid battery banks is not recommended as it causes imbalance and premature failure of the new units.
