Suntherra Battery
1 / 5

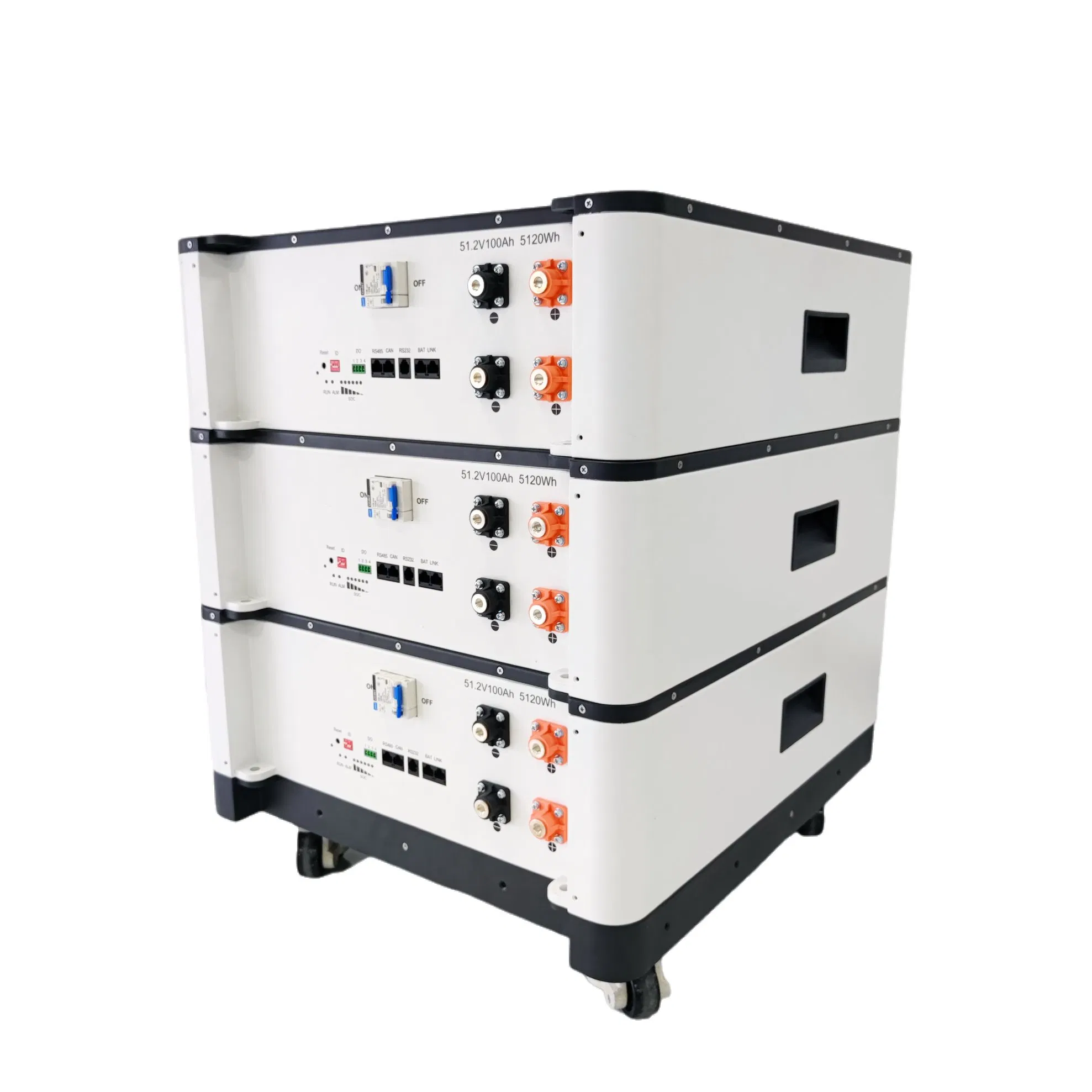

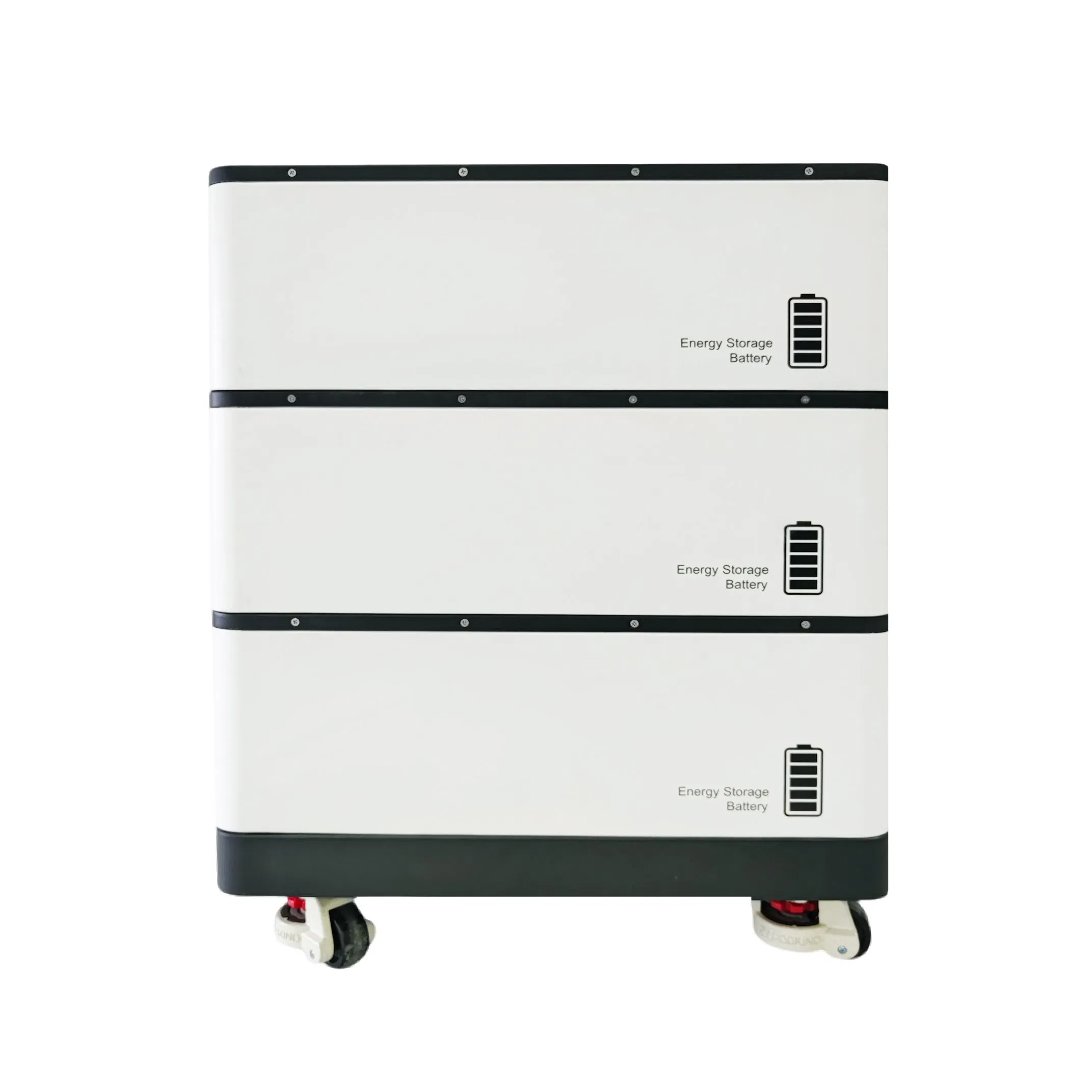

| Structure Parameters | INVERTER + 3 Batteries | INVERTER + 4 Batteries | INVERTER + 5 Batteries | INVERTER + 6 Batteries |
|---|---|---|---|---|
| Type | 5KW/15.36kWh AC | 5KW/20.48kWh AC | 5KW/25.6kWh AC | 5KW/30.72kWh AC |
| Battery Units | 3 | 4 | 5 | 6 |
| Inverter Units | 1 | 1 | 1 | 1 |
| Base Units | 1 | 1 | 1 | 1 |
| Off-Grid Inverter Specifications | ||||
| Rated Output Power | 5KW | |||
| Maximum Peak Power | 10KVA | |||
| Power Factor | 1 | |||
| Rated Output Voltage (Vac) | 230Vac | 120Vac | ||
| Frequency | 50Hz | 60Hz | ||
| Auto Switch Period | <15ms | |||
| Maximum AC Charge Power | 3150W | 2100W | ||
| AC Charging Current Range | 0~60A | 0~40A | ||
| Input Voltage Range | 90~280Vac | 90~140Vac | ||
| Rated Output Power (DC/AC) | 5KW | |||
| Maximum Output Current | 30A | |||
| Output Frequency | 50Hz | 60Hz | ||
| Overload Current | 35A | 55A | ||
| Solar Charge Type | MPPT | |||
| Maximum PV Array Power | 5KW | |||
| PV Charging Current Range | 0~80A | |||
| MPPT Voltage Range | 120~450V | |||
| Battery Parameters | ||||
| Capacity | 15.36kWh | 20.48kWh | 25.60kWh | 30.72kWh |
| Battery Voltage / Range | 46.7-57V | |||
| Maximum Charging Power | 5000W | |||
| Maximum Charging Current | 60A | |||
| Maximum Discharging Power | 5000W | |||
| Maximum Discharging Current | 100A | |||
| Physical & Environmental Parameters | ||||
| Dimension LxDxH | 600*540*740mm | 600*540*920mm | 600*540*1100mm | 600*540*1280mm |
| Weight | 161kg | 204kg | 247kg | 290kg |
| Operation Humidity | 5%~85% | |||
| Operating Temperature Range | -15ºC~55ºC | |||
| Nominal Operation Altitude | <2000m | |||
| Ingress Protection Rating | IP20 | |||
| Noise | <60dB | |||

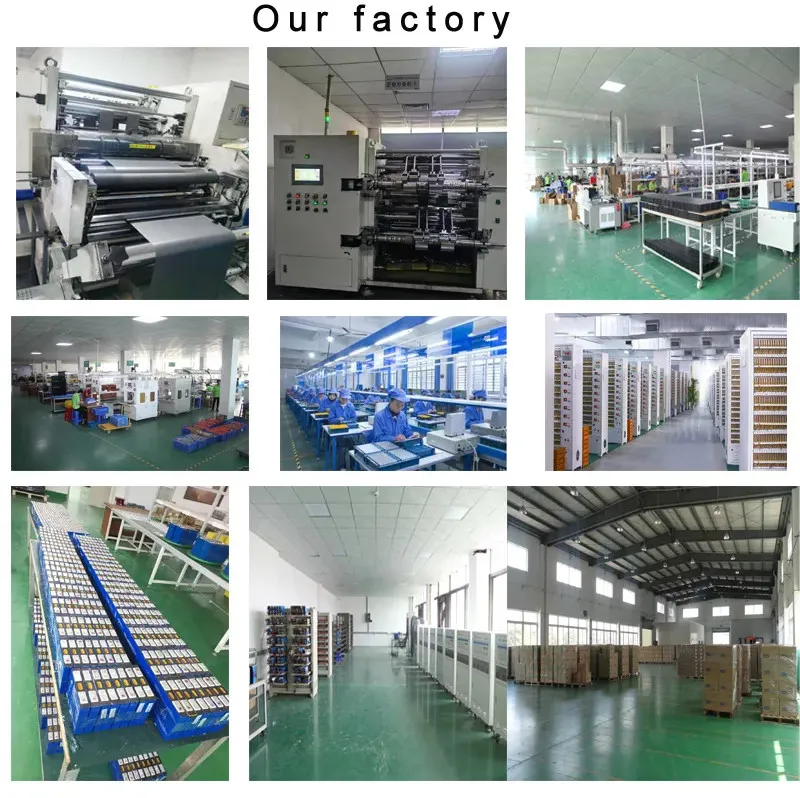

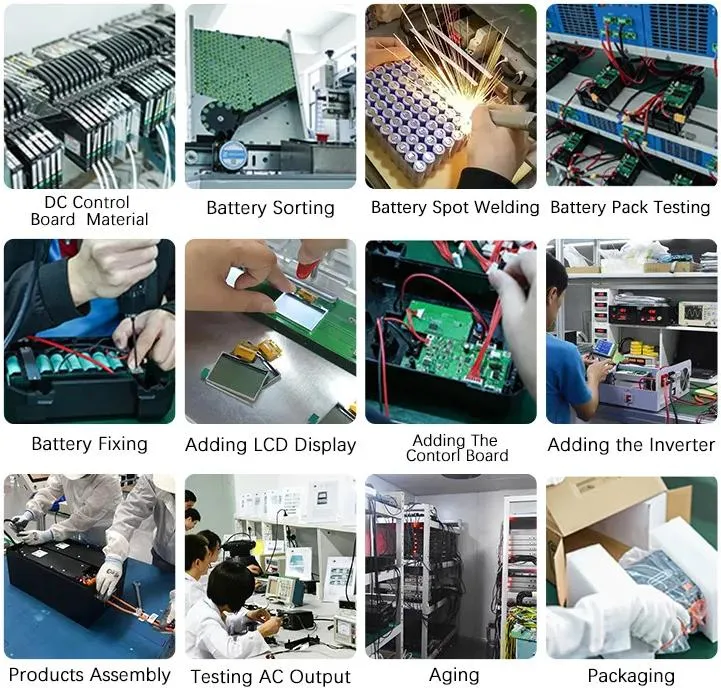

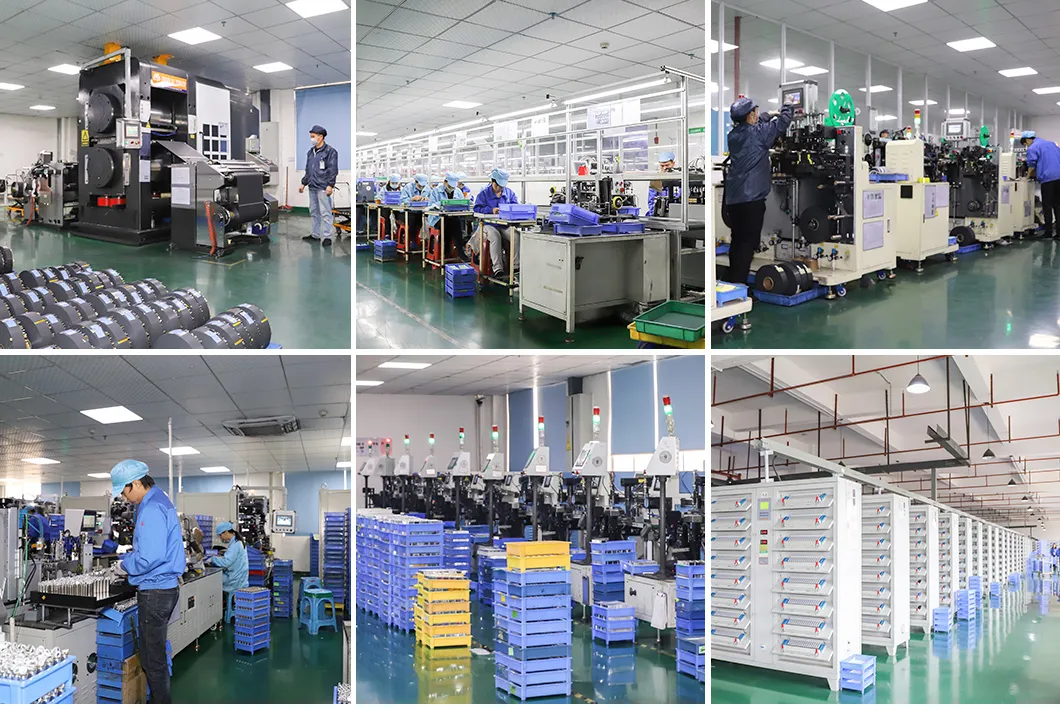

Our facility is a leading new energy technology enterprise integrating R&D, production, and sales, formally established in 2008. We are dedicated to pioneering high-performance lithium battery systems, supported by a strong team of over 100 dedicated R&D experts. The self-developed power battery delivers unmatched safety, reliable high power output, excellent environmental resilience, and an exceptionally long service life, receiving high praise worldwide.
